2005 Caterpillar IT14G For Sale in Toronto, On

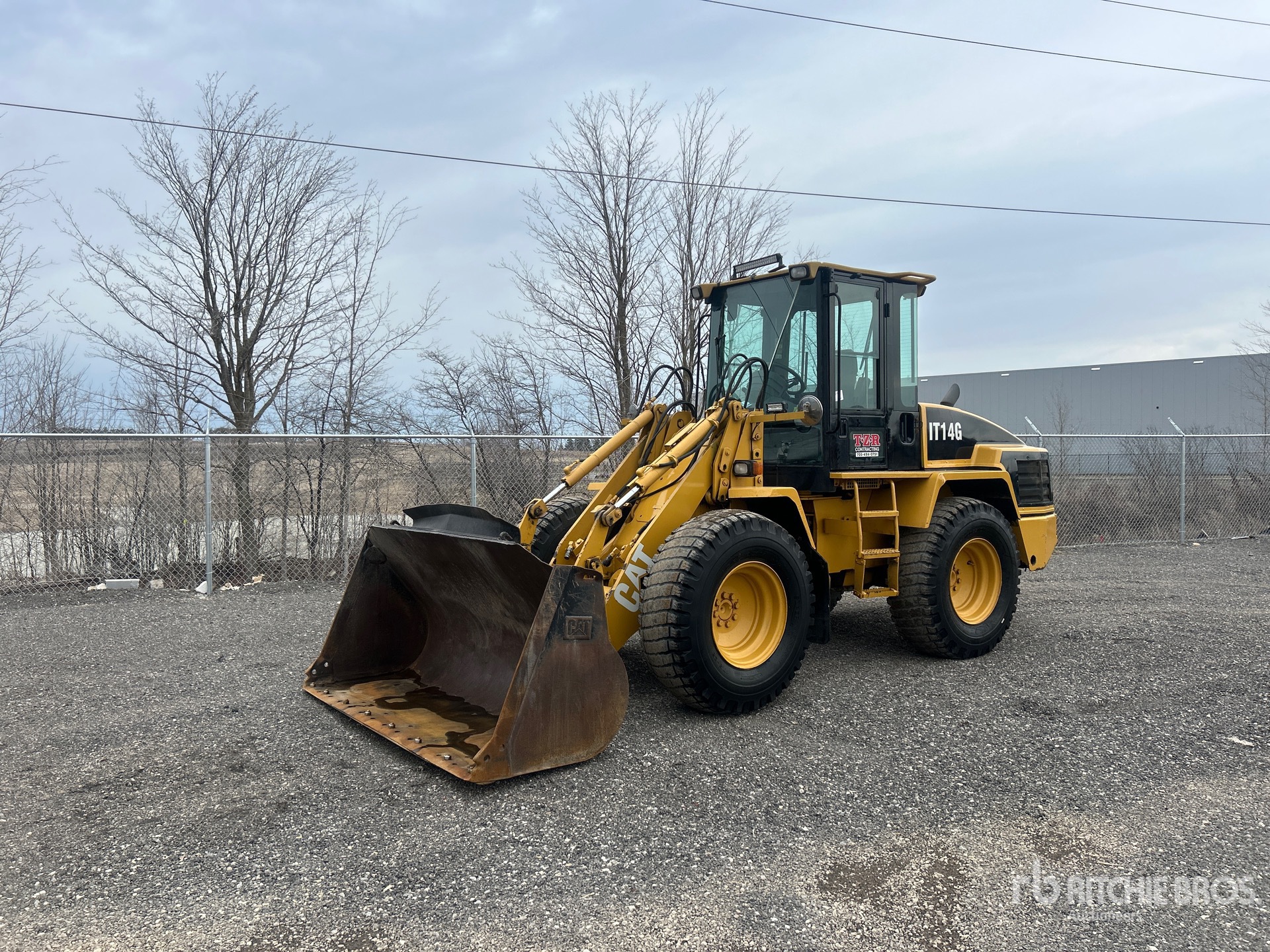

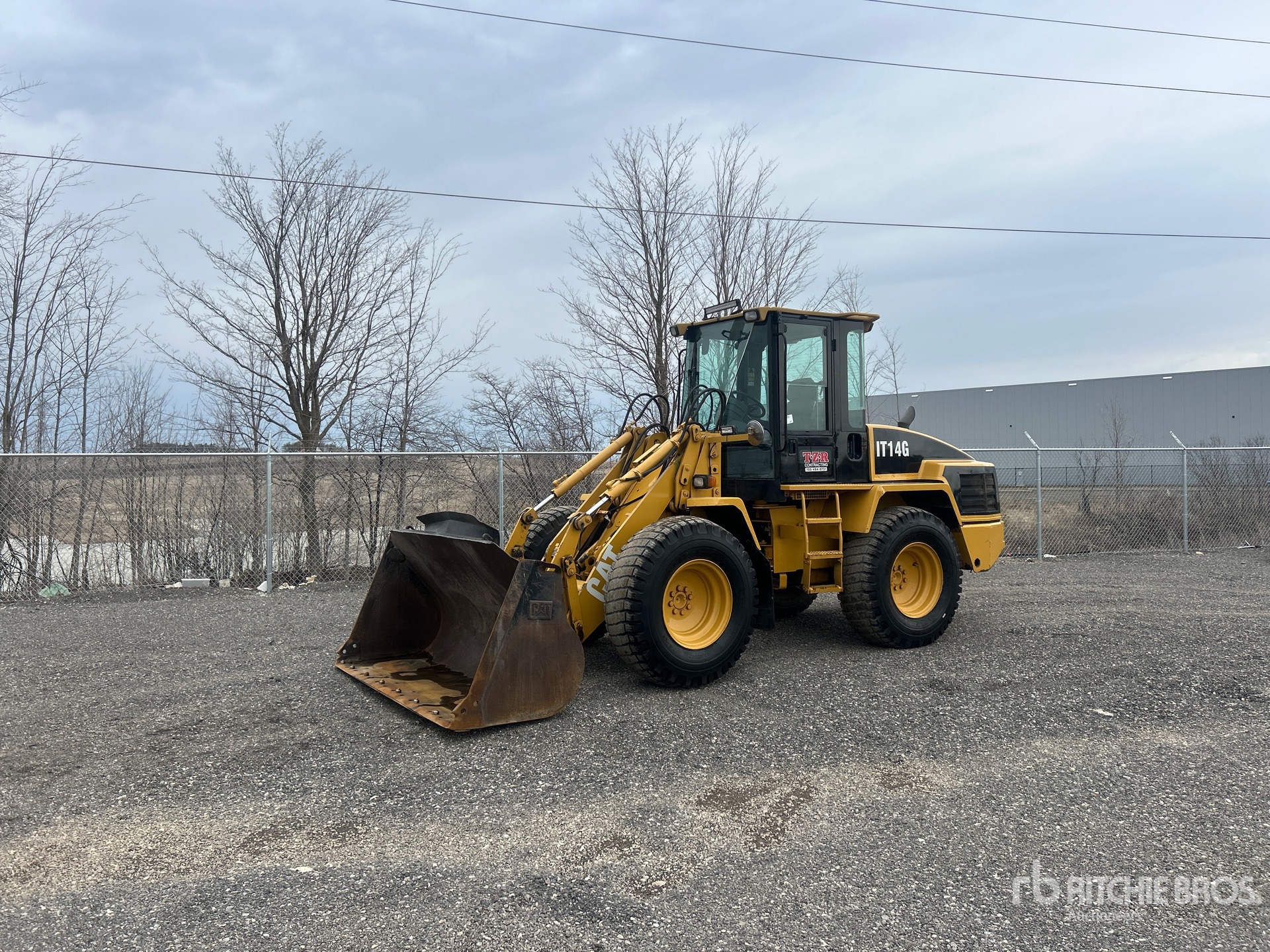

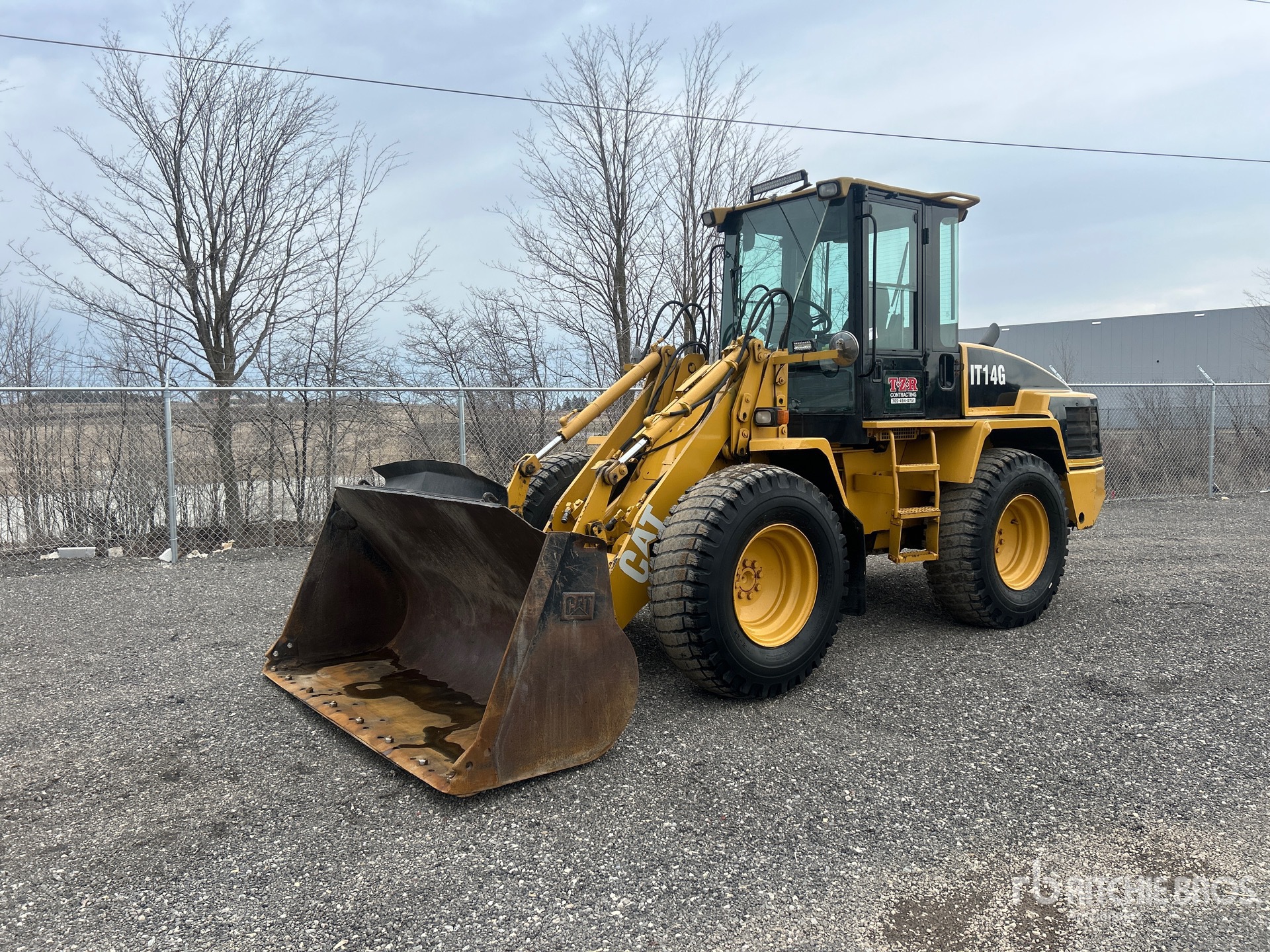

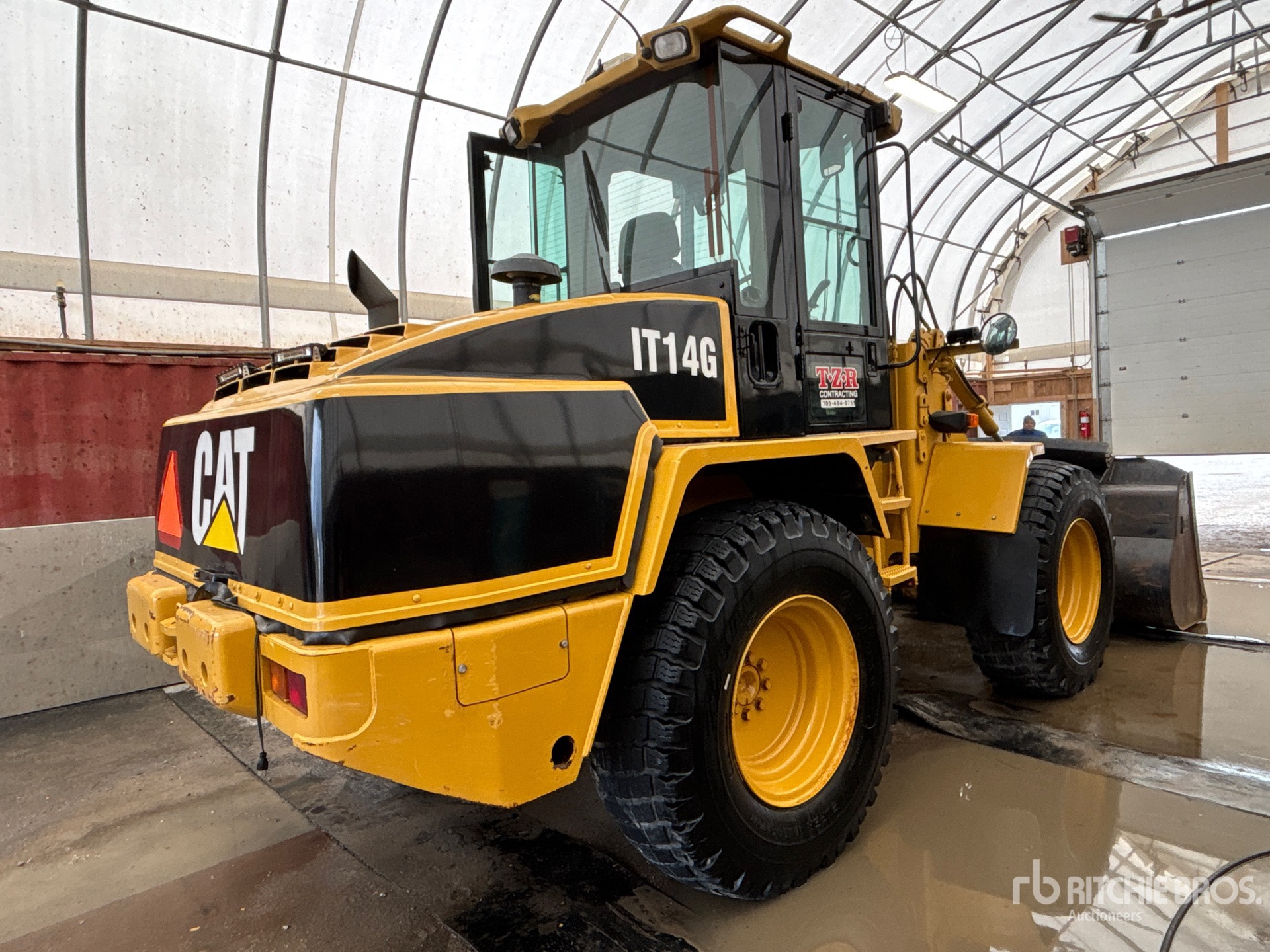

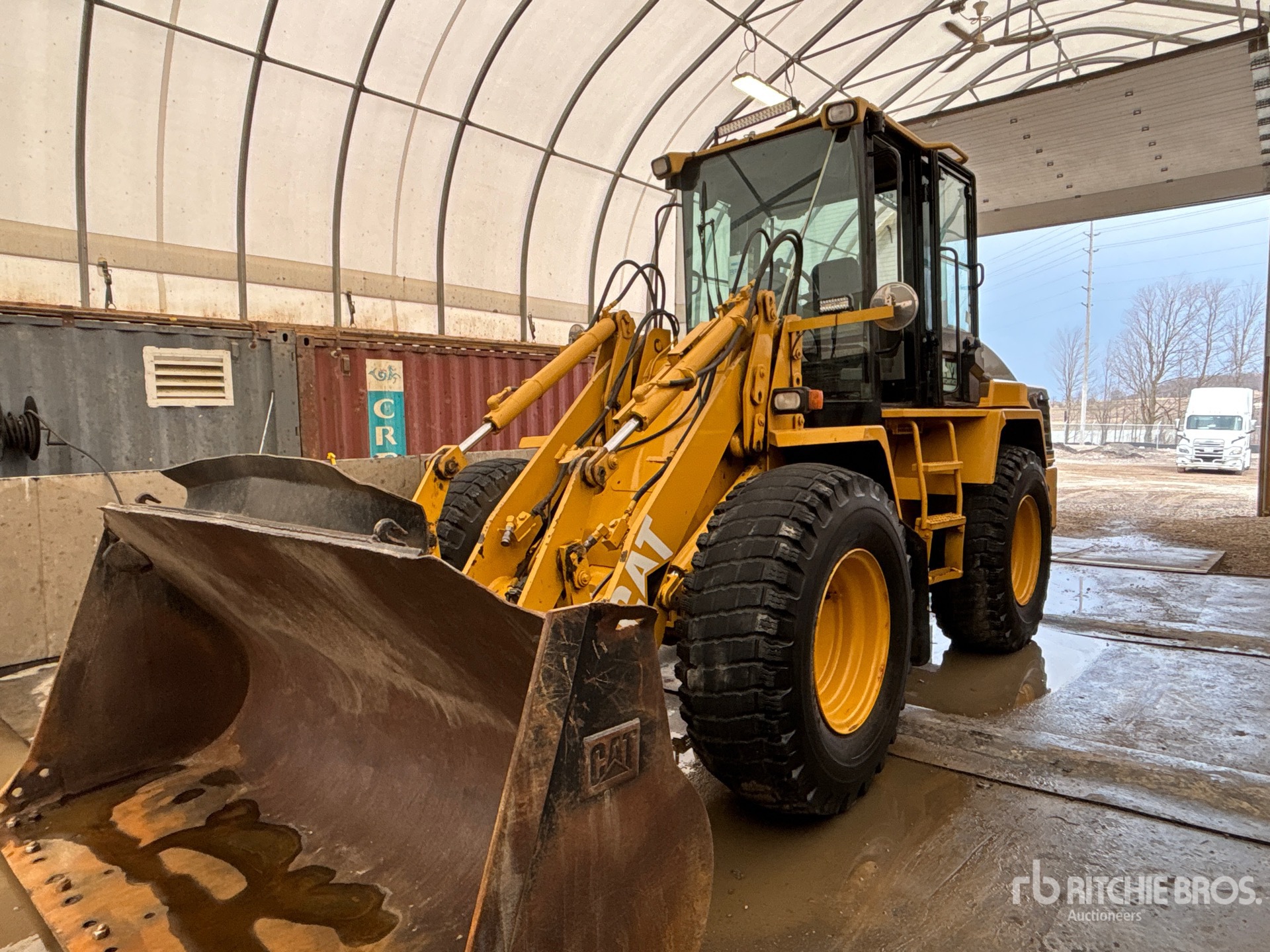

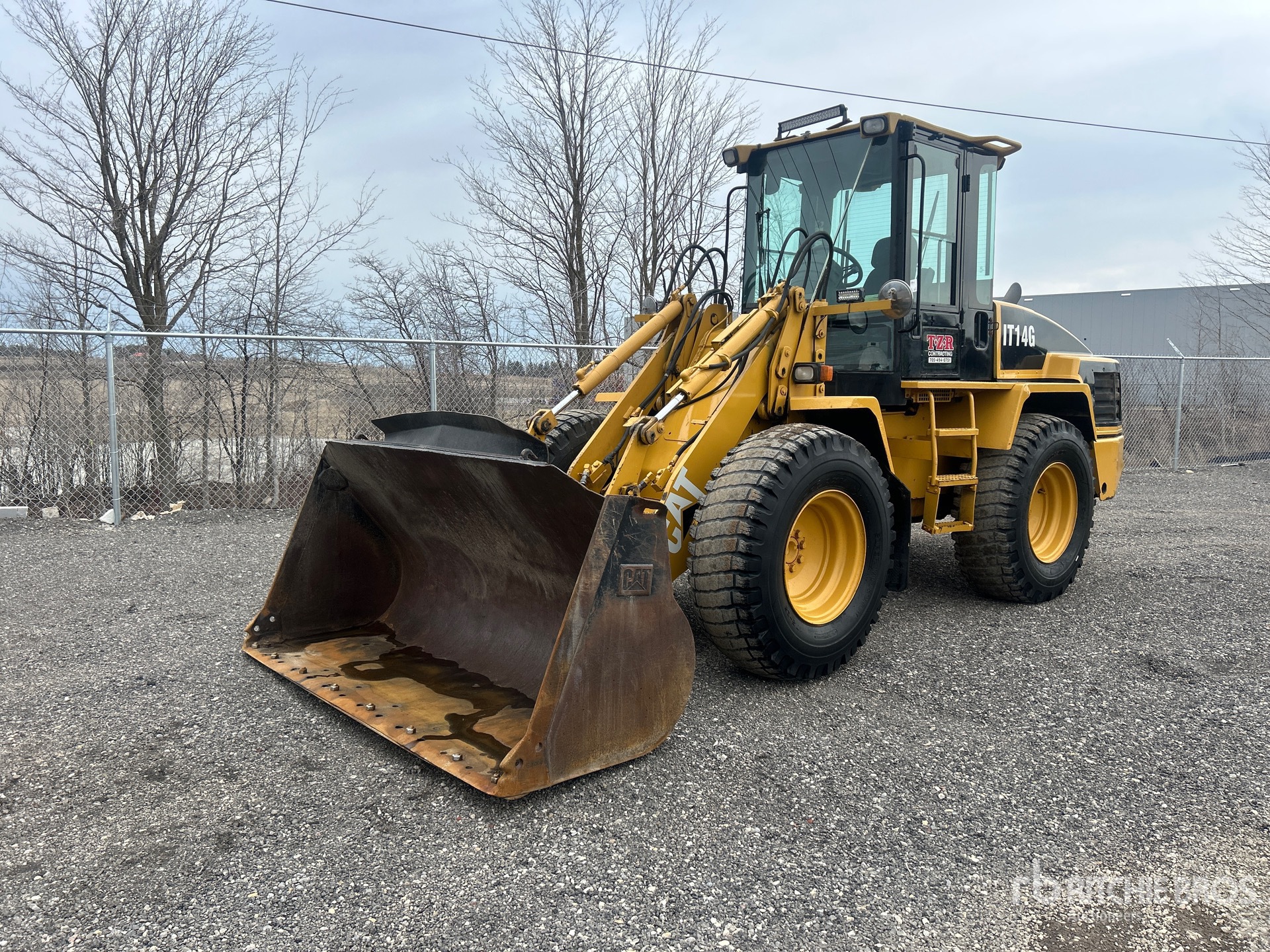

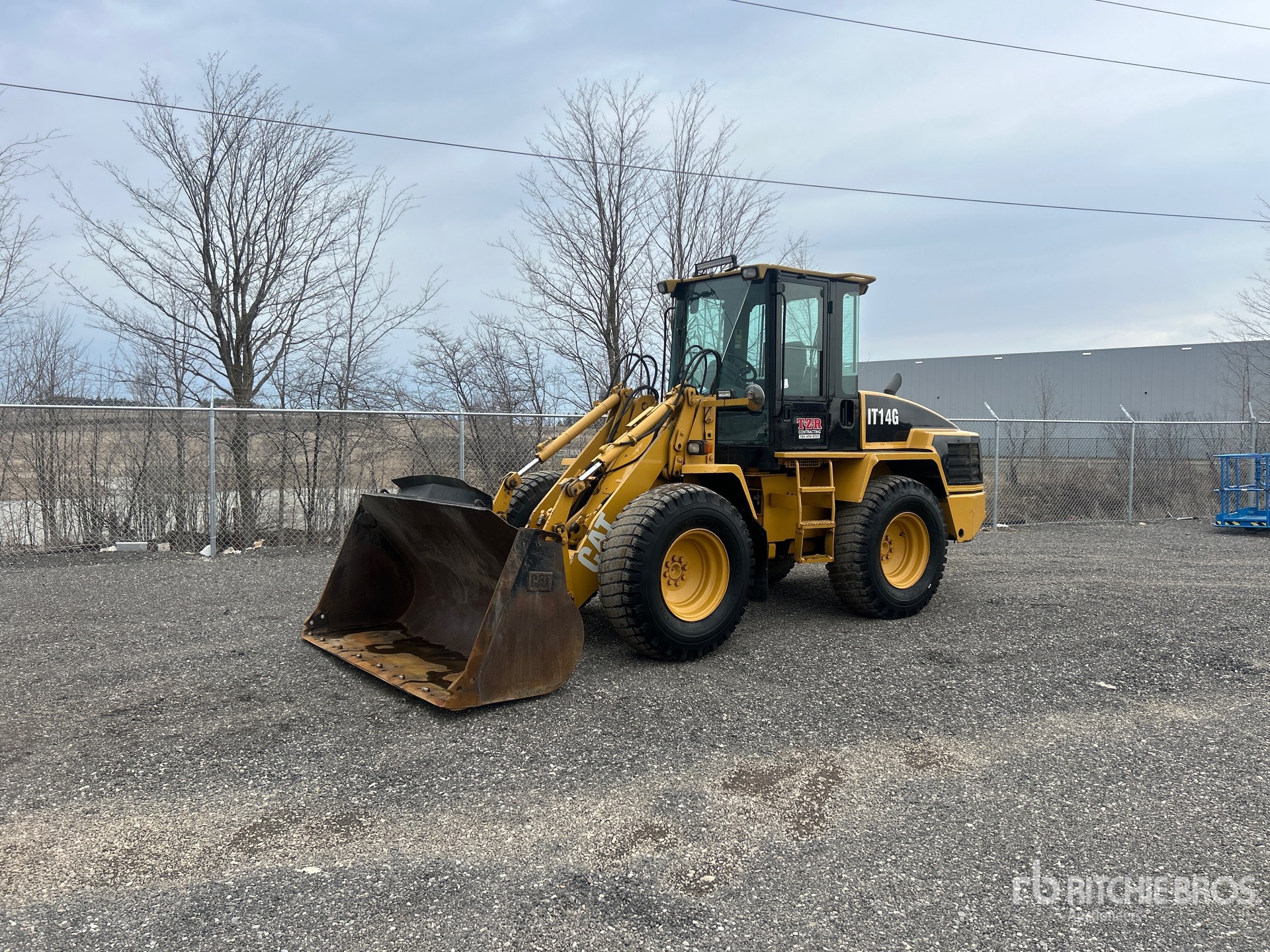

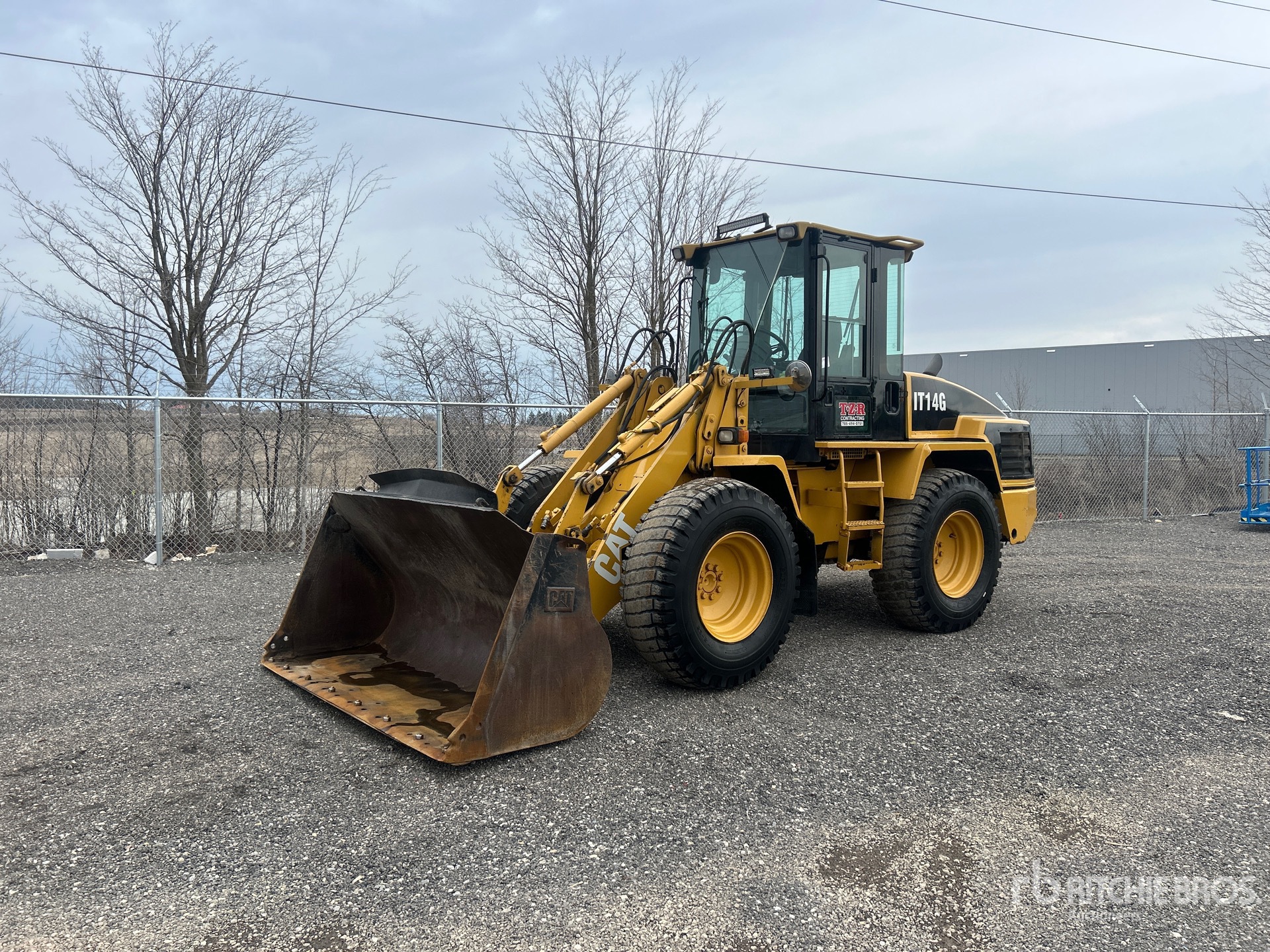

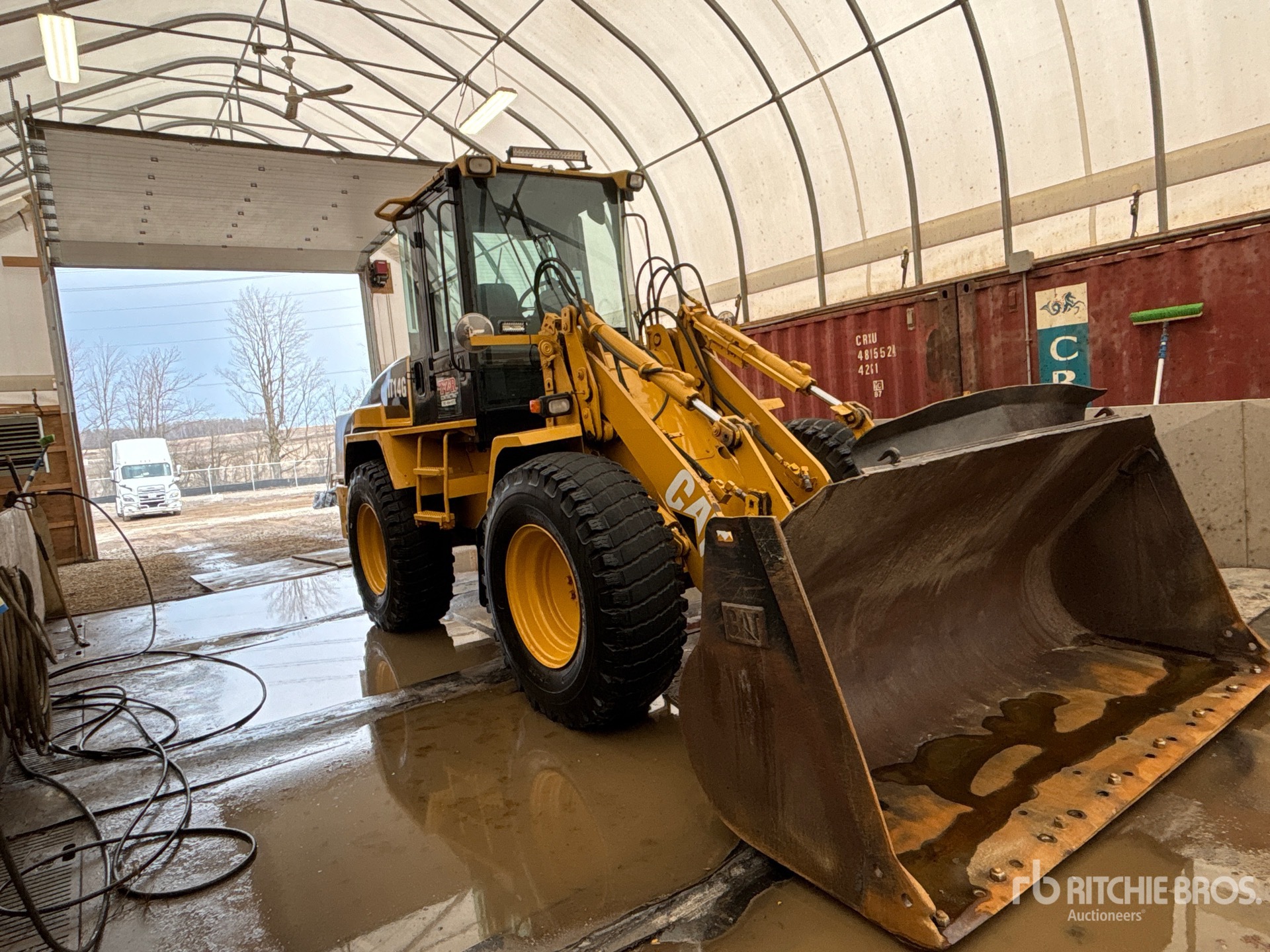

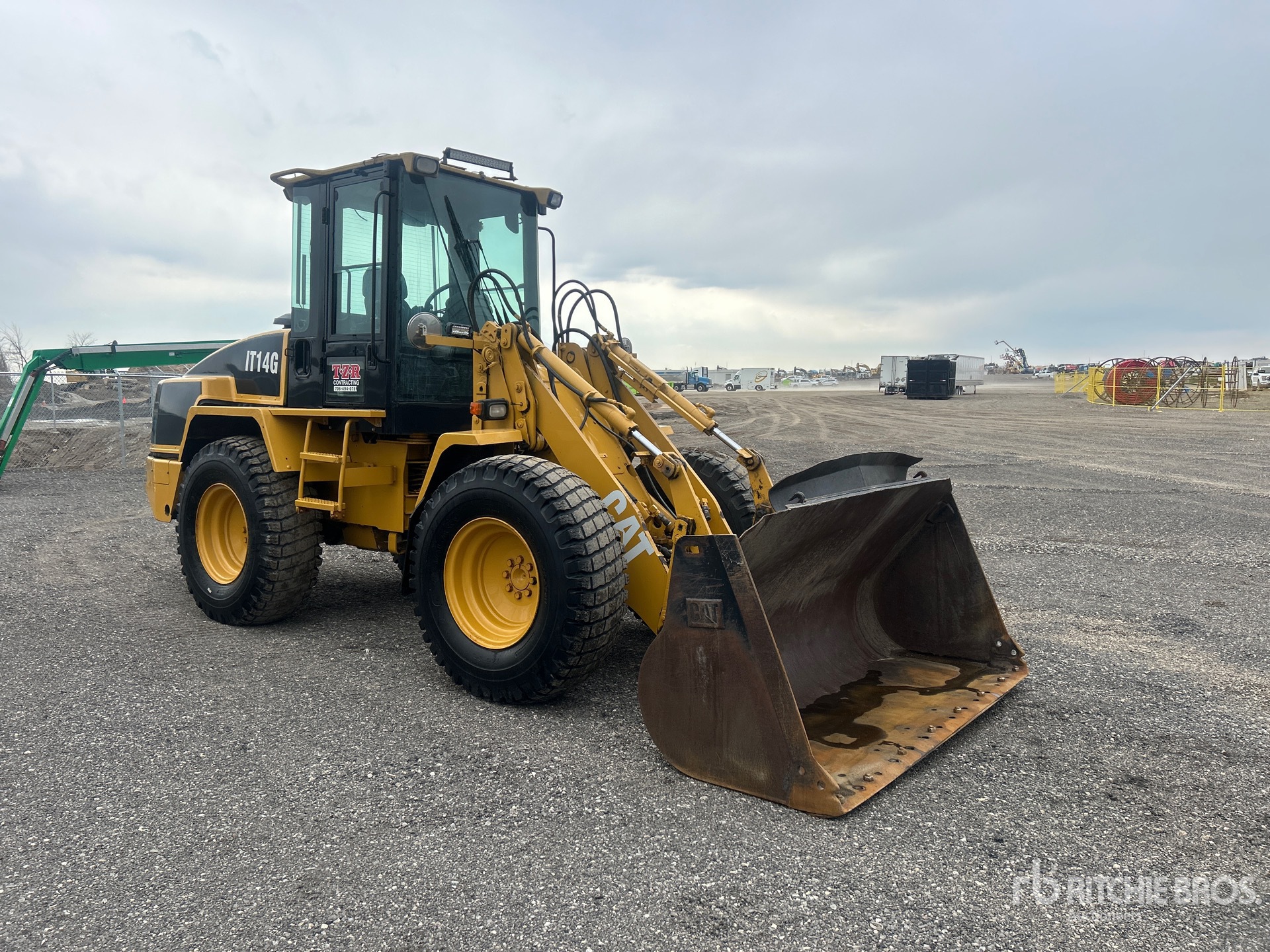

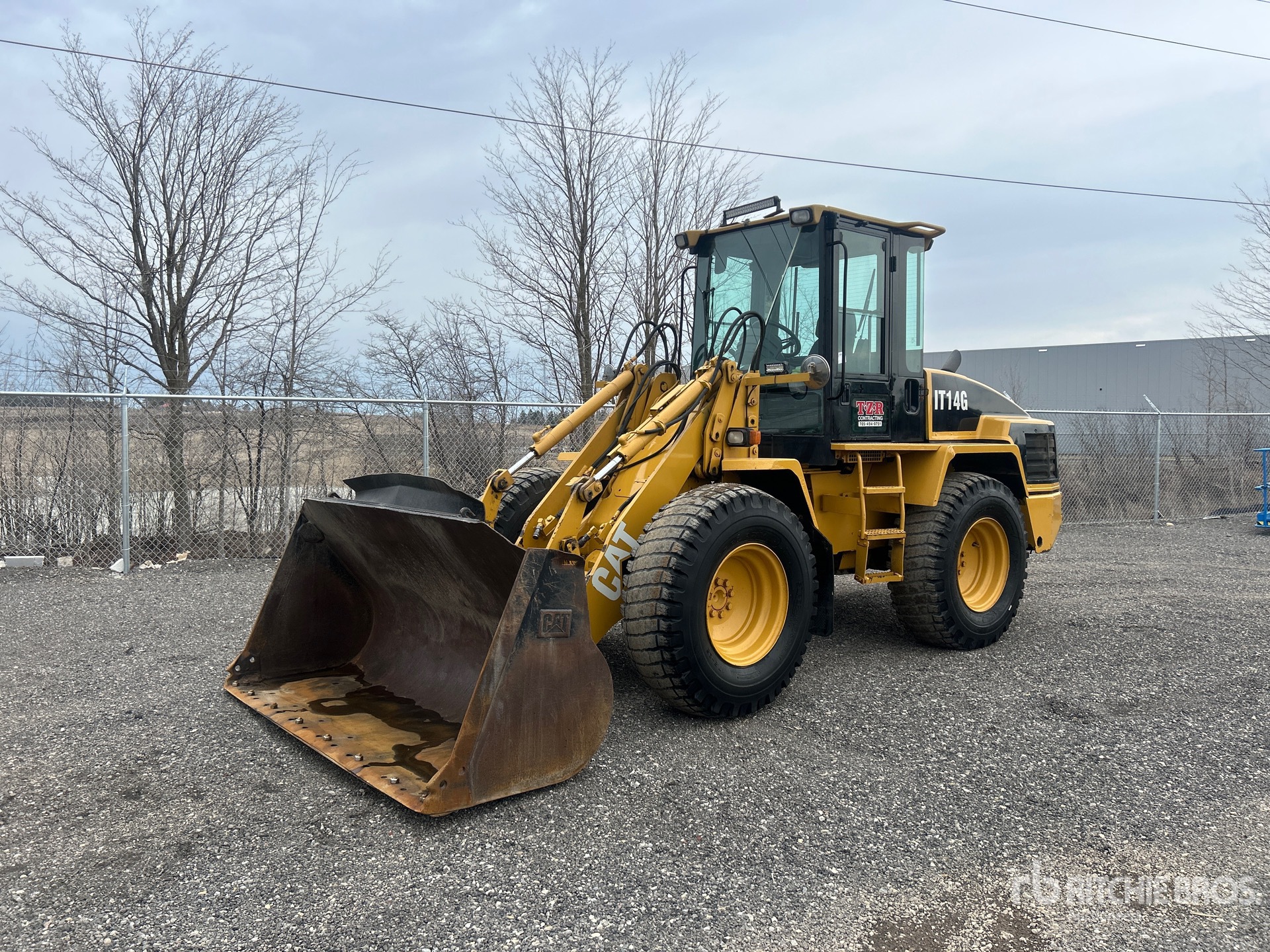

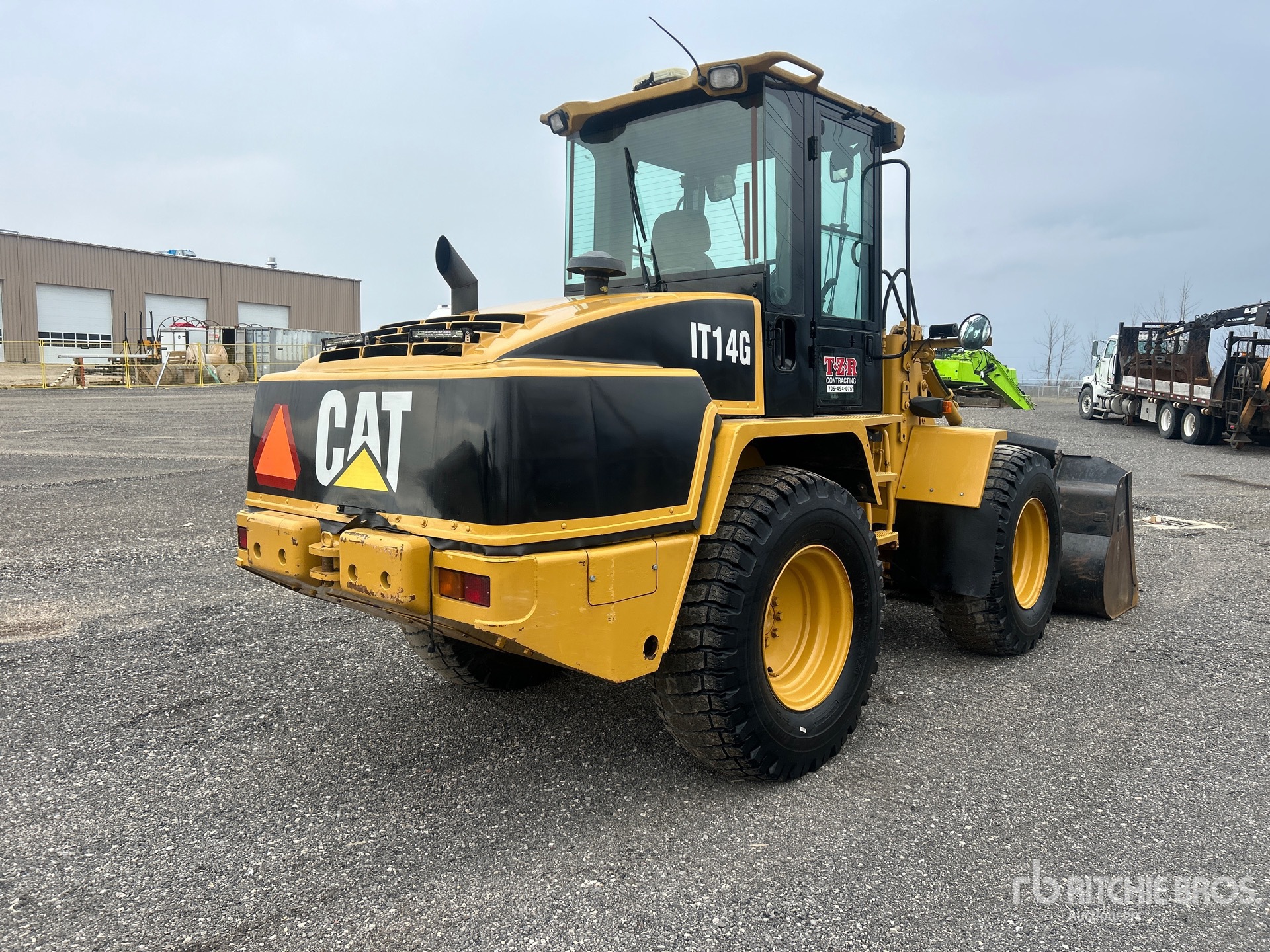

Name: 2005 Caterpillar IT14G
Brand: Caterpillar
SKU: 86784916
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-20 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

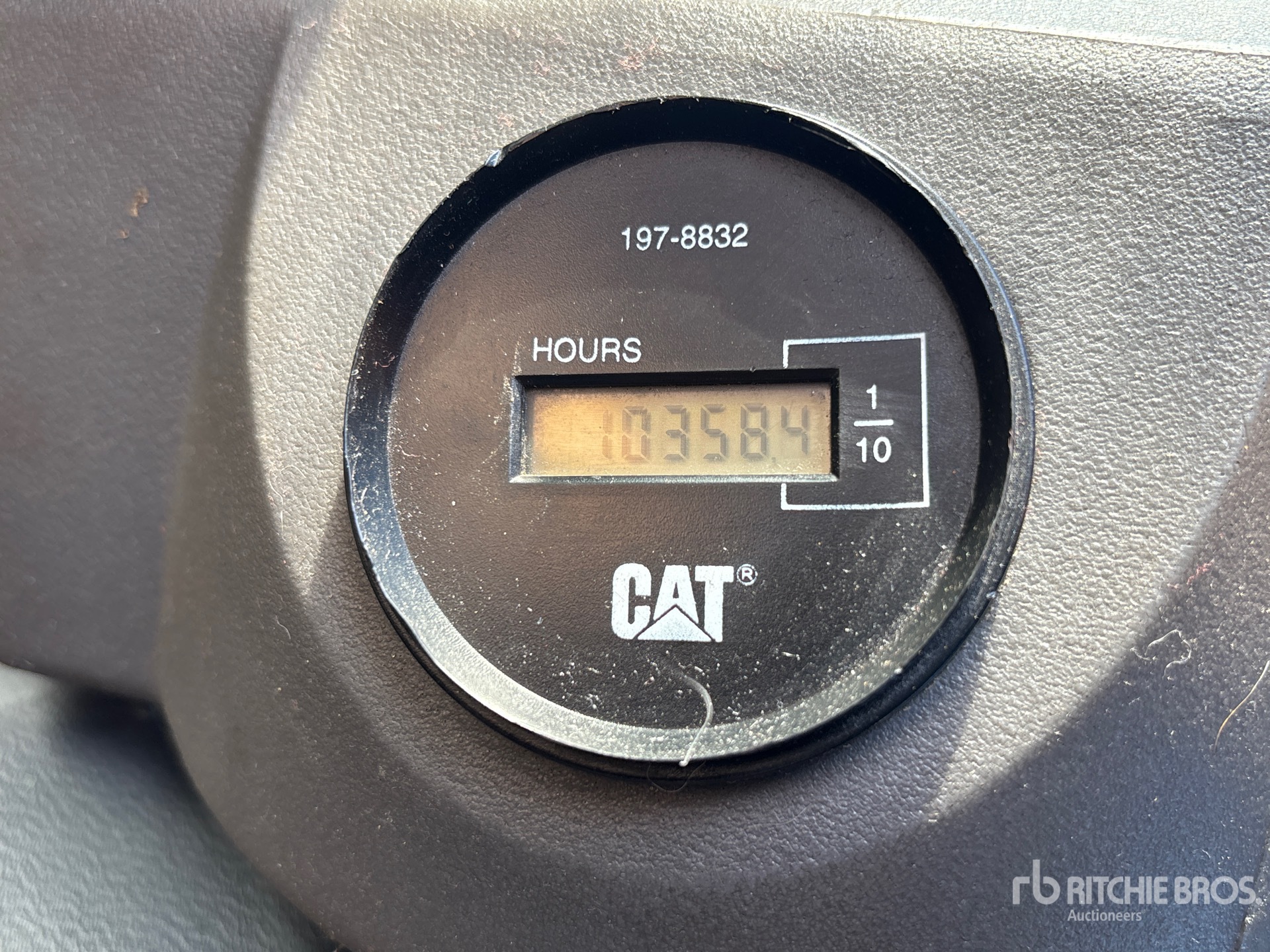

Hours:	10358

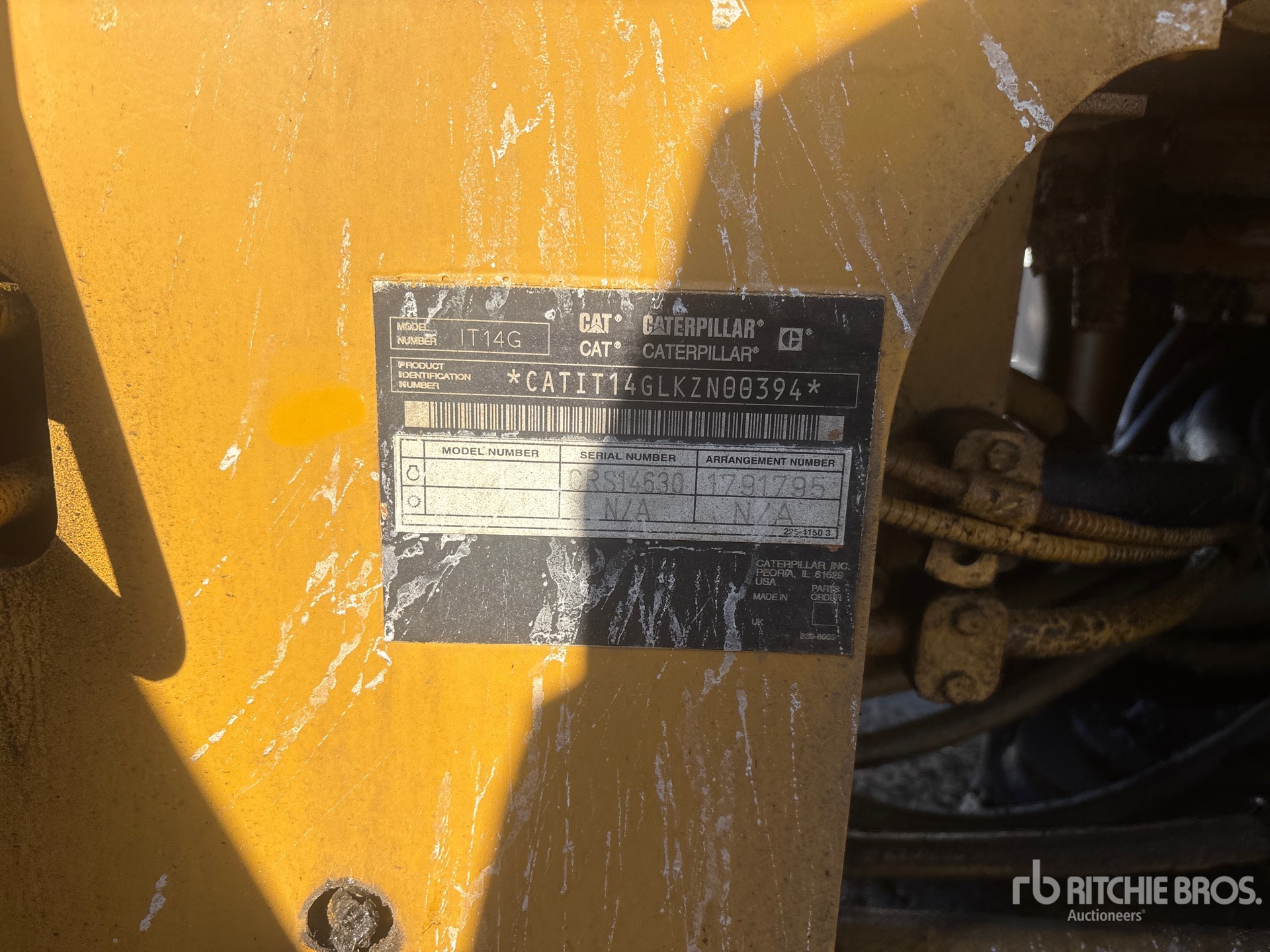

Serial Number:	CATIT14GLKZN00394
Machine Location:	TORONTO, ON

Description:

Enclosed Cab, Air Conditioner, Auxiliary Hydraulics, Hydraulic Coupler, 99 in Bucket, 17.5-25 Tires

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar IT14G is a compact wheel loader designed for material handling, loading, and general construction applications. As part of Caterpillar's integrated toolcarrier lineup, the IT14G combines loader performance with attachment versatility for use in aggregate yards, landscaping, municipal work, agriculture, and light industrial sites. It features articulated steering, a quick coupler system, and compatibility with a range of buckets and work tools. The IT14G is built for maneuverability, operator visibility, and efficient cycle times in confined work areas. Its wheel loader configuration supports reliable loading, stockpiling, and transport tasks across varied jobsite conditions.

Bucket
Breakout Force	17,342 lbs (7,866 kg)
Bucket Capacity - heaped	2 cu yd (1 cu m)
Bucket Capacity - struck	1 cu yd (1 cu m)
Dimensions
Dump Clearance at Max Lift	10 ft (3 m)
Fork Tine Length	4 ft (1 m)
Ground Clearance	2 ft (0 m)
Height - Top of Cab	10 ft (3 m)
Hinge Pin Max Height	13 ft (4 m)
Hook Height at Max Lift - extended	22 ft (7 m)
Hook Height at Max Lift - standard	17 ft (5 m)
Hook Reach at Max Lift - extended	8 ft (3 m)
Hook Reach at Max Lift - standard	5 ft (1 m)
Length w/ Bucket on Ground	21 ft (6 m)
Length with out Forks on Ground	22 ft (7 m)
Max Lift Height	12 ft (4 m)
Reach at Max Height and Dump	3 ft (1 m)
Wheelbase	9 ft (3 m)
Width Over Tires	8 ft (2 m)
Engine
Displacement	268 cu in (4,392 cu cm)
Engine Model	3054C DIT
Gross Power	101 hp (75 kw)
Net Power	95 hp (71 kw)
Hydraulic System
Dump Time	3 seconds
Lower Time	3 seconds
Pump Flow Capacity	24 gpm (90 lpm)
Pump Type	Gear
Raise Time	7 seconds
Relief Valve Setting	3,560 psi
Operating Specifications
Alternator Supplied Amperage	80 amps
Cooling System Fluid Capacity	6 gal (23 l)
Engine Oil Capacity	26 gal (100 l)
Front Diff Fluid Capacity	4 gal (15 l)
Fuel Capacity	40 gal (150 l)
Hydraulic System Fluid Capacity	26 gal (100 l)
Operating Voltage	24 volts
Operating Weight	18,632 lbs (8,451 kg)
Rear Axle Oscillation	11 degrees
Rear Diff Fluid Capacity	4 gal (15 l)
Static Tipping Load - Bucket	12,218 lbs (5,542 kg)
Static Tipping Load - Forks	9,806 lbs (4,448 kg)
Static Tipping Load - Material Handler	6,963 lbs (3,158 kg)
Tire Size	17.5-25
Transmission Fluid Capacity	26 gal (100 l)
Turning Radius	34 ft (10 m)
Transmission
Max Speed Forward	20 mph (32 kph)
Max Speed Reverse	20 mph (32 kph)
Number of Forward Gears	2
Number of Reverse Gears	2
Transmission Type	Closed-loophydrostatic
