1989 Caterpillar IT28B For Sale in Fort Worth, Tx

Name: 1989 Caterpillar IT28B
Brand: Caterpillar
SKU: 87459411
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-13 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

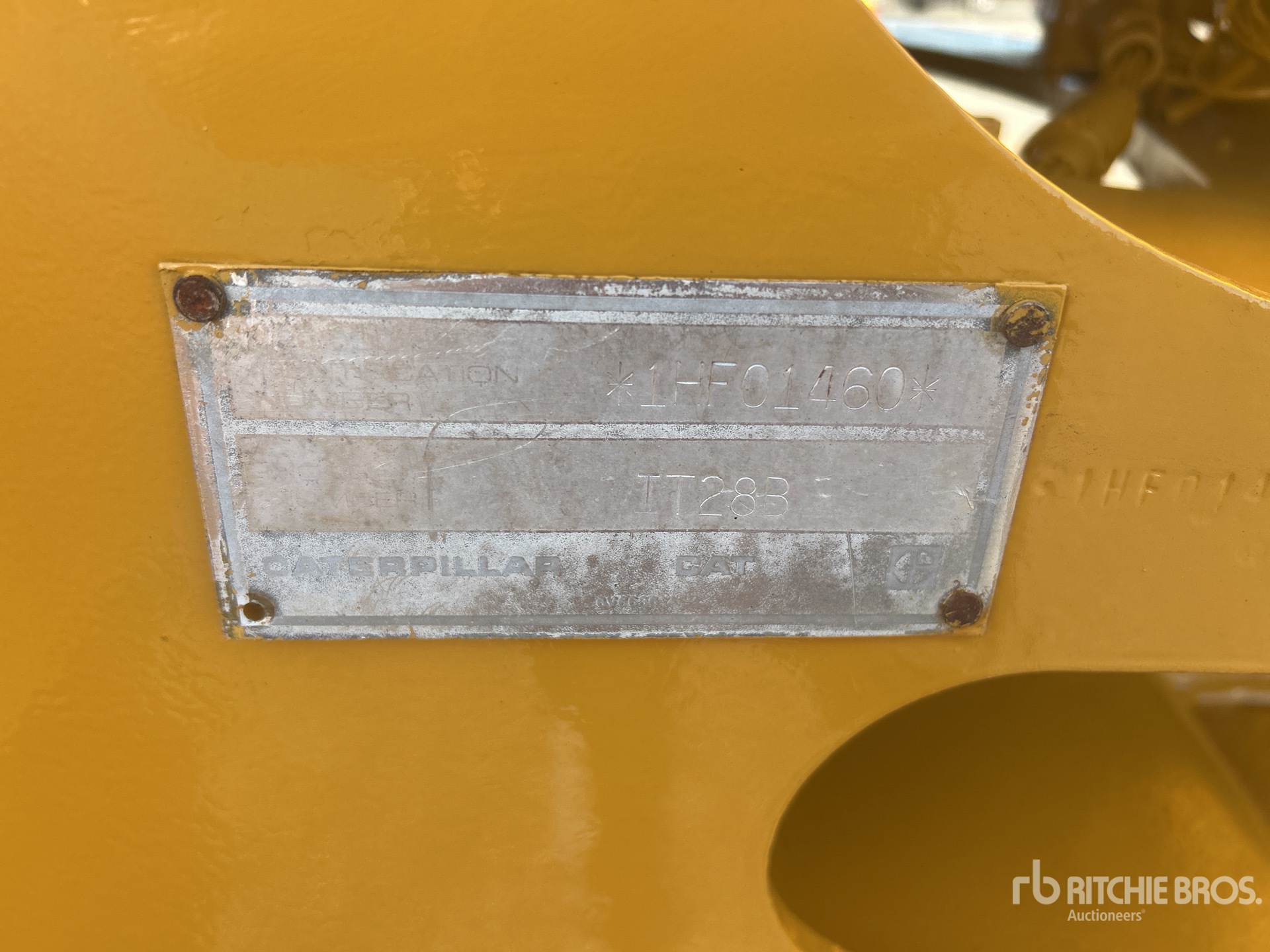

Serial Number:	1HF01460
Machine Location:	FORT WORTH, TX

Description:

Located in Lane 7 Spot 1, Enclosed Cab, Auxiliary Hydraulics, Hydraulic Coupler, 94 in Bucket, 17.5-25 Tires Closing Time: 2026-05-13 10:36:48 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar IT28B is an integrated toolcarrier wheel loader designed for material handling, loading, and attachment work in construction, agriculture, and industrial applications. As part of Caterpillar's wheel loader lineup, the IT28B combines loader performance with quick-attach versatility for buckets, forks, and other work tools. It is commonly used for stockpiling, truck loading, site cleanup, and general-purpose material movement. The machine features articulated steering, a front-mounted lift arm, and a cab layout intended for operator visibility and control. The Caterpillar IT28B remains a recognized model in the used equipment market for its utility and attachment flexibility.

Bucket
Breakout Force	23,050 lbs (10,455 kg)
Bucket Capacity - heaped	2 cu yd (2 cu m)
Bucket Capacity - struck	2 cu yd (2 cu m)
Dimensions
Dump Clearance at Max Lift	9 ft (3 m)
Fork Tine Length	4 ft (1 m)
Ground Clearance	1 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Hinge Pin Max Height	13 ft (4 m)
Length w/ Bucket on Ground	23 ft (7 m)
Length with out Forks on Ground	24 ft (7 m)
Max Lift Height	12 ft (4 m)
Reach at Max Height and Dump	4 ft (1 m)
Wheelbase	10 ft (3 m)
Engine
Displacement	317 cu in (5,201 cu cm)
Engine Model	3,204
Gross Power	110 hp (82 kw)
Hydraulic System
Dump Time	2 seconds
Lower Time	4 seconds
Raise Time	6 seconds
Operating Specifications
Operating Weight	23,325 lbs (10,580 kg)
Static Tipping Load - Bucket	16,475 lbs (7,473 kg)
Static Tipping Load - Forks	13,166 lbs (5,972 kg)
Static Tipping Load - Material Handler	6,596 lbs (2,992 kg)
Tire Size	17.5-25
Turning Radius	18 ft (6 m)
Transmission
Max Speed Forward	34 mph (55 kph)
Max Speed Reverse	37 mph (60 kph)
Number of Forward Gears	4
Number of Reverse Gears	4
