Equipment ↠ Caterpillar ↠ Wheel Loaders ↠ 1997 Caterpillar IT28G

1997 Caterpillar IT28G For Sale in Edmonton, Ab

Name: 1997 Caterpillar IT28G
Brand: Caterpillar
SKU: 87456974
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-11 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

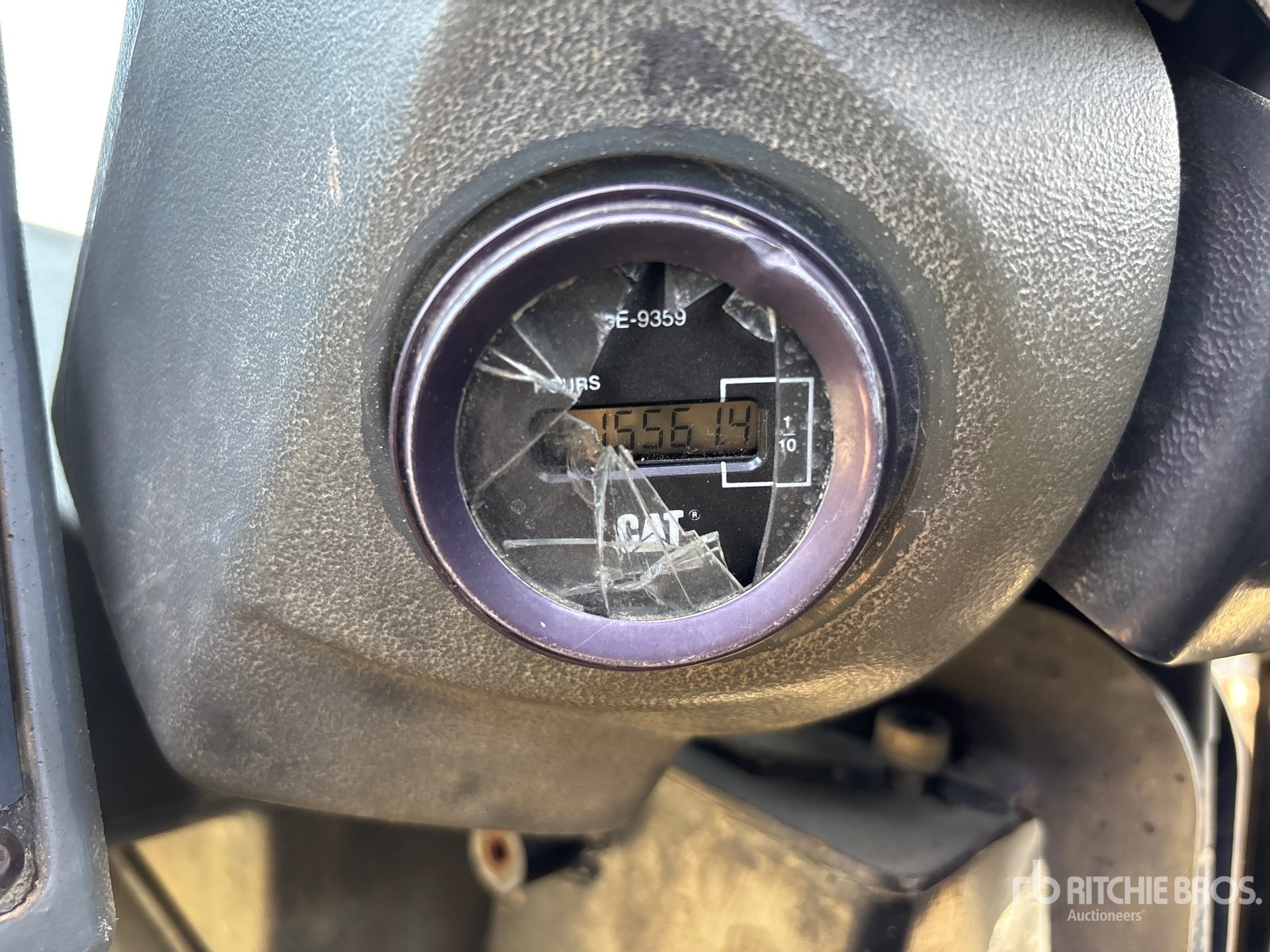

Hours:	15561

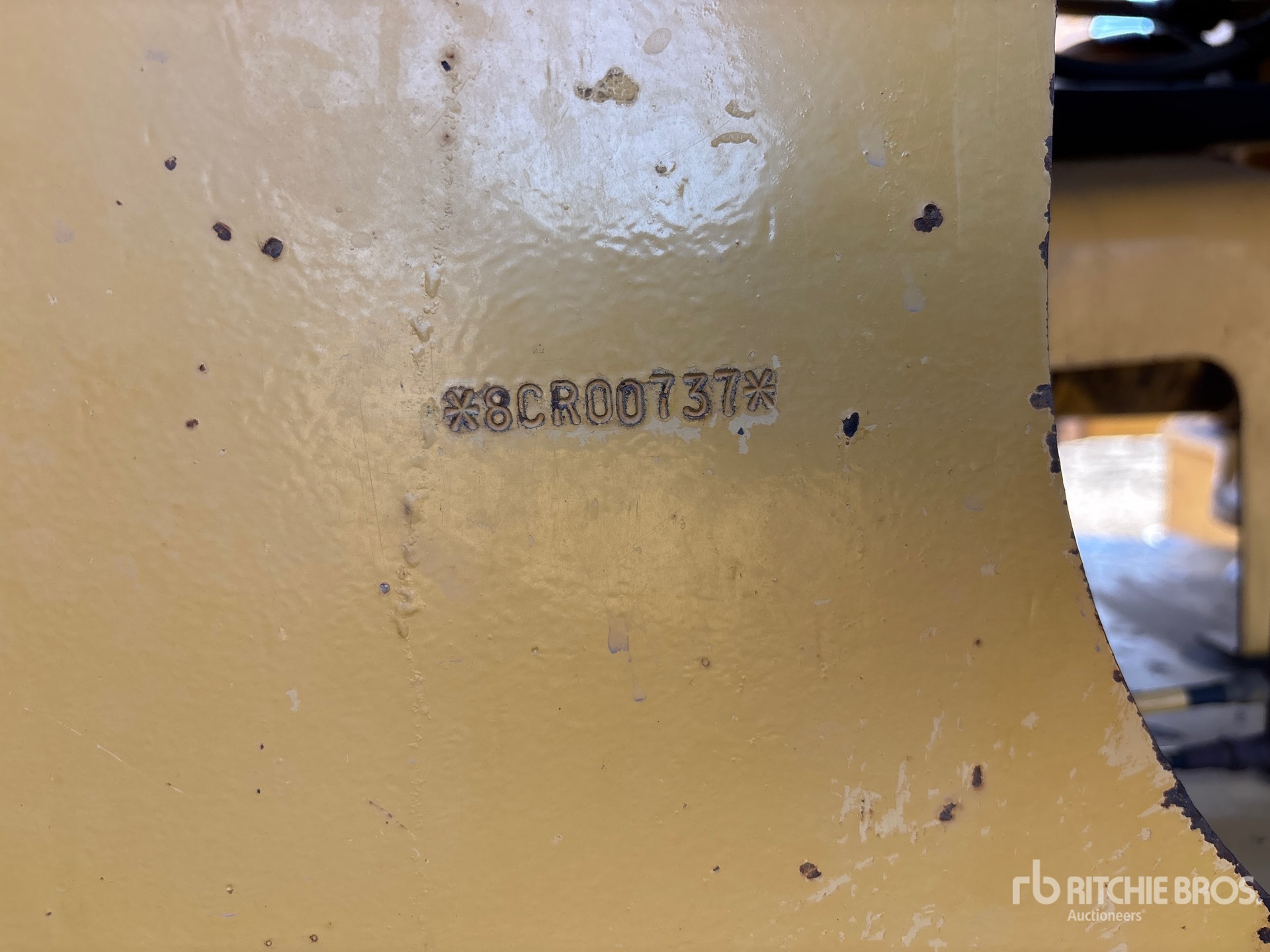

Serial Number:	8CR00737
Machine Location:	EDMONTON, AB

Description:

Located in Lane 63 Spot 14, Enclosed Cab, Air Conditioner, Air Ride Seat, Autoshift, Auxiliary Hydraulics, Hydraulic Coupler, 98 in Bucket, 20.5R25 Tires The closing times of lots 321-322 are tied together - If a bid is received - a time extension will apply to all lots, Closing Time: 2026-05-11 10:40:30 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar IT28G is a versatile wheel loader designed for efficient material handling in construction, agriculture, and industrial applications. Featuring a robust engine and advanced hydraulic system, the IT28G delivers reliable performance and fuel efficiency. Its compact design enhances maneuverability in tight spaces, while the durable frame and heavy-duty components ensure long service life. Operator comfort is supported by an ergonomic cab with excellent visibility and intuitive controls. The Caterpillar IT28G wheel loader is suitable for loading, lifting, and transporting materials such as soil, gravel, and debris, making it a practical choice for diverse job site requirements.

Bucket
Bucket Width	8 ft (3 m)
Digging depth	0 ft (0 m)
Dump Clearance at Max Raise	10 ft (3 m)
Dumping angle, top	45 degrees
Dimensions
Dump Clearance at Max Lift	10 ft (3 m)
Fork Tine Length	4 ft (1 m)
Ground Clearance	1 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Hinge Pin - Max Height	13 ft (4 m)
Hinge Pin Max Height	13 ft (4 m)
Length w/ Bucket on Ground	24 ft (7 m)
Length with out Forks on Ground	25 ft (8 m)
Length with Bucket on Ground	24 ft (7 m)
Max Lift Height	13 ft (4 m)
Reach at Max Height and Dump	3 ft (1 m)
Reach at Max Lift and Dump	3 ft (1 m)
Wheelbase	10 ft (3 m)
Width Over Tires	8 ft (3 m)
Engine
Bore	4 in (10 cm)
Displacement	366 cu in (6,001 cu cm)
Engine Model	3116T
Gross Power	156 hp (116 kw)
Net Power	145 hp (108 kw)
Power Measured @	2,300 rpm
Stroke	5 in (13 cm)
Hydraulic System
Dump Time	1 seconds
Lower Time	3 seconds
Pump Flow Capacity	28 gpm (104 lpm)
Raise Time	6 seconds
Relief Valve Setting	3,002 psi
Operating Specifications
Alternator Supplied Amperage	80 amps
Cooling System Fluid Capacity	11 gal (42 l)
Engine Oil Capacity	4 gal (16 l)
Front Axle/Diff Fluid Capacity	7 gal (26 l)
Front Diff Fluid Capacity	7 gal (26 l)
Fuel Capacity	57 gal (216 l)
Hydraulic System Fluid Capacity	33 gal (125 l)
Operating Voltage	24 volts
Rear Axle Oscillation	11 degrees
Rear Axle/Diff Fluid Capacity	7 gal (25 l)
Rear Diff Fluid Capacity	7 gal (25 l)
Static Tipping Load - Bucket	19,917 lbs (9,034 kg)
Static Tipping Load - Material Handler	11,806 lbs (5,355 kg)
Tire Size	20.5R25 L3 XHA
Transmission Fluid Capacity	9 gal (35 l)
Turning Radius	17 ft (5 m)
Transmission
Max Speed - Forward	38 mph (61 kph)
Max Speed - Reverse	26 mph (42 kph)
Max Speed Forward	24 mph (38 kph)
Max Speed Reverse	16 mph (26 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
