2006 Caterpillar IT62H For Sale in Burnaby, BC

Name: 2006 Caterpillar IT62H
Brand: Caterpillar
SKU: 87339993
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-09-09 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

Hours:	11141

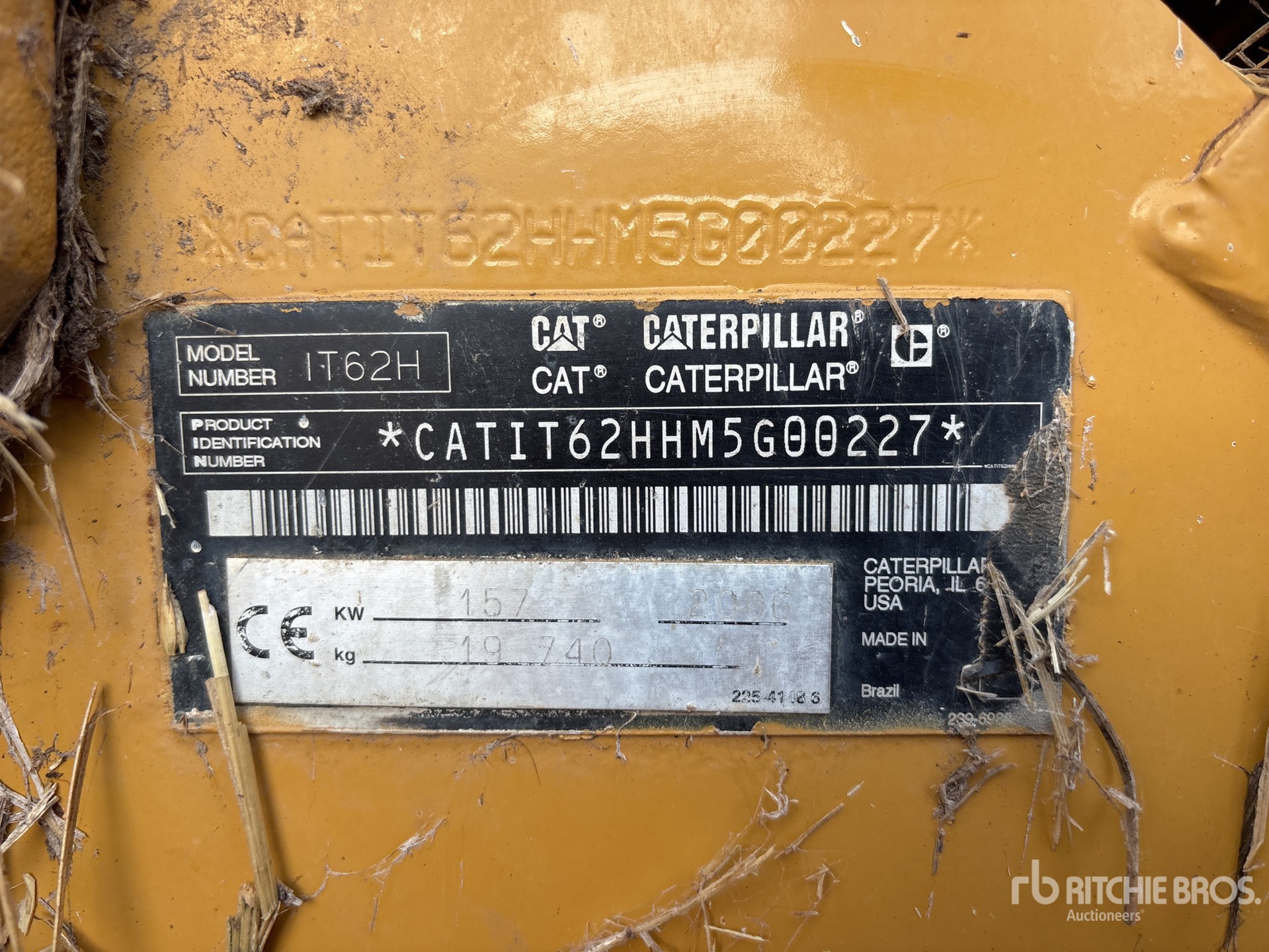

Serial Number:	CATIT62HHM5G00227
Machine Location:	BURNABY, BC

Description:

Enclosed Cab, Air Conditioner, Autoshift, Traction Control, Loadrite On-Board Scale, Fire Suppression System, E-Stops, Hydraulic Coupler, 2850 mm Bucket, Auto Lube, 23.5R25 Tires Closing Time: 2026-09-09 07:00:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Caterpillar IT62H is an integrated toolcarrier wheel loader designed for material handling, loading, and attachment work in construction, agriculture, and industrial applications. It features a Caterpillar diesel engine, hydrostatic or powershift drivetrain depending on configuration, articulated steering, and a quick coupler system for use with forks, buckets, and other work tools. The IT62H is built for versatility, with a loader frame, high lift capability, and operator-focused controls. Common uses include pallet handling, stockpile work, site cleanup, and general-purpose loading. As a Wheel Loader, the Caterpillar IT62H is recognized for multi-attachment functionality and utility across varied jobsite tasks.

Axles
Front	Fixed front
Maximum Single-Wheel Rise and Fall	19 in (47 cm)
Brakes
Brakes	Meets required standards.
Bucket
Breakout Force	35,775 lbs (16,227 kg)
Bucket Capacities	6 cu yd (4 cu m)
Bucket Capacity - heaped	4 cu yd (3 cu m)
Bucket Capacity - struck	4 cu yd (3 cu m)
Maximum Bucket Capacity	6 cu yd (4 cu m)
Dimensions
Dump Clearance at Max Lift	9 ft (3 m)
Fork Tine Length	5 ft (2 m)
Ground Clearance	1 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Height - Top of Hood	97 in (246 cm)
Hinge Pin Max Height	14 ft (4 m)
Hook Height at Max Lift - Extended	25 ft (8 m)
Hook Height at Max Lift - Standard	21 ft (6 m)
Hook Reach at Max Lift - Extended	10 ft (3 m)
Hook Reach at Max Lift - Standard	7 ft (2 m)
Length w/ Bucket on Ground	28 ft (9 m)
Length with out Forks on Ground	30 ft (9 m)
Max Lift Height	13 ft (4 m)
Reach at Max Height and Dump	4 ft (1 m)
Wheel Base	11 ft (3 m)
Wheelbase	11 ft (3 m)
Width Over Tires	9 ft (3 m)
Engine
Bore	4 in (11 cm)
Displacement	439 cu in (7,194 cu cm)
Engine Model	Cat C7 ACERT
Flywheel Power	212 hp (158 kw)
Gross Power	230 hp (172 kw)
Gross Power - SAE J1995	230 hp (172 kw)
Max Torque	669 lbs ft (907 nm)
Net Power	211 hp (157 kw)
Net Power - 80/1269/EEC	211 hp (157 kw)
Net Power - ISO 9249	211 hp (157 kw)
Net Power - SAE J1349	209 hp (156 kw)
Peak Torque - 1,400 rpm - Net	669 lbs ft (907 nm)
Stroke	5 in (13 cm)
Hydraulic System
Dump Time	2 seconds
Hydraulic Cycle Time - Dump	2 seconds
Hydraulic Cycle Time - Lower, Empty, Float Down	3 seconds
Hydraulic Cycle Time - Raise	6 seconds
Hydraulic Cycle Time - Total	11 seconds
Lower Time	3 seconds
Pilot System - Pump Output	71 gpm (270 lpm)
Pump Flow Capacity	71 gpm (269 lpm)
Pump Type	Piston pump
Raise Time	6 seconds
Steering System - Pump Type	Piston
Operating Specifications
Alternator Supplied Amperage	80 amps
Breakout Force	35,775 lbs (16,227 kg)
Cooling System Fluid Capacity	11 gal (42 l)
Dump Clearance	9,137 ft (2,785 m)
Engine Oil Capacity	8 gal (30 l)
Front Diff Fluid Capacity	10 gal (36 l)
Fuel Capacity	83 gal (314 l)
Hydraulic System Fluid Capacity	29 gal (110 l)
Operating Voltage	24 volts
Operating Weight	42,770 lbs (19,400 kg)
Rear Axle Oscillation	13 degrees
Rear Diff Fluid Capacity	10 gal (36 l)
Static Tipping Load - Bucket	29,602 lbs (13,427 kg)
Static Tipping Load - Forks	20,667 lbs (9,374 kg)
Static Tipping Load - Full Turn	25,860 lbs (11,730 kg)
Static Tipping Load - Material Handler	16,163 lbs (7,331 kg)
Tire Size	23.5R25
Transmission Fluid Capacity	9 gal (34 l)
Turning Radius	22 ft (7 m)
Service Refill Capacities
Cooling System	11 gal (42 l)
Crankcase	8 gal (30 l)
Differential - Final Drives - Front	10 gal (36 l)
Differential - Final Drives - Rear	10 gal (36 l)
Fuel Tank - Standard	83 gal (314 l)
Hydraulic Tank	29 gal (110 l)
Transmission	9 gal (34 l)
Transmission
Forward - 1	4 mph (7 kph)
Forward - 2	8 mph (13 kph)
Forward - 3	14 mph (23 kph)
Forward - 4	24 mph (38 kph)
Max Speed Forward	24 mph (38 kph)
Max Speed Reverse	25 mph (40 kph)
Number of Forward Gears	4
Number of Reverse Gears	4
Reverse - 1	5 mph (8 kph)
Reverse - 2	9 mph (14 kph)
Reverse - 3	15 mph (24 kph)
Transmission Type	Powershift
Weights
Operating Weight	42,770 lbs (19,400 kg)
