1998 Champion 730A SERIES V For Sale in Toronto, On

Name: 1998 Champion 730A SERIES V
Brand: Champion
SKU: 87168340
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-20 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

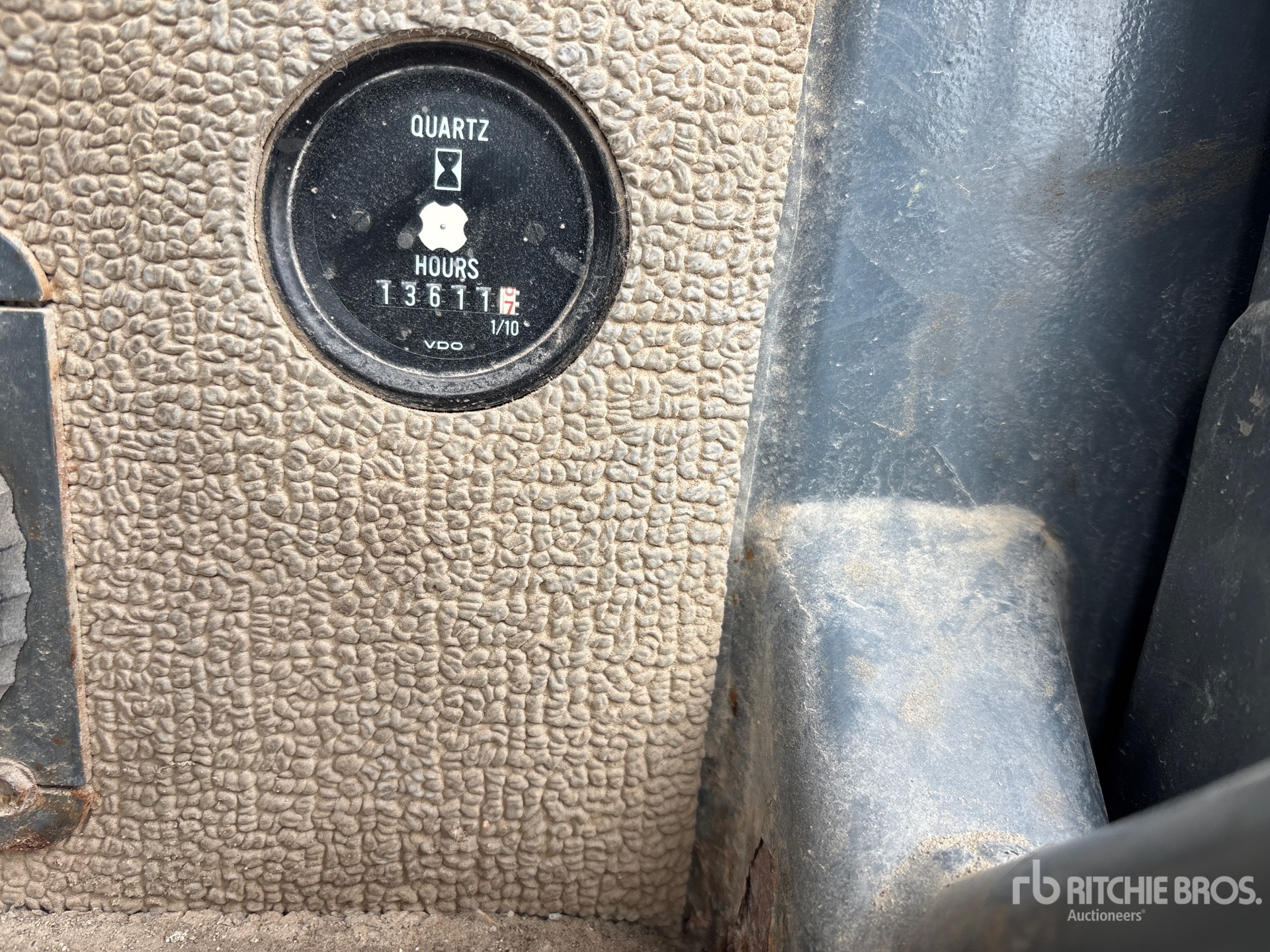

Hours:	13611

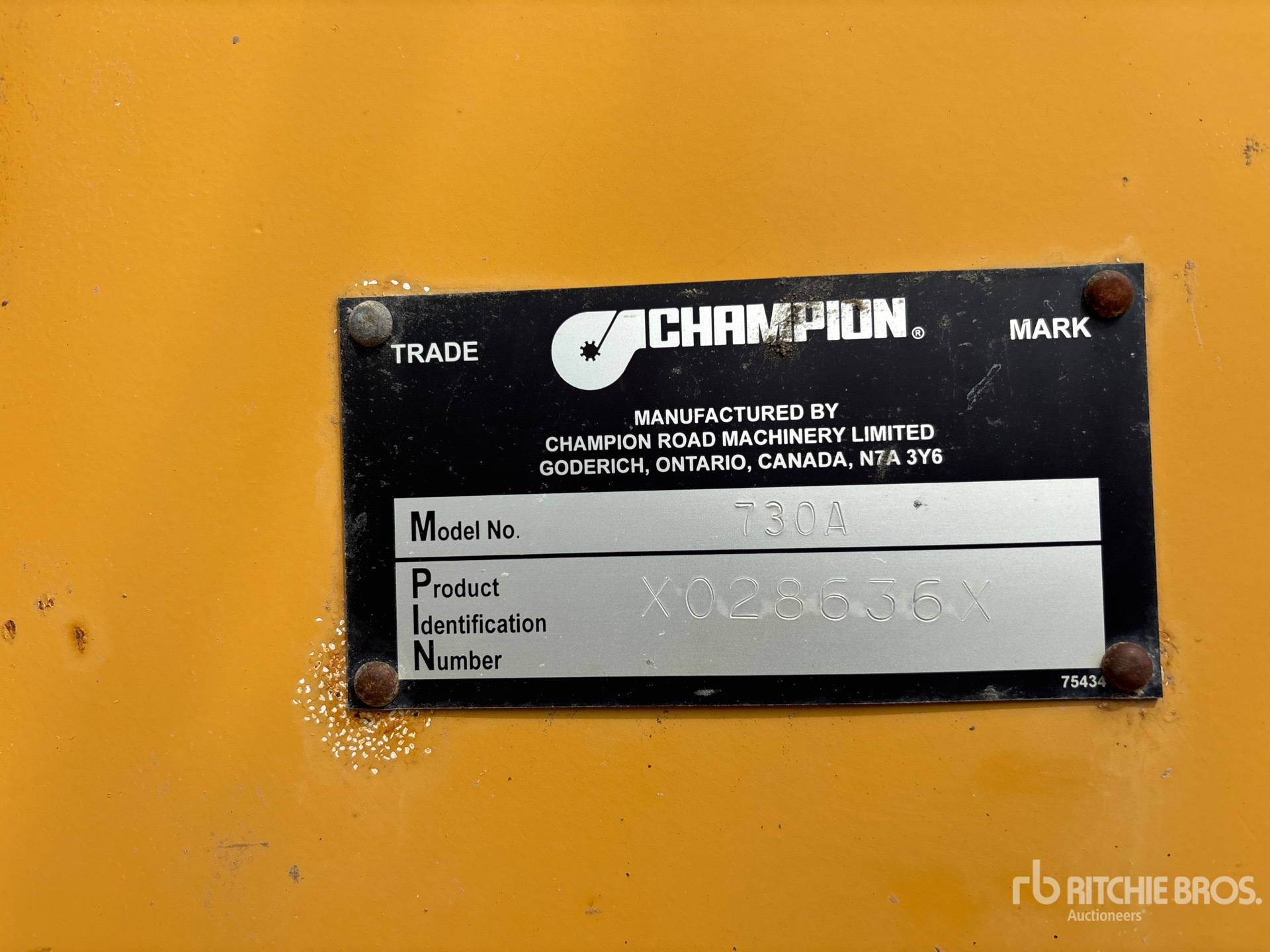

Serial Number:	X028636X
Machine Location:	TORONTO, ON

Description:

Enclosed Cab, Differential Lock, 12 ft / 3.66 m Moldboard, 14.00R24 Tires Closing Time: 2026-05-20 09:08:15 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Circle
Blade cutting depth	3 ft (1 m)
Blade ground clearance	2 ft (0 m)
Blade Tip Angle - Front	44 degrees
Blade Tip Angle - Rear	7 degrees
Diameter	66 in (168 cm)
Rotation	360 degrees
Shift Left	26 in (66 cm)
Shift Right	24 in (61 cm)
Dimensions
Blade Base	9 ft (3 m)
Overall Height with cab	11 ft (3 m)
Overall Length	28 ft (9 m)
Overall width	8 ft (3 m)
Tread width	82 in (209 cm)
Wheelbase	20 ft (6 m)
Engine
Aspiration	Turbocharged
Bore	5 in (11 cm)
Displacement	505 cu in (8,271 cu cm)
Engine Model	6CT8.3
Gross horsepower	207 hp (154 kw)
Max Power	193 hp (144 kw)
Number of Cylinders	6
Power Measured @	2,100 rpm
Stroke	5 in (14 cm)
Torque	540 lbs ft (732 nm)
Torque Measured @	1,500 rpm
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	16 degrees
Wheel Lean	18 degrees
Hydraulic System
Pump Flow	48 gpm (182 lpm)
Relief Valve Pressure	2,500 psi
Moldboard
Max Reach outside - left	10 ft (3 m)
Max Reach outside - right	10 ft (3 m)
Moldboard Height	25 in (64 cm)
Moldboard Thickness	1 in (2 cm)
Moldboard Width	12 ft (4 m)
Side Shift Left	27 in (67 cm)
Side Shift Right	27 in (67 cm)
Operating Specifications
Cooling System Fluid Capacity	11 gal (43 l)
Fuel Capacity	100 gal (379 l)
Hydraulic System Fluid Capacity	24 gal (90 l)
Oil System Fluid Capacity	10 gal (38 l)
Rear Diff/Final Drive Fluid Capacity	6 gal (23 l)
Std Operation Weight - Front Axle	9,960 lbs (4,518 kg)
Std Operation Weight - Rear Axle	23,260 lbs (10,551 kg)
Std Operation Weight - Total	33,220 lbs (15,068 kg)
Tandem Case Fluid Capacity (each)	27 gal (100 l)
Tire Size	14.00 * 24 G-2
Transmission Fluid Capacity	10 gal (39 l)
Steering System
Articulation Angle	22 degrees
Turning Radius	26 ft (8 m)
Transmission
Max Speed - Forward	26 mph (42 kph)
Max Speed - Reverse	19 mph (30 kph)
Transmission Type	Powershift
