Equipment ↠ Champion ↠ Motor Graders ↠ Champion 740

Champion 740 For Sale in Insinger, Sk

Name: Champion 740
Brand: Champion
SKU: 86138174
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-06-23 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

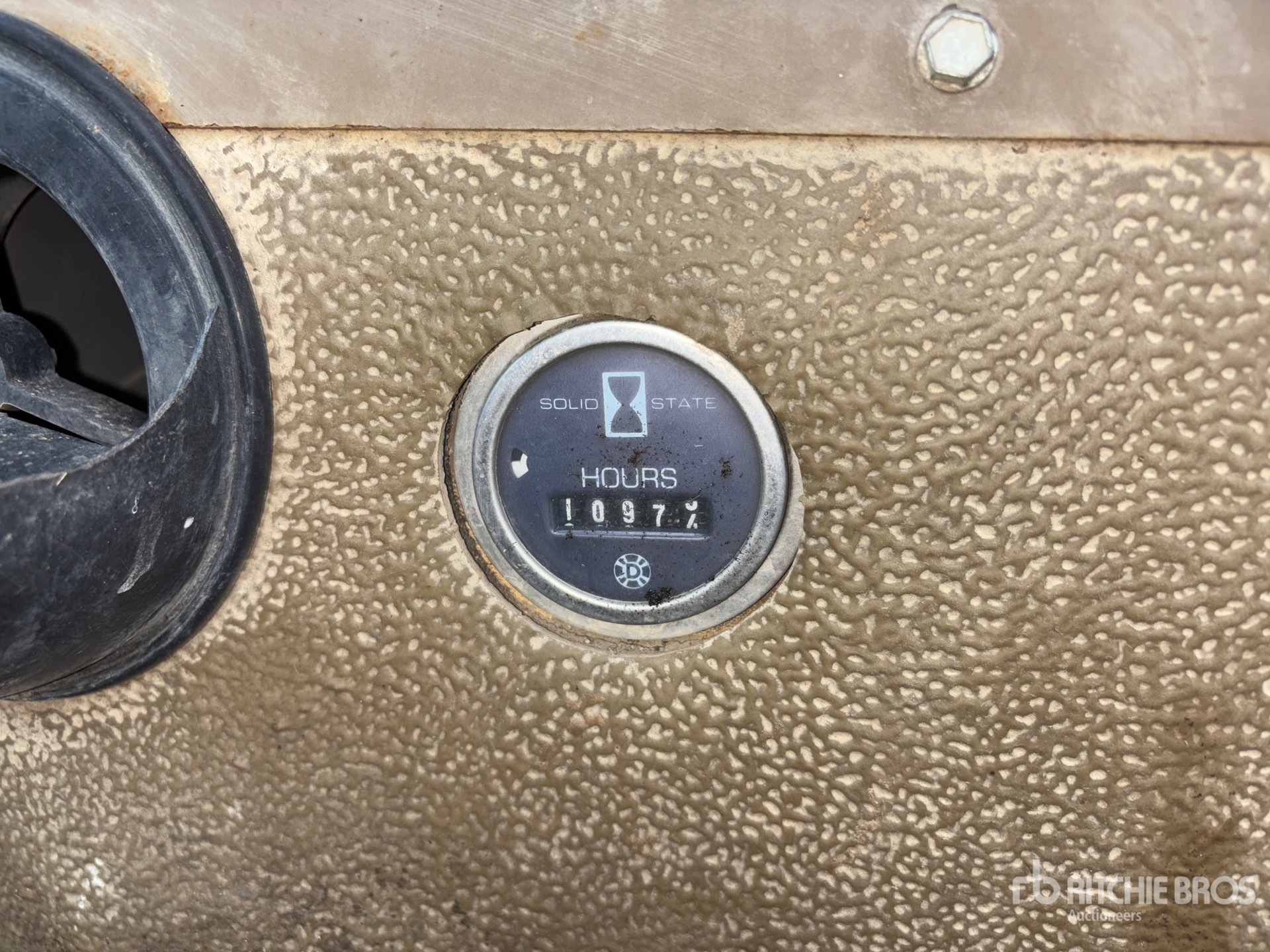

Hours:	1097
Serial Number:	740-21-1564-15999
Machine Location:	INSINGER, SK

Description:

Enclosed Cab, 16 ft / 4.88 m Moldboard, 14.00-24 Tires

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Circle
Blade cutting depth	3 ft (1 m)
Blade ground clearance	2 ft (0 m)
Blade Tip Angle - Front	48 degrees
Blade Tip Angle - Rear	3 degrees
Diameter	66 in (168 cm)
Max Lift Above Ground	20 in (51 cm)
Rotation	360 degrees
Shift Left	26 in (66 cm)
Shift Right	24 in (61 cm)
Dimensions
Blade Base	9 ft (3 m)
Overall Height with cab	11 ft (3 m)
Overall Length	28 ft (9 m)
Overall width	8 ft (3 m)
Tread width	84 in (214 cm)
Wheelbase	21 ft (6 m)
Engine
Aspiration	Turbocharged
Displacement	659 cu in (10,801 cu cm)
Engine Model	M11
Gross horsepower	225 hp (168 kw)
Net Power	210 hp (157 kw)
Number of Cylinders	6
Power Measured @	2,100 rpm
Torque Measured @	1,300 rpm
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	16 degrees
Wheel Lean	18 degrees
Hydraulic System
Pump Flow	48 gpm (183 lpm)
Relief Valve Pressure	2,500 psi
Moldboard
Max Reach outside - left	10 ft (3 m)
Max Reach outside - right	10 ft (3 m)
Moldboard Height	29 in (74 cm)
Moldboard Thickness	1 in (3 cm)
Moldboard Width	12 ft (4 m)
Side Shift Left	27 in (67 cm)
Side Shift Right	27 in (67 cm)
Operating Specifications
Cooling System Fluid Capacity	13 gal (48 l)
Fuel Capacity	100 gal (379 l)
Hydraulic System Fluid Capacity	24 gal (90 l)
Oil System Fluid Capacity	10 gal (39 l)
Rear Diff/Final Drive Fluid Capacity	6 gal (23 l)
Std Operation Weight - Front Axle	10,312 lbs (4,677 kg)
Std Operation Weight - Rear Axle	23,898 lbs (10,840 kg)
Std Operation Weight - Total	34,210 lbs (15,517 kg)
Tandem Case Fluid Capacity (each)	27 gal (100 l)
Tire Size	14.00 * 24 G-2
Transmission Fluid Capacity	10 gal (39 l)
Steering System
Articulation Angle	22 degrees
Turning Radius	35 ft (11 m)
Transmission
Max Speed - Forward	27 mph (43 kph)
Max Speed - Reverse	19 mph (31 kph)
Transmission Type	Powershift
