Equipment ↠ Doosan ↠ Excavators ↠ 2021 Doosan DX140LC-5

2021 Doosan DX140LC-5 For Sale in Chehalis, Wa

Name: 2021 Doosan DX140LC-5
Brand: Doosan
SKU: 87129347
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-07 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

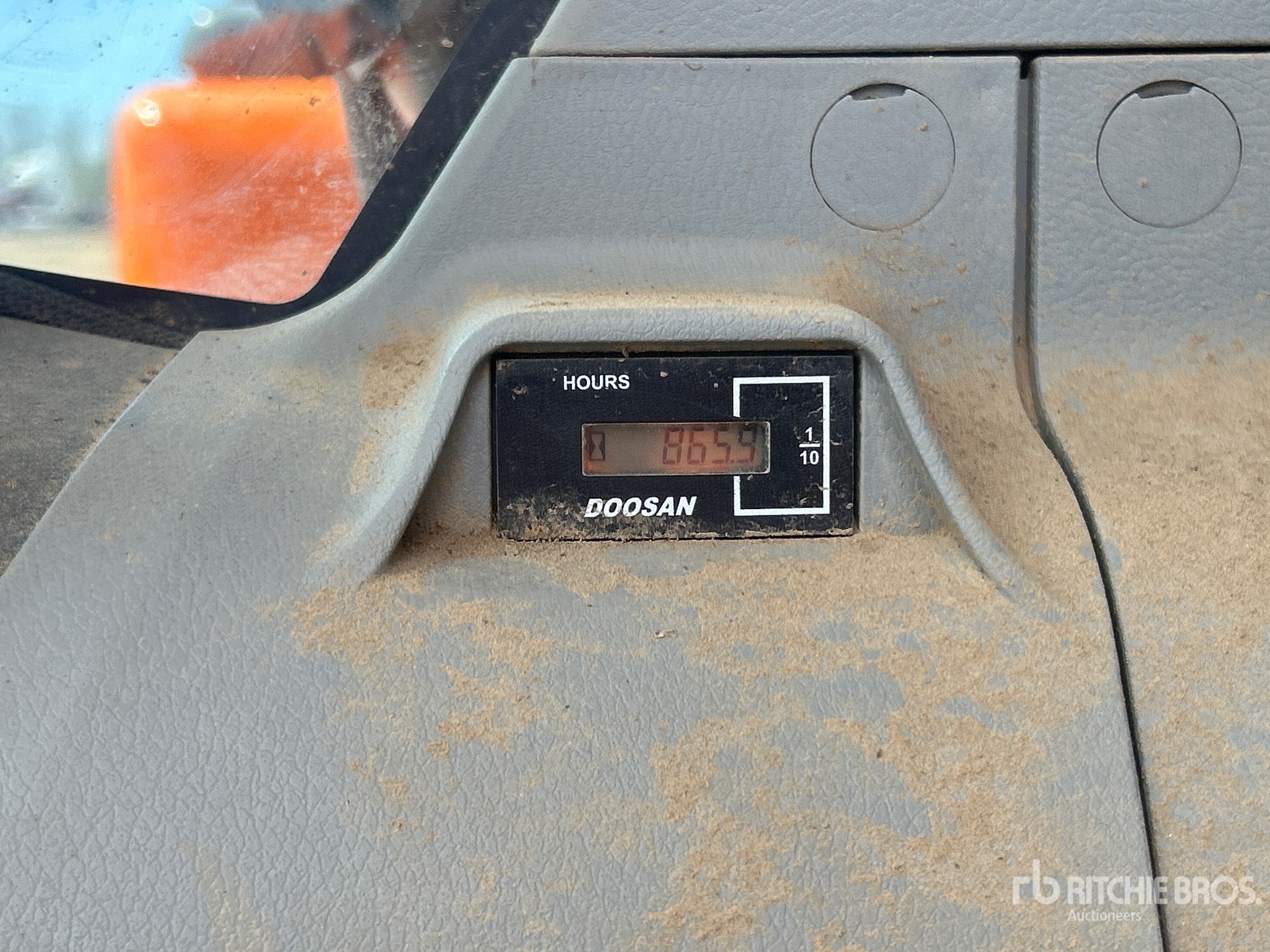

Hours:	865

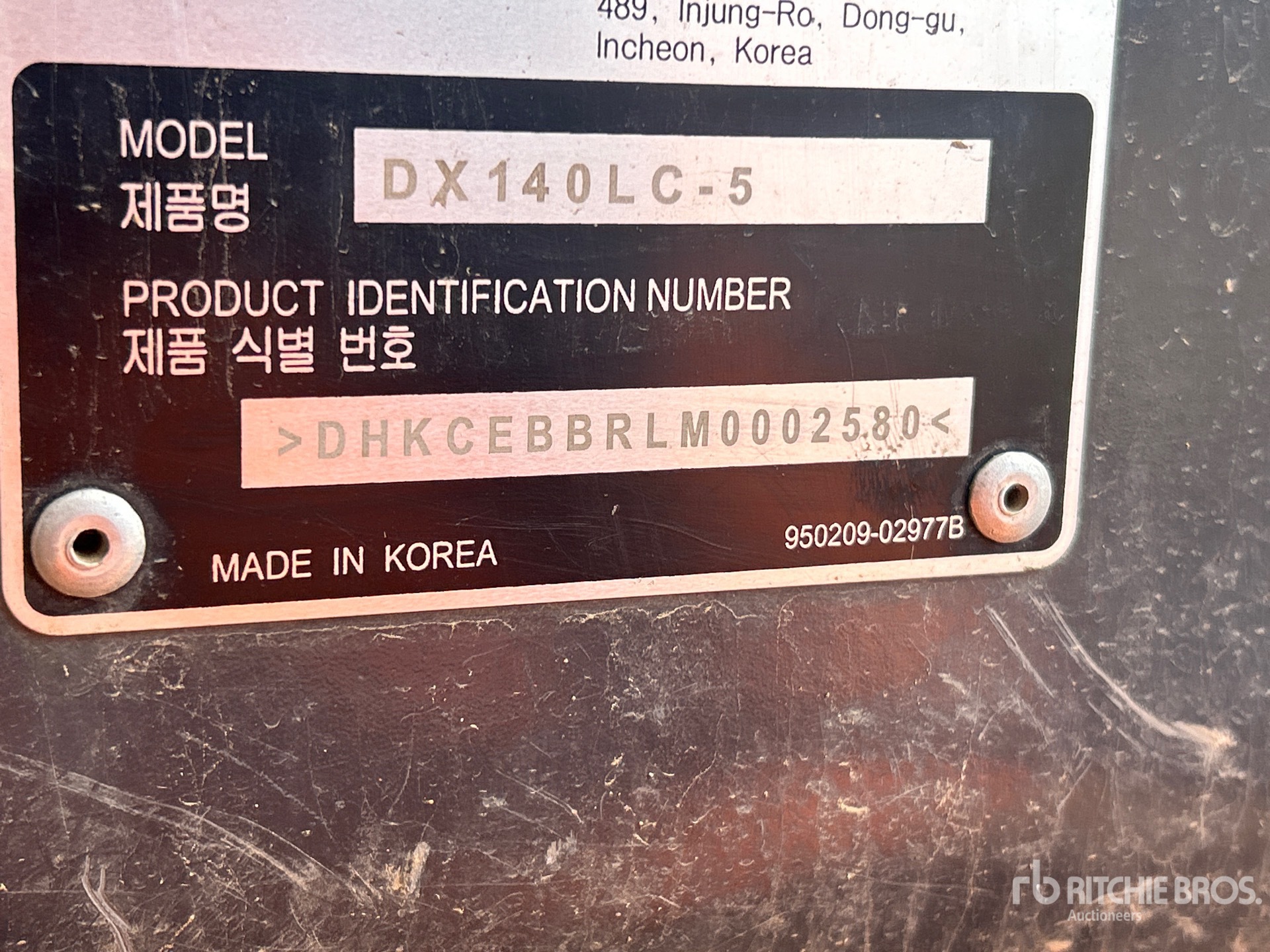

Serial Number:	DHKCEBBRLM0002580
Machine Location:	CHEHALIS, WA

Description:

Air Conditioner, 2019 US EPA Label, 9 ft 10 in Stick, Auxiliary Hydraulic Plumbing, Backfill Blade, 24 in Triple Grouser Track Shoes The closing times of lots 173 thru 175 are tied together. If a bid is received, then a time extension will be applied to all lots. Once the time closes the higher bidder on each lot will be the winner - Pick up by appointment only, Closing Time: 2026-05-07 09:58:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Doosan DX140LC-5 is a mid-sized hydraulic excavator designed for versatility and efficiency in construction, landscaping, and earthmoving applications. Featuring a powerful engine and advanced hydraulic system, the DX140LC-5 delivers optimal digging force and smooth operation. Its robust undercarriage and reinforced boom enhance durability and stability on various terrains. The operator cabin offers ergonomic controls and improved visibility for increased productivity and safety. With fuel-efficient performance and easy maintenance access, the Doosan DX140LC-5 excavator is suitable for heavy-duty tasks requiring precision and reliability. This model is widely used in infrastructure development, utility installation, and site preparation projects.

Boom/Stick Excavator Option 1
Max Digging Depth	20 ft (6 m)
Max Digging Height	29 ft (9 m)
Max Digging Reach	28 ft (9 m)
Max Loading Height	21 ft (6 m)
Max Reach Along Ground	28 ft (9 m)
Max Vertical Wall Digging Depth	15 ft (5 m)
Min Digging Reach	1 ft (0 m)
Minimum swing radius	103 in (263 cm)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	25 ft (8 m)
Bucket
Maximum Bucket Capacity	1 cu yd (0 cu m)
Minimum Bucket Capacity	1 cu yd (0 cu m)
Dimensions
Counterweight Clearance	3 ft (1 m)
Tail Swing Radius	7 ft (2 m)
Track shoe width	2 ft (1 m)
Undercarriage Width	8 ft (3 m)
Electrical System
Alternator	24 v 85 amp
Battery	12V 100AH
Starter	24V
Engine
Air cleaner	Double Elements
Bore	4 in (11 cm)
Displacement	269 cu in (4,402 cu cm)
Engine Make	Perkins
Engine Model	1204F
Gross Power	115 hp (86 kw)
Max Torque	1,301 lbs ft (1,764 nm)
Net Power	113 hp (84 kw)
Power Measured @	2,000 rpm
Starter	6 hp (4 kw)
Stroke	5 in (13 cm)
Torque Measured @	1,400 rpm
Hydraulic System
Pilotpump-Gear Design	8 gpm (30 lpm)
Relief Pressure - Boost	4,694 psi
Relief Pressure -Normal	4,978 psi
Operating Specifications
Cooling System Fluid Capacity	7 gal (25 l)
DEF tank capacity	5 gal (19 l)
Engine Oil Capacity	2 gal (8 l)
Fuel Capacity	70 gal (265 l)
Hydraulic System Fluid Capacity	45 gal (170 l)
Hydraulic System Relief Valve Pressure	5 psi
Hydraulic Tank	40 gal (150 l)
Operating Weight	32,783 lbs (14,870 kg)
Swing Drive Fluid Capacity	1 gal (3 l)
Performance
Maximum Grade	70%
Swing - Normal Mode	4,694 psi
Swing-Power Mode	4,978 psi
Traction Force -Draw bar Pull	35,935 lbs ft (48,721 nm)
Travel-Normal Mode	4,694 psi
Travel-Power Mode	4,978 psi
Swing Mechanism
Swing Speed	11 rpm
Undercarriage
Number of bottom rollers per side	7
Number of Shoes per Side	46
Number of top rollers per side	1
Weights
counterweight	4,850 lbs (2,200 kg)
