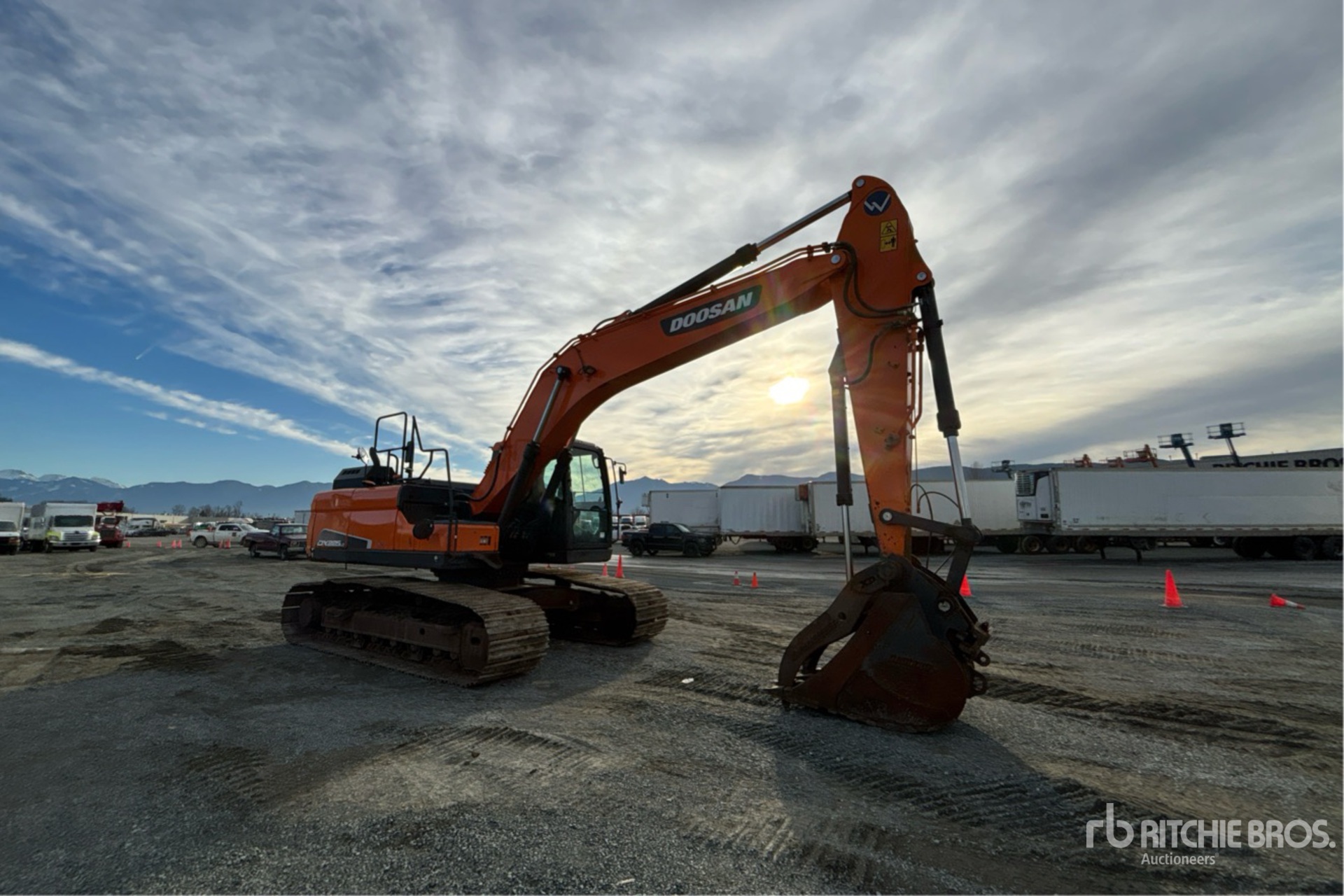

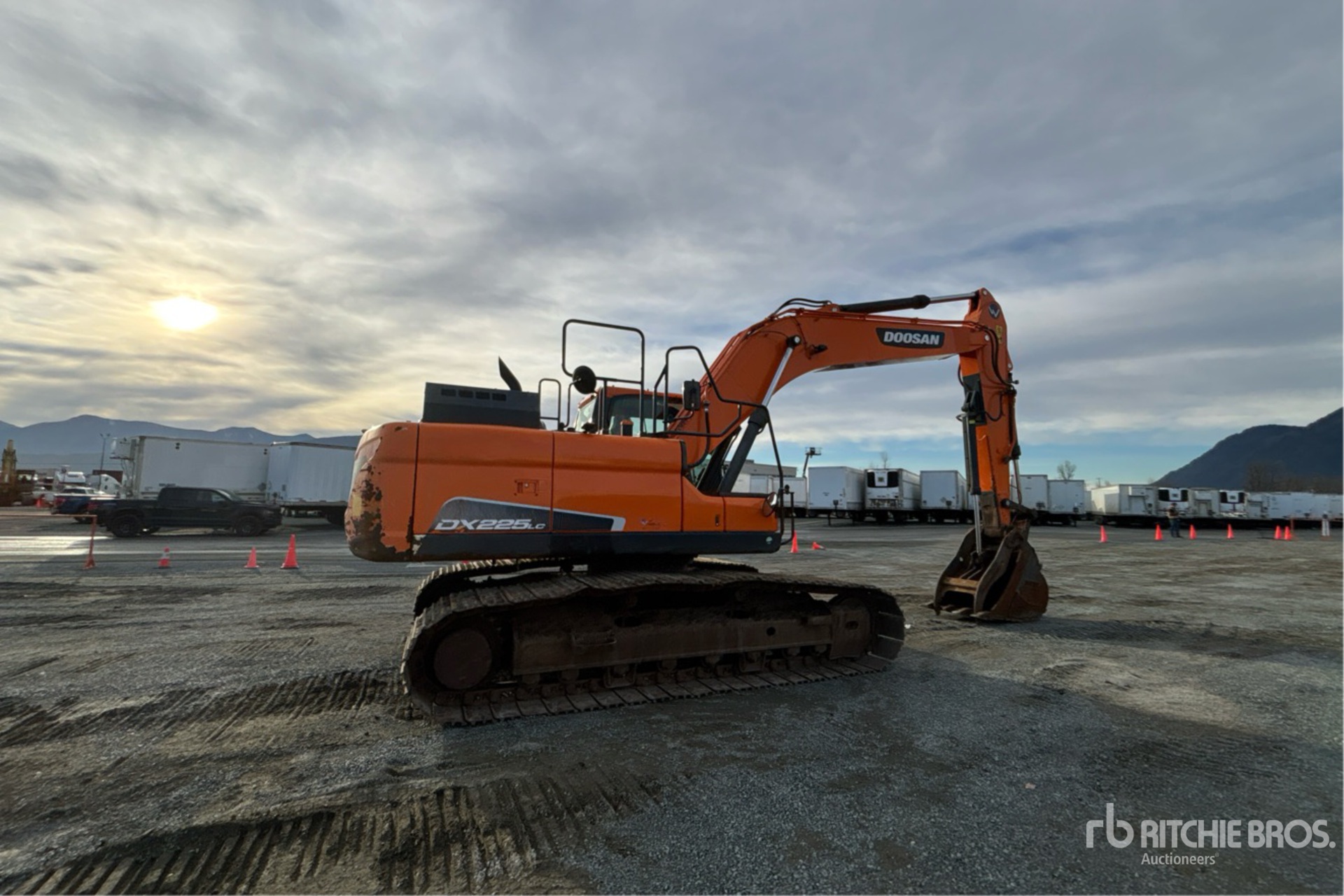

2021 Doosan DX225LC-5 For Sale in Edmonton, Ab
Auction Pricing
Auction Info: Starting on 2026-05-11 Click here to place a bid
Machine Info:

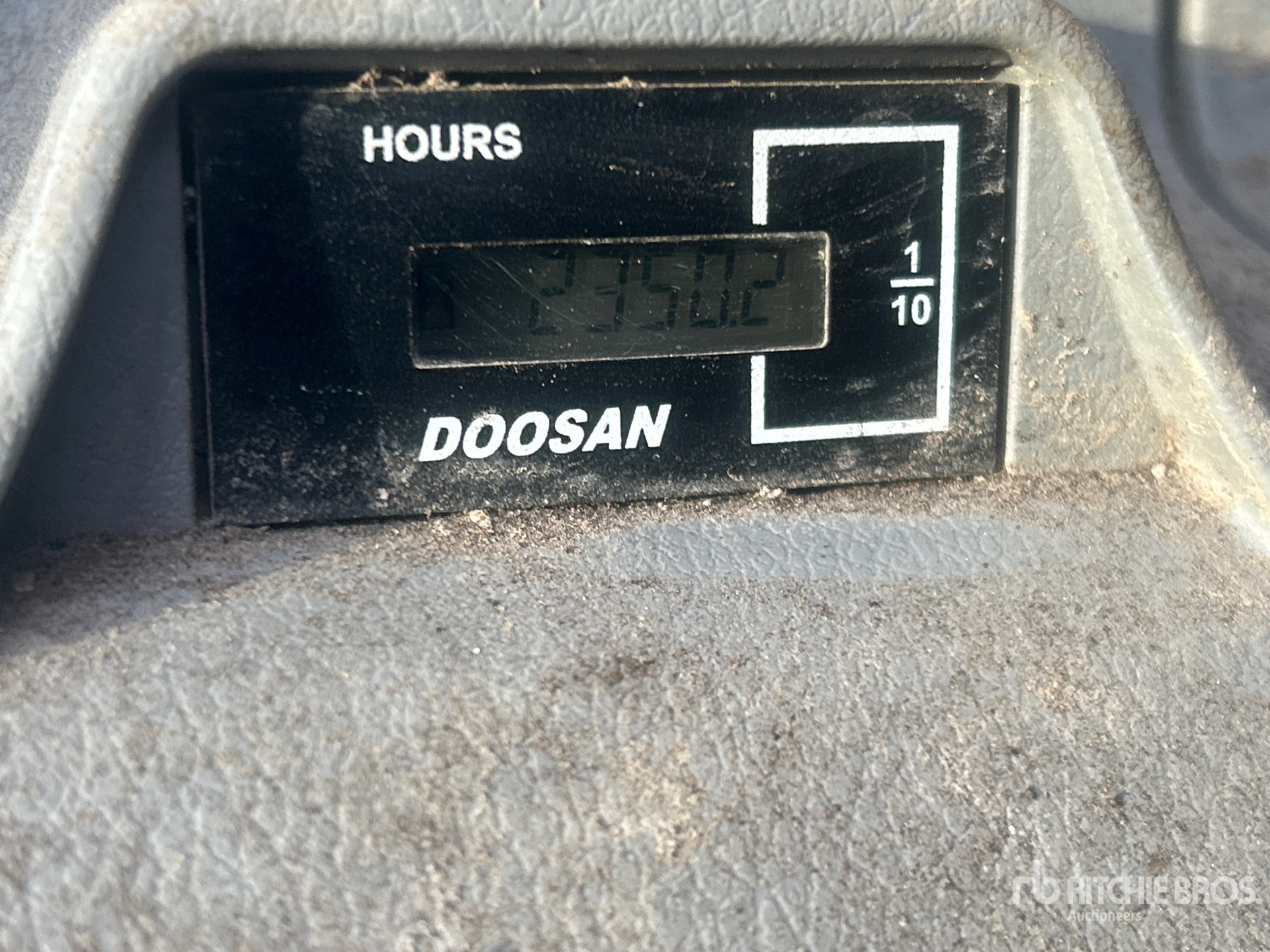

| Hours: | 2350 |

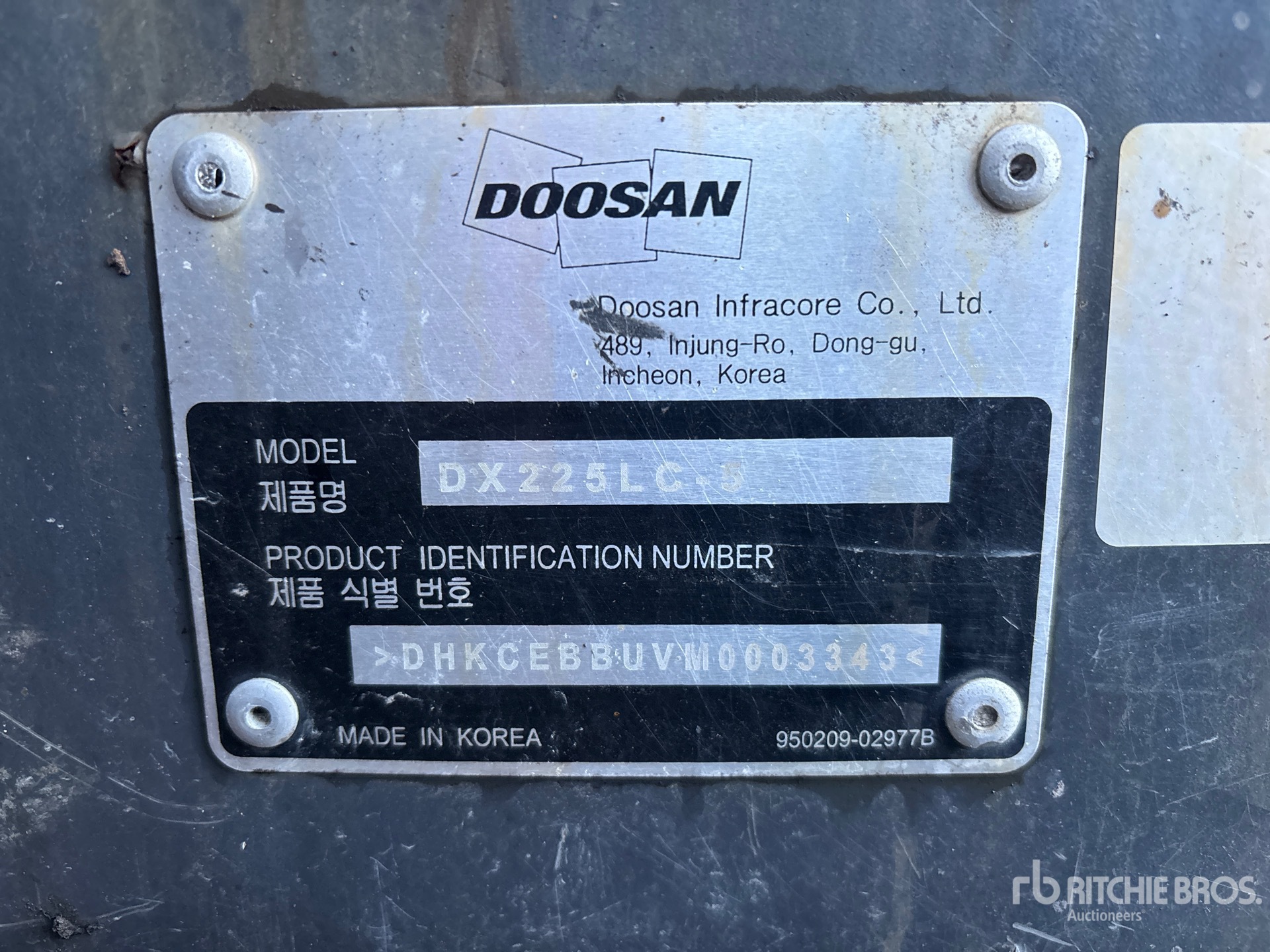

| Serial Number: | DHKCEBBUVM0003343 |
| Machine Location: | EDMONTON, AB |
Description:
Located in Lane 9 Spot 4, Air Conditioner, Cab Screens, Surround View Cameras, 2017 US EPA Label, CARB Compliant, 12 ft 2 in Stick, Auxiliary Hydraulic Plumbing, 31.5 in Triple Grouser Track Shoes, Manual Quick Coupler, 33 in Digging Bucket, Hydraulic Thumb This lot is subject to 7% BC PST, Closing Time: 2026-05-11 02:09:30 PM
From the manufacturer:
Supplied by HeavyEquipmentData.com →
The Doosan DX225LC-5 is a medium-sized hydraulic excavator designed for heavy construction and earthmoving tasks. Featuring a powerful engine and advanced hydraulic system, the DX225LC-5 delivers efficient digging, lifting, and loading performance. Its robust undercarriage and reinforced boom provide durability and stability on challenging job sites. The operator cabin offers enhanced visibility, ergonomic controls, and improved comfort for extended operation. This excavator model supports various attachments, increasing versatility for excavation, trenching, and material handling applications. The Doosan DX225LC-5 is widely used in construction, mining, and infrastructure projects, combining reliability, fuel efficiency, and advanced technology for optimal productivity.
| Boom/Stick Excavator Option 1 |
|
Max Digging Depth |
22 ft (7 m)
|
|
Max Digging Height |
31 ft (10 m)
|
|
Max Digging Reach |
33 ft (10 m)
|
|
Max Loading Height |
23 ft (7 m)
|
|
Max Reach Along Ground |
32 ft (10 m)
|
|
Max Vertical Wall Digging Depth |
19 ft (6 m)
|
|
Min Digging Reach |
2 ft (1 m)
|
|
Minimum swing radius |
140 in (356 cm)
|
| Boom/Stick Excavator Option 2 |
|
Max Digging Depth |
24 ft (7 m)
|
|
Max Digging Reach |
34 ft (10 m)
|
|
Max Loading Height |
23 ft (7 m)
|
|
Max Vertical Wall Digging Depth |
20 ft (6 m)
|
|
Max. digging height |
32 ft (10 m)
|
|
Min Digging Reach |
1 ft (0 m)
|
|
Minimum swing radius |
142 in (362 cm)
|
| Bucket |
|
Maximum Bucket Capacity |
1 cu yd (0 cu m)
|
|
Minimum Bucket Capacity |
1 cu yd (0 cu m)
|
| Dimensions |
|
Cab width |
3 ft (1 m)
|
|
Counterweight Clearance |
4 ft (1 m)
|
|
Height - Top of Cab |
10 ft (3 m)
|
|
Length of Track on Ground |
15 ft (5 m)
|
|
Tail Swing Radius |
10 ft (3 m)
|
|
Track shoe width |
3 ft (1 m)
|
|
Undercarriage Width |
11 ft (3 m)
|
| Electrical System |
|
Alternator |
24 v 85 amp |
|
Battery |
12V 100AH |
|
Starter |
24V |
| Engine |
|
Air cleaner |
Double Elements |
|
Bore |
4 in (10 cm)
|
|
Displacement |
360 cu in (5,901 cu cm)
|
|
Engine Make |
Doosan |
|
Engine Model |
DL06P |
|
Gross Power |
166 hp (124 kw)
|
|
Max Torque |
557 lbs ft (755 nm)
|
|
Net Power |
162 hp (121 kw)
|
|
Power Measured @ |
1,800 rpm |
|
Starter |
9 hp (6 kw)
|
|
Stroke |
5 in (13 cm)
|
|
Torque Measured @ |
1,400 rpm |
| Hydraulic System |
|
Main Pump Flow Standard |
109 gpm (413 lpm)
|
|
Pilotpump-Gear Design |
7 gpm (27 lpm)
|
|
Relief Pressure - Boost |
4,694 psi |
|
Relief Pressure -Normal |
4,978 psi |
| Operating Specifications |
|
Cooling System Fluid Capacity |
10 gal (38 l)
|
|
DEF tank capacity |
9 gal (34 l)
|
|
Engine Oil Capacity |
7 gal (27 l)
|
|
Fuel Capacity |
106 gal (400 l)
|
|
Hydraulic System Fluid Capacity |
61 gal (230 l)
|
|
Hydraulic System Relief Valve Pressure |
5 psi |
|
Hydraulic Tank |
52 gal (195 l)
|
|
Operating Weight |
52,086 lbs (23,626 kg)
|
|
Swing Drive Fluid Capacity |
1 gal (5 l)
|
| Performance |
|
Maximum Grade |
70% |
|
Swing - Normal Mode |
4,694 psi |
|
Swing-Power Mode |
4,978 psi |
|
Traction Force -Draw bar Pull |
60,715 lbs ft (82,317 nm)
|
|
Travel-Normal Mode |
4,694 psi |
|
Travel-Power Mode |
4,978 psi |
| Swing Mechanism |
|
Swing Speed |
11 rpm |
| Undercarriage |
|
Number of bottom rollers per side |
8 |
|
Number of Shoes per Side |
49 |
|
Number of top rollers per side |
2 |
| Weights |
|
counterweight |
9,480 lbs (4,300 kg)
|
