Equipment ↠ Doosan ↠ Excavators ↠ 2015 Doosan DX300LC-5

2015 Doosan DX300LC-5 For Sale in Chehalis, Wa

Name: 2015 Doosan DX300LC-5
Brand: Doosan
SKU: 87465559
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-07 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

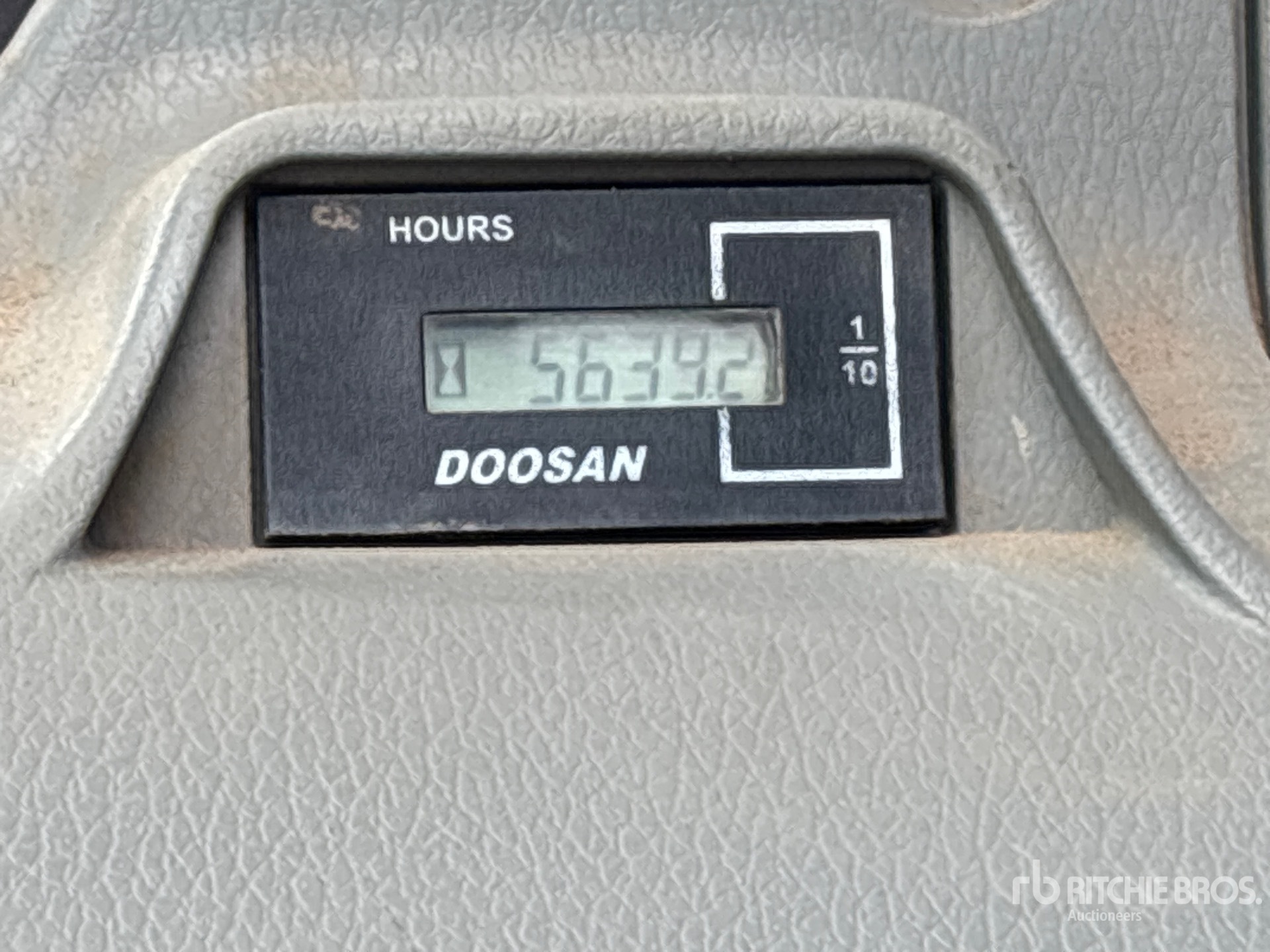

Hours:	5639

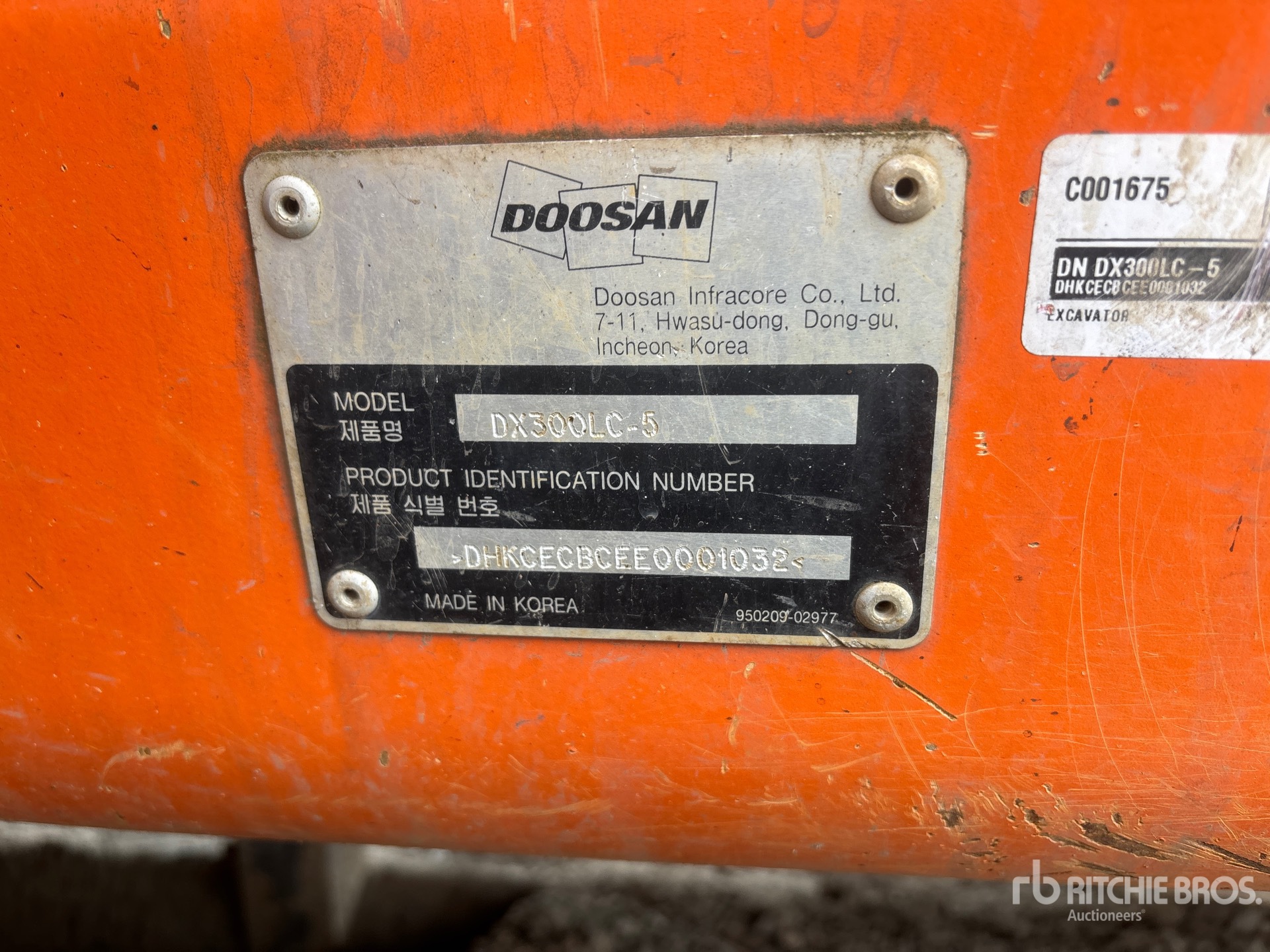

Serial Number:	DHKCECBCEE0001032
Machine Location:	CHEHALIS, WA

Description:

Located in Lane 3 Spot 10, 2014 US EPA Label, Requires Diesel Exhaust Fluid, 10 ft Stick, Auxiliary Hydraulic Plumbing, 31.5 in Triple Grouser Track Shoes, 26 in Digging Bucket Closing Time: 2026-05-07 09:54:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Doosan DX300LC-5 is a crawler excavator in the 30-ton class, designed for earthmoving, trenching, site preparation, and general construction work. It is equipped with a diesel engine, hydraulic digging system, and a long undercarriage for stability on uneven ground. The DX300LC-5 is commonly used in quarry, utility, roadbuilding, and heavy civil applications. Standard features typically include a reinforced boom and arm, enclosed operator cab, and advanced hydraulic controls for digging and lifting performance. As part of Doosan's excavator lineup, the DX300LC-5 is built for productivity, durability, and efficient material handling in demanding jobsite conditions.

Boom/Stick Excavator Option 1
Max Digging Depth	24 ft (7 m)
Max Digging Height	34 ft (10 m)
Max Loading Height	24 ft (7 m)
Max Reach Along Ground	35 ft (11 m)
Min Digging Reach	2 ft (1 m)
Minimum swing radius	159 in (404 cm)
Boom/Stick Excavator Option 2
Max Digging Depth	26 ft (8 m)
Max Loading Height	24 ft (7 m)
Max. digging height	34 ft (10 m)
Min Digging Reach	1 ft (0 m)
Minimum swing radius	160 in (405 cm)
Bucket
Maximum Bucket Capacity	1 cu yd (0 cu m)
Minimum Bucket Capacity	1 cu yd (0 cu m)
Dimensions
Cab width	3 ft (1 m)
Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	11 ft (3 m)
Track shoe width	3 ft (1 m)
Undercarriage Width	10 ft (3 m)
Electrical System
Alternator	24 v 100 amp
Battery	12V 100AH 1300 CCA
Starter	24V
Engine
Air cleaner	Double Elements
Bore	5 in (13 cm)
Displacement	568 cu in (9,301 cu cm)
Engine Make	Scania
Engine Model	DC09
Gross Power	271 hp (202 kw)
Max Torque	693 lbs ft (940 nm)
Net Power	266 hp (198 kw)
Power Measured @	2,000 rpm
Starter	8 hp (6 kw)
Stroke	6 in (14 cm)
Torque Measured @	1,400 rpm
Hydraulic System
131	131 gpm (496 lpm)
Pilotpump-Gear Design	7 gpm (27 lpm)
Relief Pressure - Boost	4,978 psi
Relief Pressure -Normal	5,263 psi
Operating Specifications
Cooling System Fluid Capacity	13 gal (49 l)
DEF tank capacity	19 gal (70 l)
Engine Oil Capacity	10 gal (36 l)
Fuel Capacity	132 gal (500 l)
Hydraulic System Fluid Capacity	82 gal (310 l)
Hydraulic System Relief Valve Pressure	7 psi
Hydraulic Tank	74 gal (280 l)
Operating Weight	68,764 lbs (31,191 kg)
Swing Drive Fluid Capacity	2 gal (7 l)
Performance
Maximum Grade	70%
Swing - Normal Mode	4,978 psi
Swing-Power Mode	5,263 psi
Traction Force -Draw bar Pull	77,162 lbs ft (104,616 nm)
Travel-Normal Mode	4,978 psi
Travel-Power Mode	5,263 psi
Swing Mechanism
Swing Speed	10 rpm
Undercarriage
Number of bottom rollers per side	9
Number of Shoes per Side	48
Number of top rollers per side	2
Weights
counterweight	11,684 lbs (5,300 kg)
