Equipment ↠ Doosan ↠ Log Loaders ↠ 2020 Doosan DX300LL-5

2020 Doosan DX300LL-5 For Sale in Chehalis, Wa

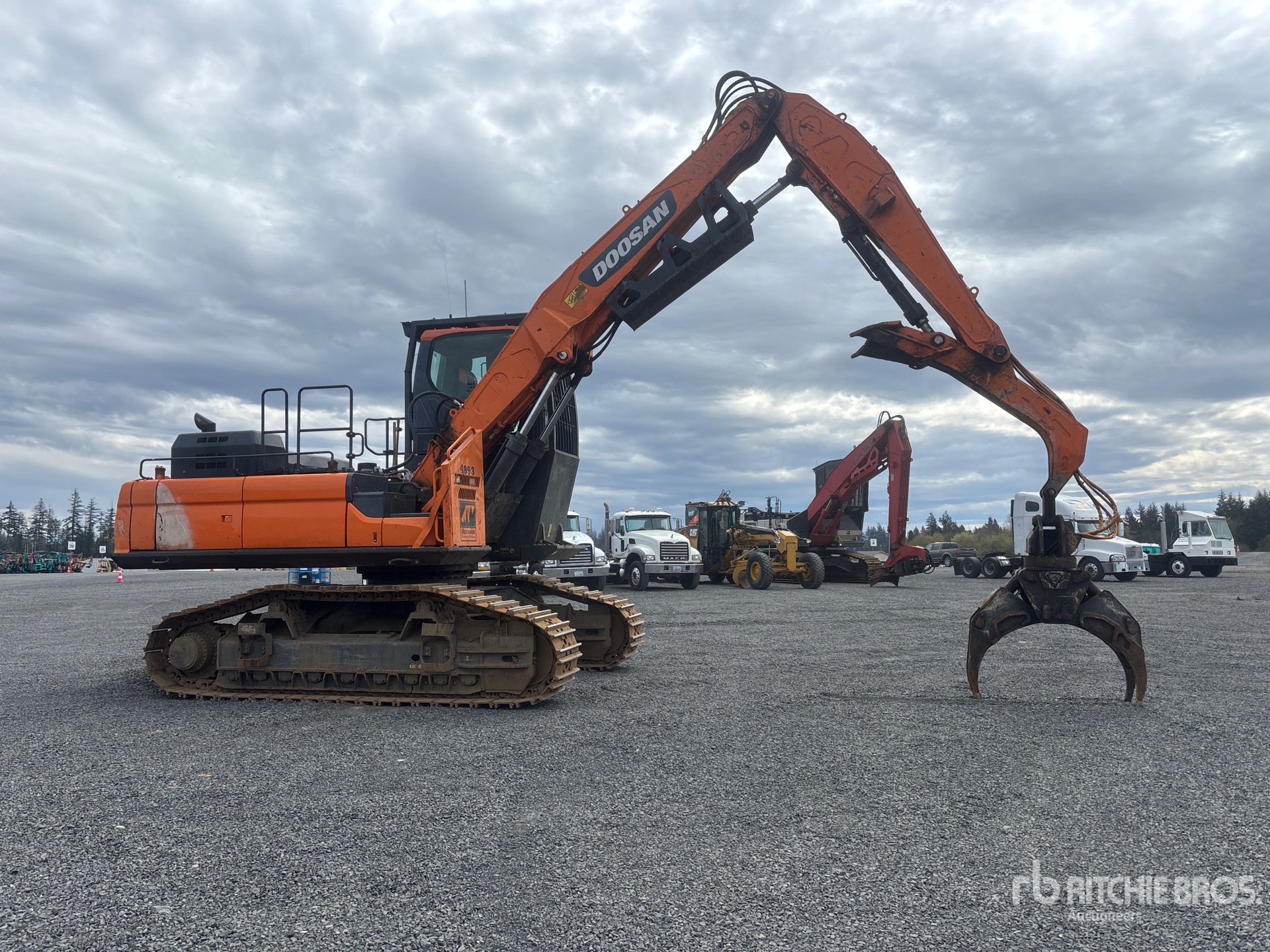

Name: 2020 Doosan DX300LL-5
Brand: Doosan
SKU: 86924932
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-07 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

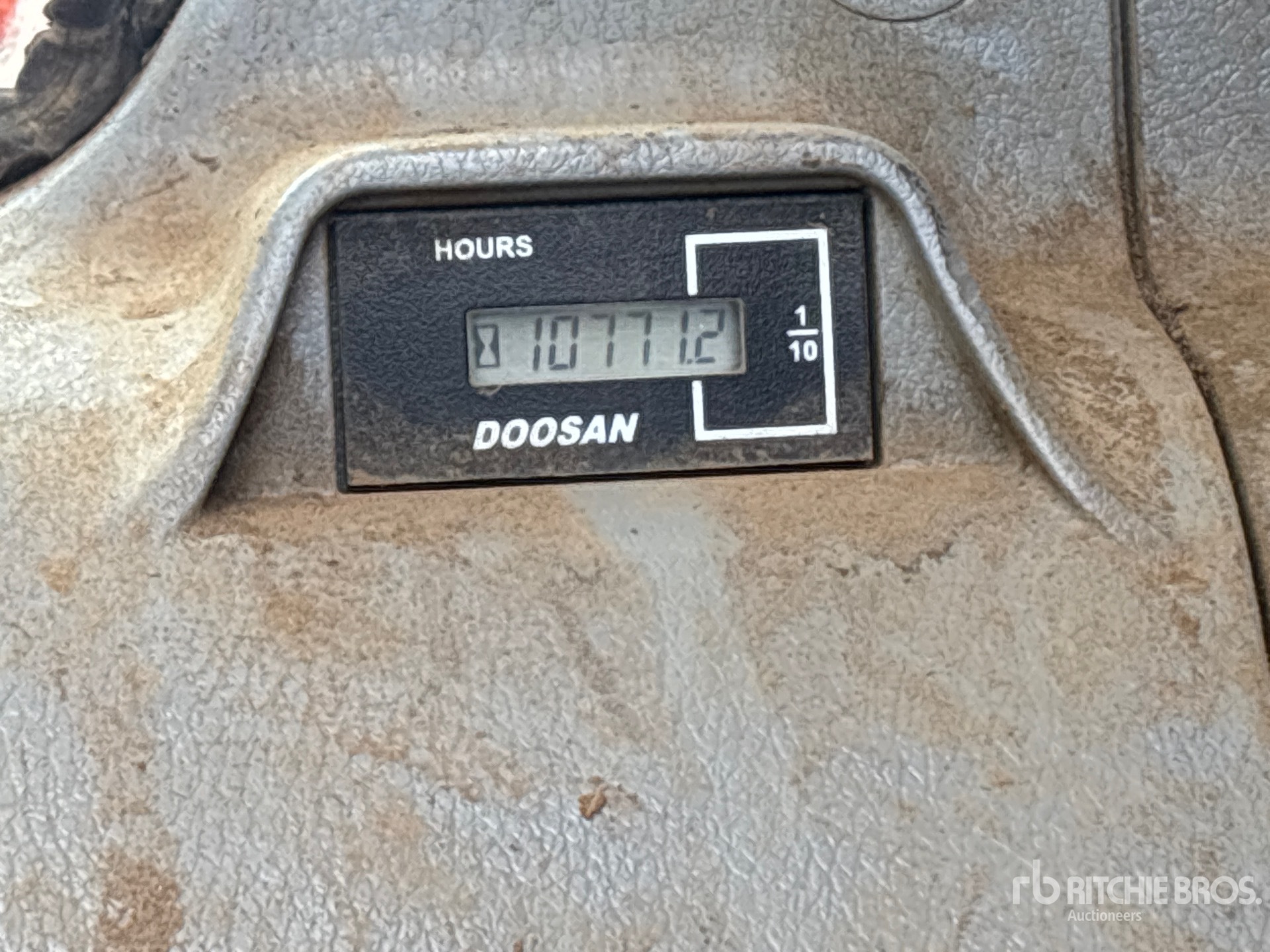

Hours:	10771

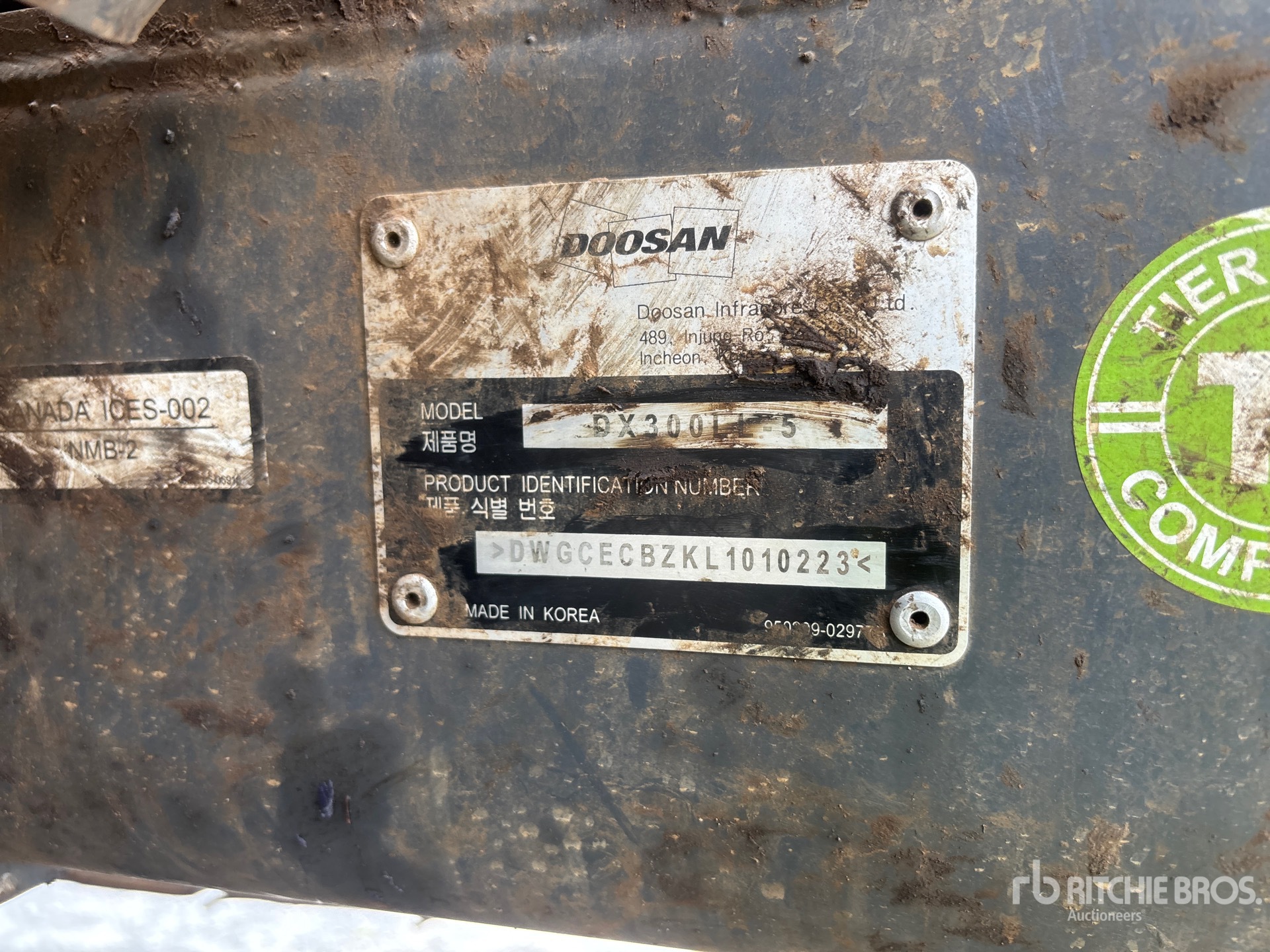

Serial Number:	DWGCECBZKL1010223
Machine Location:	CHEHALIS, WA

Description:

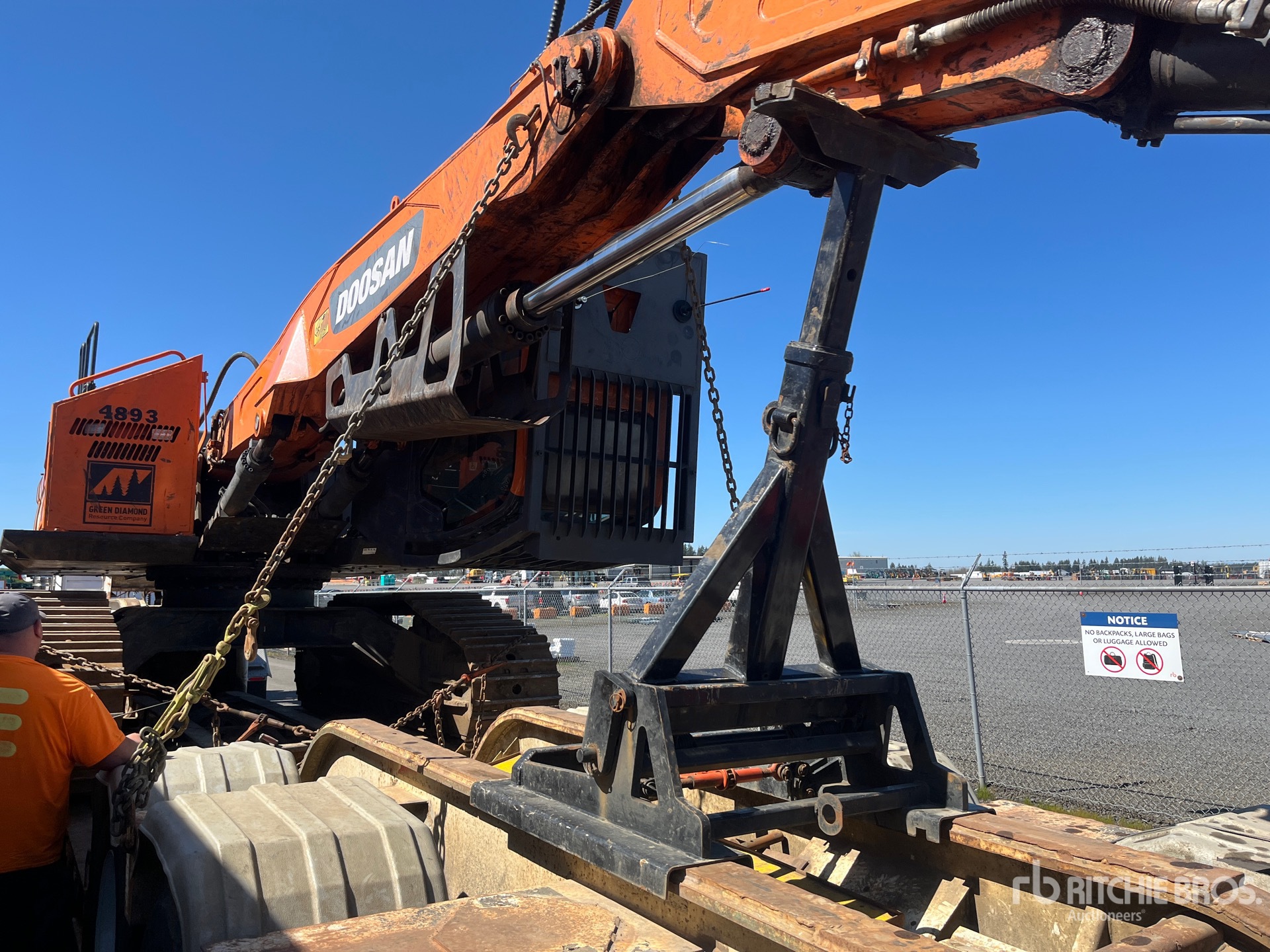

Located in Lane 4 Spot 4, Cab Screens, Hydraulic Tilting Cab, 2020 US EPA Label, Requires Diesel Exhaust Fluid, 27.5 in Double Grouser Track Shoes, Rock Guards, Heel Boom, Equipment-from-Green-Diamond-Resource-Company The closing times of lots 291 thru 292 are tied together. If a bid is received, then a time extension will be applied to all lots. Once the time closes the higher bidder on each lot will be the winner Closing Time: 2026-05-07 10:36:40 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Log Loader Option 1
Boom/Stick Option (LGL) 1	Boom - 20 ft 8 in /Arm - 12 ft 10 in
Max Depth Below Ground	12 ft (4 m)
Max Height	43 ft (13 m)
Max Reach at Ground Level	37,172 ft (11,330 m)
Shipping Height	12 ft (4 m)
Shipping Length	47 ft (14 m)
Dimensions
Ground Clearance	3 ft (1 m)
Height - Top of Cab	15 ft (5 m)
Length of Track on Ground	47 ft (14 m)
Overall Width	12 ft (4 m)
Tail Swing Radius	11 ft (3 m)
Engine
Air cleaner	Double Elements
Alternator	100 amps
Battery	200 AH
Bore	5 in (13 cm)
Displacement	568 cu in (9,308 cu cm)
Engine Model	DC09
Gross horsepower	271 hp (202 kw)
Net Torque	940 lbs ft (1,274 nm)
Number of Cylinders	5
Starter	8 hp (6 kw)
Stroke	6 in (14 cm)
Hydraulic System
Pump Flow Capacity	131 gpm (496 lpm)
Relief Valve Pressure	4,694 psi
Operating Specifications
Cooling System Fluid Capacity	14 gal (54 l)
DEF tank capacity	19 gal (70 l)
Engine Oil Capacity	10 gal (36 l)
Fuel Capacity	132 gal (500 l)
Hydraulic System Fluid Capacity	82 gal (310 l)
Swing Drive Fluid Capacity	2 gal (7 l)
Swing Mechanism
Swing Speed	10 rpm
Swing Torque	87,787 lbs ft (119,022 nm)
Undercarriage
Counterweight, Standard	13,889 lbs (6,300 kg)
Ground Pressure	9 psi
Rollers And Idlers	2
