Auction Pricing
Auction Info: Starting on 2026-05-06 Click here to place a bid

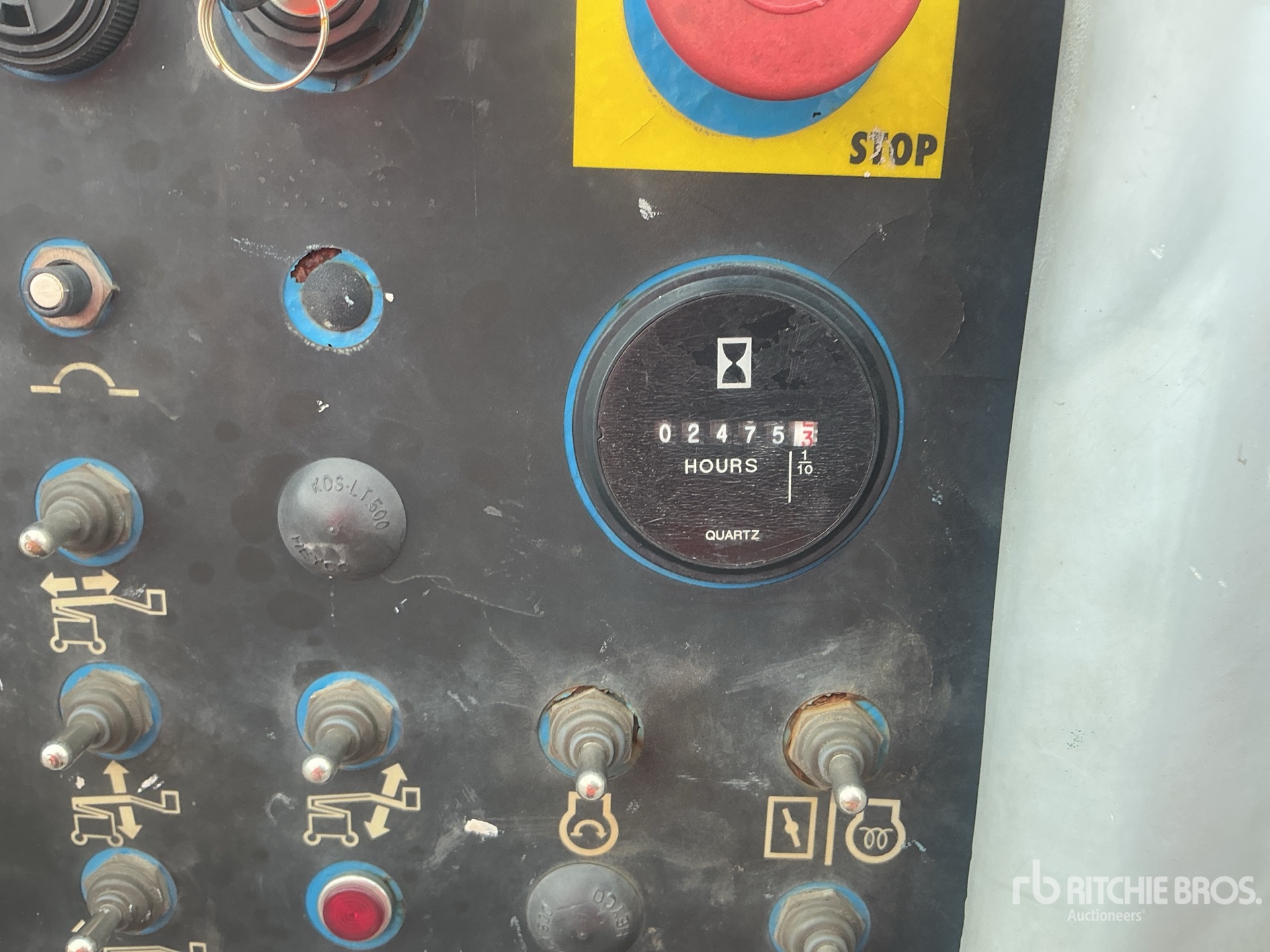

| Hours: | 2475 |

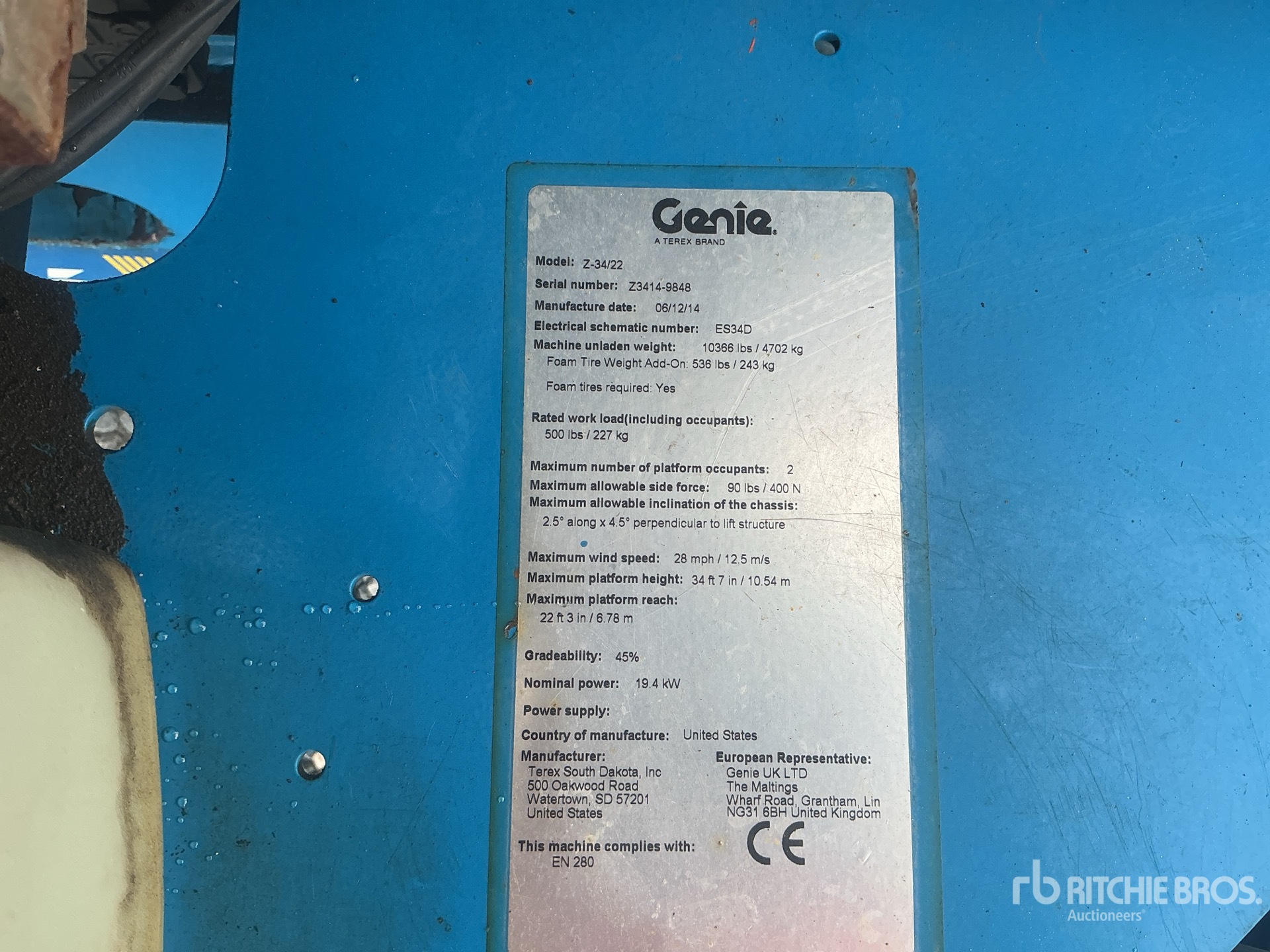

| Serial Number: | Z34149848 |
| Machine Location: | MOERDIJK, NLD |
Supplied by HeavyEquipmentData.com →
| Dimensions | |
| Ground Clearance | 7 in (17 cm) |
| Overall Height - mast lowered | 7 ft (2 m) |
| Overall Length | 19 in (47 cm) |
| Overall Width | 6 ft (2 m) |
| Turning Radius | 14 ft (4 m) |
| Wheelbase | 6 ft (2 m) |
| Engine | |
| Engine Model | DF-972 |
| Gross Power | 32 hp (24 kw) |
| Performance | |
| Fuel Capacity | 9 gal (34 l) |
| Hydraulic System Fluid Capacity | 19 gal (72 l) |
| Max Speed | 3 mph (5 kph) |
| Operating Weight | 10,450 lbs (4,740 kg) |
| Tire Fill/Type | Solid non-marking |
| Tire Size | 9x14.5 |
| Platform | |
| Max Horizontal Reach | 22 ft (7 m) |
| Max Platform Height | 35 ft (11 m) |
| Max Platform Weight Capacity | 501 lbs (227 kg) |
| Max Working Height | 42 ft (13 m) |
| Platform Inner Length | 56 in (142 cm) |
| Platform Inner Width | 30 in (76 cm) |
| Platform Rotation | 180 degrees |
