Equipment ↠ Grove ↠ Carrydeck Cranes ↠ 1992 Grove AP308

1992 Grove AP308 For Sale in Chicago, Il

Name: 1992 Grove AP308
Brand: Grove
SKU: 87470908
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-12 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

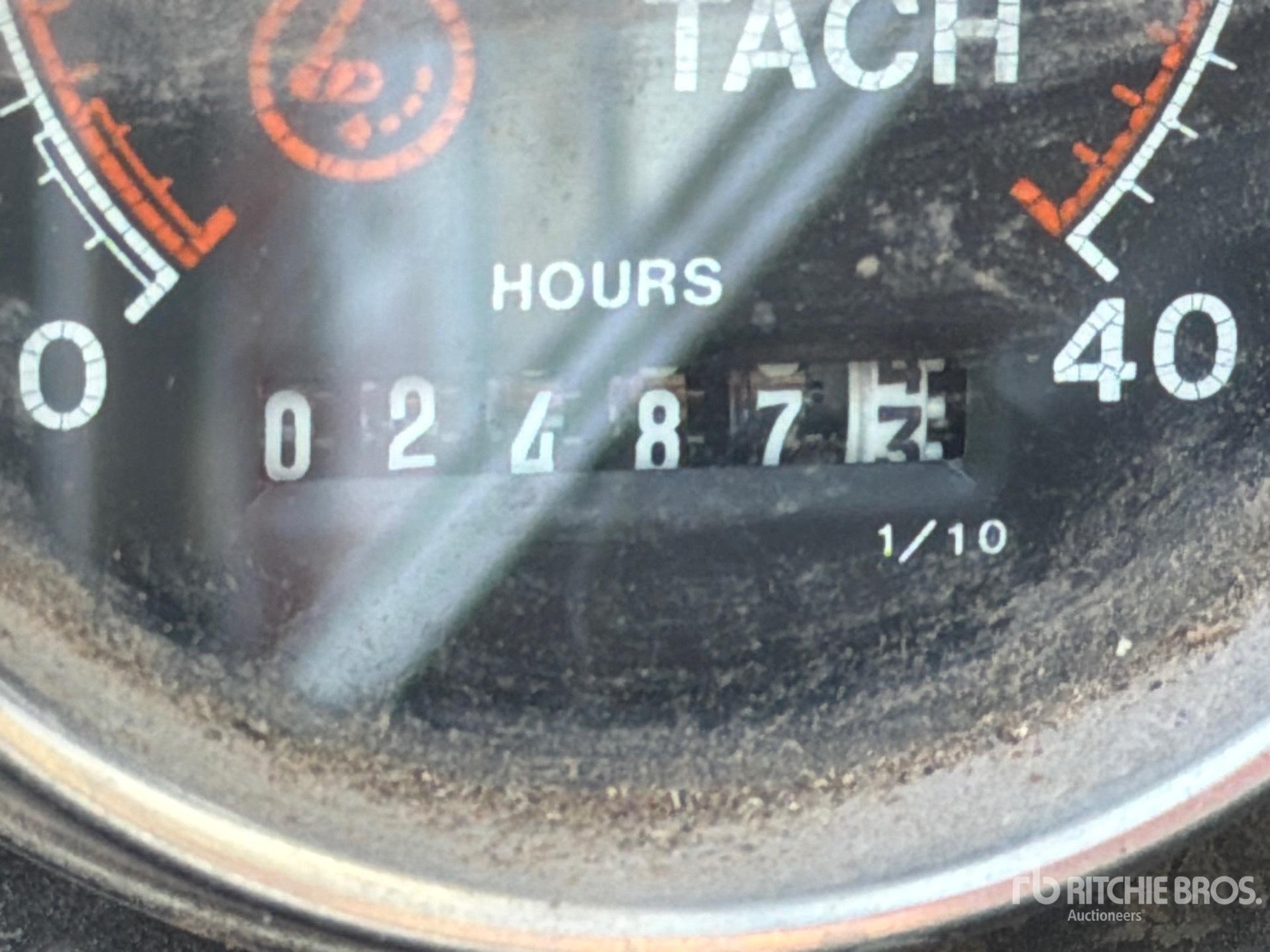

Hours:	2487

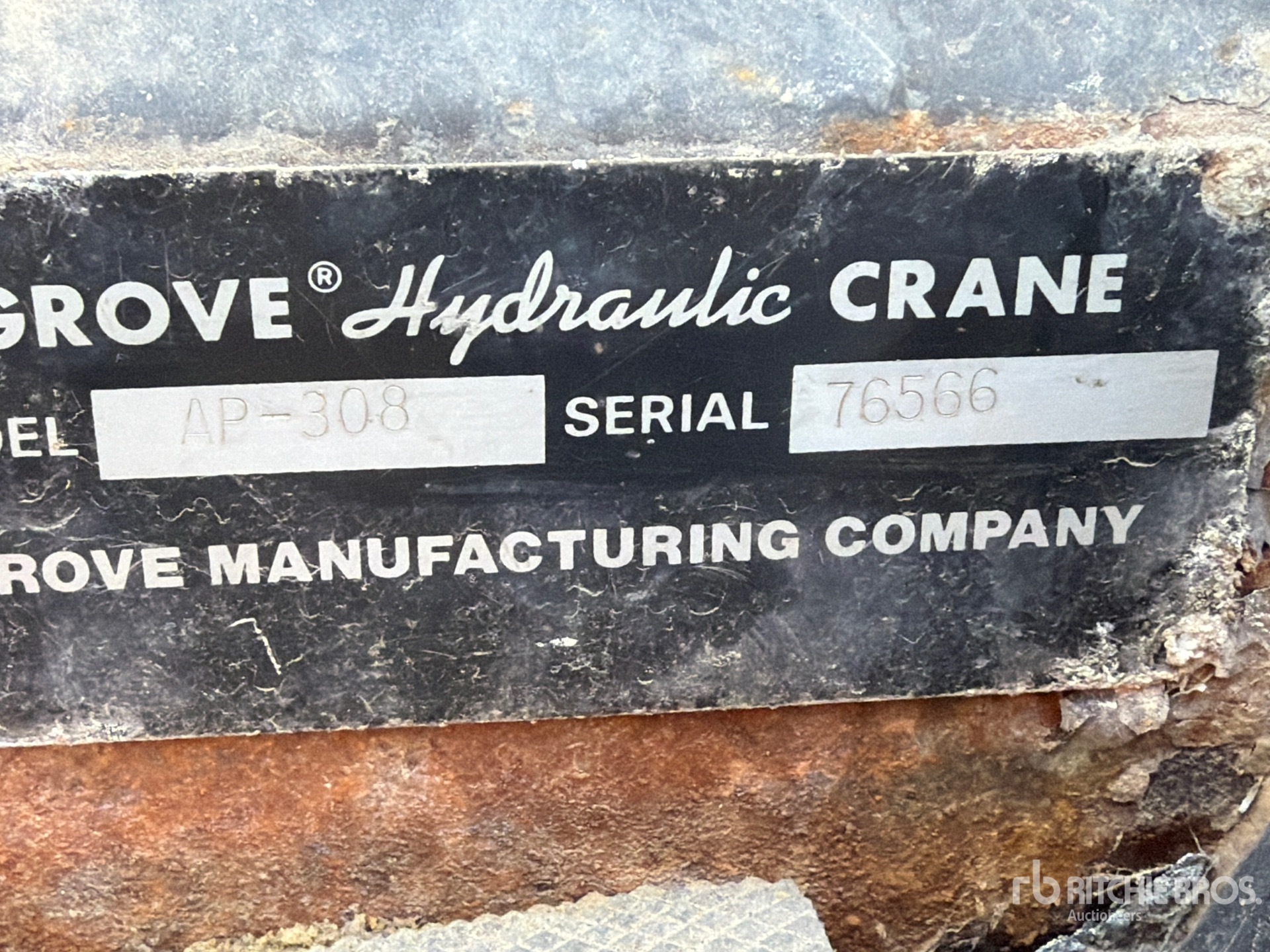

Serial Number:	76566
Machine Location:	CHICAGO, IL

Description:

Located in Lane 41 Spot 8, Cummins 4 Cylinder Diesel Engine, 10 ft Minimum 24 ft Maximum Boom Length, 15 ft Swingaway Jib Closing Time: 2026-05-12 10:11:15 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom
Max Elevating Angle	70 degrees
Max Height @ Max Raise Angle - no jib	24 ft (7 m)
Max Lift Capacity	17,000 lbs (7,711 kg)
Max Working Radius	22 ft (7 m)
Min Height @ Max Raise Angle	11 ft (3 m)
Min Working Radius	5 ft (2 m)
Number of Sections	3
Swing Speed	2 rpm
CARRIER ENGINE
Displacement	165 cu in (2,701 cu cm)
Gross Power	66 hp (49 kw)
Make	Grove
Max Torque	106 lbs ft (144 nm)
Power Measured @	2,800 rpm
Torque Measured @	1,800 rpm
Dimensions
Carrier Length	13 ft (4 m)
Ground Clearance	2 ft (0 m)
Transport Height	8 ft (2 m)
Transport Length	15 ft (5 m)
Transport Width	7 ft (2 m)
Upper Structure Tail Swing Radius	4 ft (1 m)
Width w/ Outriggers Extended	11 ft (3 m)
Operating Specifications
Carrier Fuel Capacity	30 gal (114 l)
Number of Axels	2
Operating Voltage	12 volts
Operating Weight	15,461 lbs (7,013 kg)
Tire Size	10.00X15-16PR
Upper Structure Hydraulic System Fluid Capacity	30 gal (114 l)
Transmission
Max Speed - Forward	17 mph (27 kph)
Number of Forward Gears	3
Number of Reverse Gears	1
Transmission Type	automatic
