Equipment ↠ Grove ↠ Truck Cranes ↠ 1974 Grove TM650

1974 Grove TM650 For Sale in Chehalis, Wa

Name: 1974 Grove TM650
Brand: Grove
SKU: 86658602
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-07 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

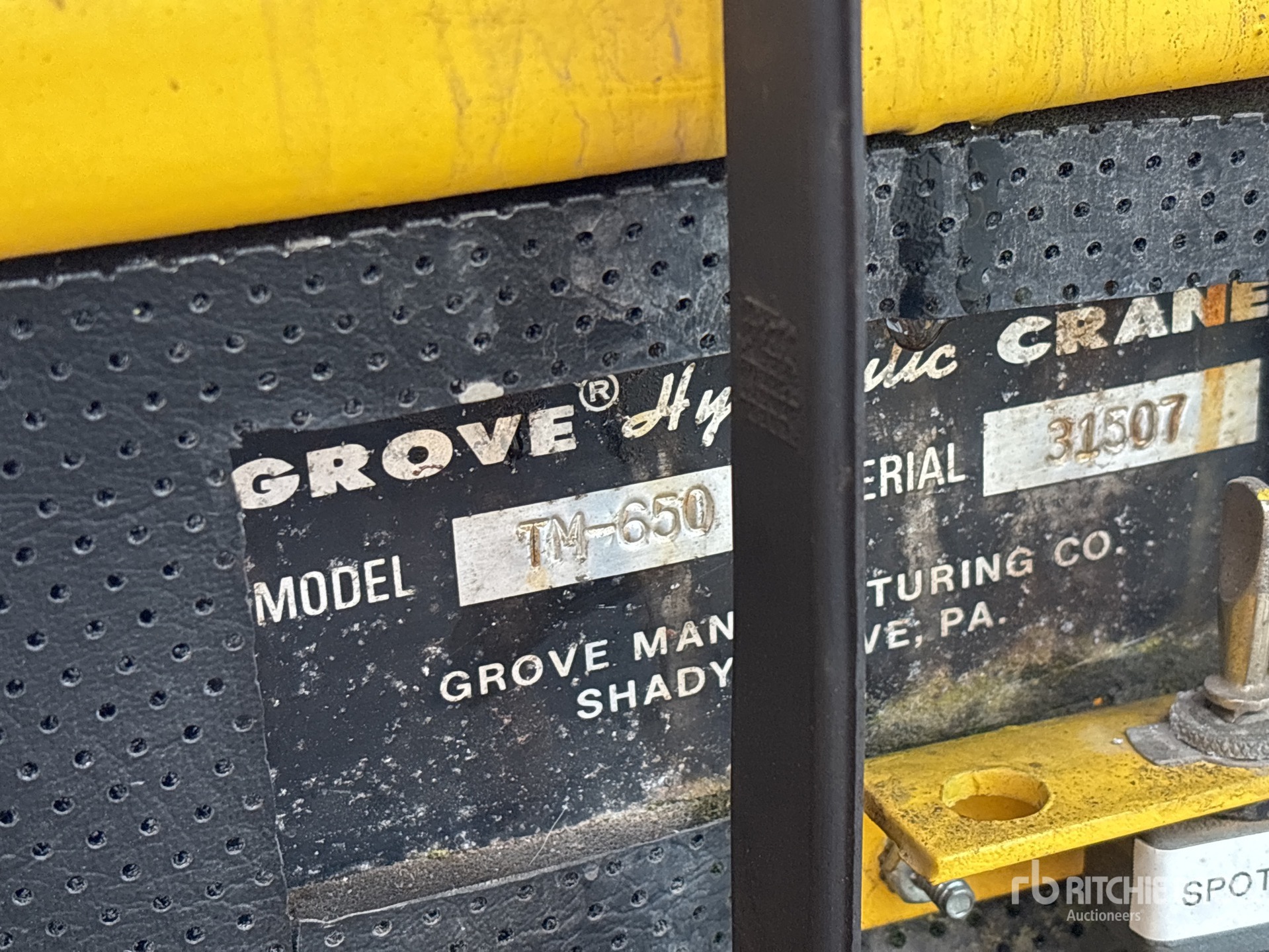

Serial Number:	31507
Machine Location:	CHEHALIS, WA

Description:

Fuller Manual Transmission, 789 hrs Carrier Engine, Cummins 6 Cylinder Diesel Carrier Engine, Cummins Diesel Upper Engine, 15 ft Minimum 55 ft Maximum Boom Length, Rooster Sheave, Overhaul Ball No title available sold, bill of sale only;, Pick up by appointment only, Closing Time: 2026-05-08 01:05:45 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

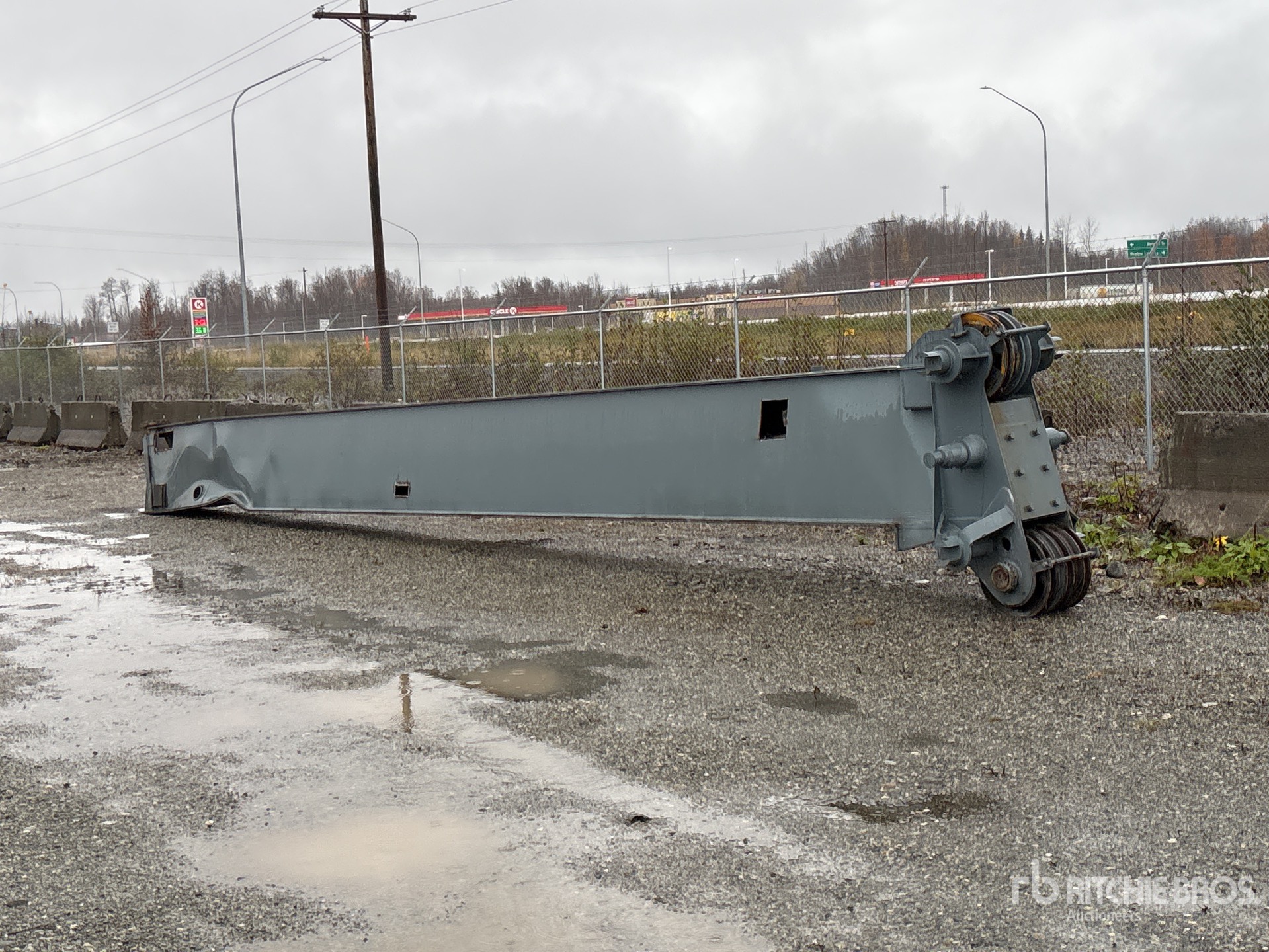

Boom
Max Elevating Angle	80 degrees
Max Height @ Max Raise Angle - no jib	119 ft (36 m)
Max Lift Capacity	130,000 lbs (58,967 kg)
Max Working Radius	115 ft (35 m)
Min Height @ Max Raise Angle	35 ft (11 m)
Min Working Radius	12 ft (4 m)
Number of Sections	4
Swing Speed	3 rpm
CARRIER ENGINE
Displacement	568 cu in (9,308 cu cm)
Gross Power	304 hp (227 kw)
Make	Grove
Max Torque	814 lbs ft (1,104 nm)
Power Measured @	2,100 rpm
Torque Measured @	1,400 rpm
Dimensions
Carrier Length	36 ft (11 m)
Ground Clearance	1 ft (0 m)
Transport Height	12 ft (4 m)
Transport Length	45 ft (14 m)
Transport Width	11 ft (3 m)
Upper Structure Tail Swing Radius	14 ft (4 m)
Width w/ Outriggers Extended	21 ft (6 m)
Operating Specifications
Alternator Supplied Amperage	62 amps
Carrier Fuel Capacity	60 gal (227 l)
Number of Axels	4
Operating Voltage	12 volts
Operating Weight	89,800 lbs (40,733 kg)
Tire Size	14.00x2018ply
Upper Structure Fuel Capacity	75 gal (284 l)
Upper Structure Hydraulic System Fluid Capacity	205 gal (776 l)
Transmission
Max Speed - Forward	46 mph (73 kph)
Number of Forward Gears	13
Number of Reverse Gears	2
Transmission Type	Fuller RTOO 9513 Roadranger
UPPER STRUCTURE ENGINE
Displacement	318 cu in (5,218 cu cm)
Make	Grove
Max Torque	410 lbs ft (556 nm)
Net Power	178 hp (133 kw)
Number of cylinders	6
Power Measured @	2,500 rpm
Torque Measured @	1,200 rpm
