Auction Pricing
Auction Info: Starting on 2026-05-06 Click here to place a bid

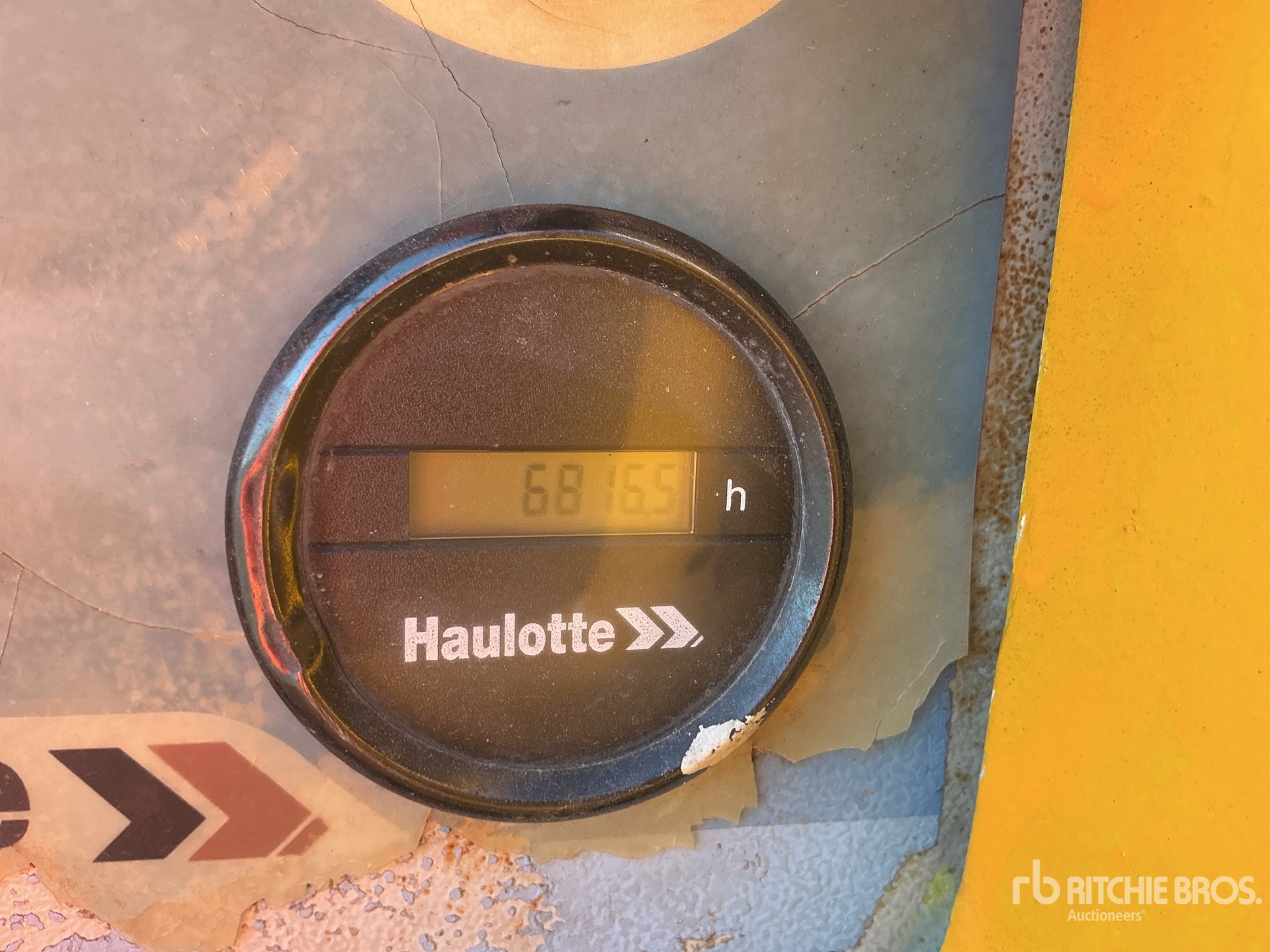

| Hours: | 6816 |

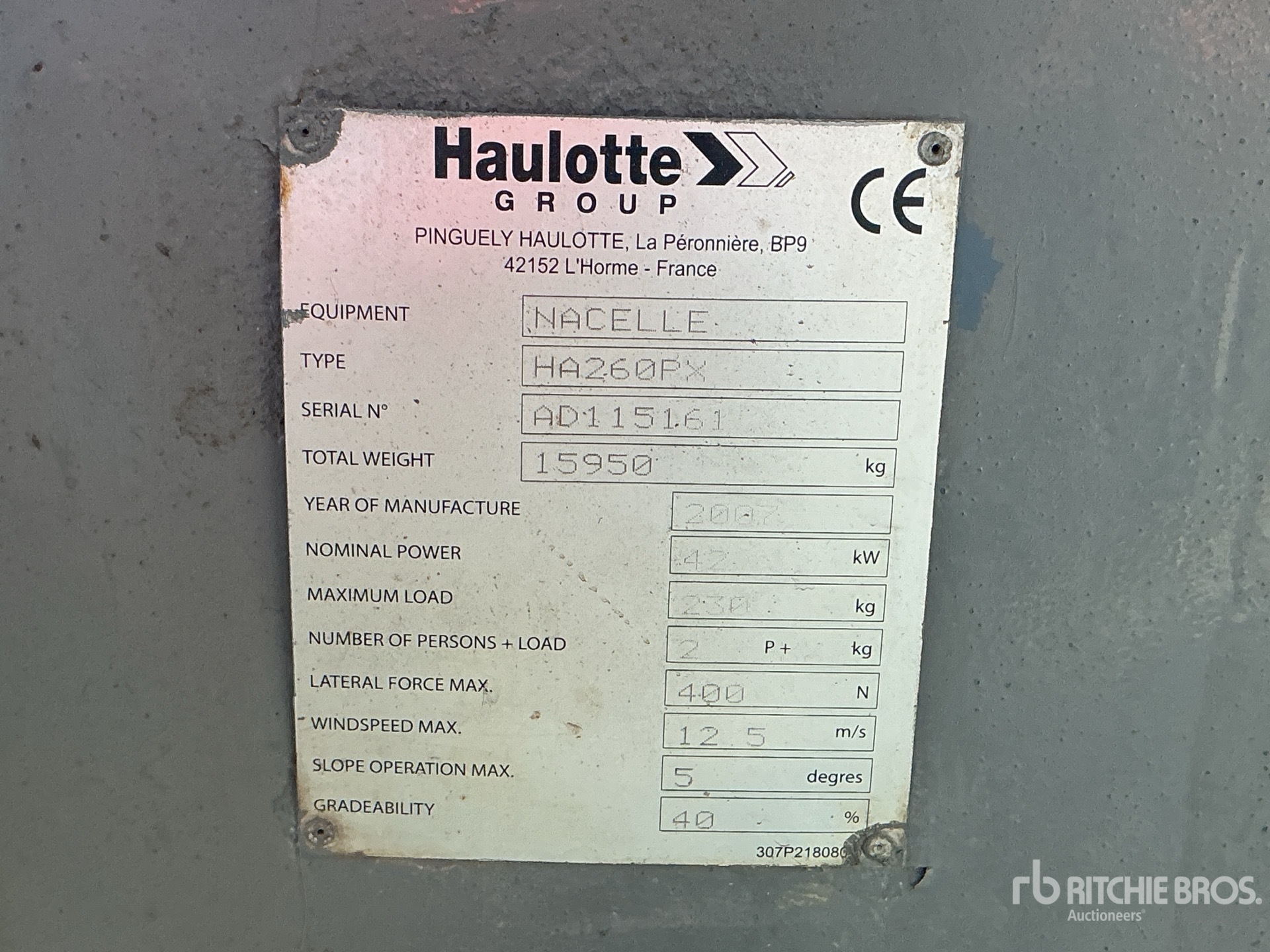

| Serial Number: | AD115161 |
| Machine Location: | MOERDIJK, NLD |
Supplied by HeavyEquipmentData.com →
| Dimensions | |
| Ground Clearance | 17 in (42 cm) |
| Overall Height - mast lowered | 9 ft (3 m) |
| Overall Length | 39 in (100 cm) |
| Overall Width | 8 ft (2 m) |
| Turning Radius | 13 ft (4 m) |
| Wheelbase | 9 ft (3 m) |
| Engine | |
| Engine Model | F4 L2011 |
| Fuel Type | Diesel |
| Gross Power | 56 hp (42 kw) |
| Performance | |
| Fuel Capacity | 40 gal (150 l) |
| Hydraulic System Fluid Capacity | 40 gal (150 l) |
| Max Speed | 3 mph (5 kph) |
| Operating Weight | 35,164 lbs (15,950 kg) |
| Tire Fill/Type | foam filled |
| Tire Size | 15 R 22 |
| Platform | |
| Max Horizontal Reach | 53 ft (16 m) |
| Max Platform Height | 78 ft (24 m) |
| Max Platform Weight Capacity | 507 lbs (230 kg) |
| Max Working Height | 84 ft (26 m) |
| Platform Inner Length | 71 in (180 cm) |
| Platform Inner Width | 32 in (80 cm) |
| Platform Rotation | 180 degrees |
