2023 Hevi GEX-8000 For Sale in East Windsor, New Jersey

Name: 2023 Hevi GEX-8000
Brand: Hevi
SKU: 54808507
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: Call for Price

HEVI

HEVI Dealer Info

HEVI Website

Click here to email HEVI.

Contact: Sales

Click for Phone Number

Machine Info:

Machine Location:

EAST WINDSOR, NEW JERSEY

Description:

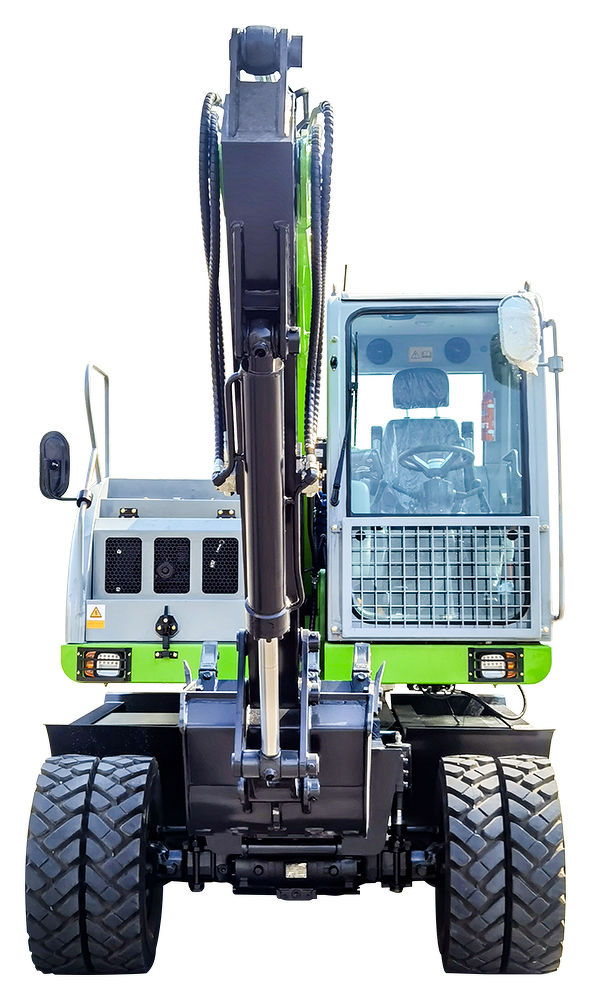

ALL-ELECTRIC - Charging Unit Included! 8-ton Rated Load, 0.34-cu-yd, TelematicsAll-Electric 1.8-Ton Rated Wheel LoaderIntroducing HEVI's GEX-8000, the all-electric wheeled excavator that combines power, efficiency, and durability. With its advanced electric motor and battery system, the GEX-8000 offers maximum performance, while minimizing emissions and operating costs.The GEX-8000 is the perfect choice for contractors, landscapers, and other professionals who demand a reliable, efficient, and high-performing wheeled excavator. With its advanced technology and rugged construction, this machine is ready to tackle any job, big or small.Includes a 141 kWh battery, a base charger (220V, with an optional 480V upgrade) and a 0.34-cu-yd bucket. Compatible with a range of Electric Vehicle Supply Equipment (EVSE) brands such as Blink Charging and Siemen’s eMobility.

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Battery
Aux Battery Capacity	36 Ah
Aux Battery Type	Lead-Acid
Aux Battery Voltage	24 volts
Battery Capacity	141 kw (189 hp)
Battery Cooling Mode	Liquid Cooling
Battery Heating Mode	PTC Heating
Battery Operating Temperature	-31 to -140 Farenheight
Battery Type	Lithium Ferrophospate (LFP)
Battery Voltage	618 volts
Charging Port	J1772 / CCS1
Charging Times (220V \| 480V \| DCFC)	12 \| 3 \| <1.5 hours
Energy Consumption	12 kw (16 hp)
Service Life	4000 Cycles
Boom/Stick Excavator Option 1
Max Digging Depth	7' 7"
Max Reach Along Ground	19' 7"
DImensions
Angle of Approach	5 degrees
Dozer Blade Height	1' 8" ft (0 m)
Dozer Blade, Max Reach at Ground Level	5' 8" ft (2 m)
Front Slew Radius	8' 7" ft (2 m)
Ground Clearance to Super Structure	3' 7" ft (1 m)
Height of Counterweight	6' 9" ft (2 m)
Highest Position Leveler B lade	1' 2" ft (0 m)
Highest Position Leveler Blade	14 in (36 cm)
Lowest Position Leveler Blade	3 in (8 cm)
Max Digging Depth	7' 7" ft (2 m)
Max Dump Height	15 ft (5 m)
Maximum Digging Reach	19' 7" ft (6 m)
Maximum Digging Reach at Ground Level	19 ft (6 m)
Maximum Vertical Wall Digging Depth	5' 2" ft (2 m)
Minimum Ground Clearance	9 in (23 cm)
Overall Height Cab	9' 7" ft (3 m)
Overall Length	20 ft (6 m)
Overall Width	6' 11" ft (2 m)
Tall Slew Radius	7' 1" ft (2 m)
Tires Width	19 in (48 cm)
Track Length	11 ft (3 m)
Wheel Base	8 ft (2 m)
Width of House	6' 9" ft (2 m)
Driving
Brakes	Hydraulic Caliper Disc Brakes
Forward Speed	2 mph (4 kph)
Motor Type	Permanent Magnet Synchronization
Rated Power	60 kw (80 hp)
Rated Voltage	380 volts
Reverse Speed	2 mph (2 kph)
Steering Mode	Standard Steering and Rotational House
Tire	8.25-16-16PR
Transmission	Hydraulic
Transmission Gear	1 Forward 1 Reverse
General Specifications
Boom Swing Angle	360 degrees
Bucket Capacity	0 cu yd (0 cu m)
Maximum Digging Force	50 newton
Maximum Gradeability	70 percent
Operating Weight	18,739 lbs (8,500 kg)
Hydraulics
Protection grade IP67	Yes
Rotating Speed	2000 r/min
Working Hydraulic Motor Type	Load Sensing System
Working Hydraulic Output Volume	42 gpm (160 lpm)
Working Hydraulic Pressure	4,061 psi
Working Hydraulic Rated Power	47 kw (62 hp)
Working Hydraulic Rated Torque	222 lbs ft (301 nm)
Working Oil Capacity	53 gal (199 l)
Operating Specifications
Operating Weight	18,739 lbs (8,500 kg)
