Equipment ↠ Hitachi ↠ Excavators ↠ 2009 Hitachi ZX140W-3

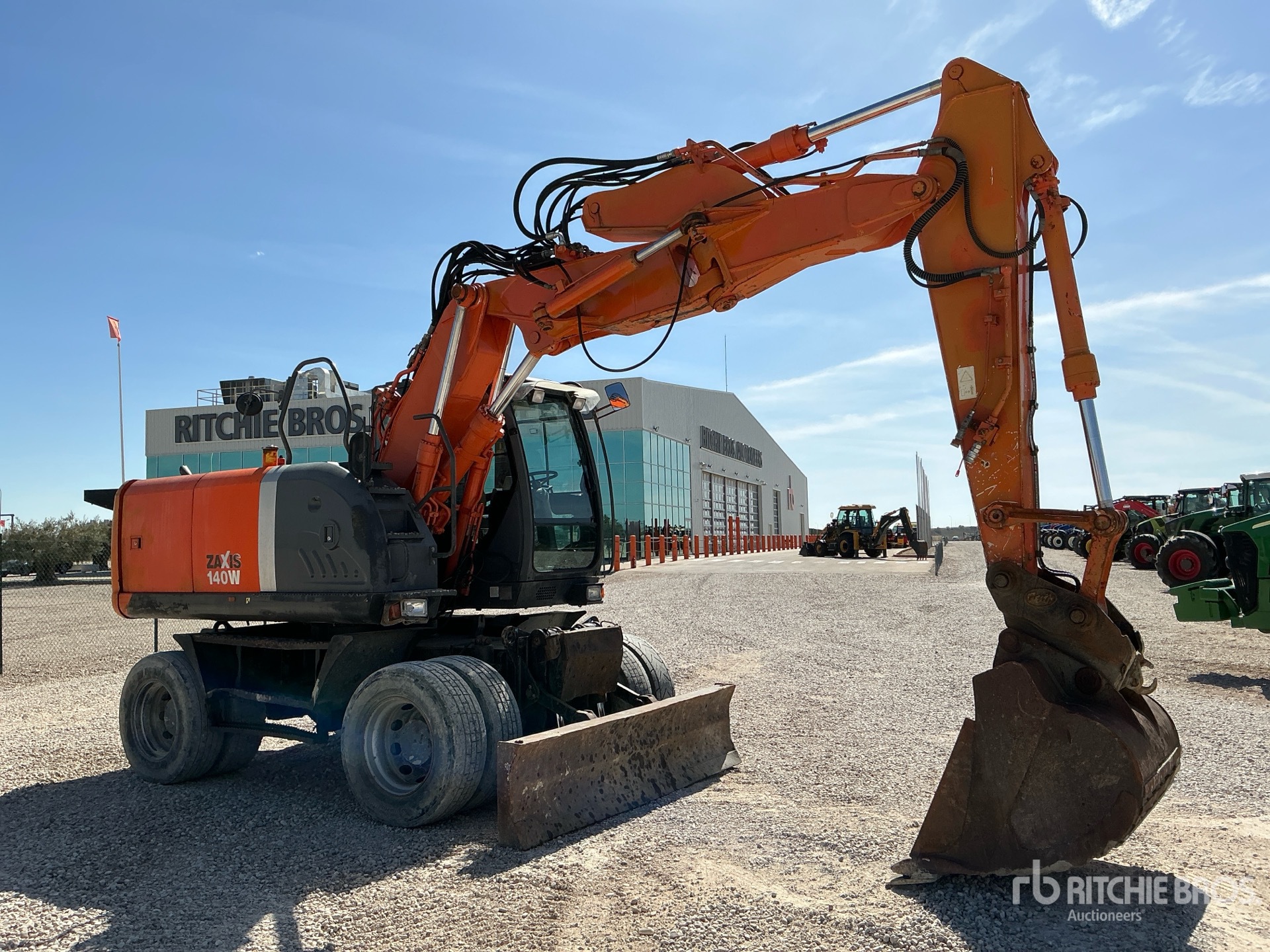

2009 Hitachi ZX140W-3 For Sale in Ocana, Esp

Name: 2009 Hitachi ZX140W-3
Brand: Hitachi
SKU: 86818515
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-05 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

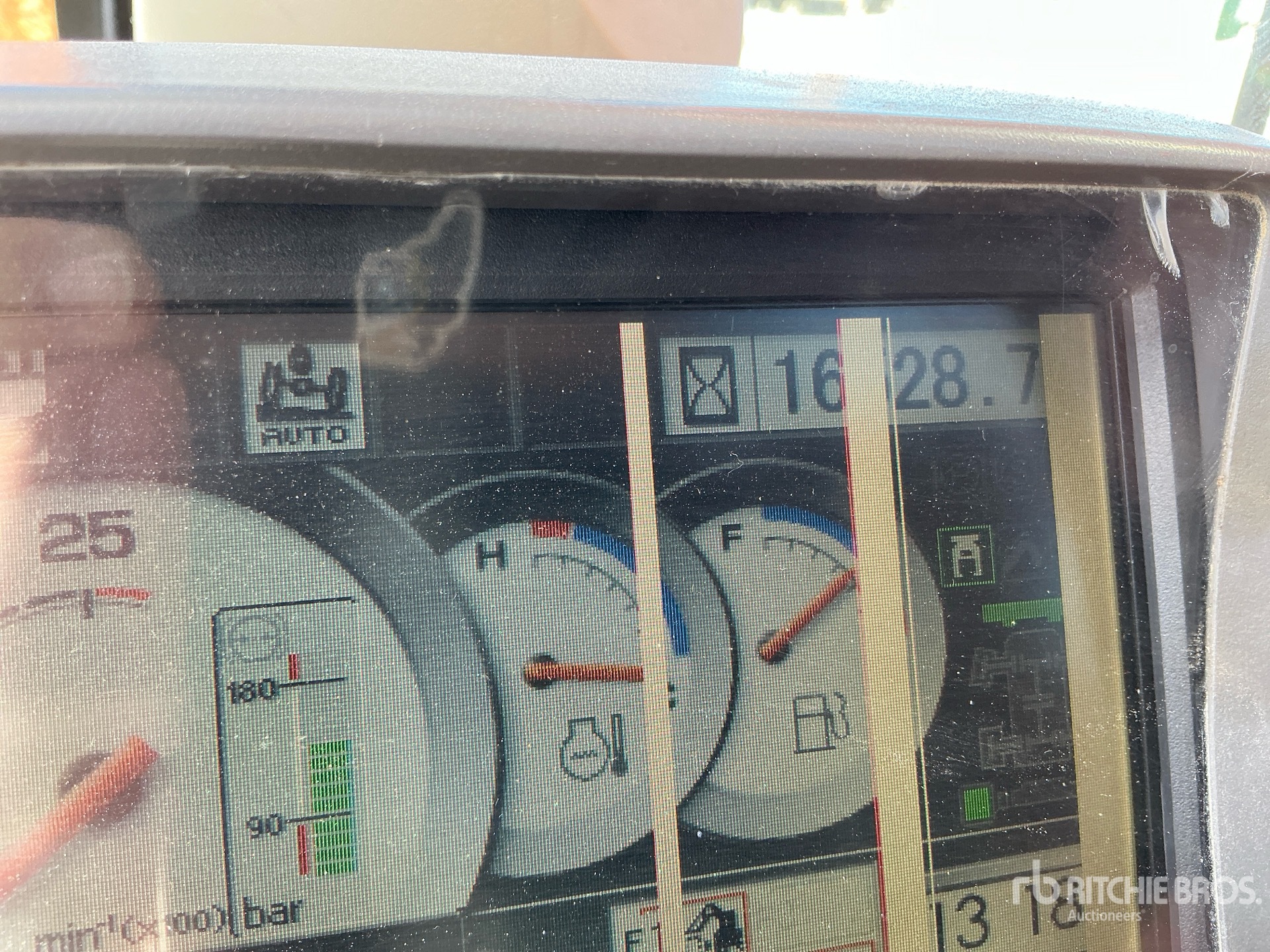

Hours:	16928

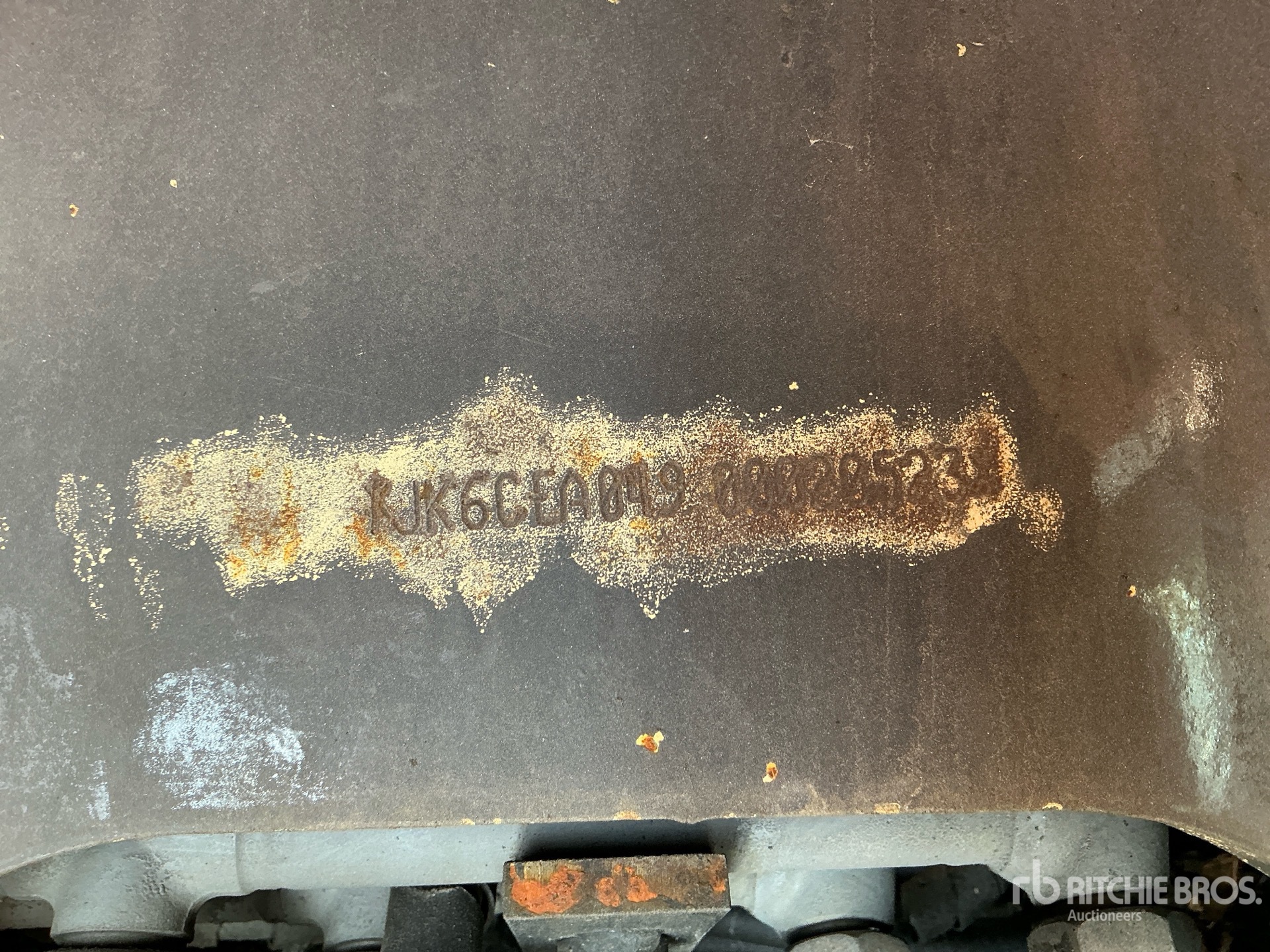

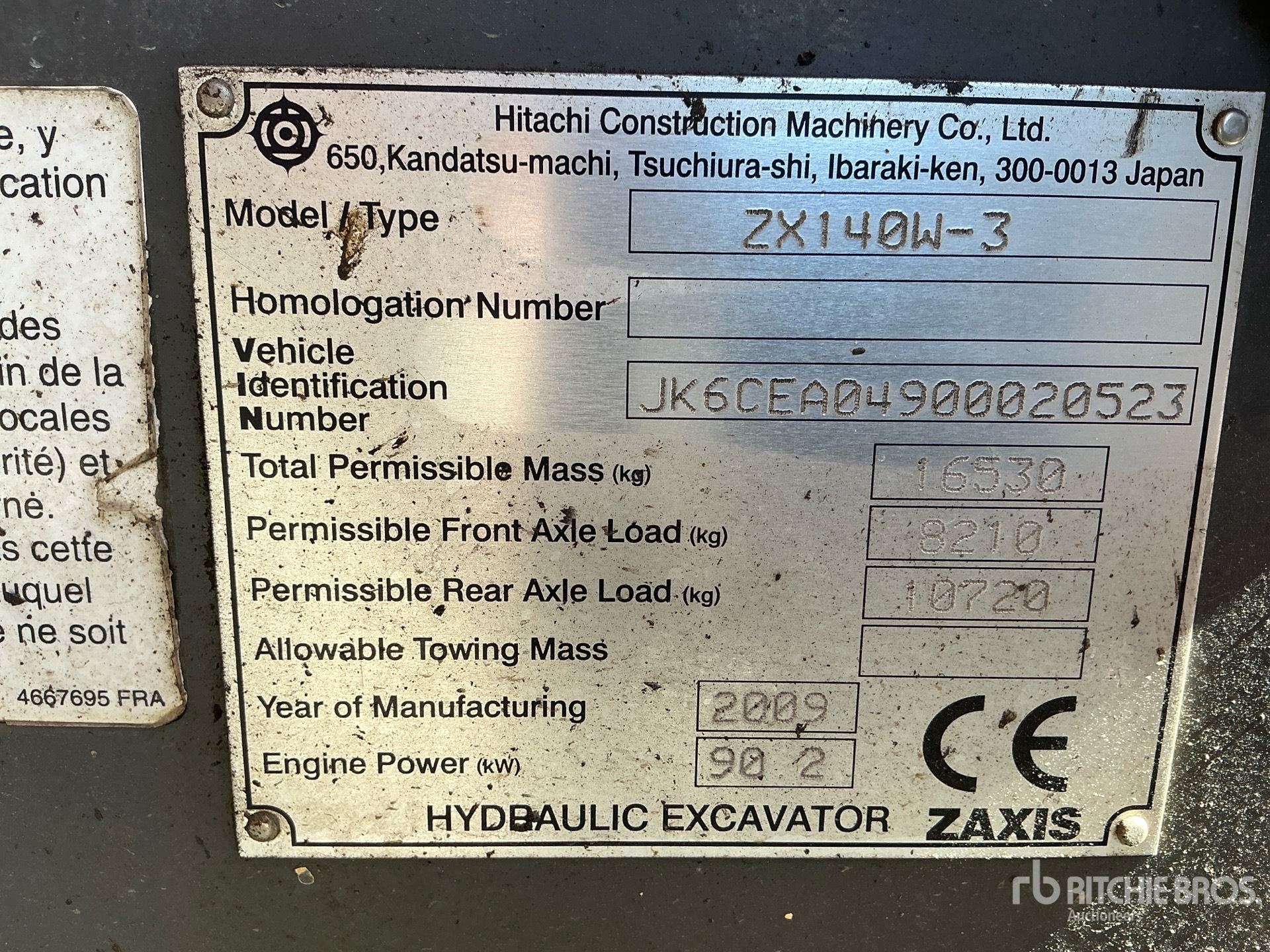

Serial Number:	JK6CEA04900020523
Machine Location:	OCANA, ESP

Description:

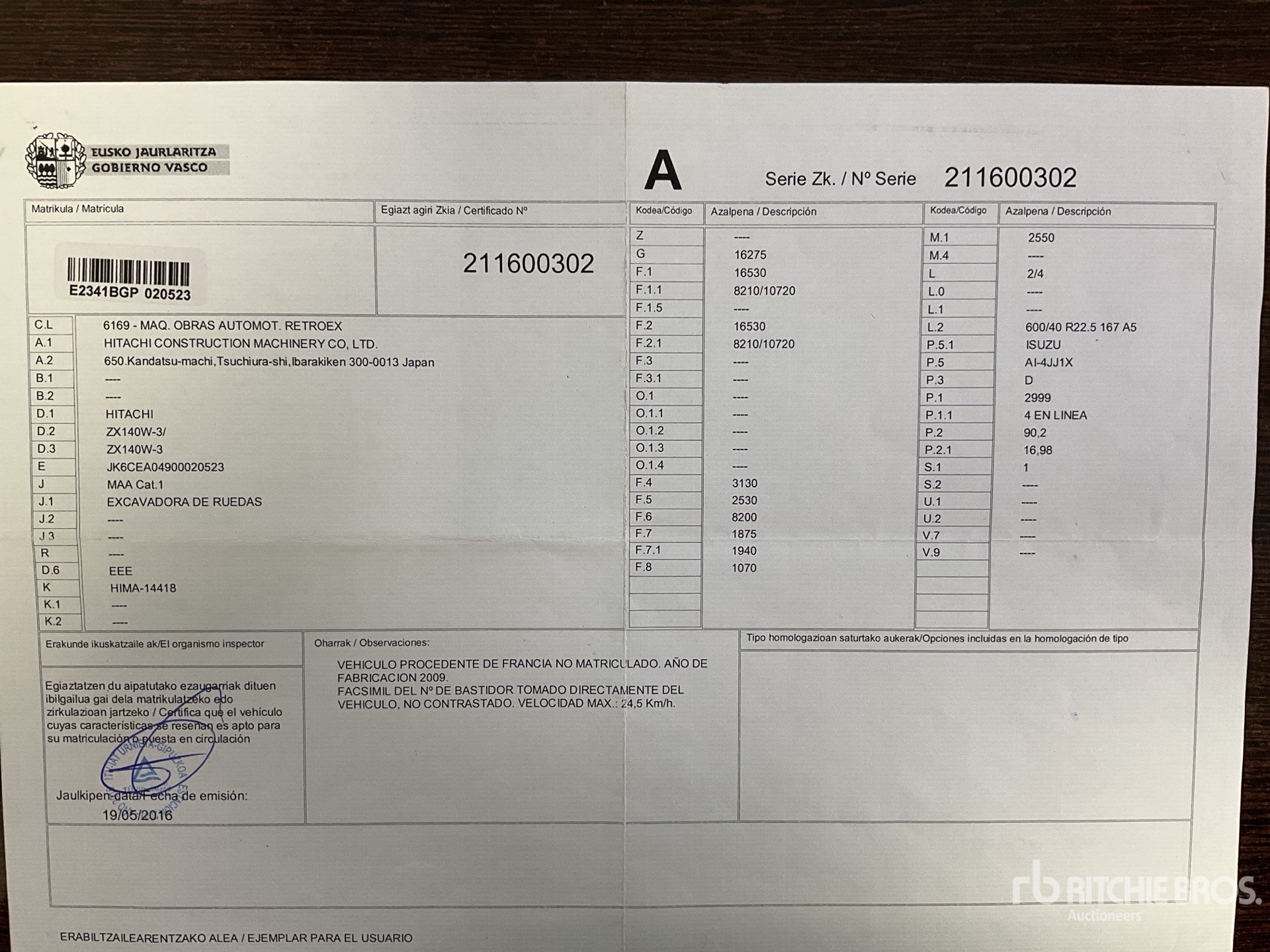

Air Conditioner, Rear View Camera, Parallel Offset Boom, 2100 mm Stick, Auxiliary Hydraulic Plumbing, Stick Check Valve, Boom Check Valves, Backfill Blade, 315/70R22.5 Tires, Hydraulic Quick Coupler, 1150 mm Digging Bucket Matriculado en Espana / Spanish Registration**COPIA CERTIFICADO CE DISPONIBLE/ COPY CE CERTIFICATE AVAILABLE** Closing Time: 2026-05-12 10:43:20 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Mobile Excavator Option 1
Max Cutting Height	29 ft (9 m)
Max Digging Depth	15 ft (5 m)
Max Loading Height	21 ft (6 m)
Max Reach Along Ground	26 ft (8 m)
Max Vertical Wall Dig Depth	14 ft (4 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	25 ft (8 m)
Boom/Stick Mobile Excavator Option 2
Max Cutting Height	29 ft (9 m)
Max Digging Depth	17 ft (5 m)
Max Loading Height	21 ft (6 m)
Max Reach Along Ground	27 ft (8 m)
Max Vertical Wall Dig Depth	15 ft (5 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	25 ft (8 m)
Boom/Stick Mobile Excavator Option 3
Max Cutting Height	30 ft (9 m)
Max Digging Depth	18 ft (6 m)
Max Loading Height	22 ft (7 m)
Max Reach Along Ground	29 ft (9 m)
Max Vertical Wall Dig Depth	16 ft (5 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	25 ft (8 m)
Bucket
Maximum Bucket Capacity	1 cu yd (1 cu m)
Minimum Bucket Capacity	0 cu yd (0 cu m)
Reference Bucket Capacity	1 cu yd (1 cu m)
Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	10 ft (3 m)
Overall Width	8 in (21 cm)
Overall Width - Outriggers Down	11 ft (3 m)
Upper Structure Clearance	4 ft (1 m)
Wheelbase	8 ft (3 m)
Engine
Aspiration	Turbocharged intercooled
Displacement	183 cu in (3,000 cu cm)
Engine Model	AI-4JJ1X
Net Power	121 hp (90 kw)
Net Torque	297 lbs ft (402 nm)
Number of Cylinders	4
Power Measured @	2,200 rpm
Torque Measured @	1,800 rpm
Operating Specifications
Cooling System Fluid Capacity	5 gal (18 l)
Engine Oil Capacity	4 gal (16 l)
Front Diff Fluid Capacity	3 gal (11 l)
Fuel Capacity	66 gal (250 l)
Hydraulic Pump Flow Capacity	83 gpm (315 lpm)
Hydraulic Pump Type	2 variable displacement axial piston pumps
Hydraulic System Fluid Capacity	48 gal (180 l)
Hydraulic System Relief Valve Pressure	4,975 psi
Operating Voltage	24 V
Operating Weight	32,408 lbs (14,700 kg)
Oscillating Axle Angle	14 degrees
Rear Diff Fluid Capacity	4 gal (14 l)
Swing Mechanism
Swing Speed	14 rpm
Transmission
Max Travel Speed	22 mph (35 kph)
Number of Forward Gears	2
Number of Reverse Gears	2
Transmission Type	2 speed power shift transmission and variable displacement axial piston type travel motor
