Boom/Stick Excavator Option 1
Max Cutting Height	32 ft (10 m)
Max Digging Depth	20 ft (6 m)
Max Loading Height	23 ft (7 m)
Max Reach Along Ground	30 ft (9 m)
Max Vertical Wall Digging Depth	17 ft (5 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	32 ft (10 m)
Boom/Stick Excavator Option 2
Max Cutting Height	33 ft (10 m)
Max Digging Depth	22 ft (7 m)
Max Loading Height	24 ft (7 m)
Max Reach Along Ground	32 ft (10 m)
Max Vertical Wall Digging Depth	20 ft (6 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	31 ft (10 m)
Bucket
Maximum Bucket Capacity	2 cu yd (1 cu m)
Minimum Bucket Capacity	1 cu yd (1 cu m)
Reference Bucket Capacity	1 cu yd (1 cu m)
Dimensions
Digging Depth	21 ft (6 m)
Digging Reach	32 ft (10 m)
Ground Clearance	2 ft (0 m)
Height - Top of Cab	10 ft (3 m)
Length of Track on Ground	12 ft (4 m)
Removal Counterweight Clearance	3 ft (1 m)
Tail Swing Radius	9 ft (3 m)
Width to Outside of Tracks	10 ft (3 m)
Engine
Aspiration	Turbocharged intercooler
Displacement	317 cu in (5,193 cu cm)
Engine Model	AI-4HK1X
Make	Isuzu
Max Torque	483 lbs ft (655 nm)
Net Power	164 hp (122 kw)
Power Measured @	2,000 rpm
Torque Measured @	1,500 rpm
Operating Specifications
Cooling System Fluid Capacity	7 gal (26 l)
Engine Oil Capacity	6 gal (23 l)
Fuel Capacity	106 gal (400 l)
Hydraulic Pump Flow Capacity	112 gpm (424 lpm)
Hydraulic System Fluid Capacity	64 gal (240 l)
Hydraulic System Relief Valve Pressure	4,975 psi
Swing Drive Fluid Capacity	2 gal (6 l)
Swing Mechanism
Swing Speed	13 rpm
Undercarriage
Ground Pressure	6 psi
Max Travel Speed	4 mph (6 kph)
Number of Carrier Rollers per Side	2
Number of Shoes per Side	49
Number of Track Rollers per Side	8
Shoe Size	24 in (60 cm)
Track Gauge	8 ft (2 m)

Dealer Contact Info:

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Email Ritchie Bros. Auctioneers.

Contact:

Click for Phone Number

Our Main Office

Construction Equipment Guide
470 Maryland Drive
Fort Washington, PA 19034
800-523-2200

About Us

Construction Equipment Guide covers the nation with its four regional newspapers, offering construction and industry news and information along with new and used construction equipment for sale from dealers in your area. Now we extend those services and information to the internet. Making it as easy as possible to find the news and equipment that you need and want.

Contents Copyrighted 2026, by Construction Equipment Guide, which is a Registered Trademark, registered in the U.S. Patent Office. Registration number 0957323. All rights reserved, nothing may be reprinted or reproduced (including framing) in whole or part without written permission from the publisher. All editorial material, photographs, drawings, letters, and other material will be treated as unconditionally assigned for publication and copyright purposes and are subject to Construction Equipment Guide’s unrestricted right to edit and comment editorially. Contributor articles do not necessarily reflect the policy or opinions of this publication.

Read our privacy policy here.
Mastodon

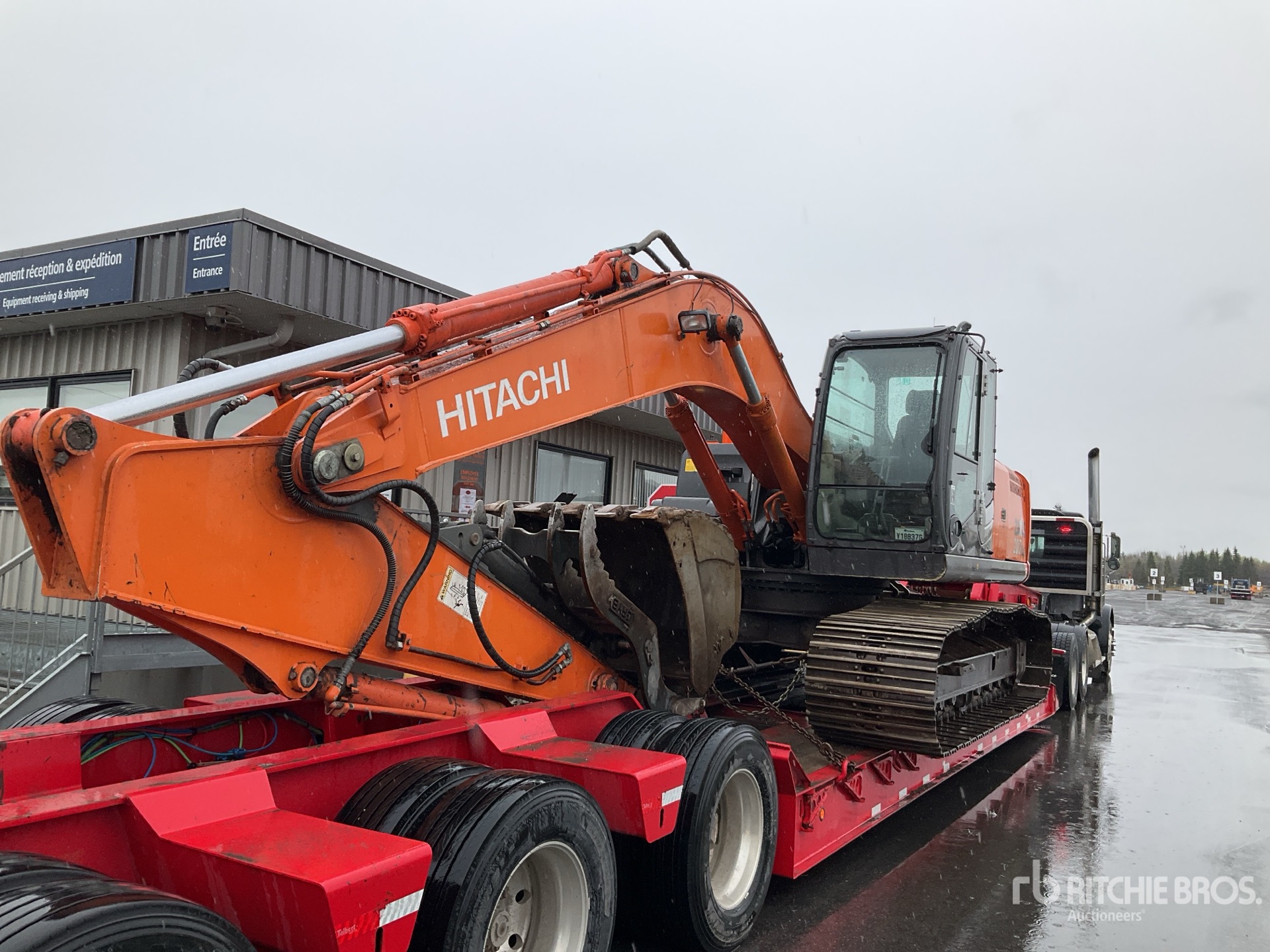

2011 Hitachi ZX200LC-3 For Sale in Montreal, Qc
