Equipment ↠ Hitachi ↠ Excavators ↠ 2006 Hitachi ZX230LC

2006 Hitachi ZX230LC For Sale in Manhattan, KS

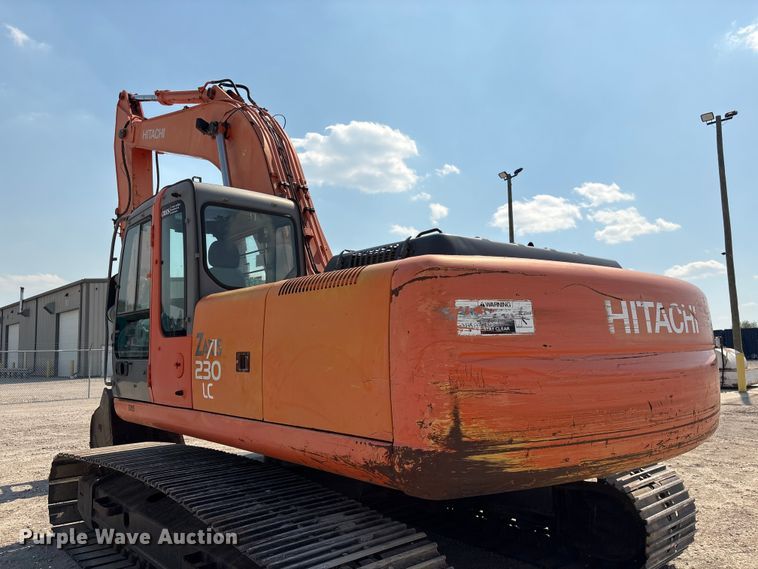

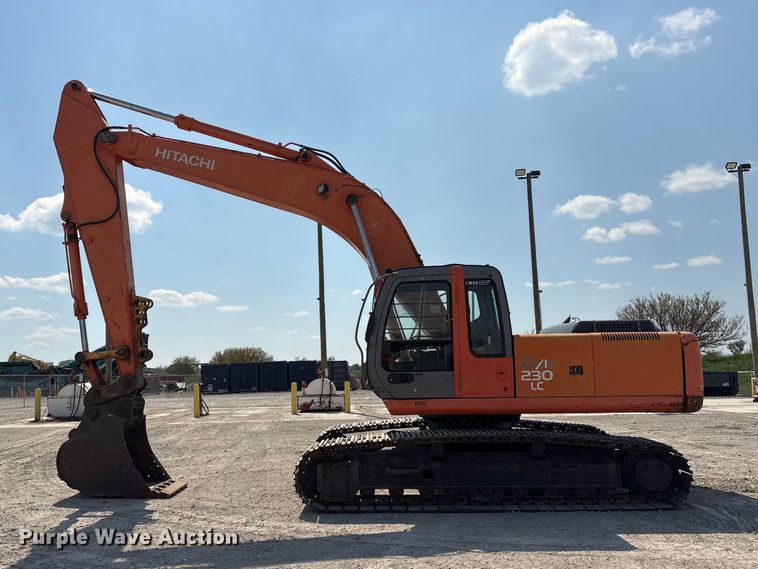

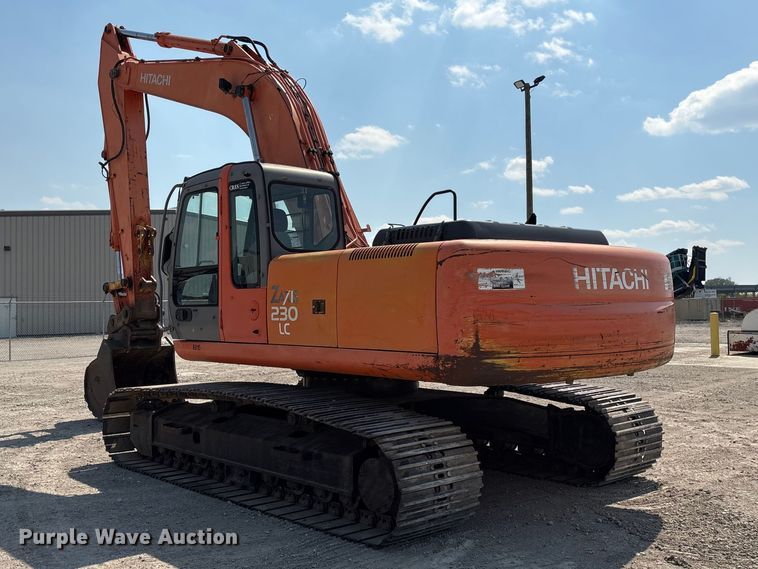

Name: 2006 Hitachi ZX230LC
Brand: Hitachi
SKU: 87652962
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: Auction Pricing

Purple Wave, Inc.

Purple Wave, Inc. Dealer Info

Purple Wave, Inc. Website

Click here to email Purple Wave, Inc..

Click for Phone Number

Machine Info:

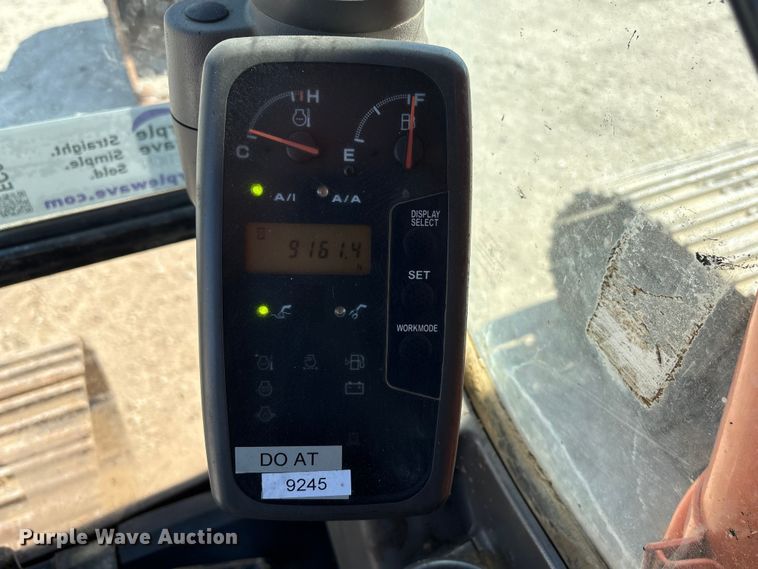

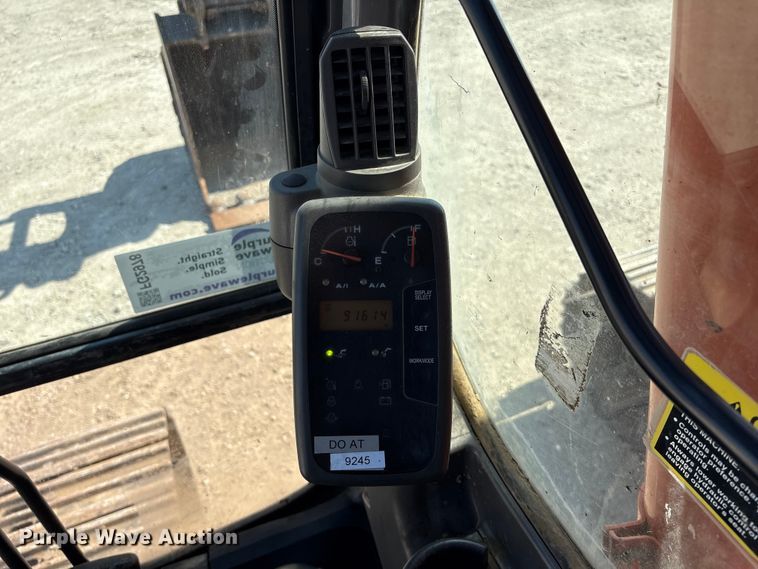

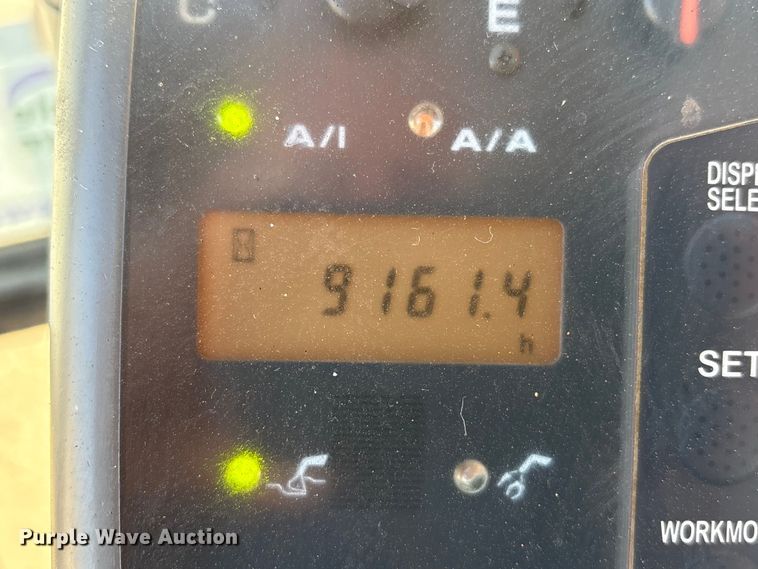

Hours:	9161

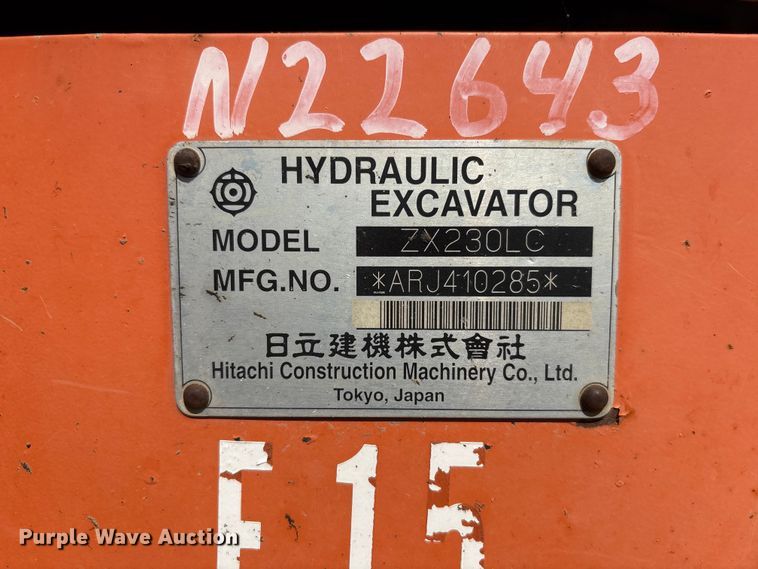

Serial Number:	ARJ410285
Machine Location:	MANHATTAN, KS
More Information:	https://www.purplewave.com/auction/260604/item/FG2978

Description:

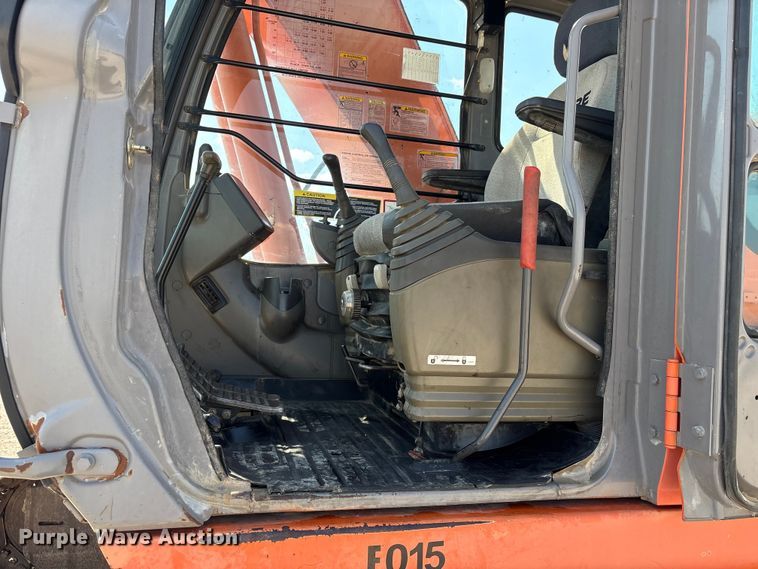

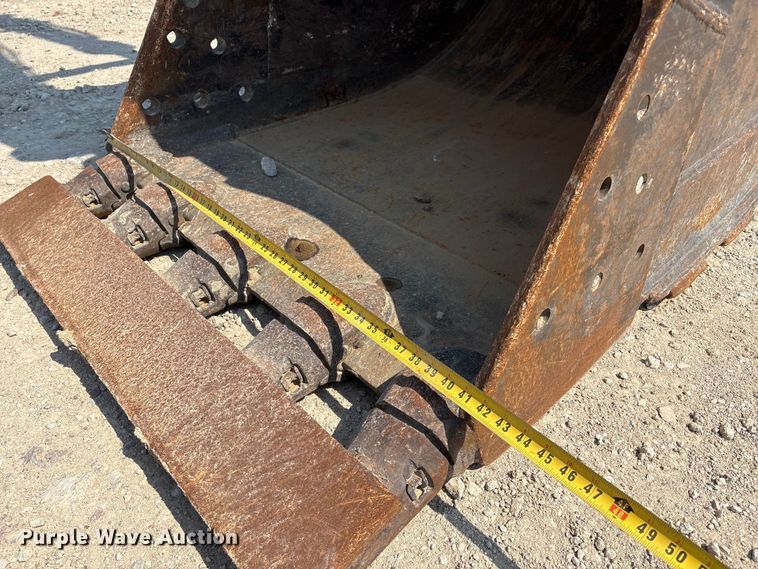

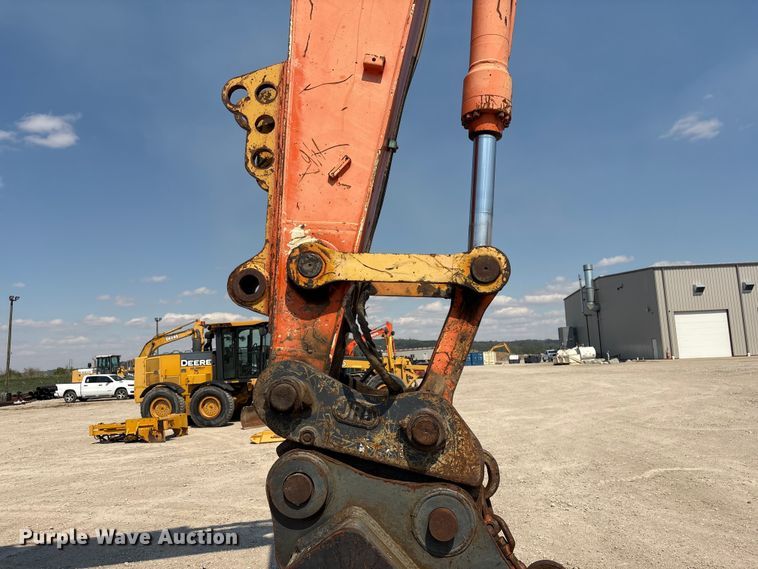

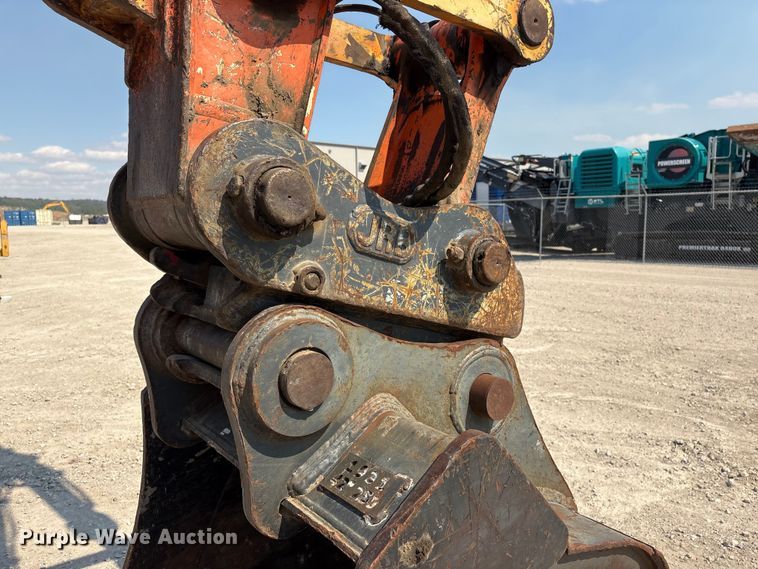

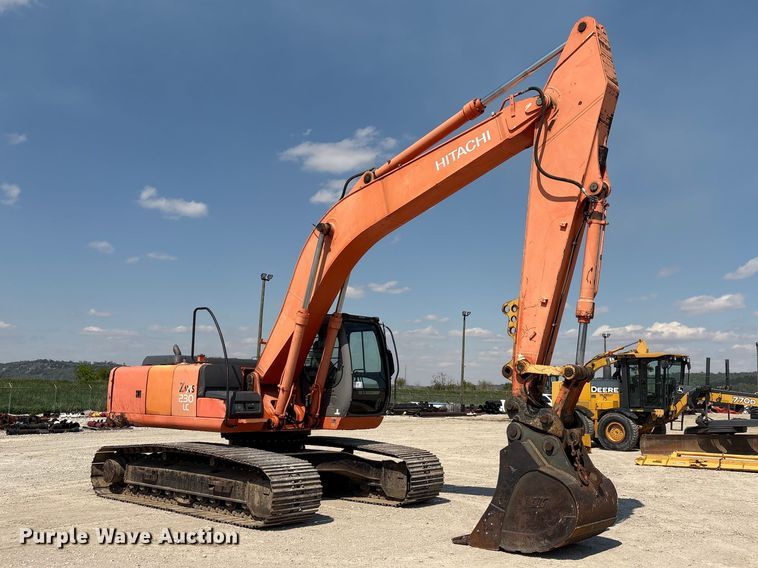

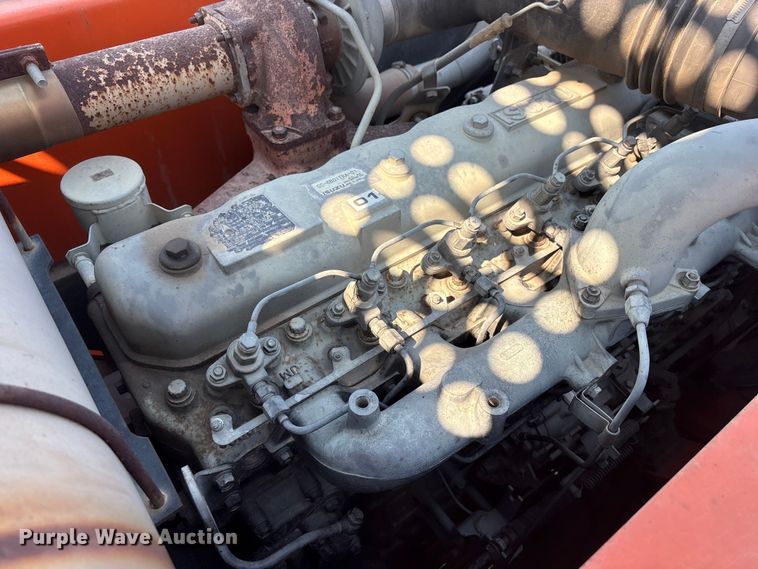

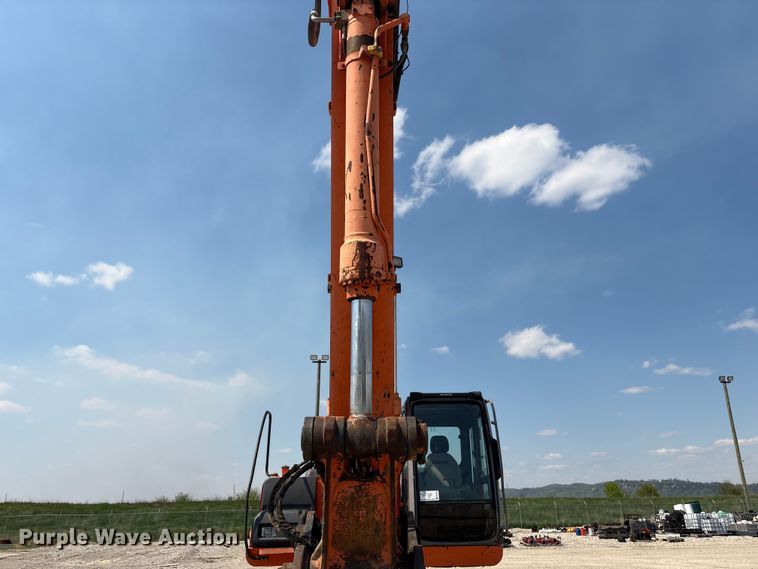

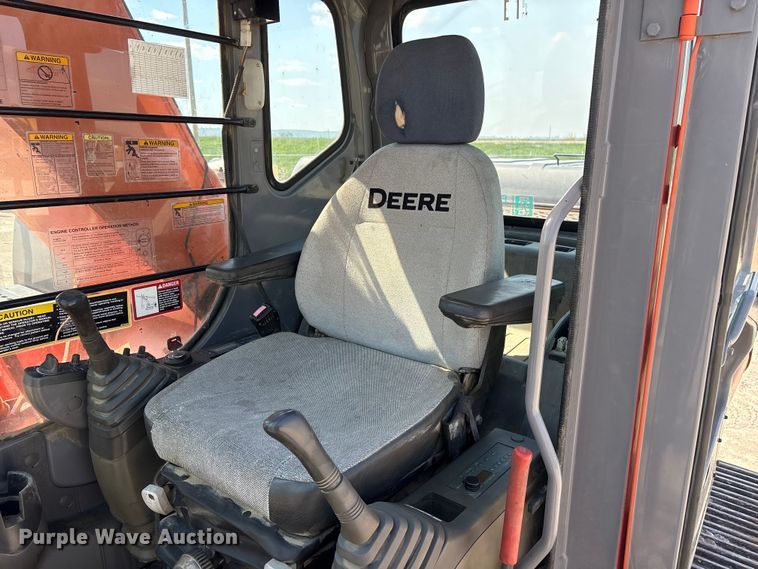

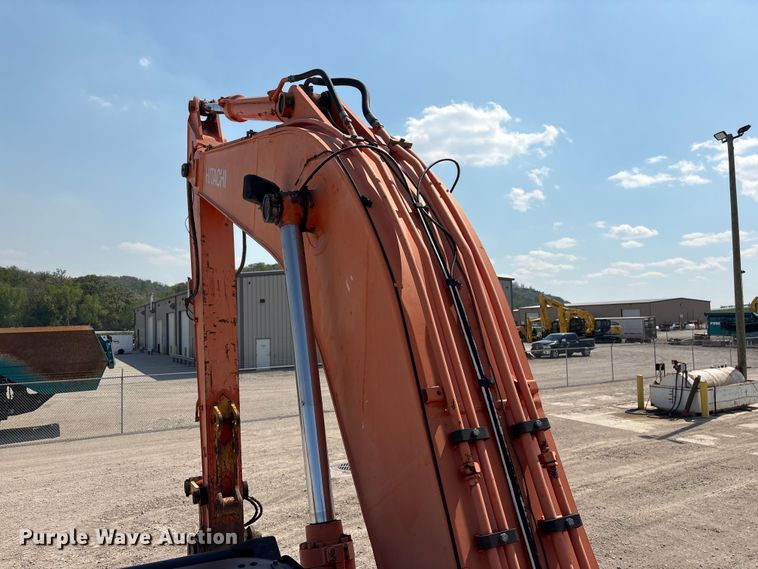

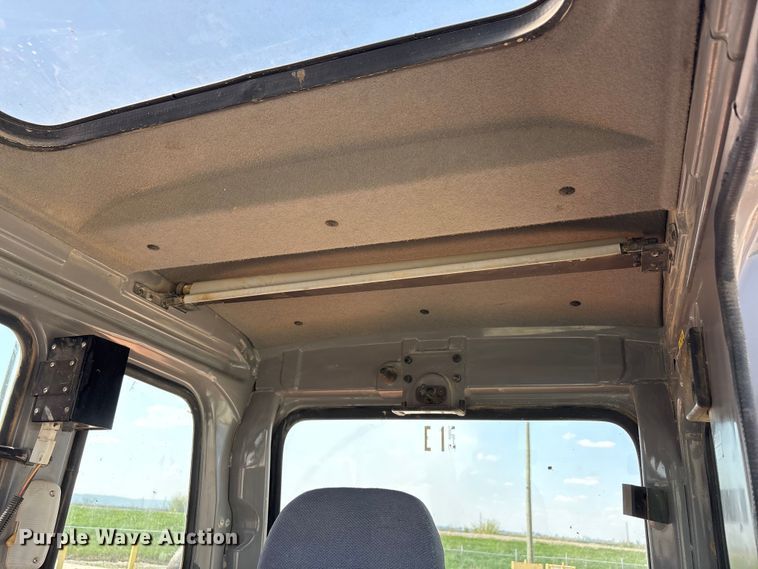

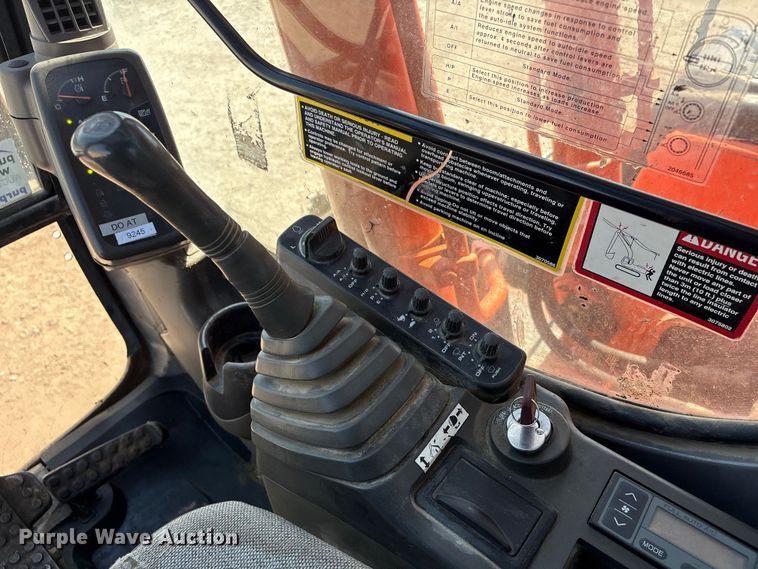

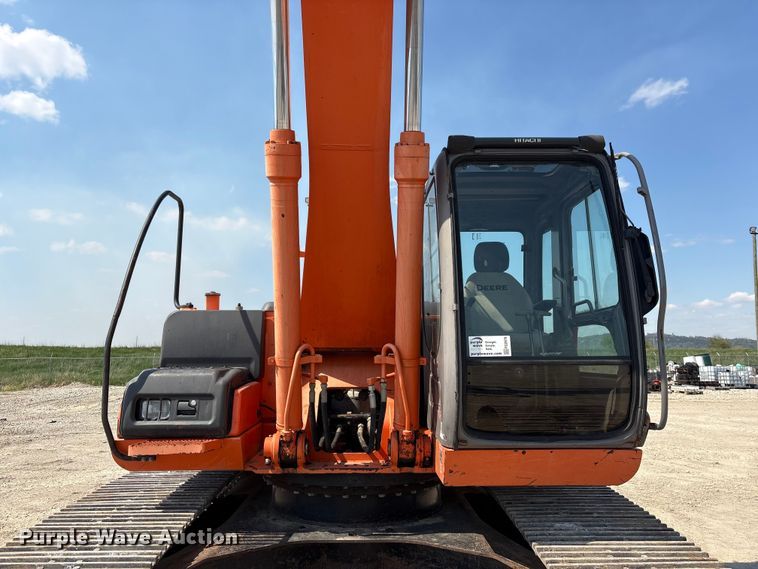

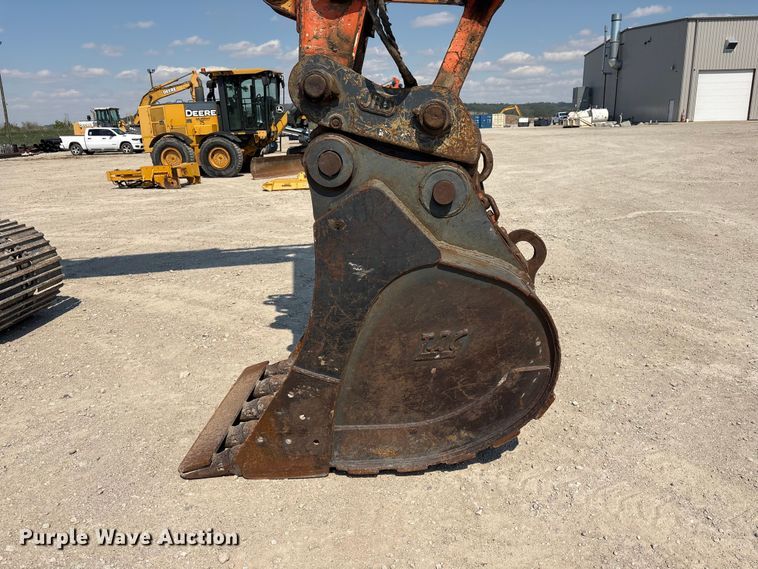

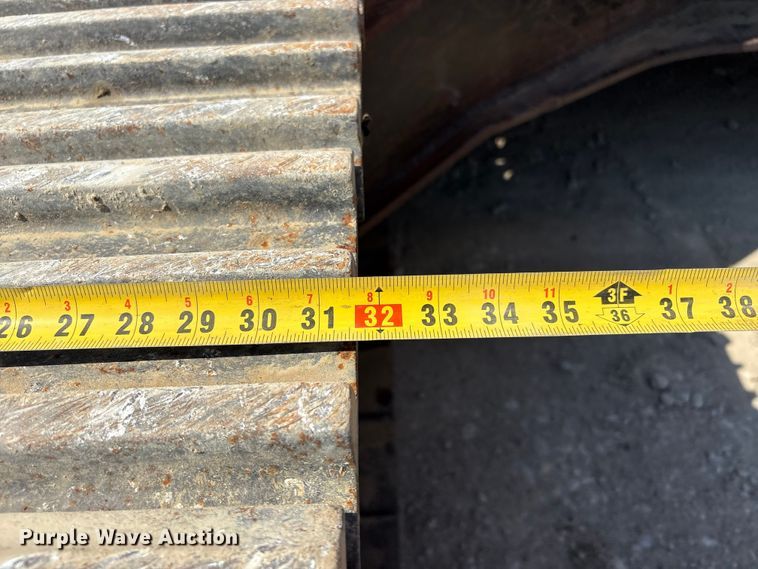

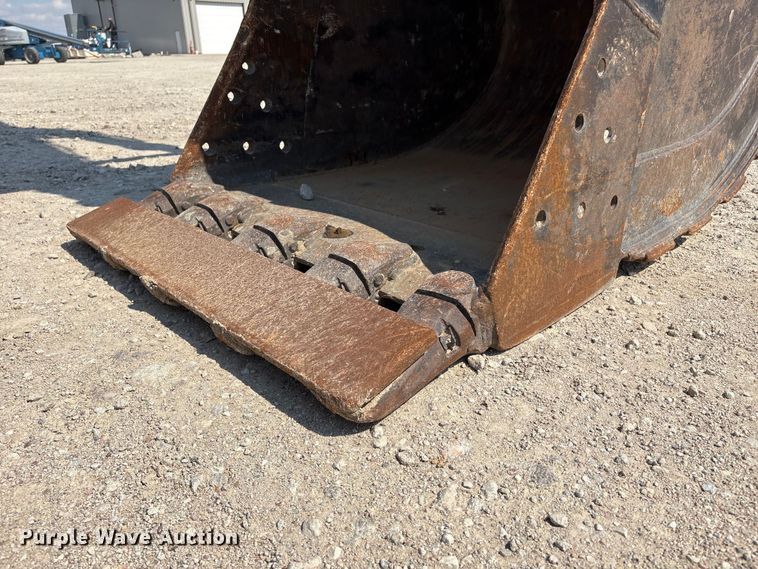

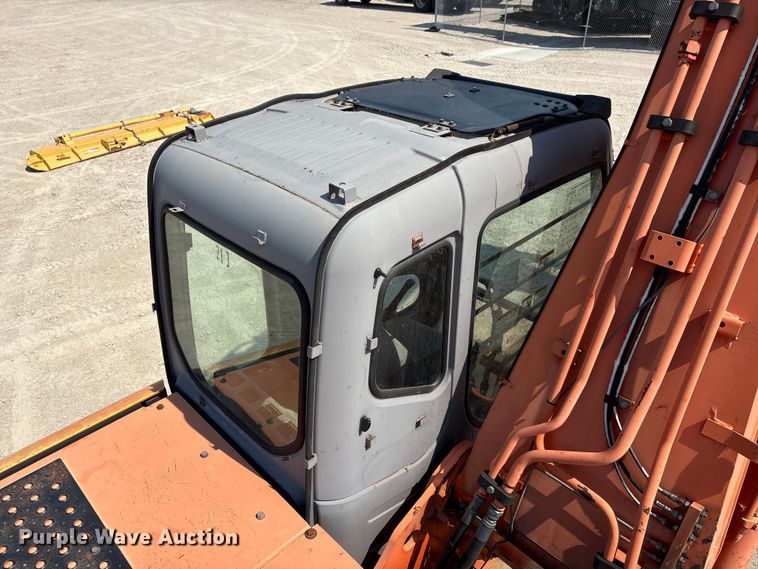

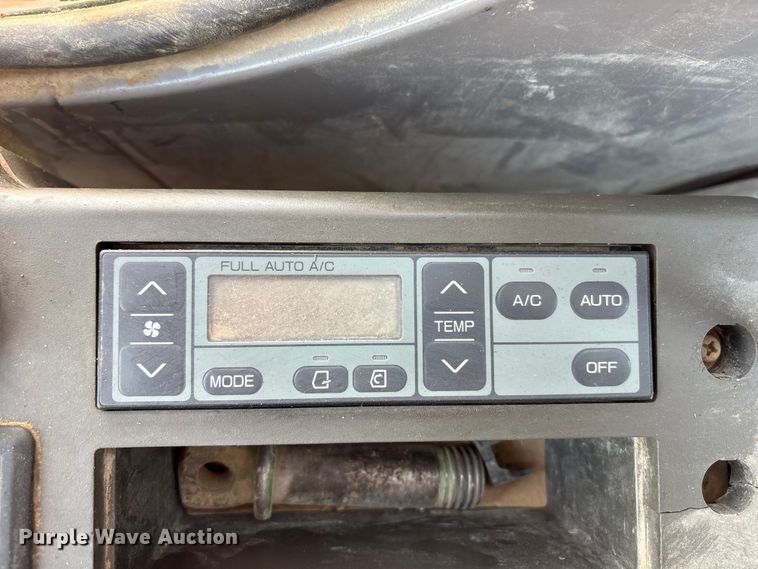

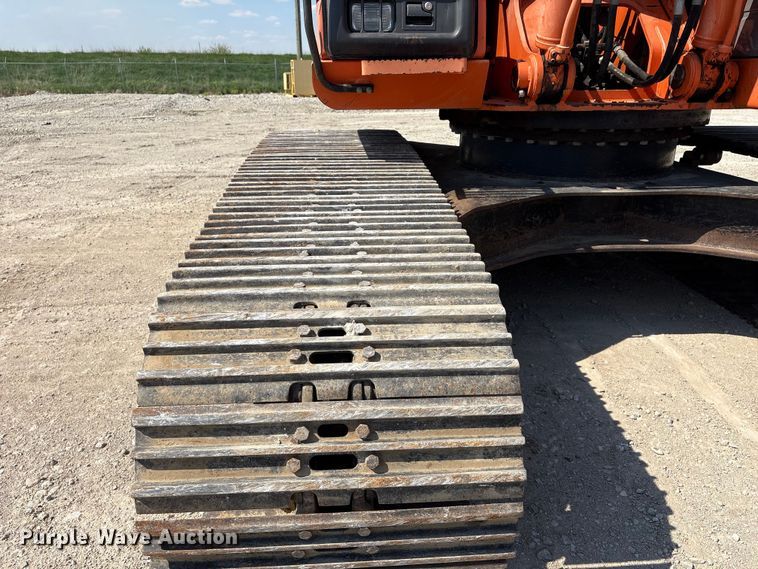

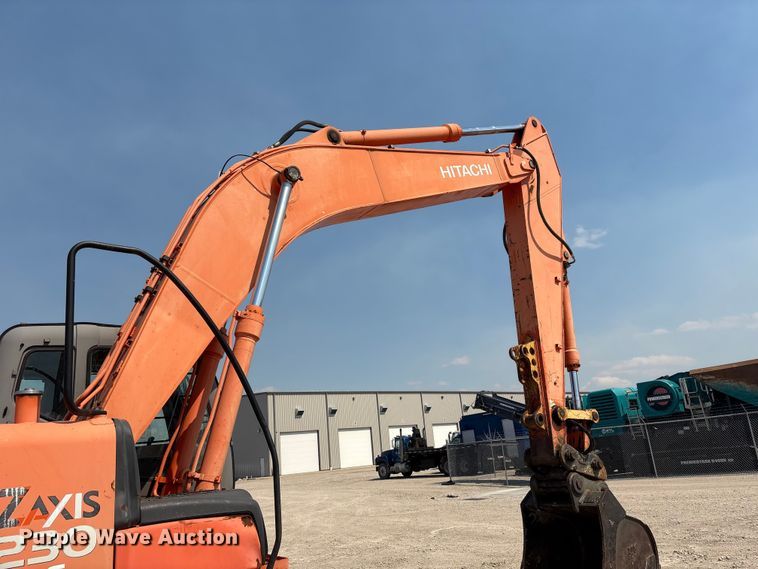

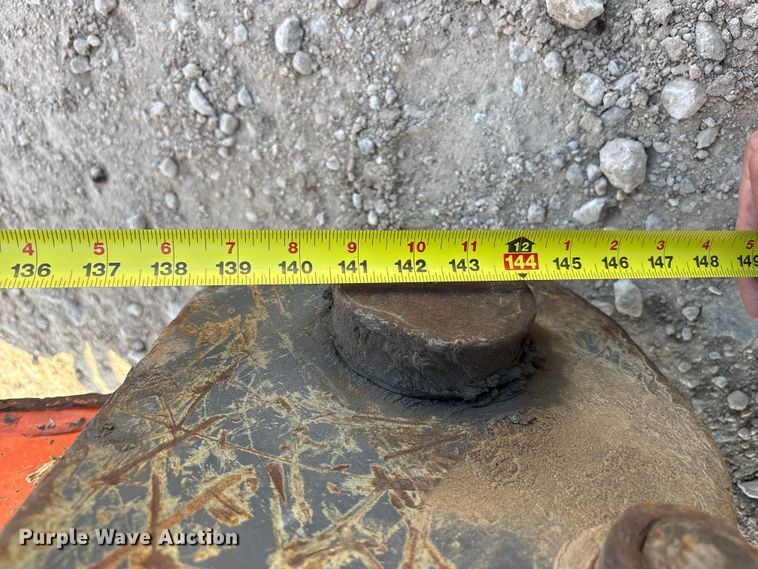

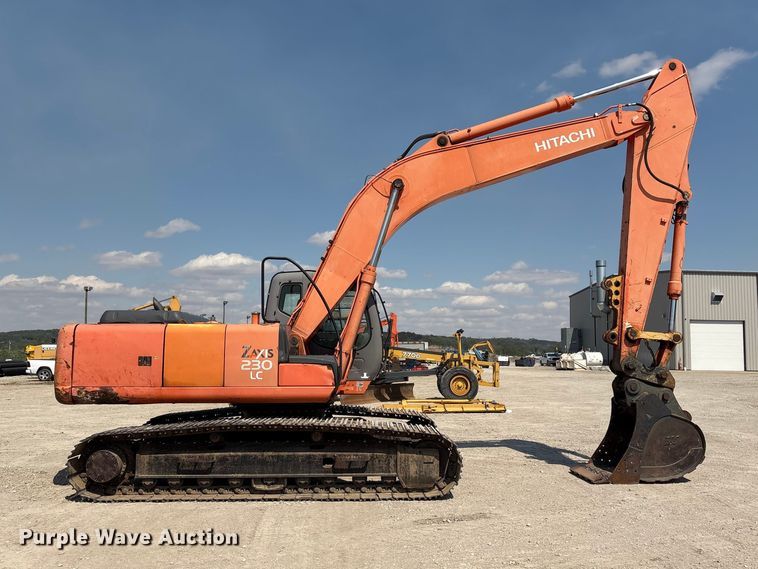

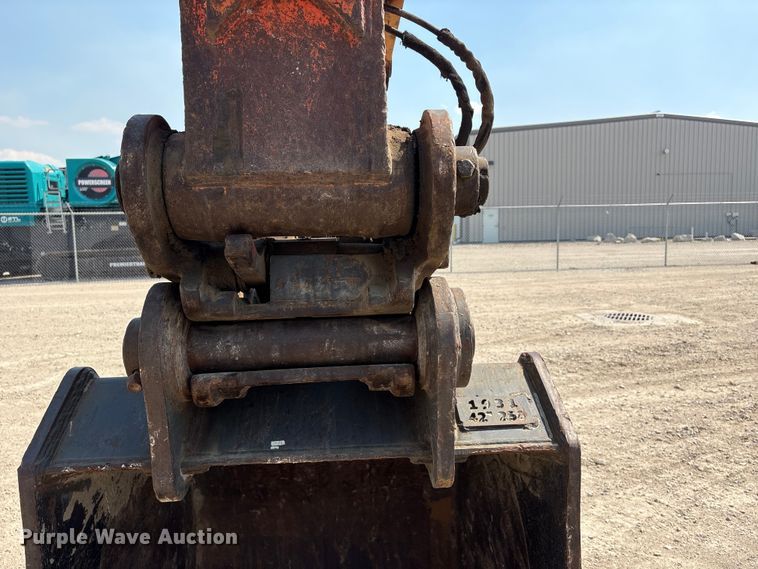

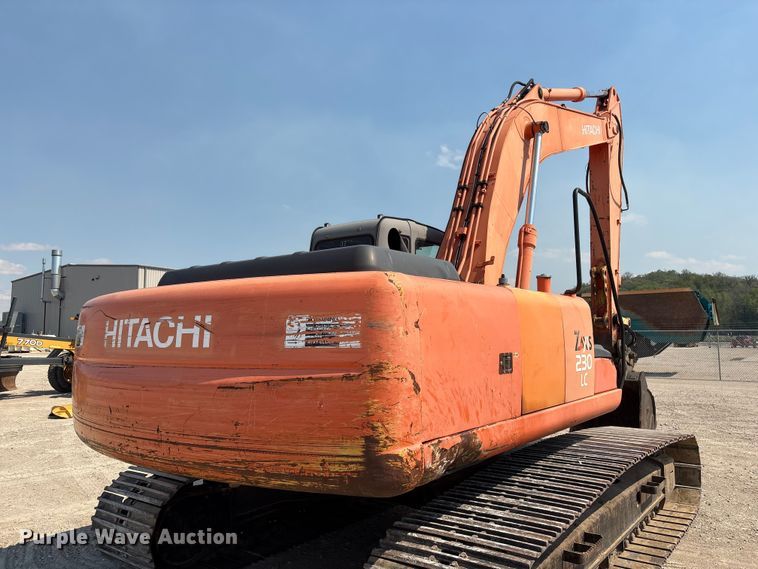

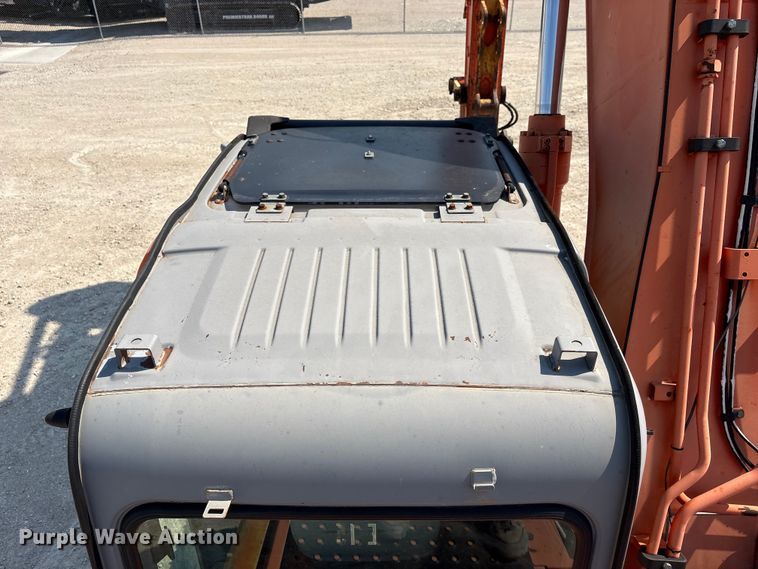

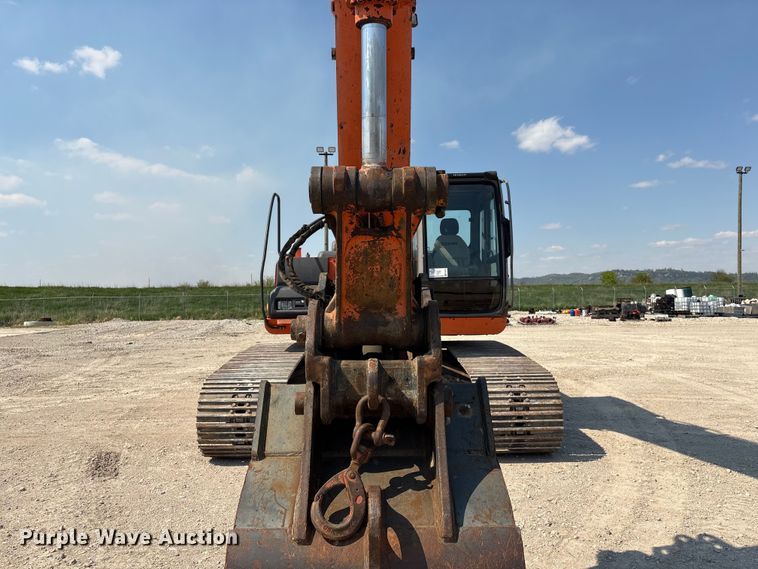

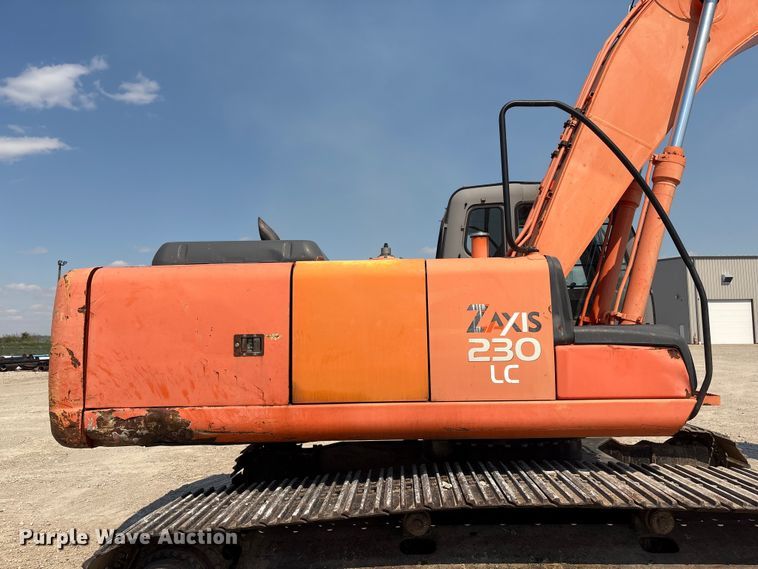

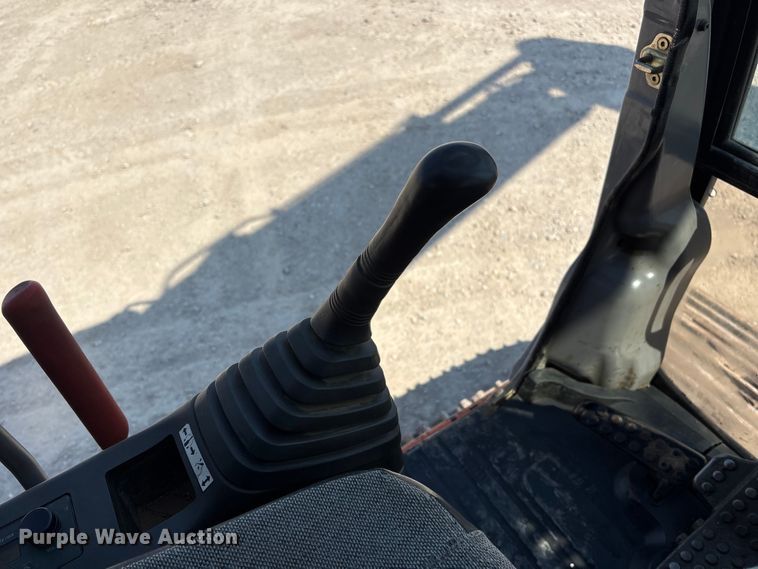

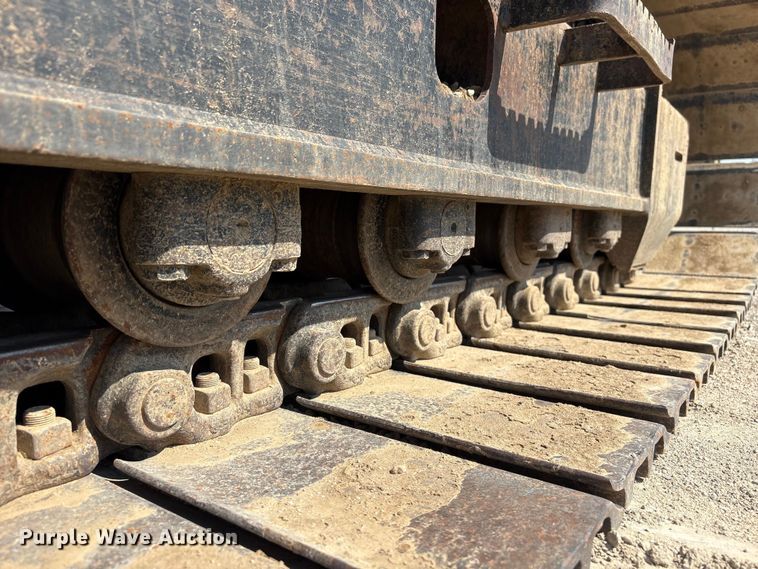

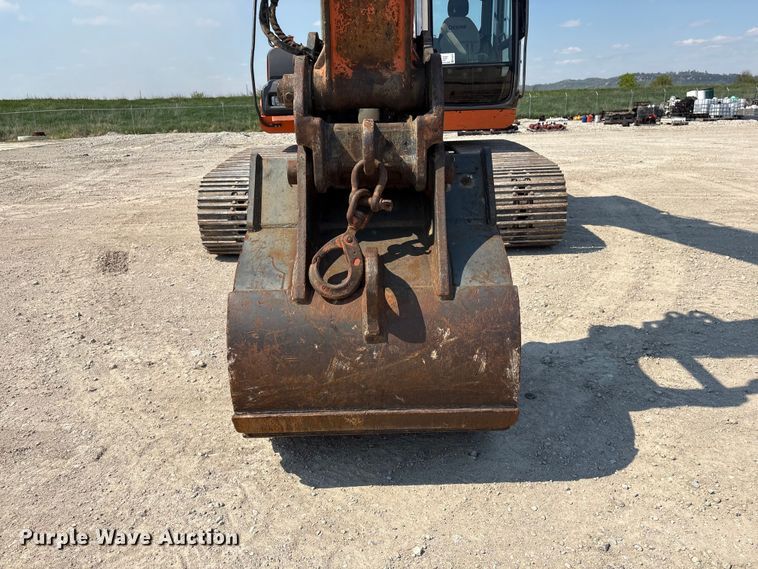

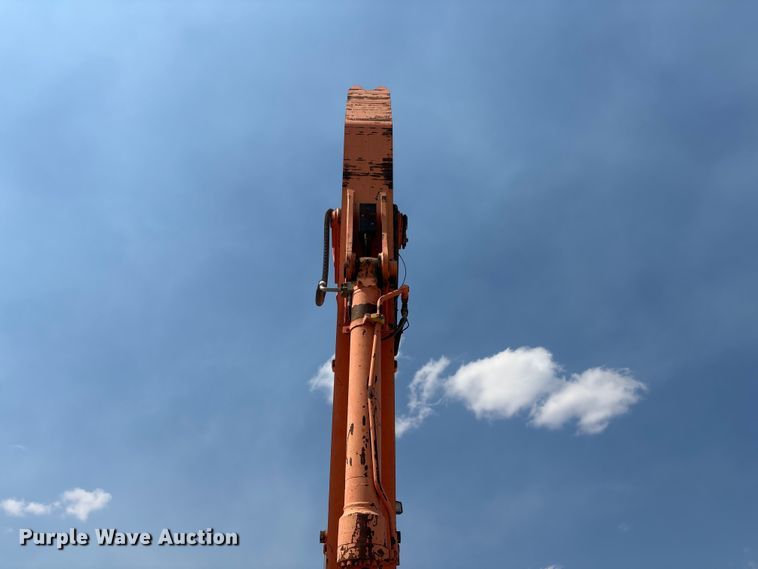

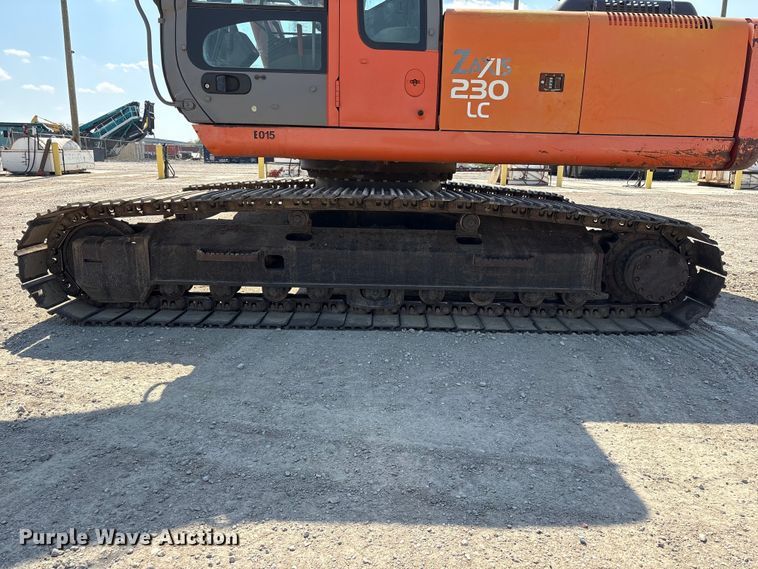

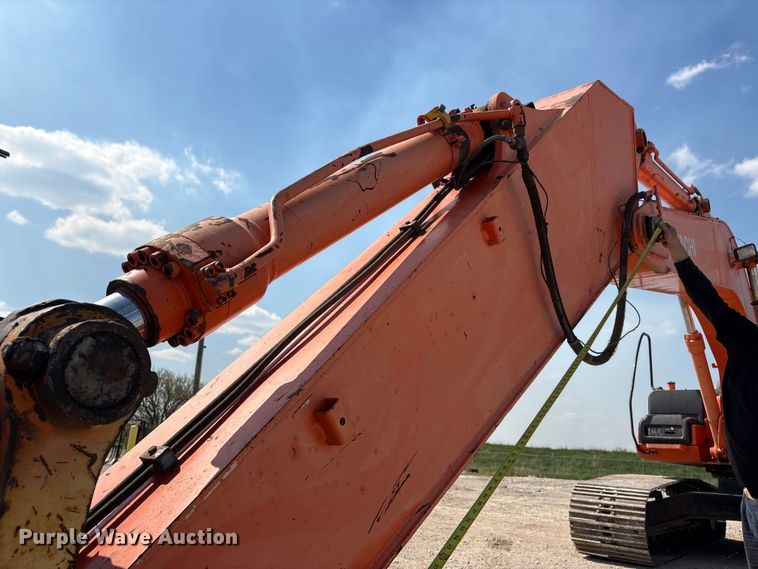

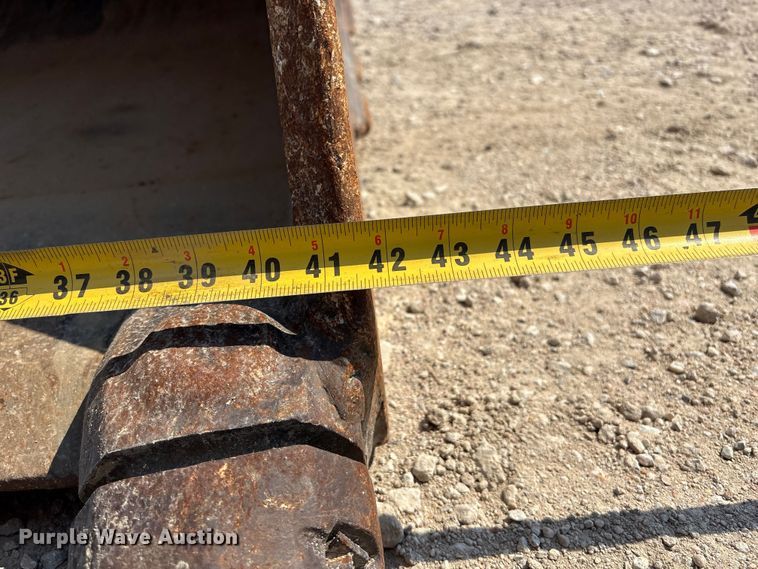

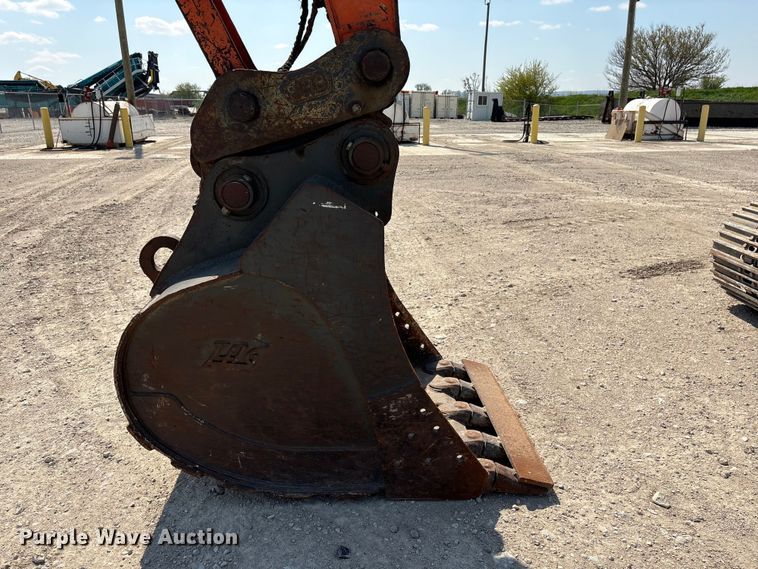

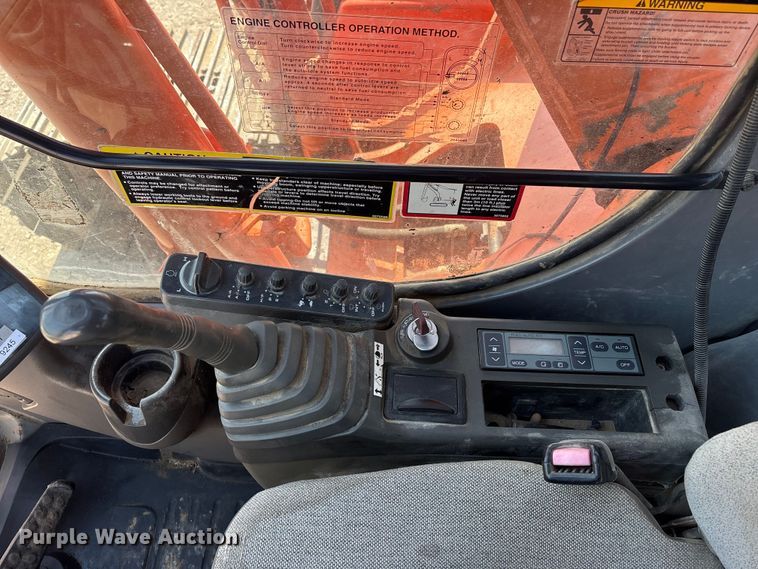

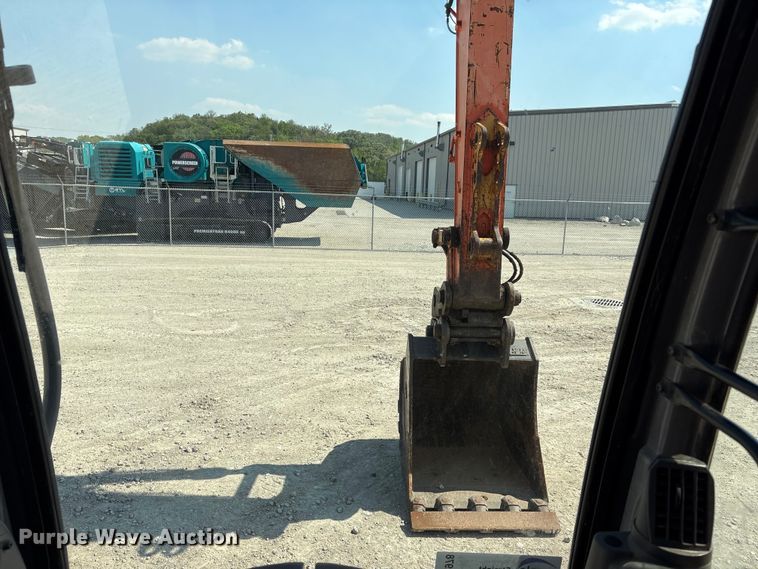

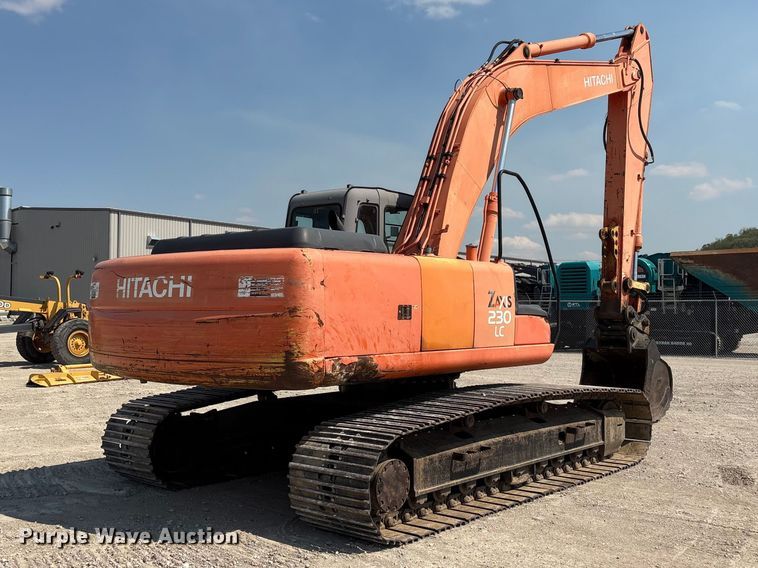

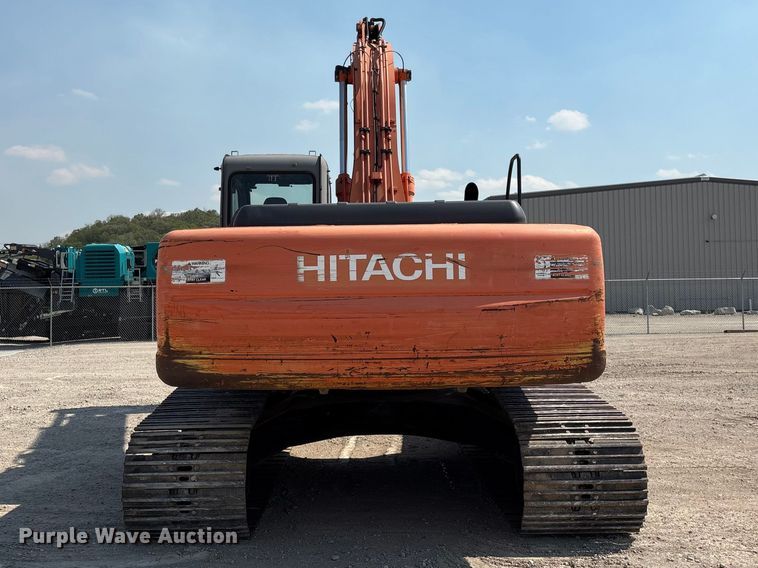

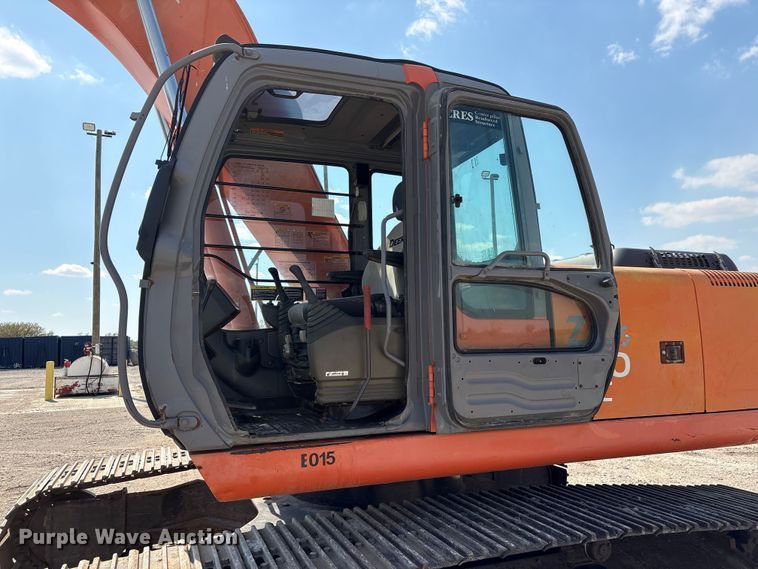

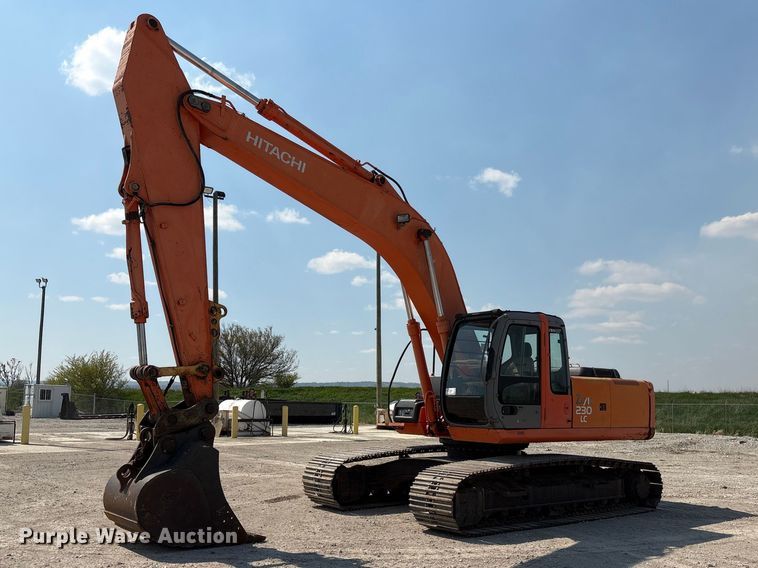

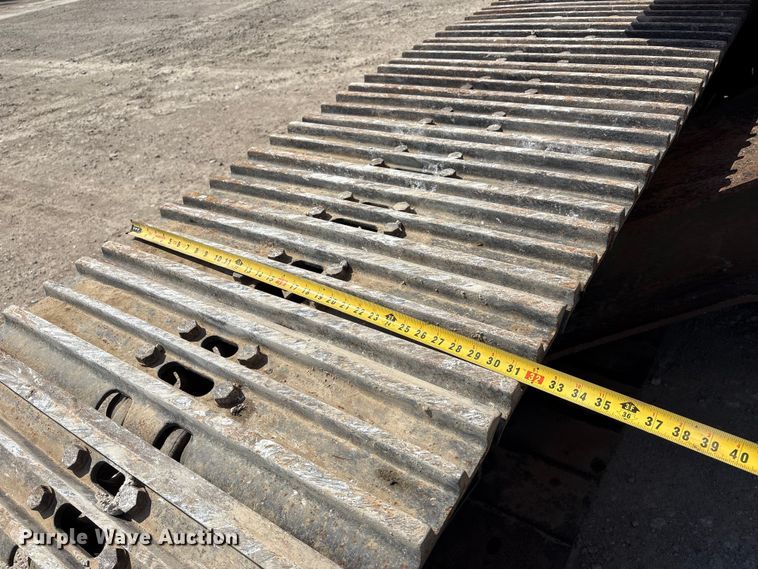

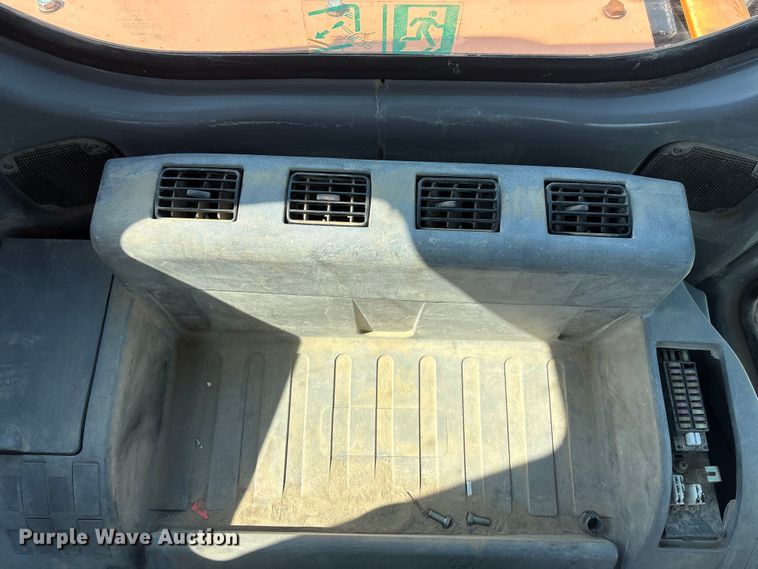

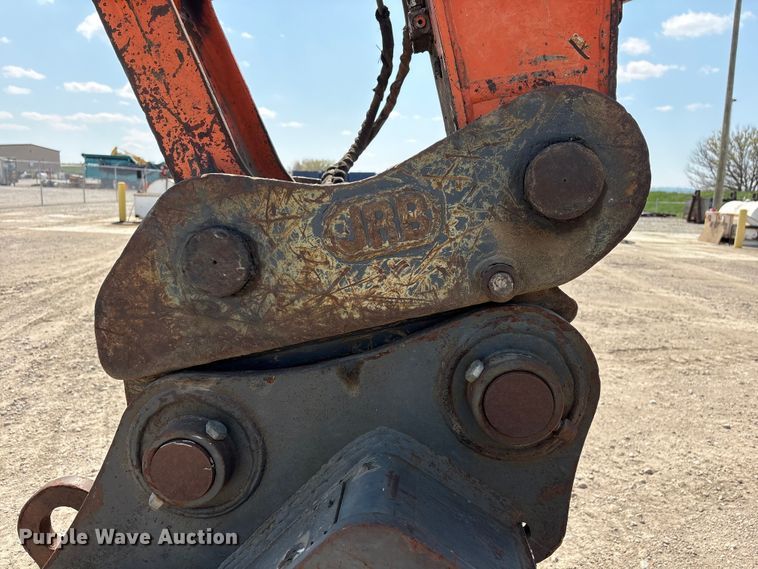

2006 Hitachi ZX230LC excavatorHours: 9,161 on meterSerial: ARJ410285EngineIsuzuCylinders: 6Fuel type: DieselTransmissionHydrostaticOperators stationEnclosed cabAC, HeatFeaturesBoomStandardStickStick length: 12'Quick coupler: HydraulicJRBBucketTAGWidth: 41"Teeth: 5TracksWidth: 31.5"SteelGrouser pads: Triple

From the manufacturer:

Supplied by HeavyEquipmentData.com →

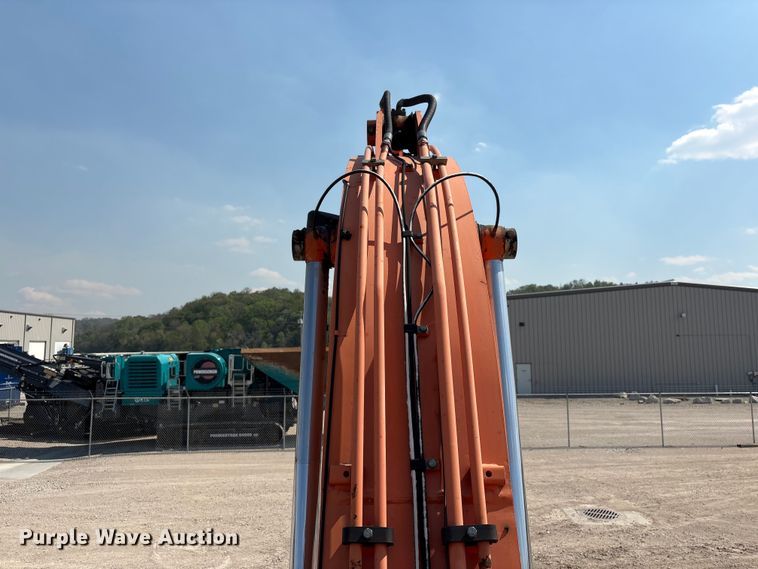

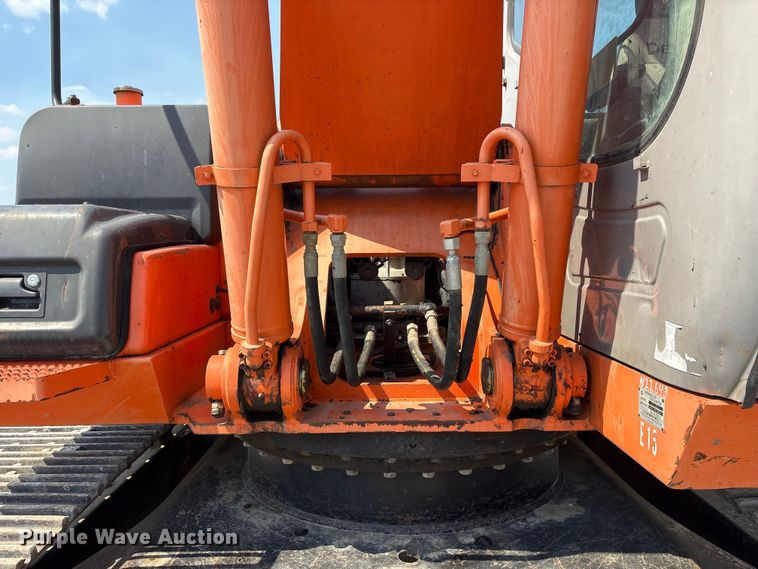

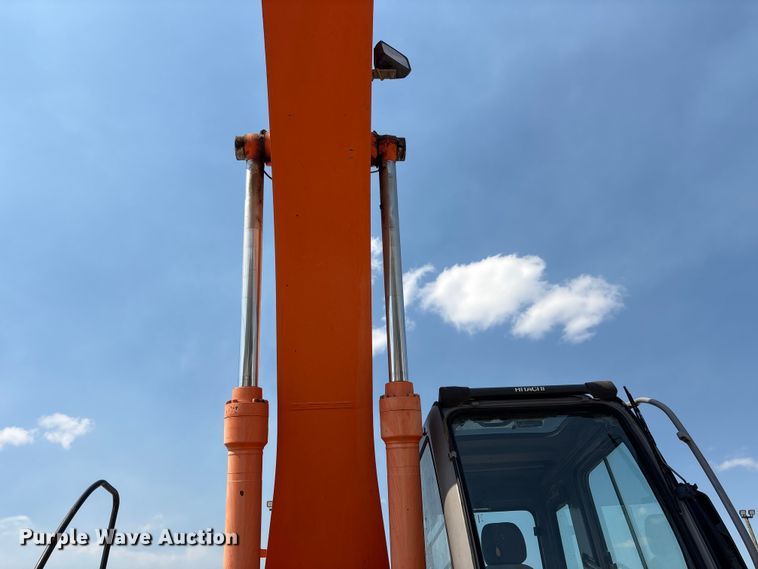

Boom/Stick Excavator Option 1
Max Cutting Height	31 ft (9 m)
Max Digging Depth	21 ft (6 m)
Max Loading Height	22 ft (7 m)
Max Reach Along Ground	31 ft (10 m)
Boom/Stick Excavator Option 2
Max Cutting Height	32 ft (10 m)
Max Digging Depth	23 ft (7 m)
Max Loading Height	22 ft (7 m)
Max Reach Along Ground	34 ft (10 m)
Max Vertical Wall Digging Depth	20 ft (6 m)
Boom/Stick Excavator Option 3
Max Cutting Height	33 ft (10 m)
Max Digging Depth	25 ft (8 m)
Max Loading Height	23 ft (7 m)
Max Reach Along Ground	35 ft (11 m)
Max Vertical Wall Digging Depth	22 ft (7 m)

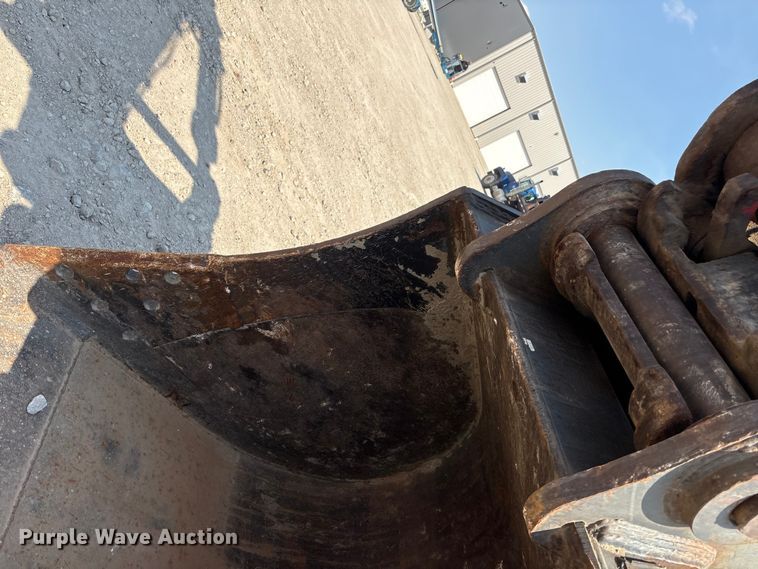

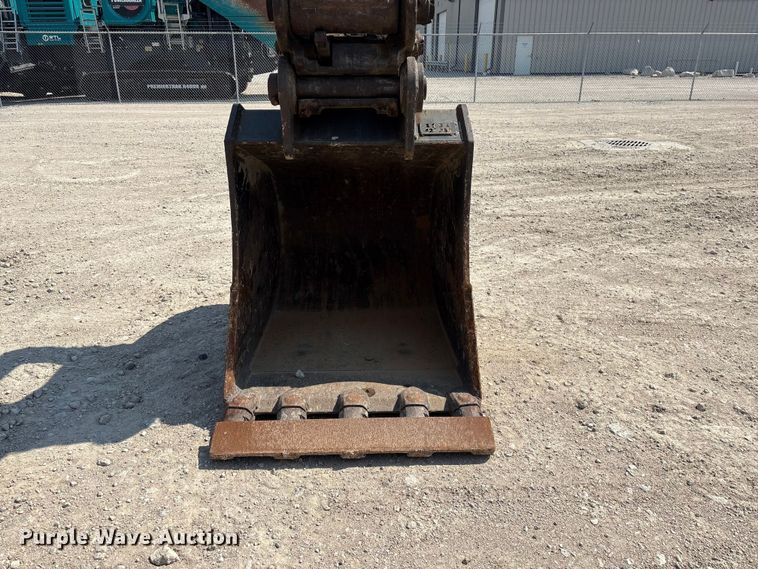

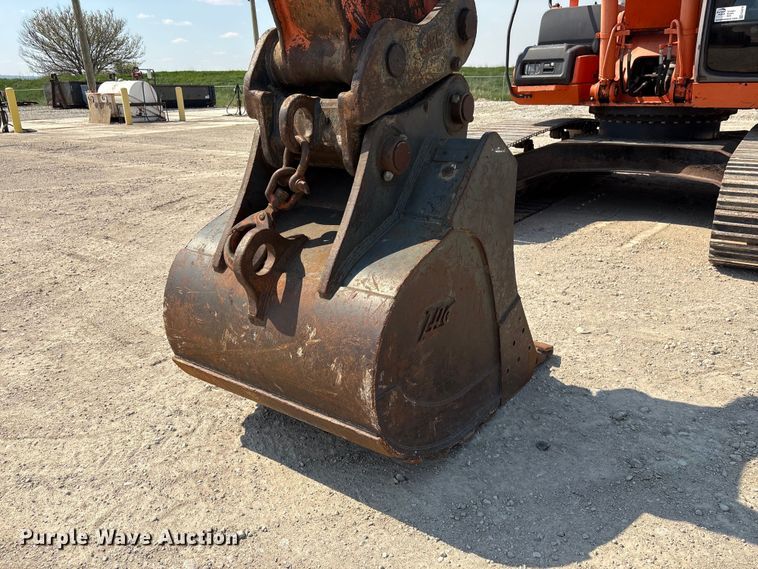

Bucket
Maximum Bucket Capacity	1 cu yd (1 cu m)
Minimum Bucket Capacity	1 cu yd (1 cu m)
Reference Bucket Capacity	1 cu yd (1 cu m)
Dimensions
Digging Depth	24 ft (7 m)
Digging Reach	24 ft (7 m)
Ground Clearance	2 ft (0 m)
Height - Top of Cab	10 ft (3 m)
Length of Track on Ground	11 ft (3 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	10 ft (3 m)
Width to Outside of Tracks	10 ft (3 m)

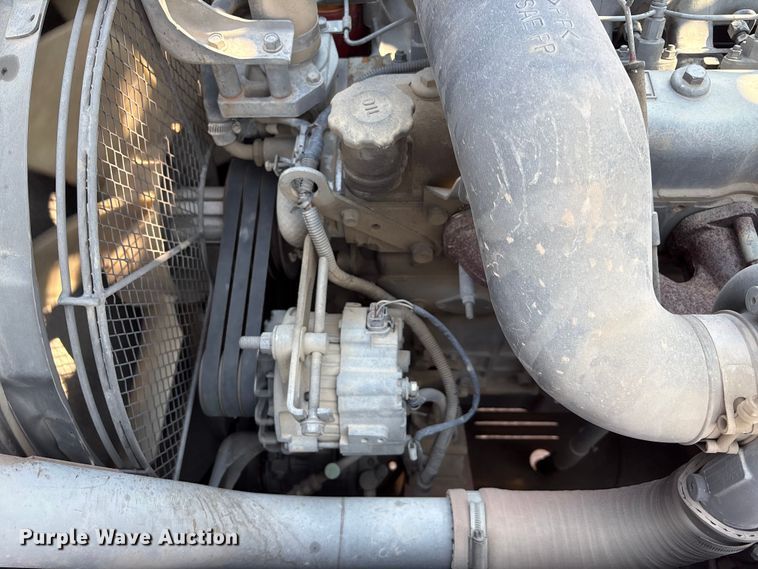

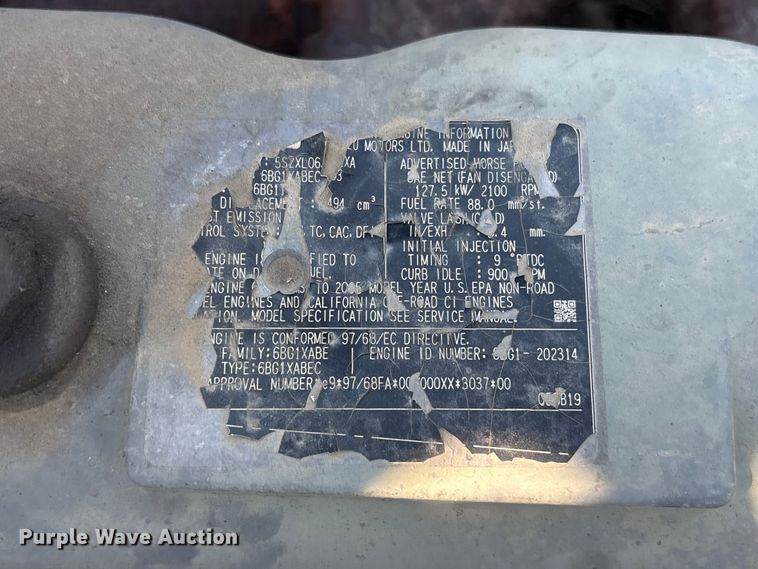

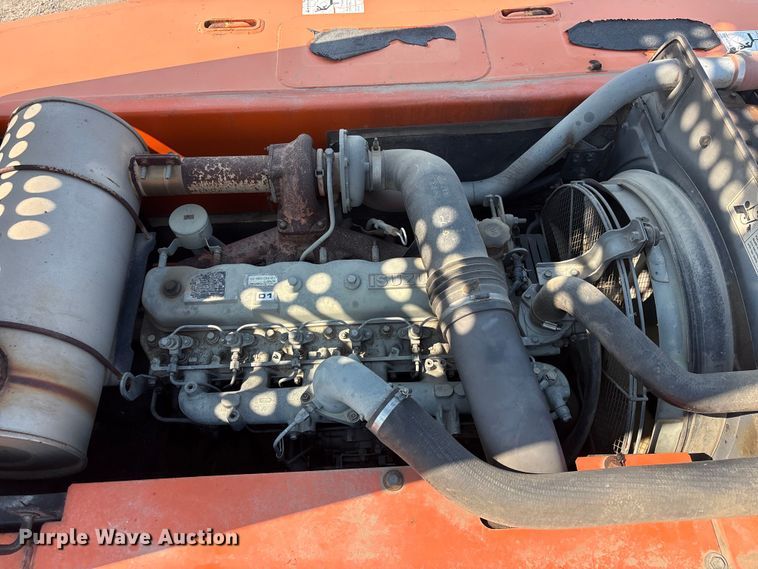

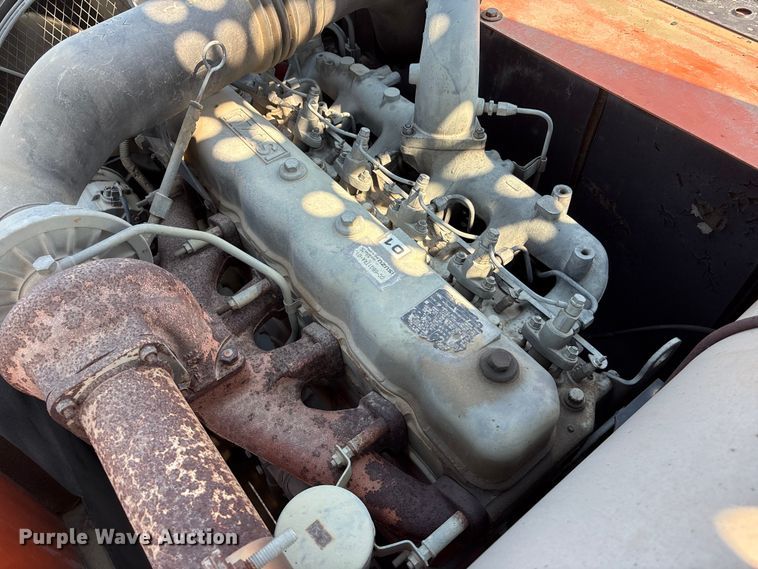

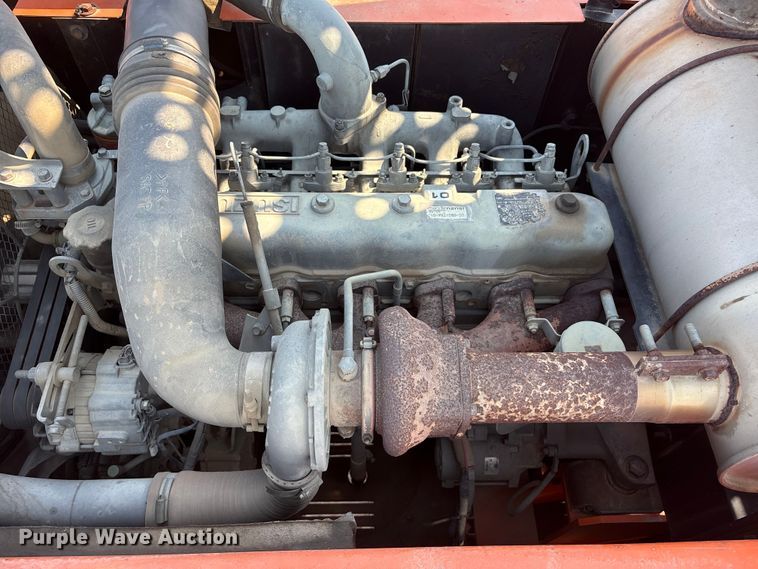

Engine
Aspiration	turbocharged
Displacement	396 cu in (6,494 cu cm)

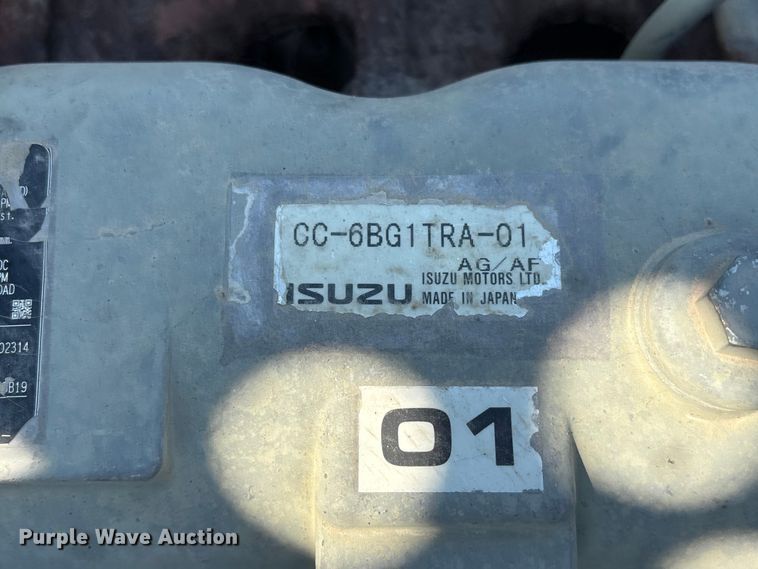

Engine Model	CC-6BG1T
Max Torque	470 lbs ft (637 nm)
Net Power	167 hp (125 kw)
Power Measured @	2,100 rpm
Torque Measured @	1,800 rpm

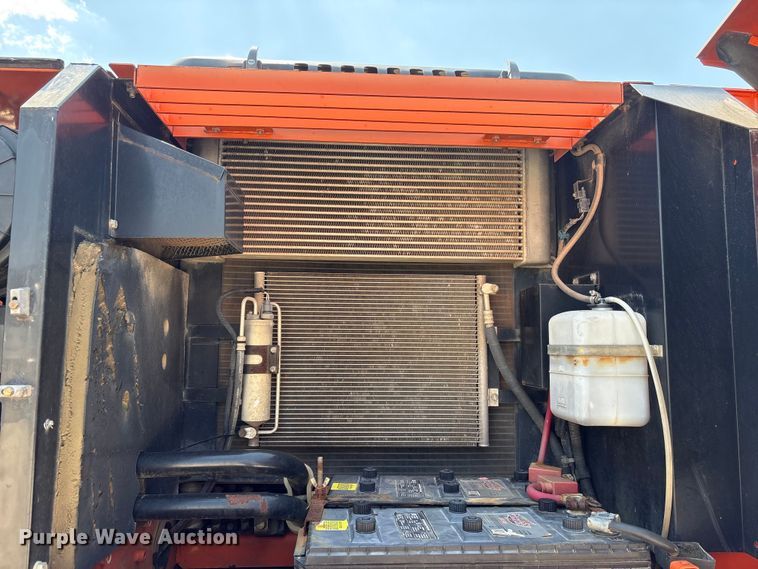

Operating Specifications
Cooling System Fluid Capacity	6 gal (23 l)
Engine Oil Capacity	7 gal (25 l)
Fuel Capacity	100 gal (380 l)
Hydraulic Pump Flow Capacity	108 gpm (408 lpm)
Hydraulic System Fluid Capacity	80 gal (303 l)
Hydraulic System Relief Valve Pressure	4,980 psi
Swing Drive Fluid Capacity	2 gal (9 l)

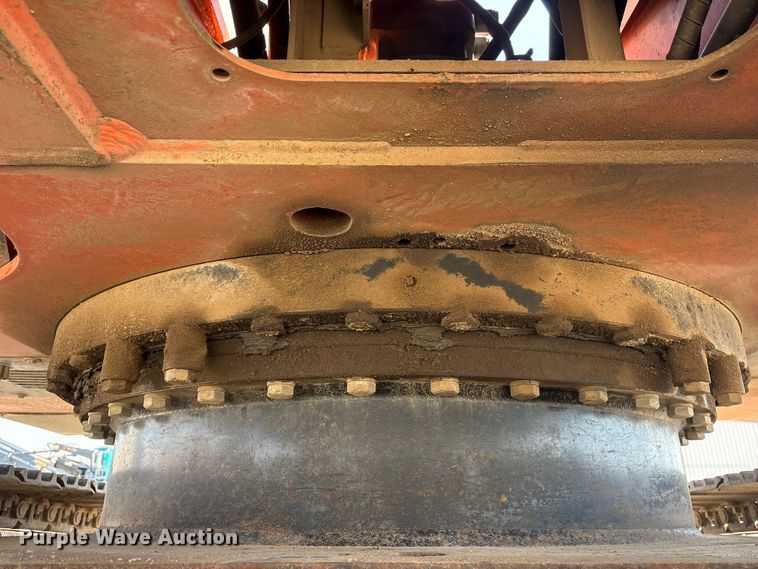

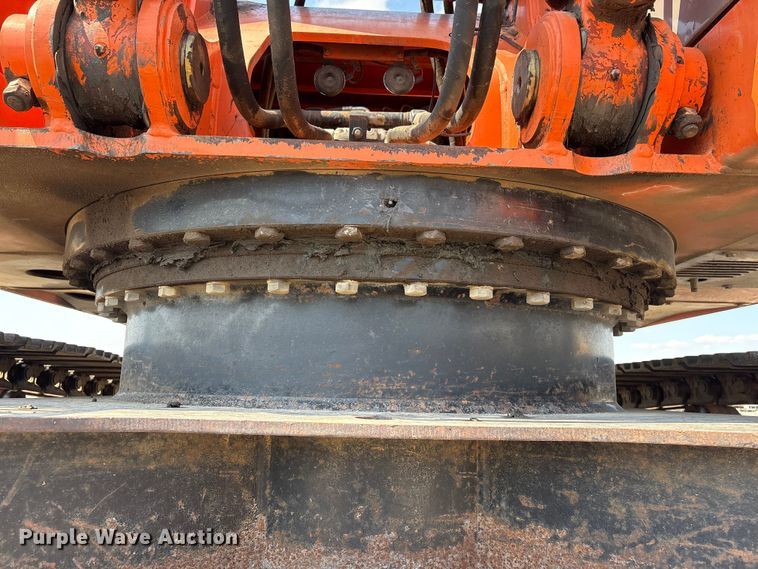

Swing Mechanism
Swing Speed	13 rpm

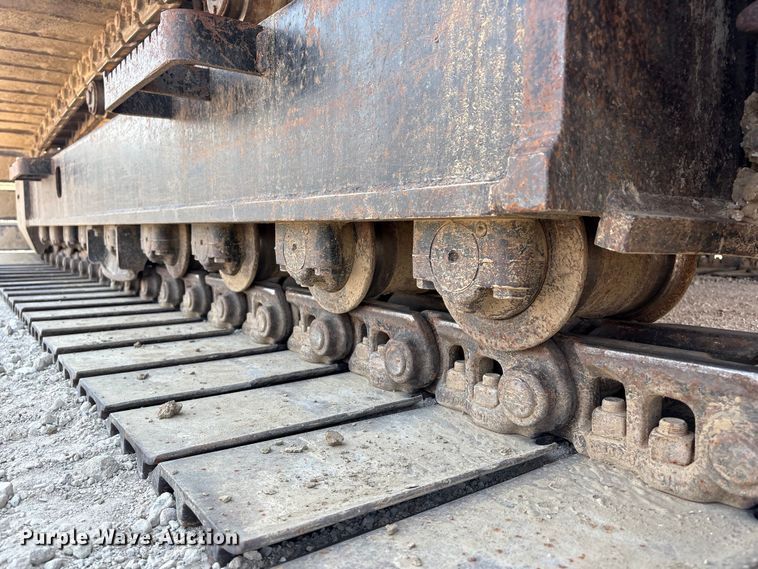

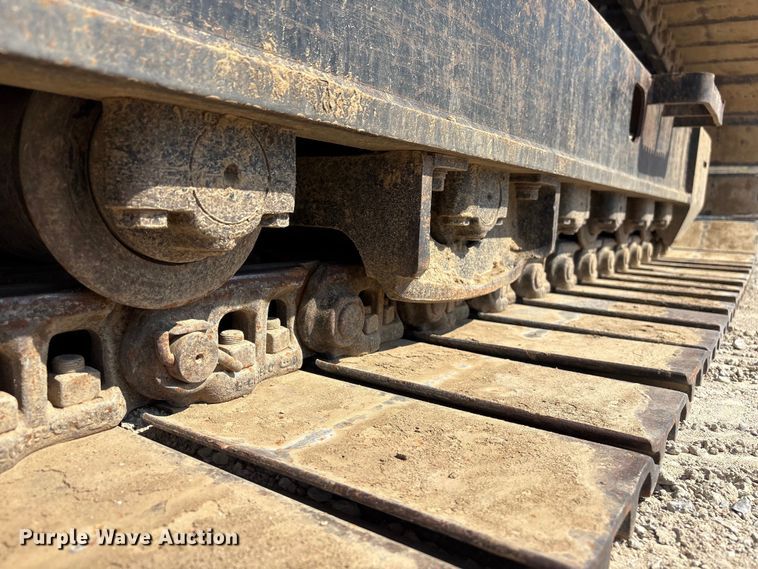

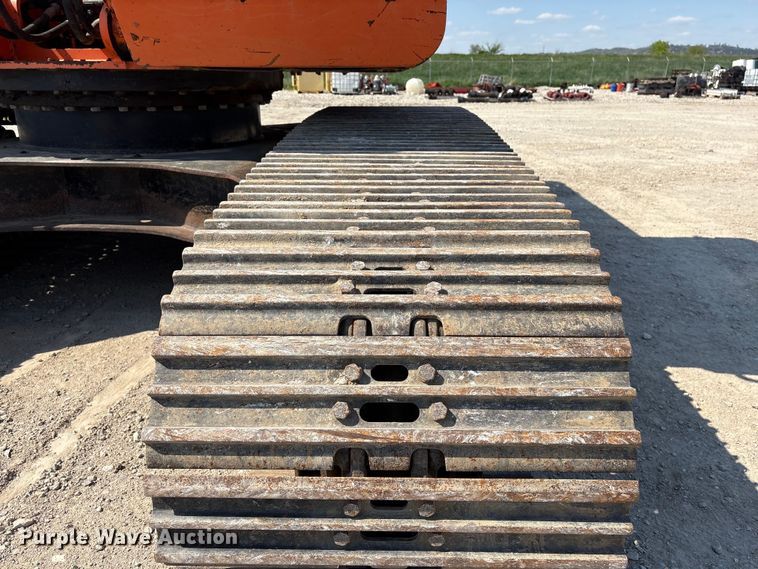

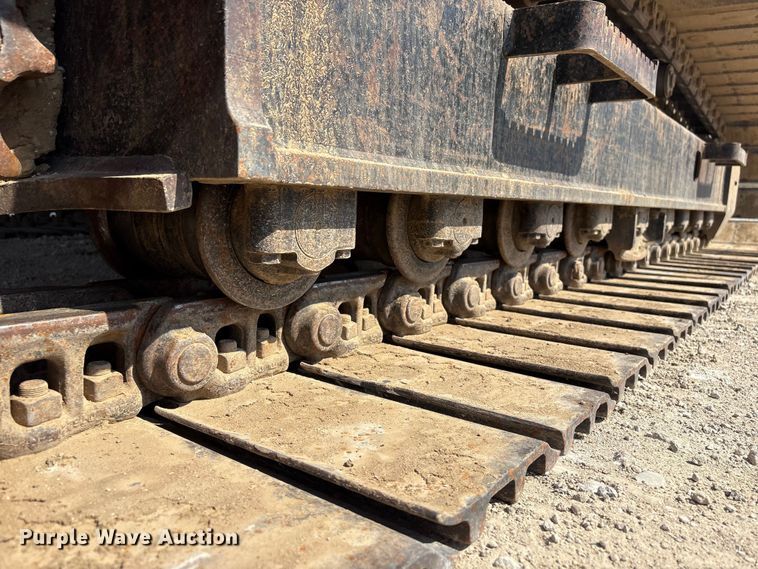

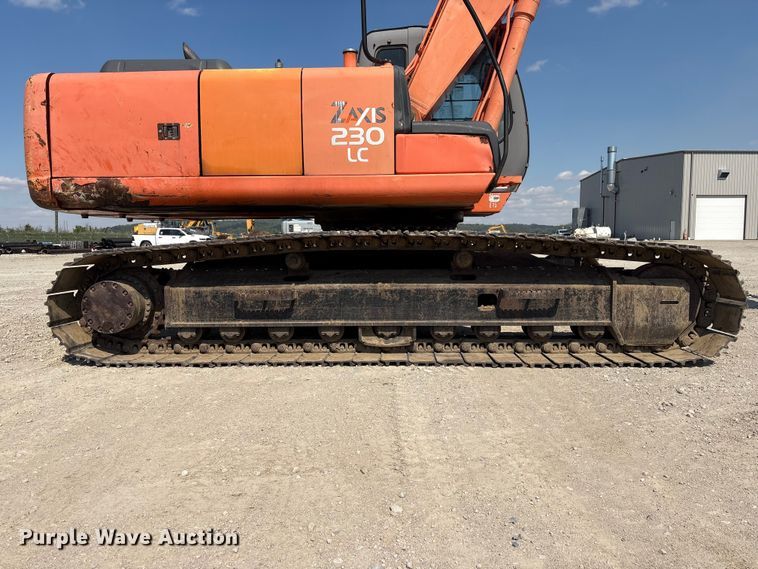

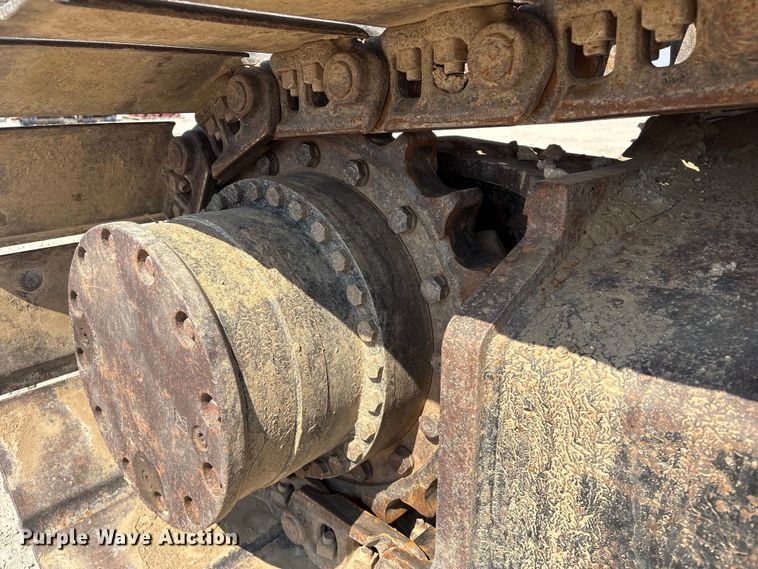

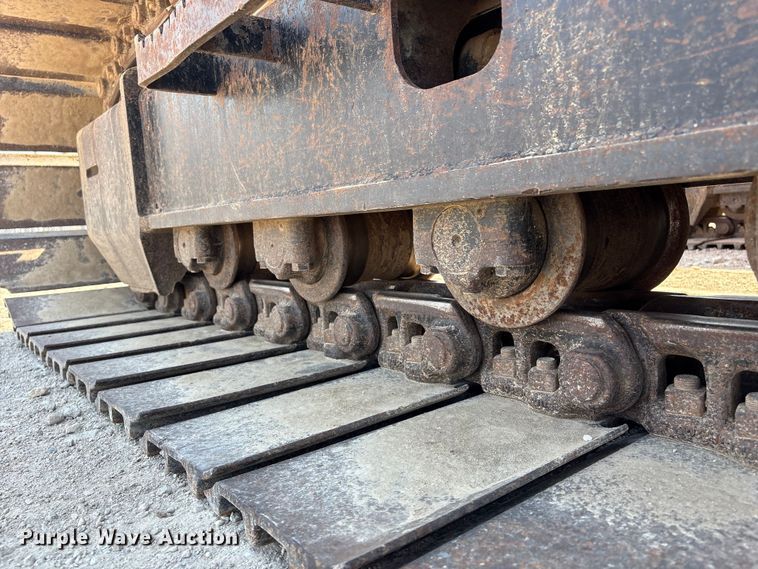

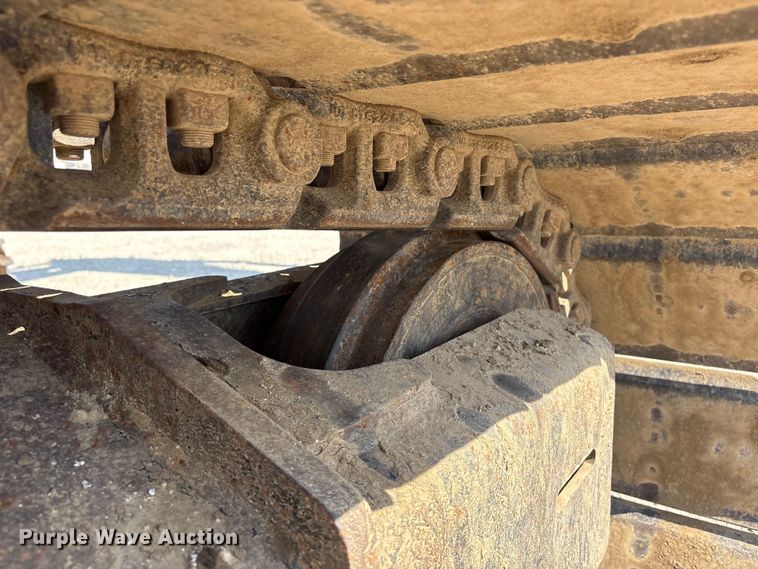

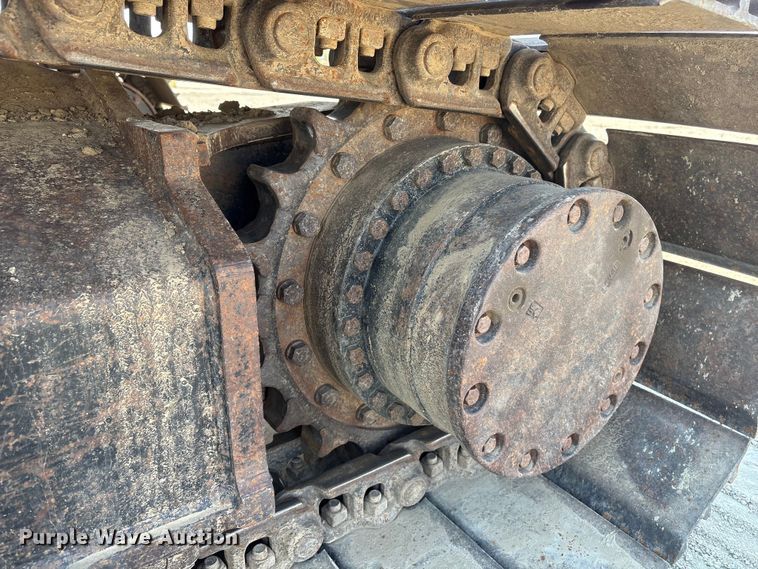

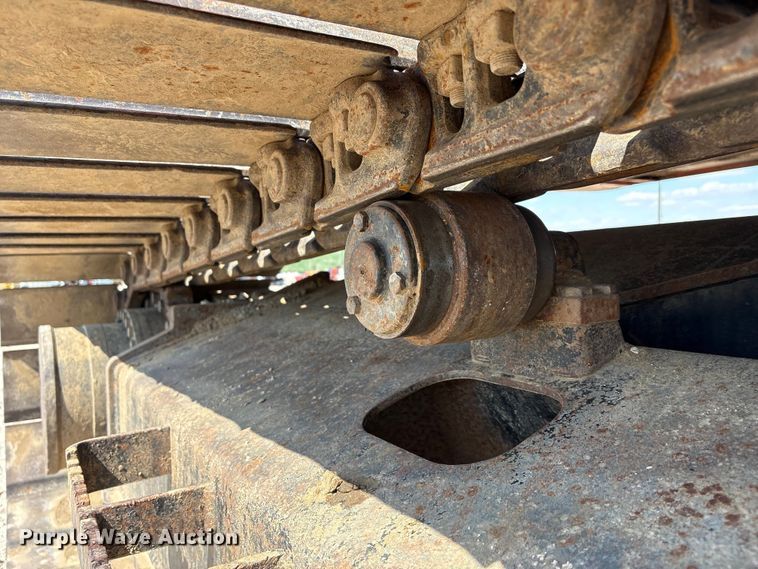

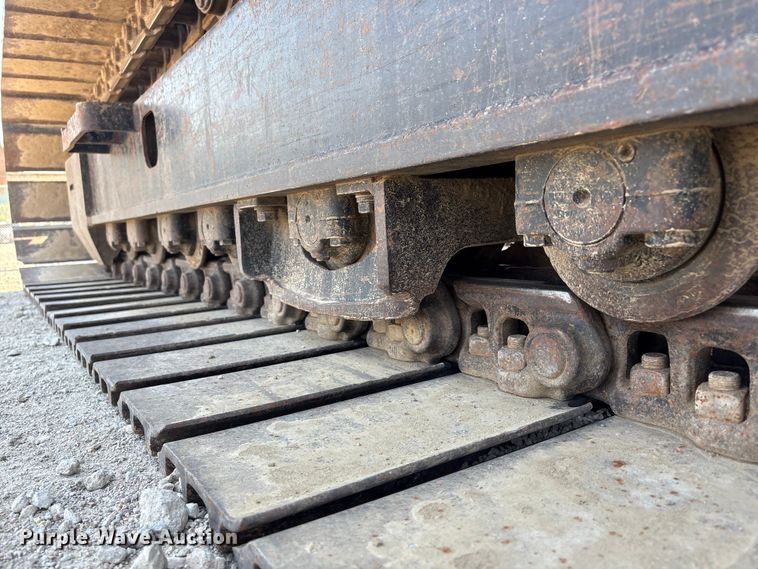

Undercarriage
Ground Pressure	7 psi
Max Travel Speed	4 mph (6 kph)

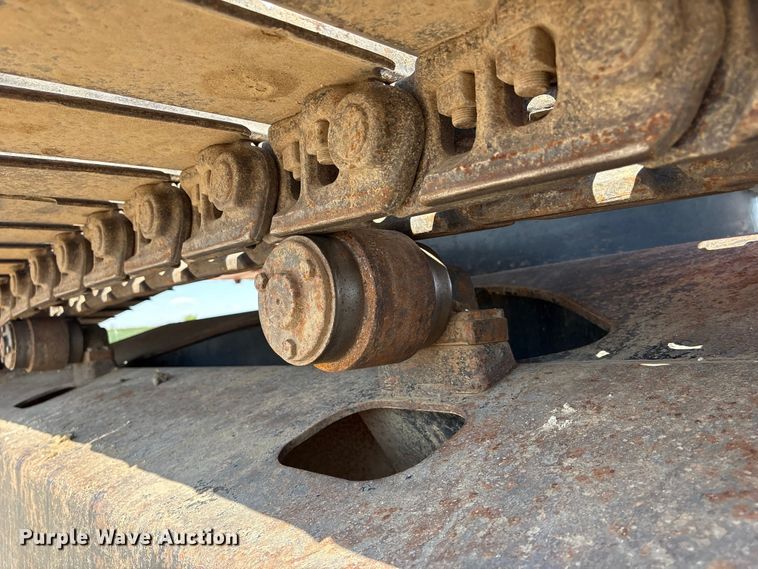

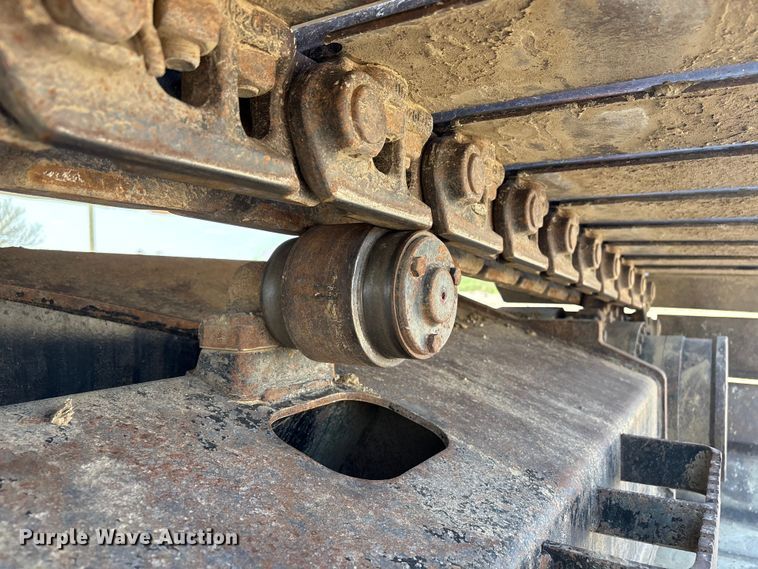

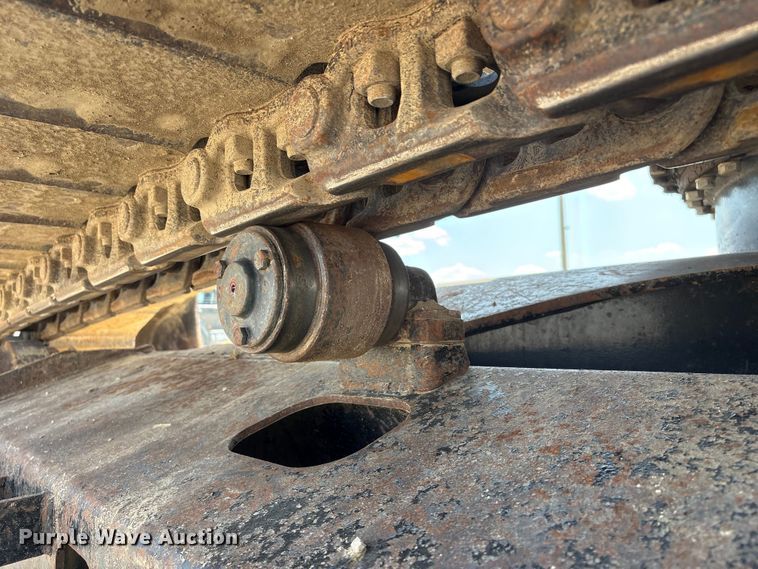

Number of Carrier Rollers per Side	2
Number of Shoes per Side	51

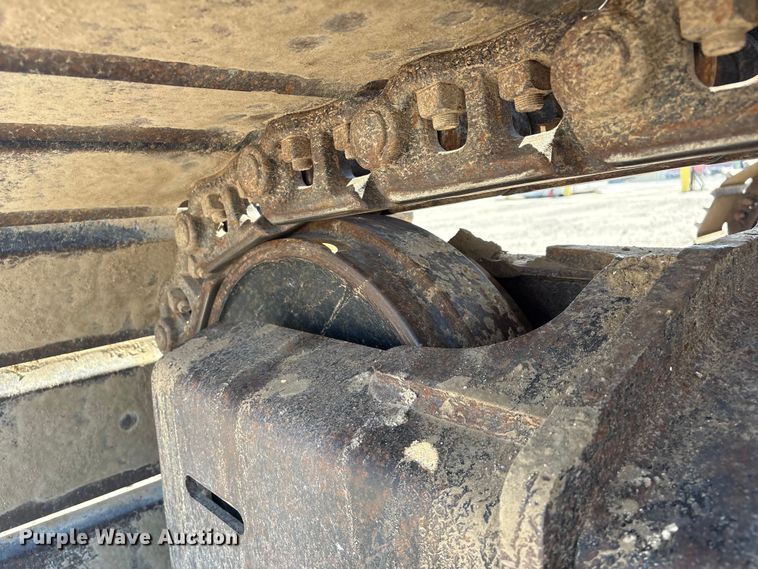

Number of Track Rollers per Side	9
Shoe Size	24 in (60 cm)
