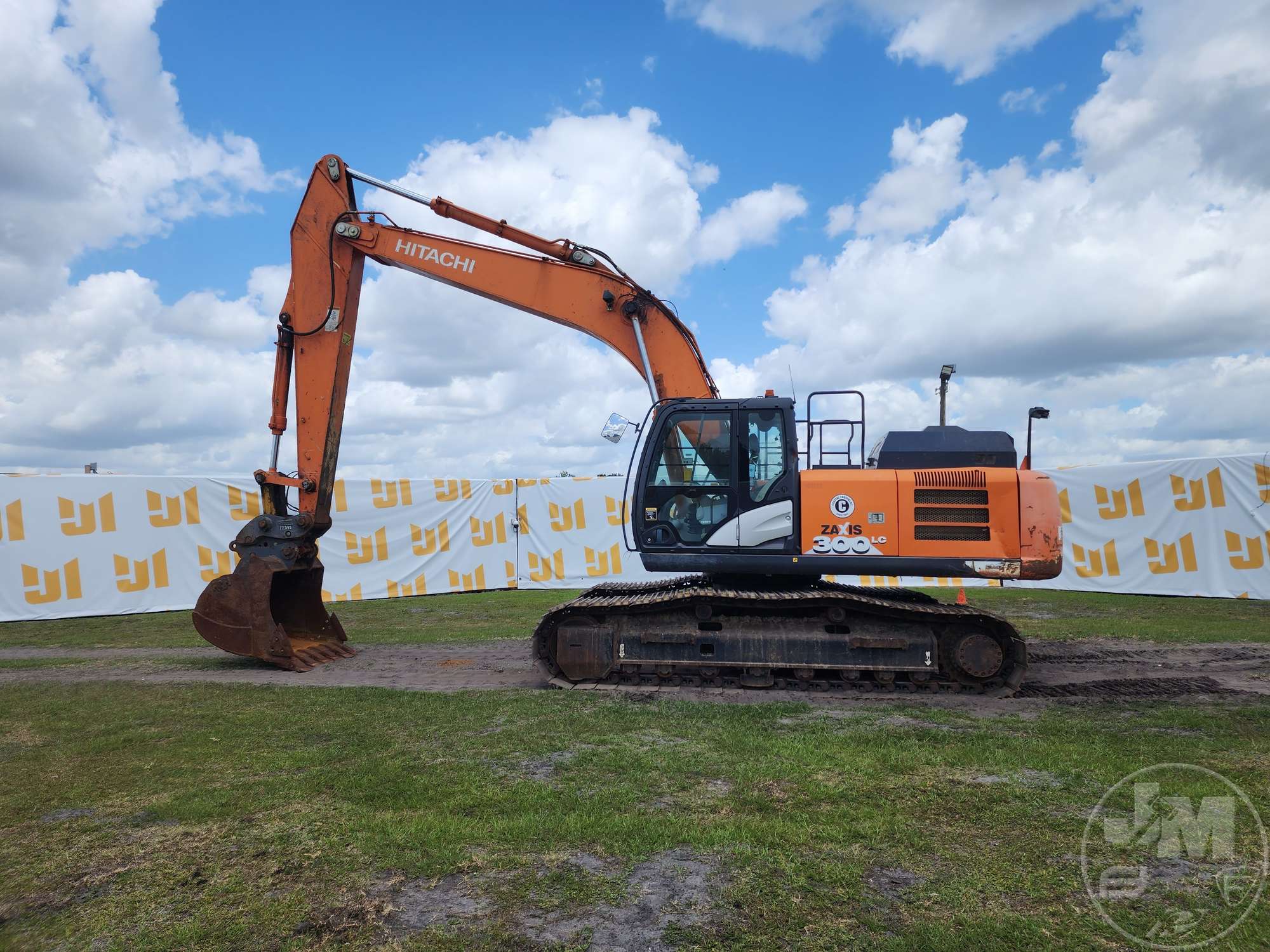

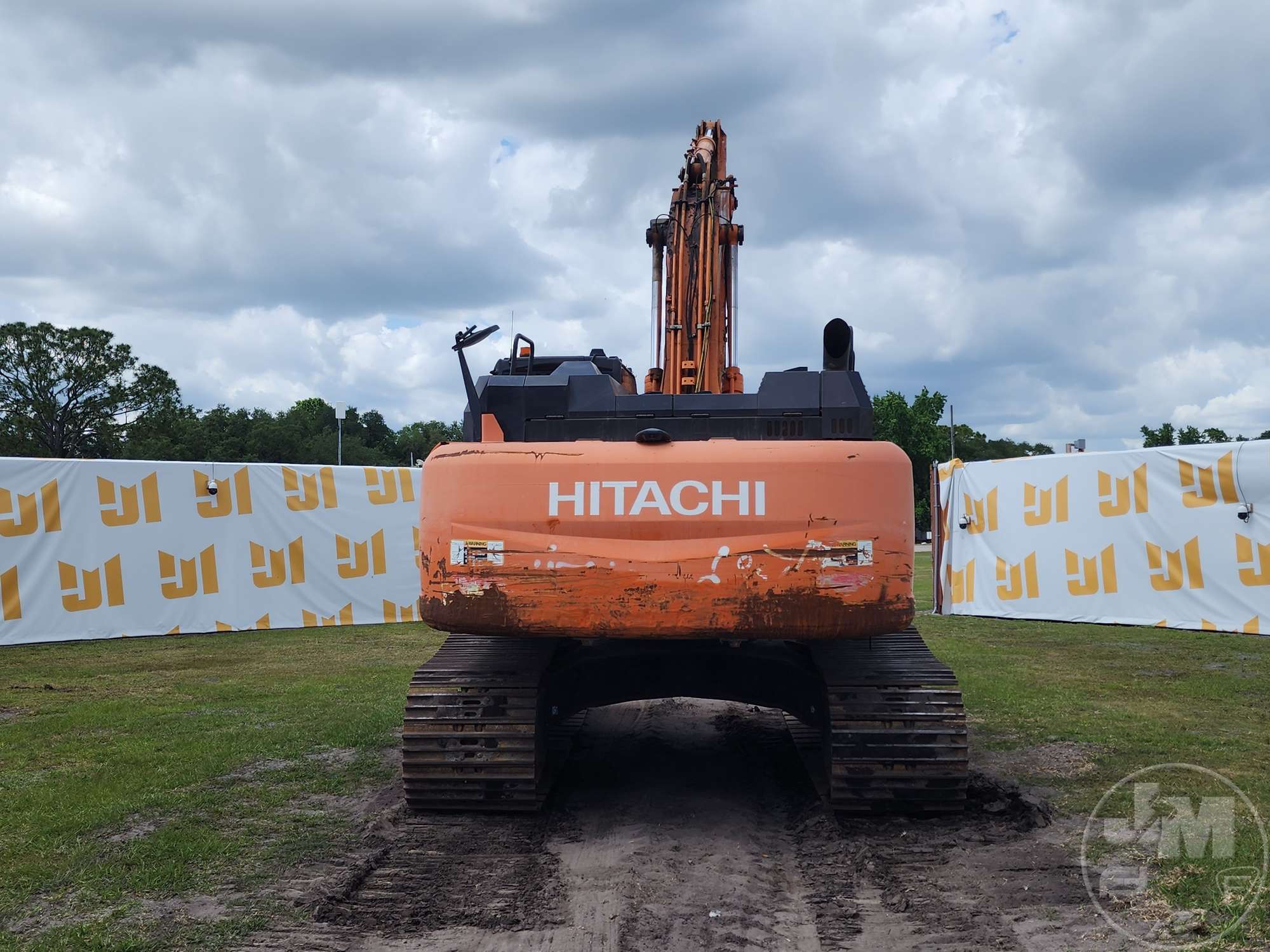

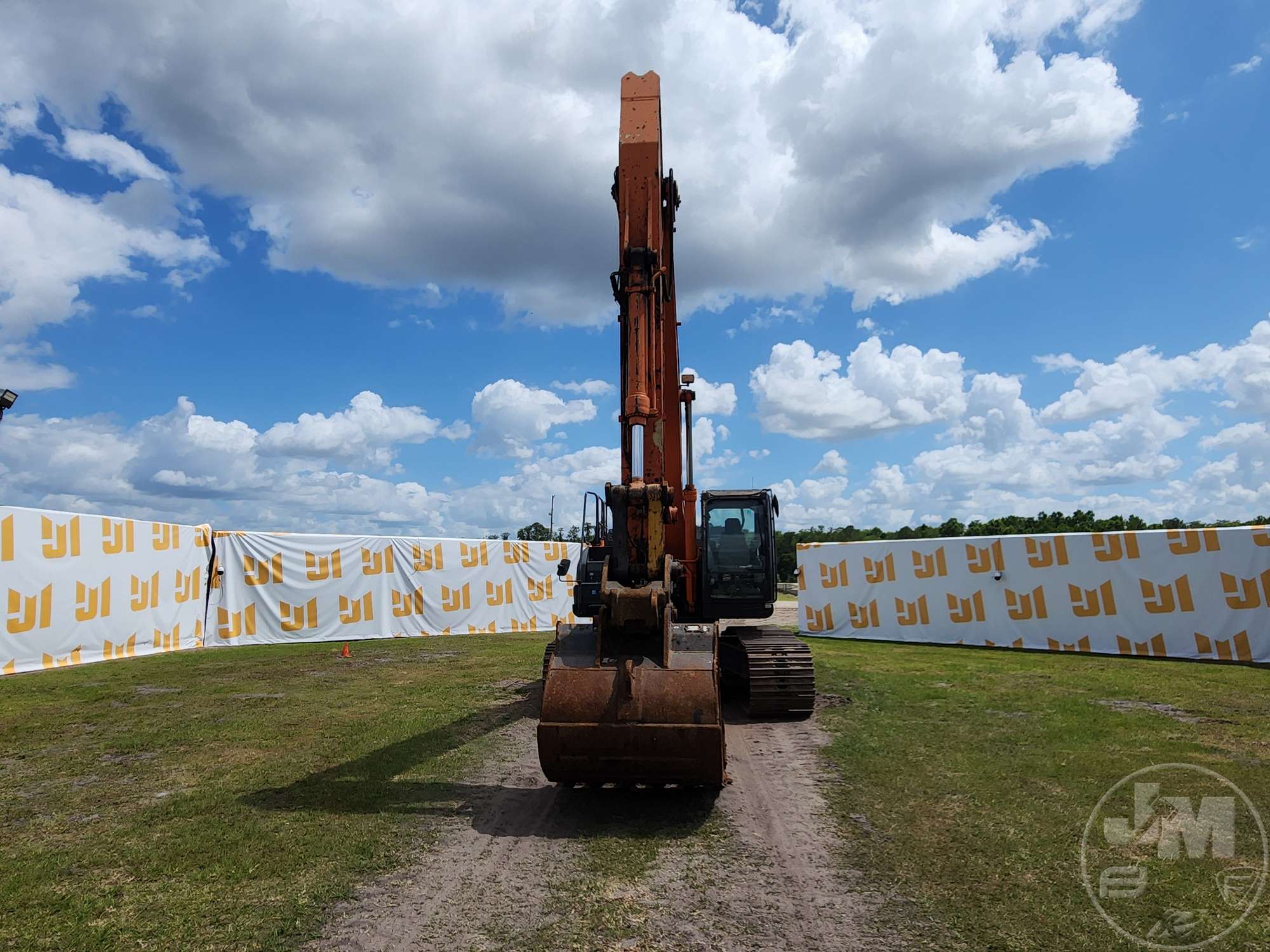

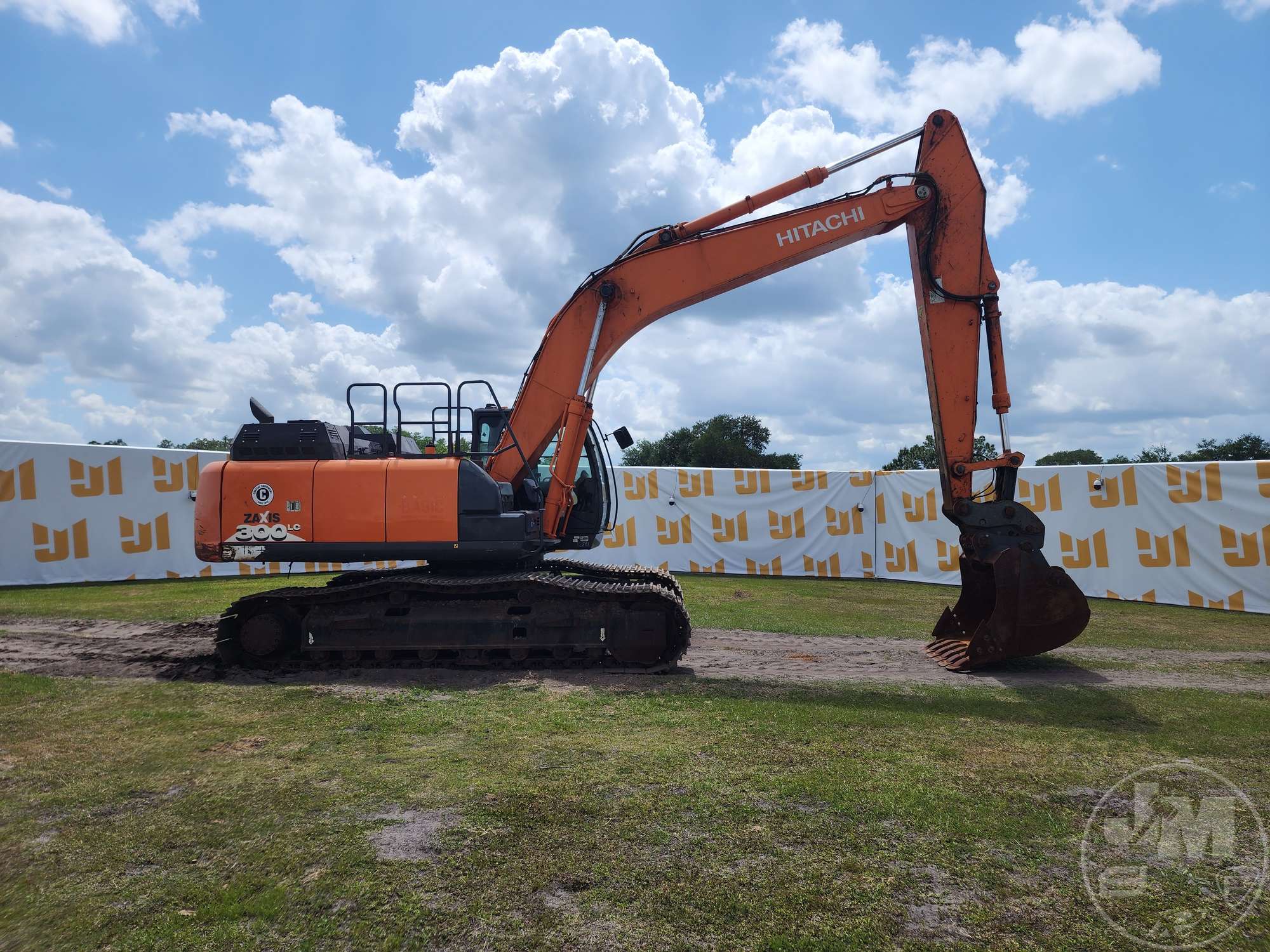

2018 Hitachi ZX300LC-6 For Sale in Kissimmee, FL

Name: 2018 Hitachi ZX300LC-6
Brand: Hitachi
SKU: 87650501
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-05-12 Click here to place a bid

Jeff Martin Auctioneers, Inc

Jeff Martin Auctioneers, Inc Dealer Info

Jeff Martin Auctioneers, Inc Website

Click here to email Jeff Martin Auctioneers, Inc.

Click for Phone Number

Machine Info:

Serial Number:	1FFDDP70KHF840225
Machine Location:	KISSIMMEE, FL
More Information:	https://www.jeffmartinauctioneers.com/auctions/1212/lot/316215-2018-HITACHI-ZX300LC-6N-HYDRAULIC-EXCAVATOR-SN%3A-1FFDDP70KHF840225

Description:

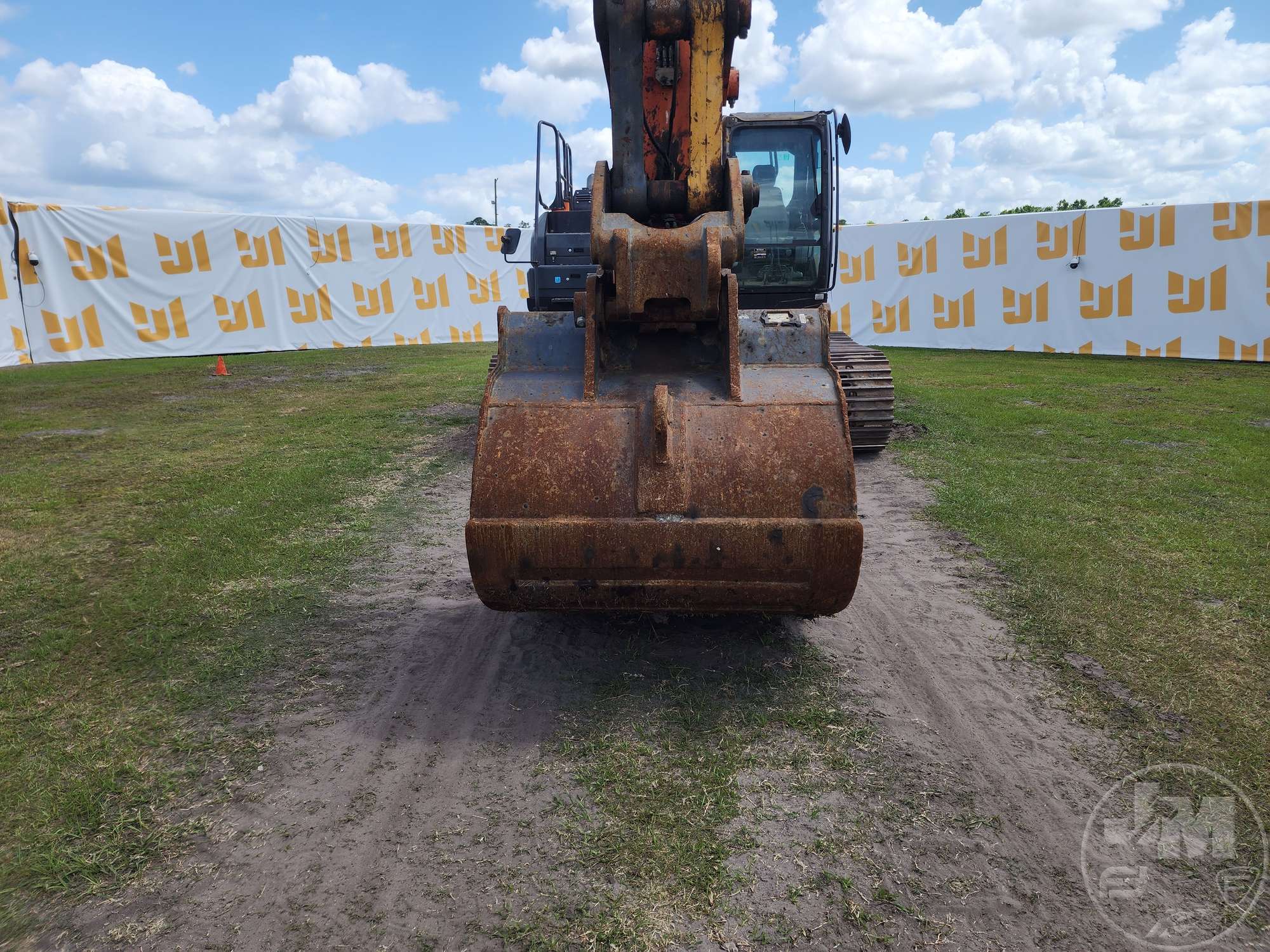

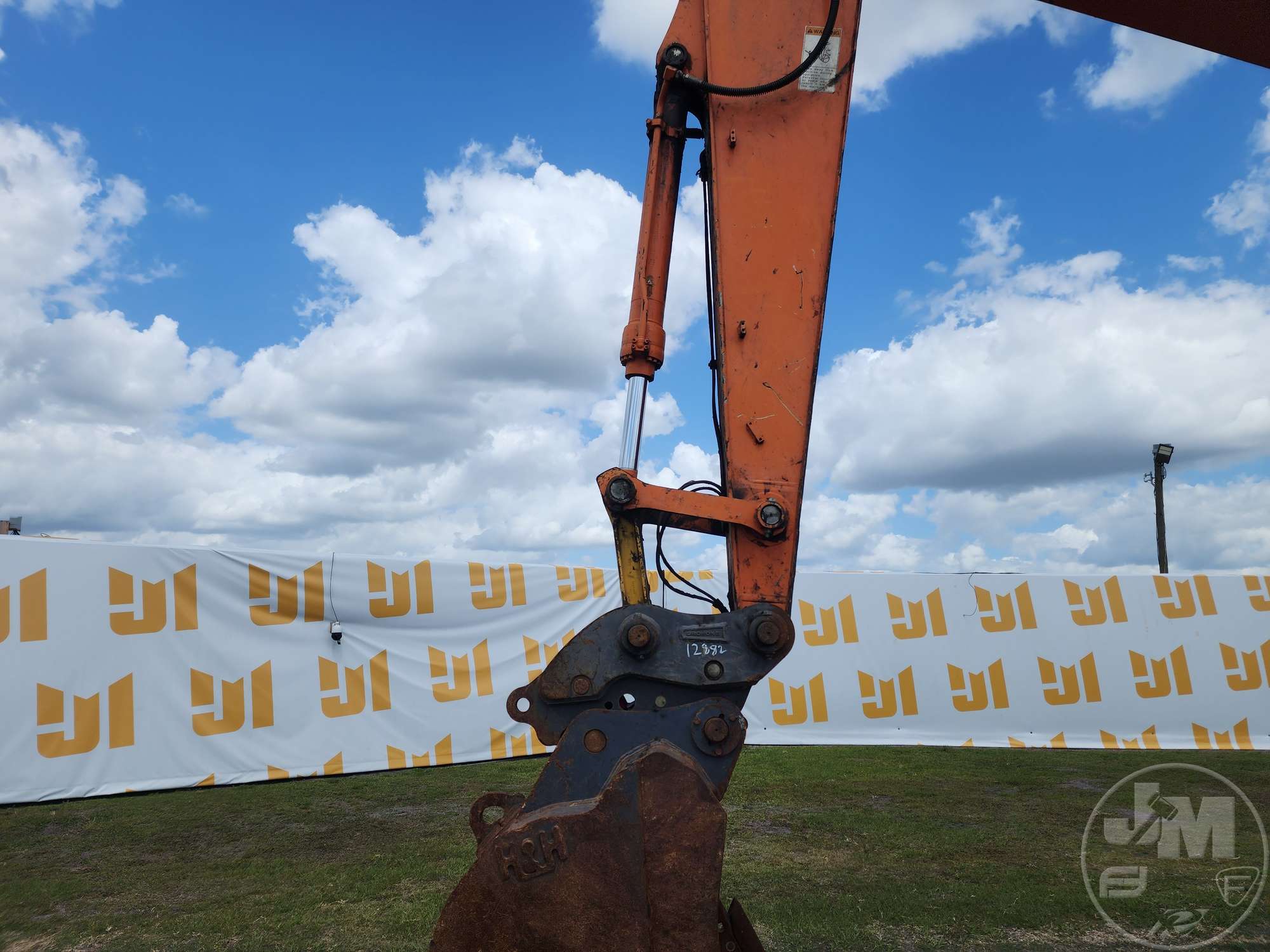

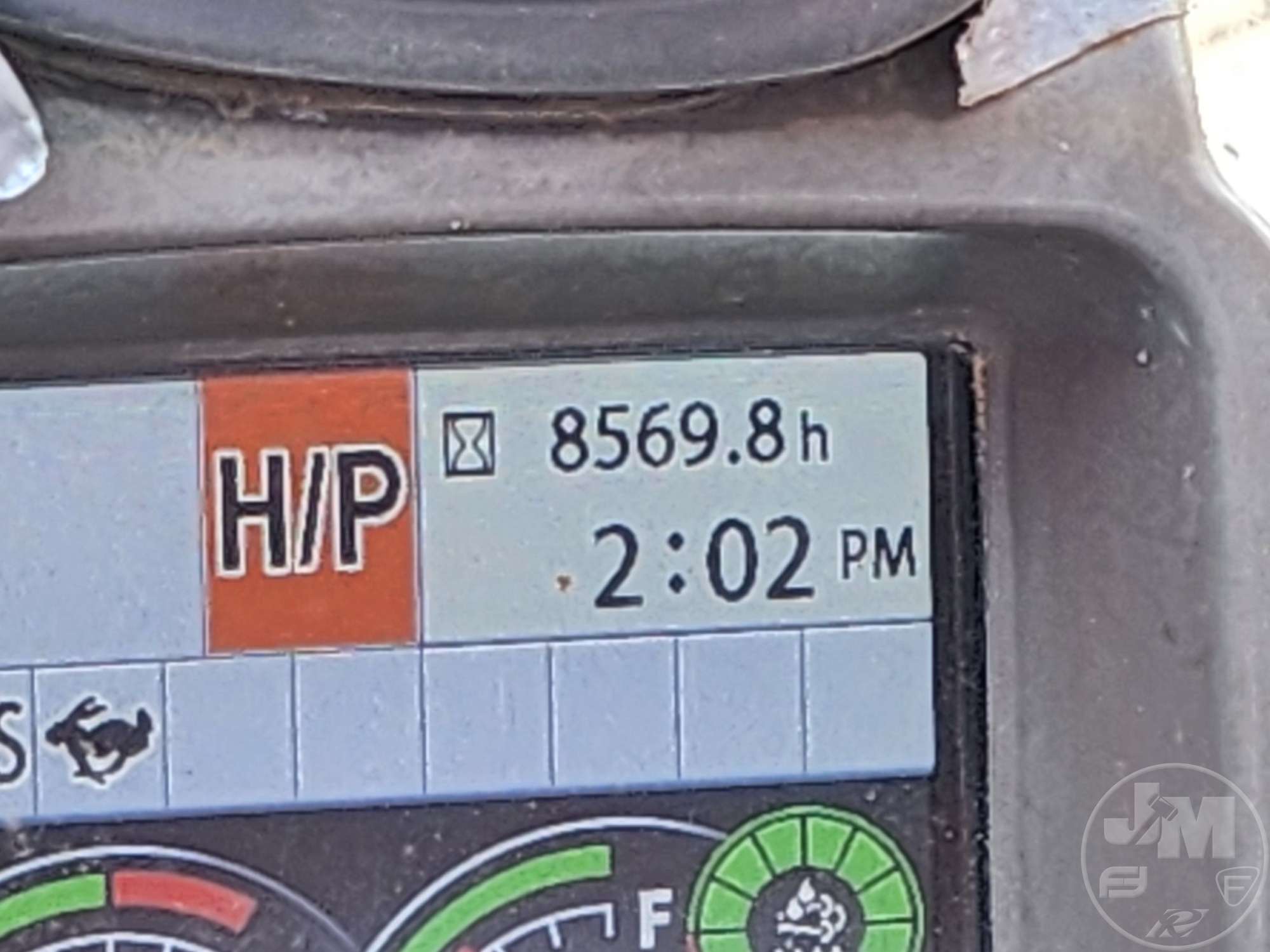

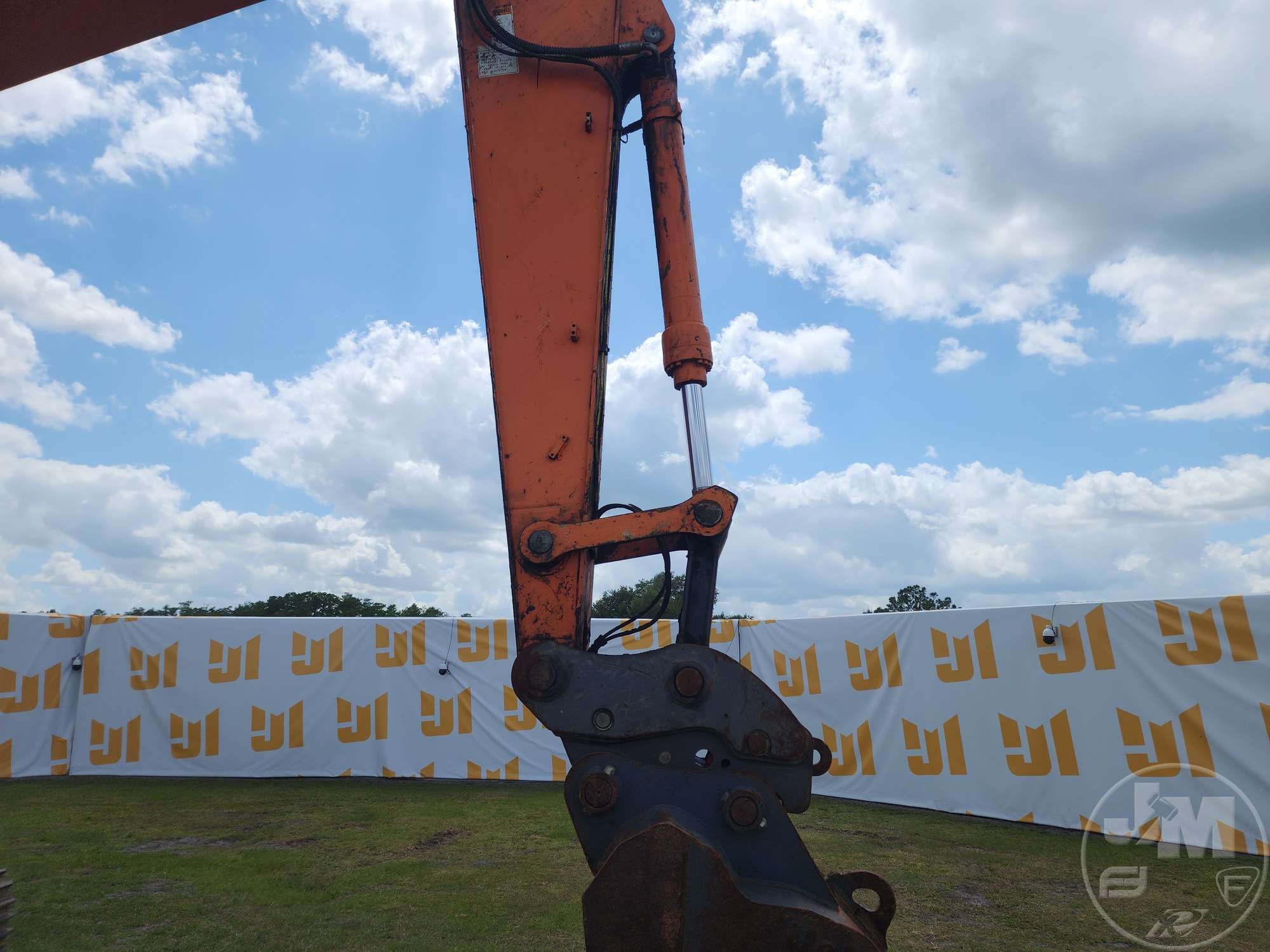

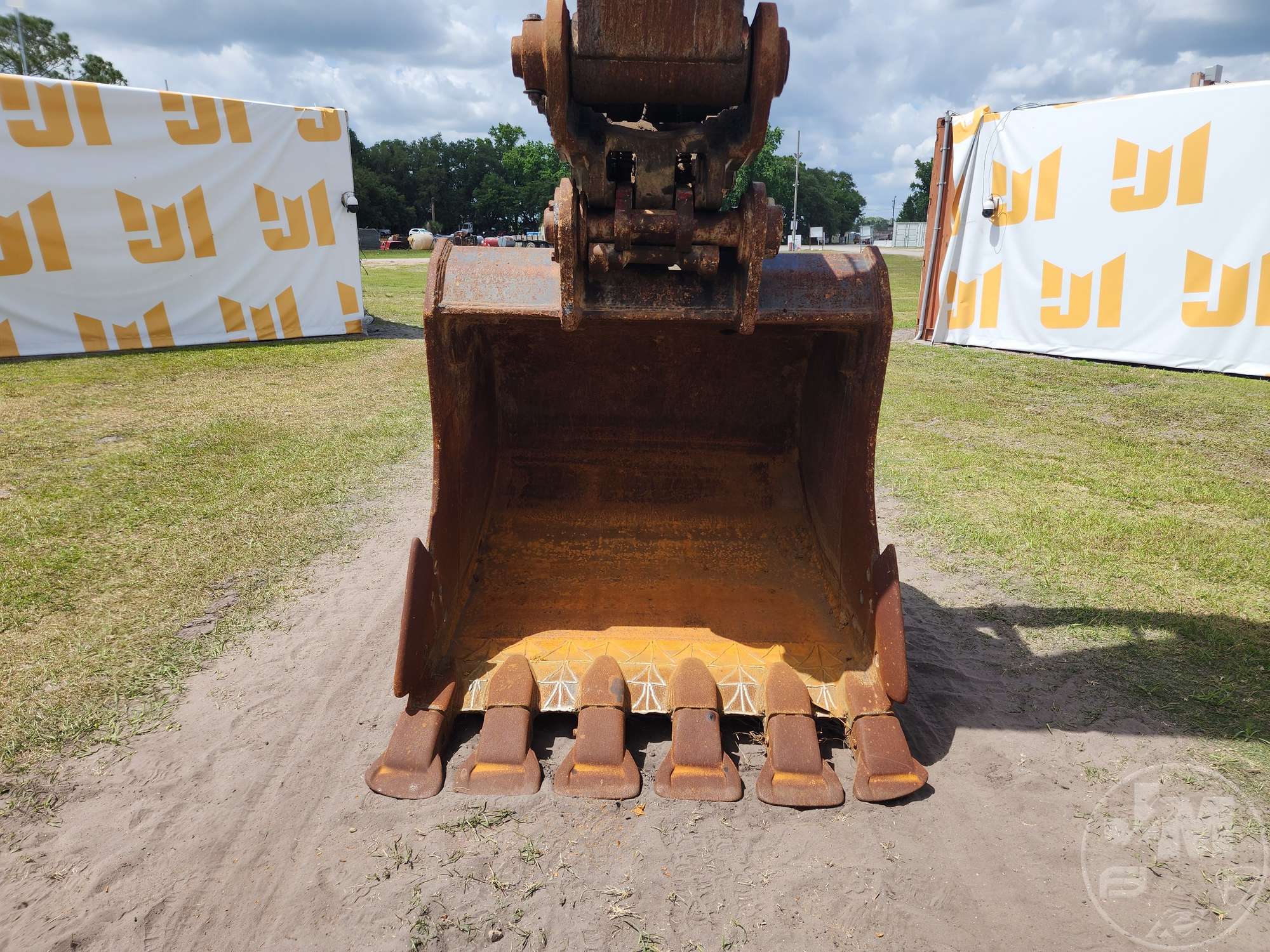

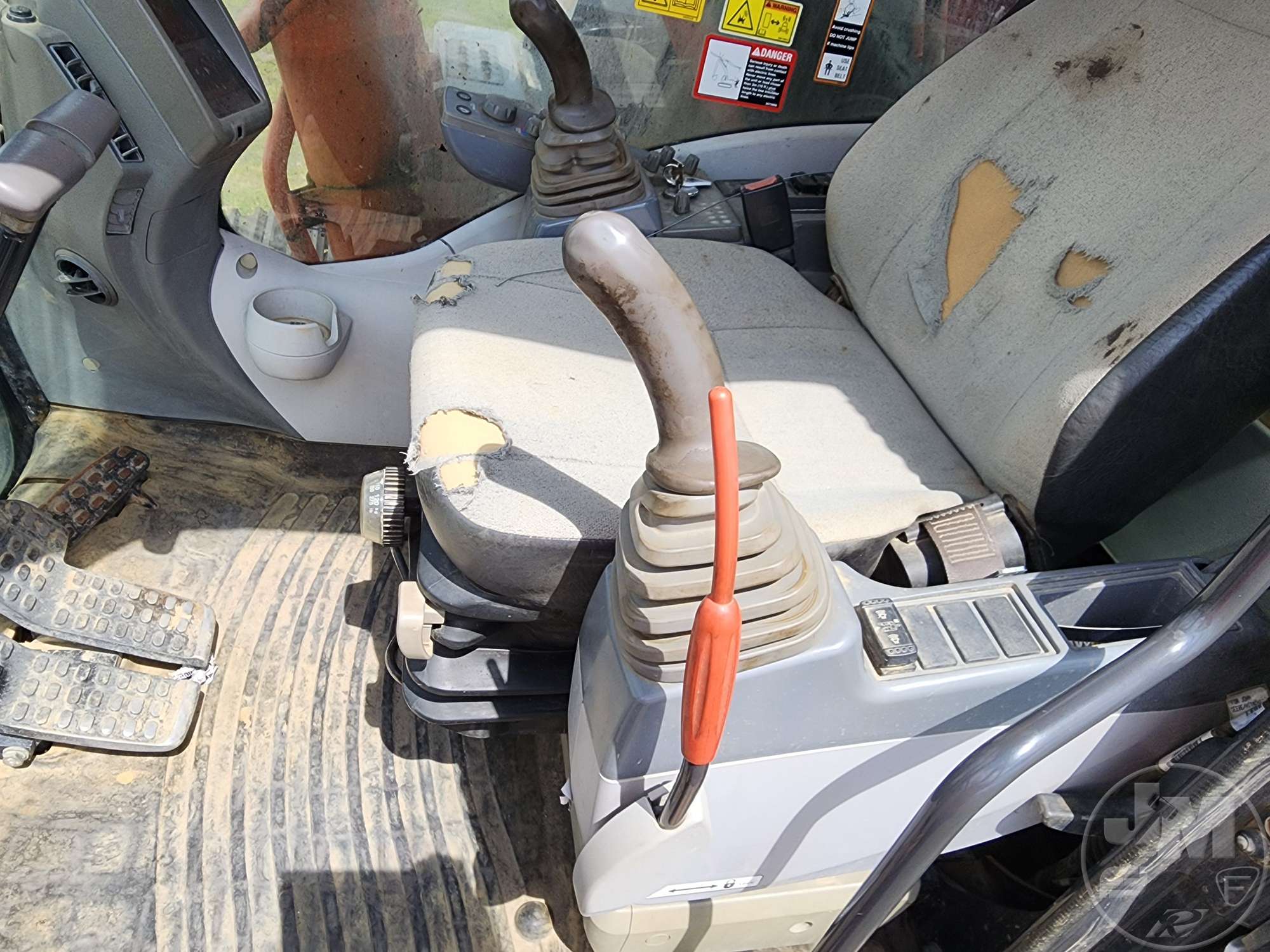

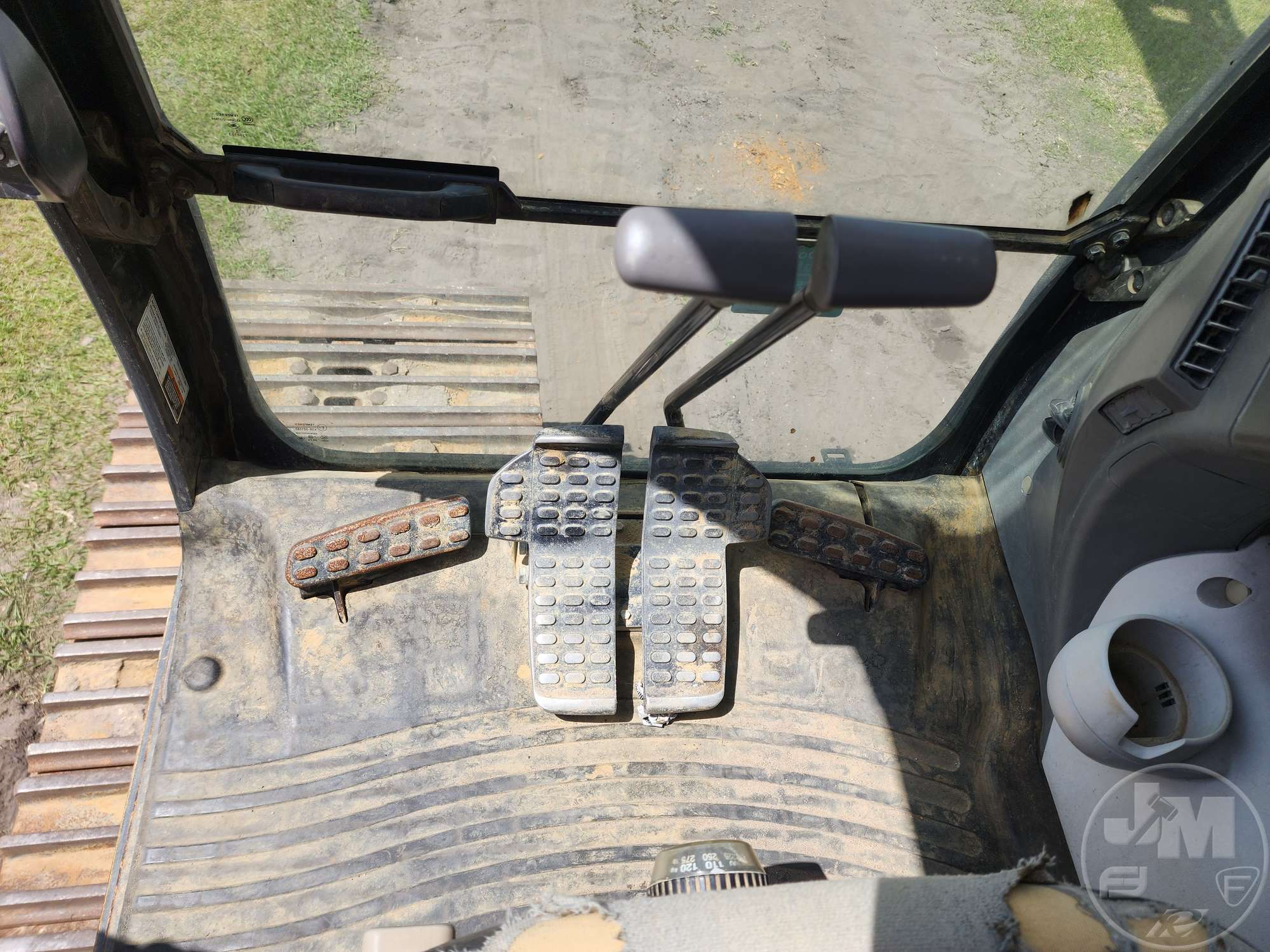

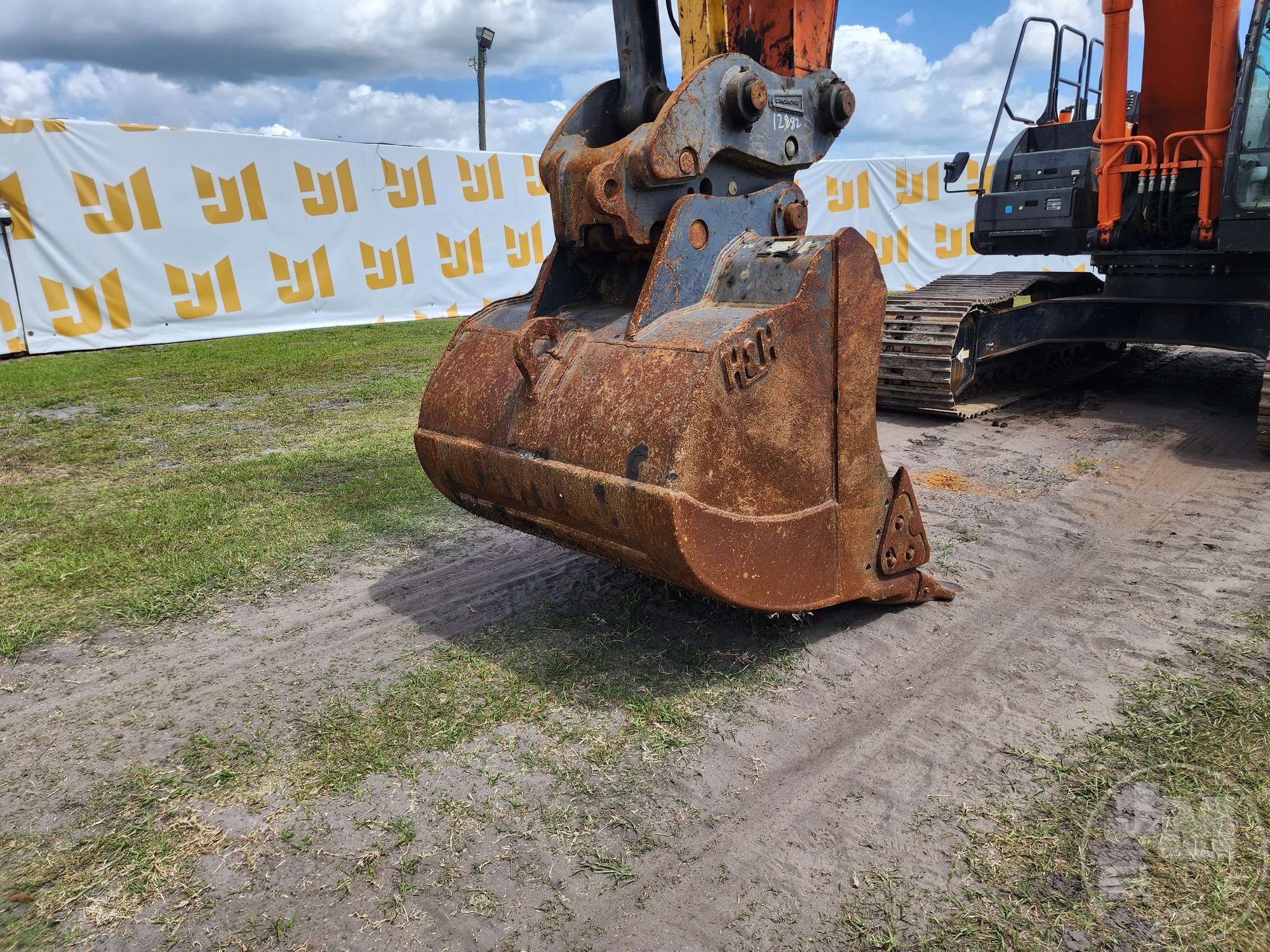

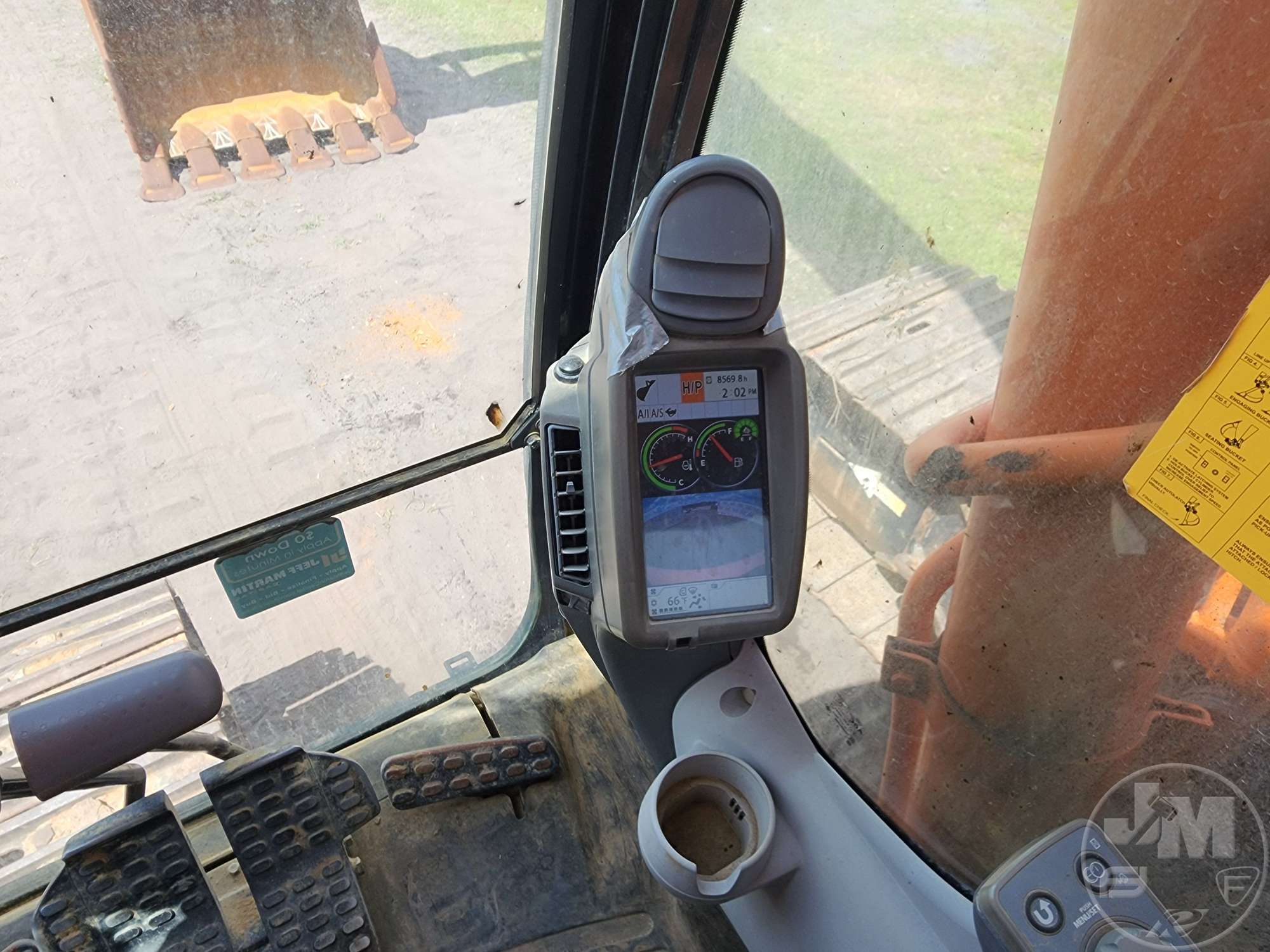

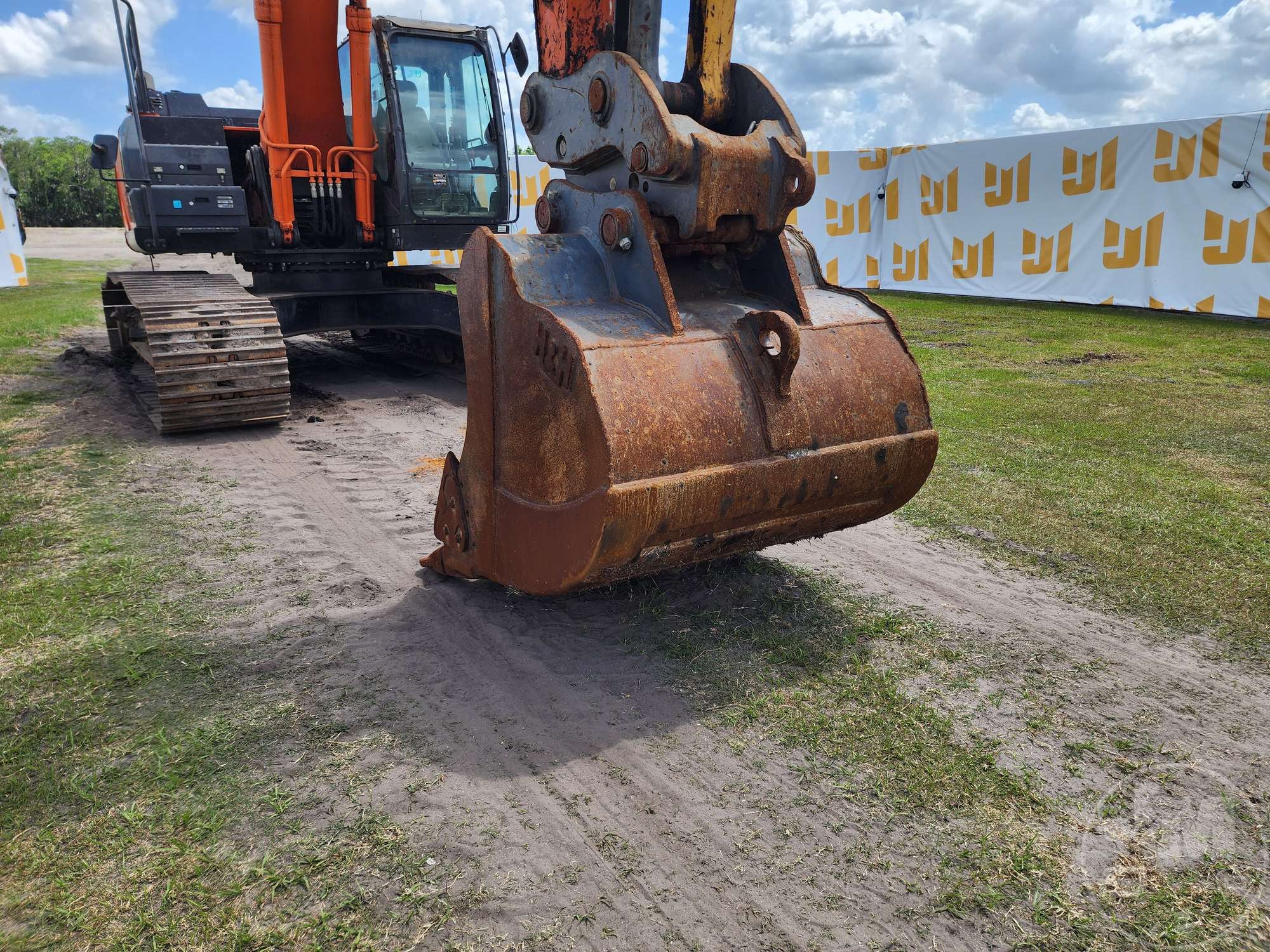

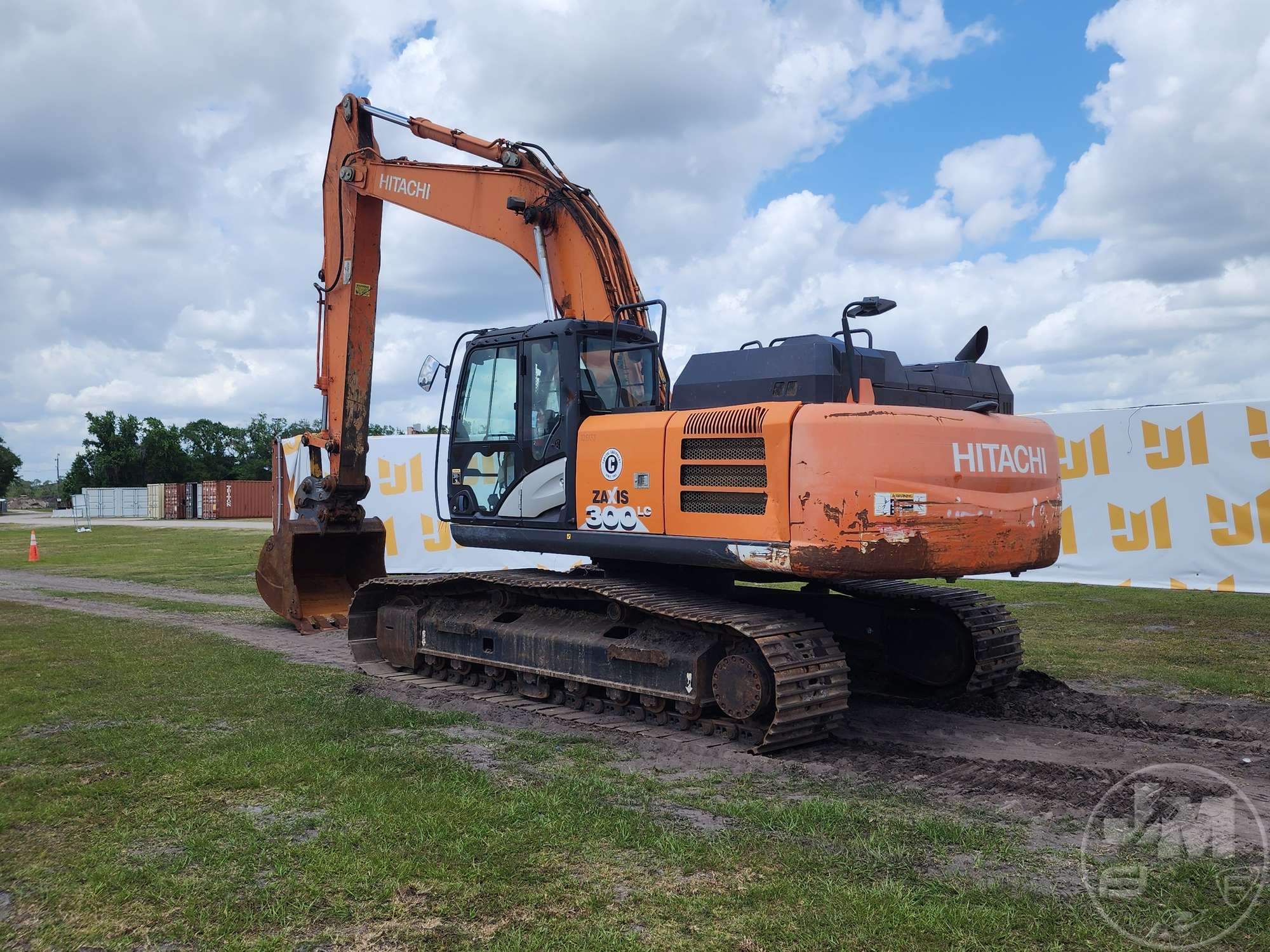

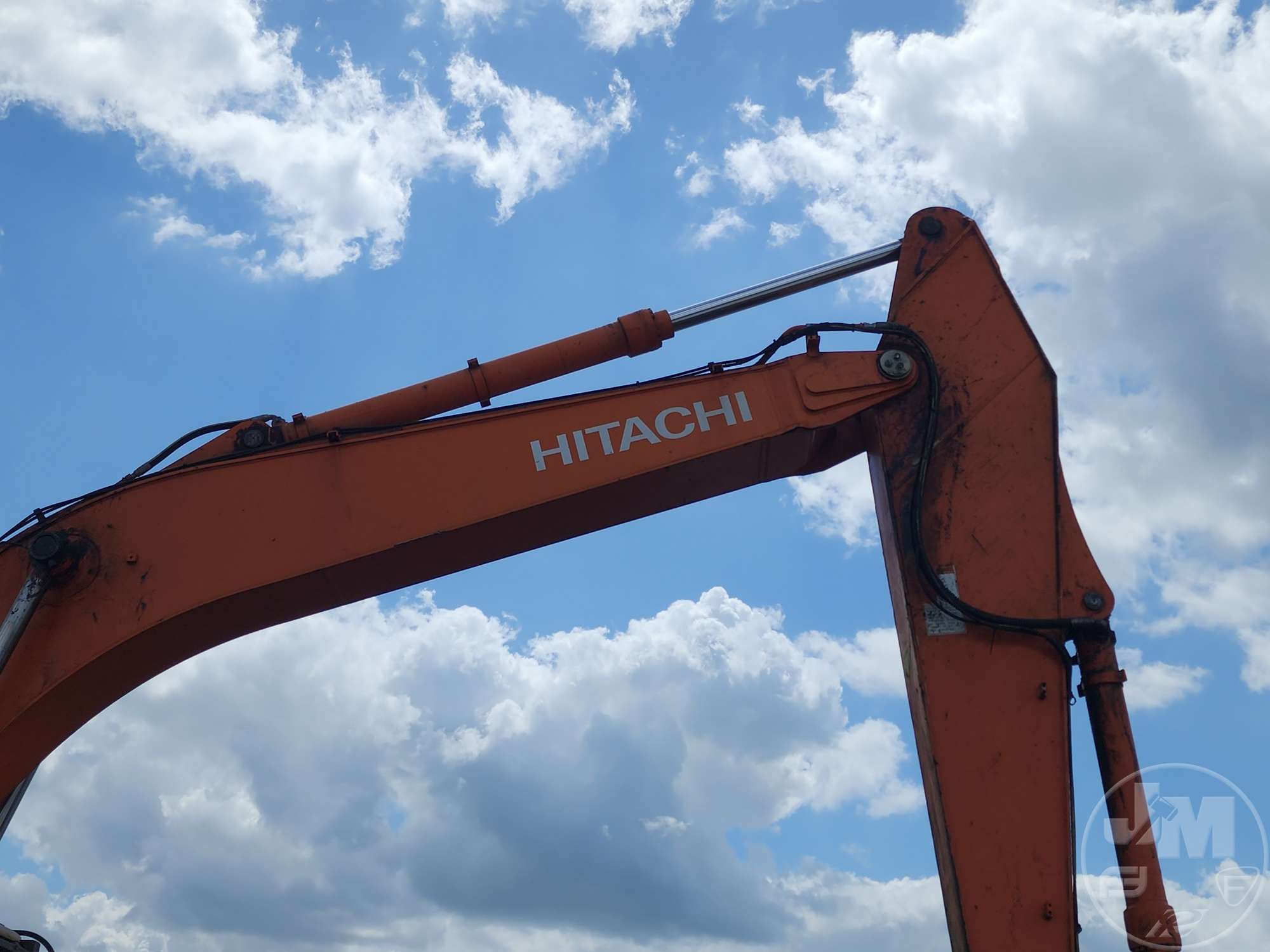

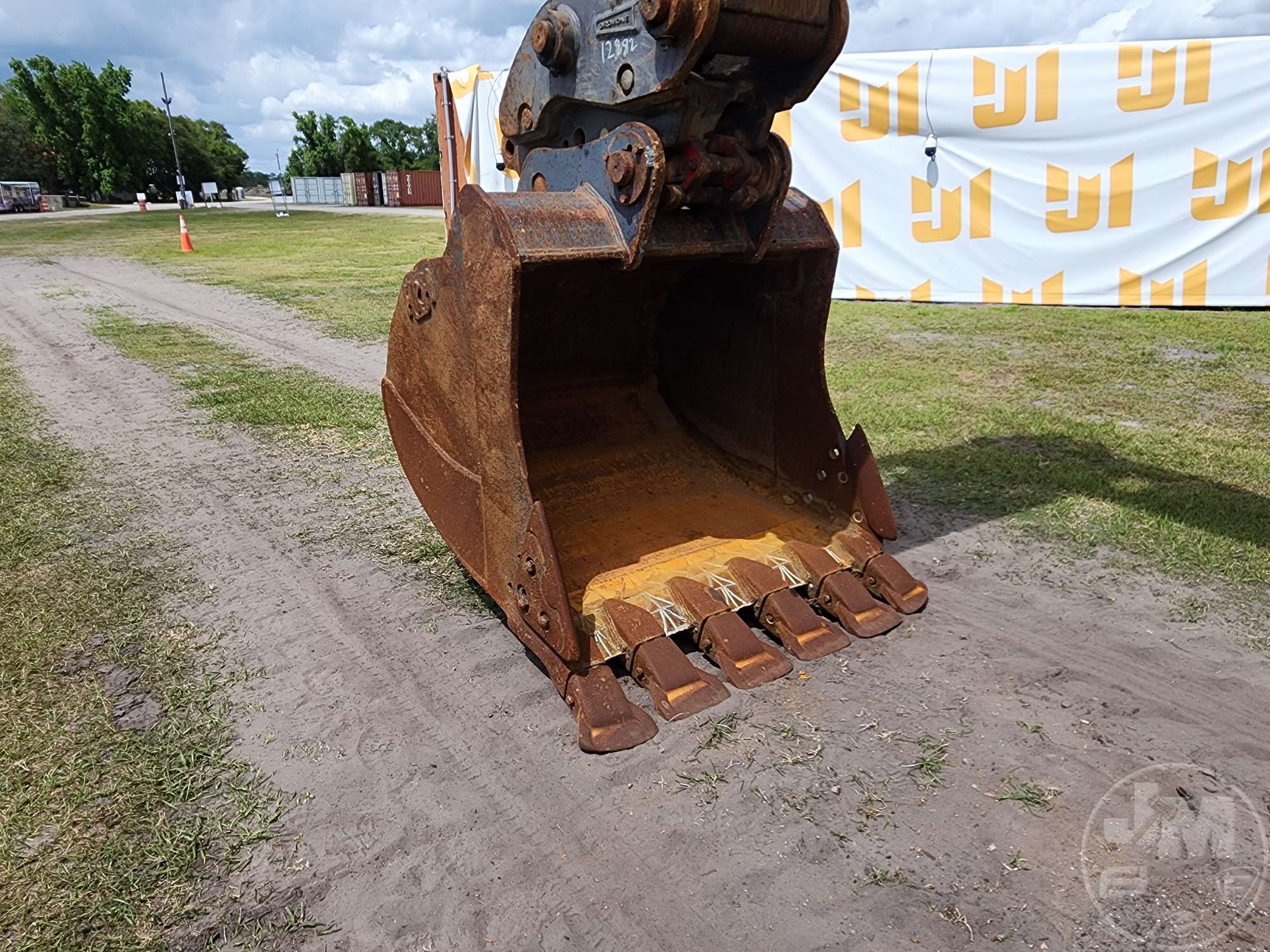

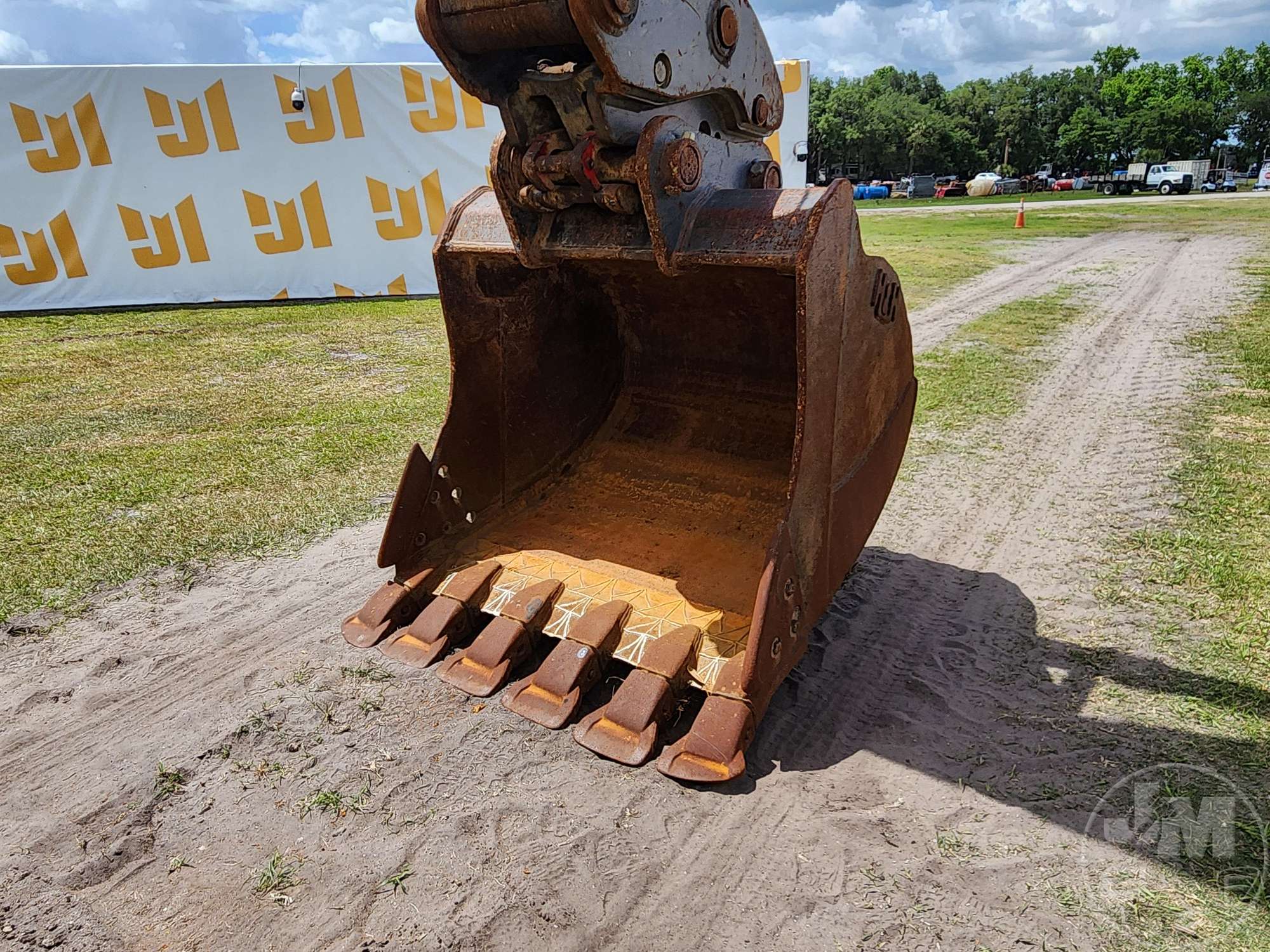

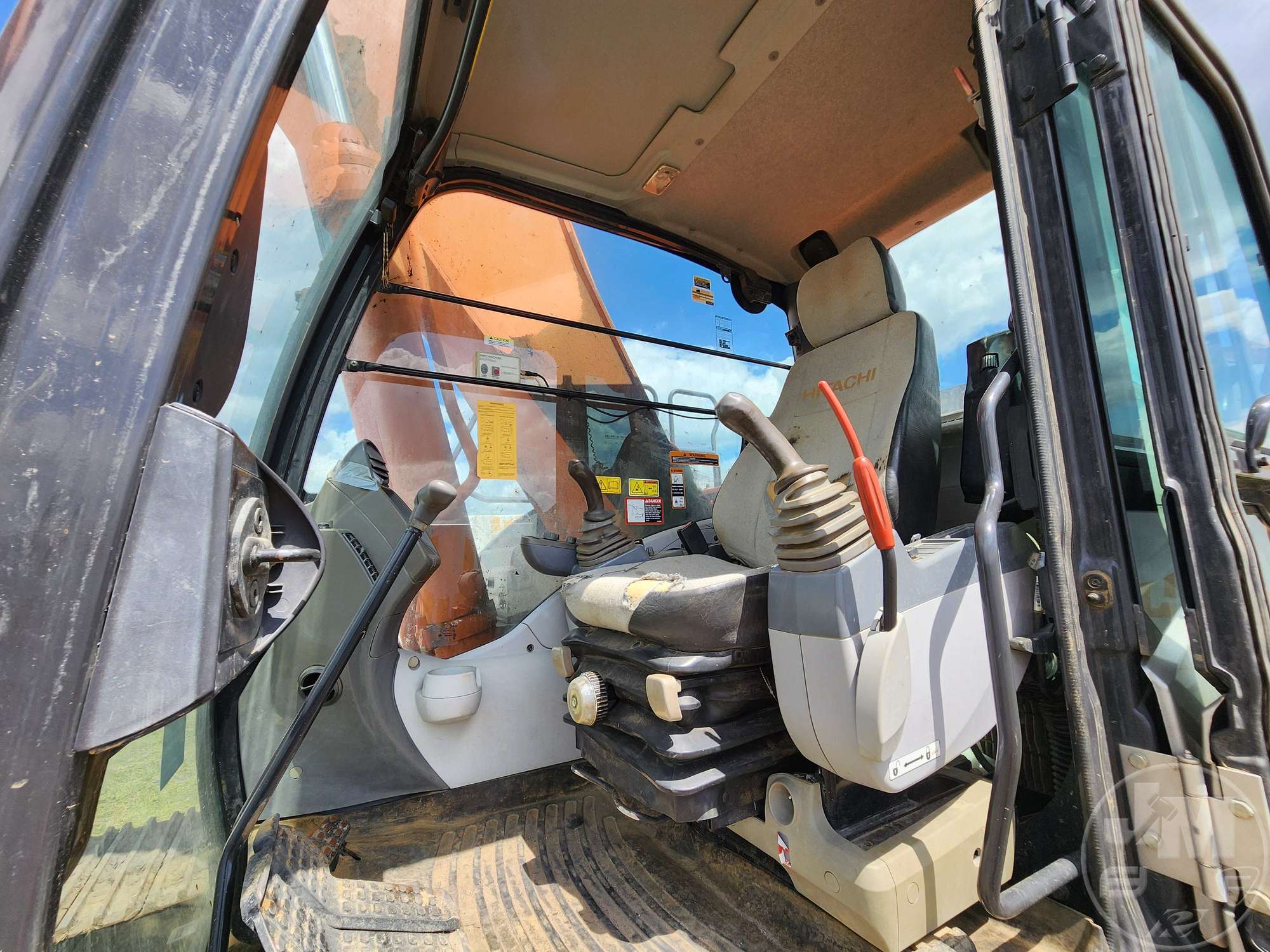

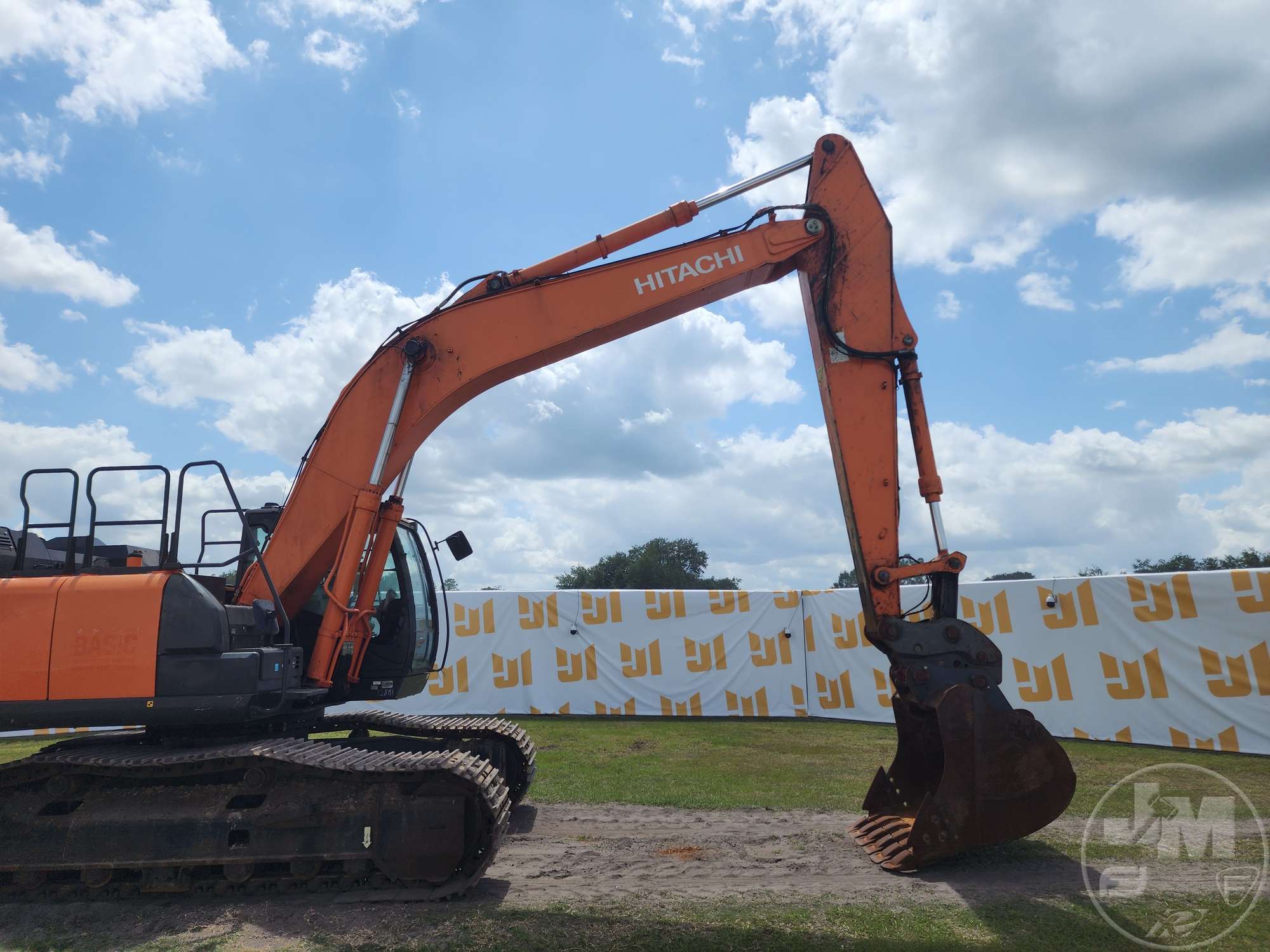

HITACHI HYDRAULIC EXCAVATOR, CAB, AC, RADIO, REAR VIEW CAMERA SYSTEM, 54" BUCKET, HYD COUPLER, PATTERN CONTROL CHANGER, REAR VIEW CAMERA, 2SPD, 31.5", 12' 6" STICK, HOUR METER READS: 8561

From the manufacturer:

Supplied by HeavyEquipmentData.com →

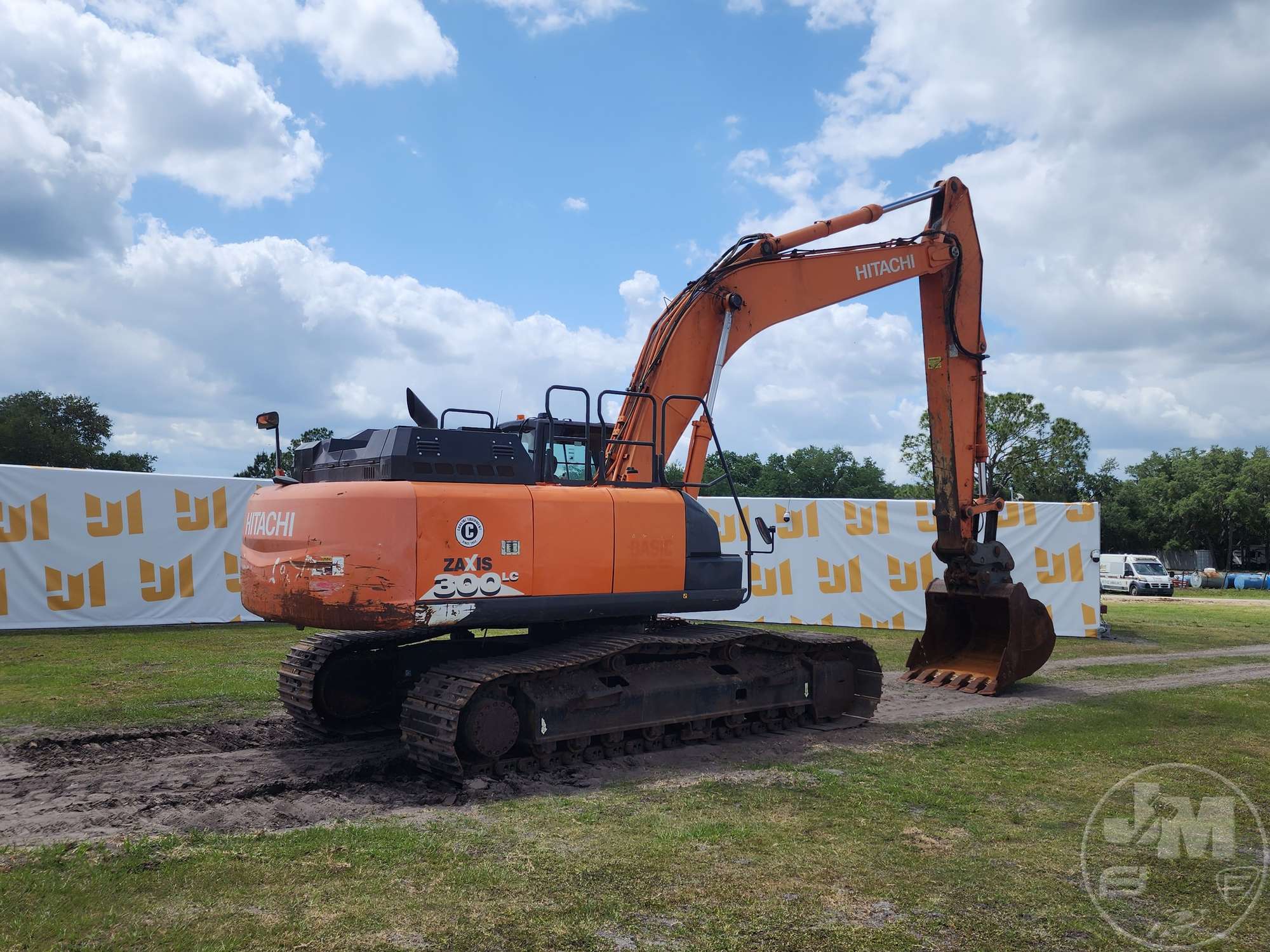

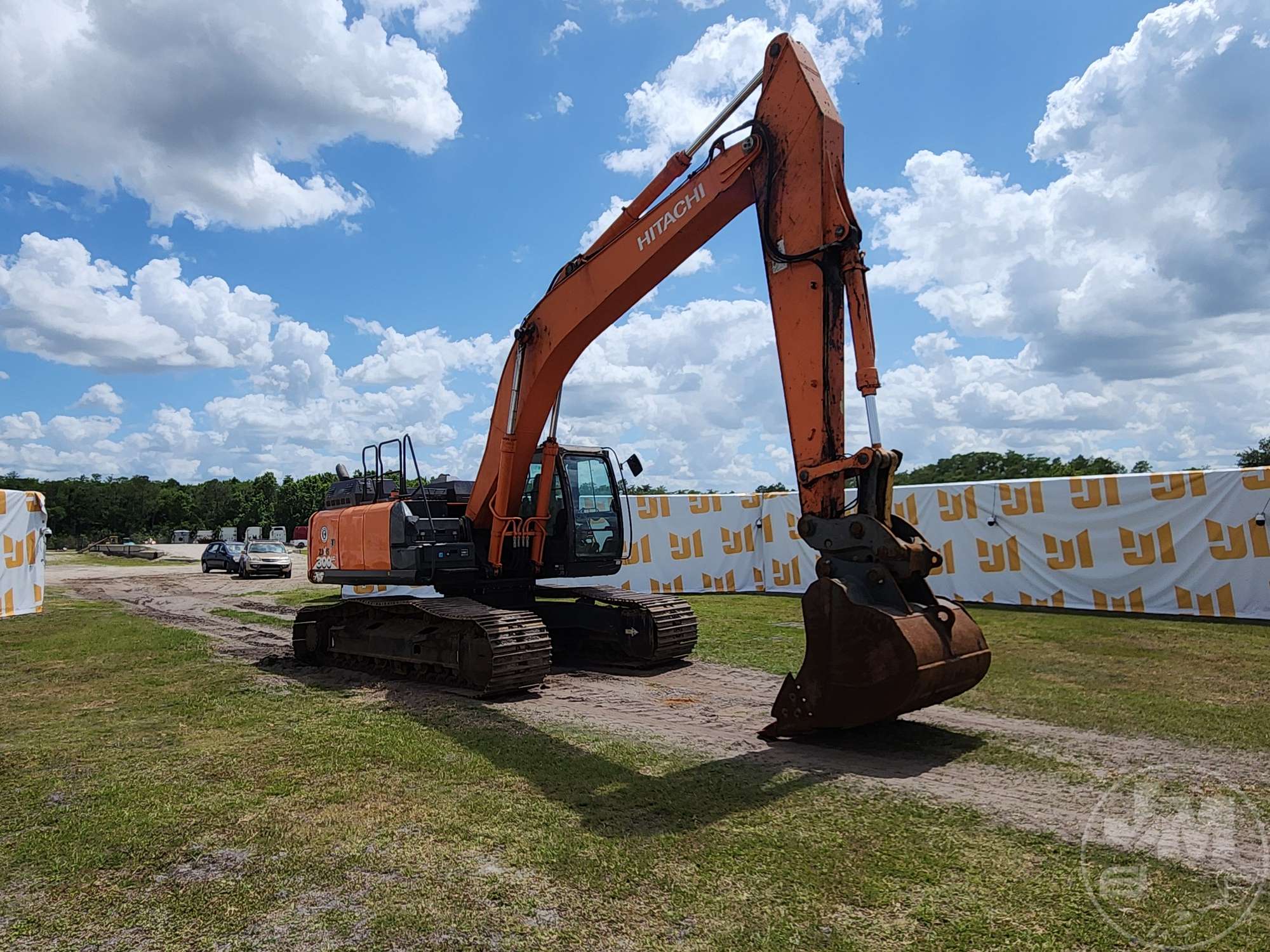

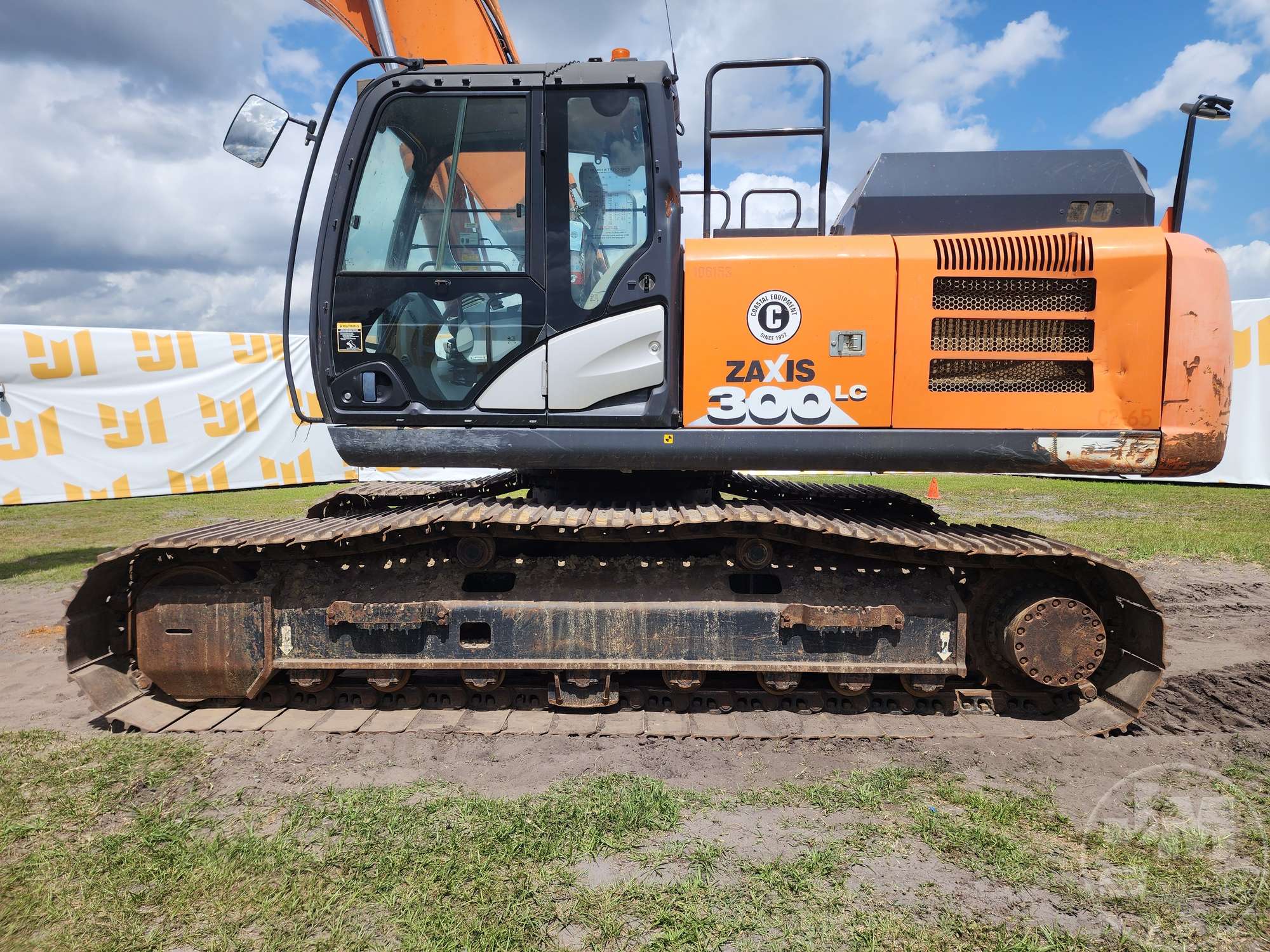

The Hitachi ZX300LC-6 is a hydraulic crawler excavator in the 30-ton class, designed for general earthmoving, site preparation, trenching, and material handling. It features a long undercarriage for improved stability and ground contact, making it suitable for demanding excavation work on uneven terrain. The ZX300LC-6 is powered by a diesel engine and uses hydraulic controls for digging, lifting, and swing operations. Common applications include construction, utility work, road building, and quarry support. As part of Hitachi's ZX-6 series, the model is known for balanced digging performance, operator visibility, and compatibility with a range of buckets and attachments.

Boom/Stick Excavator Option 1
Arm Digging Force - ISO	32,373 lbs (14,684 kg)
Arm Digging Force - SAE	31,024 lbs (14,072 kg)
Bucket Digging Force - ISO	45,412 lbs (20,598 kg)
Bucket Digging Force - SAE	39,342 lbs (17,845 kg)
Max Cutting Height	34 ft (10 m)
Max Digging Depth	24 ft (7 m)
Max Loading Height	24 ft (7 m)
Max Reach Along Ground	35 ft (11 m)
Max Vertical Wall Digging Depth	21 ft (6 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	35 ft (11 m)
Boom/Stick Excavator Option 2
Arm Digging Force - ISO	28,551 lbs (12,950 kg)
Arm Digging Force - SAE	27,202 lbs (12,339 kg)
Bucket Digging Force - ISO	45,412 lbs (20,598 kg)
Bucket Digging Force - SAE	39,342 lbs (17,845 kg)
Max Cutting Height	34 ft (10 m)
Max Digging Depth	26 ft (8 m)
Max Loading Height	25 ft (8 m)
Max Reach Along Ground	36 ft (11 m)
Max Vertical Wall Digging Depth	23 ft (7 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	35 ft (11 m)
Bucket
Maximum Bucket Capacity	3 cu yd (2 cu m)
Minimum Bucket Capacity	2 cu yd (1 cu m)
Capacities
Cooling system	13 gal (48 l)
Diesel exhaust fluid (DEF) tank	19 gal (70 l)
Engine oil with filter	13 gal (48 l)
Fuel Tank	135 gal (510 l)
Hydraulic system	77 gal (290 l)
Hydraulic Tank	41 gal (156 l)
Propel	3 gal (9 l)
Pump Drive	0 gal (1 l)
Swing drive	3 gal (12 l)

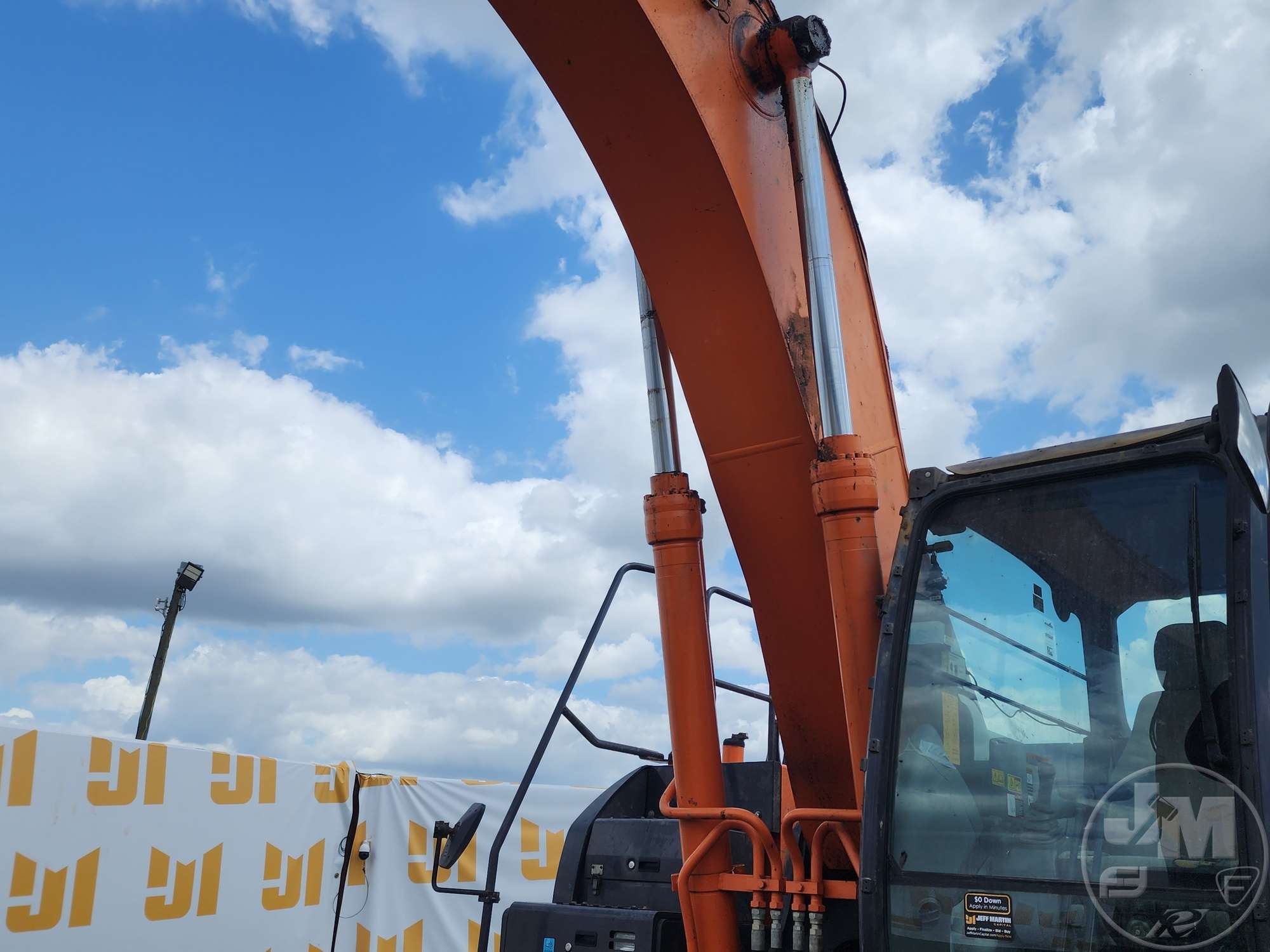

Cylinders
Bore (Arm)	6 in (15 cm)
Bore (Boom)	5 in (14 cm)
Bore (Bucket)	5 in (14 cm)
Rod Diameter (Arm)	4 in (11 cm)
Rod Diameter (Boom)	4 in (10 cm)
Rod Diameter (Bucket)	4 in (9 cm)
Stroke (Arm)	65 in (166 cm)
Stroke (Boom)	56 in (142 cm)
Stroke (Bucket)	42 in (107 cm)
Dimensions
Ground Clearance	2 ft (1 m)
Height - Top of Cab	10 ft (3 m)
Length of Track on Ground	35 ft (11 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	11 ft (3 m)
Width to Outside of Tracks	11 ft (3 m)
Electrical System
Alternator rating	50 amp
Batteries	2 x 12 V volts
Battery capacity	1000 CCA
Work Lights	2 halogen

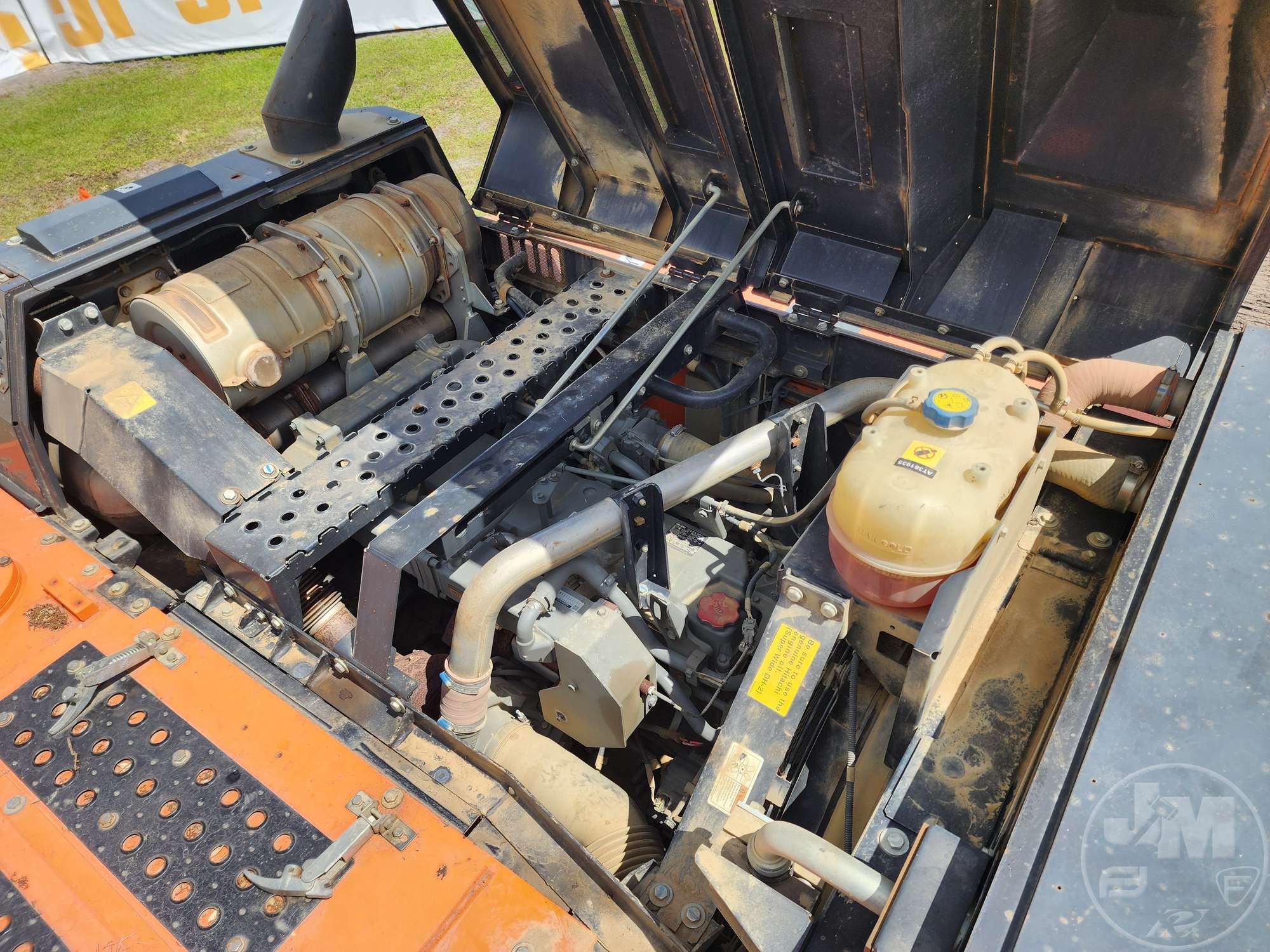

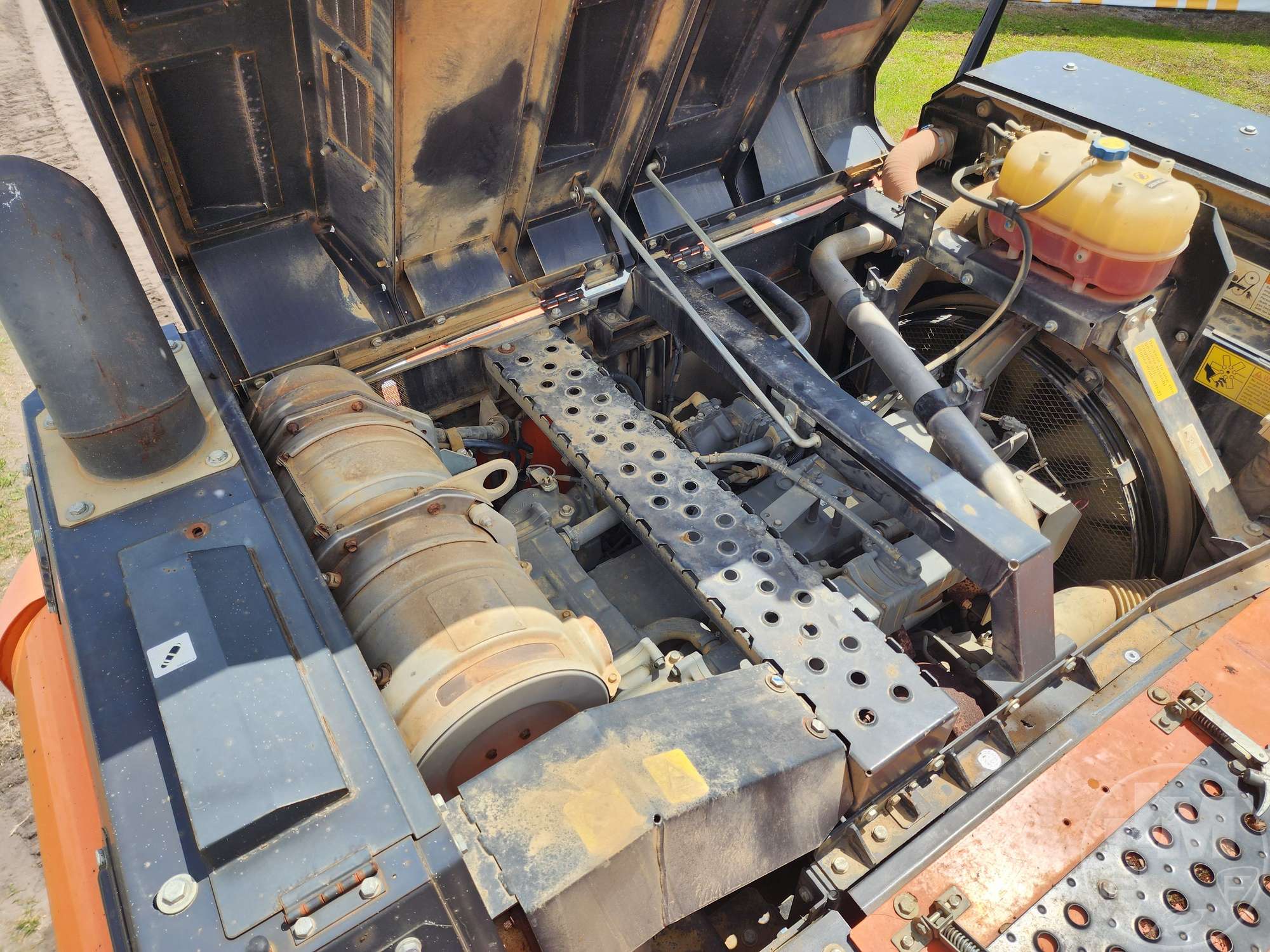

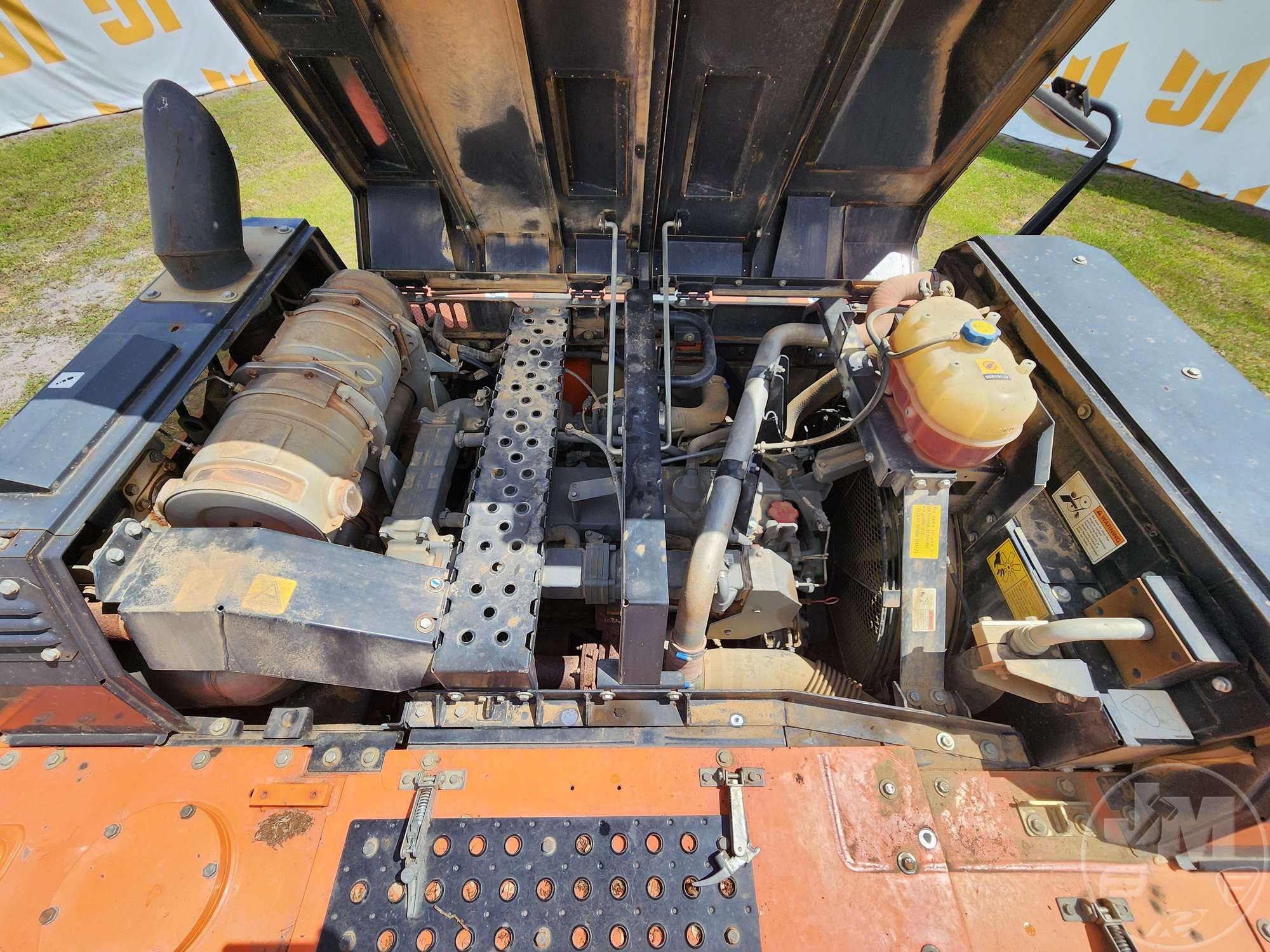

Engine
Aspiration	Turbocharged air-to-air charge-air cooler
Cooling system	High efficiency direct-driven suction-type fan
Displacement	475 cu in (7,790 cu cm)
Emissions level	EPA Final Tier 4 / EU Stage IV
Engine Make	Isuzu
Engine Model	Isuzu 6HK1
Net Power	249 hp (186 kw)
Off-Level Capacity	70%
Power Measured @	1,900 rpm

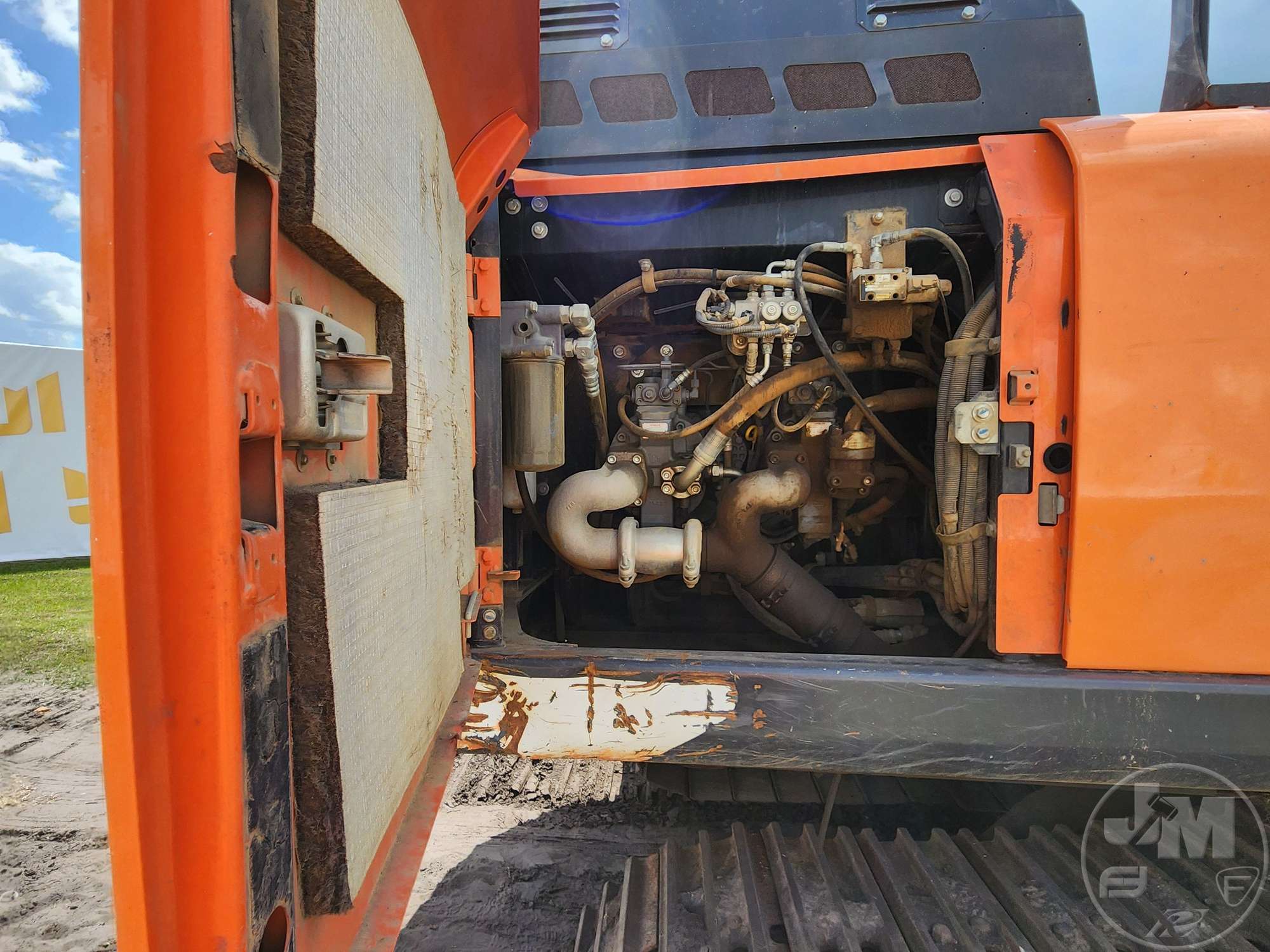

Hydraulic System

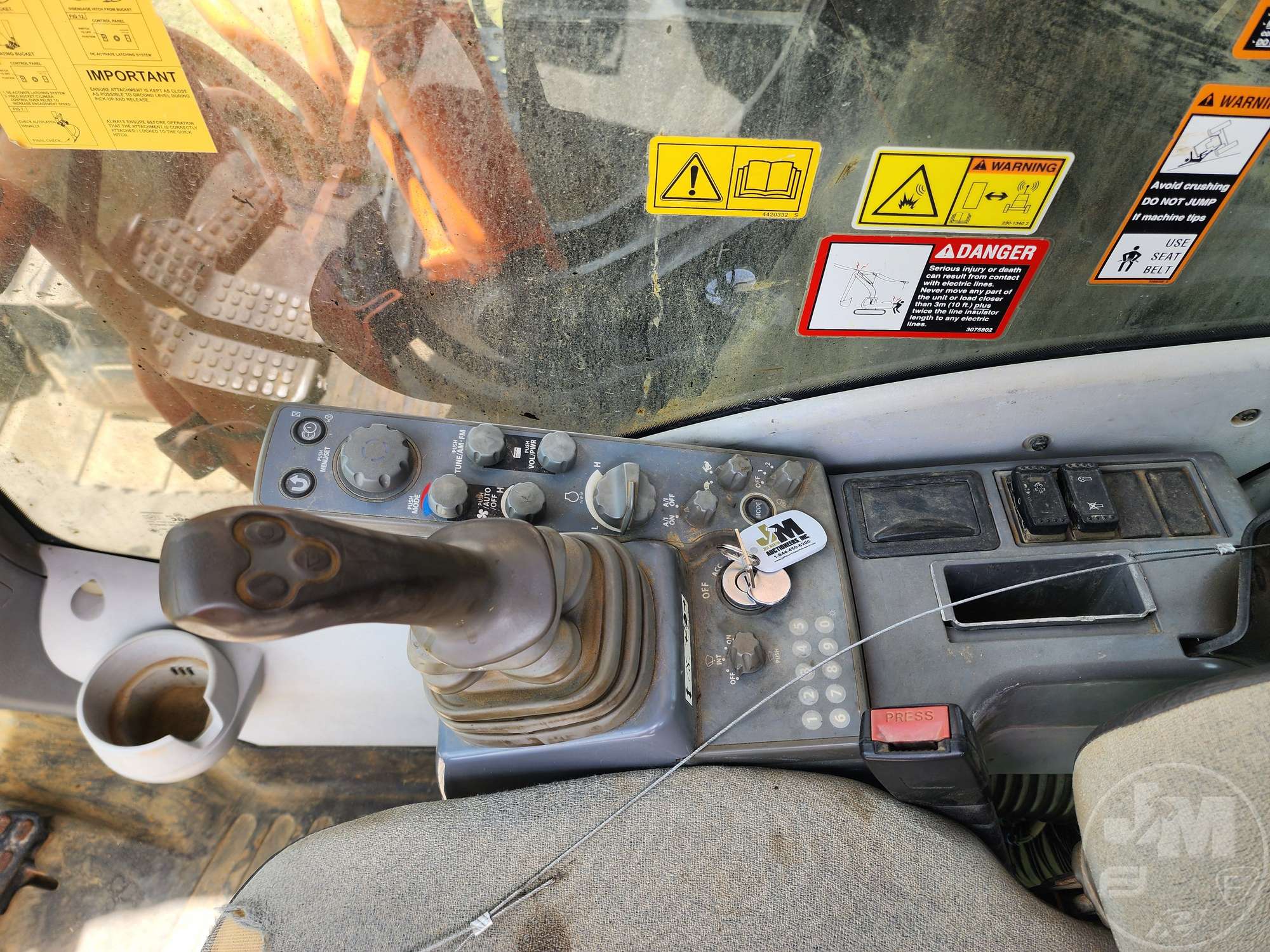

Controls	Pilot levers short-stroke low-effort hydraulic pilot controls with shutoff lever
Hydraulic System Type	Open center load sensing
Implement - Operating Pressure	4,975 psi
Main pump - Maximum flow	62 gal (236 l)
Main pump type	2 variable-displacement pumps
Travel - Operating Pressure	5,076 psi
Operating Specifications
Operating Weight	64,375 lbs (29,200 kg)
Swing Mechanism
Swing Speed	10 rpm

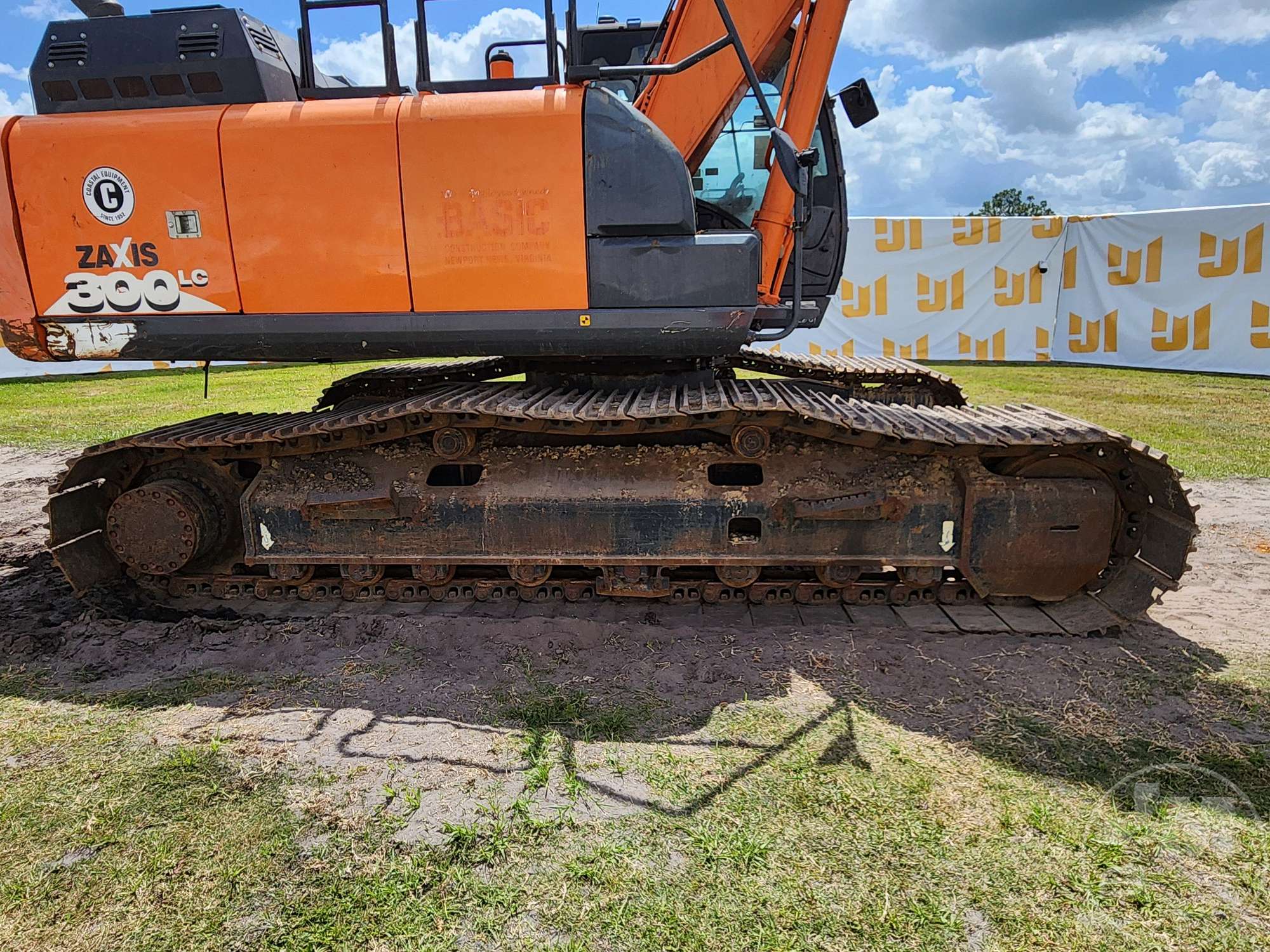

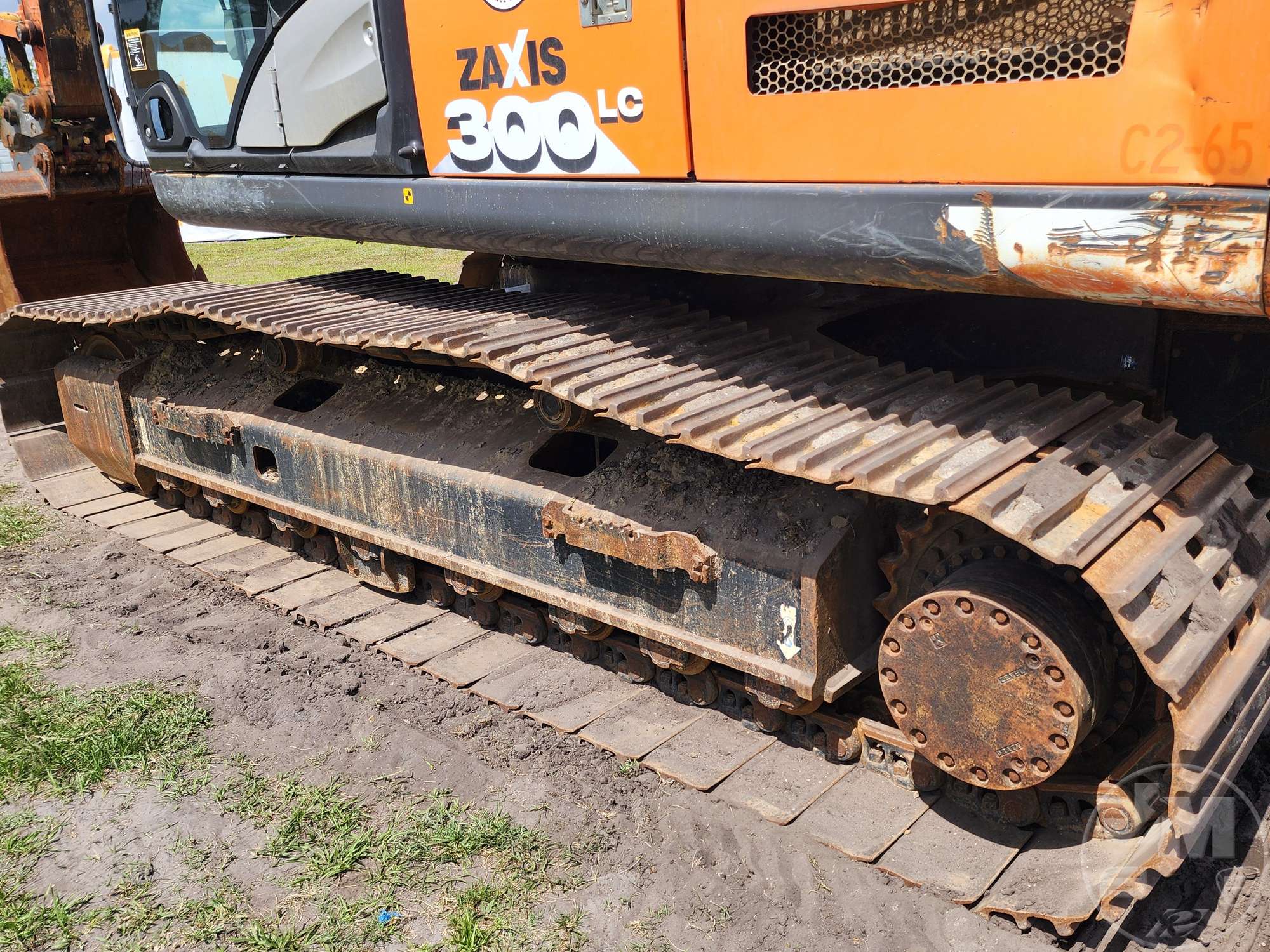

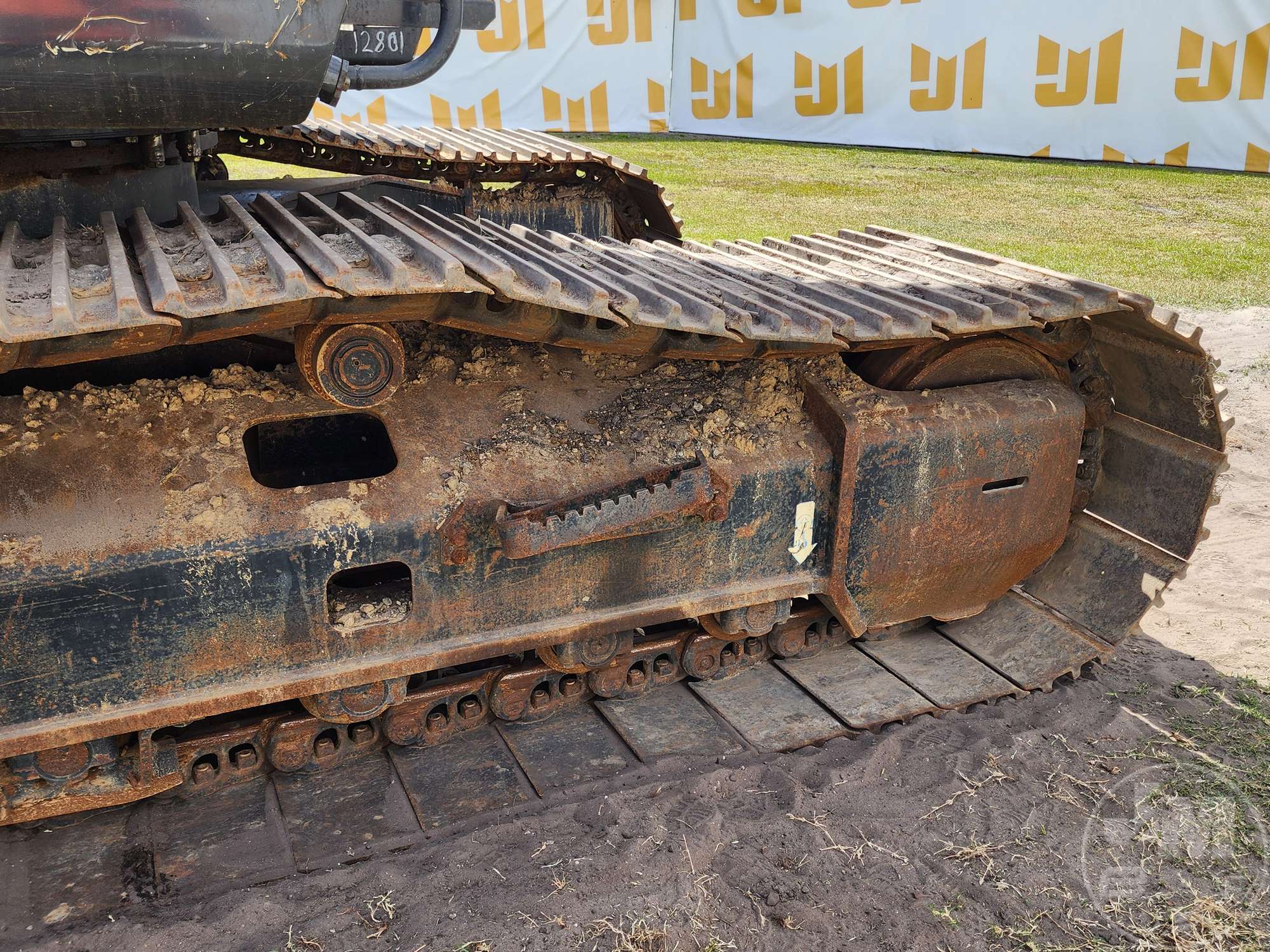

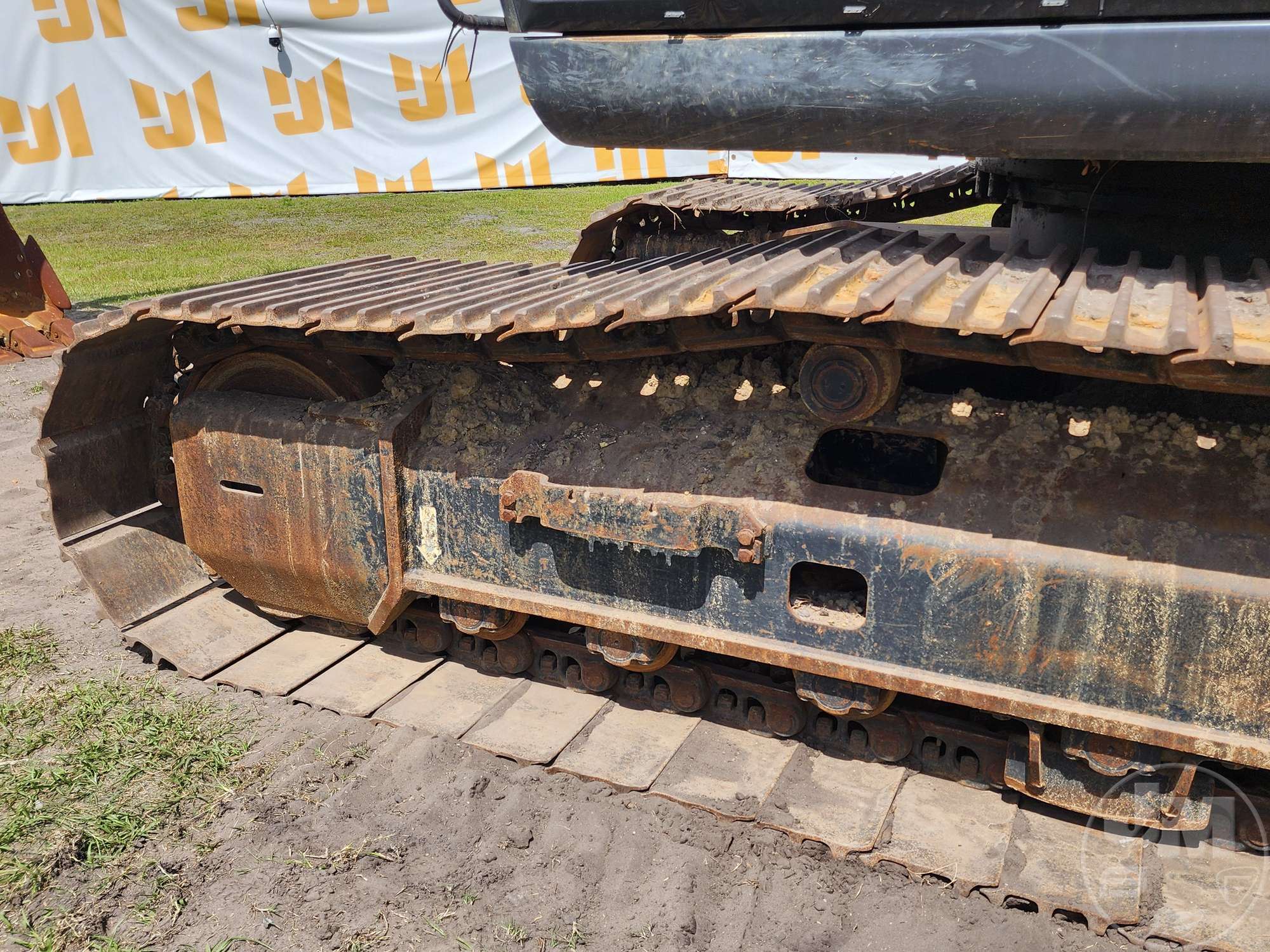

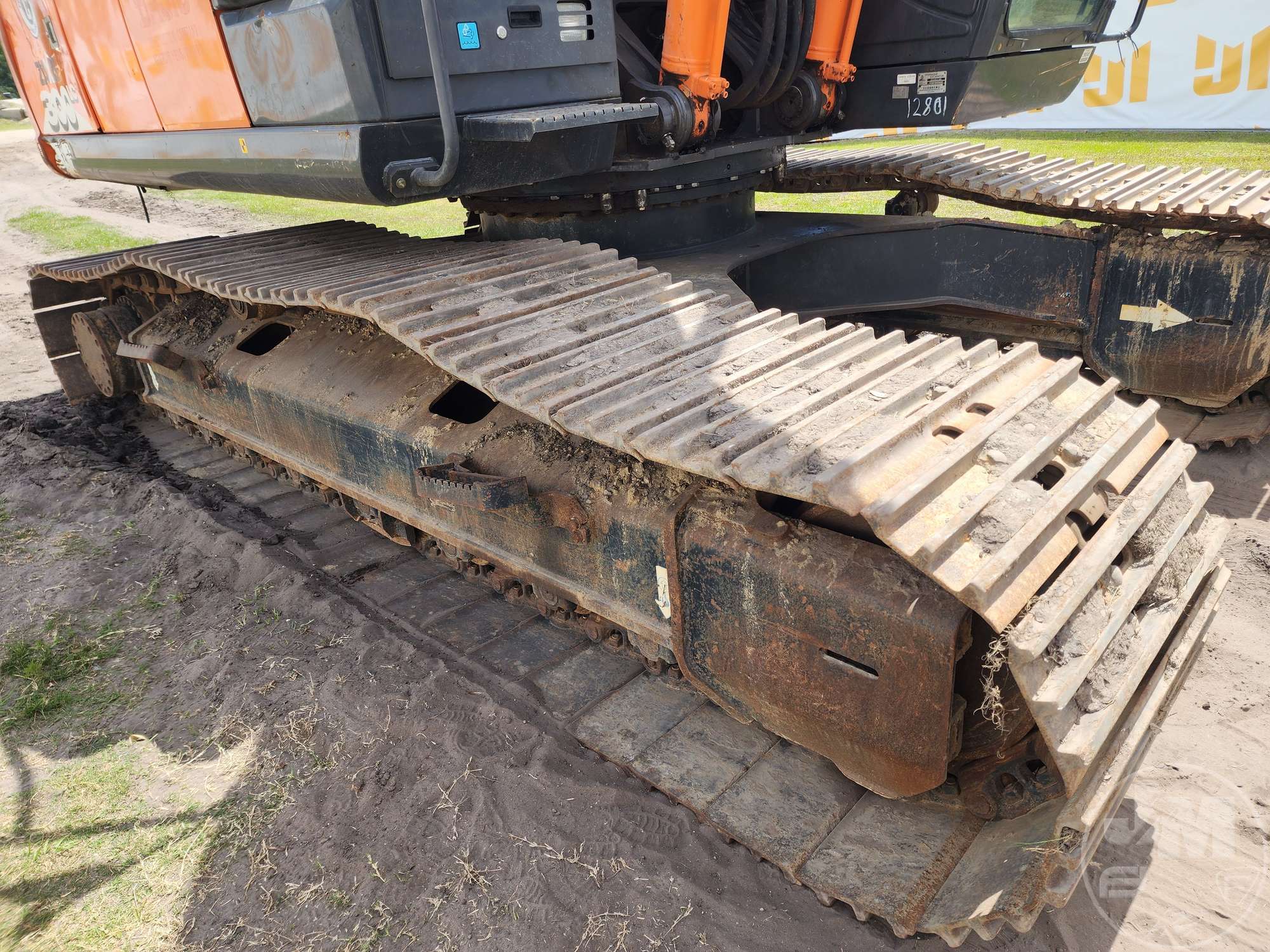

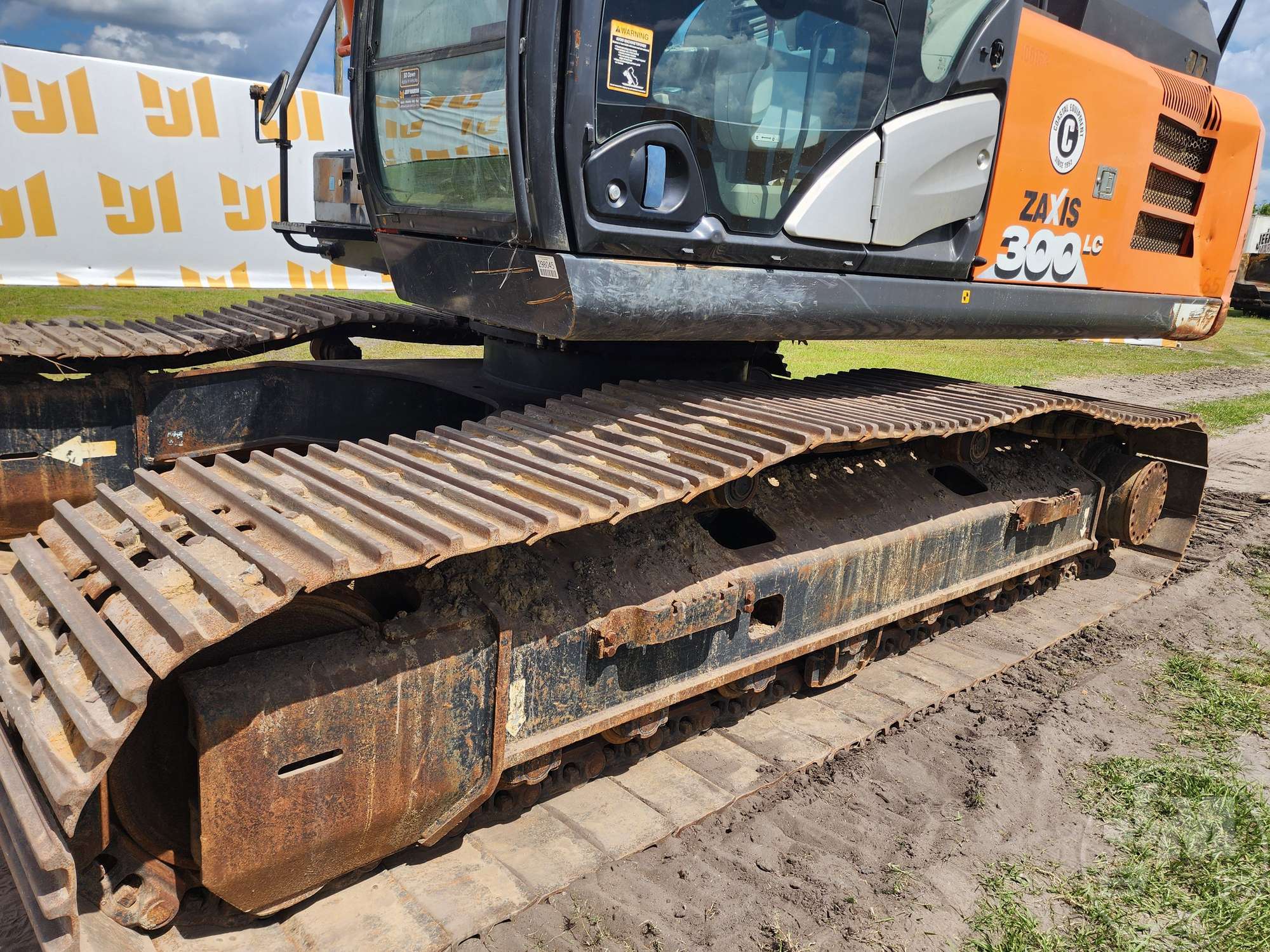

Undercarriage
Drawbar Pull	55,303 lbs (25,085 kg)
Ground Pressure	7 psi
Max Travel Speed	3 mph (5 kph)
Number of Carrier Rollers per Side	2
Number of Shoes per Side	48
Number of Track Rollers per Side	8
