2004 Hitachi ZX330 LC For Sale in Coalhurst, AB

Name: 2004 Hitachi ZX330 LC
Brand: Hitachi
SKU: 87653893
Price: 119900 USD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $119,900.00 USD

Apply for Financing

Headwater Equipment

Headwater Equipment Dealer Info

Headwater Equipment Website

Click here to email Headwater Equipment.

Click for Phone Number

Machine Info:

Machine Location:

COALHURST, AB

Description:

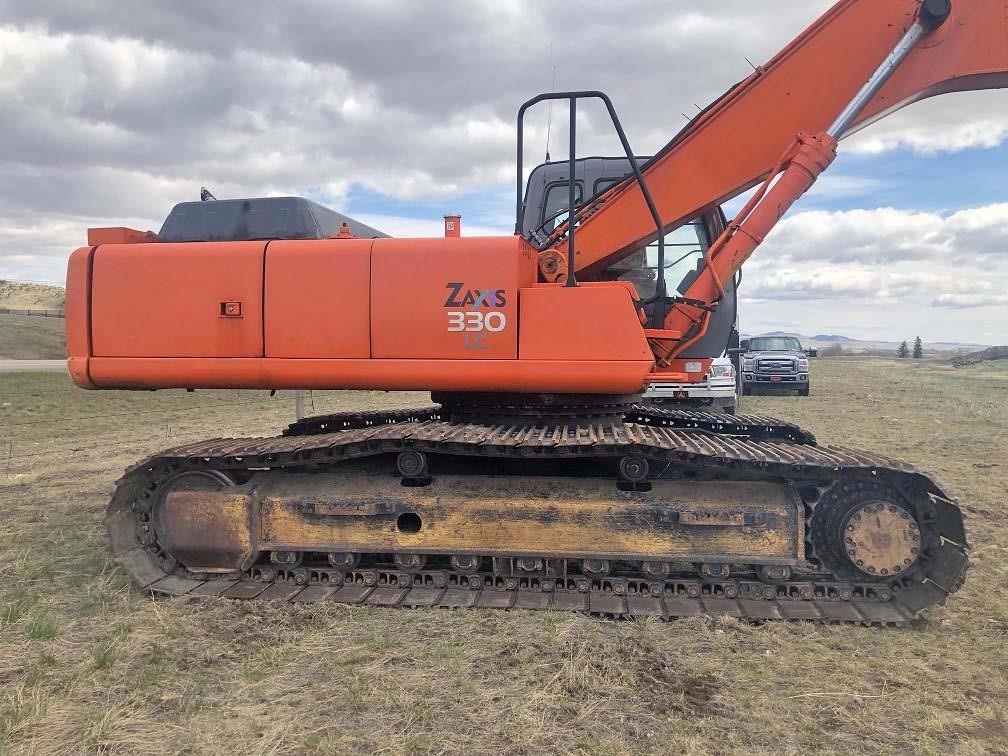

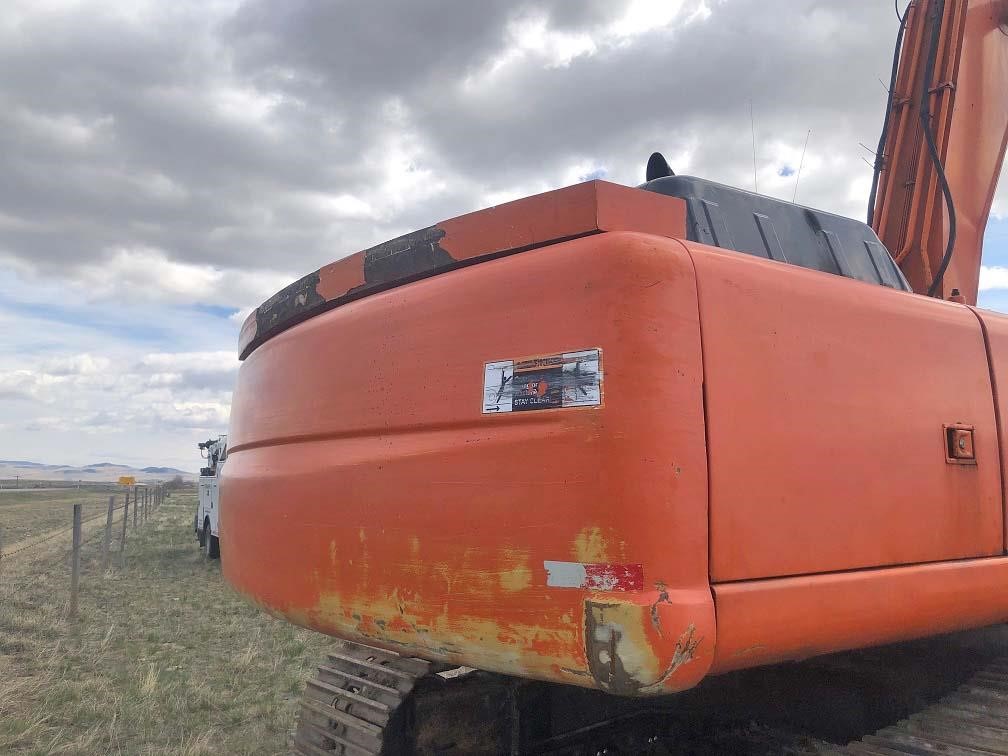

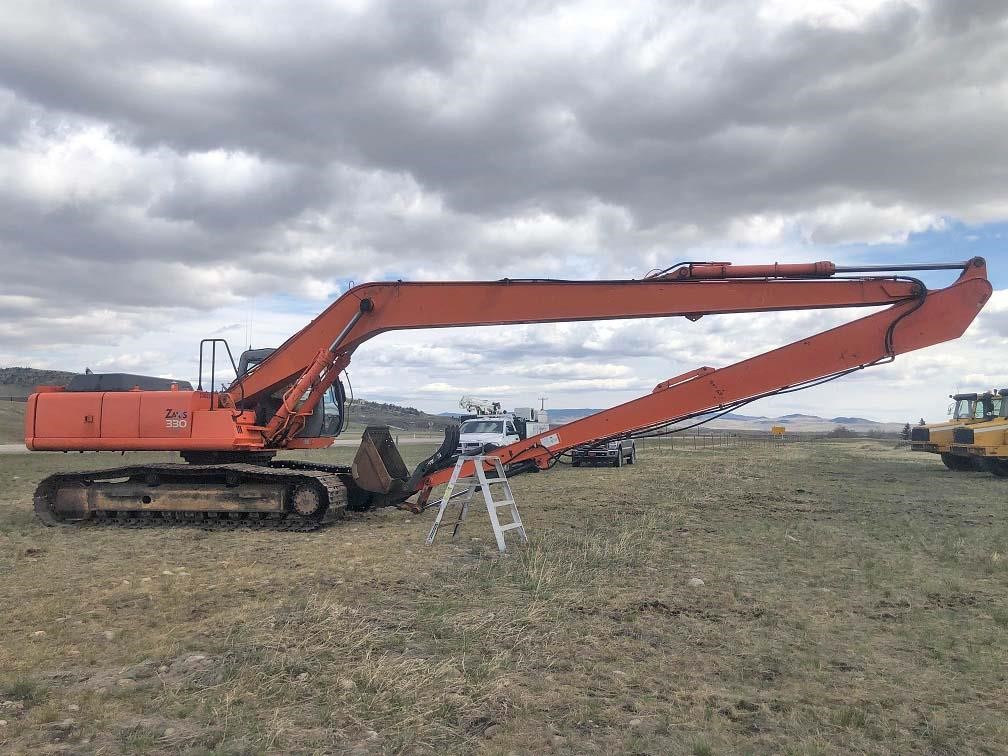

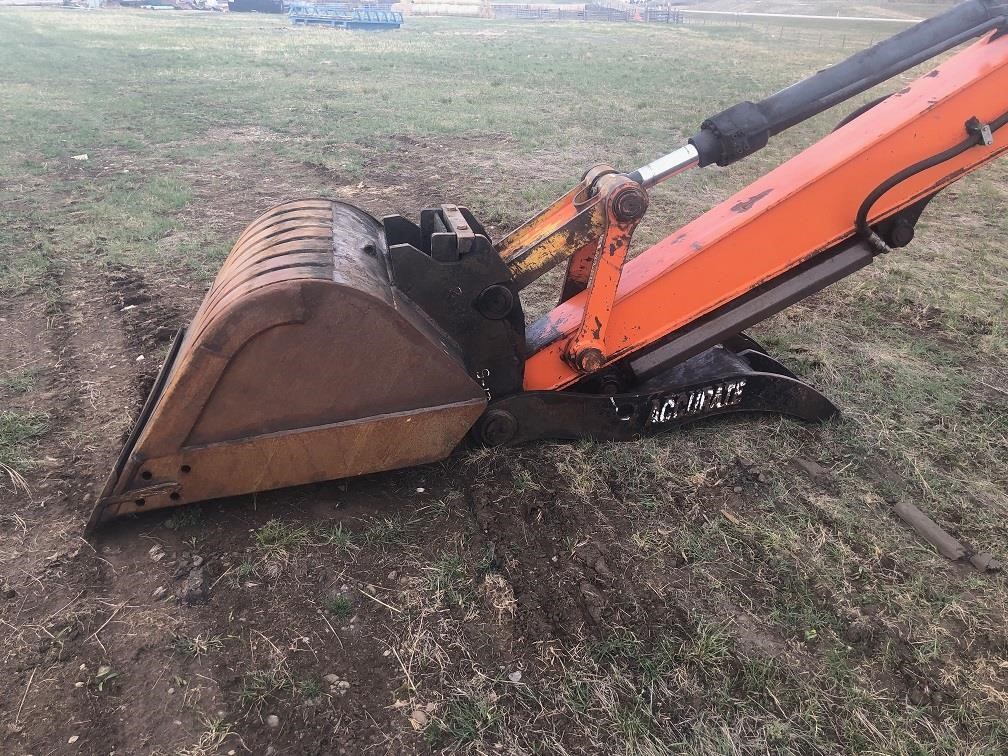

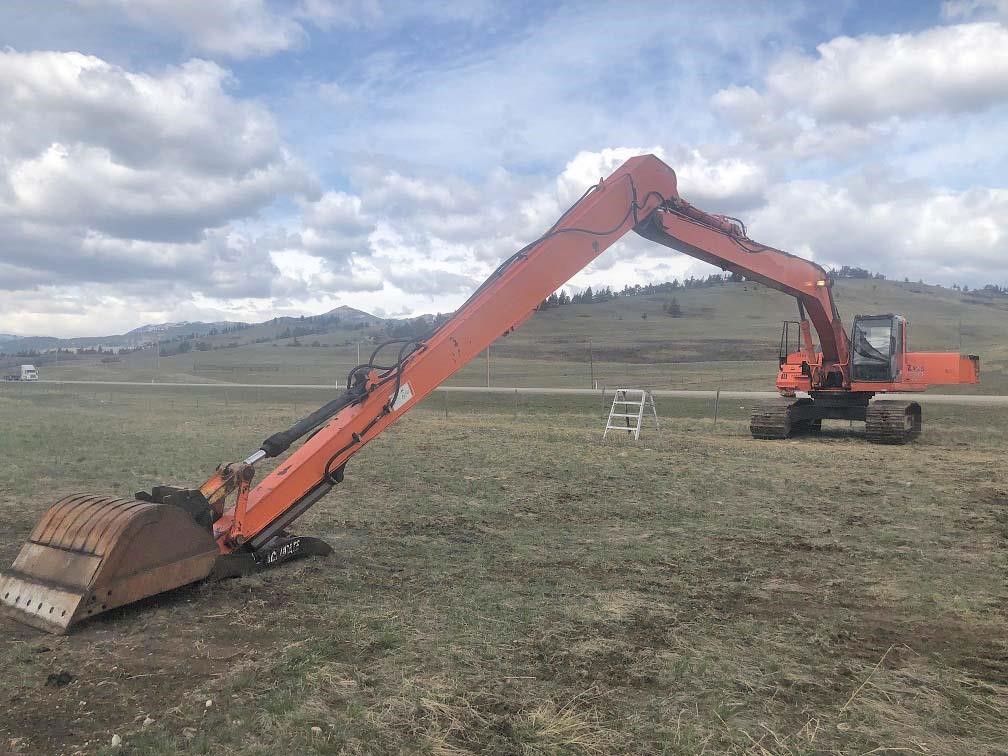

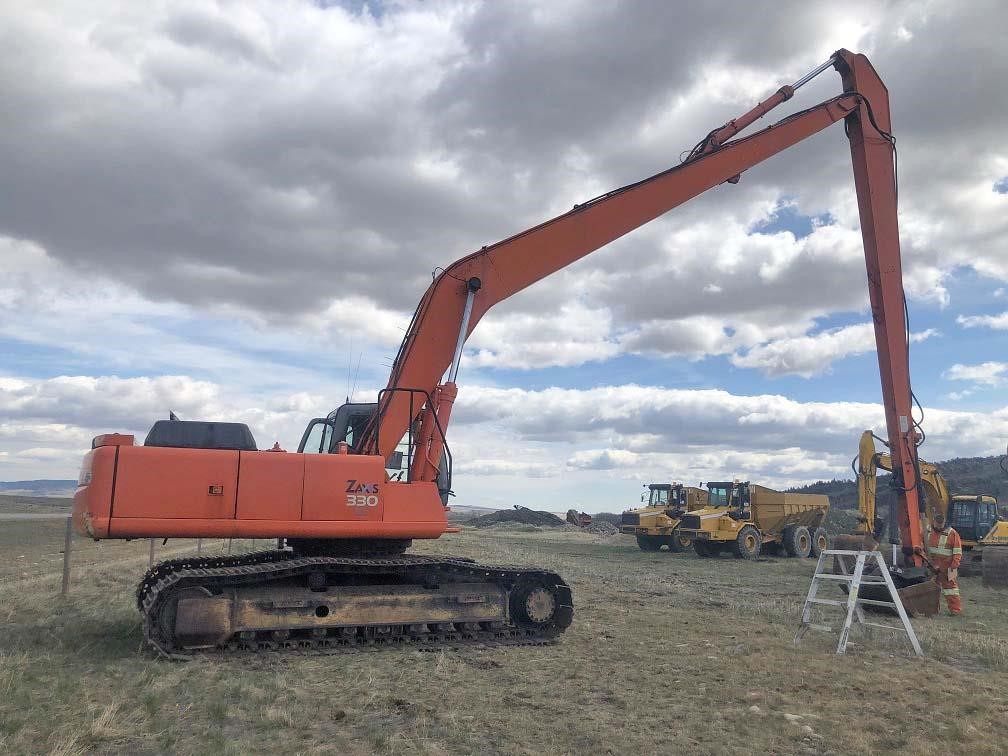

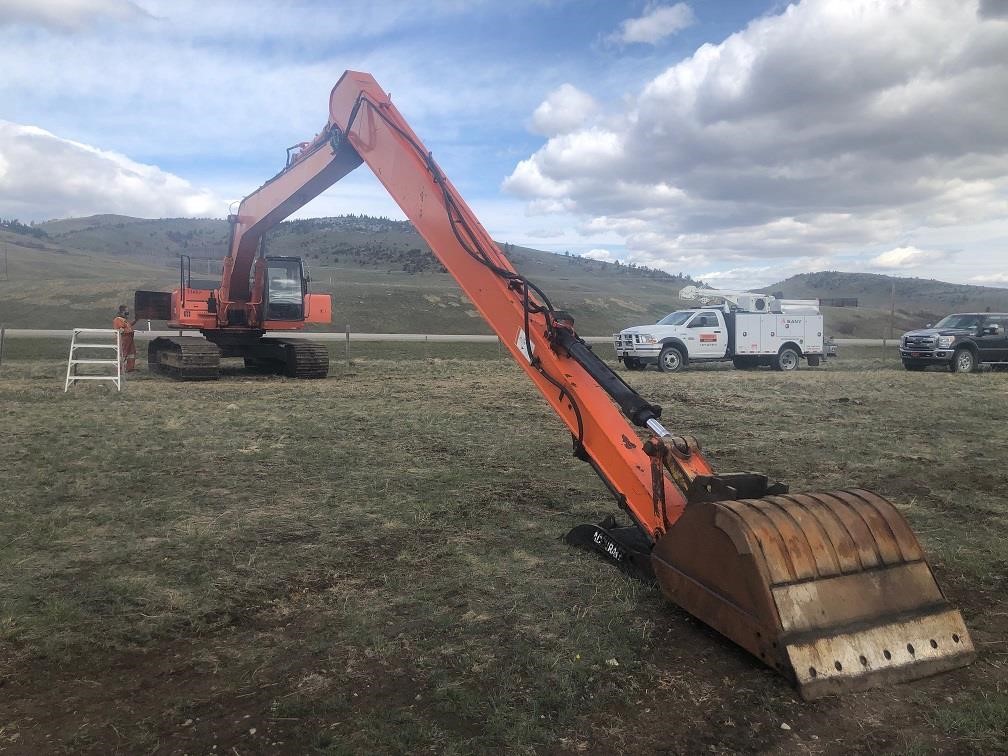

Good used Hitachi Long Reach excavator available, this unit features: •60' Long Reach Front •Hyd Thumb •Aux Hydraulics •44" Clean Up Bucket •Wedge Style Quick Attach •32" Pads - Good U/C •Additional Counterweight mounted on factory counterweight, Please call or email for more details or information

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Hitachi ZX330LC is a heavy-duty excavator designed for construction, mining, and earthmoving applications. Featuring a robust hydraulic system and a powerful engine, the ZX330LC delivers efficient digging, lifting, and loading performance. Its durable undercarriage and reinforced boom enhance stability and longevity in demanding environments. The operator cabin offers ergonomic controls and excellent visibility for improved safety and productivity. With advanced fuel efficiency and reduced emissions, the Hitachi ZX330LC meets modern environmental standards. This excavator model supports a wide range of attachments, making it versatile for trenching, grading, demolition, and material handling tasks across various industries.

Boom/Stick Excavator Option 1
Max Cutting Height	32 ft (10 m)
Max Digging Depth	23 ft (7 m)
Max Loading Height	23 ft (7 m)
Max Reach Along Ground	34 ft (10 m)
Max Vertical Wall Digging Depth	19 ft (6 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	36 ft (11 m)
Boom/Stick Excavator Option 2
Max Cutting Height	34 ft (10 m)
Max Digging Depth	24 ft (7 m)
Max Loading Height	23 ft (7 m)
Max Reach Along Ground	36 ft (11 m)
Max Vertical Wall Digging Depth	21 ft (6 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	36 ft (11 m)
Boom/Stick Excavator Option 3
Max Cutting Height	35 ft (11 m)
Max Digging Depth	27 ft (8 m)
Max Loading Height	25 ft (8 m)
Max Reach Along Ground	38 ft (12 m)
Max Vertical Wall Digging Depth	24 ft (7 m)
Shipping Height of Unit	12 ft (4 m)
Shipping Length of Unit	36 ft (11 m)
Bucket
Maximum Bucket Capacity	2 cu yd (2 cu m)
Minimum Bucket Capacity	1 cu yd (1 cu m)
Reference Bucket Capacity	2 cu yd (1 cu m)
Dimensions
Digging Depth	26 ft (8 m)
Digging Reach	26 ft (8 m)
Ground Clearance	2 ft (1 m)
Height - Top of Cab	10 ft (3 m)
Length of Track on Ground	12 ft (4 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	11 ft (3 m)
Width to Outside of Tracks	11 ft (3 m)
Engine
Aspiration	turbocharged intercooled
Displacement	475 cu in (7,790 cu cm)
Engine Model	AA-6HK1X
Max Torque	644 lbs ft (873 nm)
Net Power	247 hp (184 kw)
Power Measured @	2,000 rpm
Torque Measured @	1,700 rpm
Operating Specifications
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	9 gal (35 l)
Engine Oil Capacity	10 gal (36 l)
Fuel Capacity	148 gal (560 l)
Hydraulic Pump Flow Capacity	153 gpm (580 lpm)
Hydraulic System Fluid Capacity	85 gal (320 l)
Hydraulic System Relief Valve Pressure	5,050 psi
Operating Voltage	24 volts
Operating Weight	73,500 lbs (33,339 kg)
Swing Drive Fluid Capacity	4 gal (17 l)
Swing Mechanism
Swing Speed	12 rpm
Undercarriage
Ground Pressure	9 psi
Max Travel Speed	4 mph (6 kph)
Number of Carrier Rollers per Side	2
Number of Shoes per Side	45
Number of Track Rollers per Side	8
Shoe Size	24 in (60 cm)
Track Gauge	9 ft (3 m)
