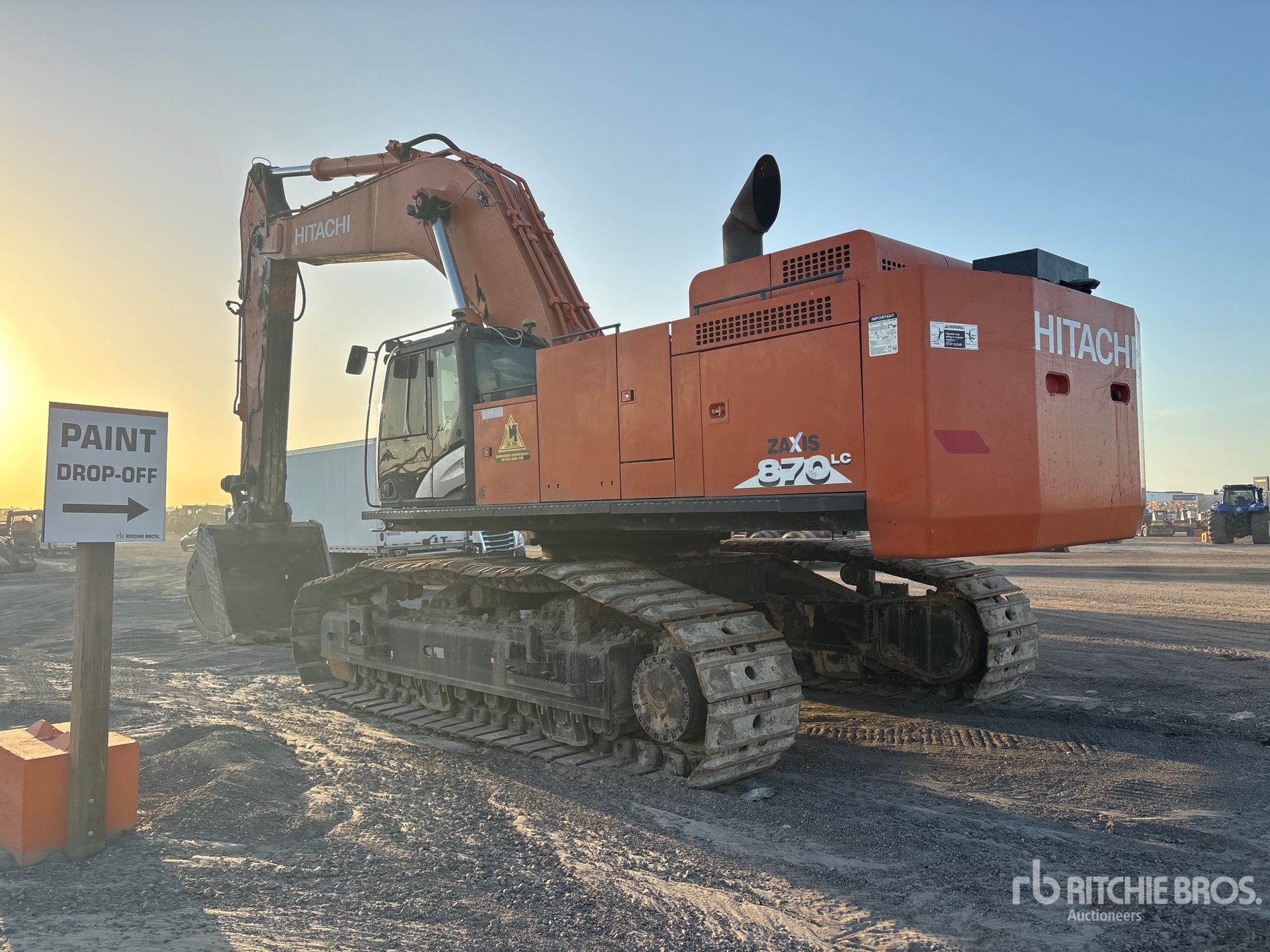

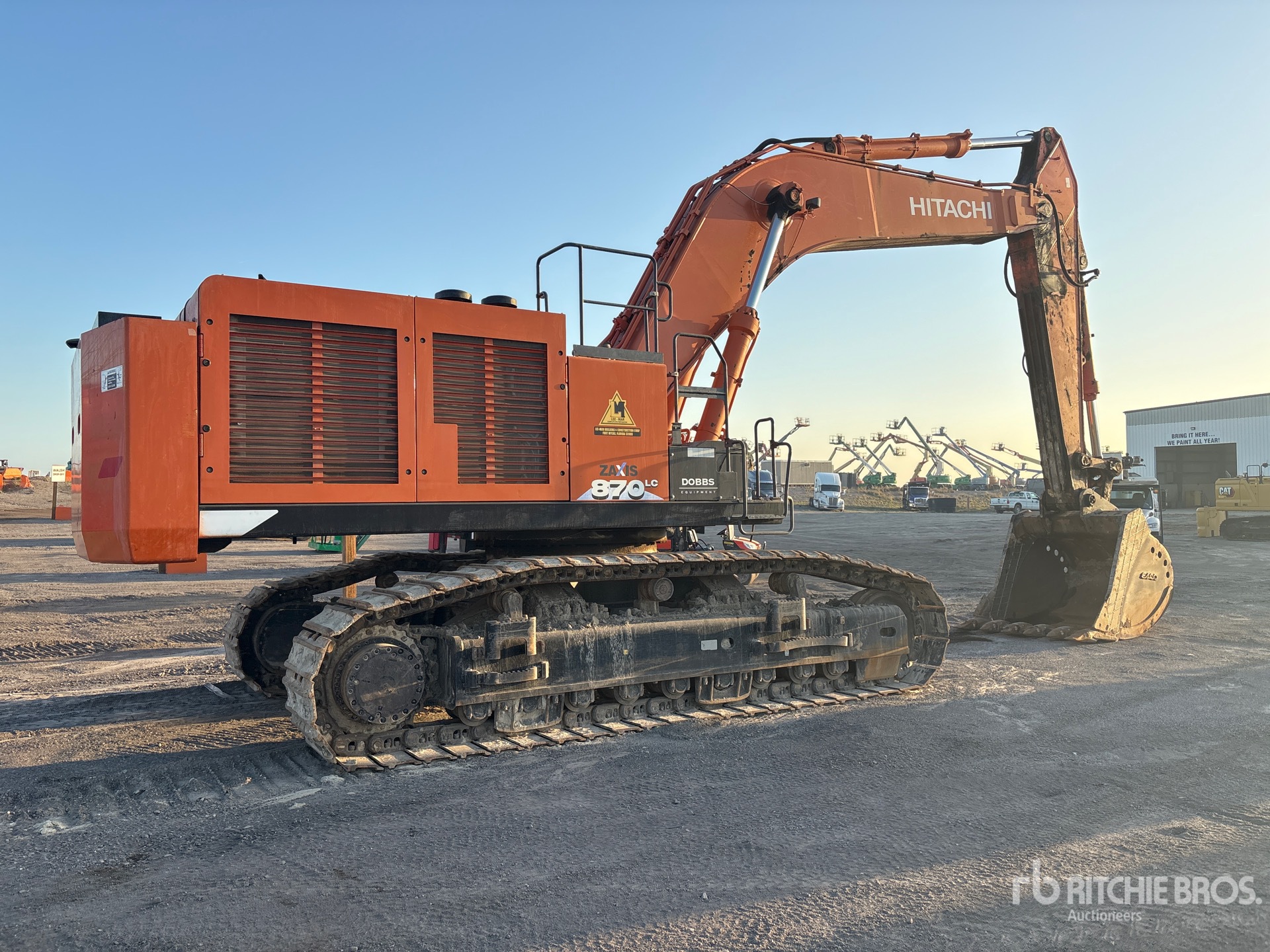

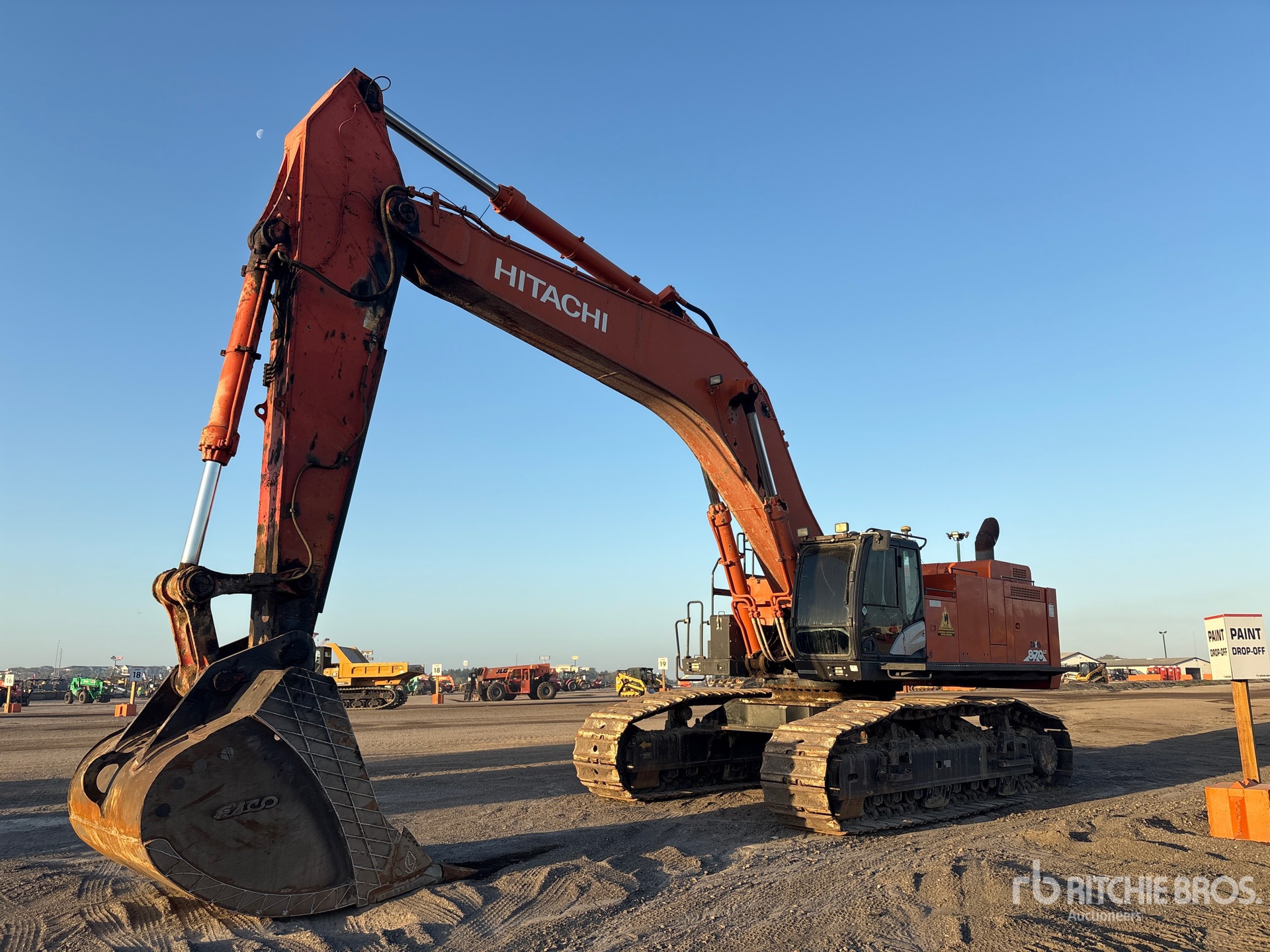

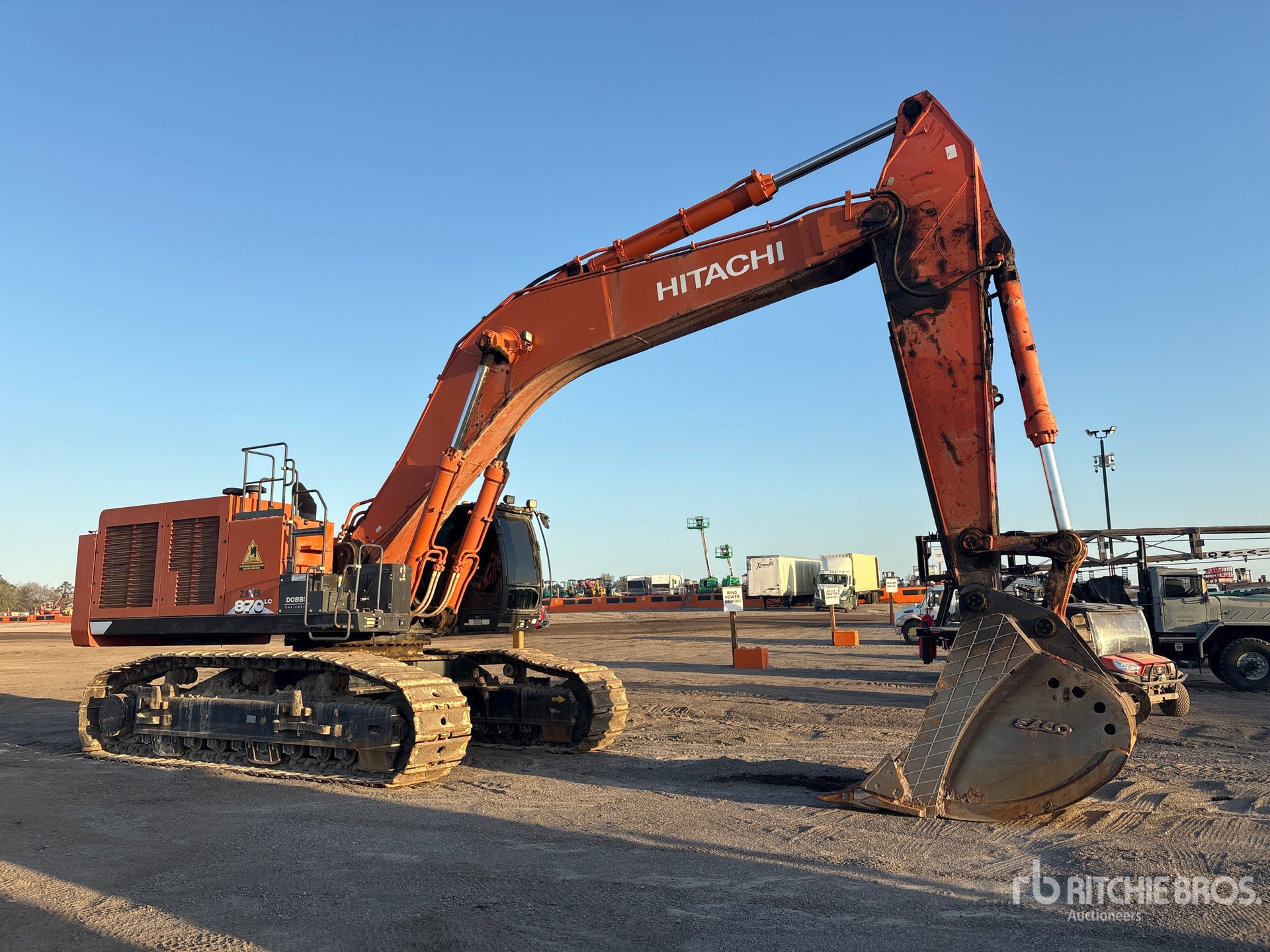

| Boom/Stick Excavator Option 1 |
|
Arm Digging Force - ISO |
72,613 lbs (32,937 kg)
|
|
Arm Digging Force - SAE |
70,815 lbs (32,121 kg)
|
|
Bucket Digging Force - ISO |
89,699 lbs (40,687 kg)
|
|
Bucket Digging Force - SAE |
80,707 lbs (36,608 kg)
|
|
Max Cutting Height |
43 ft (13 m)
|
|
Max Digging Depth |
29 ft (9 m)
|
|
Max Loading Height |
30 ft (9 m)
|
|
Max Reach Along Ground |
45 ft (14 m)
|
|
Max Vertical Wall Digging Depth |
24 ft (7 m)
|
|
Shipping Height of Unit |
16 ft (5 m)
|
|
Shipping Length of Unit |
49 ft (15 m)
|
| Boom/Stick Excavator Option 2 |
|
Arm Digging Force - ISO |
62,947 lbs (28,552 kg)
|
|
Arm Digging Force - SAE |
61,373 lbs (27,838 kg)
|
|
Bucket Digging Force - ISO |
89,699 lbs (40,687 kg)
|
|
Bucket Digging Force - SAE |
80,707 lbs (36,608 kg)
|
|
Max Cutting Height |
45 ft (14 m)
|
|
Max Digging Depth |
31 ft (10 m)
|
|
Max Loading Height |
32 ft (10 m)
|
|
Max Reach Along Ground |
48 ft (15 m)
|
|
Max Vertical Wall Digging Depth |
28 ft (9 m)
|
|
Shipping Height of Unit |
17 ft (5 m)
|
|
Shipping Length of Unit |
49 ft (15 m)
|
| Boom/Stick Excavator Option 3 |
|
Arm Digging Force - SAE |
53,280 lbs (24,167 kg)
|
|
Bucket Digging Force - ISO |
72,613 lbs (32,937 kg)
|
|
Bucket Digging Force - SAE |
64,970 lbs (29,470 kg)
|
|
Max Cutting Height |
48 ft (15 m)
|
|
Max Digging Depth |
35 ft (11 m)
|
|
Max Loading Height |
34 ft (10 m)
|
|
Max Reach Along Ground |
52 ft (16 m)
|
|
Max Vertical Wall Digging Depth |
32 ft (10 m)
|
|
Shipping Length of Unit |
48 ft (15 m)
|
| Boom/Stick Excavator Option 4 |
|
Max Cutting Height |
40 ft (12 m)
|
|
Max Digging Depth |
24 ft (7 m)
|
|
Max Loading Height |
27 ft (8 m)
|
|
Max Reach Along Ground |
40 ft (12 m)
|
|
Max Vertical Wall Dig Depth |
14 ft (4 m)
|
|
Shipping Length of Unit |
45 ft (14 m)
|
| Boom/Stick Excavator Option 5 |
|
Arm Digging Force - ISO |
62,947 lbs (28,552 kg)
|
|
Arm Digging Force - SAE |
61,373 lbs (27,838 kg)
|
|
Bucket Digging Force - ISO |
89,699 lbs (40,687 kg)
|
|
Bucket Digging Force - SAE |
80,707 lbs (36,608 kg)
|
|
Max Cutting Height |
48 ft (15 m)
|
|
Max Digging Depth |
37 ft (11 m)
|
|
Max Loading Height |
36 ft (11 m)
|
|
Max Reach Along Ground |
54 ft (16 m)
|
|
Max Vertical Wall Dig Depth |
32 ft (10 m)
|
|
Shipping Height of Unit |
17 ft (5 m)
|
|
Shipping Length of Unit |
49 ft (15 m)
|
| Boom/Stick Excavator Option 6 |
|
Max Cutting Height |
50 ft (15 m)
|
|
Max Digging Depth |
40 ft (12 m)
|
|
Max Loading Height |
37 ft (11 m)
|
|
Max Reach Along Ground |
57 ft (17 m)
|
|
Max Vertical Wall Dig Depth |
37 ft (11 m)
|
|
Shipping Height of Unit |
19 ft (6 m)
|
|
Shipping Length of Unit |
48 ft (15 m)
|
| Bucket |
|
Maximum Bucket Capacity |
8 cu yd (6 cu m)
|
|
Minimum Bucket Capacity |
2 cu yd (2 cu m)
|
| Capacities |
|
Cooling system |
33 gal (124 l)
|
|
Diesel exhaust fluid (DEF) tank |
25 gal (95 l)
|
|
Engine oil with filter |
15 gal (57 l)
|
|
Fuel Tank |
293 gal (1,110 l)
|
|
Hydraulic system |
275 gal (1,042 l)
|
|
Hydraulic Tank |
132 gal (500 l)
|
|
Pump Drive |
2 gal (6 l)
|
|
Swing drive |
3 gal (11 l)
|
| Cylinders |
|
Bore (Arm) |
9 in (23 cm)
|
|
Bore (Boom) |
9 in (22 cm)
|
|
Bore (Bucket) |
8 in (20 cm)
|
|
Rod Diameter (Arm) |
6 in (16 cm)
|
|
Rod Diameter (Boom) |
6 in (15 cm)
|
|
Rod Diameter (Bucket) |
6 in (14 cm)
|
|
Stroke (Arm) |
88 in (223 cm)
|
|
Stroke (Boom) |
72 in (184 cm)
|
|
Stroke (Bucket) |
61 in (156 cm)
|
| Dimensions |
|
Ground Clearance |
3 ft (1 m)
|
|
Height - Top of Cab |
12 ft (4 m)
|
|
Length of Track on Ground |
49 ft (15 m)
|
|
Removal Counterweight Clearance |
6 ft (2 m)
|
|
Tail Swing Radius |
15 ft (5 m)
|
|
Width to Outside of Tracks |
14 ft (4 m)
|
| Electrical System |
|
Alternator rating |
50 amp |
|
Batteries |
2 x 12 V volts |
|
Battery capacity |
500 CCA |
|
Work Lights |
5 halogen |

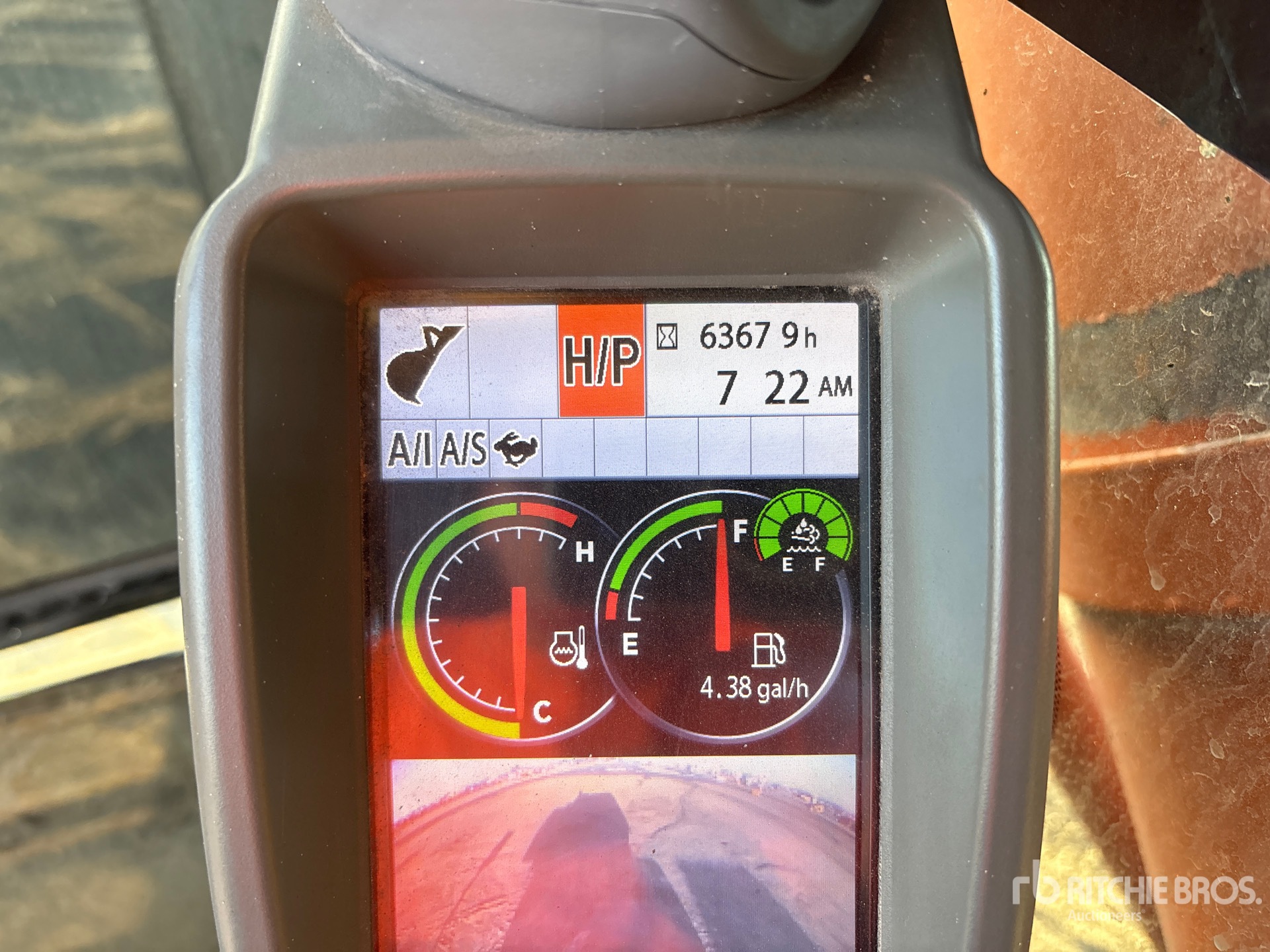

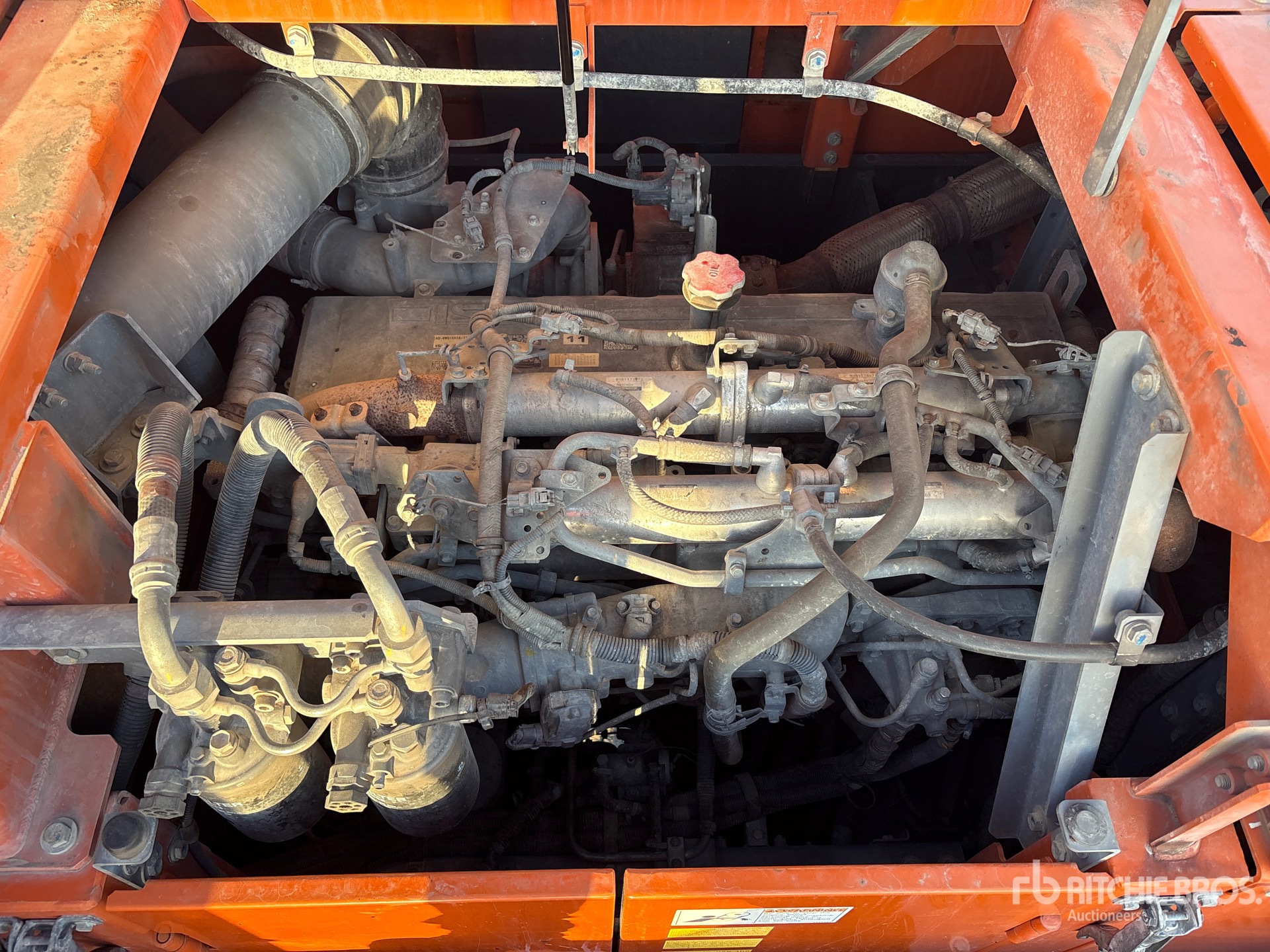

| Engine |
|
Aspiration |
Turbocharged air-to-air charge-air cooler |
|
Cooling system |
2 cool-on-demand hydraulic-driven suction-type fans with remote-mounted drives |
|
Displacement |
957 cu in (15,681 cu cm)
|
|
Emissions level |
EPA Final Tier 4 / EU Stage IV |
|

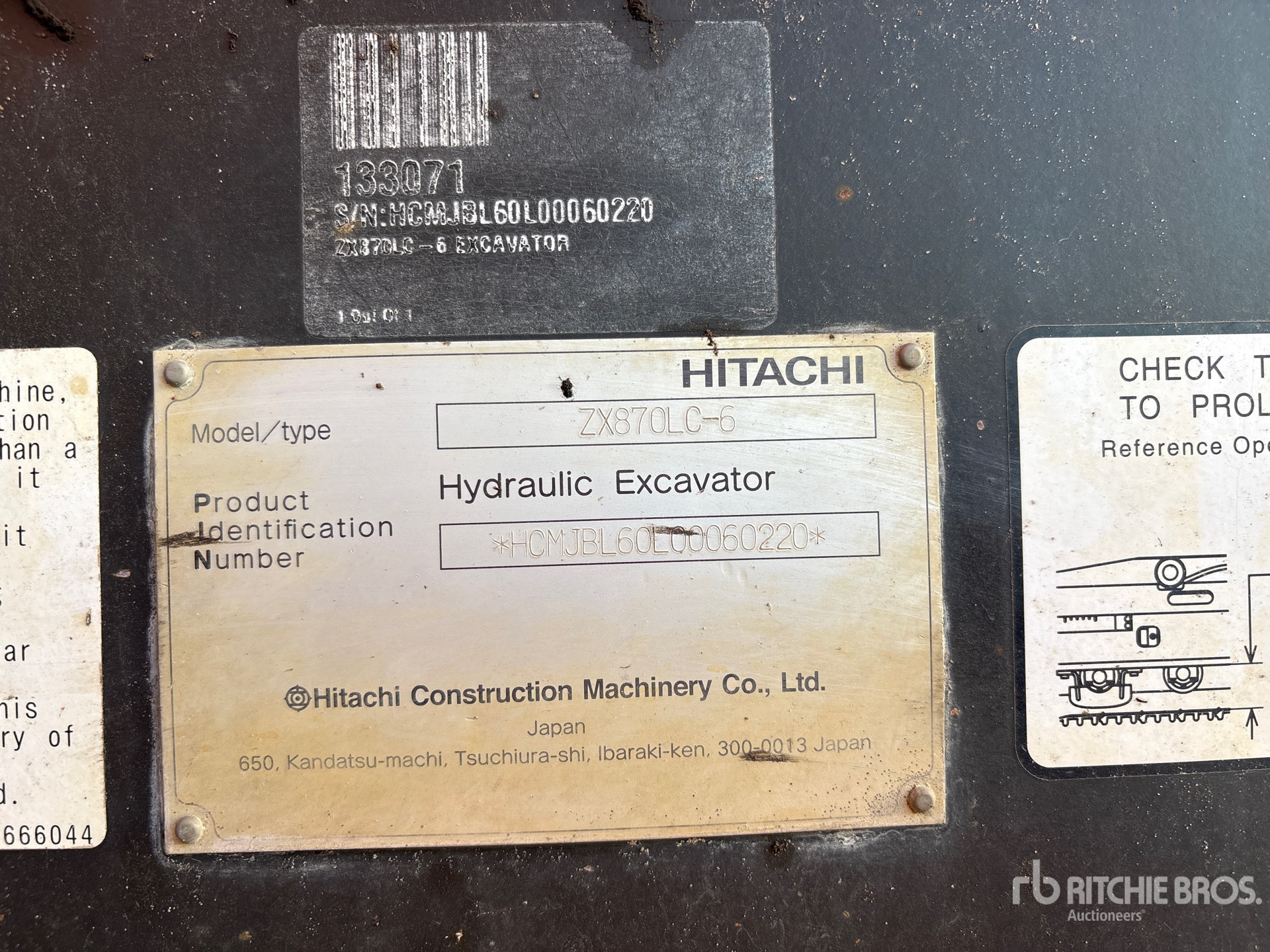

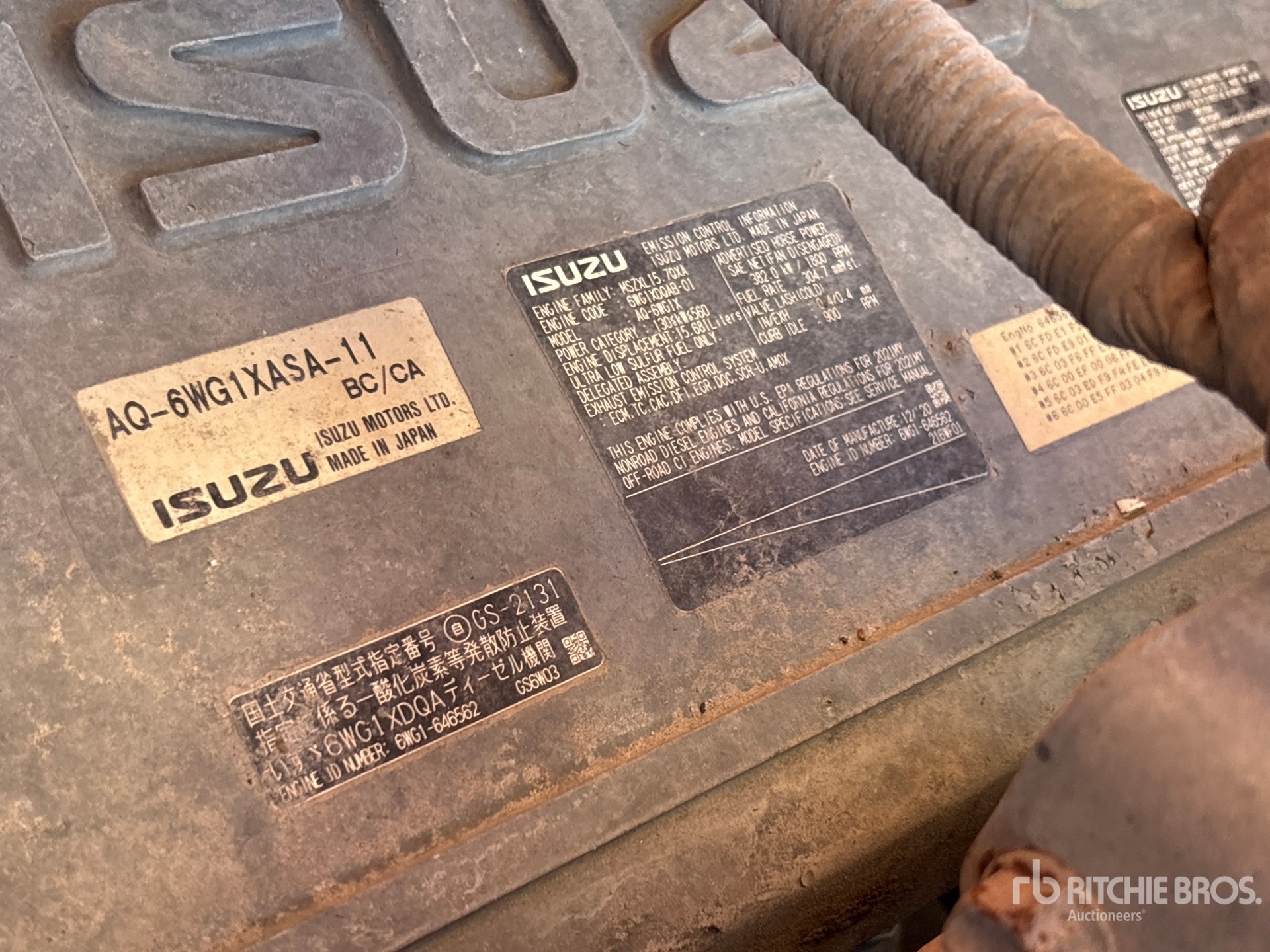

Engine Make |
Isuzu |
|
Engine Model |
Isuzu 6WG1-FT4 |
|
Net Power |
512 hp (382 kw)
|
|
Off-Level Capacity |
70% |
|
Power Measured @ |
1,800 rpm |
| Hydraulic System |
|

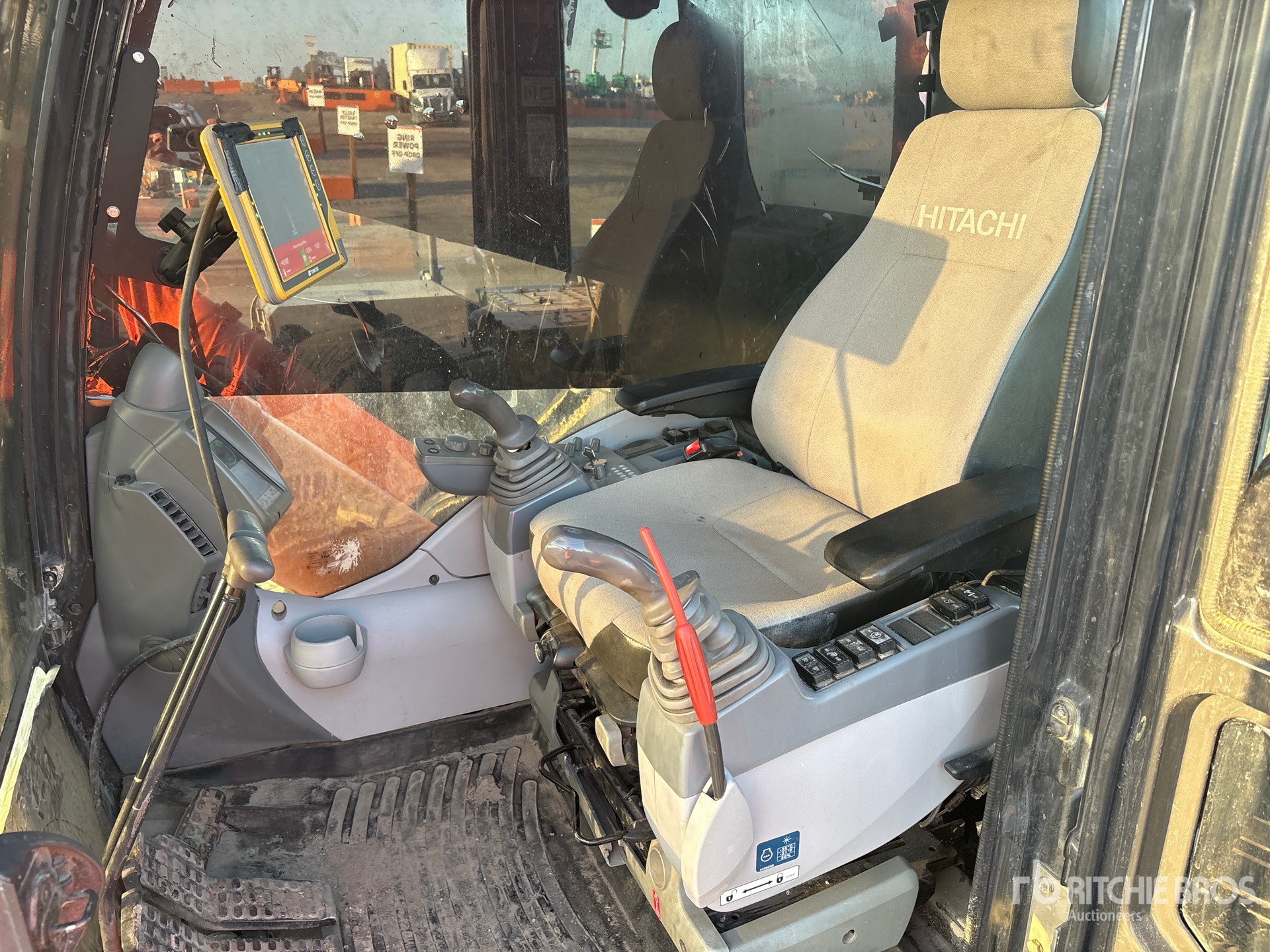

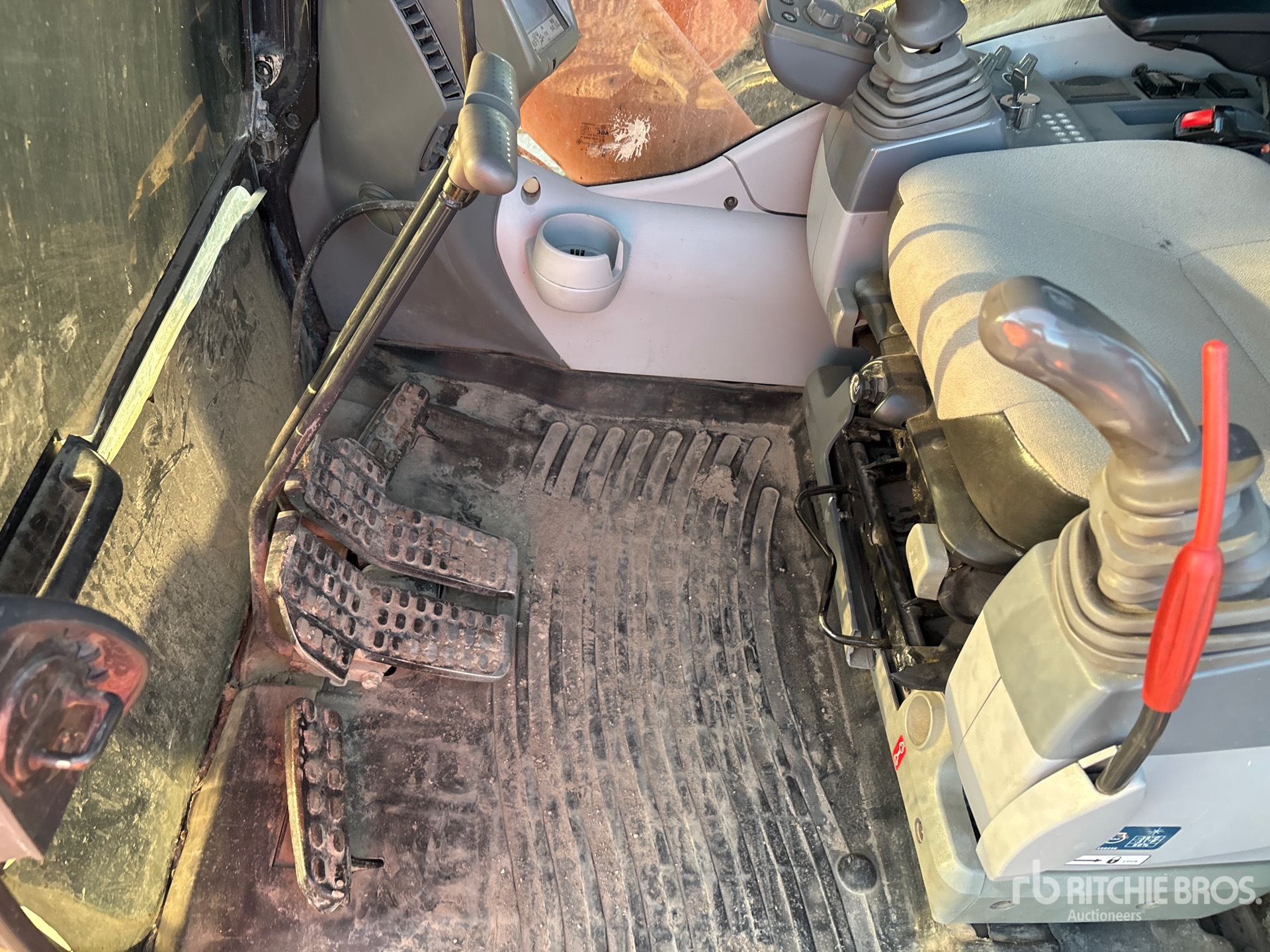

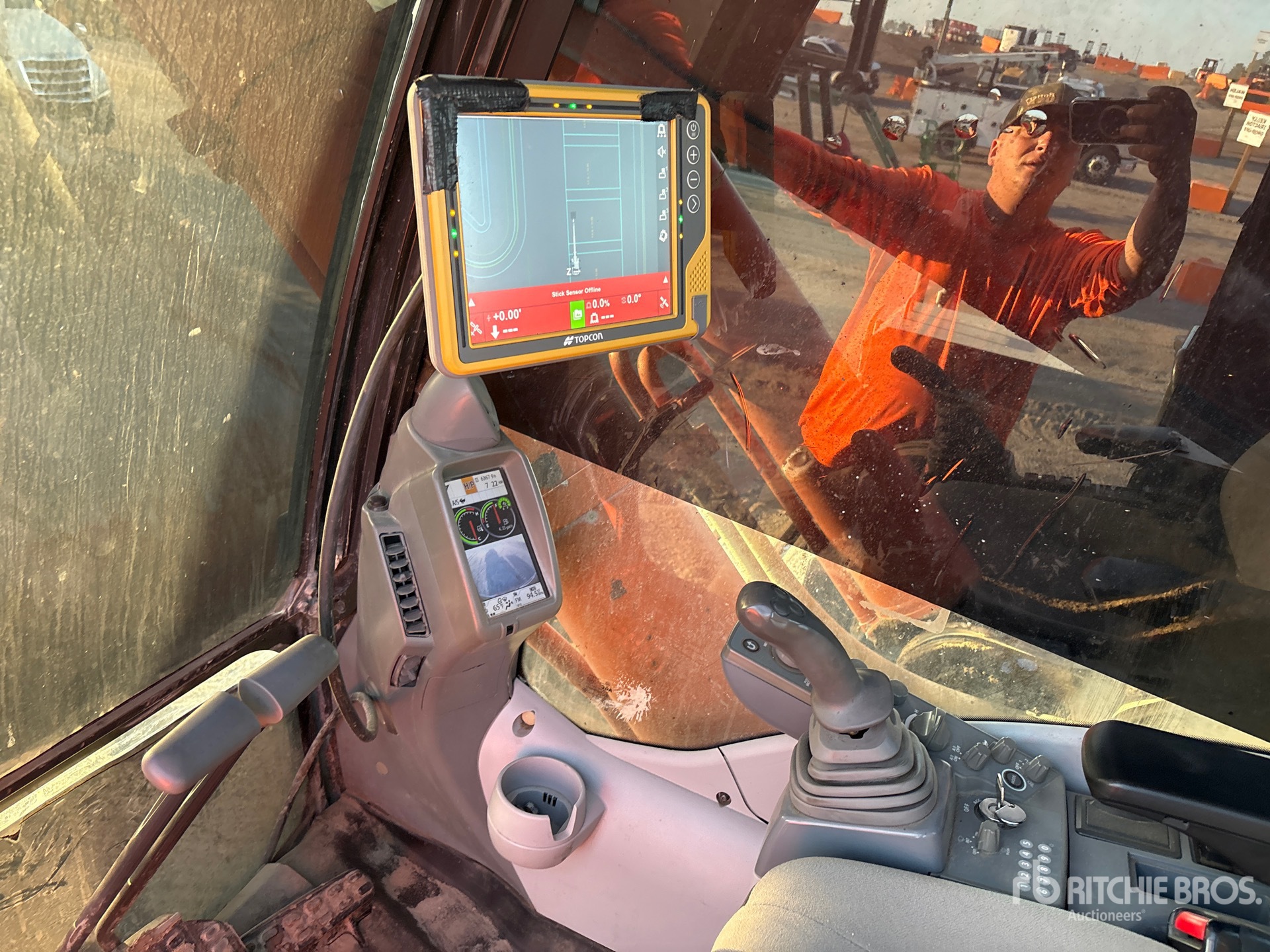

Controls |
Pilot levers short-stroke low-effort hydraulic pilot controls with shutoff lever |
|
Hydraulic System Type |
Open center load sensing |
|
Implement - Operating Pressure |
4,627 psi |
|
Main pump - Maximum flow |
150 gal (566 l)
|
|
Main pump type |
2 variable-displacement pumps |
|
Travel - Operating Pressure |
4,975 psi |
| Operating Specifications |
|
Operating Weight |
188,716 lbs (85,600 kg)
|
| Swing Mechanism |
|
Swing Speed |
8 rpm |
| Undercarriage |
|
Drawbar Pull |
125,850 lbs (57,085 kg)
|
|
Ground Pressure |
16 psi |
|
Max Travel Speed |
3 mph (5 kph)
|
|
Number of Carrier Rollers per Side |
3 |
|
Number of Shoes per Side |
51 |
|
Number of Track Rollers per Side |
9 |
