2018 Hitachi ZX310F-6 For Sale in Smithers, BC

Name: 2018 Hitachi ZX310F-6
Brand: Hitachi
SKU: 80046515
Price: 345000 CAD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $253,159.00 USD
Converted From: 345,000.00 CAD

Apply for Financing

Brandt Tractor LTD

Brandt Tractor LTD Dealer Info

Brandt Tractor LTD Website

Click here to email Brandt Tractor LTD.

Contact: Equipment Sales

Click for Phone Number

Machine Info:

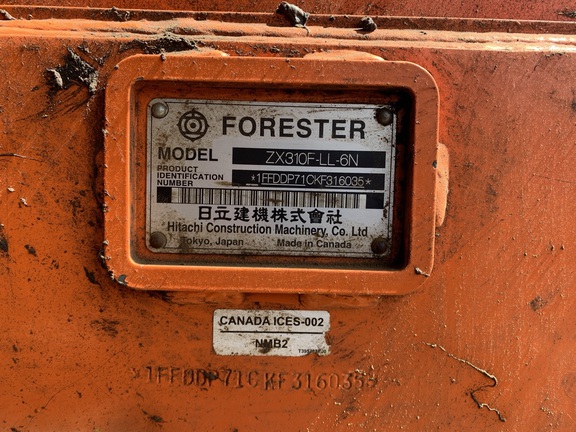

Serial Number:	1FFDDP71CKF316035
Stock Number:	0U316035
Machine Location:	SMITHERS, BC

Description:

Cab w/ AC; FWD, CWS B T Grapple, LED Lights, Satellite Radio, Camera, T4

Machine Details:

General Specifications

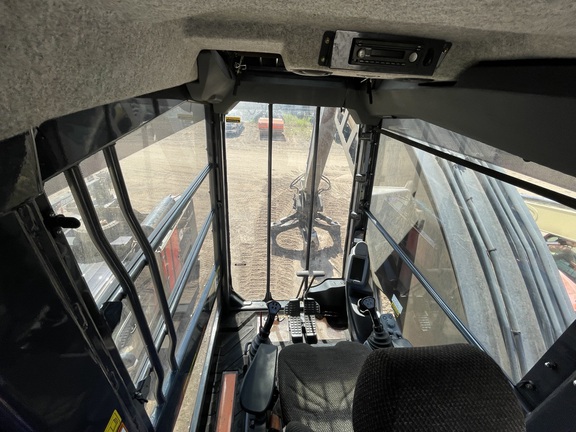

Operators Station	Cab w/ AC

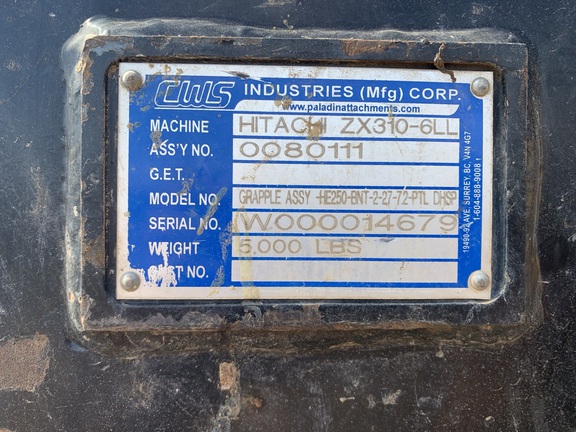

Attachments	Grapple

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Log Loader Option 1
Max Depth Below Ground	20 ft (6 m)
Max Height	38 ft (12 m)
Max Reach at Ground Level	35 ft (11 m)
Maximum Log-Level Height	28 ft (9 m)
Maximum Reach	36 ft (11 m)
Minimum Swing Radius	8 ft (2 m)
Tail Swing Radius	12 ft (4 m)
Dimensions
Center to center idler to sprocket	8 ft (2 m)
Counterweight Clearance	4 ft (1 m)
Length of Track on Ground	13 ft (4 m)
Overall Width	12 ft (4 m)
Undercarriage Overall Length	17 ft (5 m)
Undercarriage Width	11 ft (3 m)
Width Over Tracks	12 ft (4 m)
Engine
Aspiration	Turbocharged air-to-air charge-air cooler
Displacement	476 cu in (7,800 cu cm)
Emissions Certification	EPA Final Tier 4 / EU Stage IV

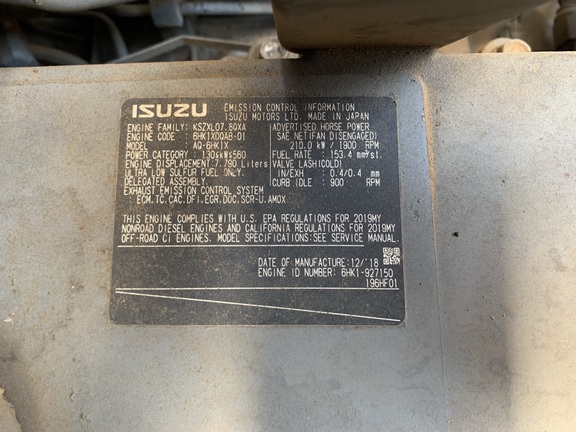

Engine Model	Isuzu 6HK1
Fan drive type	High efficiency direct-driven suction-type fan and cool-on-demand hydraulic-driven suction-type fan with remote-mounted drive for hydraulic oil cooler
Net Power	250 hp (186 kw)
Number of Cylinders	4
Off-Level Capacity	70%
Oil Filter	Full-flow spin-on filter
Power Boost	50,959 hp (38,001 kw)
Power Measured @	1,900 rpm
Hydraulic System
Pump Flow Capacity	66 gpm (248 lpm)
Relief Valve Pressure	4,975 psi
Operating Specifications
Alternator Supplied Amperage	130 amps
Cooling System Fluid Capacity	12 gal (45 l)
DEF tank capacity	19 gal (70 l)
Drawbar Pull	66,910 lbs (30,350 kg)
Fuel Capacity	285 gal (1,080 l)
Hydraulic System Fluid Capacity	52 gal (195 l)
Operating Voltage	24 volts
Travel speed, high range	3 mph (4 kph)
Travel speed, low range	2 mph (3 kph)
Swing Mechanism
Swing Speed	9 rpm
Swing Torque	88,507 lbs ft (119,998 nm)
Undercarriage
Ground Pressure	10 psi
Number of Carrier Rollers per Side	2
Number of track rollers(each side)	9
Track Gauge	10 ft (3 m)
