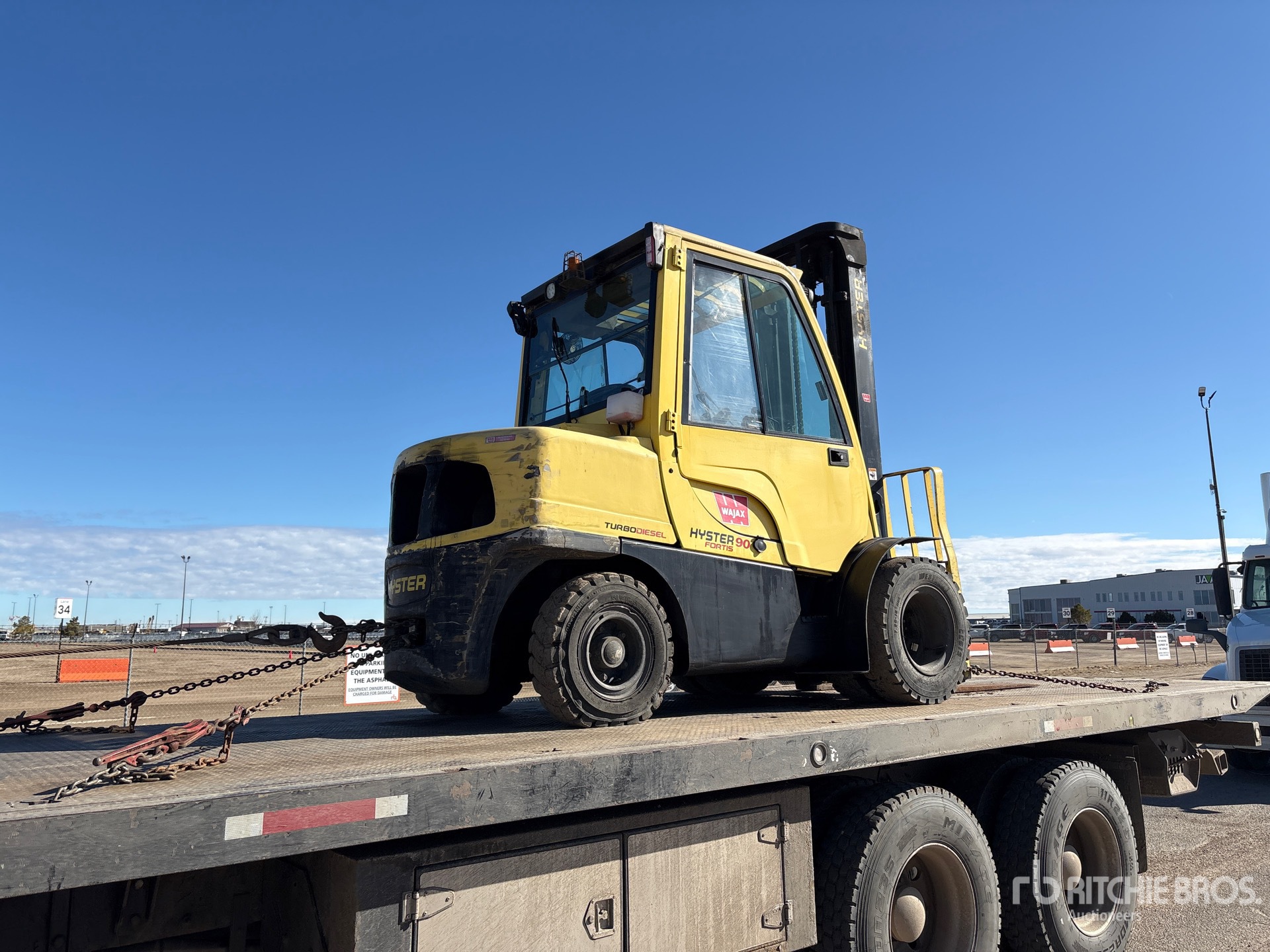

Hyster H90FT For Sale in Edmonton, Ab

Name: Hyster H90FT
Brand: Hyster
SKU: 87121902
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-11 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

Hours:	18767
Serial Number:	P005V05021J
Machine Location:	EDMONTON, AB

Description:

Enclosed Cab, 3 Stage Mast, 167 in Max Lift Height, 110 in Lowered Mast Height, 46 in Forks, Side Shift, Cummins QSB 4 Cylinder 80 hp 3.261 L Diesel Engine Closing Time: 2026-05-13 01:08:20 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Hyster H90FT is a cushion-tire forklift truck in Hyster's Fortis series, designed for indoor material handling and warehouse applications. It is commonly configured with a 9,000 lb lift capacity and powered by either LPG or diesel, depending on market and specification. The H90FT features a sit-down operator compartment, hydrostatic or powershift transmission options, and a mast and carriage setup suited for palletized loads, dock work, and general industrial use. Built for maneuverability in tight spaces, the H90FT is used in manufacturing, distribution, and freight operations where reliable lift performance and controlled handling are required.

Brakes
Parking brake	Hand/Mechanical
Service brake	Foot/Hydraulic
Dimensions
Gradeability	32%
Ground Clearance	6 in (15 cm)
Height to Top of Overhead Guard	8 ft (2 m)
Length to Fork Face	10 ft (3 m)
Max Fork Height	10 ft (3 m)
Overall Height - mast lowered	7 ft (2 m)
Overall Width	5 ft (1 m)
Right Angle Stack	10 ft (3 m)
Turning Radius	9 ft (3 m)
Wheelbase	6 ft (2 m)
Engine
Displacement	263 cu in (4,310 cu cm)
Engine Model	PSI 2.4L
Fuel Type	LPG
Number of Cylinders	4
Power	74 hp (55 kw)
Power Measured @	1,800 rpm
Torque	210 lbs ft (285 nm)
Torque Measured @	1,800 rpm
MAST
Lift Speed	121 ft/min (37 m/min)
Load Capacity	9,000 lbs (4,082 kg)
Load Center	24 in (61 cm)
Lower Speed	108 ft/min (33 m/min)
Mast Tip Forward	6 degrees
Mast Tip Rear	10 degrees
Max Fork Spread	44 in (111 cm)
Operating Specifications
Axle load - front	8,341 lbs (3,783 kg)
Axle load - rear	5,579 lbs (2,531 kg)
Drawbar Pull	5,882 lbs (2,668 kg)
Front Tire Size	250 x 15 - 20 Ply
Fuel Capacity	14 gal (53 l)
Hydraulic System Relief Valve Pressure	2,250 psi
Hydraulic Tank	12 gal (46 l)
Max Speed	13 mph (21 kph)
Number of Front Wheels	2
Number of Rear Wheels	2
Operating Weight	13,920 lbs (6,314 kg)
Rear Tire Size	7.00 x 12 - 14 Ply
Tire Type	Pneumatic
