Equipment ↠ Hyundai ↠ Excavators ↠ 2019 Hyundai HX220L

2019 Hyundai HX220L For Sale in Truro, Ns

Name: 2019 Hyundai HX220L
Brand: Hyundai
SKU: 87024856
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-29 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

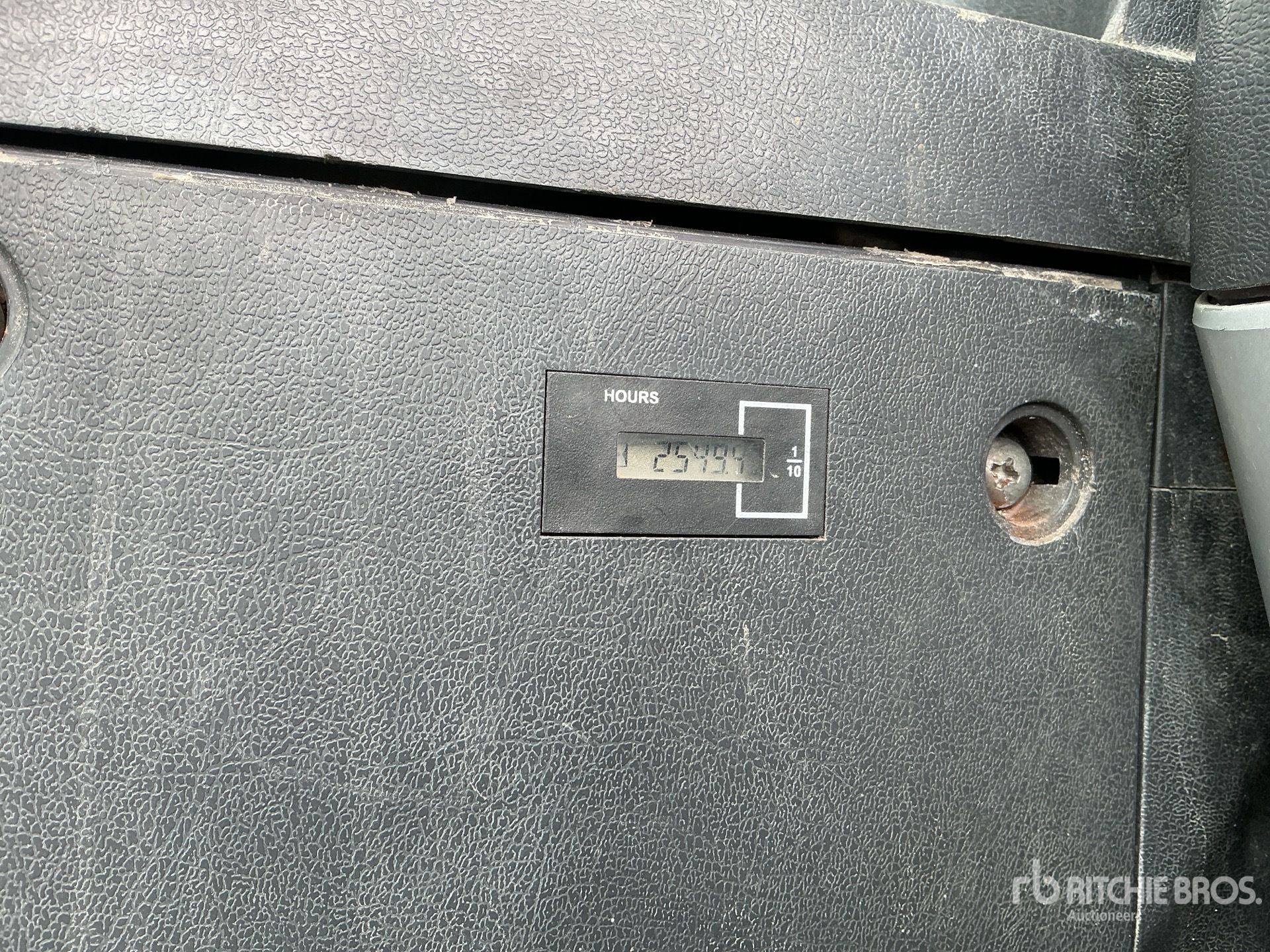

Hours:	2549

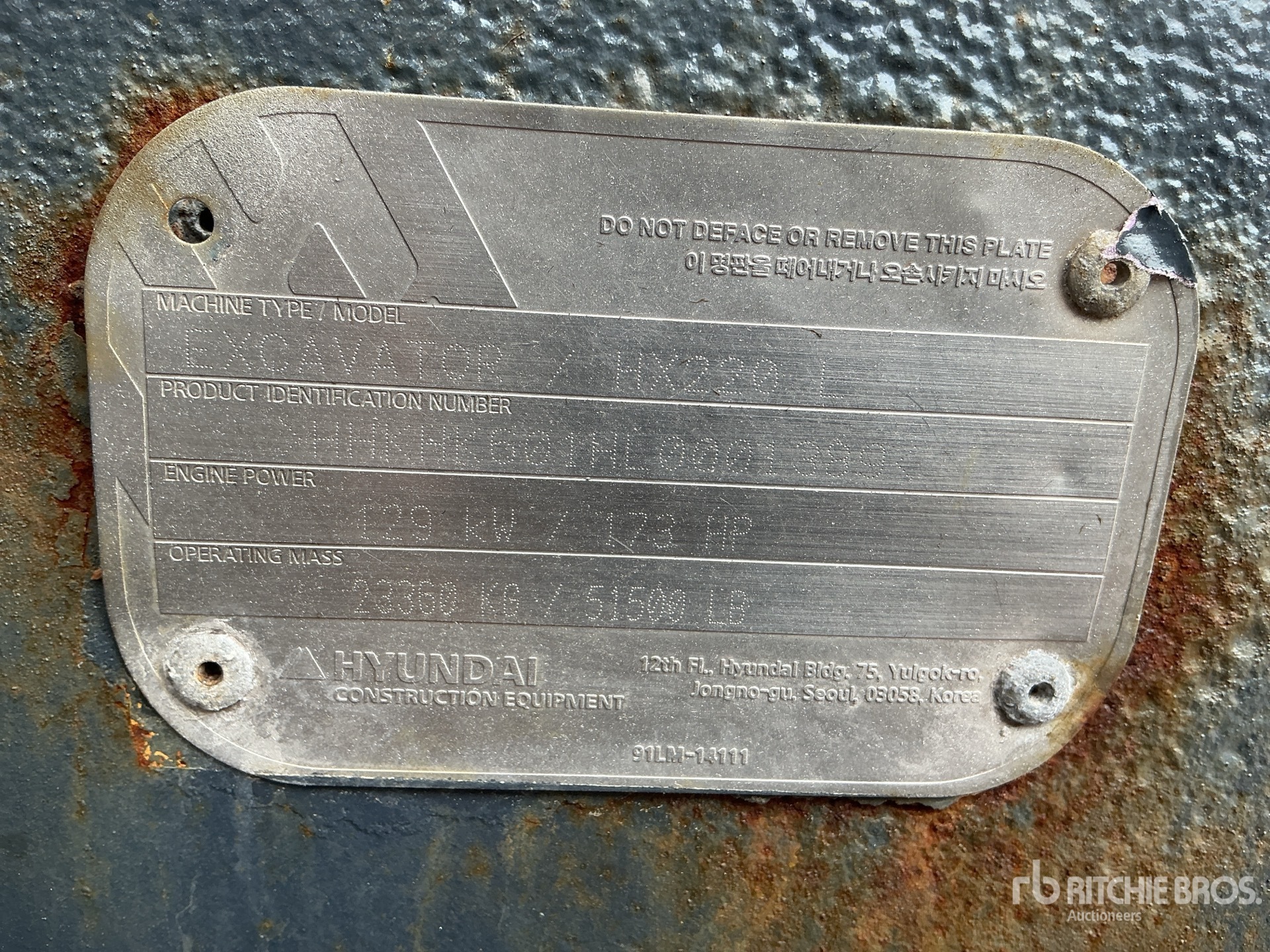

Serial Number:	HHKHK601HL0001389
Machine Location:	TRURO, NS

Description:

Air Conditioner, 2019 US EPA Label, CARB Compliant, Requires Diesel Exhaust Fluid, 9 ft 6 in Stick, 31.5 in Triple Grouser Track Shoes, 53 in Digging Bucket, Auto Lube Closing Time: 2026-05-29 10:27:20 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Hyundai HX220L is a 22-ton class hydraulic excavator designed for general earthmoving, utility work, site preparation, and material handling. It is part of Hyundai's HX series and is commonly used in construction, roadwork, and excavation applications. The machine is typically equipped with a diesel engine, hydraulic system, enclosed cab, and a boom, arm, and bucket configuration for digging and loading tasks. The HX220L is known for its balance of operating weight, digging performance, and fuel efficiency in the mid-size excavator category. It is suitable for contractors needing a versatile crawler excavator for daily production work.

Boom/Stick Excavator Option 1
Max Cutting Height	30 ft (9 m)
Max Digging Depth	19 ft (6 m)
Max Loading Height	21 ft (6 m)
Max Reach Along Ground	29 ft (9 m)
Max Vertical Wall Digging Depth	17 ft (5 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	32 ft (10 m)
Boom/Stick Excavator Option 2
Max Cutting Height	31 ft (9 m)
Max Digging Depth	21 ft (6 m)
Max Loading Height	21 ft (7 m)
Max Reach Along Ground	31 ft (9 m)
Max Vertical Wall Digging Depth	19 ft (6 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	31 ft (10 m)
Boom/Stick Excavator Option 3
Max Cutting Height	32 ft (10 m)
Max Digging Depth	22 ft (7 m)
Max Loading Height	22 ft (7 m)
Max Reach Along Ground	32 ft (10 m)
Max Vertical Wall Digging Depth	21 ft (6 m)
Shipping Length of Unit	31 ft (10 m)
Boom/Stick Excavator Option 4
Max Cutting Height	33 ft (10 m)
Max Digging Depth	25 ft (8 m)
Max Loading Height	24 ft (7 m)
Max Reach Along Ground	35 ft (11 m)
Max Vertical Wall Dig Depth	24 ft (7 m)
Shipping Length of Unit	31 ft (10 m)
Bucket
Maximum Bucket Capacity	1 cu yd (1 cu m)
Dimensions
Ground Clearance	2 ft (0 m)
Height - Top of Cab	10 ft (3 m)
Length of Track on Ground	15 ft (4 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	9 ft (3 m)
Width to Outside of Tracks	9 ft (3 m)
Engine
Aspiration	Turbocharged
Displacement	409 cu in (6,702 cu cm)
Engine Make	Cummins
Engine Model	QSB6.7
Gross Power	183 hp (136 kw)
Max Torque	620 lbs ft (841 nm)
Net Power	173 hp (129 kw)
Power Measured @	1,950 rpm
Torque Measured @	1,500 rpm
Operating Specifications
Alternator Supplied Amperage	95 amps
Cooling System Fluid Capacity	11 gal (40 l)
Engine Oil Capacity	6 gal (23 l)
Fuel Capacity	106 gal (400 l)
Hydraulic Pump Flow Capacity	59 gpm (222 lpm)
Hydraulic System Fluid Capacity	73 gal (275 l)
Operating Voltage	24 volts
Operating Weight	52,117 lbs (23,640 kg)
Swing Drive Fluid Capacity	2 gal (6 l)
Swing Mechanism
Swing Speed	11 rpm
Undercarriage
Drawbar Pull	44,530 lbs (20,198 kg)
Ground Pressure	5 psi
Max Travel Speed	4 mph (6 kph)
Number of Carrier Rollers per Side	2
Number of Shoes per Side	49
Number of Track Rollers per Side	9
Shoe Size	36 in (90 cm)
Track Gauge	8 ft (2 m)
