Equipment ↠ Hyundai ↠ Wheel Loaders ↠ 2013 Hyundai HL757-9

2013 Hyundai HL757-9 For Sale in Edmonton, Ab

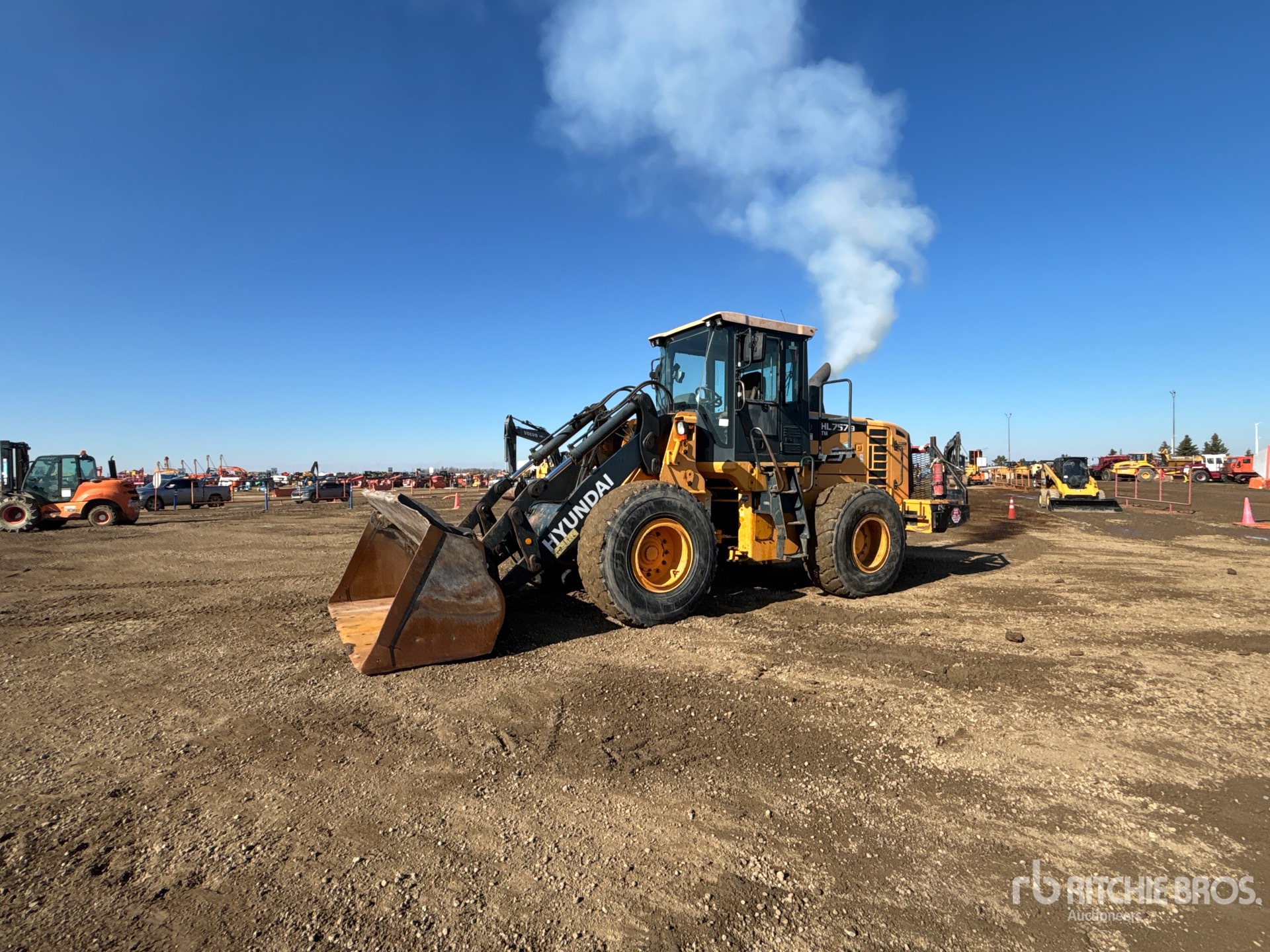

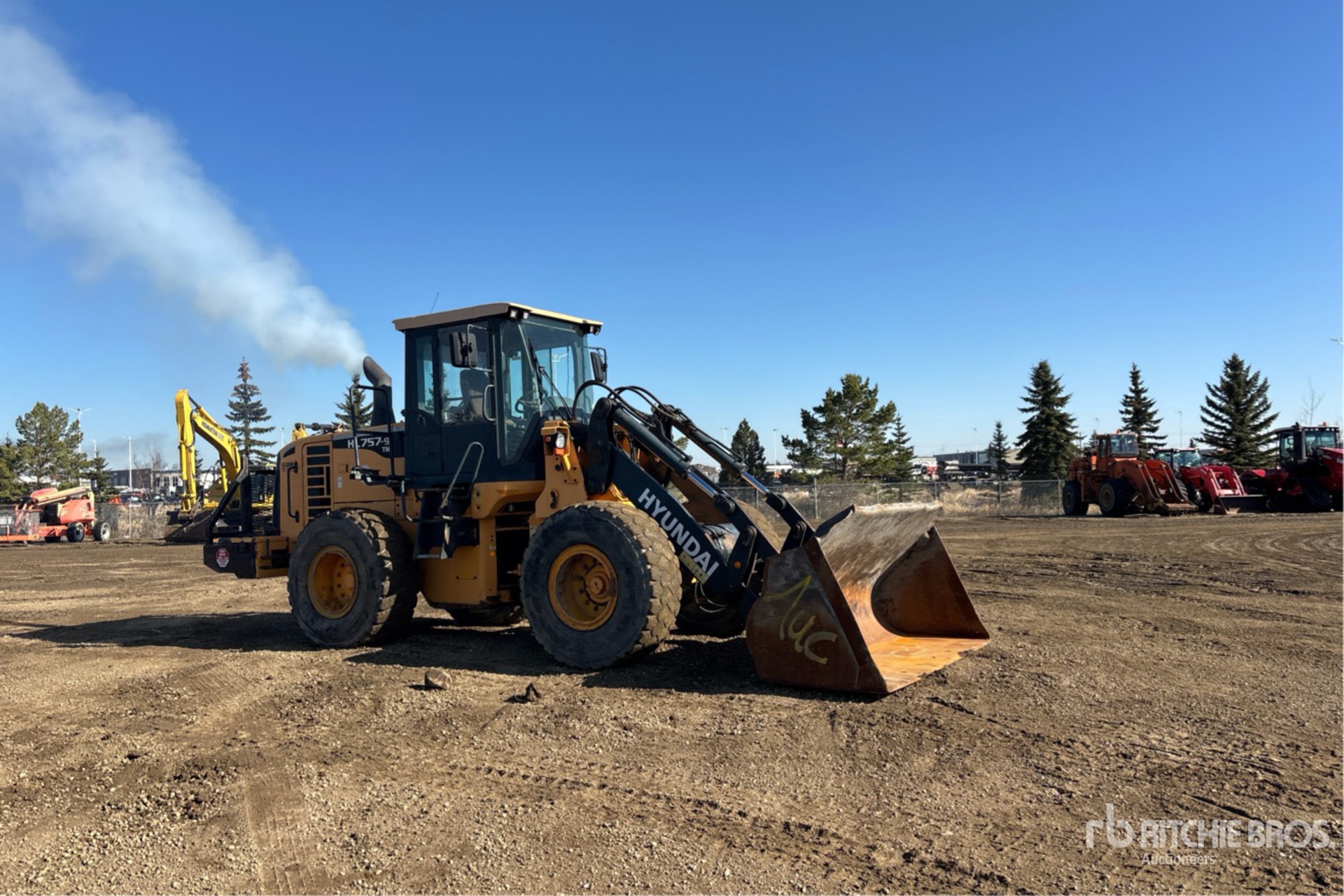

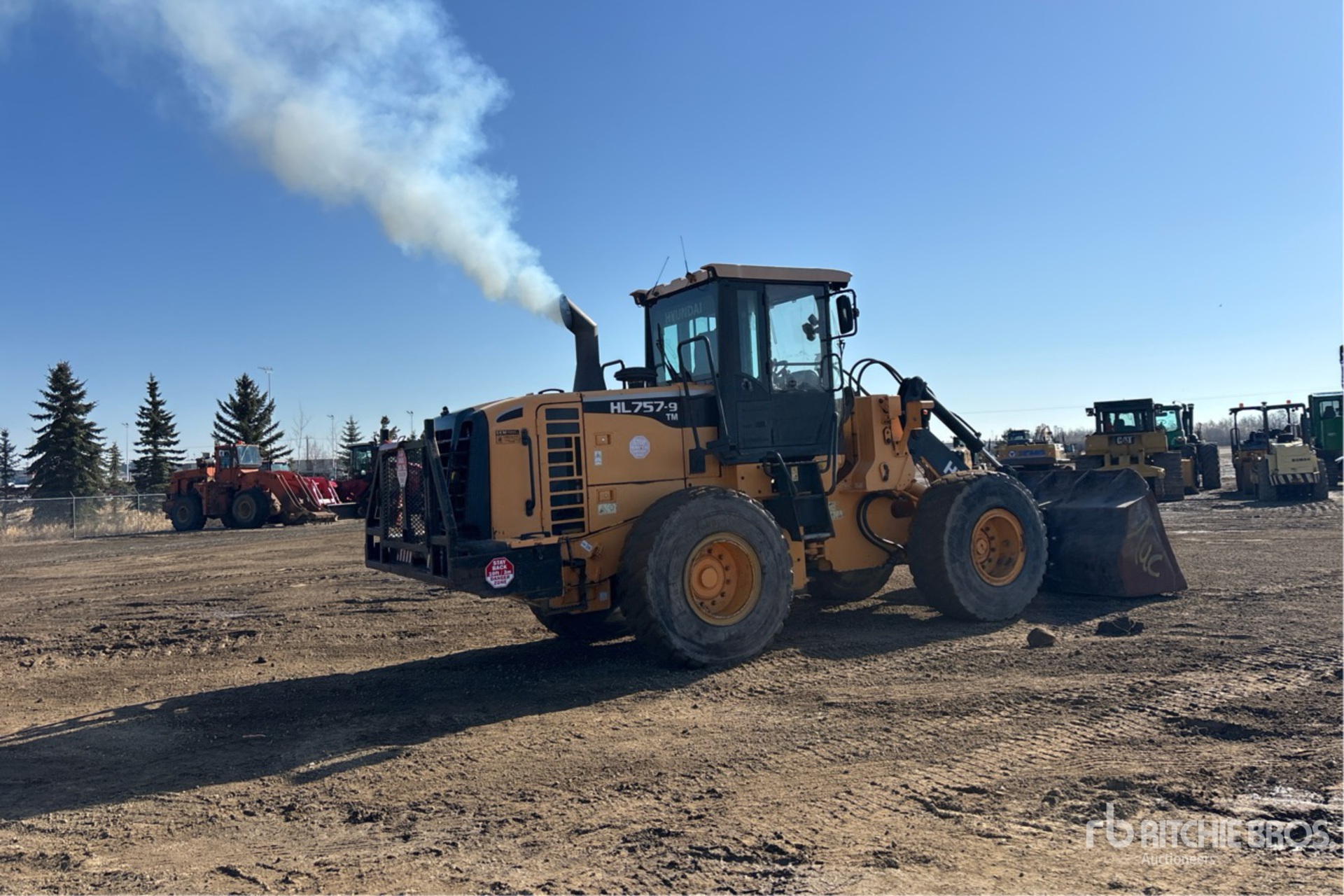

Name: 2013 Hyundai HL757-9
Brand: Hyundai
SKU: 87398728
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-11 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

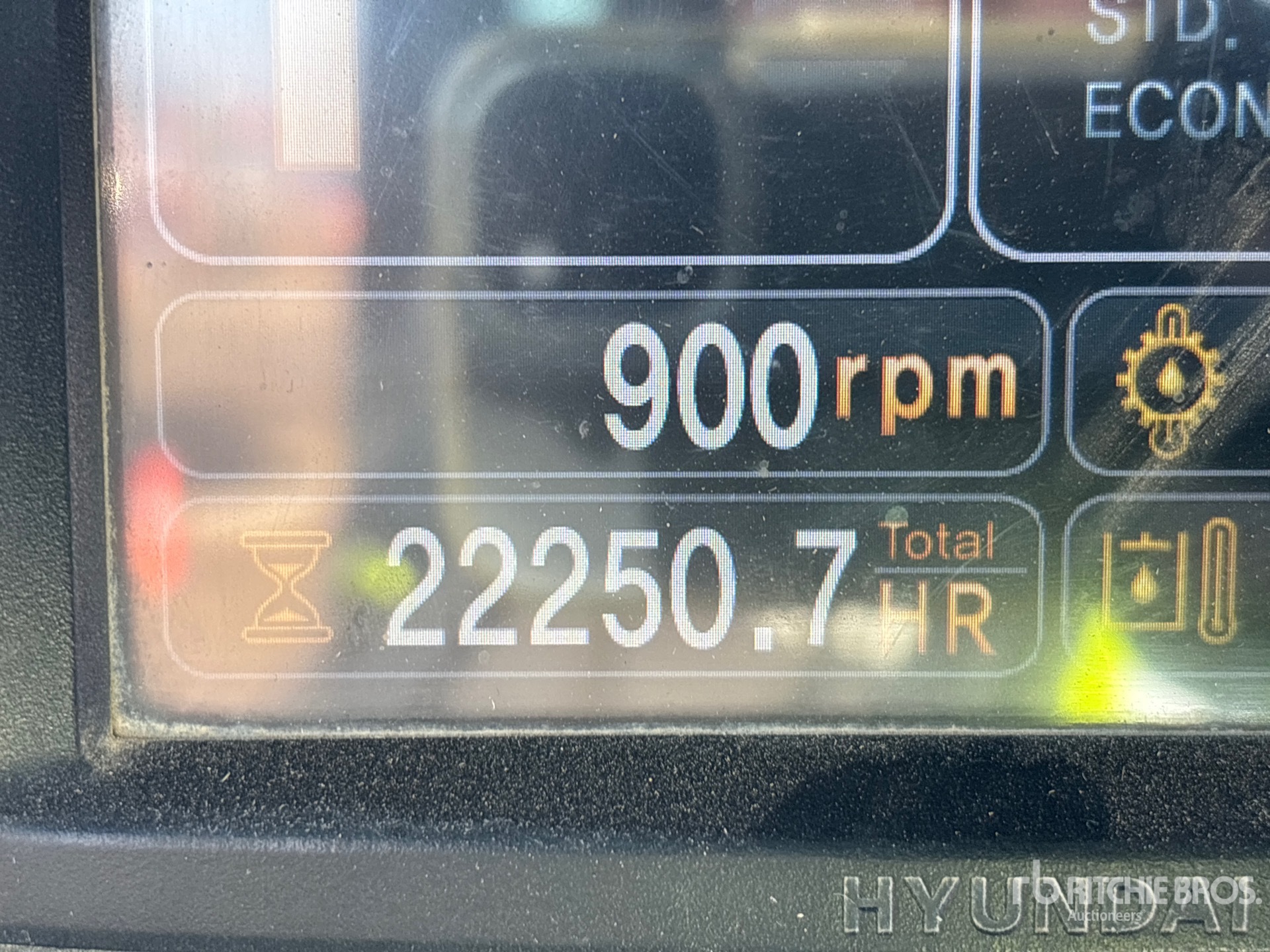

Hours:	22250

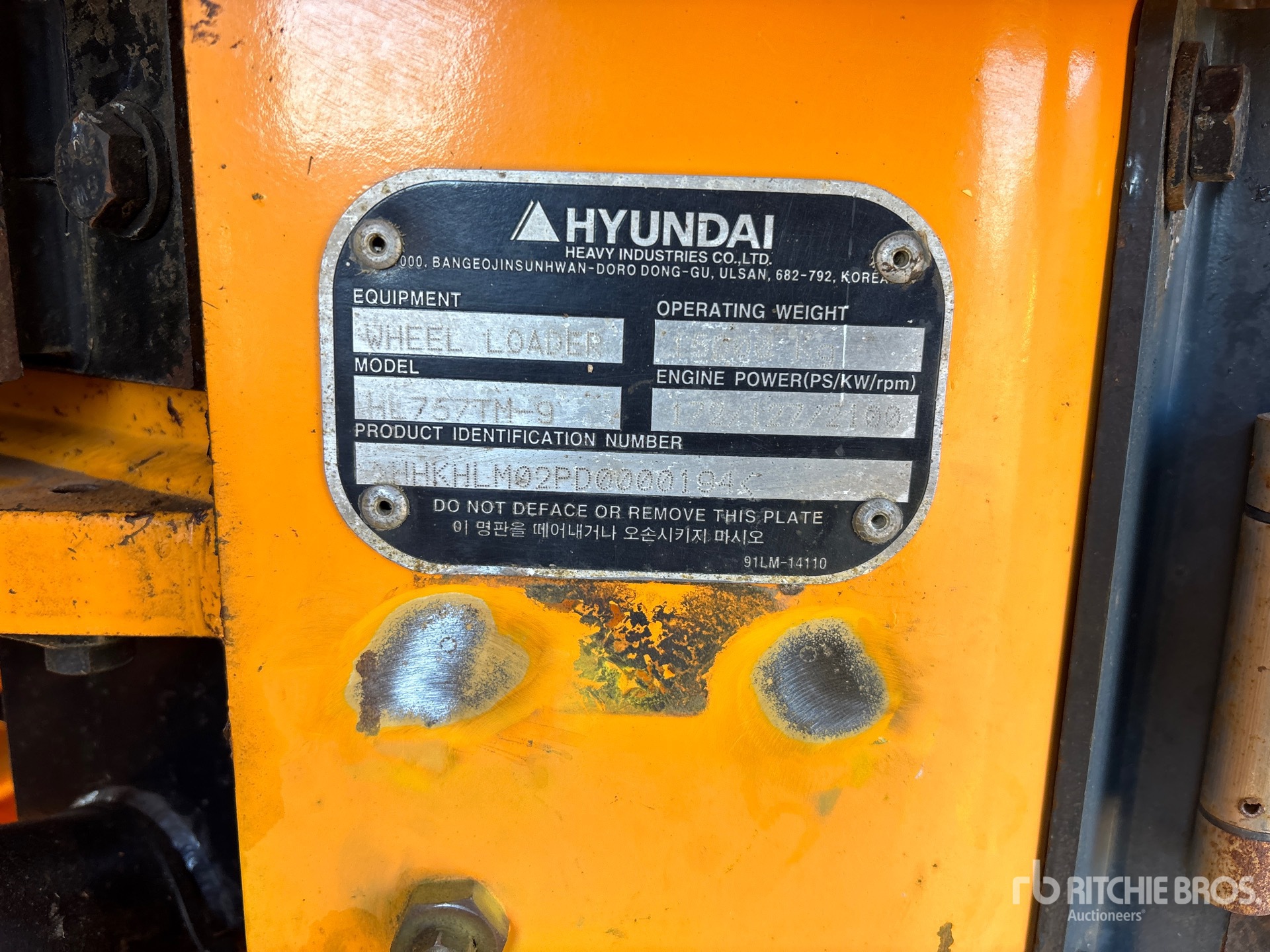

Serial Number:	HLM02PD0000194
Machine Location:	EDMONTON, AB

Description:

Enclosed Cab, Air Conditioner, Air Ride Seat, Autoshift, 2013 US EPA Label, Auxiliary Hydraulics, Hydraulic Coupler, 106 in Bucket, 20.5R25 Tires Please see deficiencies - The closing times of lots 288-289 are tied together - If a bid is received - a time extension will apply to all lots Closing Time: 2026-05-11 10:24:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The Hyundai HL757-9 is a wheel loader designed for material handling, earthmoving, and loading applications in construction, quarry, aggregate, and industrial sites. It is part of Hyundai's HL-9 series and is typically used for moving soil, gravel, sand, rock, and other bulk materials. The machine features a front-mounted loader bucket, articulated steering, and a diesel powertrain suited for continuous duty cycles. The HL757-9 is commonly selected for its balance of lifting capacity, breakout force, and operator visibility. It is used in general construction, roadwork, site preparation, and material stockpile management.

Bucket
Bucket Capacity - heaped	4 cu yd (3 cu m)
Bucket Capacity - struck	3 cu yd (2 cu m)
Dump Clearance at Max Raise	9 ft (3 m)
Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	11 ft (3 m)
Hinge Pin - Max Height	13 ft (4 m)
Length with Bucket on Ground	25 ft (8 m)
Reach at Max Lift and Dump	4 ft (1 m)
Wheelbase	10 ft (3 m)
Width Over Tires	9 ft (3 m)
Engine
Aspiration	Turbocharged
Engine Model	QSB6.7
Gross Power	173 hp (129 kw)
Make	Cummins
Net Power	170 hp (127 kw)
Number of Cylinders	6
Power Measured @	2,100 rpm
Torque Measured @	1,400 rpm
General Specifications
Bucket Capacity cu. yd. (cu m) (Since 2016)	3.7 (2.8)
Engine Power hp (kw) (Since 2016)	170 (126.8)
Engine type (Since 2016)	Cummins QSB6.7
Max Dump Height ft. (m) (Since 2016)	9.4 (2.85)
Operating Weight lbs. (kg) (Since 2016)	32,000 (14 500)
Hydraulic System
Dump Time	1 seconds
Lower Time	4 seconds
Pump Flow Capacity	49 gpm (185 lpm)
Pump Type	Variable Axial Piston
Raise Time	6 seconds
Operating Specifications
Alternator Supplied Amperage	70 amps
Cooling System Fluid Capacity	9 gal (35 l)
Engine Oil Fluid Capacity	5 gal (18 l)
Front Axle/Diff Fluid Capacity	8 gal (29 l)
Fuel Capacity	78 gal (294 l)
Hydraulic System Fluid Capacity	57 gal (215 l)
Operating Voltage	24 volts
Operating Weight	31,967 lbs (14,500 kg)
Rated Bucket Capacity	4 cu yd (3 cu m)
Rear Axle Oscillation	26 degrees
Rear Axle/Diff Fluid Capacity	6 gal (24 l)
Static Tipping Weight	24,912 lbs (11,300 kg)
Tire Size	20.5-25
Transmission Fluid Capacity	7 gal (28 l)
Transmission
Max Speed - Forward	24 mph (38 kph)
Max Speed - Reverse	15 mph (24 kph)
Number of Forward Gears	4
Number of Reverse Gears	3
Transmission Type	Powershift
Weights
Operational Weight	32,000 lbs (14,515 kg)
