Equipment ↠ JCB ↠ Backhoe Loaders ↠ 2021 JCB 3CX-15

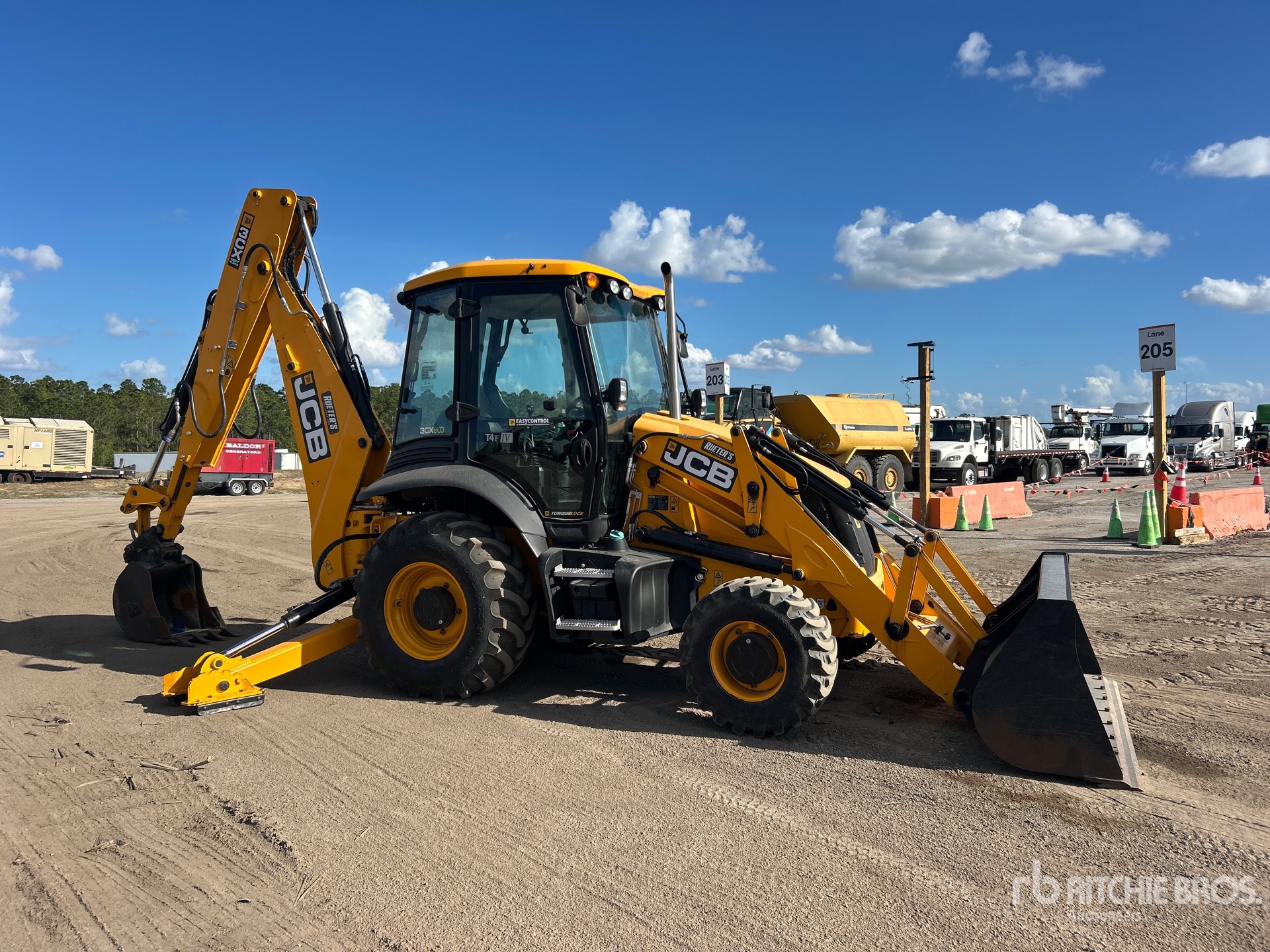

2021 JCB 3CX-15 For Sale in Orlando, Fl

Name: 2021 JCB 3CX-15
Brand: JCB
SKU: 86115782
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-21 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

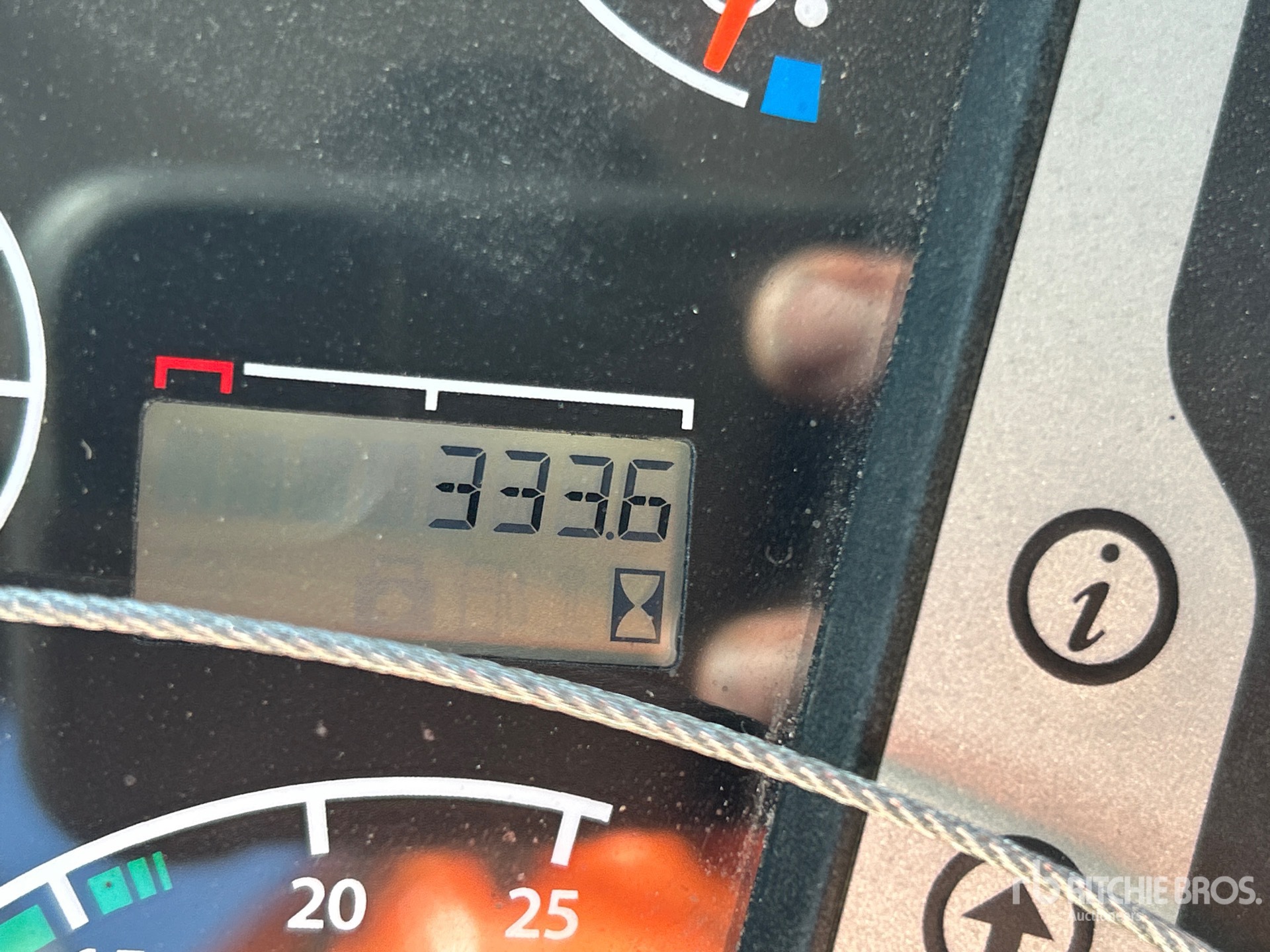

Hours:	333
Serial Number:	JCB3CXPCJM3013128
Machine Location:	ORLANDO, FL

Description:

Located in Lane 14 Spot 301, Enclosed Cab, Air Conditioner, Ride Control, Backhoe Pilot Controls, Control Pattern Changer, Powershift Transmission, 2021 US EPA Label, Requires Diesel Exhaust Fluid, Auxiliary Hydraulics, 92 in Loader Bucket, Extendable Stick, Quick Coupler, 24 in Backhoe Digging Bucket, Rear Auxiliary Hydraulics Closing Time: 2026-05-21 08:32:12 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The JCB 3CX-15 is a versatile backhoe loader designed for construction, agriculture, and utility applications. Featuring a robust engine and advanced hydraulics, the 3CX-15 delivers efficient digging, loading, and material handling capabilities. Its compact design allows for enhanced maneuverability in confined spaces, while the durable chassis ensures stability and strength during heavy-duty operations. Equipped with a front loader bucket and rear backhoe attachment, the JCB 3CX-15 supports a wide range of tasks including excavation, trenching, and loading. This backhoe loader model is recognized for reliability, ease of maintenance, and operator comfort, making it a practical choice for diverse job site requirements.

Backhoe
Bucket Dig Force	5,538 lbs (2,512 kg)
Bucket Dig Force - Extended	5,538 lbs (2,512 kg)
Dig Depth - Extended	20 ft (6 m)
Load Height - Extended	15 ft (5 m)
Reach at Load Height - Extended	10 ft (3 m)
Reach From Swivel	20 ft (6 m)
Reach From Swivel - Extended	23 ft (7 m)
Dimensions
Ground Clearance	1 ft (0 m)
Height to Top of Suspended Cab	10 ft (3 m)
Transport Length	25 ft (8 m)
Transport Width	8 ft (2 m)
Wheelbase	8 ft (2 m)
Engine
Aspiration	Turbo
Displacement	269 cu in (4,402 cu cm)
Engine Model	444
Gross Power	100 hp (75 kw)
Net Max Torque	308 lbs ft (417 nm)
Number of Cylinders	4
Power Measured @	2,200 rpm
Torque Measured @	1,300 rpm
General Specifications
4th Gear Fwd mph (kmh) (Since 2008)	22.5 (36)
4TH GEAR FWD MPH (KMH) (Since 2010)	22.5 (36)
Breakout Force lbs (kgs) (Since 2008)	12,638 (5,734)
BREAKOUT FORCE LBS. (KG) (Since 2010)	14,498 (6,575)
Digging Depth ft (m) (Since 2008)	16.25 (4.9)
DIGGING DEPTH FT. (M) (Since 2010)	20.08 (6.1)
Lift Capacity lbs (kgs) (Since 2008)	9,231 (4,188)
LIFT CAPACITY LBS. (KG) (Since 2010)	10,255 (4,650)
Loading Height ft (m) (Since 2008)	15.3 (3.9)
LOADING HEIGHT FT. (M) (Since 2010)	15.3 (3.9)
Operating Weight lbs (kg) (Since 2008)	17,037 (7,730)
SAE HP (KW) (Since 2010)	100 (75)
SAE Net hp (kw) (Since 2008)	98 (73)
WEIGHT LBS. (KG) (Since 2010)	17,683 (8,020)
Hydraulic System
Pump Flow Capacity	39 gpm (148 lpm)
Pump Type	dual gear pumps
Relief Valve Pressure	3,300 psi
Loader
Bucket Capacity	1 cu yd (1 cu m)
Bucket Width	93 in (235 cm)
Clearance at Max Dump Height	9 ft (3 m)
Dig Depth	2 in (5 cm)
Reach at Max Dump Height	3 ft (1 m)
Operating Specifications
Alternator Supplied Amperage	95 amps
Cooling System Fluid Capacity	6 gal (23 l)
Front Axle Fluid Capacity	4 gal (16 l)
Fuel Capacity	42 gal (160 l)
Hydraulic System Fluid Capacity	34 gal (127 l)
Max Weight	18,223 lbs (8,266 kg)
Oil System Fluid Capacity	4 gal (15 l)
Operating Voltage	12 volts
Operating Weight 2wd	17,037 lbs (7,728 kg)
Rear Axle Fluid Capacity	4 gal (16 l)
Tire Size Front - 2wd / 4wd	14-17.5 fwd 12 PLY
Transmission Fluid Capacity	4 gal (16 l)
Turning Radius	14 ft (4 m)
Tires
Rear Tires Size	19.5L-24 R4 10 PLY
Transmission
Max Speed - Reverse	21 mph (34 kph)
Number of Forward Gears	4
Number of Reverse Gears	4
Transmission Type	JCB powershift
Travel Speed
4th Gear Fwd	23 mph (36 kph)
