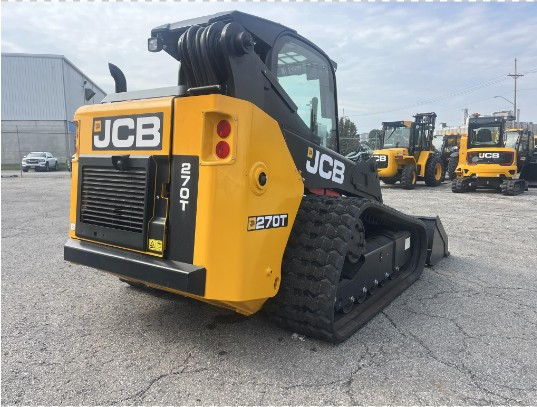

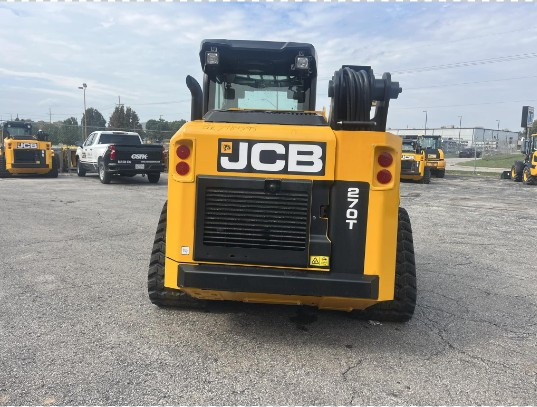

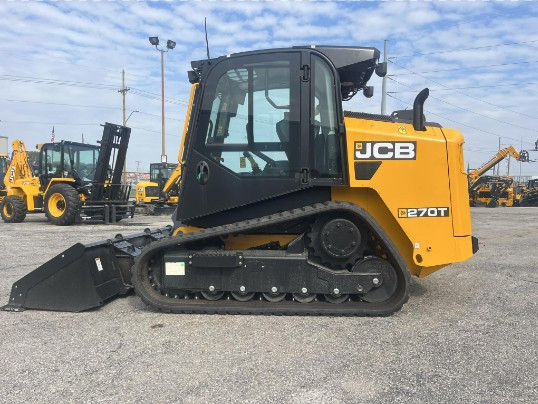

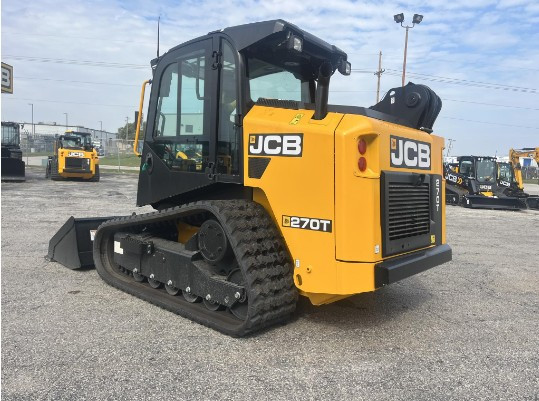

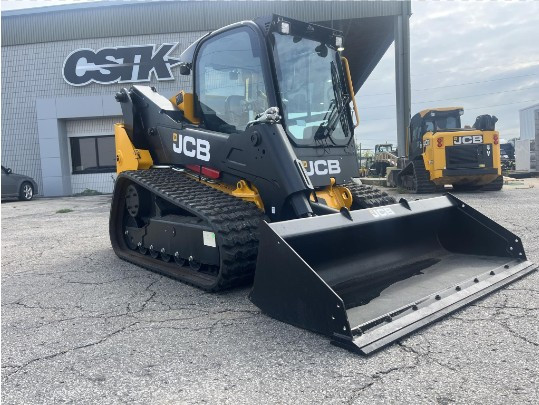

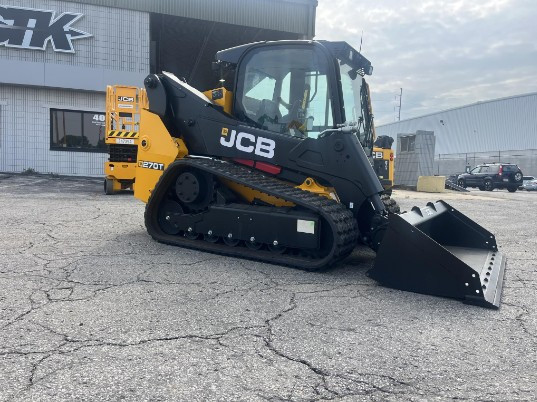

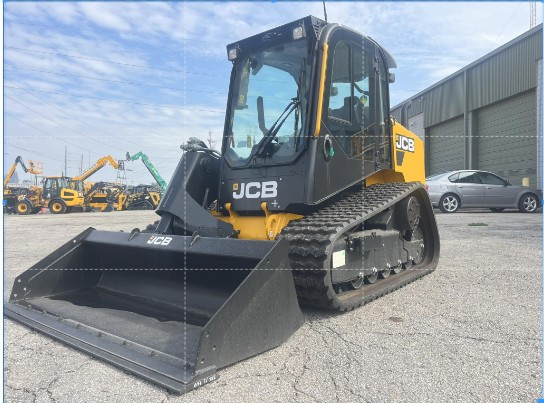

2025 JCB 270T For Sale in Kansas City, KS


/ Save to Watch List

For Sale: $75,490.00 USD

Apply for Financing

CSTK JCB



Contact: Crystal Farris

Click for Phone Number

Machine Info:

Hours:6
Stock Number:GE03CPEBCS3484595
Machine Location:KANSAS CITY, KS
More Information:https://cstkjcb.com/inventory/skid+steers/2025-jcb-270t-kansas+city-ks-695c18adc3570280890e24b2/

Description:

The world's safest Compact Track Loader - flexible, multi-purpose and highly productive. The JCB 270T is a large platform machine equipped with the Hi-Viz Powerboom TM which provides greater visibility to the attachments. With a rated operating capacity of 2,723 lbs., this powerful vertical lift, compact track loader is ideal for demolition, breaker work, and using rock saws. It has a low center of gravity to provide better stability when loading on an incline.


From the manufacturer:

Supplied by HeavyEquipmentData.com →


The JCB 270T is a versatile compact track loader designed for heavy-duty construction, landscaping, and agricultural applications. Featuring a robust engine and advanced hydraulic system, the JCB 270T delivers high performance and efficiency in a compact frame. Its tracked undercarriage provides superior traction and stability on rough or uneven terrain. The operator cabin offers enhanced visibility and ergonomic controls for improved productivity and comfort. With a strong lift capacity and multiple attachment options, the JCB 270T is suitable for material handling, grading, digging, and site preparation tasks. This compact track loader combines durability, power, and maneuverability for demanding job sites.
Dimensions
Angle of departure 29 degrees
Dig Depth 394 in (1,000 cm)
Dump angle 42 degrees
Dump Height 90 in (228 cm)
Ground Clearance 9 in (23 cm)
Height - Top of Cab 7 ft (2 m)
Length - with Bucket 13 ft (4 m)
Loadover height 10 ft (3 m)
Max. reach @ full height 4 ft (1 m)
Pin height 11 ft (3 m)
Reach @ ground level 4 ft (1 m)
Rollback @ ground 30 degrees
Wheelbase 7 ft (2 m)
Width Over Tracks 6 ft (2 m)

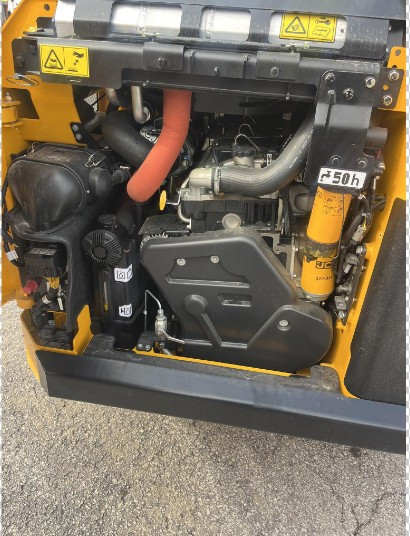

Engine
Alternator 95 amps
Aspiration Liquid
Battery 12 V
Cooling system Liquid
Displacement 269 cu in (4,400 cu cm)
Emissions Certification EPA-T4F (EU St3B)
Engine Model EcoMAX TCAE-55
Engine oil service interval hours 500
Fuel Diesel
Gross Power 74 hp (55 kw)
Peak Torque 295 lbs ft (400 nm)
Power Measured @ 2,400 rpm
Torque Measured @ 1,200 rpm
General Specifications
ENGINE POWER HP (KW) (Since 2020) 74 (55)
Engine Power HP (KW) (Since 2021) 74 (55)
MODEL (Since 2020) 270T
OPERATING WIDTH IN. (CM) (Since 2020) 75 (190)
Operating Width IN. (CM) (Since 2021) 75 (190)
Rated Operating Capacity LBS. (KG) (Since 2025) 2,723 (1,235)
RATED OPERATING CAPACITY LBS. (KG) (50%) (Since 2020) 2,723 (1,235)
Rated Operating Capacity LBS. (KG) 50% (Since 2021) 2,723 (1,235)
Loader
Breakout Force 6,543 lbs (2,968 kg)
Bucket Capacity 1 cu yd (0 cu m)
Bucket Width 75 in (190 cm)
Operating Load 11,003 lbs (4,991 kg)
Tipping Angle 7,990 degrees
Operating Specifications
Cooling System Fluid Capacity 6 gal (22 l)
Engine Oil Capacity 4 gal (15 l)
Fuel Capacity 27 gal (103 l)
Hydraulic System Fluid Capacity 15 gal (55 l)
Operating Weight 11,003 lbs (4,991 kg)
Transmission
Travelling speed 7.7 / 12.5

Dealer Contact Info:

CSTK JCB



Contact: Crystal Farris

Click for Phone Number
