Equipment ↠ JCB ↠ Compact Track Loaders ↠ 2015 JCB 320T

2015 JCB 320T For Sale in Chicago, Il

Name: 2015 JCB 320T
Brand: JCB
SKU: 87202891
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-12 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

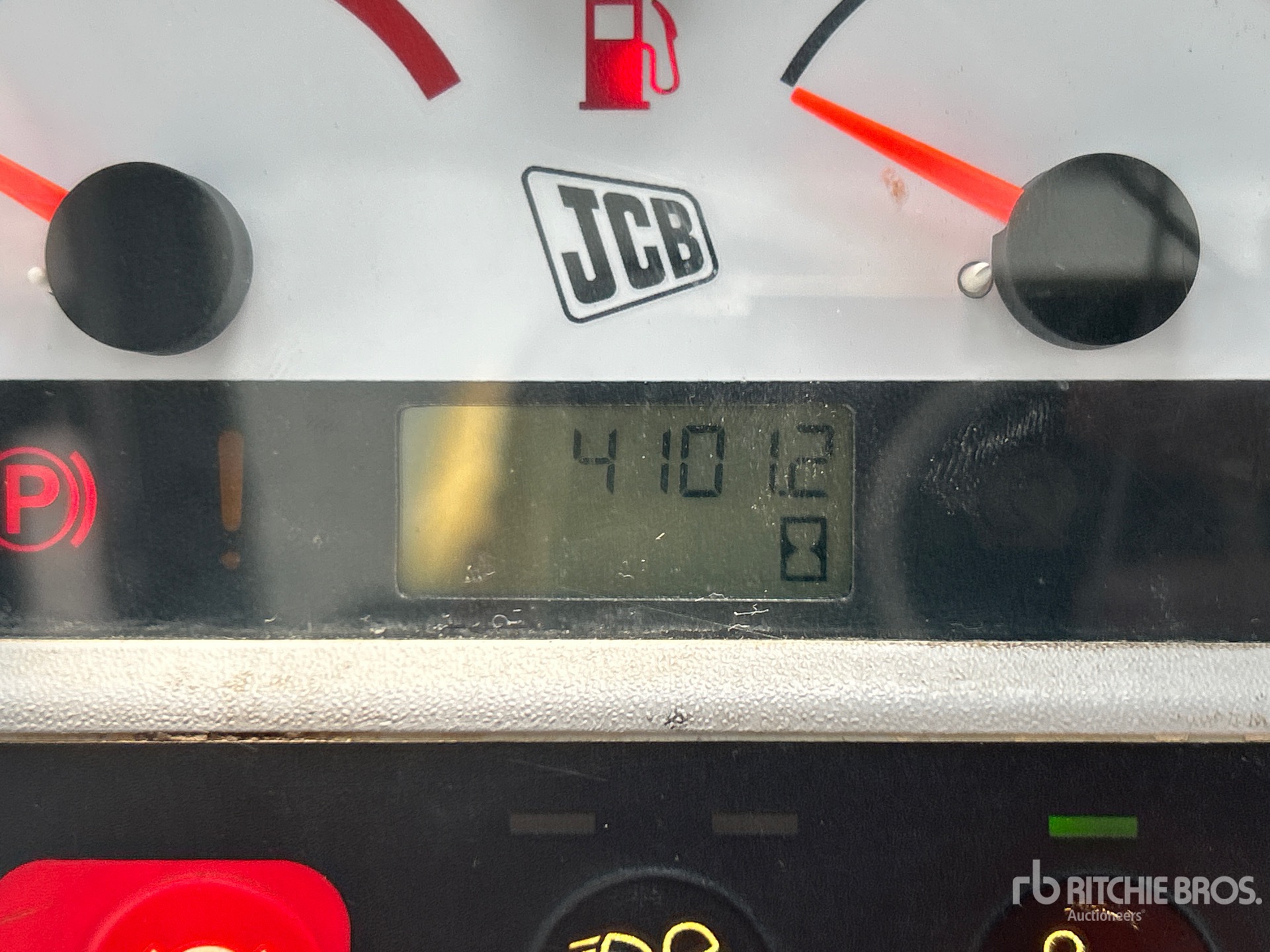

Hours:	4101

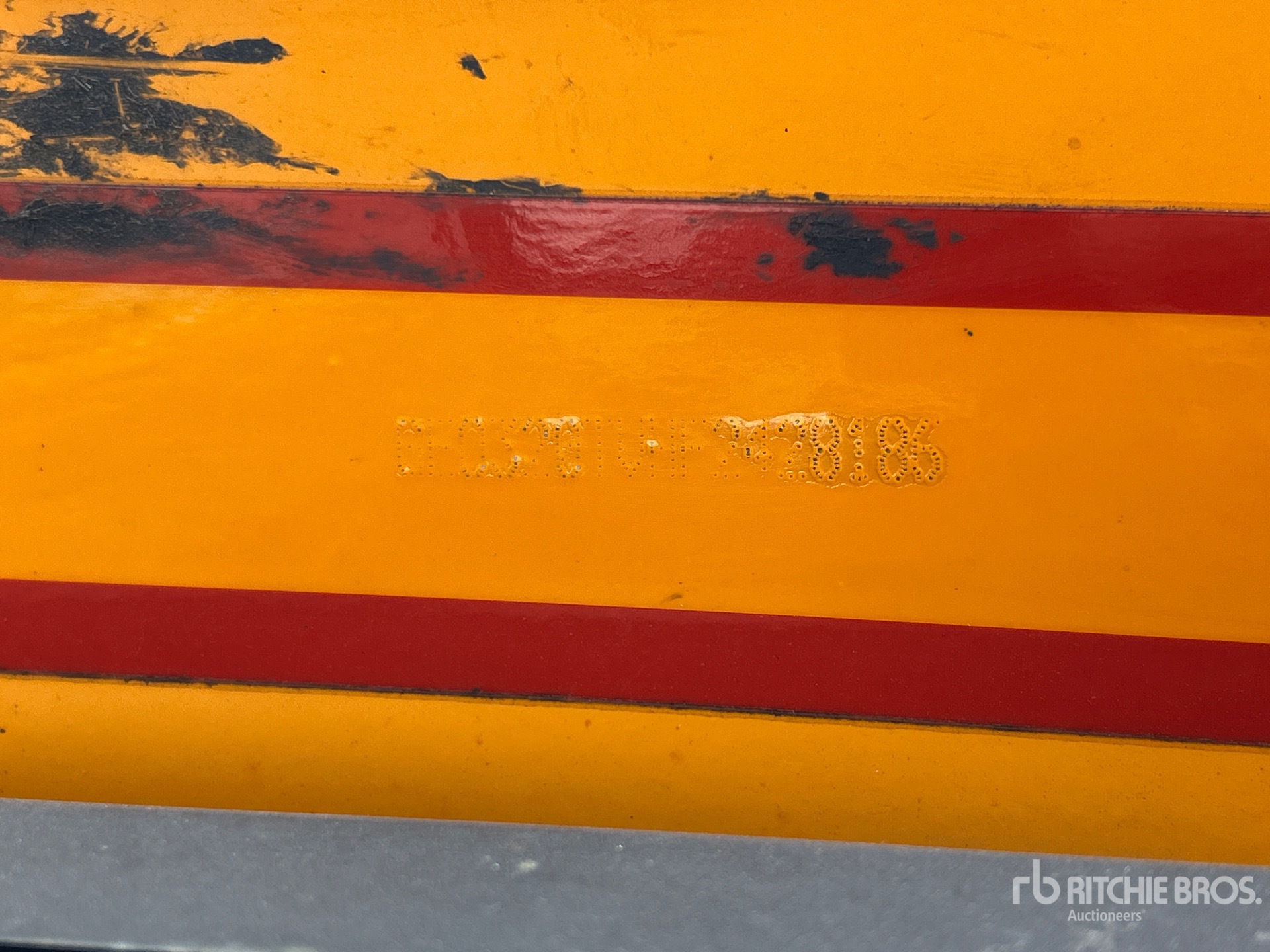

Serial Number:	GE0320TVHF2428186
Machine Location:	CHICAGO, IL

Description:

Located in Lane 32 Spot 4, Enclosed Cab, Joystick Steering, 18 in Track Belts, 9 Pin Electric Kit, Hydraulic Coupler, 80 in Bucket Closing Time: 2026-05-12 09:17:30 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Dimensions
Angle of departure	29 degrees
Clearance at Max Lift and Dump	8 ft (2 m)
Dig Depth	394 in (1,000 cm)
Dump angle	42 degrees
Dump Height	8 ft (2 m)
Ground Clearance	9 in (23 cm)
Height - Top of Cab	7 ft (2 m)
Length - with Bucket	13 ft (4 m)
Loadover height	10 ft (3 m)
Max. reach @ full height	4 ft (1 m)
Pin height	11 ft (3 m)
Reach @ ground level	4 ft (1 m)
Reach at Max Lift and Dump	3 ft (1 m)
Rollback @ ground	30 degrees
Wheelbase	7 ft (2 m)
Width Over Tracks	6 ft (2 m)
Engine
Alternator	95 amps
Aspiration	Turbo
Battery	12 V
Cooling system	Liquid
Displacement	269 cu in (4,400 cu cm)
Emissions Certification	EPA-T4F (EU St3B)
Engine Model	EcoMAX TCAE-55
Engine oil service interval hours	500
Fuel	Diesel
Gross Power	74 hp (55 kw)
Peak Torque	295 lbs ft (400 nm)
Power Measured @	2,400 rpm
Torque Measured @	1,200 rpm
Hydraulic System
Pump Flow	23 gpm (87 lpm)
Relief Valve Pressure	3,335 psi
Loader
Breakout Force	6,543 lbs (2,968 kg)
Bucket Capacity	1 cu yd (0 cu m)
Bucket Width	75 in (190 cm)
Operating Load	11,570 lbs (5,248 kg)
Tipping Angle	9,145 degrees
Operating Specifications
Cooling System Fluid Capacity	6 gal (22 l)
Engine Oil Capacity	4 gal (15 l)
Fuel Capacity	27 gal (103 l)
Hydraulic System Fluid Capacity	15 gal (55 l)
Max Speed - low range	6 mph (9 kph)
Operating Voltage	12 volts
Operating Weight	11,570 lbs (5,248 kg)
Undercarriage
Ground Pressure	5 psi
Width of Track	18 in (45 cm)
