2024 JCB 18Z-1 For Sale in Wakarusa, IN

Name: 2024 JCB 18Z-1
Brand: JCB
SKU: 63043663
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: Call for Price

Weaver Ag & Lawn Equipment LLC JCB

Weaver Ag & Lawn Equipment LLC JCB Dealer Info

Click here to email Weaver Ag & Lawn Equipment LLC JCB.

Click for Phone Number

Machine Info:

Stock Number:	3263782
Machine Location:	WAKARUSA, IN
More Information:	https://weaverjcb.com/inventory/excavators/2024-jcb-18z-1-mishawaka-in-65baf0c978f6c04d2b0ff3c2/

Description:

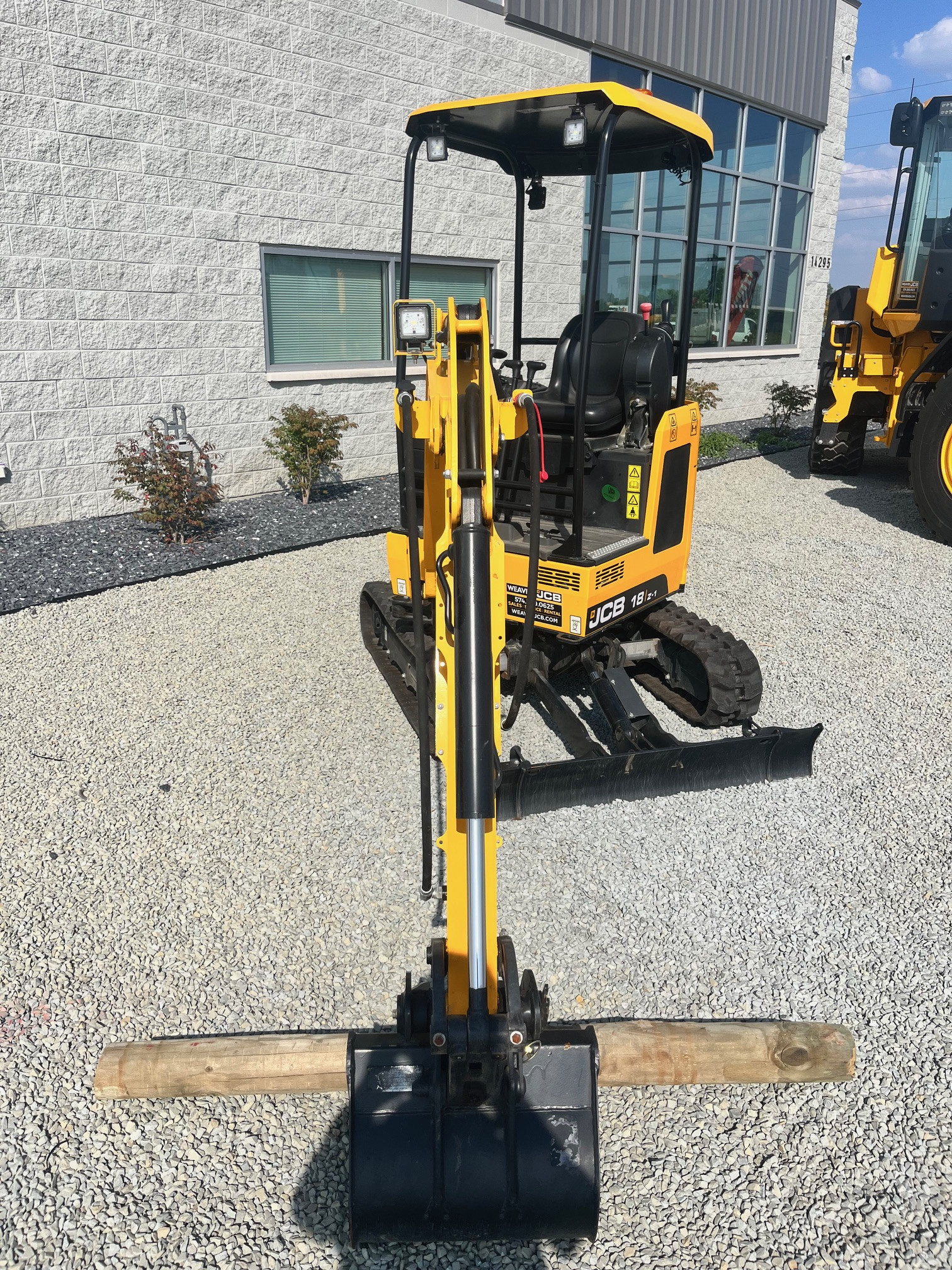

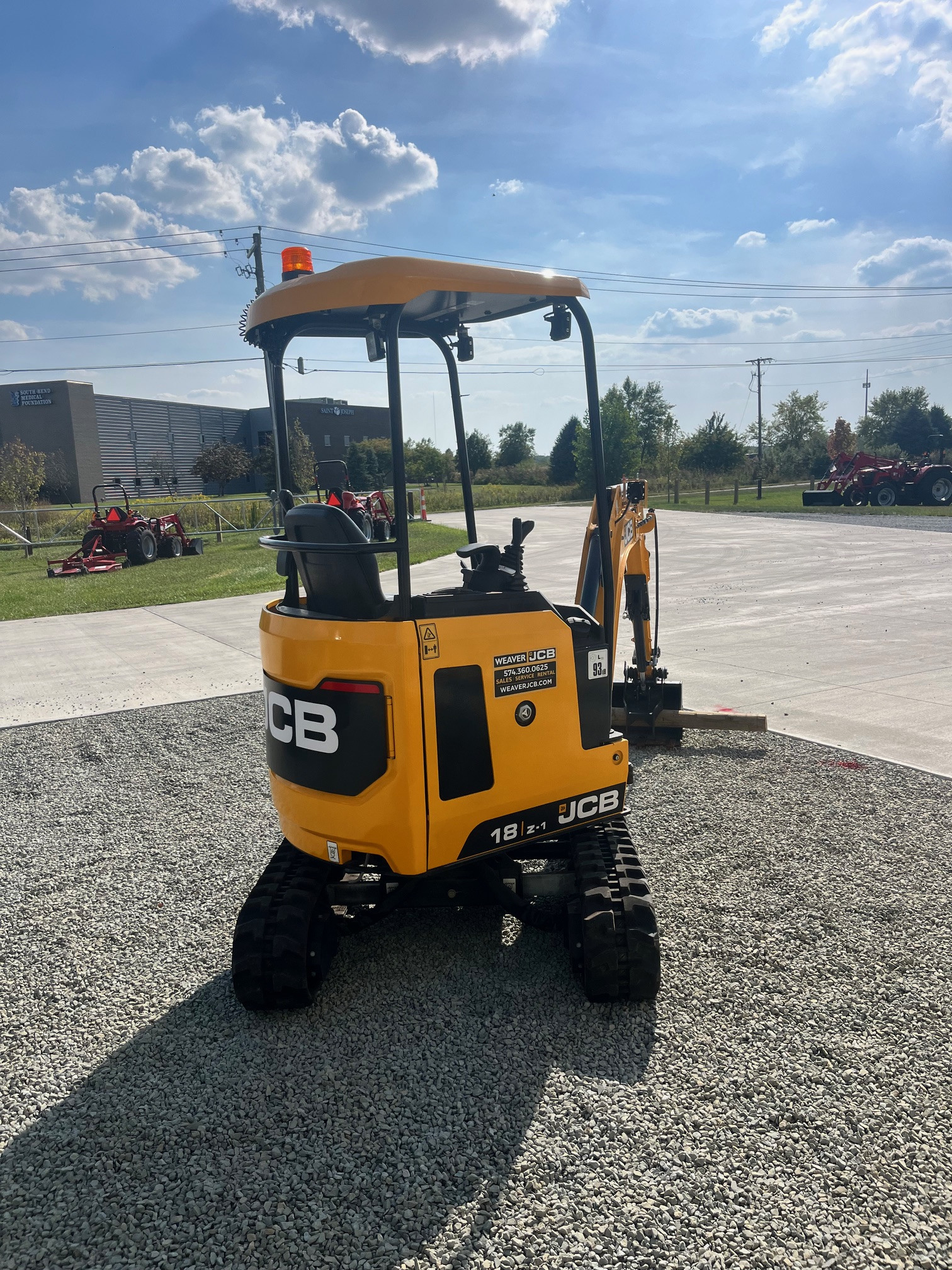

Choosing a compact excavator just got easier thanks to JCB’s new generation of compact digging machines, including the 18Z-1, a zero tailswing machine with an operating weight of 3,856 lb (1,749, kg) and a maximum dig depth of 8 feet 5 inches. Built to withstand the most demanding job sites, with proven, long-lasting components and simplified service requirements, the JCB 18Z-1 compact excavator promises less downtime and more profit.

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The JCB 18Z-1 is a compact zero tailswing mini excavator designed for confined job sites, landscaping, utility work, and light construction. It is part of JCB's 1.8-ton class and is commonly used where maneuverability and reduced rear overhang are important. The machine typically features a dig depth suitable for trenching, a narrow transport width, and hydraulic controls for precise operation. The 18Z-1 is often selected for work in urban areas, residential projects, and indoor or restricted-access applications. Its small footprint, low ground disturbance, and easy transport make it a practical choice for general excavation tasks.

Blades
Approach angle	25 degrees
Blade Height	9 in (24 cm)
Blade Width	3 ft (1 m)
Dig depth (below ground)	1 ft (0 m)
Maximum height	1 ft (0 m)
Boom
Boom swing left	75 degrees
Boom swing right	55 degrees
Bucket rotation	201 degrees
Bucket tearout	3,507 lbs (1,591 kg)
Dipper rotation	126 degrees
Dipper tearout	1,978 lbs (897 kg)
Slew speed	8 rpm
Boom/Stick Excavator Option 1
Max Digging Depth	8 ft (2 m)
Max Digging Height	12 ft (4 m)
Max Digging Reach	13 ft (4 m)
Max Digging Reach on Ground	13 ft (4 m)
Max.Dumping Height	9 ft (3 m)
Maximum digging depth - dozer down	8 ft (2 m)
Maximum digging depth - dozer up	8 ft (2 m)
Maximum height to dipper nose pivot pin	10 ft (3 m)
Maximum vertical wallcut depth	6 ft (2 m)
Minimum front swing radius (no offset)	5 ft (1 m)
Capacities
Engine coolant	1 gal (5 l)
Engine Oil	1 gal (3 l)
Fuel Tank	6 gal (21 l)
Hydraulic system	7 gal (28 l)
Hydraulic Tank	4 gal (15 l)
Dimensions
Cab length	293 gal (1,107 l)
Cab width	39 in (98 cm)
Ground Clearance	1 ft (0 m)
Overall width of superstructure	3 ft (1 m)
Tail Swing Radius	4 ft (1 m)
Track Gauge	3 ft (1 m)
Transport length	140 in (355 cm)
Undercarriage Overall Length	5 ft (2 m)
Width Over Tracks	3 ft (1 m)

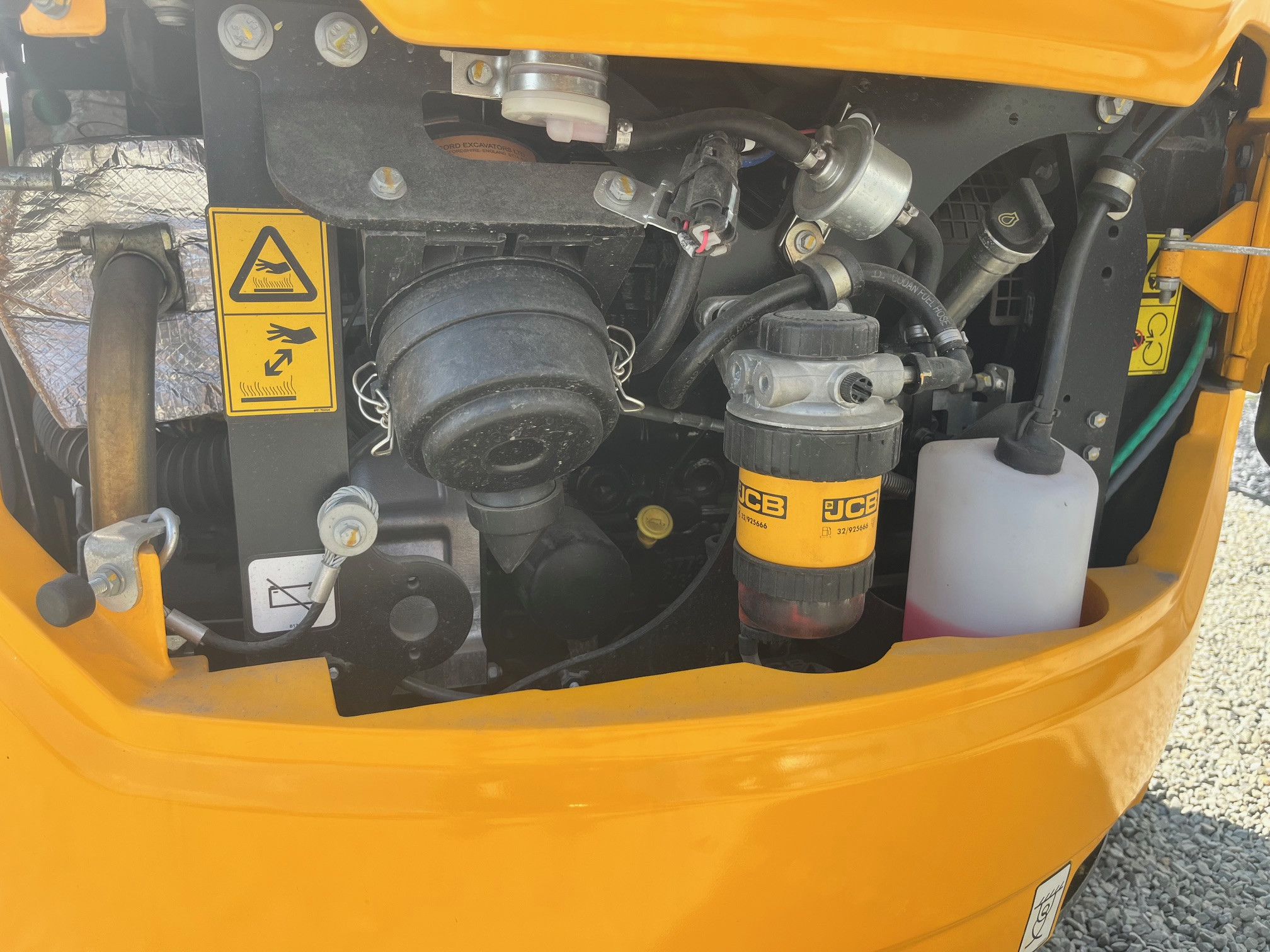

Engine
Alternator	60 amps
Cooling system	Water cooled
Displacement	22 cu in (361 cu cm)
Engine Model	403D-07
Fuel	Diesel
Gross Power	16 hp (12 kw)
Max Torque	34 lbs ft (46 nm)
Net Power	15 hp (11 kw)
Hydraulic System
Auxiliary hydraulic flow	9 gpm (32 lpm)
Excavator/track main relief	235 bar
Nominal output	10 gpm (36 lpm)
Slew main relief	167 bar
Operating Specifications
Operating Voltage	12 V
Operating Weight	3,856 lbs (1,749 kg)
Performance
Gradeability	35%
Travel speed low	1 mph (2 kph)
Undercarriage
Number of bottom rollers per side	3
Tractive Effort	29 lbs (13 kg)
Weights
Shipping	3,219 lbs (1,460 kg)
