2005 JCB 722 For Sale in Toronto, On

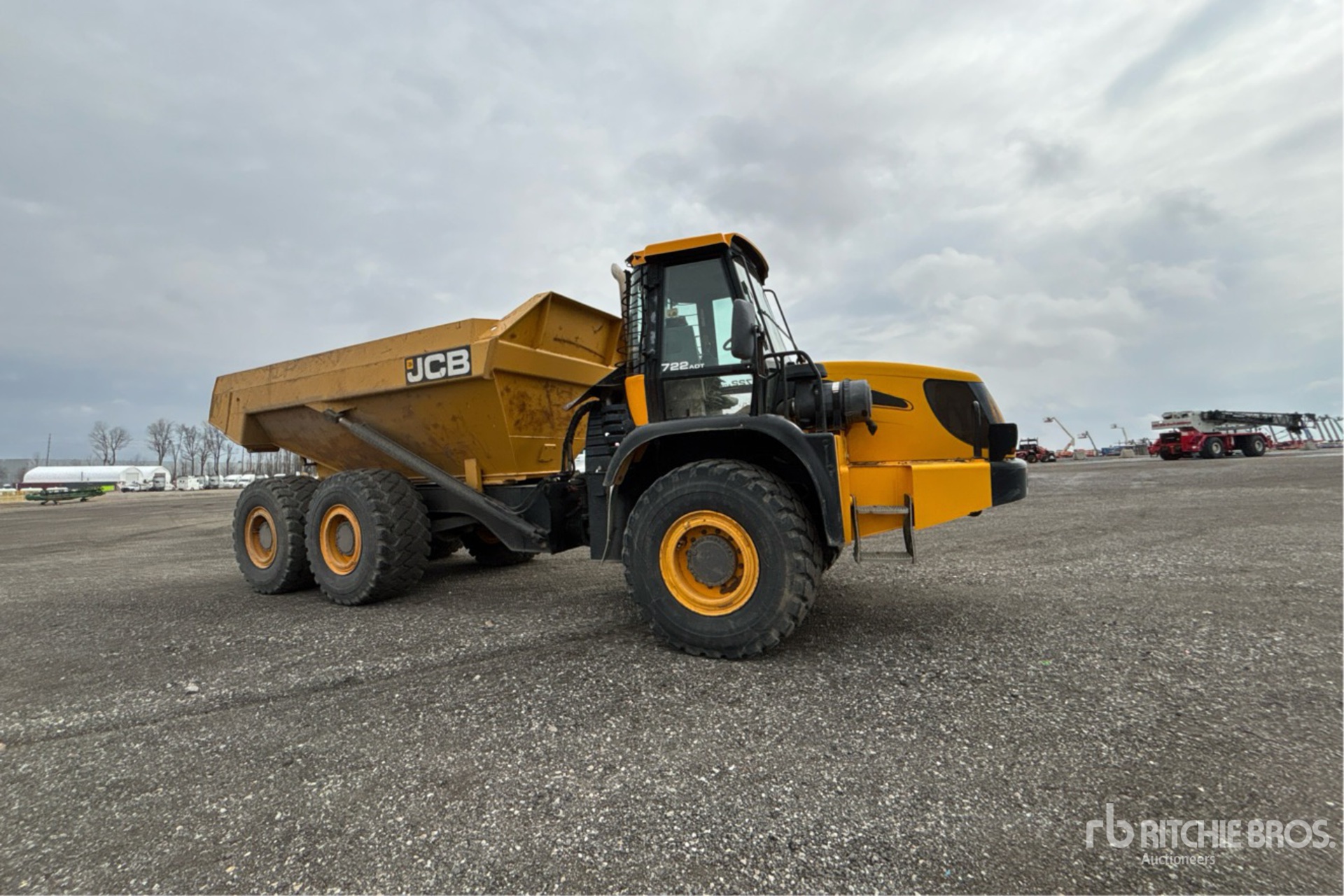

Name: 2005 JCB 722
Brand: JCB
SKU: 86657221
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-20 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

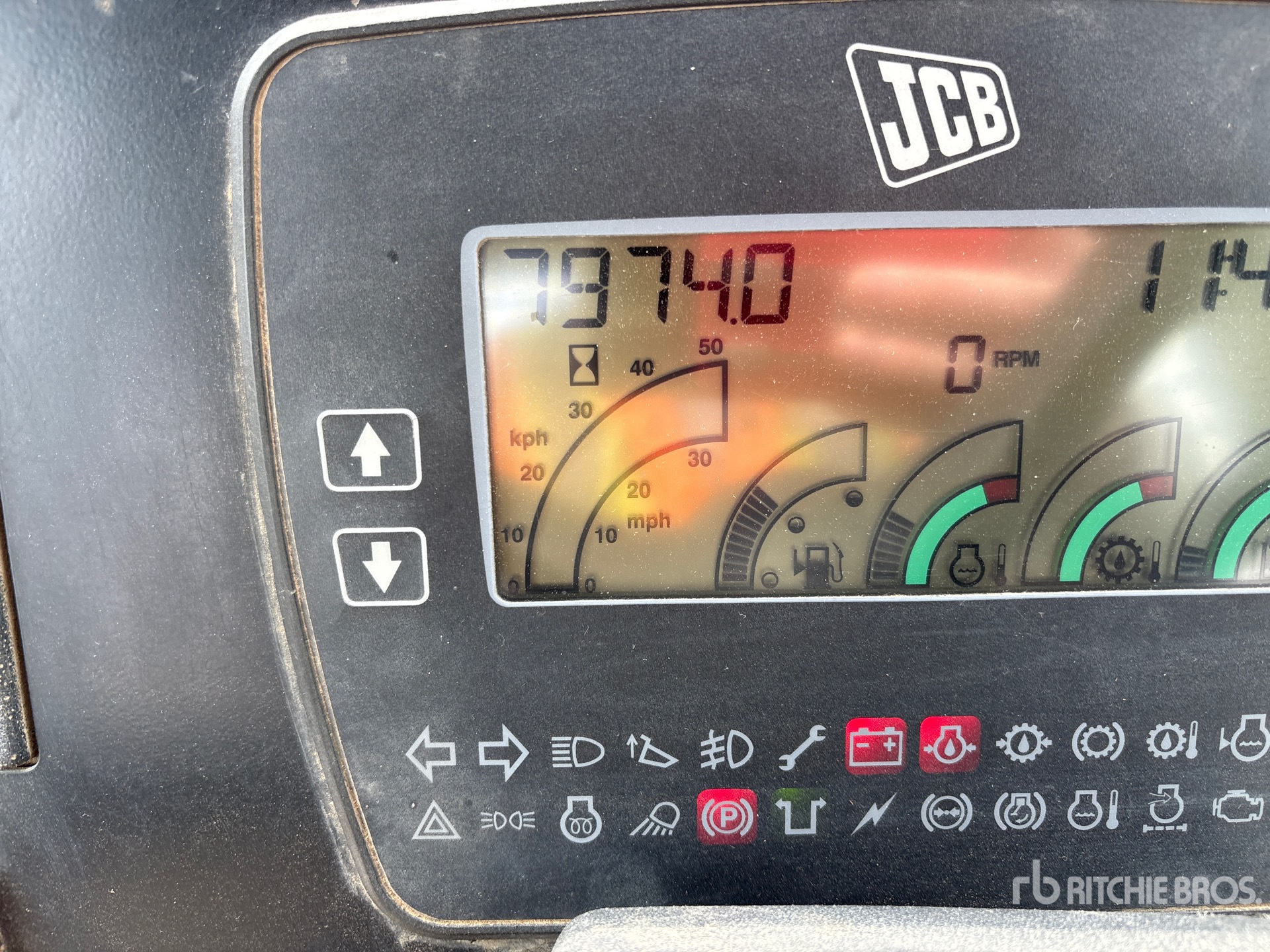

Hours:	7974

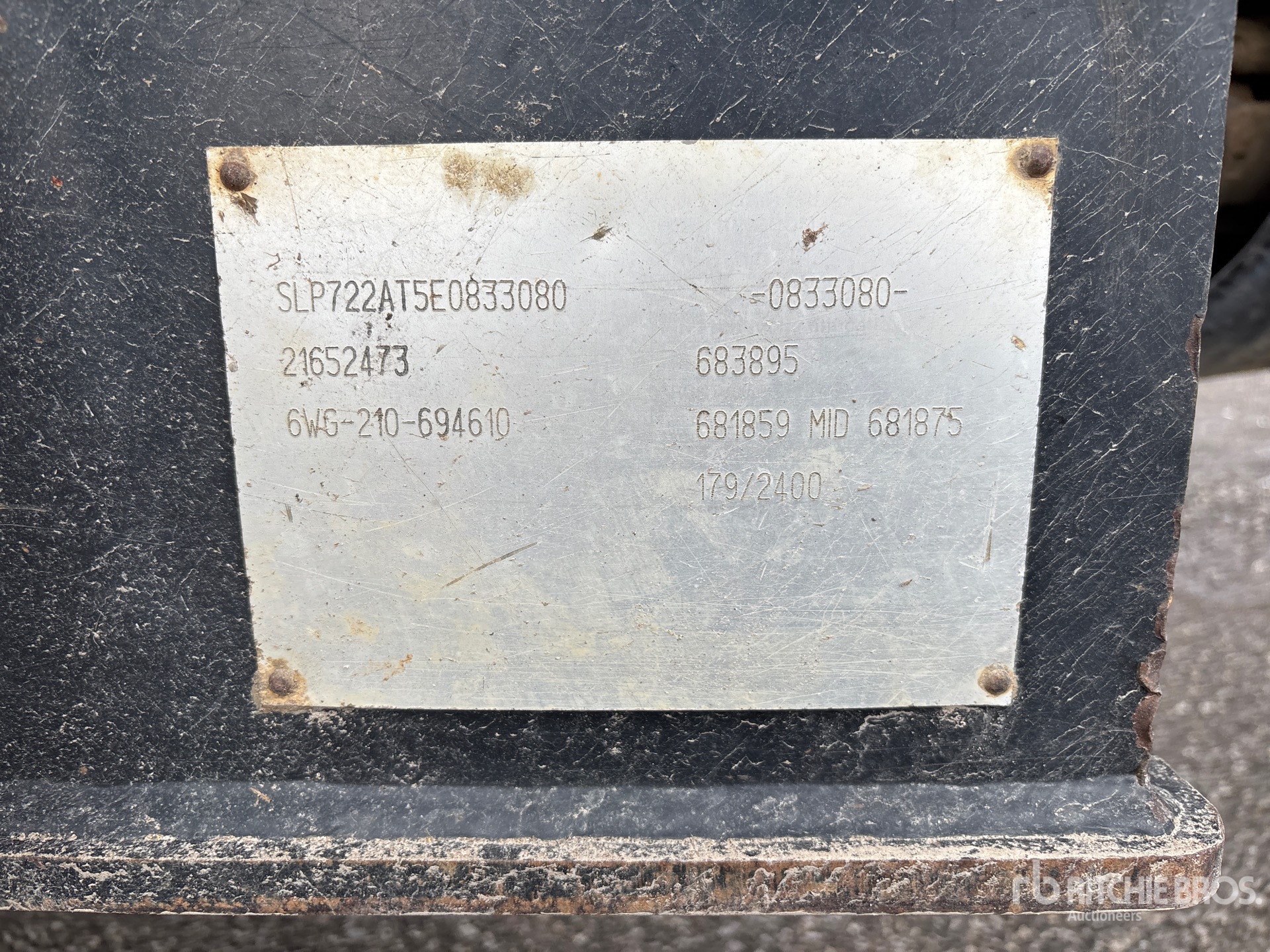

Serial Number:	SLP722AT5E0833080
Machine Location:	TORONTO, ON

Description:

Air Conditioner, Rear View Camera, Air Ride Seat, 2005 US EPA Label, 650/65r25 Tires

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Dimensions
Dump Ground Clearance	2 ft (1 m)
Dump Height	20 ft (6 m)
Ground Clearance	1 ft (0 m)
Overall Height	11 ft (3 m)
Overall Length	30 ft (9 m)
Overall Width	9 ft (3 m)
Wheelbase	17 ft (5 m)
Dump
Capacity - Heaped	16 cu yd (12 cu m)
Dump Angle	74 degrees
Lower Time	11 seconds
Raise Time	13 seconds
Rated Payload	44,092 lbs (20,000 kg)
Engine
Aspiration	Turbo/charged cooled
Displacement	409 cu in (6,701 cu cm)
Engine Model	QSB 6
Gross Power	260 hp (194 kw)
Max Torque	730 lbs ft (990 nm)
Net Power	242 hp (180 kw)
Number of Cylinders	6
Power Measured @	2,400 rpm
Torque Measured @	1,500 rpm
Operating Specifications
Alternator Supplied Amperage	70 amps
Cooling System Fluid Capacity	9 gal (33 l)
Engine Oil Capacity	4 gal (16 l)
Fuel Capacity	56 gal (210 l)
Hydraulic System Fluid Capacity	42 gal (160 l)
Operating Voltage	24 volts
Tire Size	20.5 R25
Transmission Fluid Capacity	11 gal (41 l)
Transmission
Max Speed	31 mph (50 kph)
Number of Forward Gears	6
Number of Reverse Gears	3
Transmission Type	Smoothshift
Weights
Front Axle - empty	16,535 lbs (7,500 kg)
Front Axle - loaded	25,287 lbs (11,470 kg)
Rear Axle - empty	18,078 lbs (8,200 kg)
Rear Axle - loaded	53,572 lbs (24,300 kg)
Total Empty	34,613 lbs (15,700 kg)
Total Loaded	78,705 lbs (35,700 kg)
