2023 JCB 215 For Sale in Milwaukee, WI

Name: 2023 JCB 215
Brand: JCB
SKU: 65760947
Price: 49500 USD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $49,500.00 USD

Apply for Financing

YES JCB

YES JCB Dealer Info

YES JCB Website

Click here to email YES JCB.

Click for Phone Number

Machine Info:

Hours:	49
Stock Number:	3235314
Machine Location:	MILWAUKEE, WI
More Information:	https://yesjcb.com/inventory/skid+steers/2023-jcb-215-milwaukee-wi-66310b087b185901420acb42/

Description:

Traded in for a large frame machine.,
2023 JCB 215 Skid Steer Loader. 10x16.5 10PR Lifemaster Tires. Cab/heat/AC. 7-Way JCB Controls. Standard Flow Hydraulics. Block Heater. 2 Speed w/creep. Vinyl Air Suspension Seat. Powered Quickhitch. 3.2 Series

Fully-welded chassis provides a rigid structure for maximum strength and reduced weight. A solid undercarriage with cast steel, triple-flanged rollers provides consistent performance on demanding terrain.

From the manufacturer:

Supplied by HeavyEquipmentData.com →

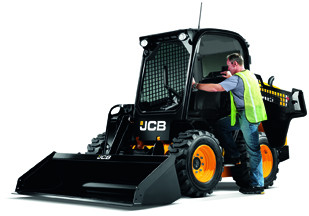

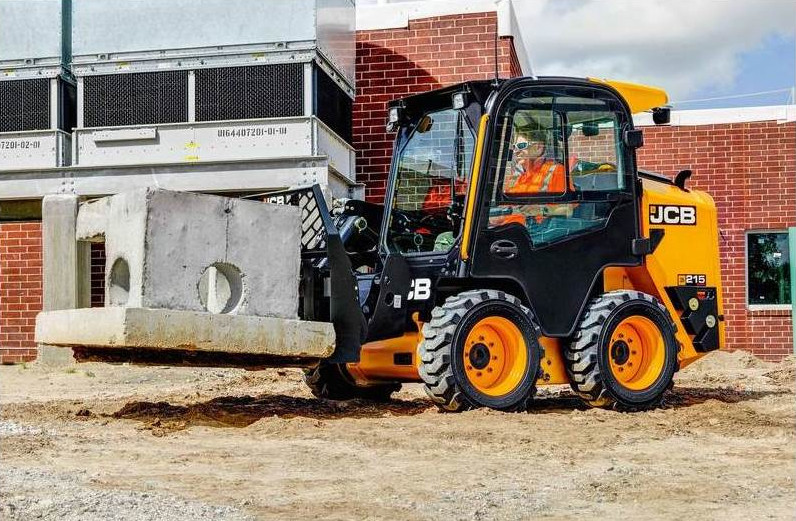

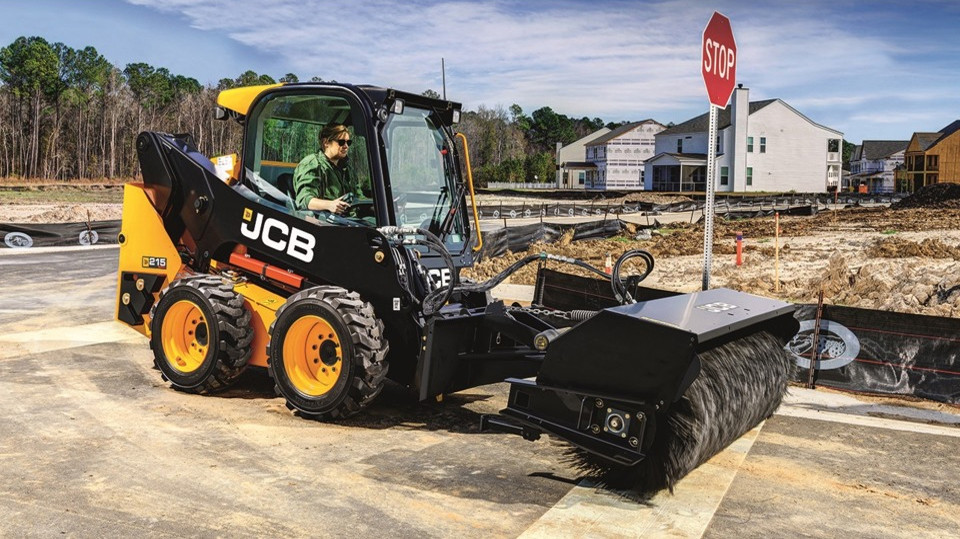

The JCB 215 is a skid steer loader designed for material handling, grading, loading, and general construction tasks. It is part of JCB's compact equipment range and is commonly used in landscaping, agriculture, site preparation, and utility work. The machine typically features a vertical lift path, compact frame, and hydraulic attachment capability for buckets, forks, augers, and other tools. The JCB 215 is built for maneuverability in confined spaces while supporting loader performance and operator visibility. Specifications may vary by market and configuration, including engine output, operating capacity, lift height, and auxiliary hydraulic flow.

Capacities
Engine coolant	3 gal (10 l)
Engine Oil	2 gal (8 l)
Fuel Tank	24 gal (92 l)
Hydraulic system	12 gal (44 l)
Dimensions
Angle of departure	25 degrees
Bucket corner Turning radius	7 ft (2 m)
Dig Depth	394 in (1,000 cm)
Dump angle	42 degrees
Dump Height	8 ft (2 m)
Ground Clearance	8 in (21 cm)
Loadover height	9,318 ft (2,840 m)
Max. reach @ full height	4 ft (1 m)
Overall height	7 ft (2 m)
Overall Length	138 in (349 cm)
Pin height	10 ft (3 m)
Quick hitch Turning radius	4 ft (1 m)
Reach @ ground level	4 ft (1 m)
Rear chassis turning radius	6 ft (2 m)
Rollback - Ground Level	30 degrees
Wheelbase	4 ft (1 m)
Width over tires	60 in (152 cm)
Engine
Alternator	100 amps
Aspiration	Turbo
Battery	12 V
Cooling system	Diesel
Displacement	2,482 cu in (40,673 cu cm)
Emissions Certification	EPA-T4F (EU St3B)
Engine Model	Kohler - KDI2504TCR/26A
Engine oil service interval	500 hours
Fuel	Diesel
Gross Power	74 hp (55 kw)
Hydraulically driven cooling fan	Yes
Max Torque	221 lbs ft (300 nm)
Power Measured @	2,400 rpm
Starter Motor	2 KW hp (1 kw)
Torque Measured @	1,200 rpm
General Specifications
ENGINE POWER HP (KW) (Since 2017)	74 (55KW) Kohler
ENGINE POWER HP (KW) (Since 2019)	74 (55)
ENGINE POWER HP (KW) (2020)	74 (55)
Engine Power HP (KW) (Since 2021)	74 (55)
Engine Power HP (KW) (2022)	74 (55)
Engine Power HP (KW) (2023)	74 (55)
Engine Power HP (KW) (2024)	74 (55)
Engine Power HP (KW) (2025)	74 (55)
MODEL (Since 2017)	215
MODEL (2019)	215
MODEL (2020)	215
OPERATING LOAD LBS. (KG) (Since 2017)	2,158 (979)
OPERATING WIDTH IN. (CM) (Since 2017)	65 (165)
OPERATING WIDTH IN. (CM) (Since 2019)	66 (167)
OPERATING WIDTH IN. (CM) (2020)	66 (167)
Operating Width IN. (CM) (Since 2021)	66 (167)
Operating Width IN. (CM) (2022)	66 (167)
Operating Width IN. (CM) (Since 2023)	66 (168)
Operating Width IN. (CM) (2024)	66 (168)
Operating Width IN. (CM) (2025)	66 (168)
Rated Operating Capacity LBS. (KG) (Since 2025)	2,112 (958)
RATED OPERATING CAPACITY LBS. (KG) (50%) (Since 2019)	2112 (958)
RATED OPERATING CAPACITY LBS. (KG) (50%) (2020)	2112 (958)
Rated Operating Capacity LBS. (KG) 50% (Since 2021)	2112 (958)
Rated Operating Capacity LBS. (KG) 50% (2022)	2112 (958)
Rated Operating Capacity LBS. (KG) 50% (Since 2023)	2,112 (958)
Rated Operating Capacity LBS. (KG) 50% (2024)	2,112 (958)
Hydraulic System
Pump Flow Capacity	19 gpm (70 lpm)
Relief Valve Pressure	484 psi
Loader
Breakout Force	4,899 lbs (2,222 kg)
Bucket Capacity	1 cu yd (0 cu m)
Bucket Width	66 in (168 cm)
Loader lift capacity with bucket	4,592 lbs (2,083 kg)
Operating Load Rating	2,158 lbs (979 kg)
Operating Width	65 in (165 cm)
Tipping load - no counterweight	4,222 lbs (1,915 kg)
Operating Specifications
Operational Weight	7,253 lbs (3,290 kg)
Tires
Standard	10 x 16.5 - 8 PR Xtra Wall Off Road
Transmission
Travel Speed	8 mph (12 kph)
