Equipment ↠ JCB ↠ Wheel Loaders ↠ 2025 JCB TM420 AGRI

2025 JCB TM420 AGRI For Sale in Sabina, OH

Name: 2025 JCB TM420 AGRI
Brand: JCB
SKU: 87487055
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: Call for Price

AES JCB

AES JCB Dealer Info

Click here to email AES JCB.

Click for Phone Number

Machine Info:

Machine Location:	SABINA, OH
More Information:	https://aesjcb.com/inventory/loaders/2025-jcb-tm420+agri-sabina-oh-69f506dea65f9db02b082746/

Description:

2025 JCB, TM420 AGRI Wheel Loaders, NEW JCB TM420 Agri Telescopic Handler Available to Order!Ag Package8500 lbs lift capacity17' 8" Lift Height145 HPCall today!Serial Number:

From the manufacturer:

Supplied by HeavyEquipmentData.com →

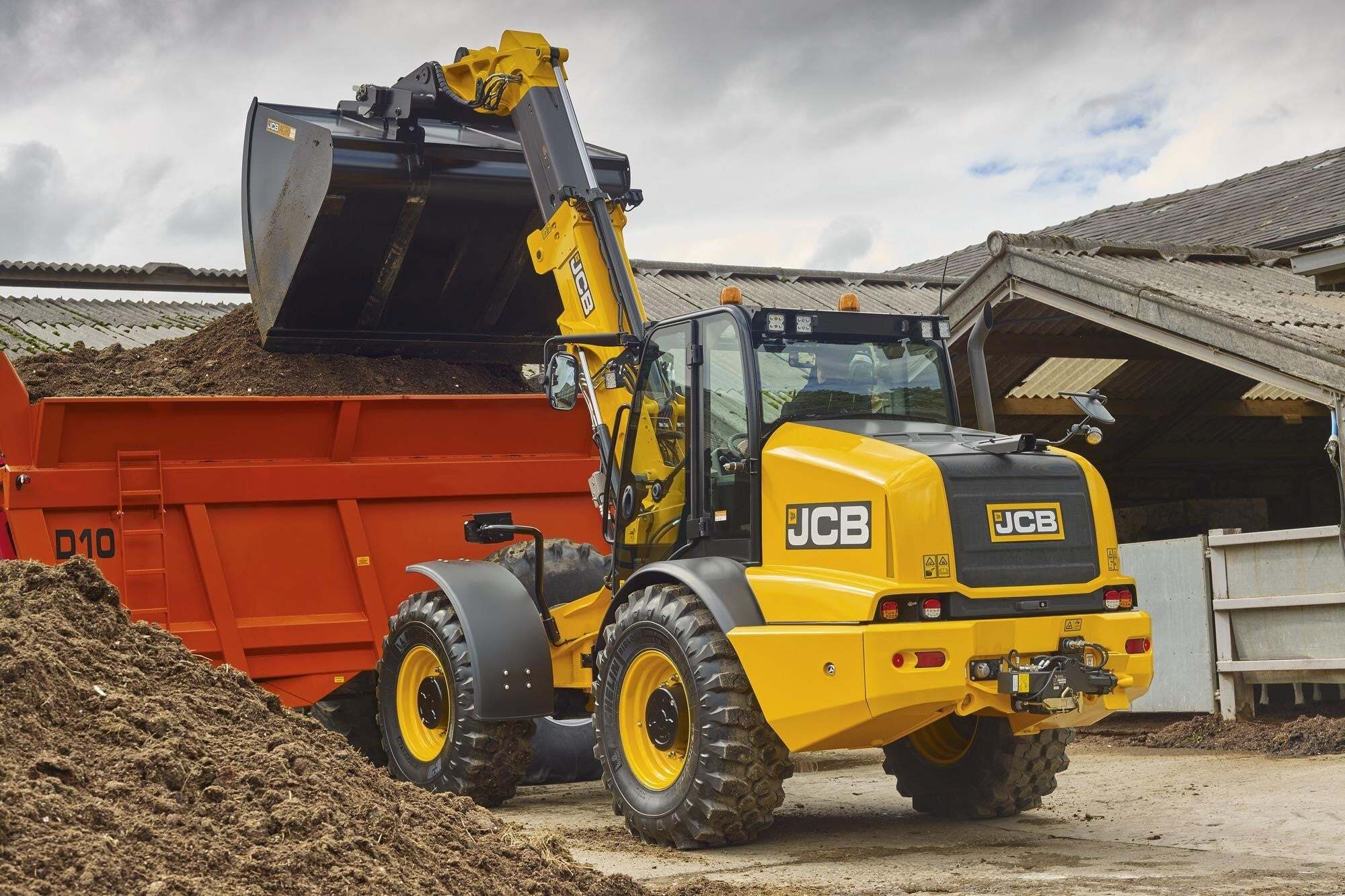

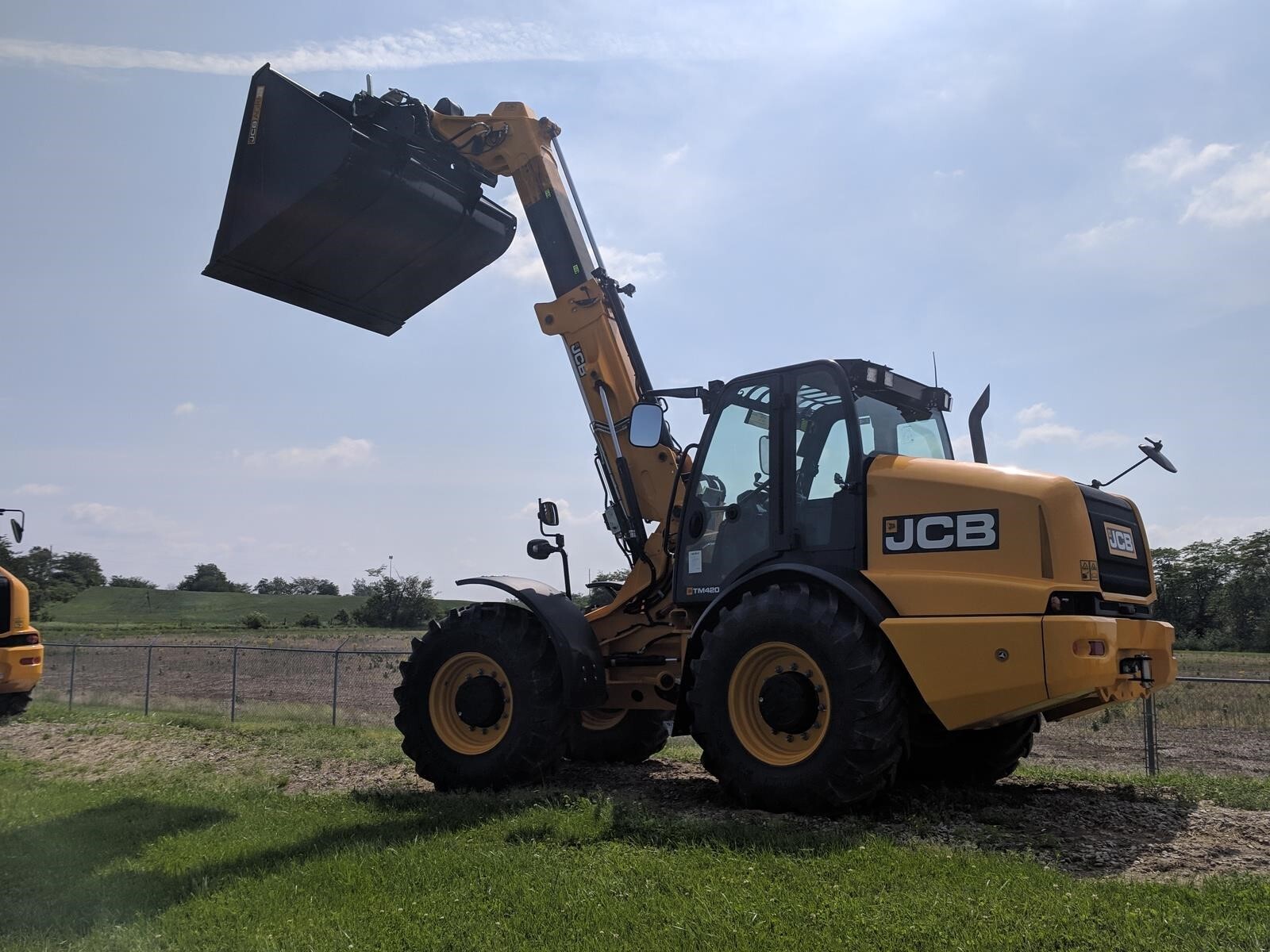

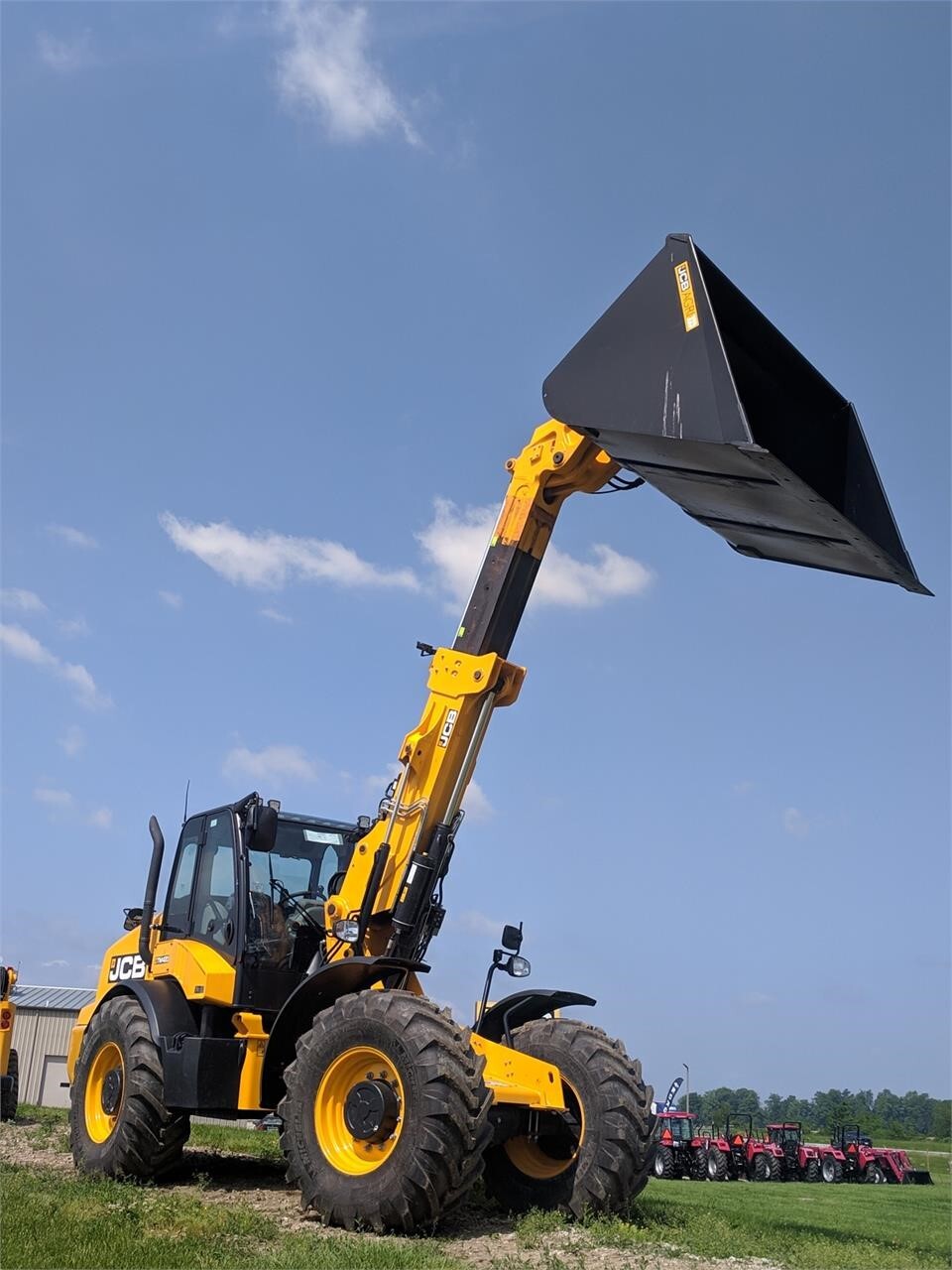

The JCB TM420 is a versatile wheel loader designed for heavy-duty material handling and construction tasks. Featuring robust engine performance, the TM420 delivers efficient power and fuel economy for demanding job sites. Its advanced hydraulic system ensures precise control and smooth operation, enhancing productivity in loading, lifting, and transporting materials. The wheel loader's durable frame and high-capacity bucket provide strength and reliability for various applications, including agriculture, construction, and industrial use. Operator comfort is prioritized with an ergonomic cab design, offering excellent visibility and intuitive controls. The JCB TM420 wheel loader combines durability, efficiency, and versatility for optimal performance in diverse environments.

Capacities
DEF Tank	8 gal (29 l)
Dropbox	0 gal (2 l)
Engine Oil	4 gal (14 l)
Fuel Tank	42 gal (160 l)
Hydraulic oil tank	26 gal (97 l)
Transmission	5 gal (19 l)
Dimensions
Center of front axle to counterweight (Pusher)	6 ft (2 m)
Dump Height	15 ft (4 m)
Dump reach	29 in (74 cm)
Ground Clearance	2 ft (0 m)
Height - Top of Cab	9 ft (3 m)
Height to top of boom pivot	78 in (198 cm)
Hinge Pin - Max Height	19 ft (6 m)
Overall length	23 ft (7 m)
Turning Radius - Inside	13 ft (4 m)
Wheel track	73 in (186 cm)
Wheelbase	9 ft (3 m)
Width Over Tires	8 ft (2 m)
Electrical System
Alternator	150 Amp Hour
Battery capacity	120 Amp Hour
Engine
Aspiration	Turbocharged-charge cooled
Capacity	1 gal (5 l)
Engine Make	JCB
Engine Model	EcoMAX
Gross Power	145 hp (108 kw)
Net Power	135 hp (101 kw)
Number of Cylinders	4
Power Measured @	2,200 rpm
Torque Measured @	1,500 rpm
Hydraulic System
3771	260 bar psi
Pump Flow Capacity	42 gpm (160 lpm)
Pump Type	Variable displacement piston pump
Operating Specifications
Operating Weight	21,010 lbs (9,530 kg)
Transmission
Make	JCB
Max Speed - Forward	25 mph (40 kph)
Transmission Type	Powershift
Weights
Front axle weight	7,231 lbs (3,280 kg)
Rear axle weight	13,779 lbs (6,250 kg)
