2017 JLG 1930 ES For Sale in Orlando, Fl

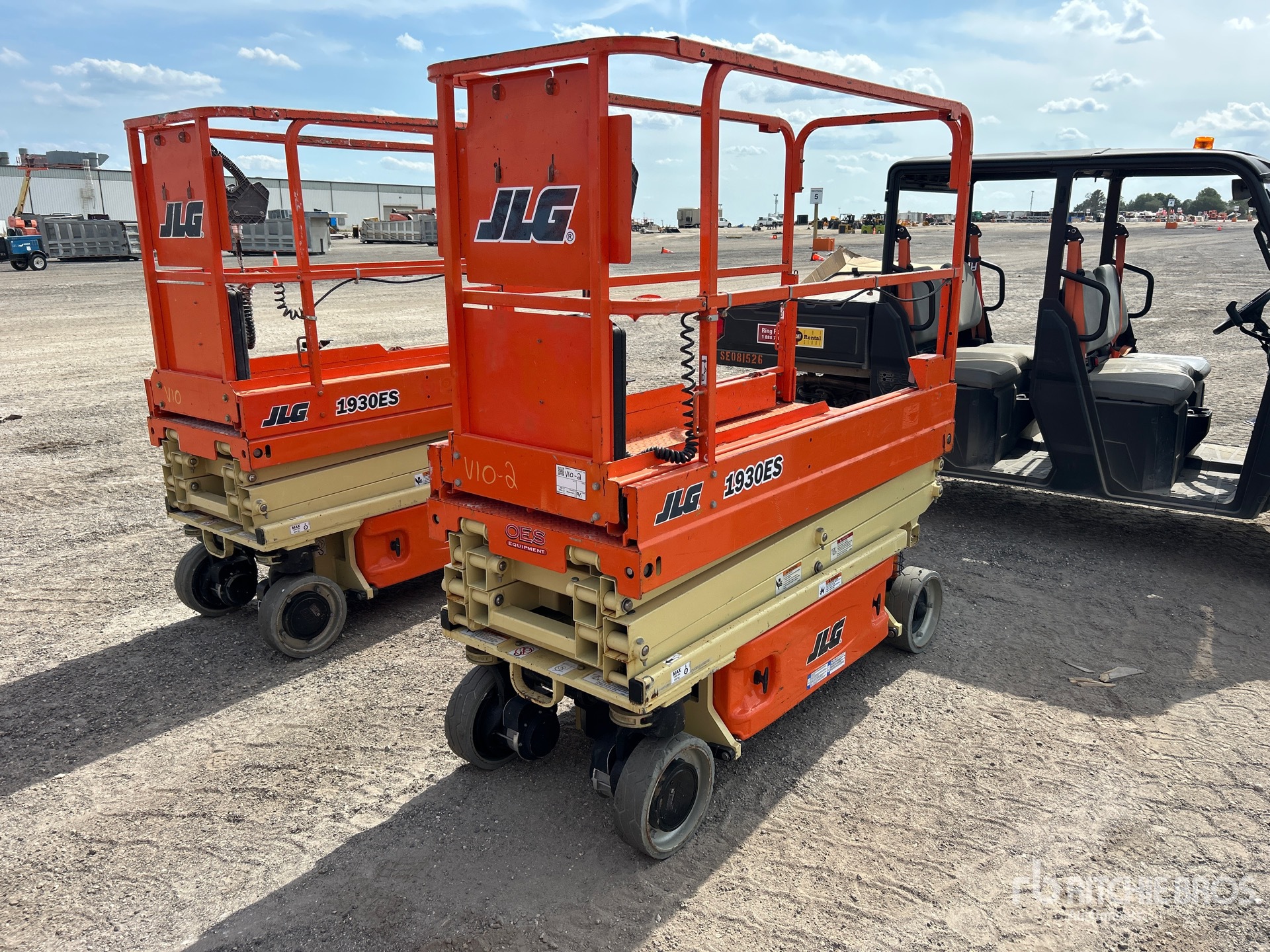

Name: 2017 JLG 1930 ES
Brand: JLG
SKU: 87463695
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-21 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

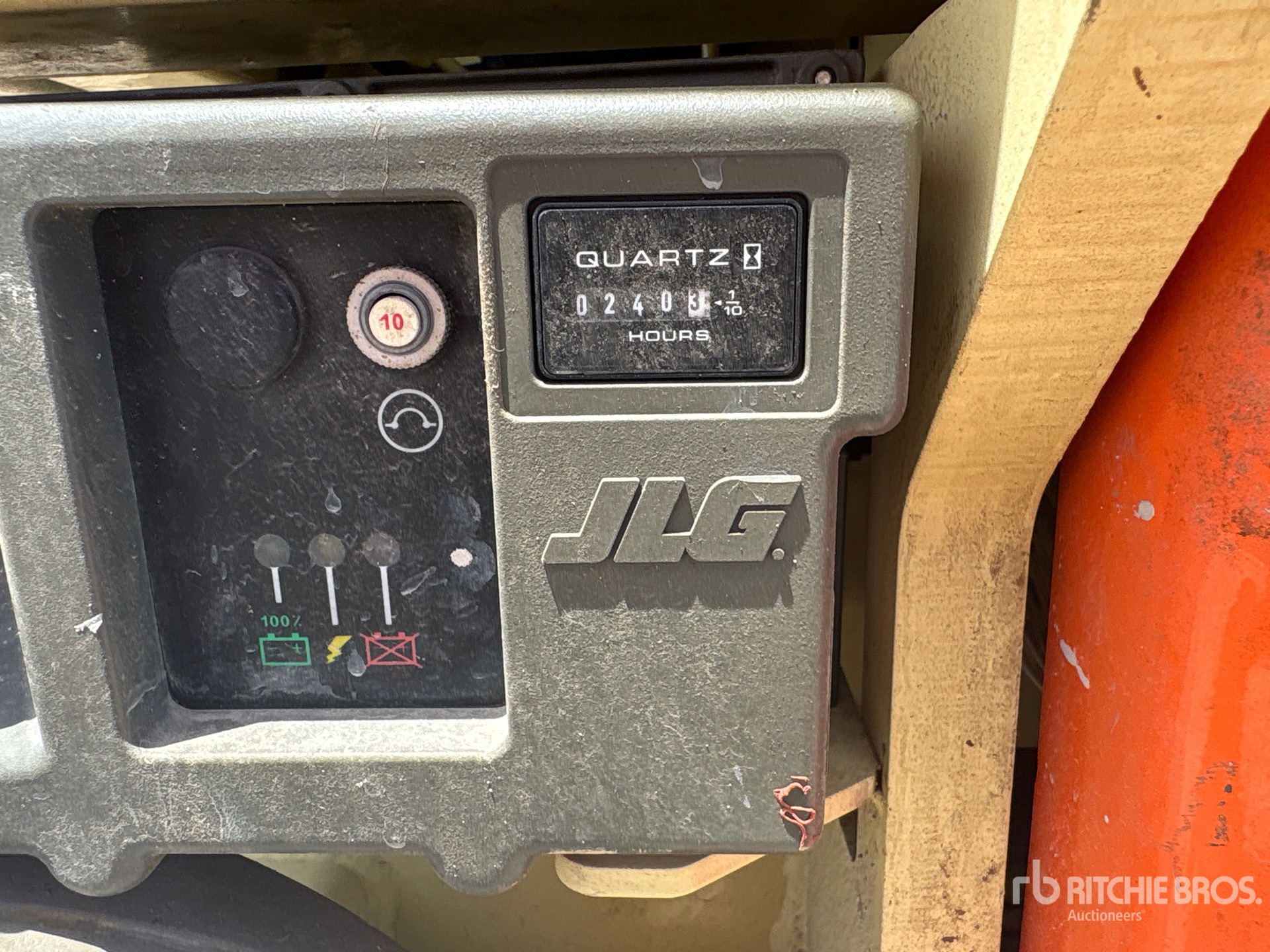

Hours:	240
Serial Number:	M200015051
Machine Location:	ORLANDO, FL

Description:

Located in Lane 113 Spot 2, 18 ft Max Platform Height, 500 lb Max Weight Capacity, Platform Extension, Power to Platform, Solid Non-Marking Tires, Upper Control Box Operators please be aware that these aerial units require proper safety harness and personal protective equipment to function test as well as for loading, Closing Time: 2026-05-21 10:11:36 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The JLG 1930 ES is a compact electric scissor lift in the aerial lifts category, designed for indoor and low-level maintenance access. It features a 19-foot platform height and a narrow 30-inch chassis, making it suitable for tight work areas, warehouses, retail facilities, and construction finishing tasks. The electric drive system supports quiet, zero-emission operation for indoor use. The 1930 ES is commonly used for material handling, installation, inspection, and facility maintenance. Its small footprint, maneuverability, and standard scissor lift design make it a widely recognized model in the JLG aerial lift lineup for access work on level surfaces.

Brakes
Brakes Type	Electric Friction
Dimensional Data
Ground Clearance	4 in (10 cm)
Machine Height	7
Machine Height - Rails Folded	5 ft (2 m)
Machine Length	6 ft (2 m)
Machine Width	3 ft (1 m)
Overall Height	7 ft (2 m)
Overall Length	6 ft (2 m)
Platform Dimension A	3 ft (1 m)
Platform Dimension B	6 ft (2 m)
Platform Extension Length	3 ft (1 m)
Platform Height	19 ft (6 m)
Platform Height - Lowered	3 ft (1 m)
Platform Railing Height	4 ft (1 m)
Tyre Size	32 x 10 cm
Wheelbase	5 ft (2 m)
Dimensions
Ground Clearance	4 in (10 cm)
Height w/ Rails	7 ft (2 m)
Overall Height	7 ft (2 m)
Overall Length	74 in (188 cm)
Overall Width	3 ft (1 m)
Platform Dimension A	3 ft (1 m)
Platform Dimension B	6 ft (2 m)
Turning Radius	6 ft (2 m)
Wheelbase	5 ft (2 m)
Engine
Battery Amp Hours	4 x 6V 220 amp-hour
Charger Amps	20
Maximum Ground Bearing Pressure	109 psi
Number of Batteries	4
System Voltage	24 V
General Specifications
Brakes	Electric Friction
Capacity - Hydraulic Reservoir	1 gal (5 l)
Drive Speed - Platform Elevated	0.80 km/h / 0.5
Drive Speed - Platform Lowered	4.80 km/h / 3
Drive System	24V Electric
Gradeability	25%
Ground Bearing Pressure	8.65 Kg/cm2
Hydraulic Pump	Fixed Displacement Gear
Lift Time	20 sec.
Lower Time	30 sec.
Machine Weight	1506 kg / 3320.2 lb
Machine Weight (ANSI Export & CSA)	1230 kg / 2711.7 lb
Machine Weight (CE & GOST)	1506 kg / 3320.2 lb
Maximum Drive Height	19 ft (6 m)
Maximum Lift Height	19 ft (6 m)
Platform Capacity - Extension	120 kg / 264.6 lb
Platform Capacity - Unrestricted	230 kg / 507.1 lb
Turning Radius - Outside	6 ft (2 m)
Performance
Drive Speed - Platform Elevated	1 mph (1 kph)
Drive Speed - Platform Lowered	3 mph (5 kph)
Drive System	24V Electric
Gradeability	25%
Hydraulic Pump Type	Fixed Displacement Gear
Hydraulic System Fluid Capacity	1 gal (5 l)
Max Speed	3 mph (5 kph)
Maximum Drive Height	19 ft (6 m)
Maximum Lift Height	19 ft (6 m)
Operating Weight	271 lbs (123 kg)
Tire Fill/Type	Solid Non-marking
Tire Size	12.5x4 in
Platform
Deck Extension	36 in (90 cm)
Height of Rails	4 ft (1 m)
Lift Time	22 seconds
Lower Time	28 seconds
Max Platform Height	2 ft (1 m)
Max Platform Weight Capacity	501 lbs (227 kg)
Max Working Height	25 ft (8 m)
Platform Capacity - Extension	250 lbs (113 kg)
Platform Capacity - Unrestricted	500 lbs (227 kg)
Platform Inner Length	74 in (187 cm)
Platform Inner Width	30 in (76 cm)
Platform Railing Height	19 ft (6 m)
Power Source
Batteries	4 x 6V 220 A-h
Charger	20 A automatic
Reach Specifications
Platform Height	19 ft (6 m)
Working Height	25 ft (8 m)
