2004 JLG 1930ES For Sale in Chicago, Il

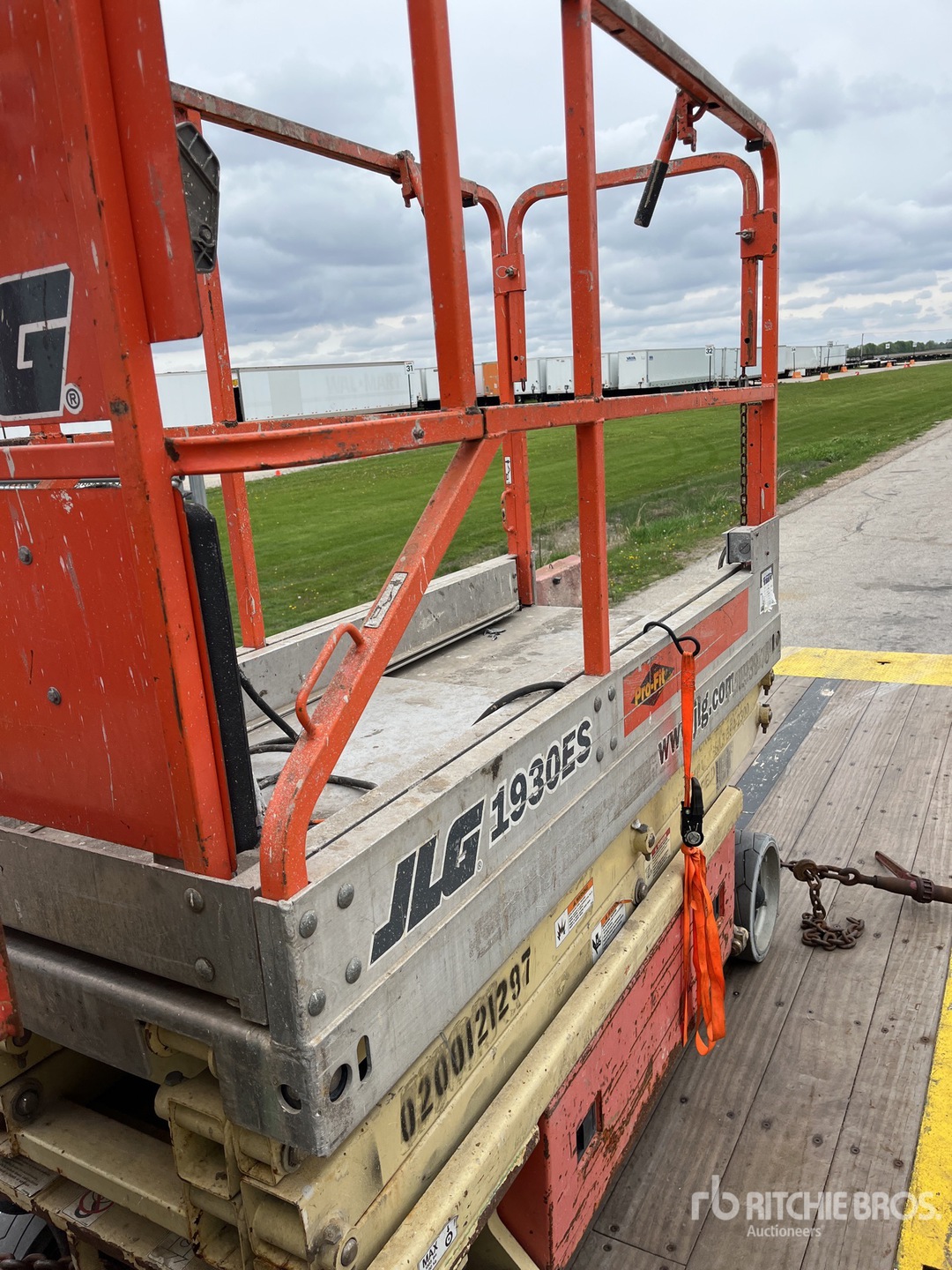

Name: 2004 JLG 1930ES
Brand: JLG
SKU: 87622547
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-12 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

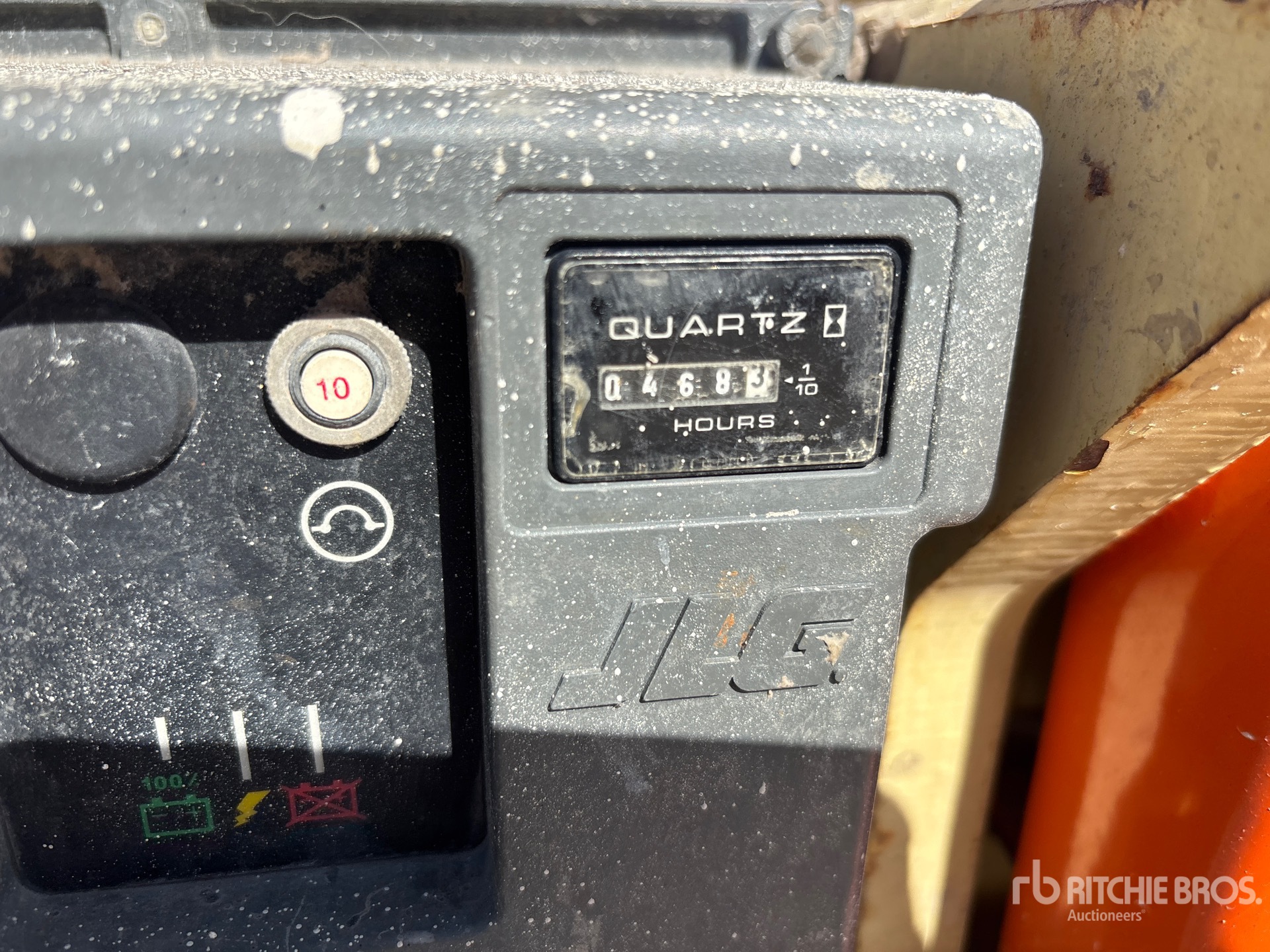

Hours:	468

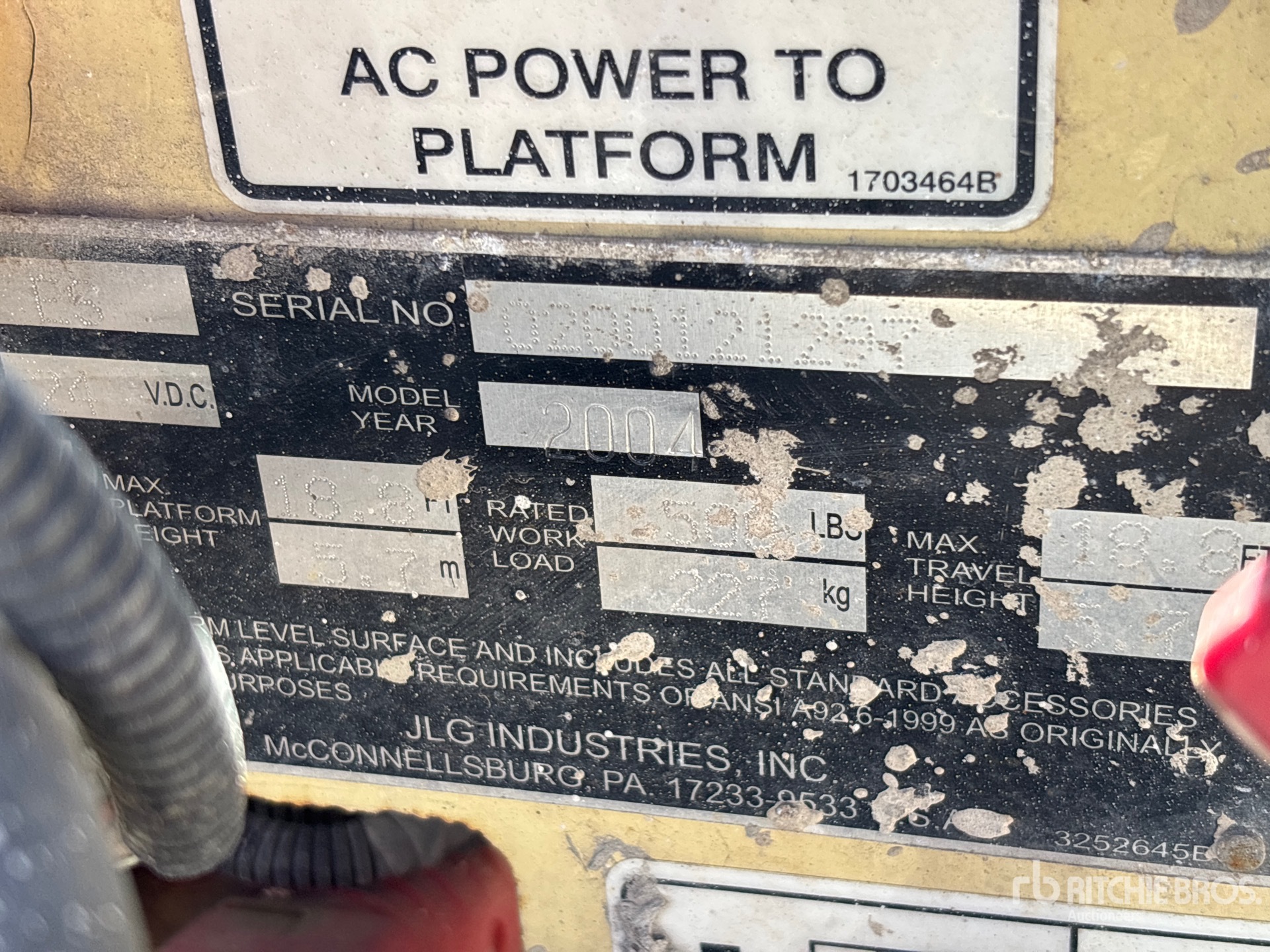

Serial Number:	0200121297
Machine Location:	CHICAGO, IL

Description:

18 ft 8 in Max Platform Height, 550 lb Max Weight Capacity, Platform Extension, Power to Platform, Solid Non-Marking Tires, Upper Control Box Please Be Aware That All Aerial Equipment Requires A Self-Supplied Safety Harness And Trained Personnel To Operate On All Ritchie Bros. Properties - On Lifts ;, Closing Time: 2026-05-12 03:48:40 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The JLG 1930ES is a compact electric aerial lift designed for indoor and outdoor use in construction, maintenance, and industrial applications. Featuring a working height of 25 feet and a platform capacity of 500 pounds, the 1930ES offers precise maneuverability with zero-emission electric power. Its narrow width and lightweight design enable easy transport and access in tight spaces. The JLG 1930ES includes a roll-out extension deck for added reach and versatility. This aerial lift provides reliable performance, enhanced safety features, and low operating costs, making it suitable for tasks such as electrical work, painting, and facility maintenance.

Brakes
Brakes Type	Electric Friction
Dimensional Data
Ground Clearance	4 in (10 cm)
Machine Height	7
Machine Height - Rails Folded	5 ft (2 m)
Machine Length	6 ft (2 m)
Machine Width	3 ft (1 m)
Overall Height	7 ft (2 m)
Overall Length	6 ft (2 m)
Platform Dimension A	3 ft (1 m)
Platform Dimension B	6 ft (2 m)
Platform Extension Length	3 ft (1 m)
Platform Height	19 ft (6 m)
Platform Height - Lowered	3 ft (1 m)
Platform Railing Height	4 ft (1 m)
Tyre Size	32 x 10 cm
Wheelbase	5 ft (2 m)
Dimensions
Ground Clearance	4 in (10 cm)
Height w/ Rails	7 ft (2 m)
Overall Height	7 ft (2 m)
Overall Length	74 in (188 cm)
Overall Width	3 ft (1 m)
Platform Dimension A	3 ft (1 m)
Platform Dimension B	6 ft (2 m)
Turning Radius	6 ft (2 m)
Wheelbase	5 ft (2 m)
Engine
Battery Amp Hours	4 x 6V 220 amp-hour
Charger Amps	20
Maximum Ground Bearing Pressure	109 psi
Number of Batteries	4
System Voltage	24 V
General Specifications
Brakes	Electric Friction
Capacity - Hydraulic Reservoir	1 gal (5 l)
Drive Speed - Platform Elevated	0.80 km/h / 0.5
Drive Speed - Platform Lowered	4.80 km/h / 3
Drive System	24V Electric
Gradeability	25%
Ground Bearing Pressure	8.65 Kg/cm2
Hydraulic Pump	Fixed Displacement Gear
Lift Time	20 sec.
Lower Time	30 sec.
Machine Weight	1506 kg / 3320.2 lb
Machine Weight (ANSI Export & CSA)	1230 kg / 2711.7 lb
Machine Weight (CE & GOST)	1506 kg / 3320.2 lb
Maximum Drive Height	19 ft (6 m)
Maximum Lift Height	19 ft (6 m)
Platform Capacity - Extension	120 kg / 264.6 lb
Platform Capacity - Unrestricted	230 kg / 507.1 lb
Turning Radius - Outside	6 ft (2 m)
Performance
Drive Speed - Platform Elevated	1 mph (1 kph)
Drive Speed - Platform Lowered	3 mph (5 kph)
Drive System	24V Electric
Gradeability	25%
Hydraulic Pump Type	Fixed Displacement Gear
Hydraulic System Fluid Capacity	1 gal (5 l)
Max Speed	3 mph (5 kph)
Maximum Drive Height	19 ft (6 m)
Maximum Lift Height	19 ft (6 m)
Operating Weight	271 lbs (123 kg)
Tire Fill/Type	Solid Non-marking
Tire Size	12.5x4 in
Platform
Deck Extension	36 in (90 cm)
Height of Rails	4 ft (1 m)
Lift Time	22 seconds
Lower Time	28 seconds
Max Platform Height	2 ft (1 m)
Max Platform Weight Capacity	501 lbs (227 kg)
Max Working Height	25 ft (8 m)
Platform Capacity - Extension	250 lbs (113 kg)
Platform Capacity - Unrestricted	500 lbs (227 kg)
Platform Inner Length	74 in (187 cm)
Platform Inner Width	30 in (76 cm)
Platform Railing Height	19 ft (6 m)
Power Source
Batteries	4 x 6V 220 A-h
Charger	20 A automatic
Reach Specifications
Platform Height	19 ft (6 m)
Working Height	25 ft (8 m)
