2017 JLG 800 AJ For Sale in Fort Worth, Tx

Name: 2017 JLG 800 AJ
Brand: JLG
SKU: 87701845
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-13 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

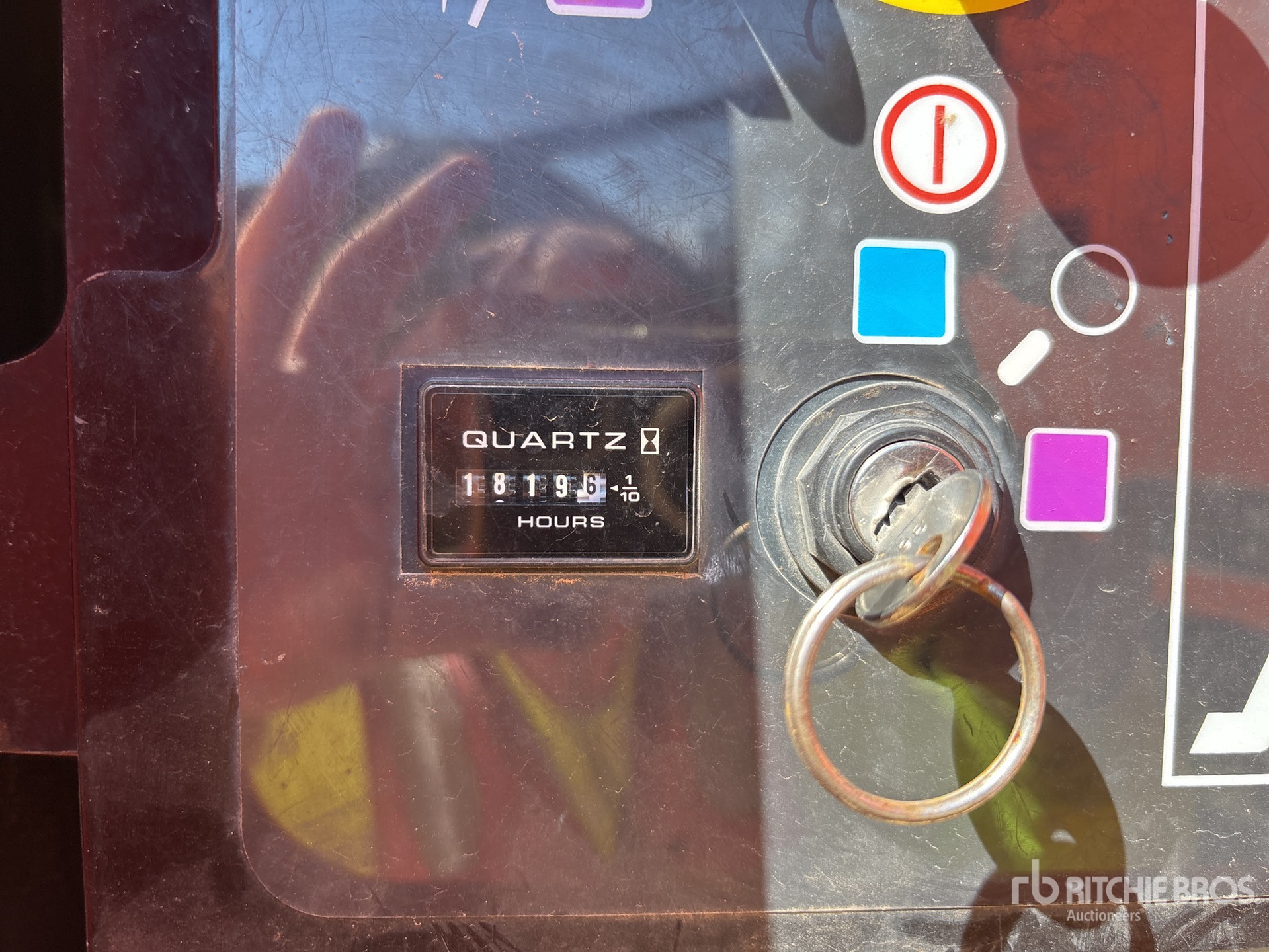

Hours:	1819

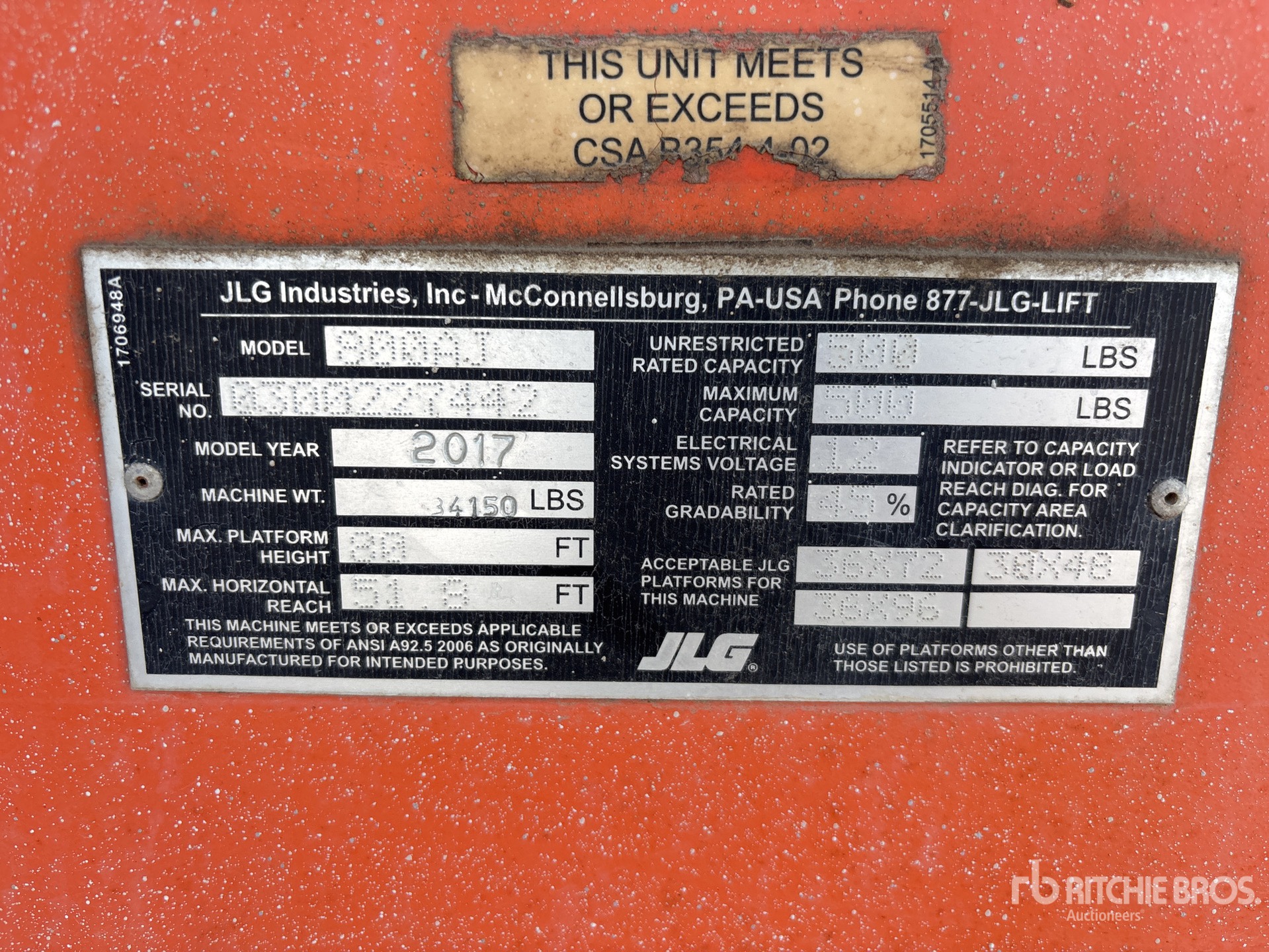

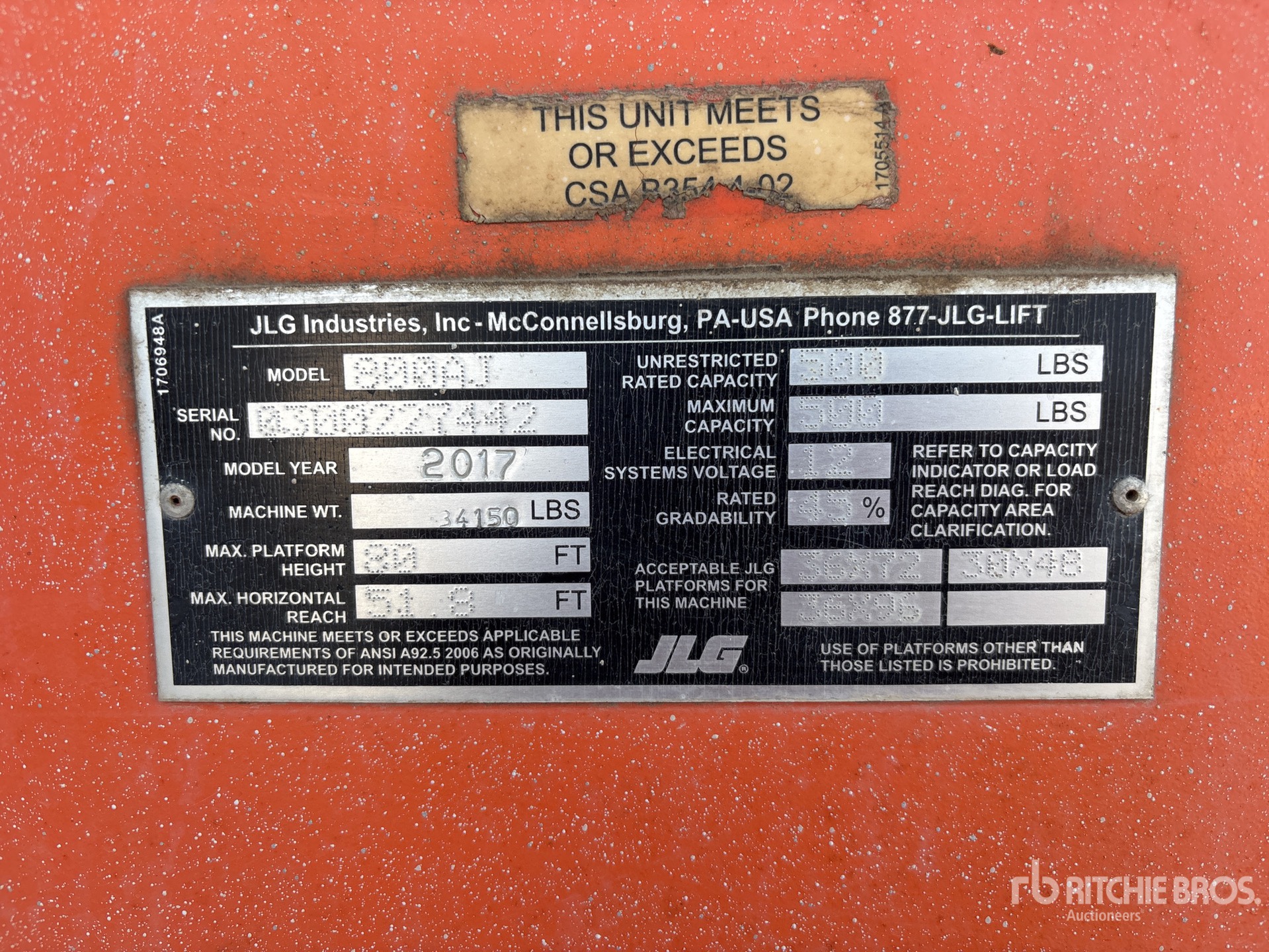

Serial Number:	300227442
Machine Location:	FORT WORTH, TX

Description:

80 ft Max Platform Height, 500 lb Max Weight Capacity, Jib, Power to Platform, 2016 US EPA Label, Deutz 4 Cylinder 67 hp 2.9 L Diesel Engine, 15-625NHS Tires Aerial units require proper safety harness, lanyard, and PPE to function test and load ;, Closing Time: 2026-05-13 01:54:04 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

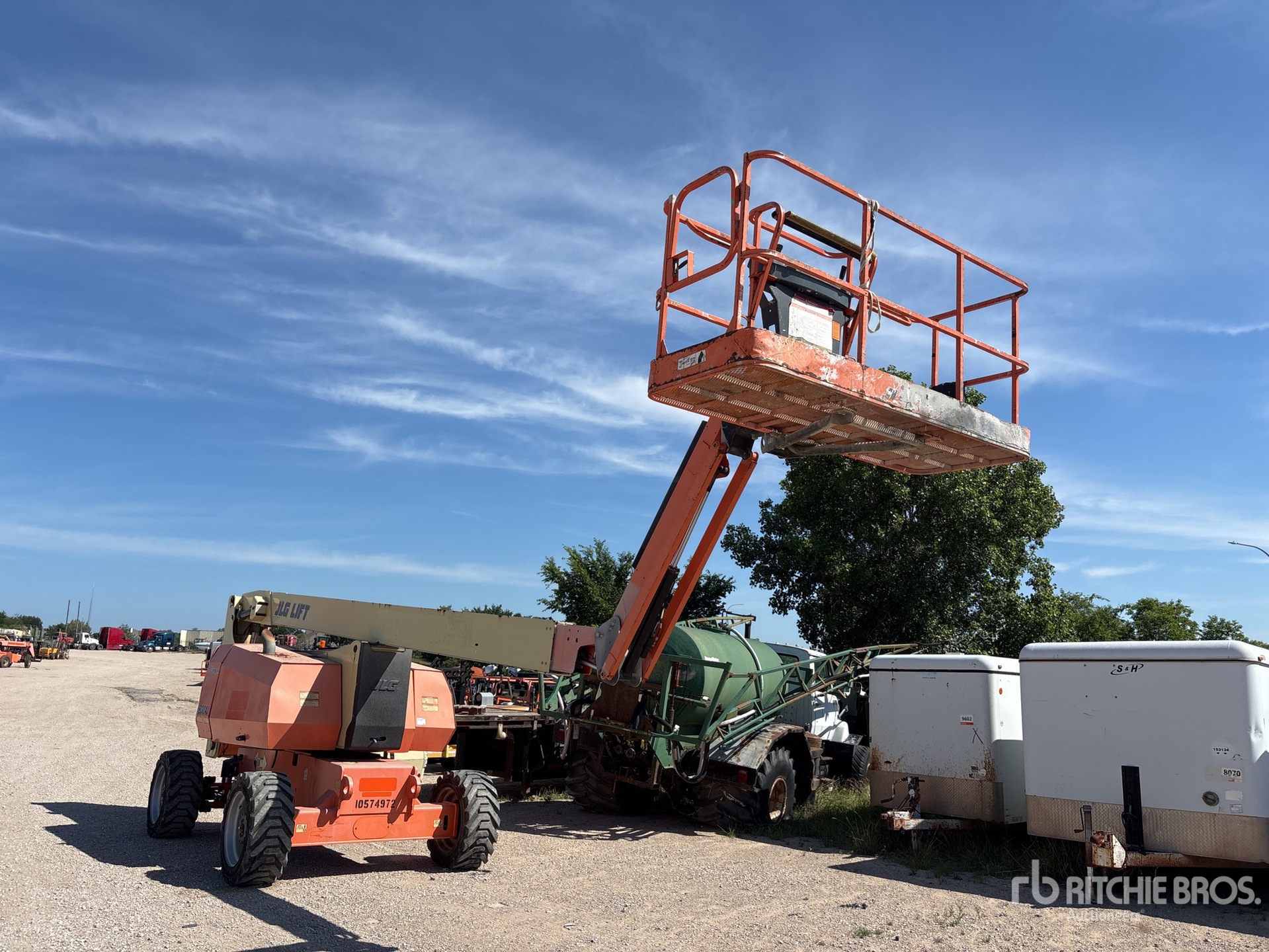

The JLG 800AJ is a diesel-powered articulating boom lift in the aerial lifts category, designed for elevated access on construction, maintenance, and industrial job sites. It features a working height of approximately 80 feet and an articulating boom with a jib for up-and-over reach and precise positioning. The 800AJ is commonly used for tasks requiring access around obstacles and over structures. Typical applications include building maintenance, steel erection, electrical work, and facility installation. JLG aerial lifts are known for rugged jobsite use, and the 800AJ is part of the company's lineup of boom lifts for outdoor access and elevated work platforms.

Dimensions
Boom Type/Size	AT/80 ft
Ground Clearance	12 in (30 cm)
Overall Height - mast lowered	10 ft (3 m)
Overall Length	37 in (93 cm)
Overall Width	8 ft (2 m)
Platform Dimension A	3 ft (1 m)
Platform Dimension B	8 ft (2 m)
Stowed Height	9 ft (3 m)
Stowed Width	8 ft (2 m)
Up and Over Height	32 ft (10 m)
Wheelbase	10 ft (3 m)
Engine
Diesel Engine Power	67 hp (50 kw)
Diesel Engine Type	DEUTZ TD 2.9L Tier 4 Final
Dual Fuel Engine Power	84 hp (63 kw)
Dual Fuel Engine Type	Ford MSG425
Engine Model	F4M2011
Fuel Type	Diesel
Gross Power	64 hp (48 kw)
Maximum Ground Bearing Pressure	76 psi
System Voltage	12 V
Performance
Drive Speed	3 mph (5 kph)
Fuel Capacity	39 gal (148 l)
Hydraulic System Fluid Capacity	40 gal (151 l)
Max Speed	3 mph (5 kph)
Operating Weight	34,302 lbs (15,559 kg)
Swing	360 degrees
Swing Type	Continuous
Tire Fill/Type	Pneumatic
Tire Size	445/55D x 19.5
Platform
Max Horizontal Reach	52 ft (16 m)
Max Platform Height	80 ft (24 m)
Max Platform Weight Capacity	501 lbs (227 kg)
Platform Capacity - Unrestricted	500 lbs (227 kg)
Platform Inner Length	96 in (244 cm)
Platform Inner Width	36 in (91 cm)
Platform Rotation	180 degrees
Tires
Tire Size	385/65x19.5 [445/55x19.5-4wd]
Transmission
4WD	avail
