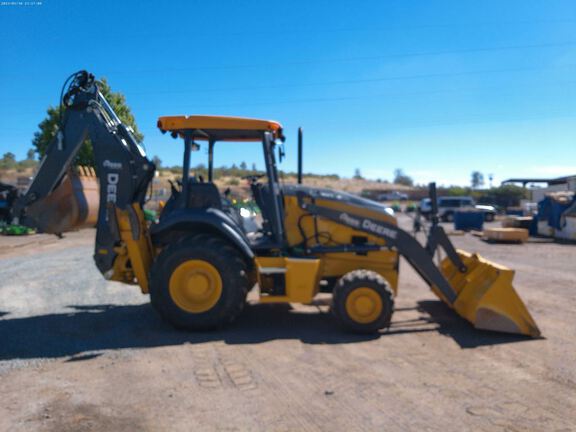

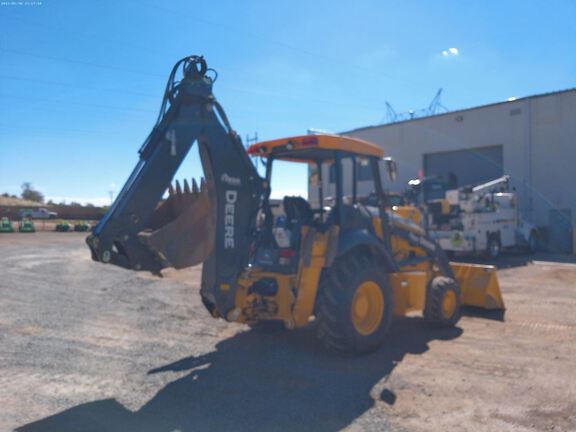

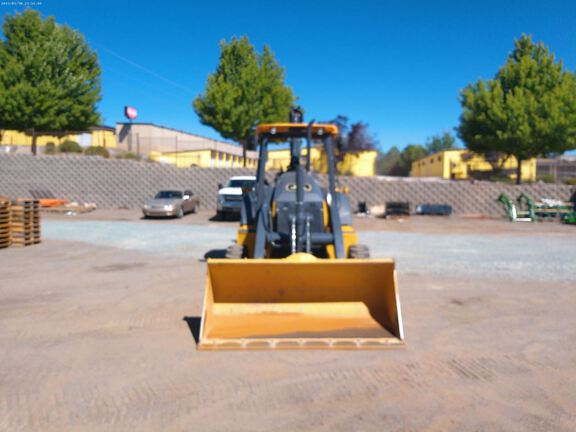

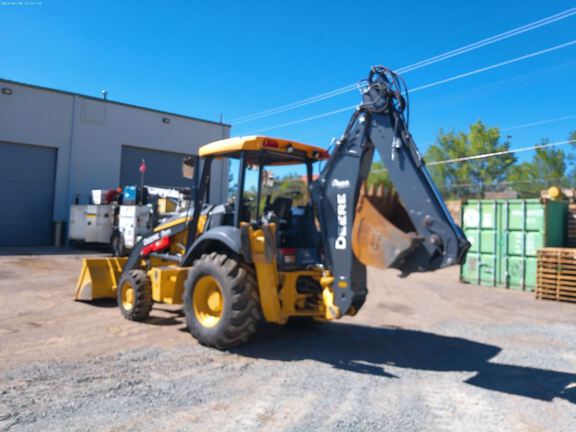

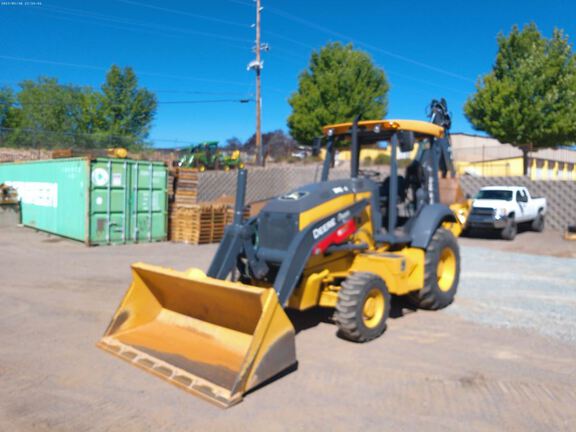

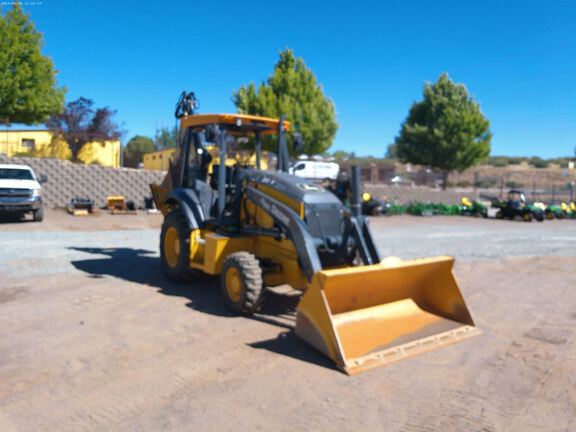

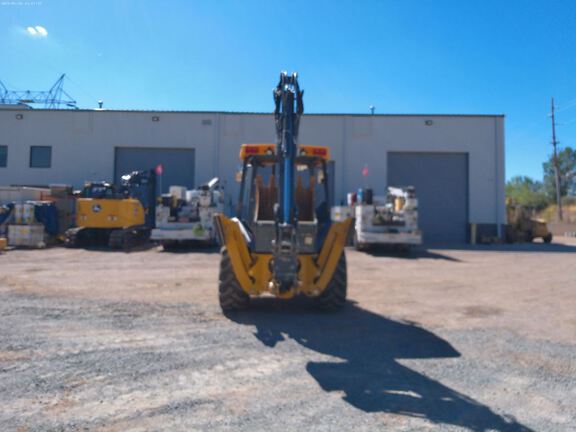

2023 John Deere 310G For Sale in PRESCOTT, AZ

Name: 2023 John Deere 310G
Brand: John Deere
SKU: 81921337
Price: 120430 USD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $120,430.00 USD

Apply for Financing

RDO Equipment Company

RDO Equipment Company Dealer Info

RDO Equipment Company Website

Click here to email RDO Equipment Company.

Contact: Sales Team

Click for Phone Number

Machine Info:

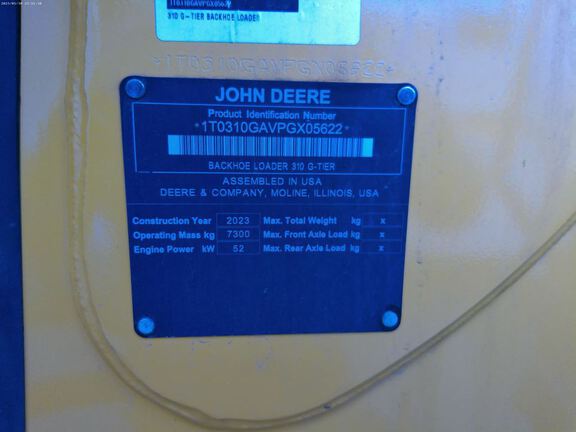

Serial Number:	1T0310GAVPGX05622
Stock Number:	Z016859
Machine Location:	PRESCOTT, AZ

Description:

BACKHOE LOADER -, ENGLISH OPS MANUAL - CANOPY - MFWD W/ LIMITED OPEN DIFFERE - SINGLE BATTERY - EXTENDIBLE DIPPERSTICK - AUXILIARY W/ONE WAY FLOW - PILOT CONTROLS 2 LEVER - OIL SAMPLING PORTS - REAR&FRONT VIEW MIRROR - CANOPY HEADLINER/FLOOR MAT - STABILIZER GUARD

Machine Details:

General Specifications

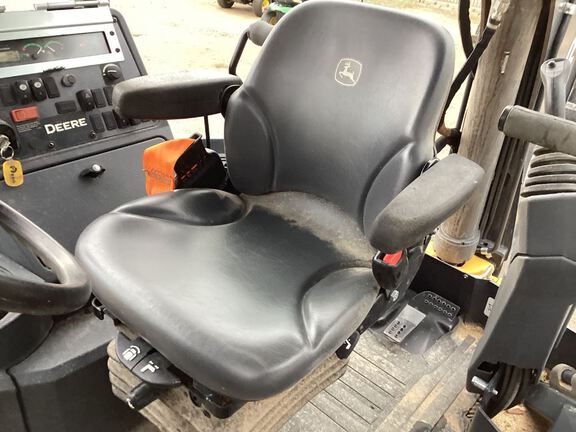

Operators Station	Pilot Controls
Powertrain	4X4
Arms	Extendible Dipper
Tires	19.5 Tires

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The John Deere 310G is a backhoe loader designed for general construction, utility, and site preparation work. It combines a front loader bucket with a rear backhoe attachment for digging, trenching, loading, and material handling. The 310G is part of John Deere's G-series backhoe loader line and is commonly used on municipal, landscaping, agricultural, and light excavation jobs. Typical features include a diesel engine, four-wheel drive on many configurations, and a standard operator station with hydraulic controls. The model is recognized for its versatility, serviceability, and compatibility with a range of worksite attachments.

Backhoe
Bucket Dig Force	11,106 lbs (5,038 kg)
Dig Depth	14 ft (4 m)
Dig Depth - Extended	18 ft (5 m)
Load Height	11 ft (3 m)
Load Height - Extended	14 ft (4 m)
Reach From Swivel	18 ft (5 m)
Reach From Swivel - Extended	22 ft (7 m)
Dimensions
Ground Clearance	1 ft (0 m)
Height to Top of Suspended Cab	9 ft (3 m)
Transport Length	23 ft (7 m)
Transport Width	7 ft (2 m)
Wheelbase	7 ft (2 m)
Engine
Aspiration	Naturally Aspirated
Engine Model	4045D
Gross Power	78 hp (58 kw)
Net Max Torque	216 lbs ft (293 nm)
Net Power	73 hp (54 kw)
Net Torque Rise	0
Power Measured @	2,000 rpm
Torque Measured @	1,000 rpm
General Specifications
4th Gear Fwd mph (kmh) (Since 2004)	24.4 (39.3)
Breakout Force lbs (kgs) (Since 2004)	8,100 (3,645)
Digging Depth ft (m) (Since 2004)	14.3 (4.3)
Lift Capacity lbs (kgs) (Since 2004)	5,800 (2,631)
Loading Height ft (m) (Since 2004)	10.9 (3.3)
Operating Weight lbs (kg) (Since 2004)	12,800 (5,806)
SAE Net hp (kW) (Since 2004)	74 (55)
Hydraulic System
Pump Flow Capacity	28 gpm (106 lpm)
Pump Type	Gear
Relief Valve Pressure	2,900 psi
Loader
Bucket Breakout Force	8,500 lbs (3,856 kg)
Bucket Capacity	1 cu yd (1 cu m)
Dig Depth	6 in (16 cm)
Reach at Max Dump Height	3 ft (1 m)
Operating Specifications
Alternator Supplied Amperage	65 amps
Cooling System Fluid Capacity	4 gal (16 l)
Front Axle Fluid Capacity	2 gal (8 l)
Fuel Capacity	36 gal (136 l)
Hydraulic System Fluid Capacity	24 gal (91 l)
Max Weight	15,090 lbs (6,845 kg)
Oil System Fluid Capacity	2 gal (9 l)
Operating Voltage	12 volts
Operating Weight 2wd	12,800 lbs (5,806 kg)
Operating Weight 4wd	12,800 lbs (5,806 kg)
Rear Axle Fluid Capacity	4 gal (16 l)
Tire Size Front - 2wd / 4wd	11L-158PR F3;12.5/8012PR
Transmission Fluid Capacity	4 gal (15 l)
Turning Radius	12 ft (4 m)
Tires
Rear Tires Size	16.9-248PR R4;19.5L-248PR R4
Transmission
Max Speed	21 mph (33 kph)
Max Speed - Reverse	21 mph (33 kph)
Number of Forward Gears	4
Number of Reverse Gears	4
Transmission Type	4-speed helical cut gear collar shift transmission synchronized in all gears with hydraulic reverser
