2006 John Deere 310G For Sale in Birmingham, AL
Auction Pricing
Auction Info: Starting on 2026-05-14
Machine Info:
| Hours: | 3765 |
| Serial Number: | T0310SG960265 |
| Machine Location: | BIRMINGHAM, AL |
Description:

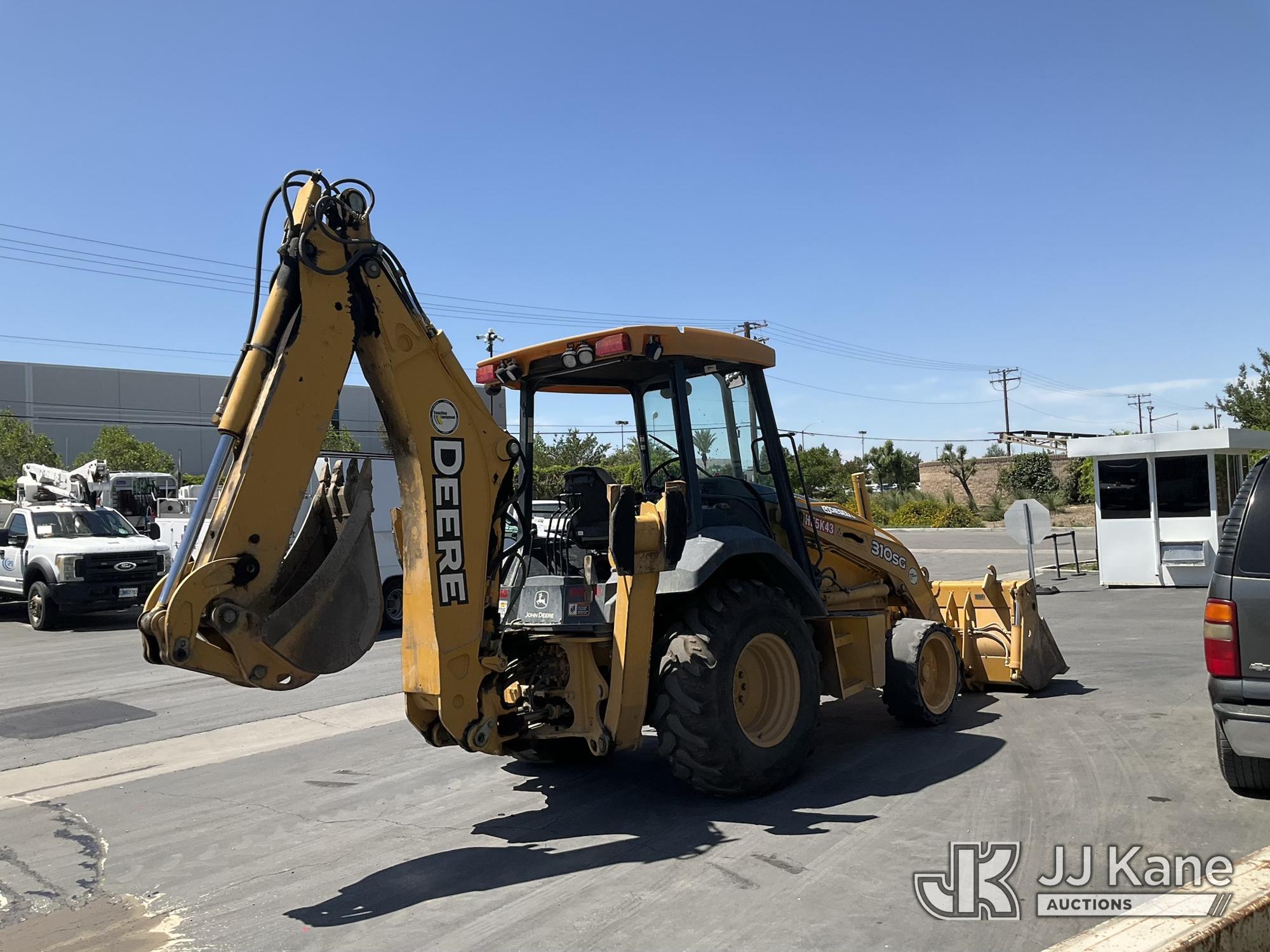

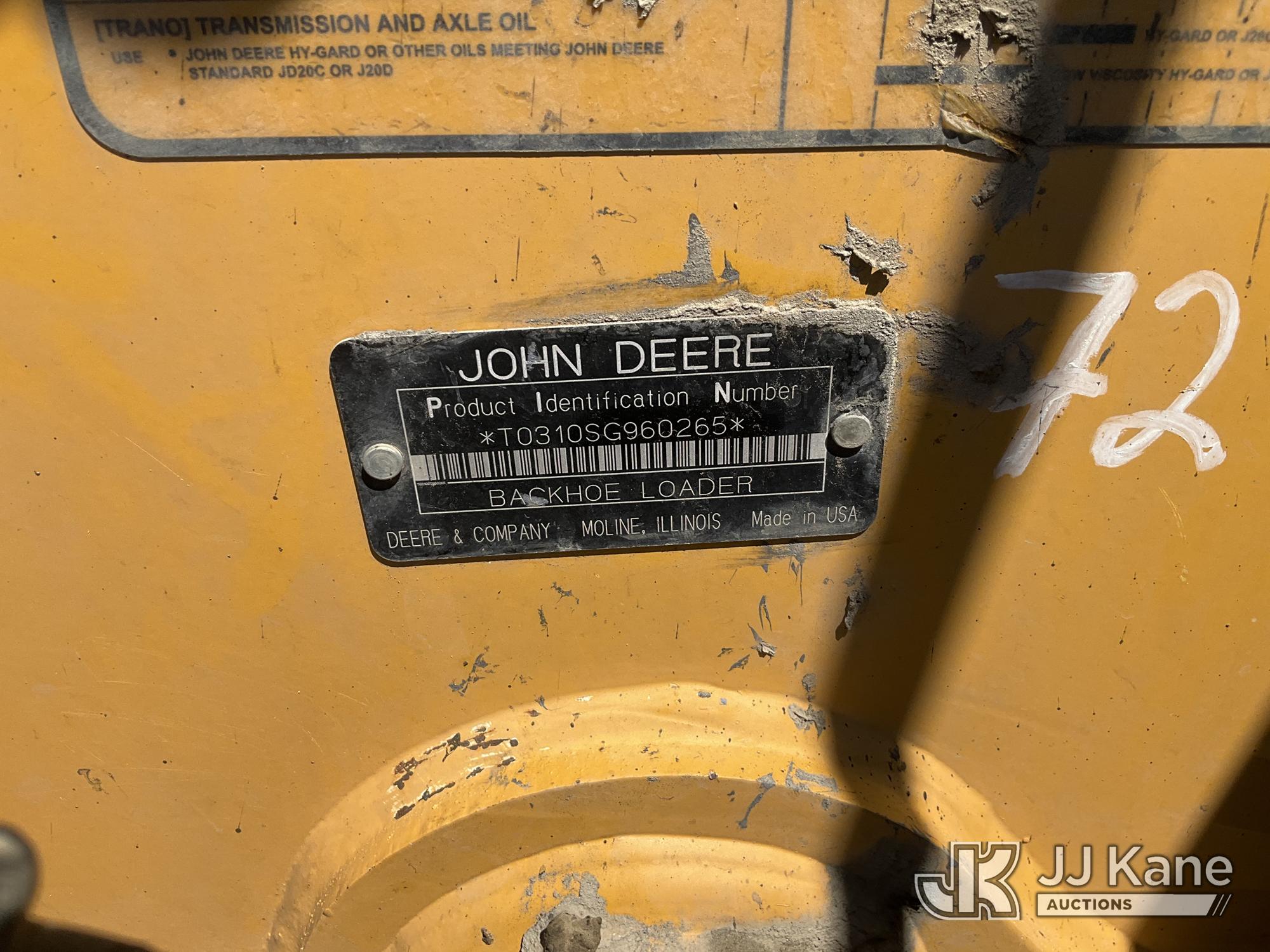

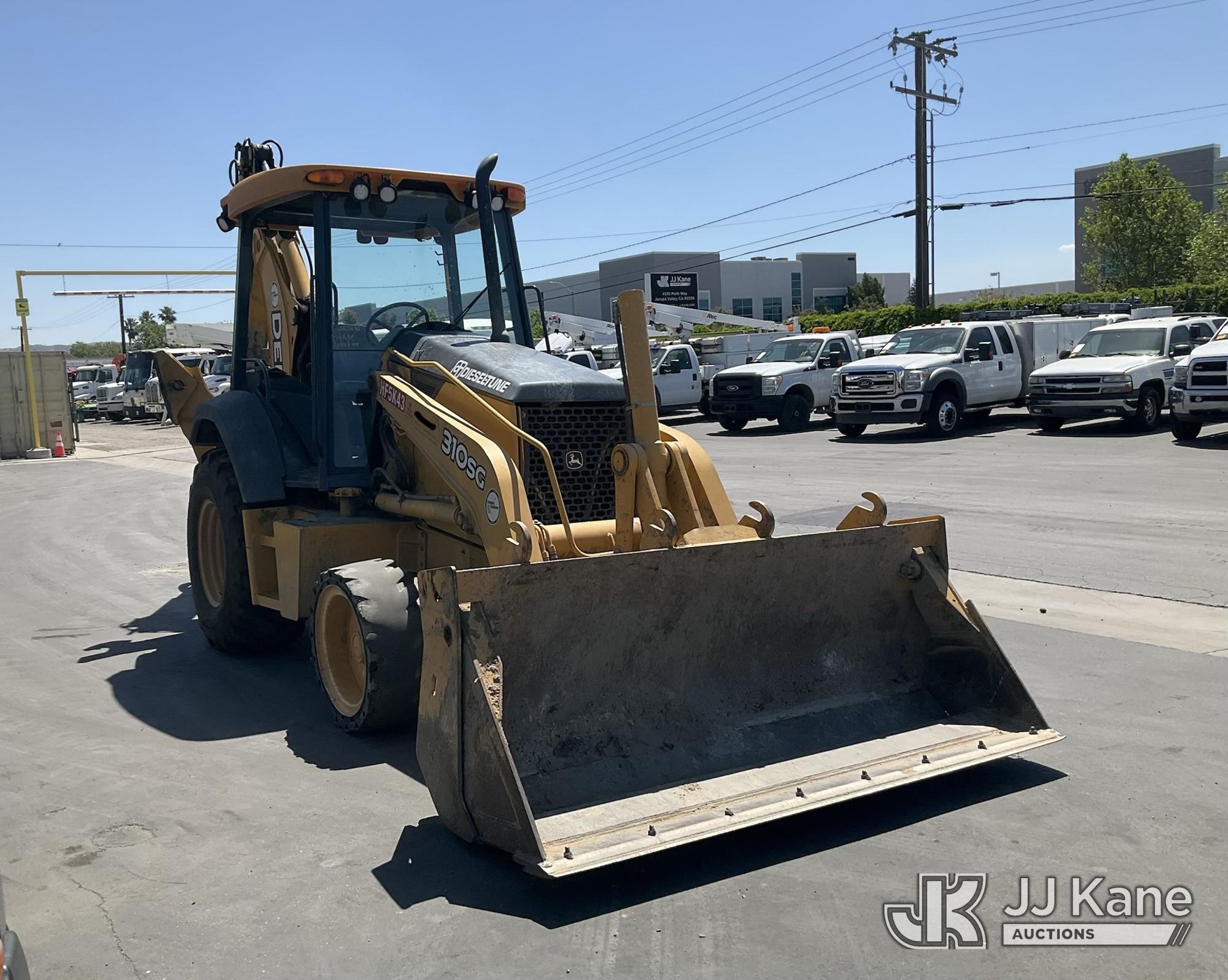

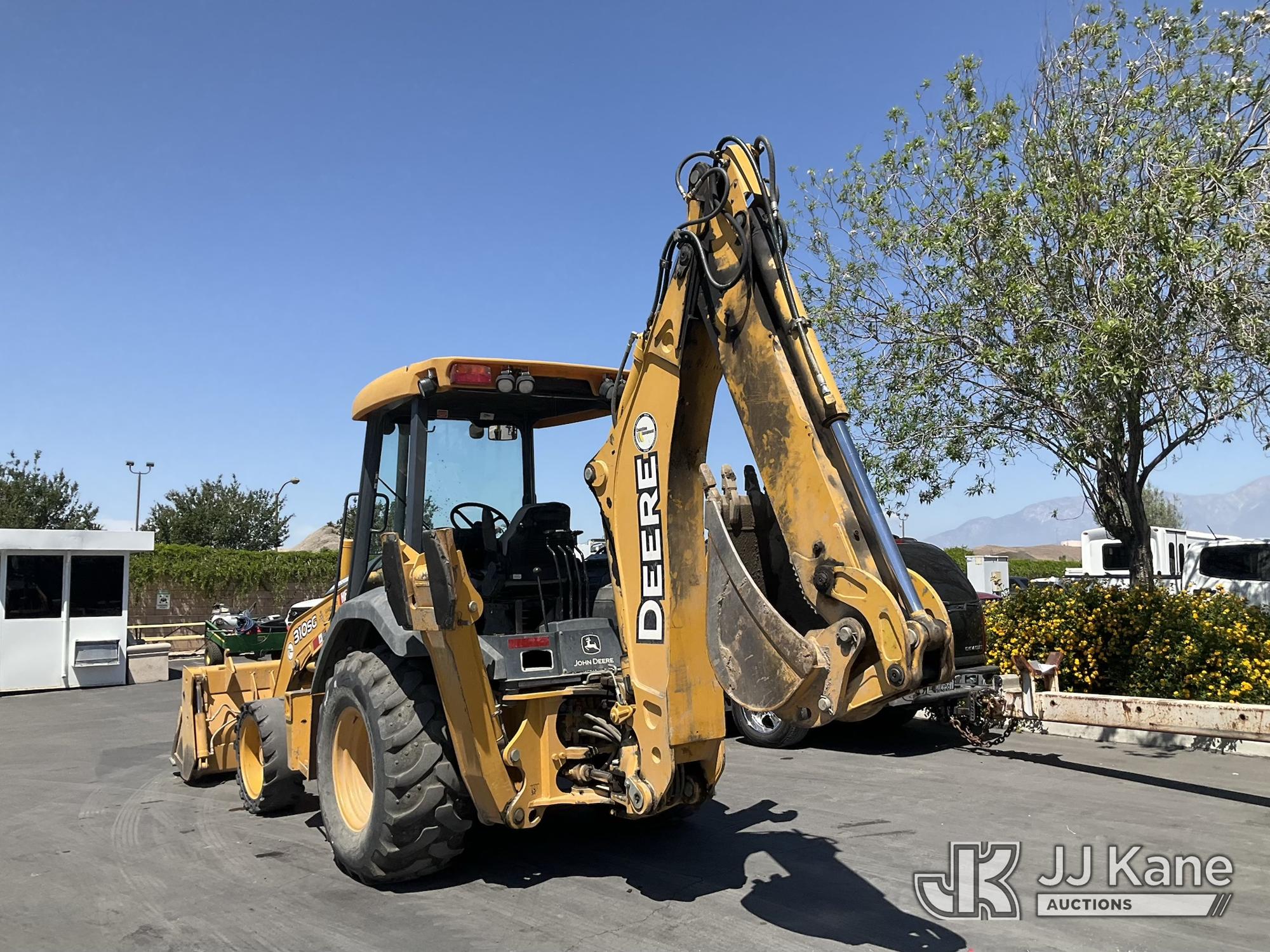

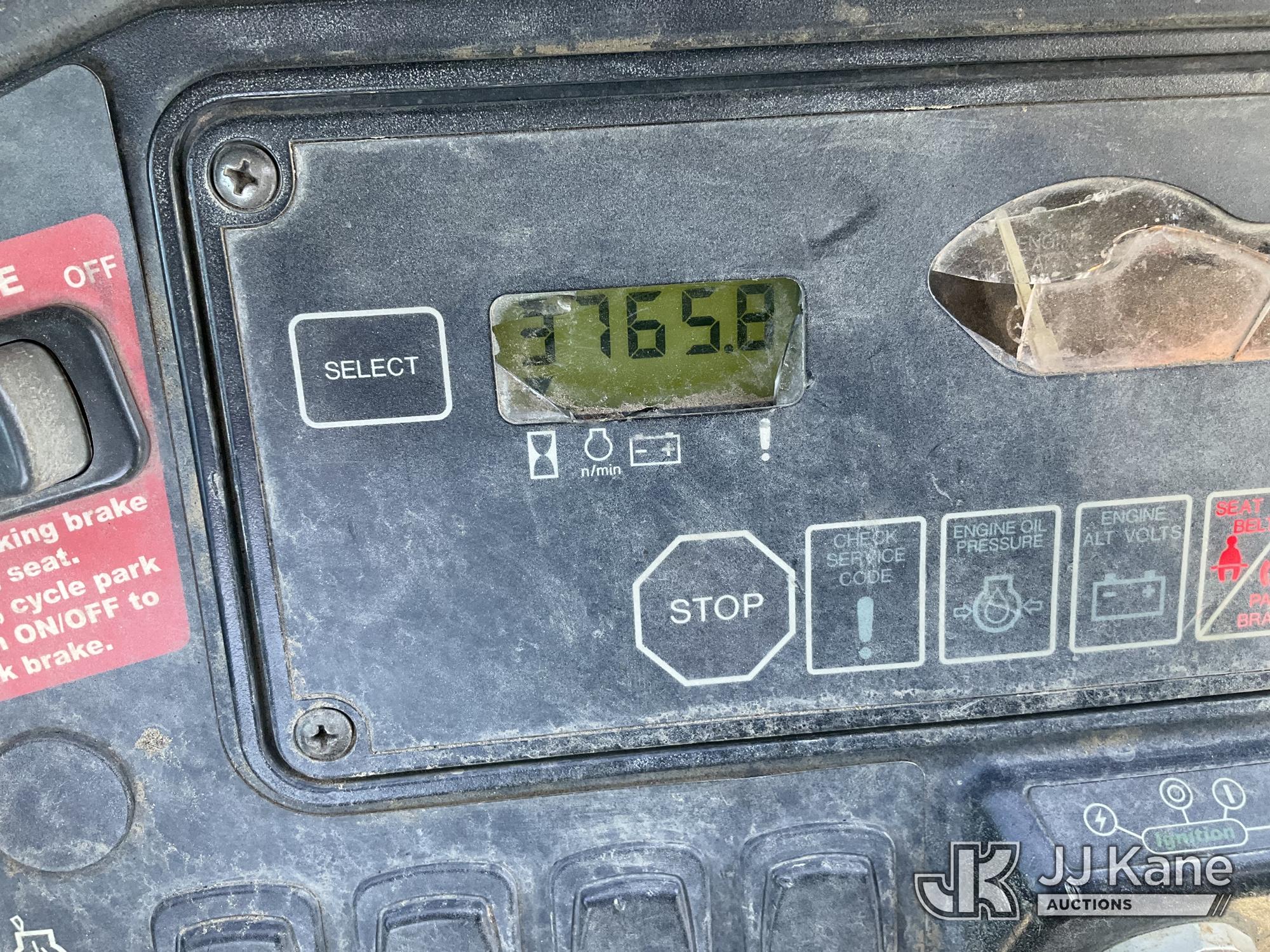

2006 John Deere 310G Tractor Loader Backhoe, s/n T0310SG960265, John Deere diesel, 3-spd, with 4 in 1 bucket & ROPS, (Runs, Moves, & Operates) Per Seller Front tires need replacing, Leather seat has tears, Front grille is dented, windshield wipers don’t work, damaged dash panel) (Reads 3,765 hours) May be subject to ARB Regulations NOTE: This unit is being sold AS IS/WHERE IS via Timed Auction and is located in Jurupa Valley, CA. Inspection & preview days for this unit are the 2 business days prior to the first day of items closing for this auction, item is located at 4510 Muth Way Jurupa Valley, CA 92509 and hours of operations are 8a-4p. For pre-sale questions, please contact please contact Office Staff @ (310) 353-7140. Dealer License Number 45696. (Buyer is responsible for removal. Assistance by consignor or JJ Kane Auctions is not assured.)
From the manufacturer:
Supplied by HeavyEquipmentData.com →
The John Deere 310G is a backhoe loader designed for general construction, utility, and site preparation work. It combines a front loader bucket with a rear backhoe attachment for digging, trenching, loading, and material handling. The 310G is part of John Deere's G-series backhoe loader line and is commonly used on municipal, landscaping, agricultural, and light excavation jobs. Typical features include a diesel engine, four-wheel drive on many configurations, and a standard operator station with hydraulic controls. The model is recognized for its versatility, serviceability, and compatibility with a range of worksite attachments.
| Backhoe |
|
Bucket Dig Force |
11,106 lbs (5,038 kg)
|
|
Dig Depth |
14 ft (4 m)
|
|
Dig Depth - Extended |
18 ft (5 m)
|
|
Load Height |
11 ft (3 m)
|
|
Load Height - Extended |
14 ft (4 m)
|
|
Reach From Swivel |
18 ft (5 m)
|
|
Reach From Swivel - Extended |
22 ft (7 m)
|
| Dimensions |
|
Ground Clearance |
1 ft (0 m)
|
|
Height to Top of Suspended Cab |
9 ft (3 m)
|
|
Transport Length |
23 ft (7 m)
|
|
Transport Width |
7 ft (2 m)
|
|
Wheelbase |
7 ft (2 m)
|
| Engine |
|
Aspiration |
Naturally Aspirated |
|
Engine Model |
4045D |
|
Gross Power |
78 hp (58 kw)
|
|
Net Max Torque |
216 lbs ft (293 nm)
|
|
Net Power |
73 hp (54 kw)
|
|
Net Torque Rise |
0 |
|
Power Measured @ |
2,000 rpm |
|
Torque Measured @ |
1,000 rpm |
| General Specifications |
|
4th Gear Fwd mph (kmh) (Since 2004)
|
24.4 (39.3) |
|
Breakout Force lbs (kgs) (Since 2004)
|
8,100 (3,645) |
|
Digging Depth ft (m) (Since 2004)
|
14.3 (4.3) |
|
Lift Capacity lbs (kgs) (Since 2004)
|
5,800 (2,631) |
|
Loading Height ft (m) (Since 2004)
|
10.9 (3.3) |
|
Operating Weight lbs (kg) (Since 2004)
|
12,800 (5,806) |
|
SAE Net hp (kW) (Since 2004)
|
74 (55) |
| Hydraulic System |
|
Pump Flow Capacity |
28 gpm (106 lpm)
|
|
Pump Type |
Gear |
|
Relief Valve Pressure |
2,900 psi |
| Loader |
|
Bucket Breakout Force |
8,500 lbs (3,856 kg)
|
|
Bucket Capacity |
1 cu yd (1 cu m)
|
|
Dig Depth |
6 in (16 cm)
|
|
Reach at Max Dump Height |
3 ft (1 m)
|
| Operating Specifications |
|
Alternator Supplied Amperage |
65 amps |
|
Cooling System Fluid Capacity |
4 gal (16 l)
|
|
Front Axle Fluid Capacity |
2 gal (8 l)
|
|
Fuel Capacity |
36 gal (136 l)
|
|
Hydraulic System Fluid Capacity |
24 gal (91 l)
|
|
Max Weight |
15,090 lbs (6,845 kg)
|
|
Oil System Fluid Capacity |
2 gal (9 l)
|
|
Operating Voltage |
12 volts |
|
Operating Weight 2wd |
12,800 lbs (5,806 kg)
|
|
Operating Weight 4wd |
12,800 lbs (5,806 kg)
|
|
Rear Axle Fluid Capacity |
4 gal (16 l)
|
|
Tire Size Front - 2wd / 4wd |
11L-158PR F3;12.5/8012PR |
|
Transmission Fluid Capacity |
4 gal (15 l)
|
|
Turning Radius |
12 ft (4 m)
|
| Tires |
|
Rear Tires Size |
16.9-248PR R4;19.5L-248PR R4 |
| Transmission |
|
Max Speed |
21 mph (33 kph)
|
|
Max Speed - Reverse |
21 mph (33 kph)
|
|
Number of Forward Gears |
4 |
|
Number of Reverse Gears |
4 |
|
Transmission Type |
4-speed helical cut gear collar shift transmission synchronized in all gears with hydraulic reverser |
