2004 John Deere 310SG For Sale in Toronto, On

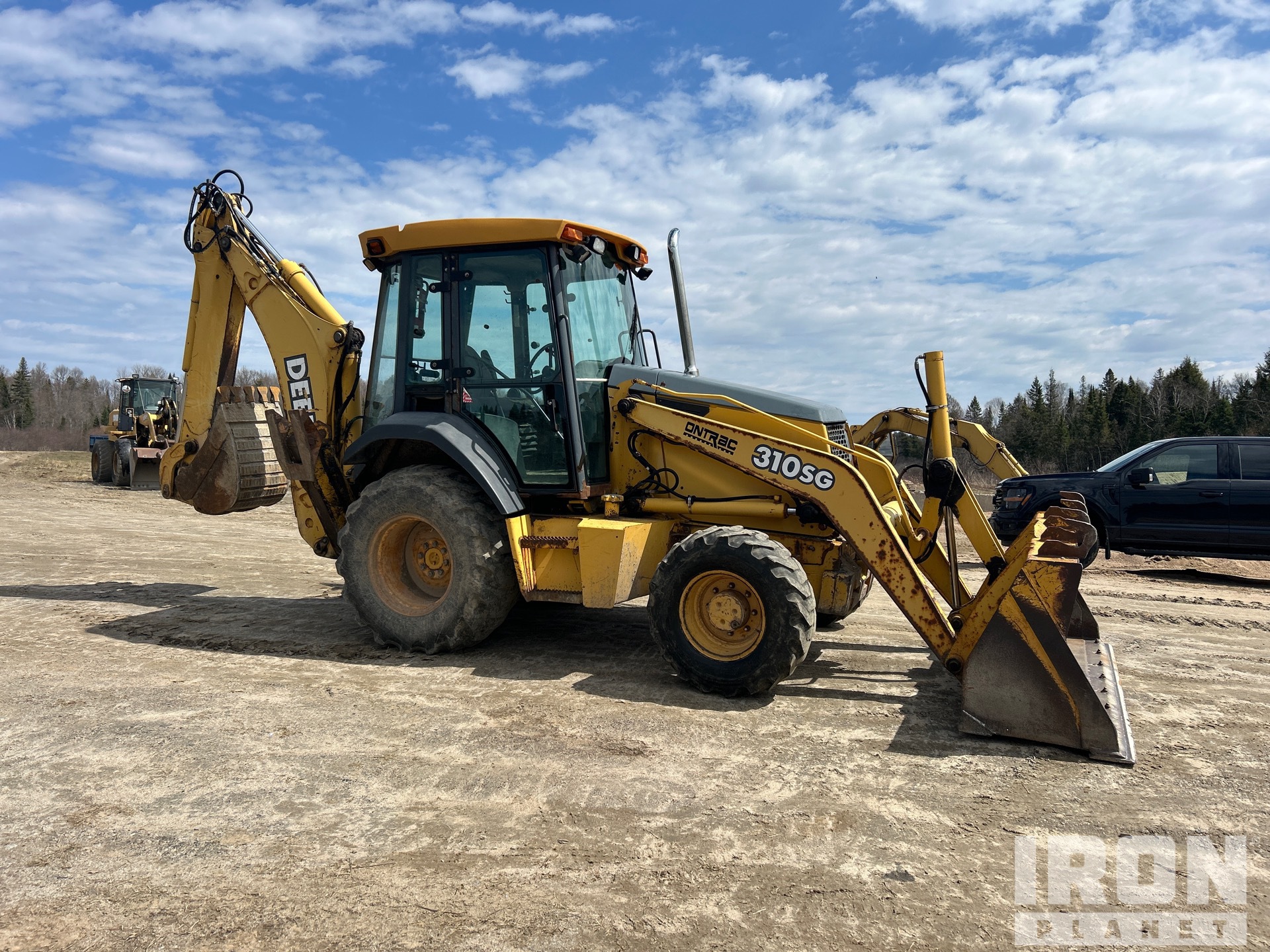

Name: 2004 John Deere 310SG
Brand: John Deere
SKU: 86552559
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-20 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

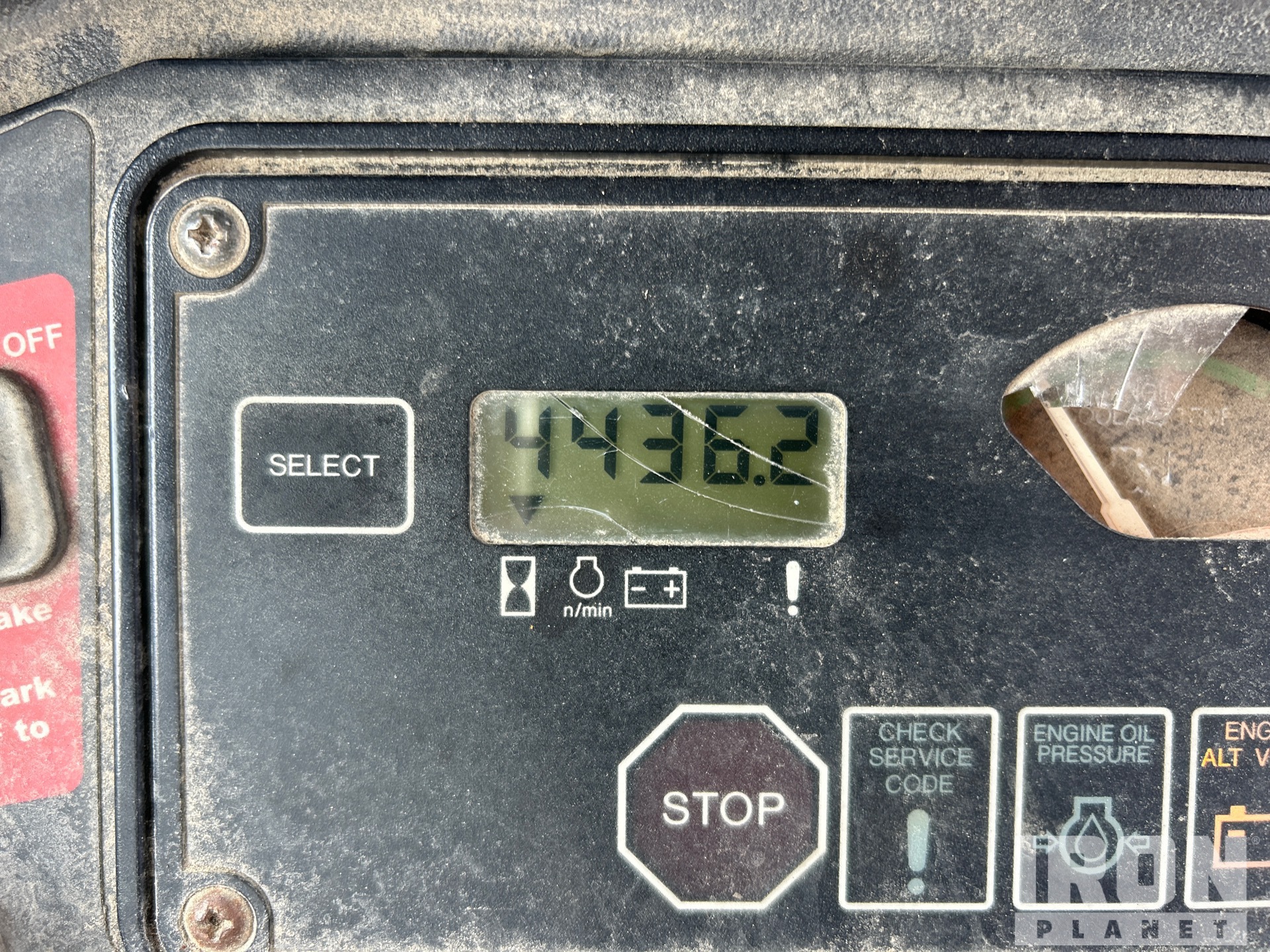

Hours:	4436

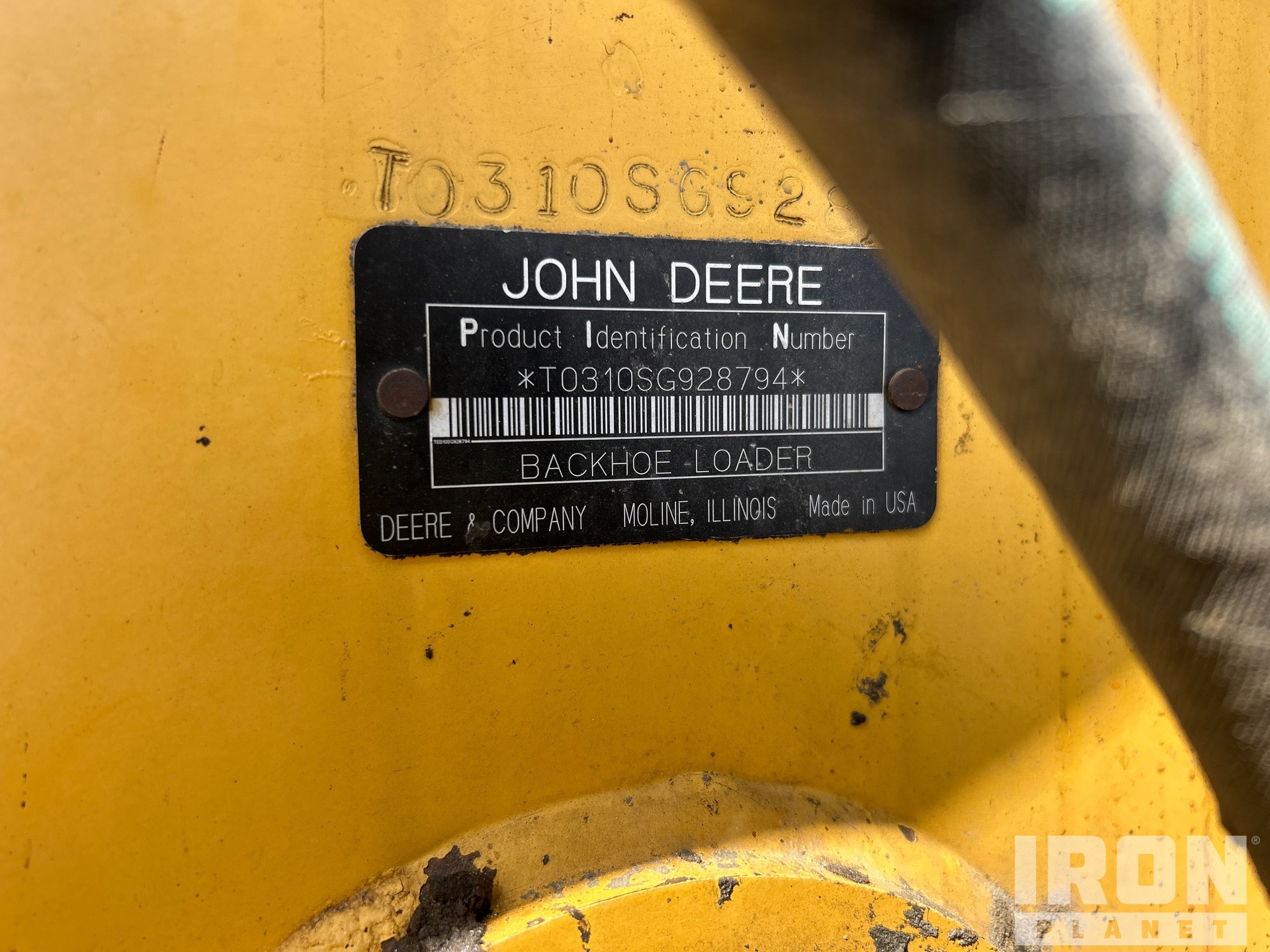

Serial Number:	T0310SG928794
Machine Location:	TORONTO, ON

Description:

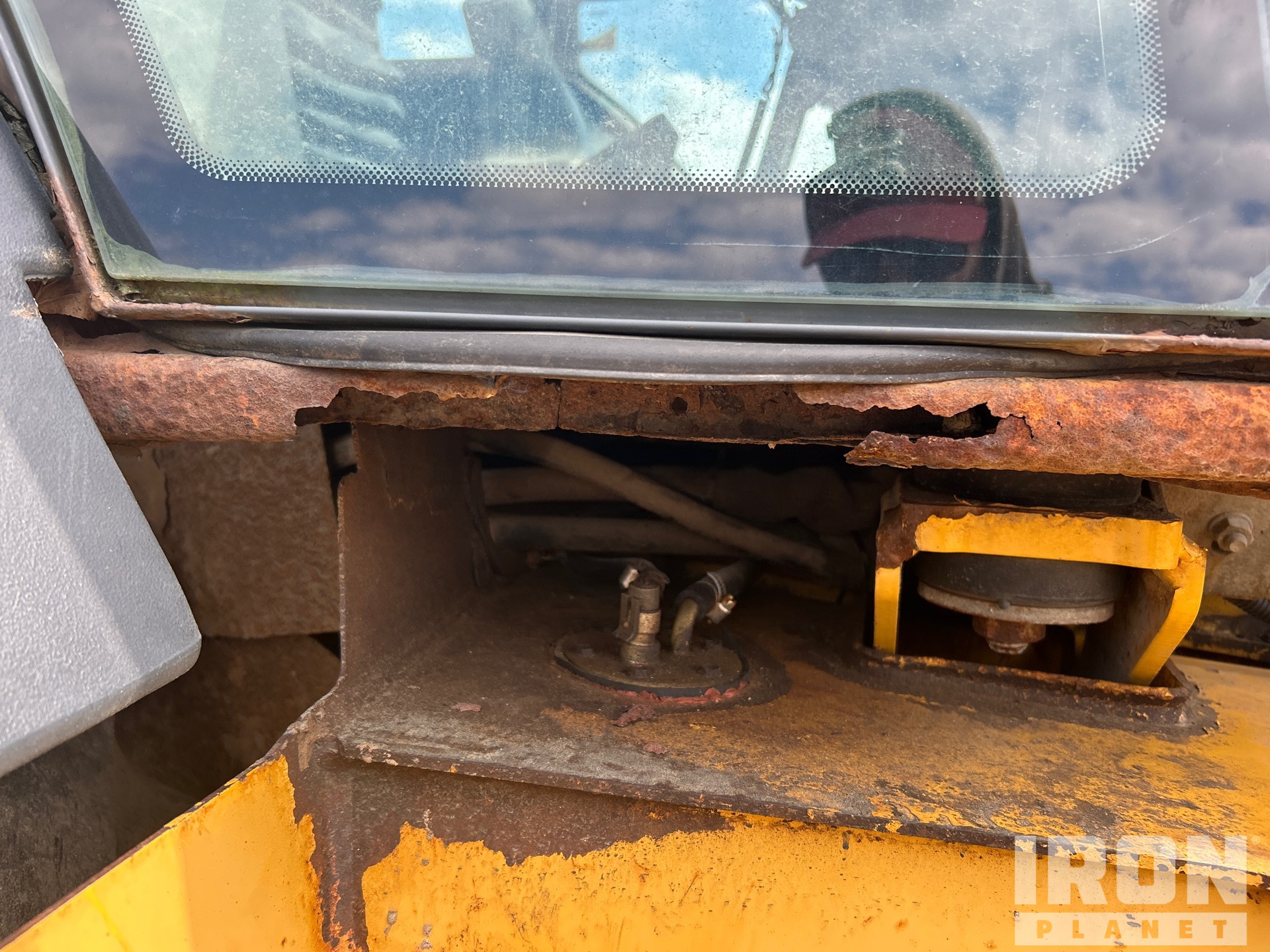

Enclosed Cab, Ride Control, Backhoe Pilot Controls, 91 in Loader Bucket, Extendable Stick, 24 in Backhoe Digging Bucket Closing Time: 2026-05-20 08:49:15 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The John Deere 310SG is a backhoe loader designed for construction, utility, and site preparation work. It features a diesel engine, four-wheel drive on many configurations, and a loader bucket at the front with a backhoe attachment at the rear. The 310SG is known for its balanced digging, loading, trenching, and material-handling capabilities. Typical applications include excavation, landscaping, roadwork, and general earthmoving. Operator controls, hydraulic performance, and service access are designed for productivity and maintenance efficiency. As part of John Deere's backhoe loader lineup, the 310SG is commonly used in municipal, contractor, and agricultural support operations.

Backhoe
Bucket Dig Force	11,990 lbs (5,439 kg)
Bucket Dig Force - Extended	12,158 lbs (5,515 kg)
Dig Depth	15 ft (4 m)
Dig Depth - Extended	19 ft (6 m)
Load Height - Extended	14 ft (4 m)
Reach at Load Height - Extended	25 ft (8 m)
Reach From Swivel	18 ft (6 m)
Reach From Swivel - Extended	22 ft (7 m)
Dimensions
Ground Clearance	1 ft (0 m)
Height to Top of Suspended Cab	9 ft (3 m)
Transport Length	24 ft (7 m)
Transport Width	7 ft (2 m)
Wheelbase	7 ft (2 m)
Engine
Aspiration	Turbocharged
Engine Model	4045T
Gross Power	91 hp (68 kw)
Net Max Torque	276 lbs ft (374 nm)
Net Torque Rise	0
Power Measured @	2,000 rpm
Torque Measured @	1,400 rpm
General Specifications
4th Gear Fwd mph (kmh) (Since 2004)	24.4 (39.3)
Breakout Force lbs (kgs) (Since 2004)	8,900 (4,037)
Digging Depth ft (m) (Since 2004)	14.5 (4.4)
Lift Capacity lbs (kgs) (Since 2004)	6,247 (2,836)
Loading Height ft (m) (Since 2004)	11.3 (3.4)
Operating Weight lbs (kg) (Since 2004)	13,500 (6,123)
SAE Net hp (kW) (Since 2004)	84 (63)
Hydraulic System
Pump Flow Capacity	28 gpm (106 lpm)
Pump Type	Gear open center
Relief Valve Pressure	3,625 psi
Loader
Bucket Breakout Force	10,210 lbs (4,631 kg)
Bucket Capacity	1 cu yd (1 cu m)
Bucket Width	92 in (234 cm)
Clearance at Max Dump Height	11 ft (3 m)
Dig Depth	6 in (15 cm)
Reach at Max Dump Height	3 ft (1 m)
Operating Specifications
Alternator Supplied Amperage	65 amps
Cooling System Fluid Capacity	4 gal (16 l)
Front Axle Fluid Capacity	2 gal (8 l)
Fuel Capacity	36 gal (136 l)
Hydraulic System Fluid Capacity	24 gal (91 l)
Max Weight	15,955 lbs (7,237 kg)
Oil System Fluid Capacity	4 gal (13 l)
Operating Voltage	12 volts
Operating Weight 2wd	13,500 lbs (6,124 kg)
Operating Weight 4wd	13,500 lbs (6,124 kg)
Rear Axle Fluid Capacity	4 gal (16 l)
Tire Size Front - 2wd / 4wd	11L-158PRF3;11L-1612PRF3;12.5/80
Transmission Fluid Capacity	4 gal (15 l)
Turning Radius	12 ft (4 m)
Tires
Rear Tires Size	16.9-248PRR4;19.5L-248PRR4
Transmission
Max Speed	21 mph (33 kph)
Max Speed - Reverse	21 mph (33 kph)
Number of Forward Gears	4
Number of Reverse Gears	4
Transmission Type	4-speed helical cut gear full-power-shifted
