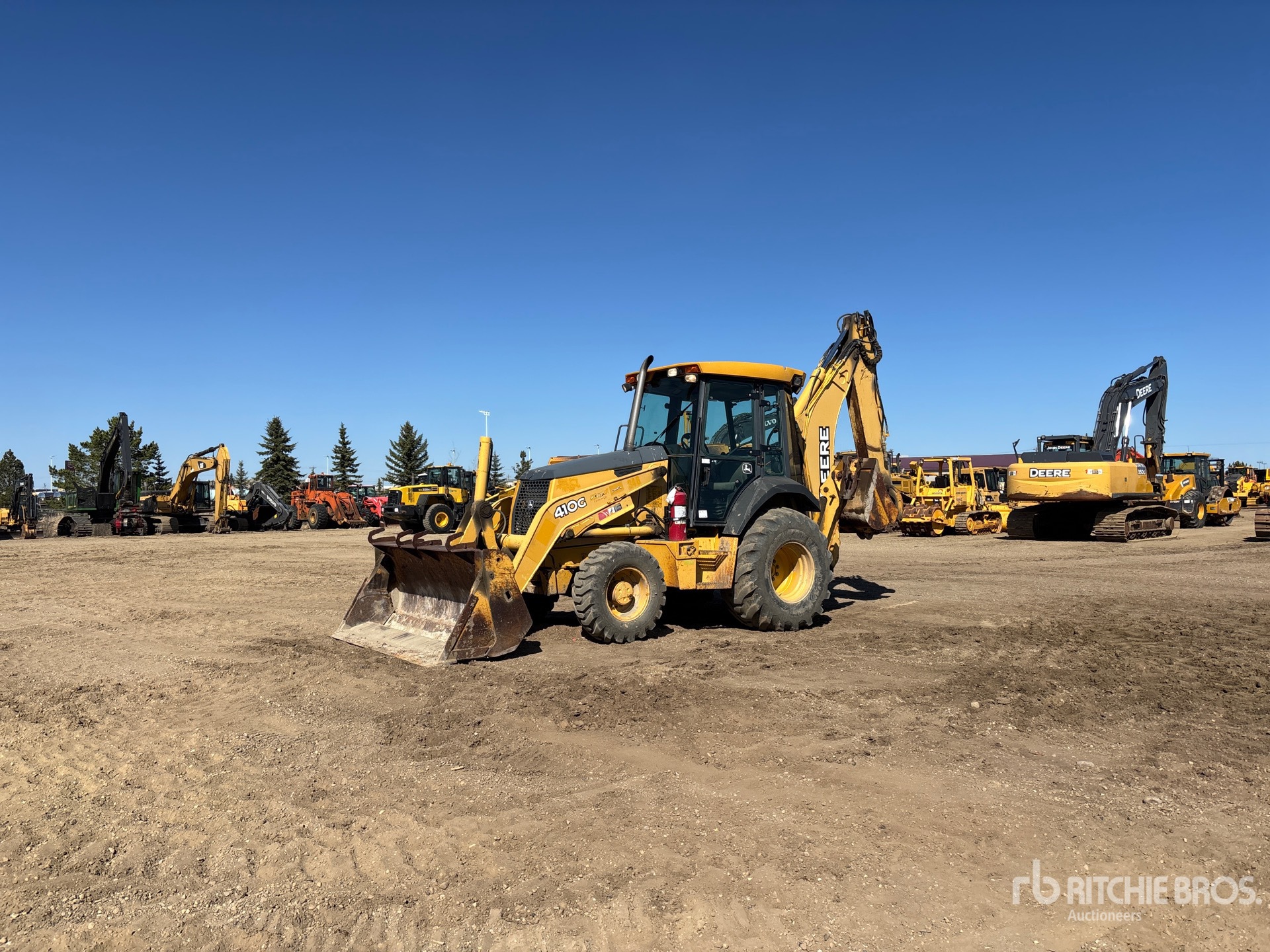

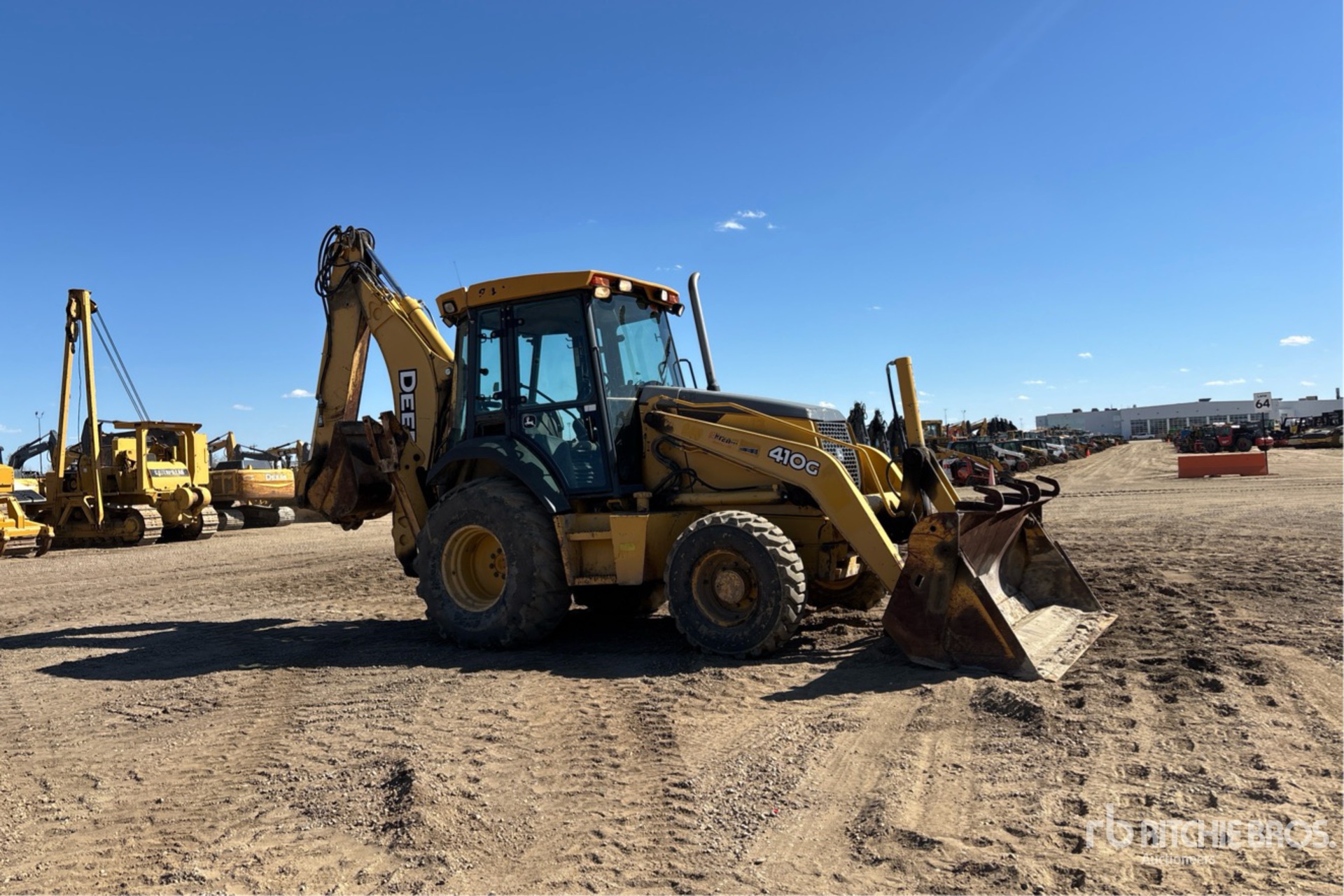

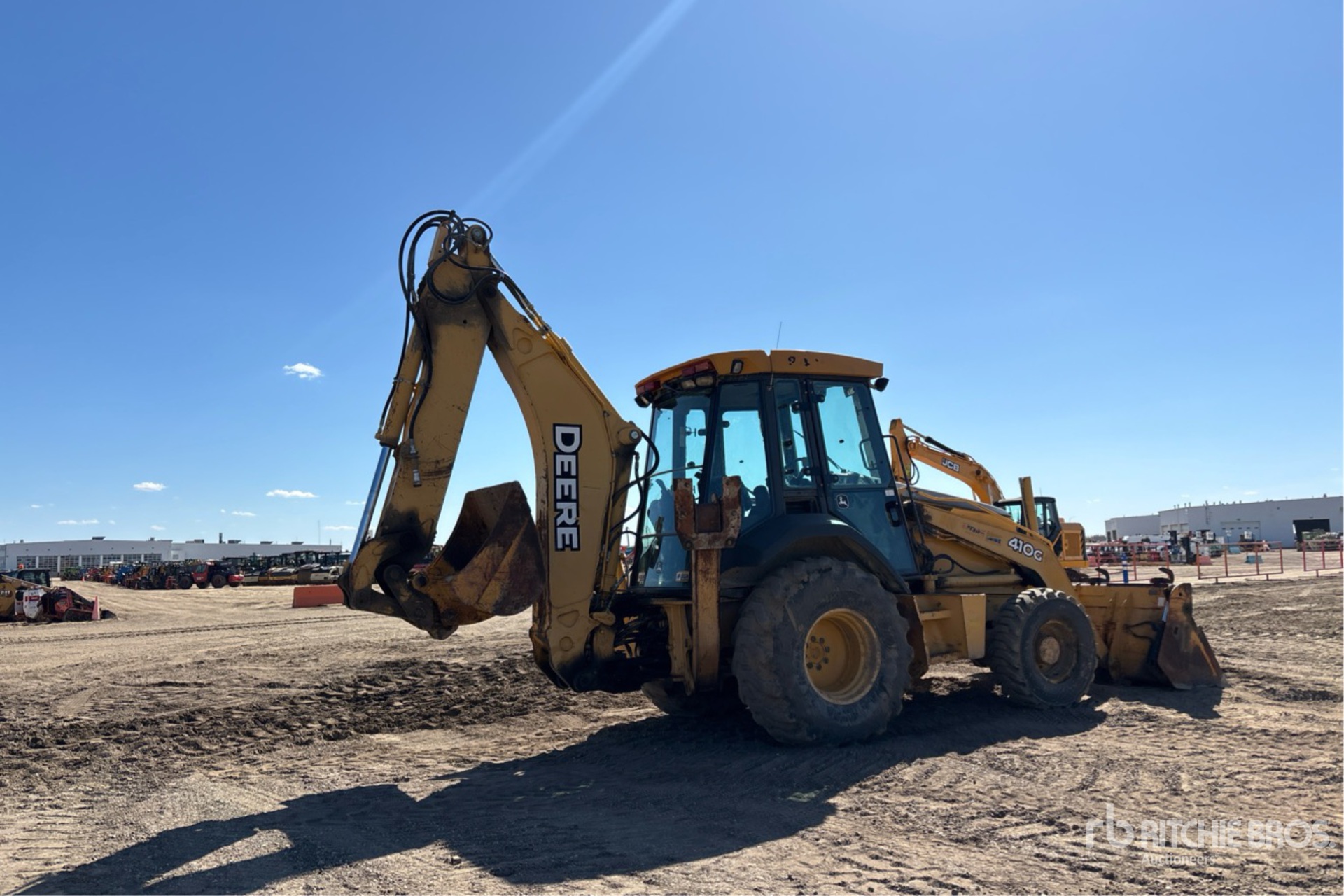

2005 John Deere 410G For Sale in Edmonton, Ab
Auction Pricing
Auction Info: Starting on 2026-05-11 Click here to place a bid
Machine Info:

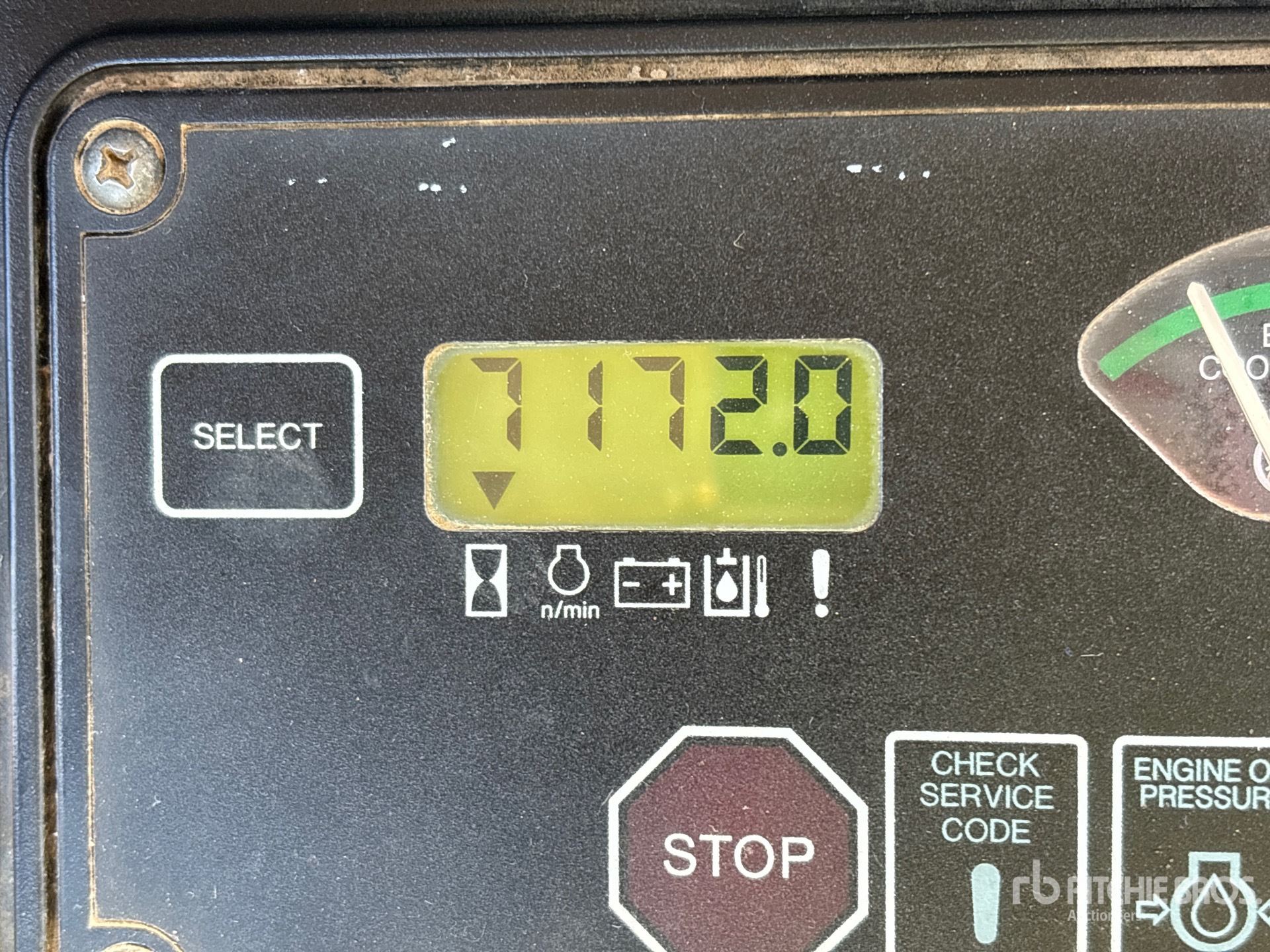

| Hours: | 7172 |

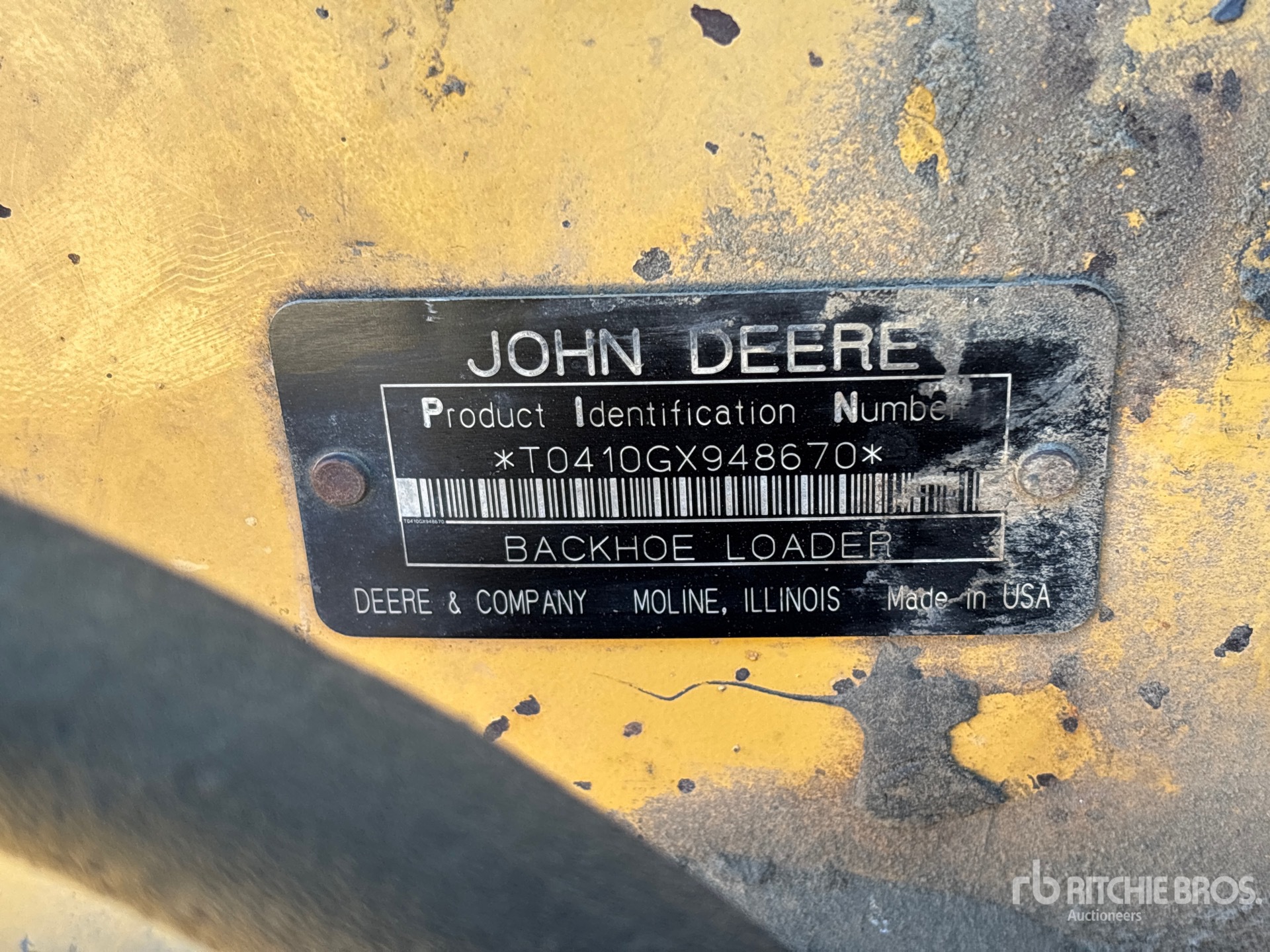

| Serial Number: | T0410GX948670 |
| Machine Location: | EDMONTON, AB |
Description:
Located in Lane 63 Spot 54, Enclosed Cab, Air Conditioner, Ride Control, Backhoe Pilot Controls, Control Pattern Changer, Powershift Transmission, 2005 US EPA Label, Positive Air Shutoff, 92 in Multi-Purpose Loader Bucket, Extendable Stick, Quick Coupler, 46 in Backhoe Cleanup Bucket, Rear Auxiliary Hydraulics, "NOTICE-TO-US-BIDDERS: this asset is likely exempt from US import tariffs as it was manufactured in the US. Bidders are responsible for confirming with their, ... Closing Time: 2026-05-11 10:04:30 AM
From the manufacturer:
Supplied by HeavyEquipmentData.com →
The John Deere 410G is a versatile backhoe loader designed for construction, landscaping, and agricultural applications. Equipped with a powerful engine and advanced hydraulics, the 410G delivers efficient digging, loading, and material handling capabilities. Its robust backhoe arm and loader bucket provide excellent reach and lift capacity, enhancing productivity on job sites. The operator cabin offers ergonomic controls and improved visibility for precise operation. Known for durability and ease of maintenance, the John Deere 410G backhoe loader supports a wide range of attachments, making it suitable for trenching, excavation, grading, and loading tasks. This model balances performance and reliability in heavy equipment.
| Backhoe |
|
Bucket Dig Force |
14,801 lbs (6,714 kg)
|
|
Bucket Dig Force - Extended |
14,801 lbs (6,714 kg)
|
|
Dig Depth |
16 ft (5 m)
|
|
Dig Depth - Extended |
21 ft (6 m)
|
|
Load Height - Extended |
16 ft (5 m)
|
|
Reach at Load Height - Extended |
27 ft (8 m)
|
|
Reach From Swivel |
20 ft (6 m)
|
|
Reach From Swivel - Extended |
24 ft (7 m)
|
| Dimensions |
|
Ground Clearance |
1 ft (0 m)
|
|
Height to Top of Suspended Cab |
9 ft (3 m)
|
|
Transport Length |
24 ft (7 m)
|
|
Transport Width |
8 ft (2 m)
|
|
Wheelbase |
7 ft (2 m)
|
| Engine |
|
Aspiration |
Turbocharged |
|
Engine Model |
4045T |
|
Net Max Torque |
279 lbs ft (378 nm)
|
|
Net Power |
96 hp (72 kw)
|
|
Net Torque Rise |
0 |
|
Power Measured @ |
2,100 rpm |
|
Torque Measured @ |
1,400 rpm |
| General Specifications |
|
4th Gear Fwd mph (kmh) (Since 2004)
|
24.2 (38.9) |
|
Breakout Force lbs (kgs) (Since 2004)
|
10,210 (4,540) |
|
Digging Depth ft (m) (Since 2004)
|
15.8 (4.8) |
|
Lift Capacity lbs (kgs) (Since 2004)
|
7,340 (3,332) |
|
Loading Height ft (m) (Since 2004)
|
12.5 (3.8) |
|
Operating Weight lbs (kg) (Since 2004)
|
15,000 (6,804) |
|
SAE Net hp (kW) (Since 2004)
|
92 (69) |
| Hydraulic System |
|
Pump Flow Capacity |
43 gpm (163 lpm)
|
|
Pump Type |
Axial-piston PCLS system |
|
Relief Valve Pressure |
3,625 psi |
| Loader |
|
Bucket Breakout Force |
10,210 lbs (4,631 kg)
|
|
Bucket Capacity |
1 cu yd (1 cu m)
|
|
Bucket Width |
36 in (91 cm)
|
|
Clearance at Max Dump Height |
12 ft (4 m)
|
|
Dig Depth |
4 in (11 cm)
|
|
Reach at Max Dump Height |
3 ft (1 m)
|
| Operating Specifications |
|
Alternator Supplied Amperage |
90 amps |
|
Cooling System Fluid Capacity |
4 gal (16 l)
|
|
Front Axle Fluid Capacity |
2 gal (8 l)
|
|
Fuel Capacity |
36 gal (136 l)
|
|
Hydraulic System Fluid Capacity |
26 gal (98 l)
|
|
Max Weight |
15,000 lbs (6,804 kg)
|
|
Oil System Fluid Capacity |
4 gal (13 l)
|
|
Operating Voltage |
12 volts |
|
Operating Weight 2wd |
1,628 lbs (738 kg)
|
|
Operating Weight 4wd |
1,262 lbs (572 kg)
|
|
Rear Axle Fluid Capacity |
4 gal (16 l)
|
|
Tire Size Front - 2wd / 4wd |
11L-16 F3 |
|
Transmission Fluid Capacity |
4 gal (15 l)
|
|
Turning Radius |
12 ft (4 m)
|
| Tires |
|
Rear Tires Size |
19.5L-24 R4 |
| Transmission |
|
Max Speed |
21 mph (33 kph)
|
|
Max Speed - Reverse |
16 mph (26 kph)
|
|
Number of Forward Gears |
4 |
|
Number of Reverse Gears |
3 |
|
Transmission Type |
4-speed helical cut gear full power shifted transmission with hydraulic reverser |
