Equipment ↠ John Deere ↠ Crawler Dozers ↠ 2007 John Deere 650J LGP

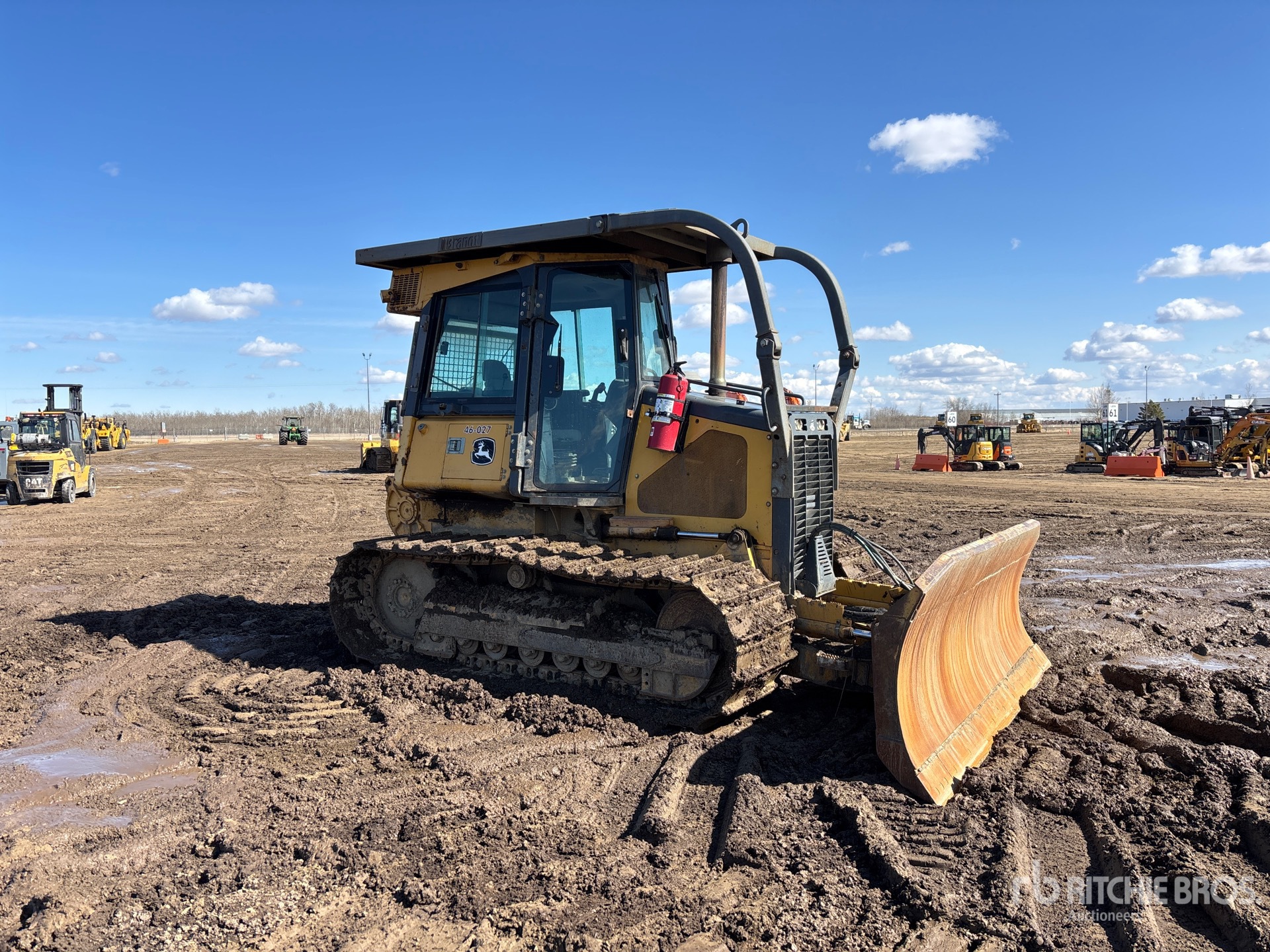

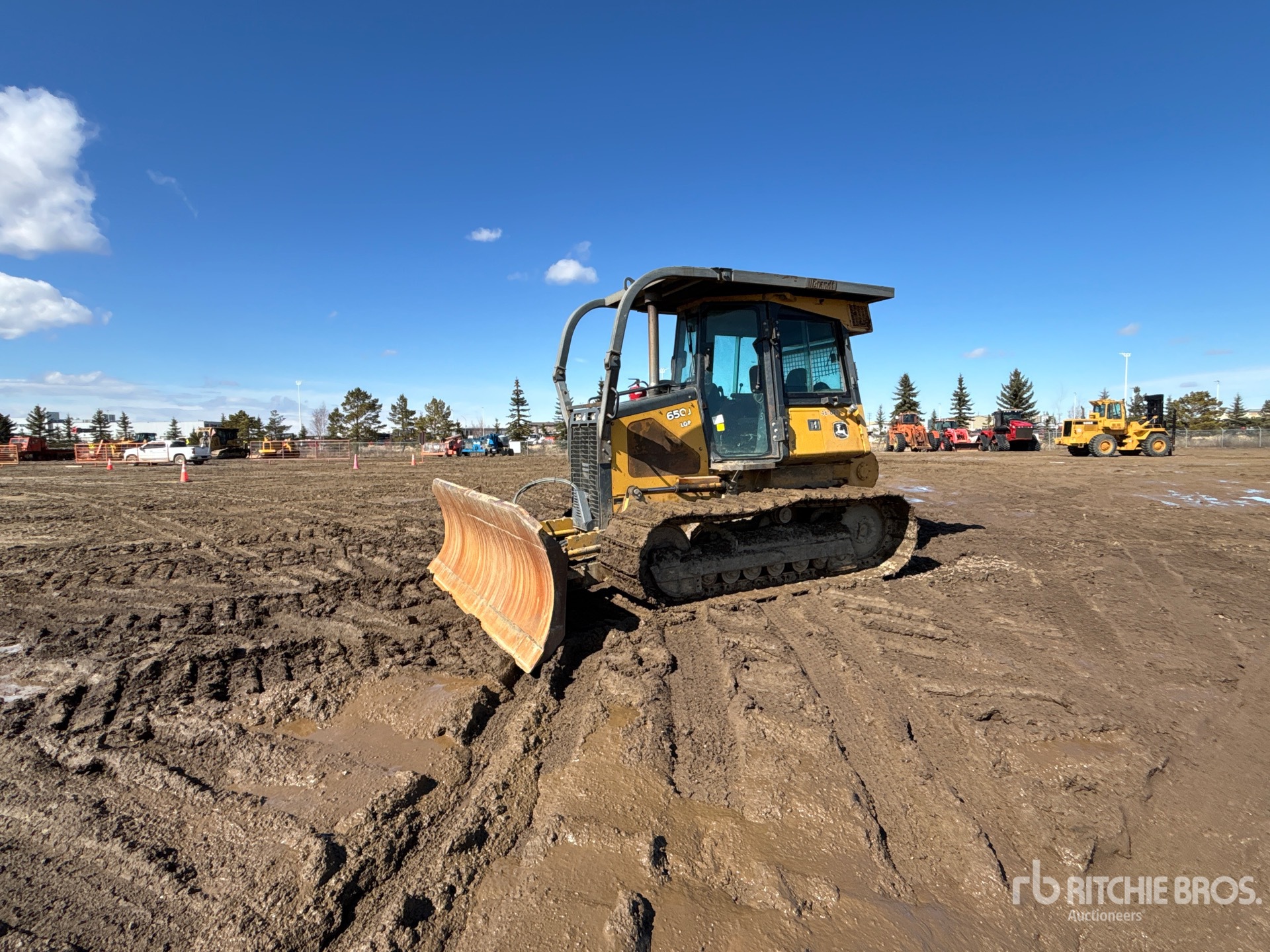

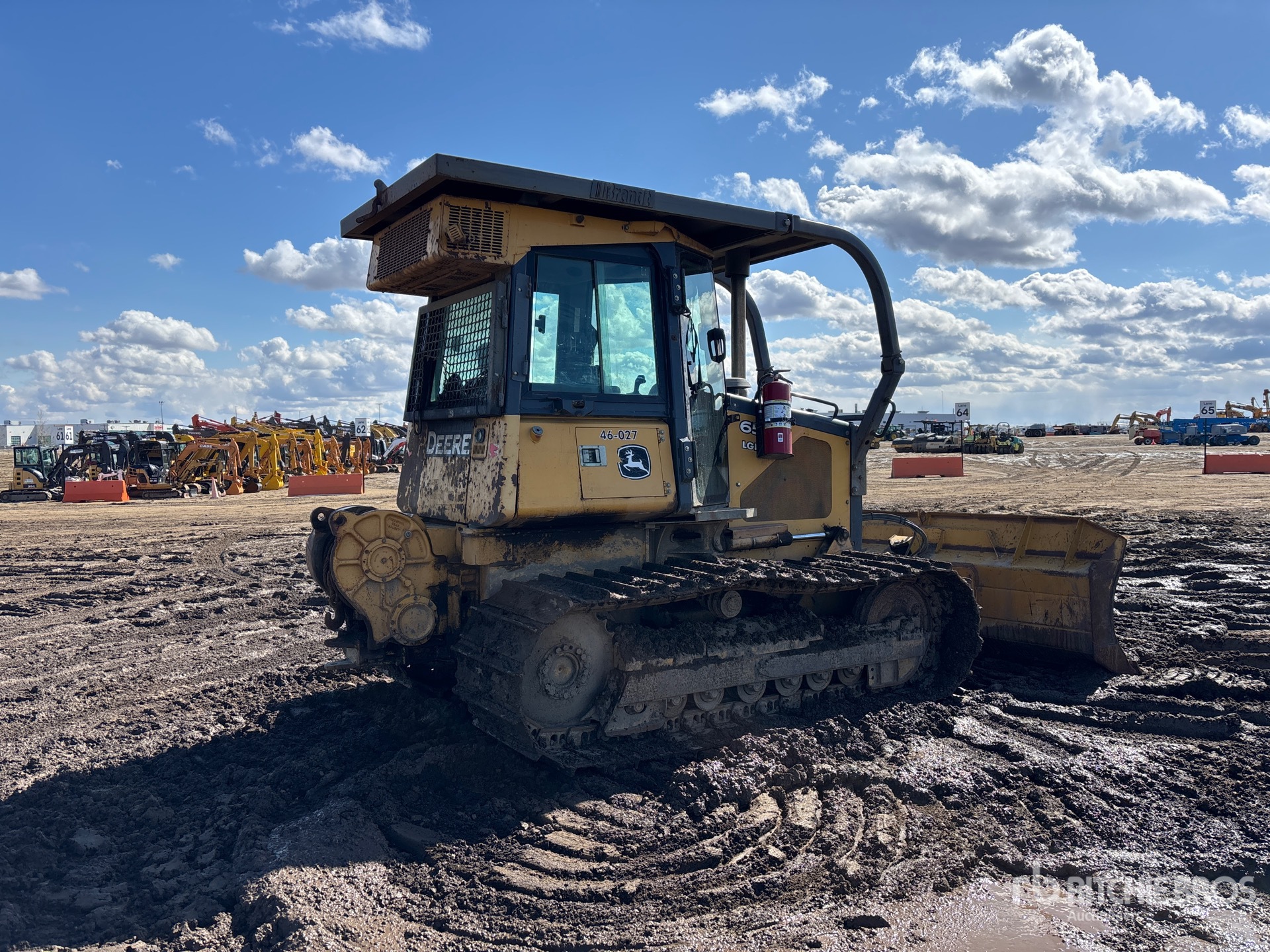

2007 John Deere 650J LGP

Name: 2007 John Deere 650J LGP
Brand: John Deere
SKU: 87044748
Price: 1 USD
Availability: OutOfStock

❮

❯

/ Save to Watch List

Apply for Financing

MACHINE SOLD

Auction Info: Starting on 2026-05-11 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

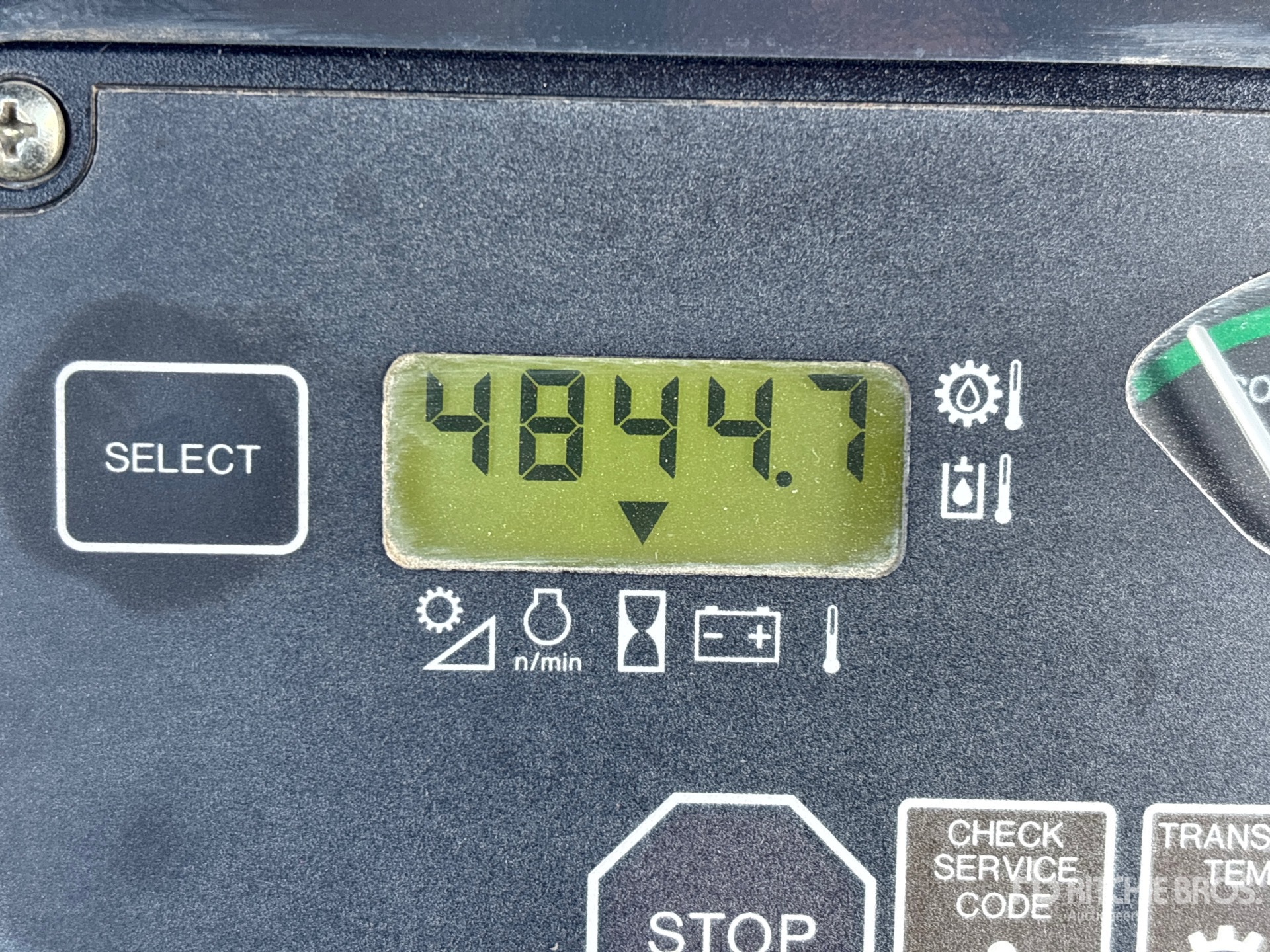

Hours:	4844

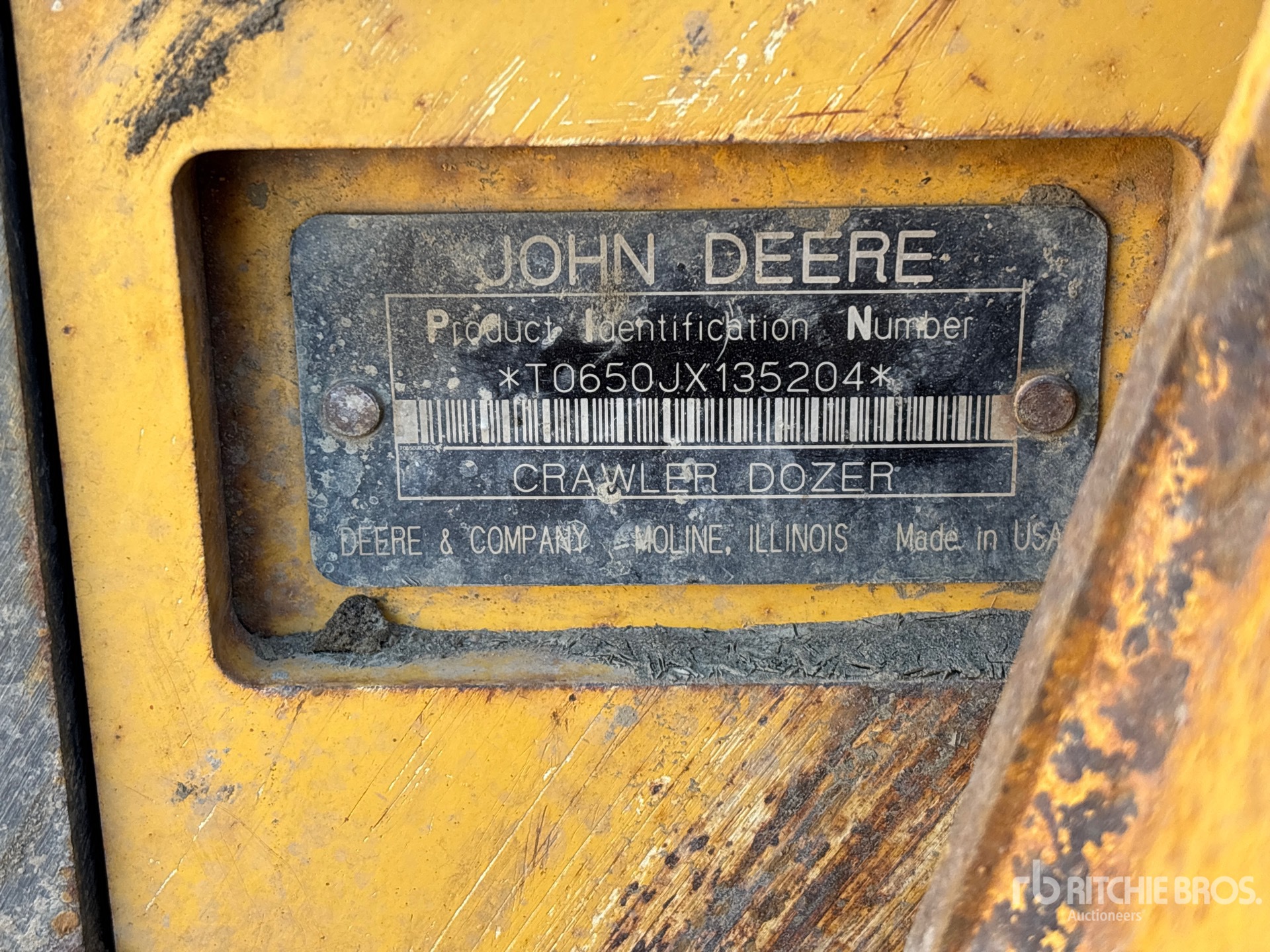

Serial Number:	T0650JX135204
Machine Location:	EDMONTON, AB

Description:

Enclosed Cab, Air Conditioner, Sweeps, 128 in Wide PAT Blade, 28 in Single Grouser Track Shoes, John Deere Winch, Drawbar Closing Time: 2026-05-11 11:10:00 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The John Deere 650J LGP is a crawler dozer designed for grading, pushing, and site preparation in soft or low-ground-pressure conditions. The LGP configuration uses wider tracks to reduce ground pressure and improve flotation on sensitive terrain, making it suitable for wetlands, utility work, and finish grading. The 650J series is known for a compact frame, responsive hydrostatic drive, and precise blade control. Common applications include land clearing, road building, landscaping, and general earthmoving. As a John Deere crawler dozer, the 650J LGP is used in construction, agriculture, and municipal fleet operations where traction and surface protection are important.

Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	9 ft (3 m)
Length of Track on Ground	8 ft (2 m)
Length w/ Blade	14 ft (4 m)
Width Over Tracks	8 ft (2 m)
Engine
Aspiration	Altitude-compensating turbocharger
Displacement	276 cu in (4,523 cu cm)
Engine Model	4045T
Make	Deere
Max Torque	329 lbs ft (446 nm)
Net Power	99 hp (74 kw)
Number of Cylinders	4
Power Measured @	2,200 rpm
Torque Measured @	1,200 rpm
Hydraulic System
Pump Flow Capacity	15 gpm (57 lpm)
Pump type	Gear
Relief Valve Pressure	3,000 psi
Operating Specifications
Alternator Supplied Amperage	65 amps
Cooling System Fluid Capacity	4 gal (16 l)
Engine Oil Capacity	4 gal (14 l)
Final Drives Fluid Capacity	2 gal (7 l)
Fuel Capacity	47 gal (178 l)
Hydraulic Fluid Capacity	9 gal (32 l)
Operating Voltage	12 volts
Operating Weight	19,791 lbs (8,977 kg)
Standard Blade
Blade Angle (both directions)	22 degrees
Capacity	2 cu yd (2 cu m)
Height	33 in (83 cm)
Width	10 ft (3 m)
Transmission
Max Speed - Forward	5 mph (8 kph)
Max Speed - Reverse	5 mph (8 kph)
Transmission Type	Hydrostatic
Undercarriage
Ground Contact Area	5,152 cu in (84,426 cu cm)
Ground Pressure	4 psi
Number of Shoes per Side	40
Number of Track Rollers per Side	7
Standard Shoe Size	28 in (71 cm)
Track Gauge	6 ft (2 m)
Track Pitch	7 in (17 cm)
