2005 John Deere 750J For Sale in Coalhurst, AB

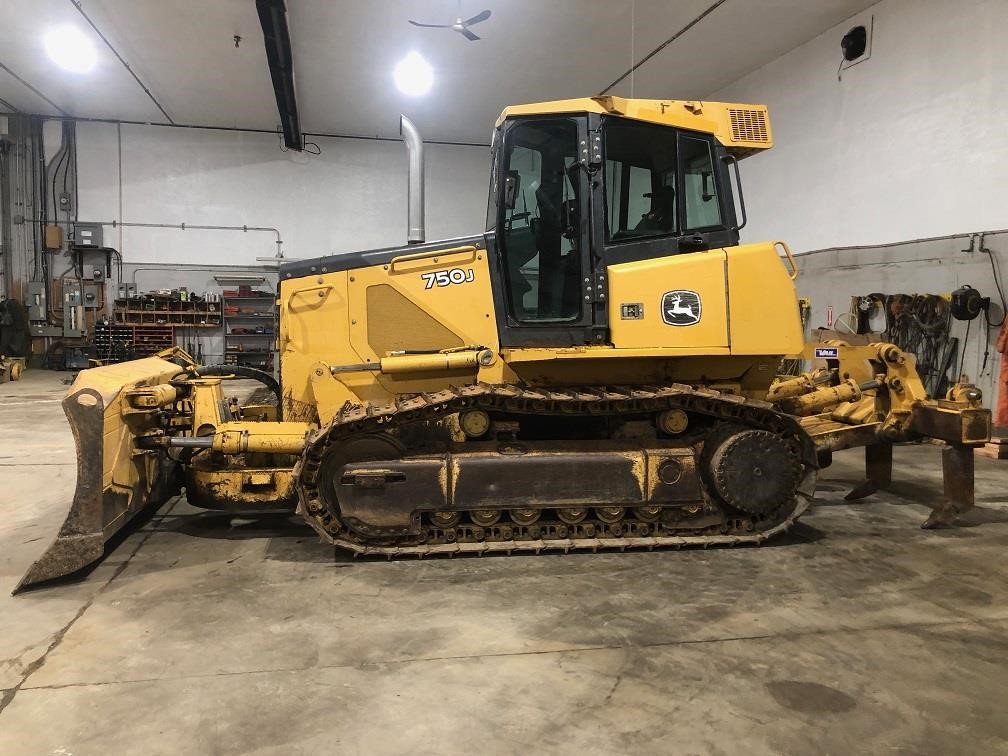

Name: 2005 John Deere 750J
Brand: John Deere
SKU: 87696857
Price: 94900 USD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $94,900.00 USD

Apply for Financing

Headwater Equipment

Headwater Equipment Dealer Info

Headwater Equipment Website

Click here to email Headwater Equipment.

Click for Phone Number

Machine Info:

Machine Location:

COALHURST, AB

Description:

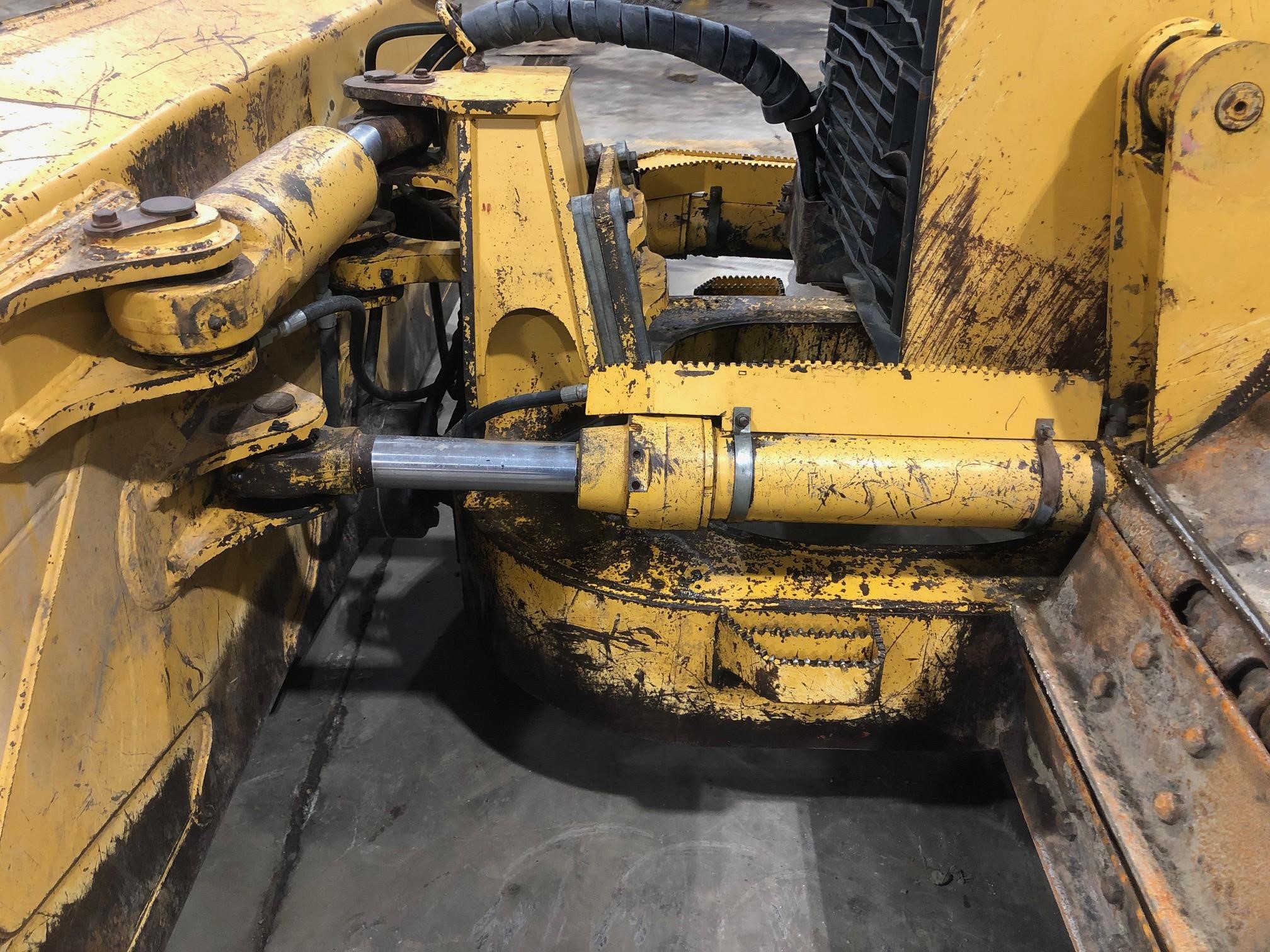

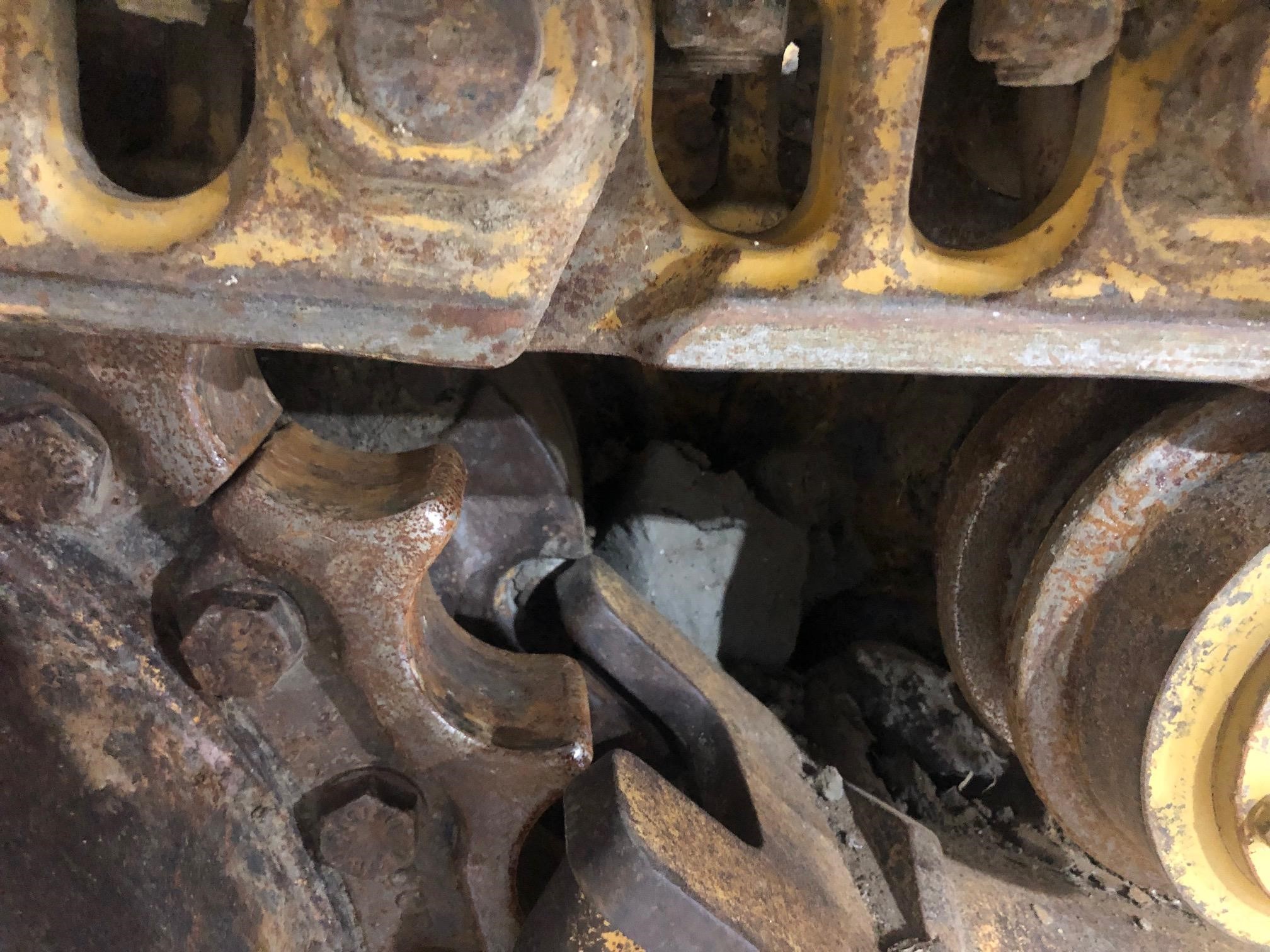

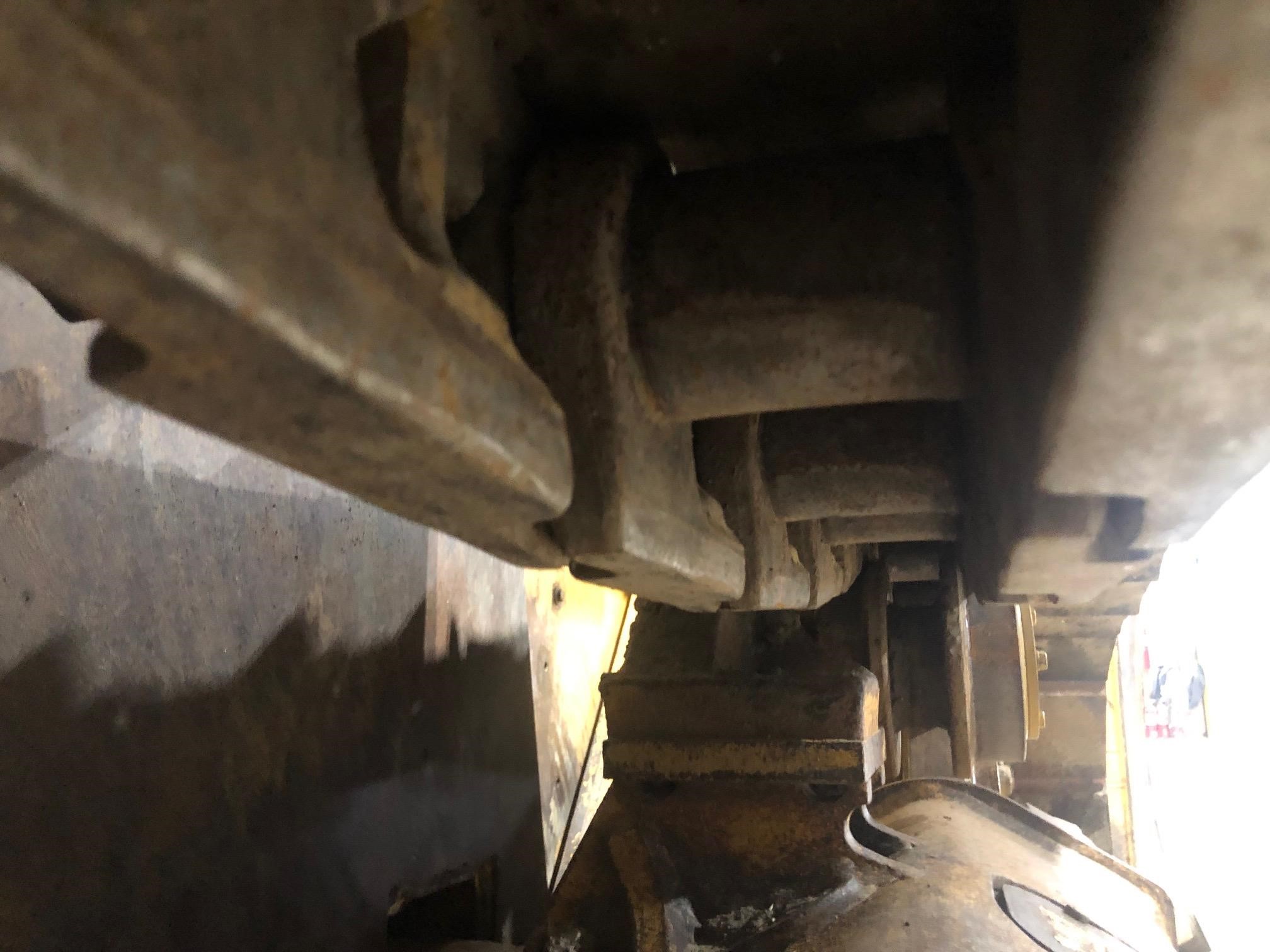

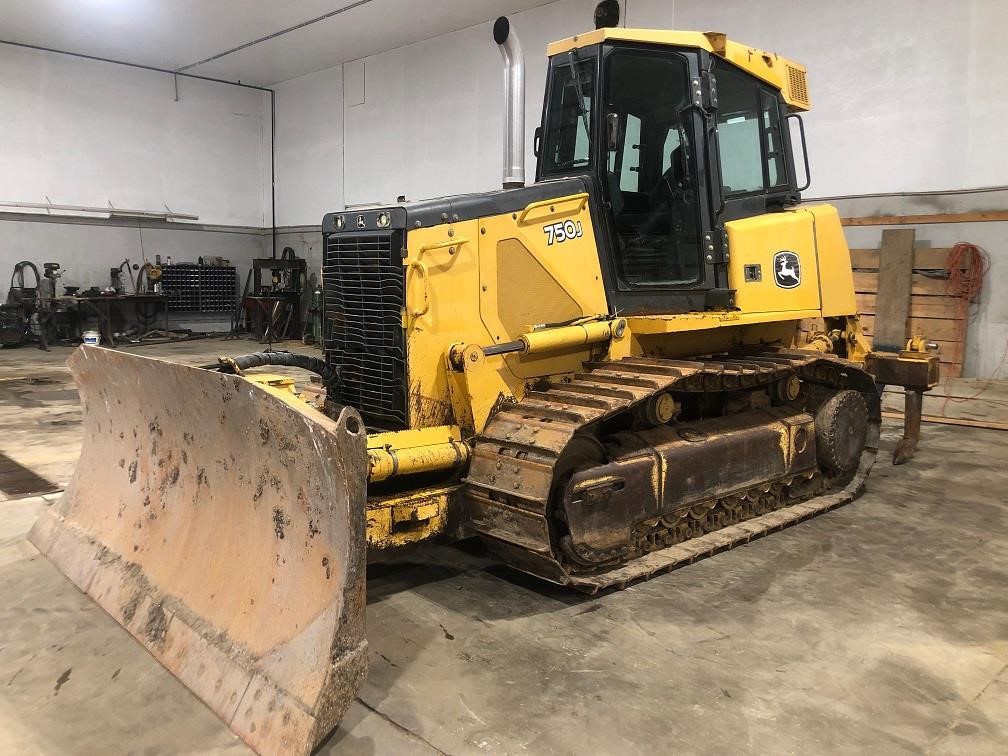

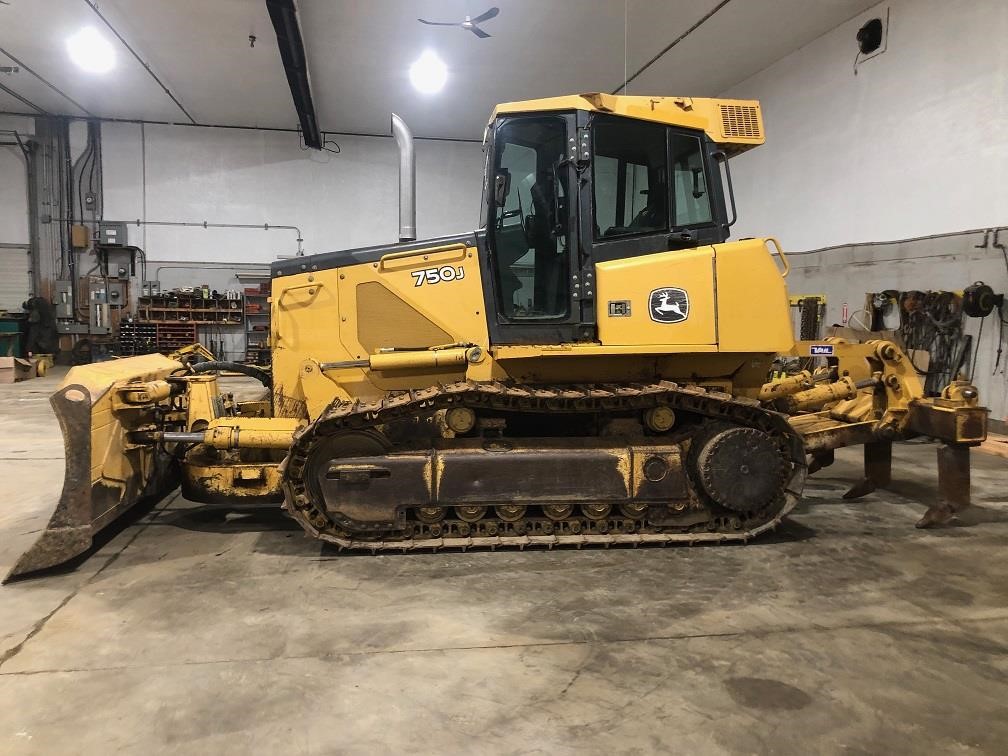

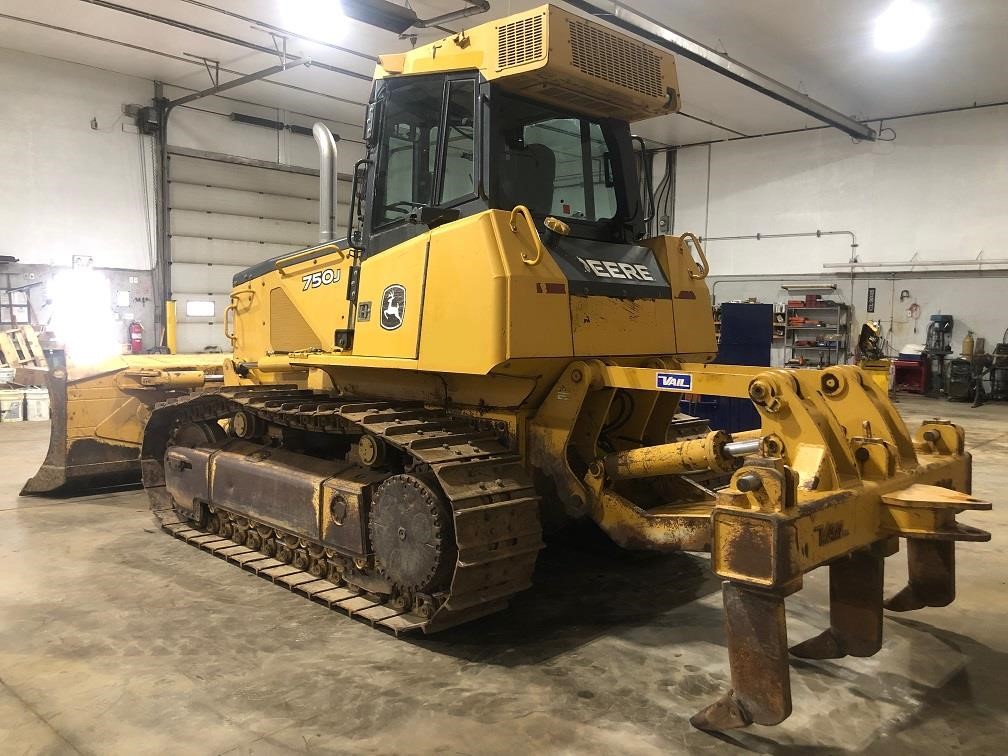

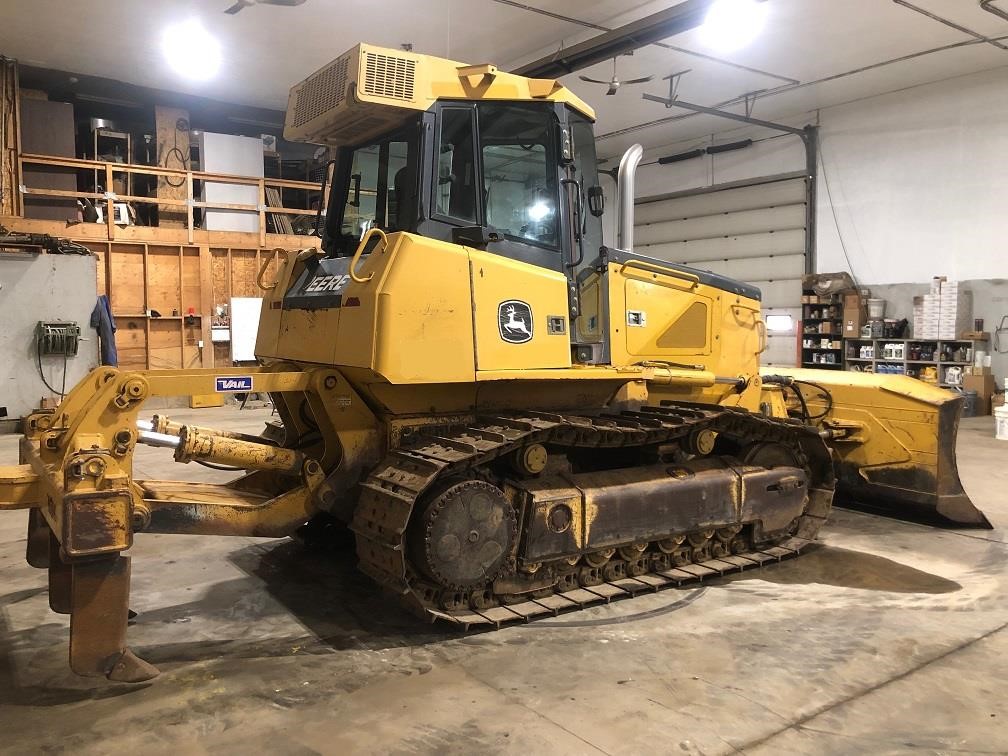

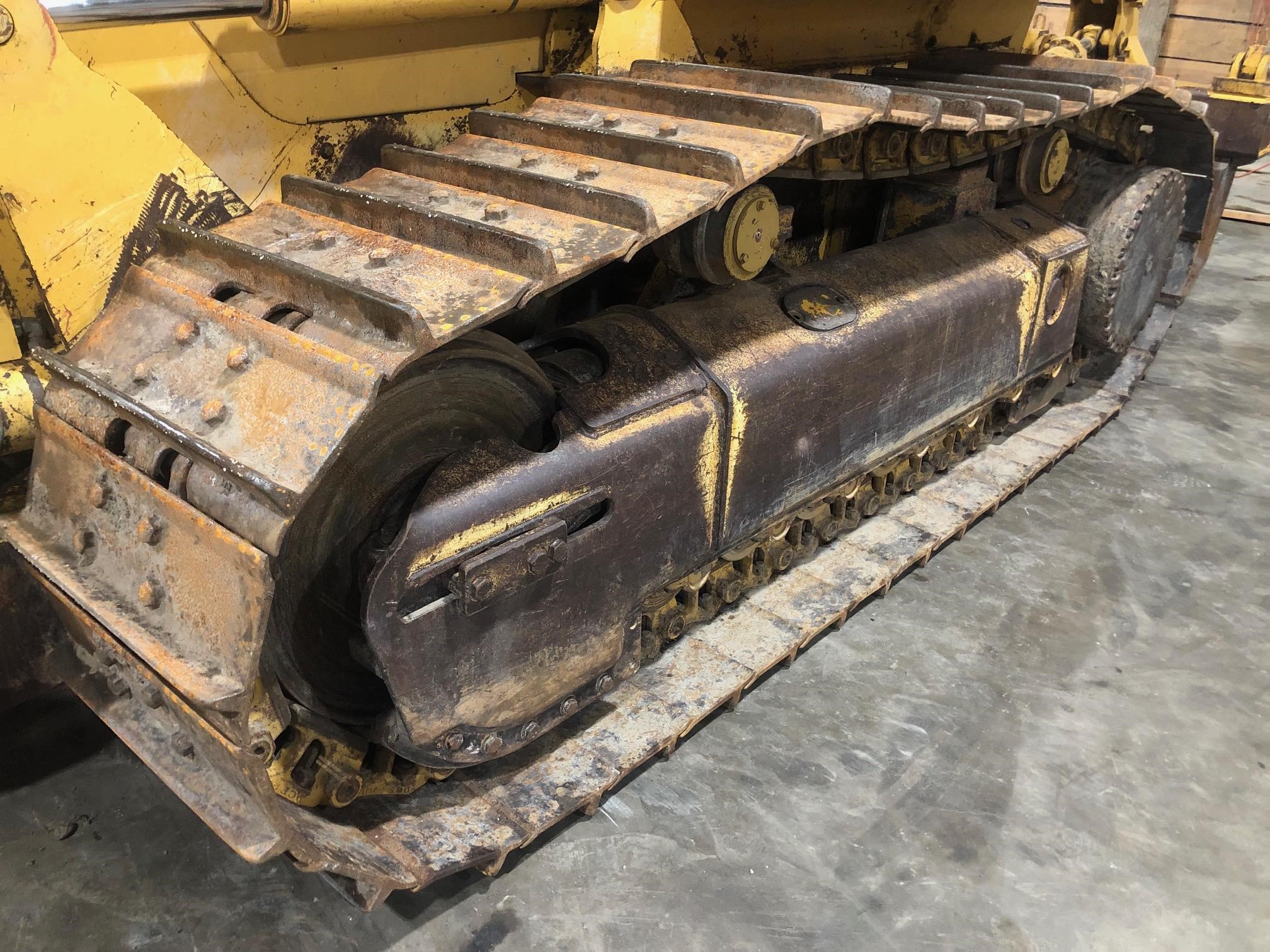

Clean work ready dozer - 6 Way PAT Blade - Vail MS Ripper - Turbo, Injectors and injection pump recently replaced - Less than 500 Hrs on New U/C with 22" Pads

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The John Deere 750J is a crawler dozer designed for heavy-duty earthmoving and construction tasks. Equipped with a powerful engine and advanced hydraulics, the 750J delivers reliable performance in grading, pushing, and leveling applications. Its robust undercarriage and durable tracks provide excellent traction and stability on rough terrain. The operator cabin features ergonomic controls and enhanced visibility for improved productivity and safety. The John Deere 750J crawler dozer is suitable for a variety of industries, including construction, mining, and agriculture. Known for its durability and efficiency, the 750J supports demanding job site conditions with consistent power and precision.

Dimensions
Ground Clearance	1 ft (0 m)
Height - Top of Cab	10 ft (3 m)
Length of Track on Ground	9 ft (3 m)
Length w/ Blade	16 ft (5 m)
Width Over Tracks	8 ft (2 m)
Engine
Aspiration	Turbocharged w/ after-cooler
Displacement	414 cu in (6,784 cu cm)
Engine Model	6068H
Gross Power	157 hp (117 kw)
Make	Deere
Max Torque	500 lbs ft (678 nm)
Net Power	145 hp (108 kw)
Number of Cylinders	6
Power Measured @	2,100 rpm
Torque Measured @	1,400 rpm
Hydraulic System
Pump Flow Capacity	38 gpm (144 lpm)
Pump type	Piston
Relief Valve Pressure	3,625 psi
Operating Specifications
Alternator Supplied Amperage	80 amps
Cooling System Fluid Capacity	6 gal (22 l)
Engine Oil Capacity	7 gal (27 l)
Final Drives Fluid Capacity	4 gal (15 l)
Fuel Capacity	98 gal (371 l)
Hydraulic Fluid Capacity	28 gal (106 l)
Operating Voltage	24 volts
Operating Weight	32,585 lbs (14,780 kg)
Standard Blade
Blade Angle (both directions)	24 degrees
Capacity	4 cu yd (3 cu m)
Height	47 in (119 cm)
Width	11 ft (3 m)
Transmission
Max Speed - Forward	6 mph (10 kph)
Max Speed - Reverse	6 mph (10 kph)
Transmission Type	Hydrostatic
Undercarriage
Ground Contact Area	4,488 cu in (73,545 cu cm)
Ground Pressure	7 psi
Number of Shoes per Side	40
Number of Track Rollers per Side	7
Standard Shoe Size	22 in (56 cm)
Track Gauge	6 ft (2 m)
Track Pitch	8 in (19 cm)
