2012 John Deere FF135DX For Sale in Chicago, Il

Name: 2012 John Deere FF135DX
Brand: John Deere
SKU: 87471438
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-12 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

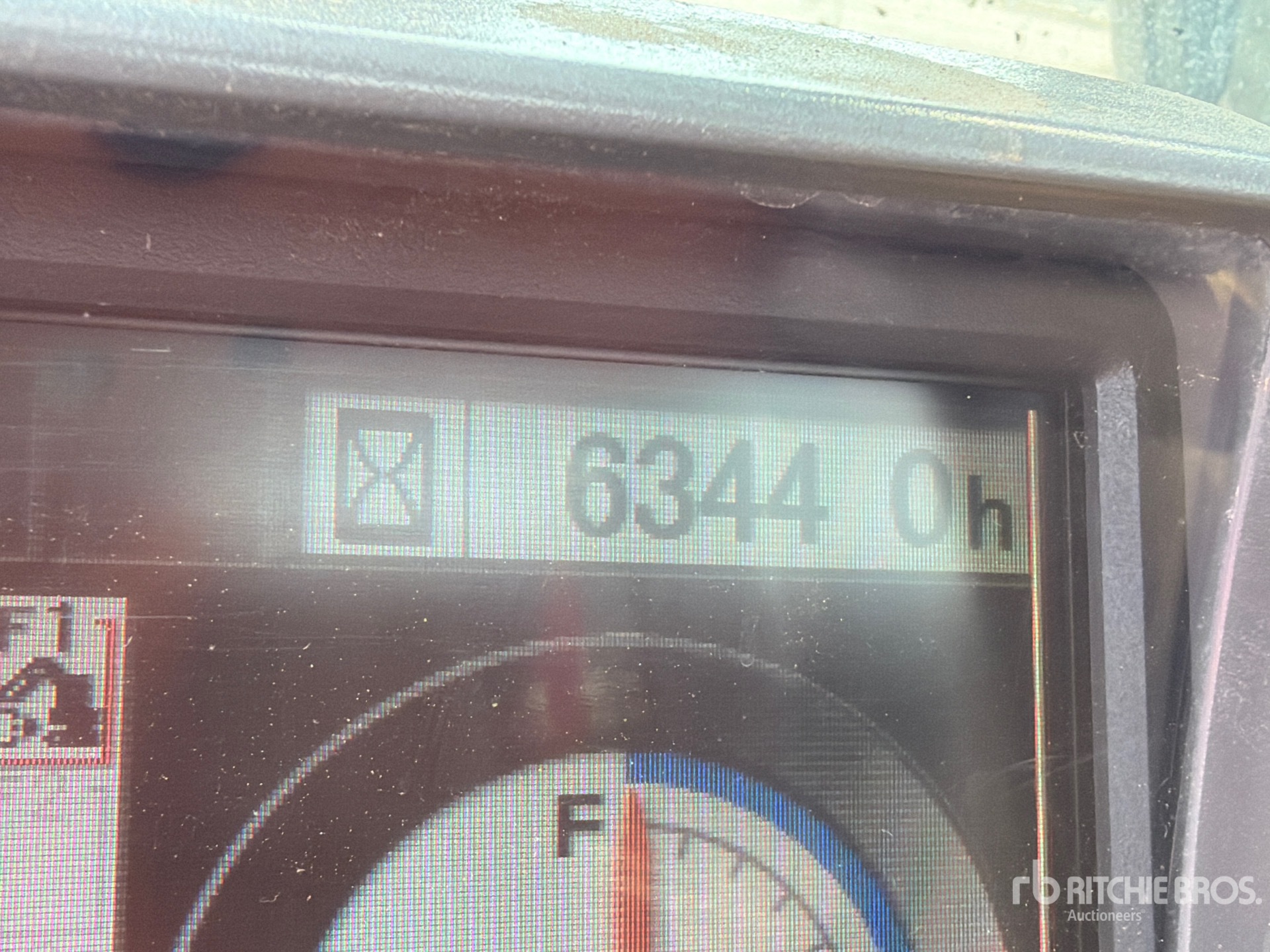

Hours:	6344

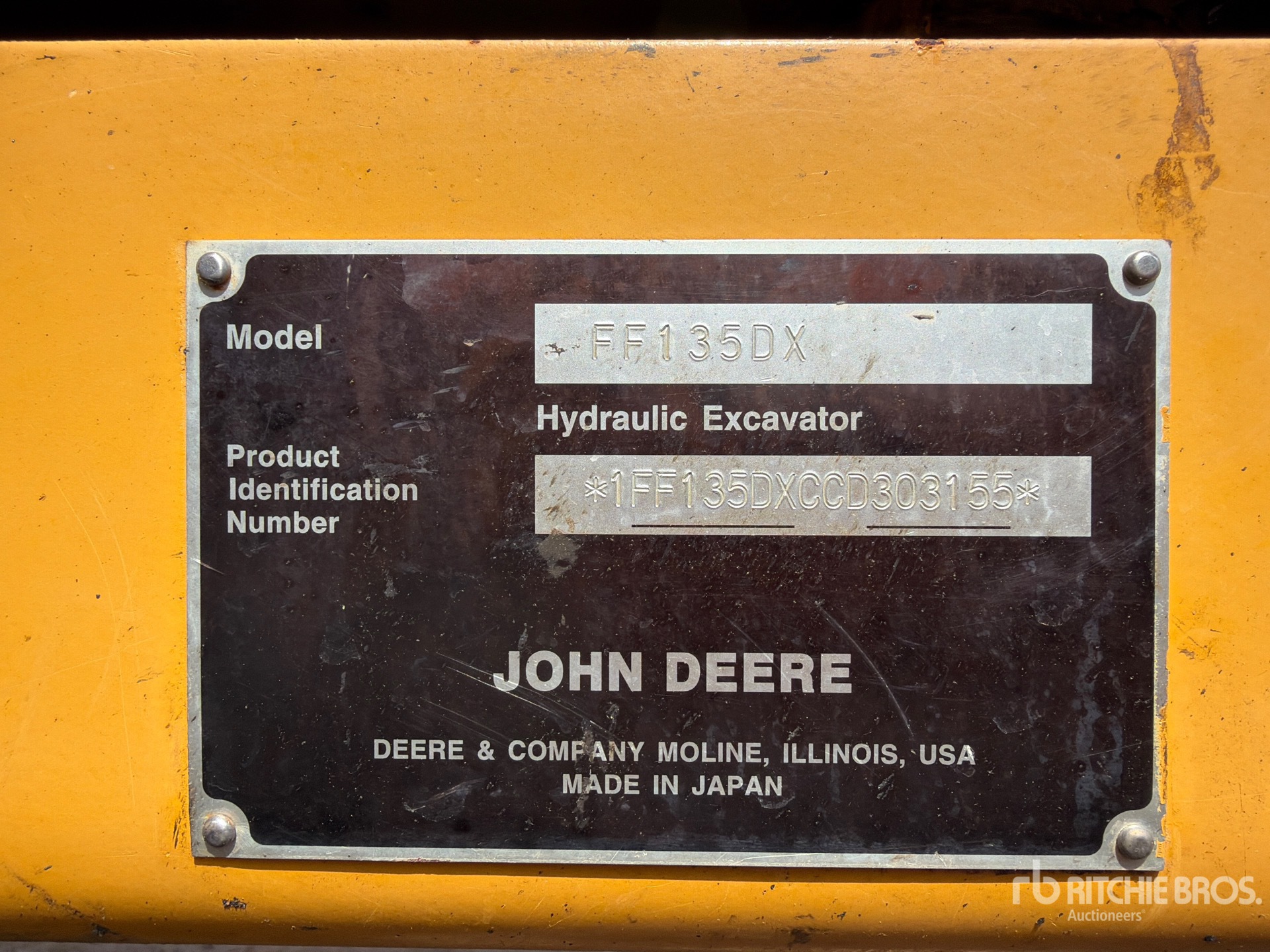

Serial Number:	1FF135DXCCD303155
Machine Location:	CHICAGO, IL

Description:

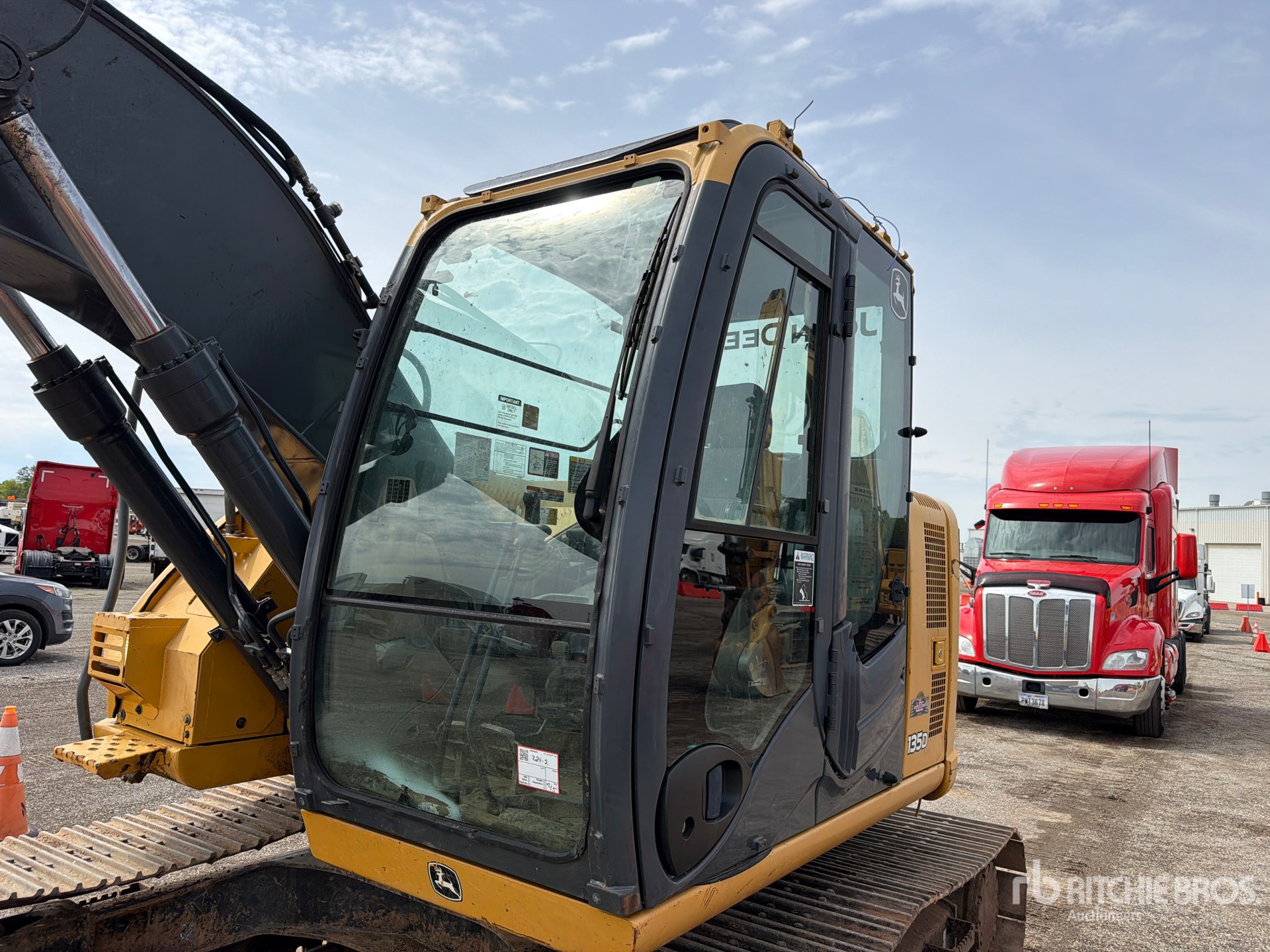

Located in Lane 26 Spot 23, Air Conditioner, 9 ft 11 in Stick, 23.5 in Triple Grouser Track Shoes, 22 in Digging Bucket Closing Time: 2026-05-12 09:59:45 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The John Deere 135D is a compact excavator in John Deere's D-Series lineup, designed for utility, construction, landscaping, and site preparation work. It features a 13.5-ton operating class, a fuel-efficient diesel engine, and hydraulic performance suited for digging, trenching, grading, and material handling. The 135D is commonly equipped with a zero-tail-swing design for improved maneuverability in confined job sites. Available with multiple boom and arm configurations, it supports a range of attachments. The cab includes operator controls, visibility, and comfort features typical of mid-size excavators. The 135D is used in general excavation and earthmoving applications.

Boom/Stick Excavator Option 1
Max Cutting Height	30 ft (9 m)
Max Digging Depth	18 ft (6 m)
Max Loading Height	22 ft (7 m)
Max Reach Along Ground	27 ft (8 m)
Max Vertical Wall Digging Depth	17 ft (5 m)
Shipping Height of Unit	9 ft (3 m)
Shipping Length of Unit	24 ft (7 m)
Boom/Stick Excavator Option 2
Max Cutting Height	32 ft (10 m)
Max Digging Depth	20 ft (6 m)
Max Loading Height	24 ft (7 m)
Max Reach Along Ground	29 ft (9 m)
Max Vertical Wall Digging Depth	17 ft (5 m)
Shipping Height of Unit	9 ft (3 m)
Shipping Length of Unit	24 ft (7 m)
Bucket
Maximum Bucket Capacity	1 cu yd (1 cu m)
Minimum Bucket Capacity	1 cu yd (0 cu m)
Reference Bucket Capacity	1 cu yd (1 cu m)
Dimensions
Ground Clearance	2 ft (0 m)
Height - Top of Cab	9 ft (3 m)
Length of Track on Ground	10 ft (3 m)
Removal Counterweight Clearance	3 ft (1 m)
Tail Swing Radius	5 ft (1 m)
Width to Outside of Tracks	9 ft (3 m)
Engine
Aspiration	Turbocharged air-to-air charge air cooler
Displacement	183 cu in (2,999 cu cm)
Engine Model	4JJ1X Tier III certified
Net Power	93 hp (69 kw)
Power Measured @	2,000 rpm
Operating Specifications
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	4 gal (16 l)
Engine Oil Capacity	5 gal (17 l)
Fuel Capacity	58 gal (220 l)
Hydraulic Pump Flow Capacity	56 gpm (210 lpm)
Hydraulic System Relief Valve Pressure	4,980 psi
Operating Voltage	24 volts
Operating Weight	30,737 lbs (13,942 kg)
Swing Drive Fluid Capacity	1 gal (3 l)
Swing Mechanism
Swing Speed	14 rpm
Undercarriage
Drawbar Pull	26,303 lbs (11,931 kg)
Ground Pressure	6 psi
Max Travel Speed	4 mph (6 kph)
Number of Carrier Rollers per Side	1
Number of Shoes per Side	44
Number of Track Rollers per Side	7
Shoe Size	24 in (60 cm)
Track Gauge	7 ft (2 m)
