Equipment ↠ John Deere ↠ Excavators ↠ 2003 John Deere 200C LC

2003 John Deere 200C LC For Sale in Toronto, On

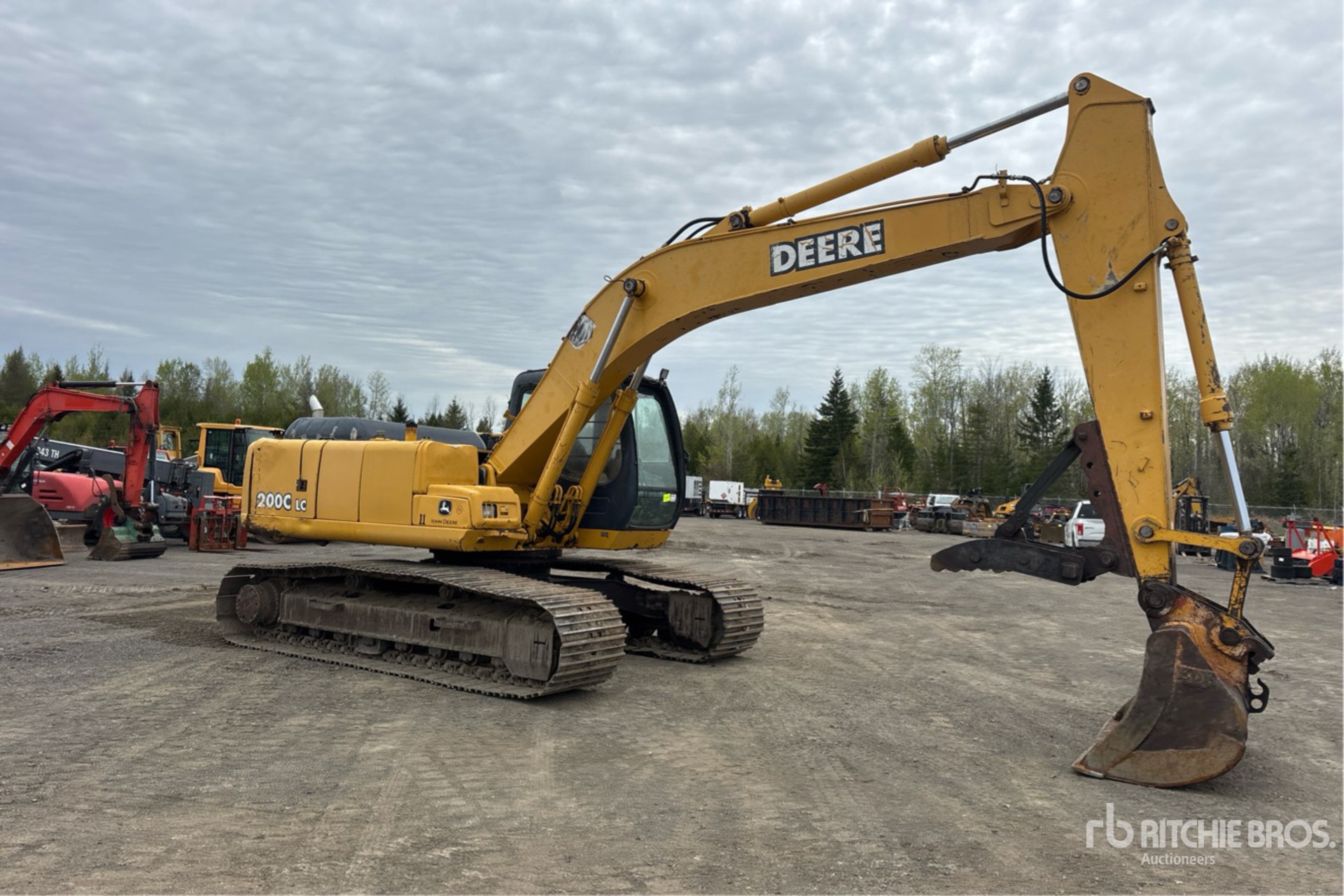

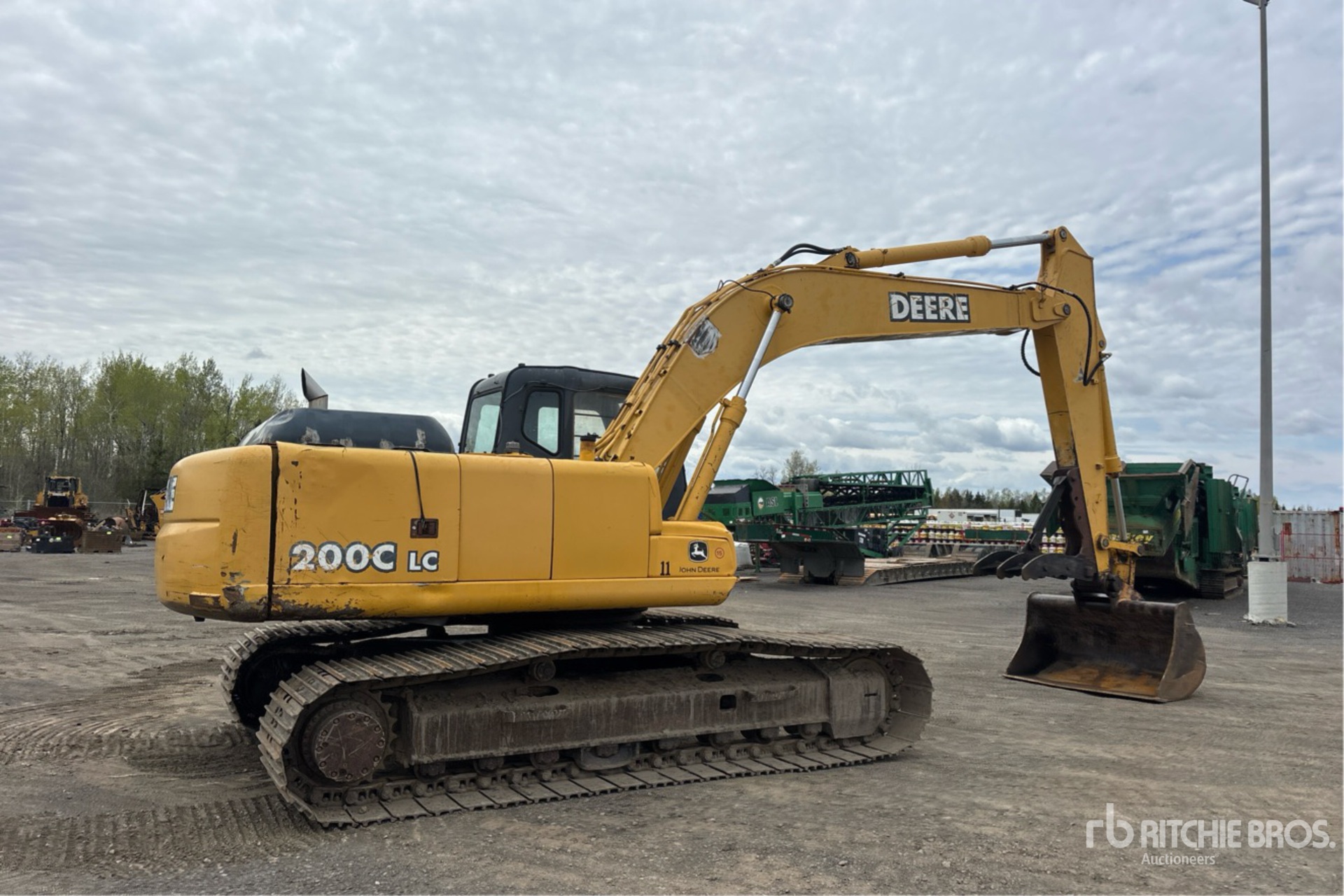

Name: 2003 John Deere 200C LC
Brand: John Deere
SKU: 86811863
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-20 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

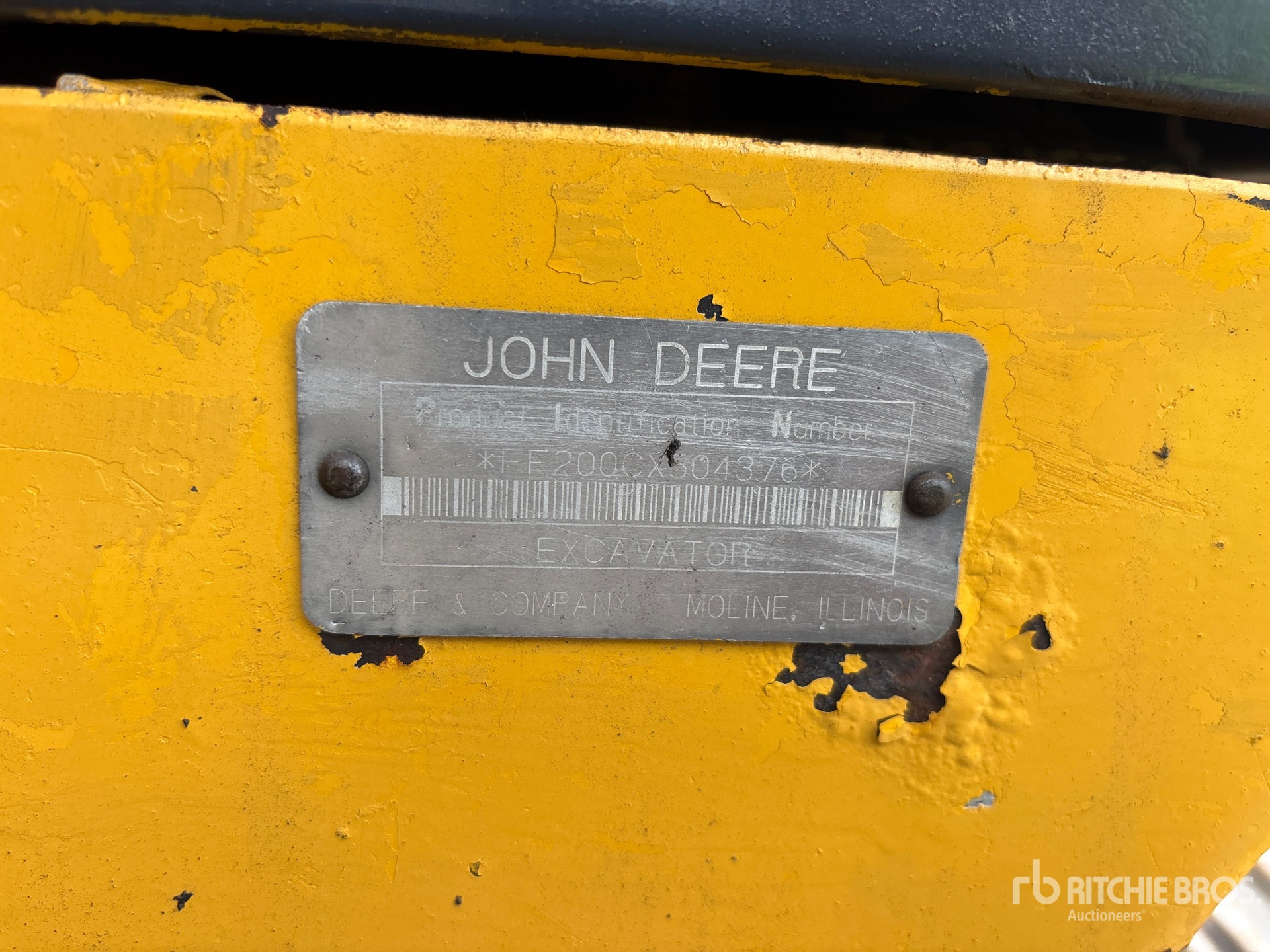

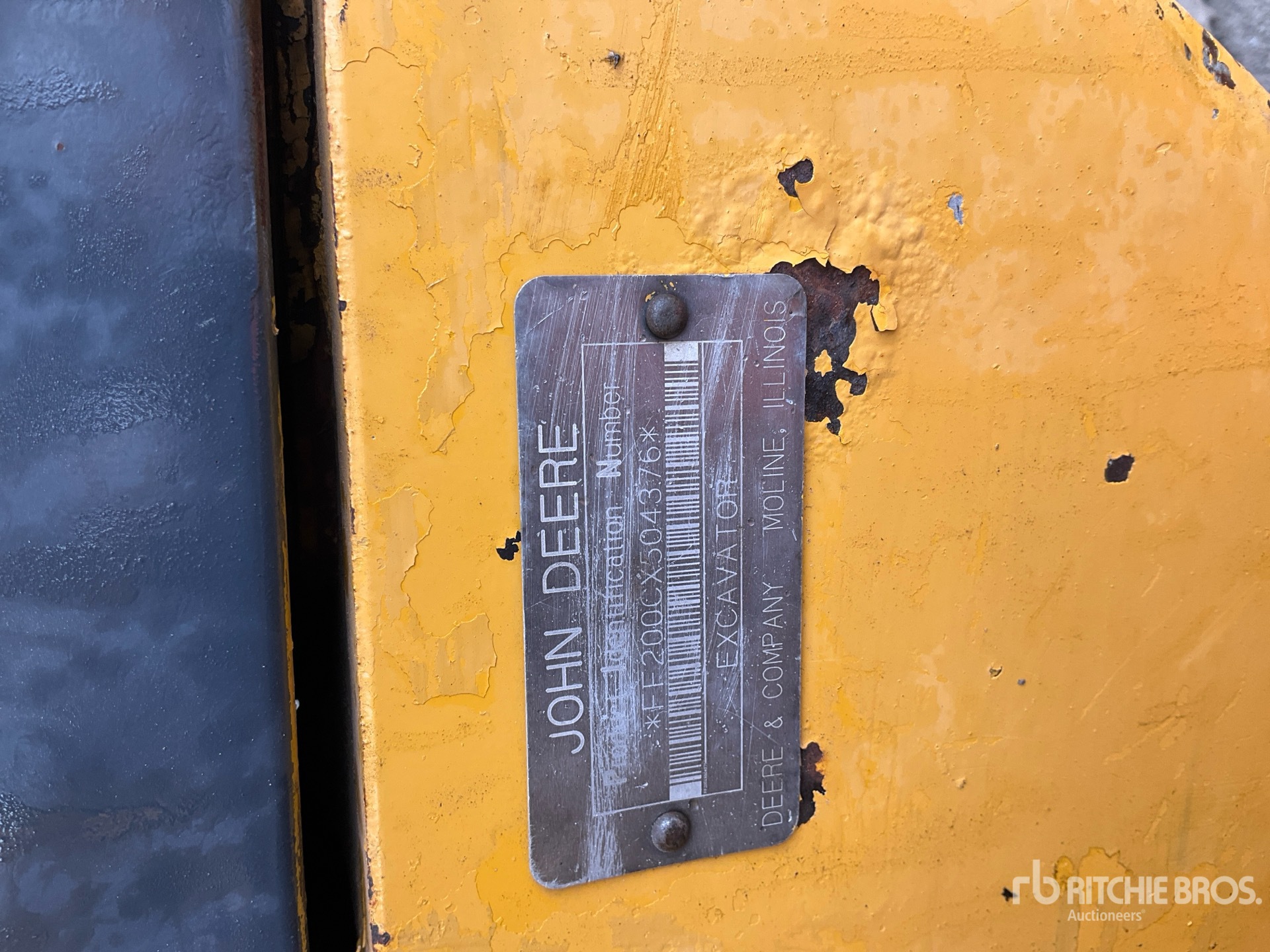

Serial Number:	EL200CX504376
Machine Location:	TORONTO, ON

Description:

From the manufacturer:

Supplied by HeavyEquipmentData.com →

John Deere 200 LC is a hydraulic crawler excavator in the excavators category, designed for general earthmoving, trenching, site preparation, and material handling. The 200 LC is part of John Deere's medium excavator lineup and is commonly used in construction, utility, and excavation applications. It features a tracked undercarriage for stability and traction on uneven ground, a boom and arm configuration for digging and loading, and a rotating upper structure for efficient operation. The model designation "LC" typically indicates a long-carriage or long-track configuration, depending on market and series. Specifications vary by year and configuration.

Boom/Stick Excavator Option 1
Max Cutting Height	30 ft (9 m)
Max Digging Depth	20 ft (6 m)
Max Loading Height	21 ft (6 m)
Max Reach Along Ground	30 ft (9 m)
Max Vertical Wall Digging Depth	17 ft (5 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	32 ft (10 m)
Boom/Stick Excavator Option 2
Max Cutting Height	32 ft (10 m)
Max Digging Depth	22 ft (7 m)
Max Loading Height	22 ft (7 m)
Max Reach Along Ground	32 ft (10 m)
Max Vertical Wall Digging Depth	20 ft (6 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	31 ft (10 m)

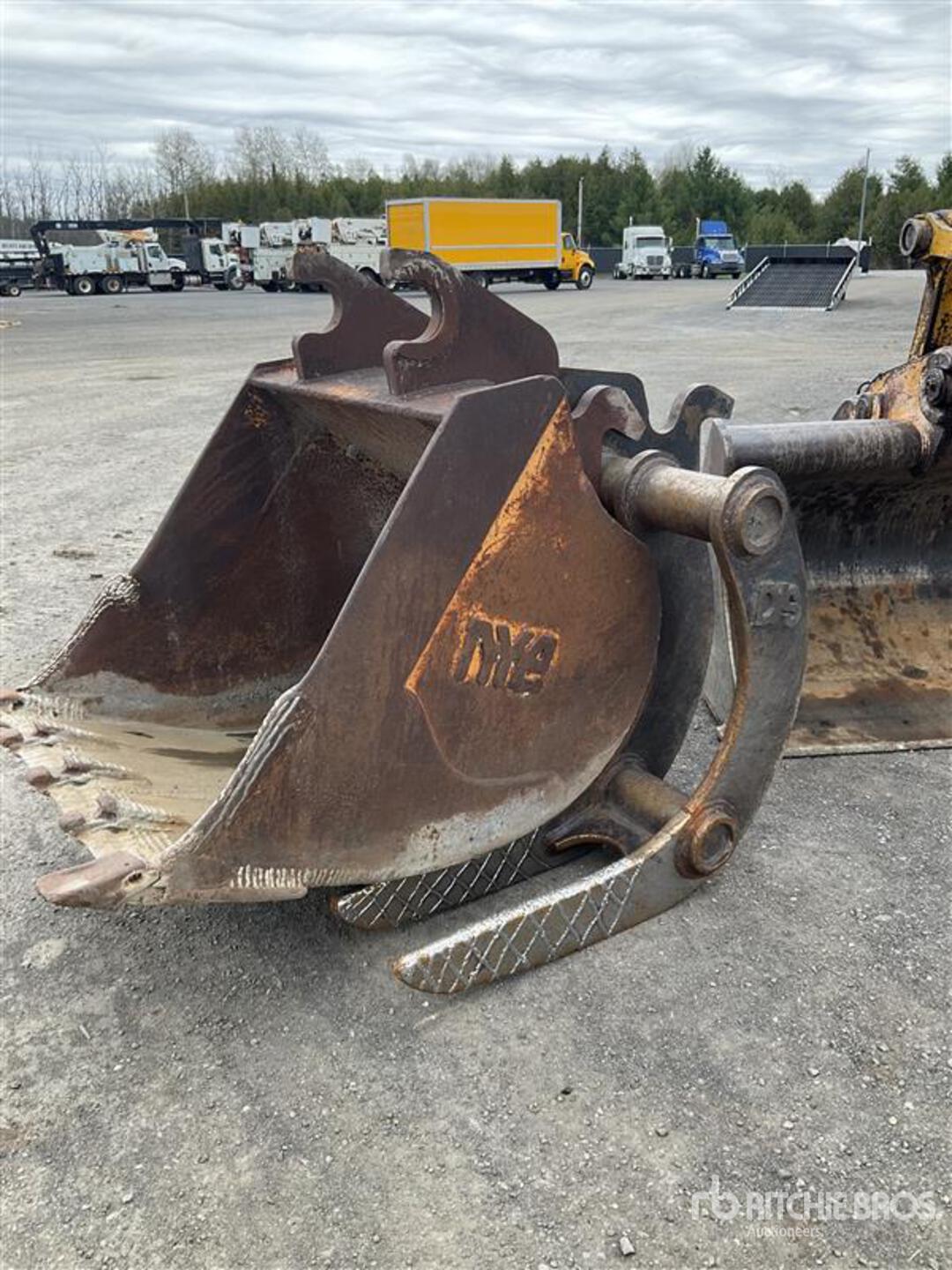

Bucket
Reference Bucket Capacity	1 cu yd (1 cu m)
Dimensions
Ground Clearance	2 ft (0 m)
Height - Top of Cab	9 ft (3 m)
Length of Track on Ground	12 ft (4 m)
Removal Counterweight Clearance	3 ft (1 m)
Tail Swing Radius	9 ft (3 m)
Width to Outside of Tracks	11 ft (3 m)
Engine
Aspiration	Turbocharger
Displacement	414 cu in (6,784 cu cm)
Engine Model	6068T
Max Torque	427 lbs ft (579 nm)
Net Power	140 hp (104 kw)
Power Measured @	2,150 rpm
Torque Measured @	1,300 rpm
Operating Specifications
Alternator Supplied Amperage	45 amps
Cooling System Fluid Capacity	8 gal (29 l)
Engine Oil Capacity	5 gal (19 l)
Fuel Capacity	80 gal (303 l)
Hydraulic Pump Flow Capacity	53 gpm (199 lpm)
Hydraulic System Fluid Capacity	53 gal (200 l)
Hydraulic System Relief Valve Pressure	4,980 psi
Operating Voltage	24 volts
Operating Weight	44,750 lbs (20,298 kg)
Swing Mechanism
Swing Speed	14 rpm
Undercarriage
Drawbar Pull	42,420 lbs (19,241 kg)
Ground Pressure	5 psi
Max Travel Speed	3 mph (5 kph)
Number of Carrier Rollers per Side	2
Number of Shoes per Side	49
Number of Track Rollers per Side	8
Shoe Size	32 in (81 cm)
Track Gauge	8 ft (2 m)
