Equipment ↠ John Deere ↠ Excavators ↠ 2003 John Deere 230C LC

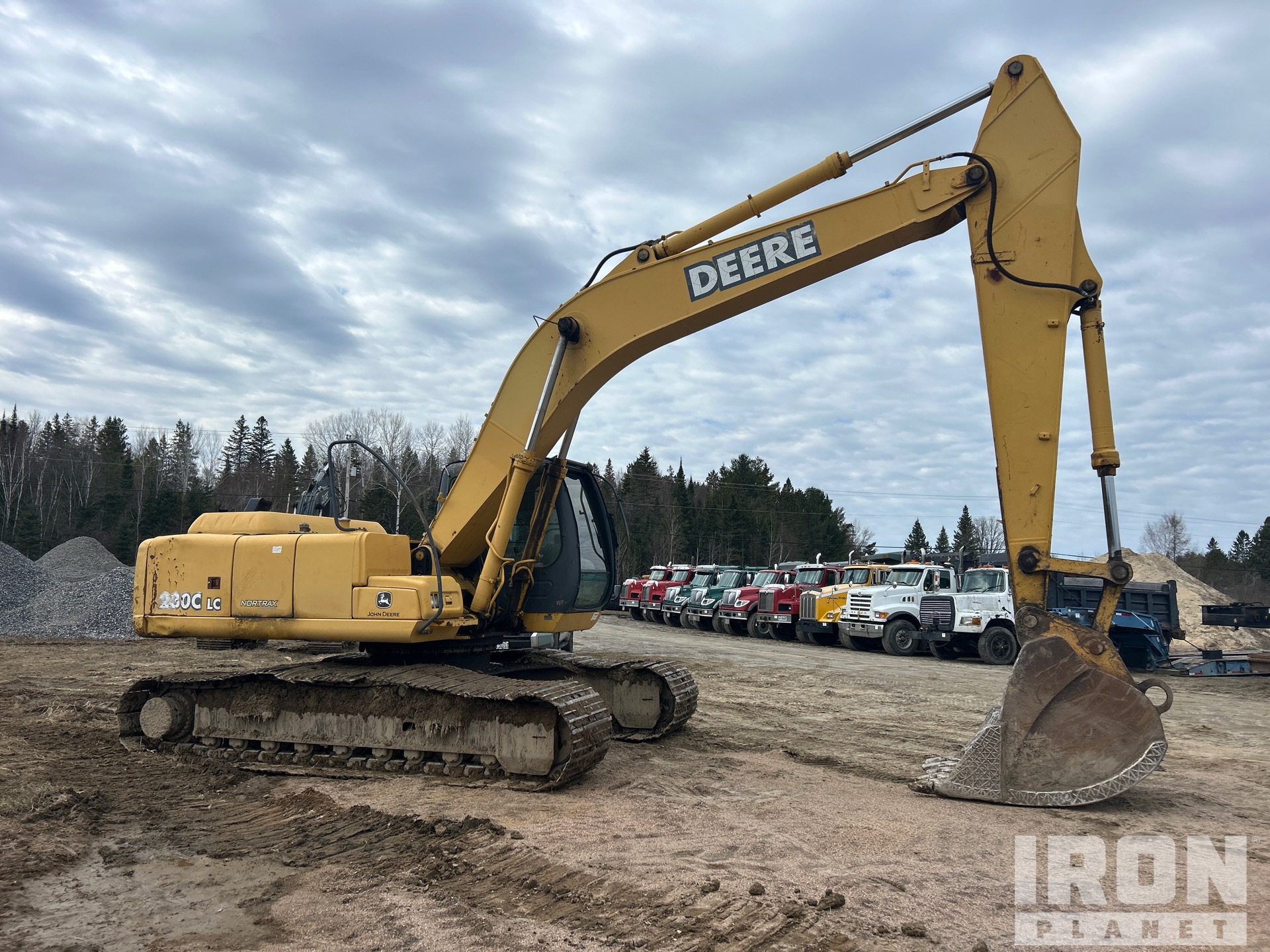

2003 John Deere 230C LC For Sale in Toronto, On

Name: 2003 John Deere 230C LC
Brand: John Deere
SKU: 86552556
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-20 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

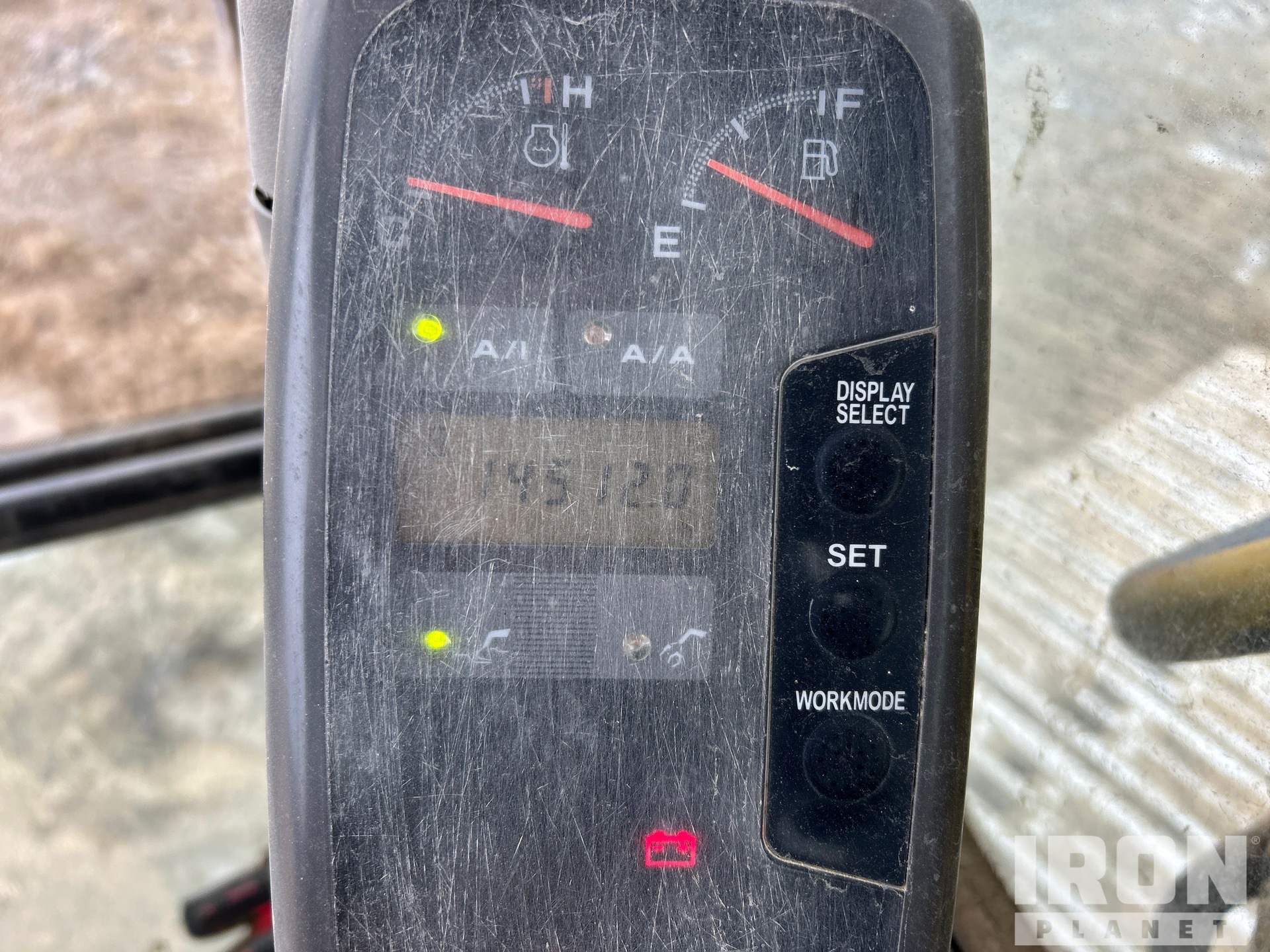

Hours:	14512

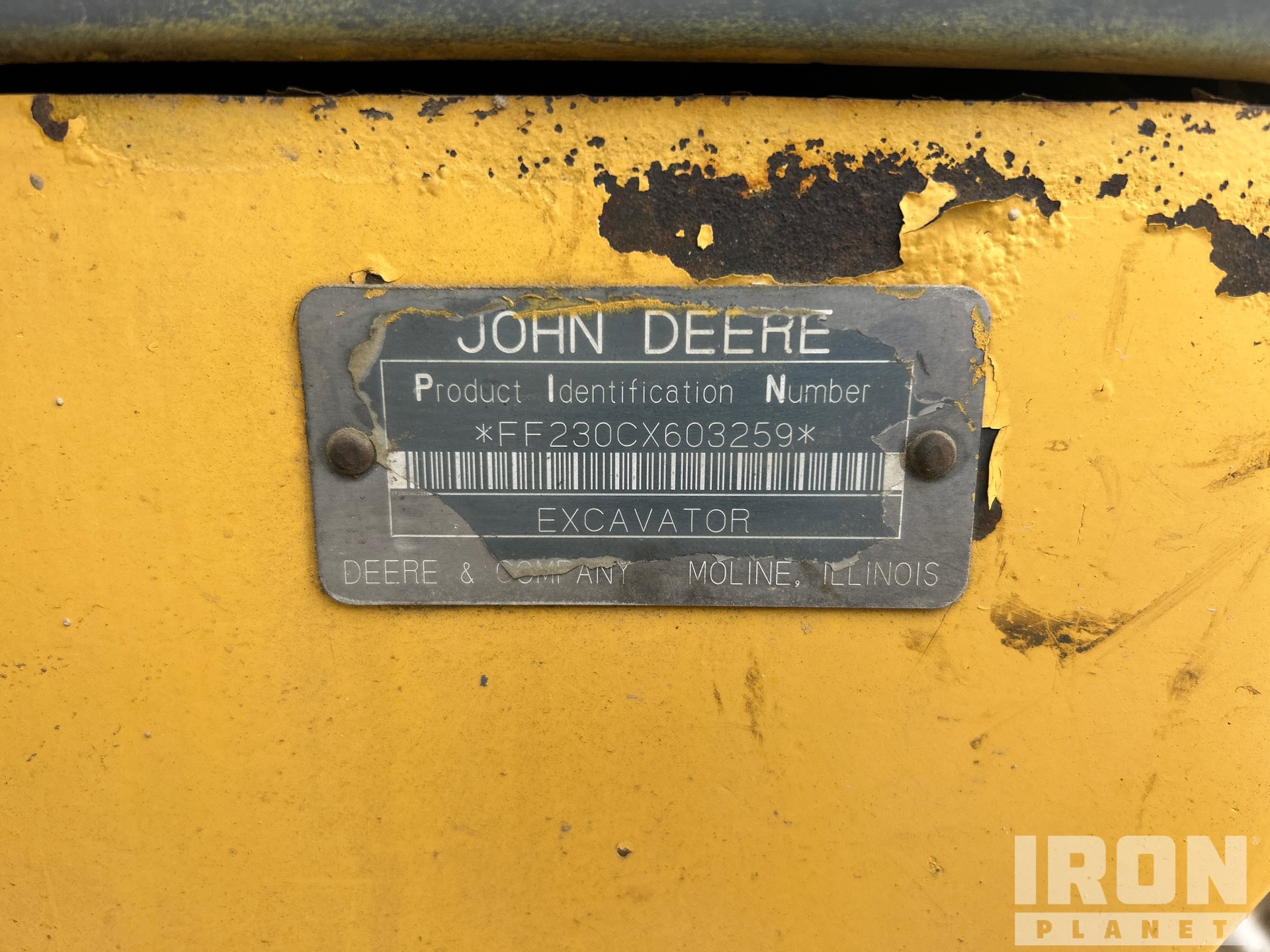

Serial Number:	FF230CX603259
Machine Location:	TORONTO, ON

Description:

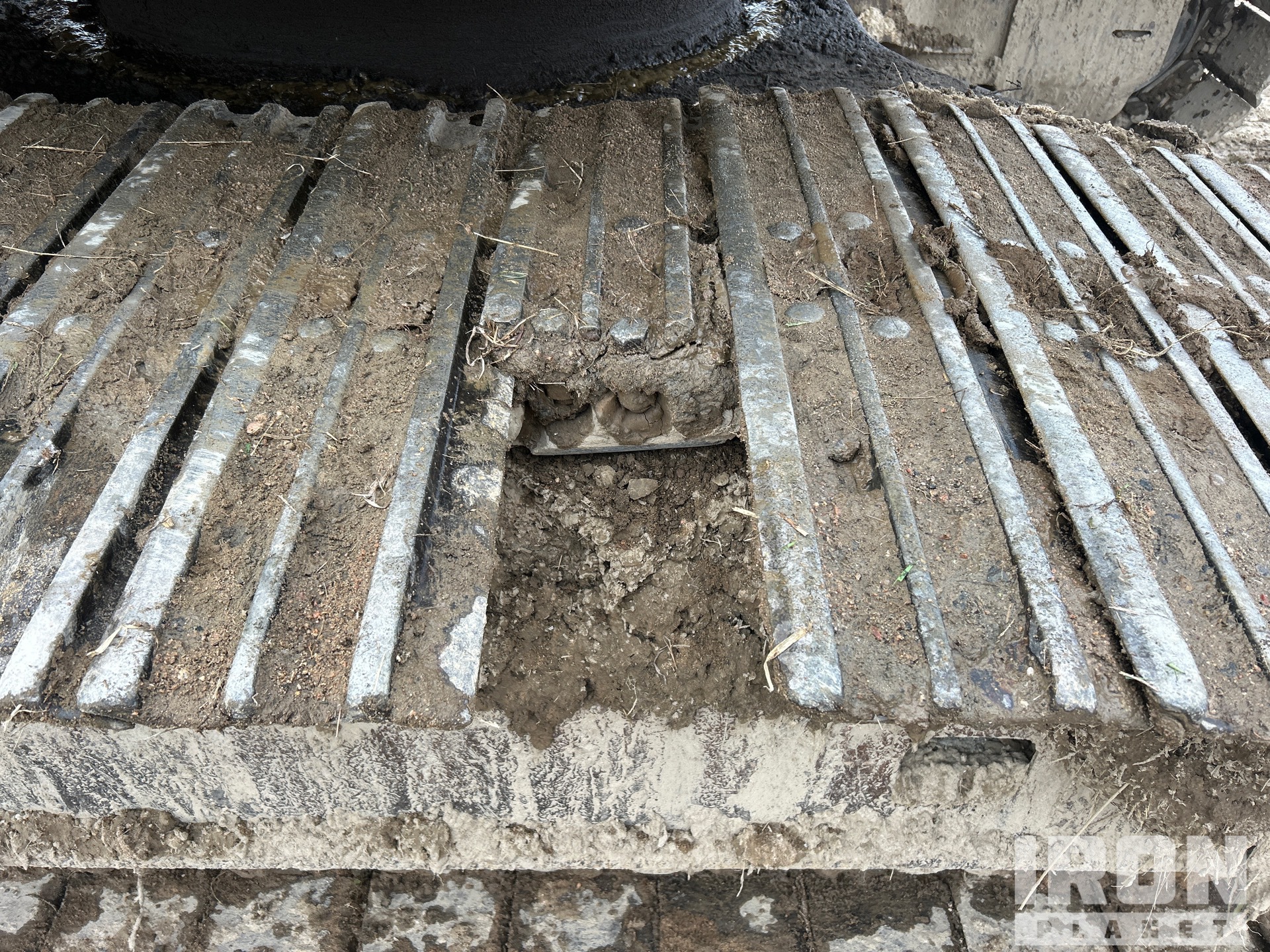

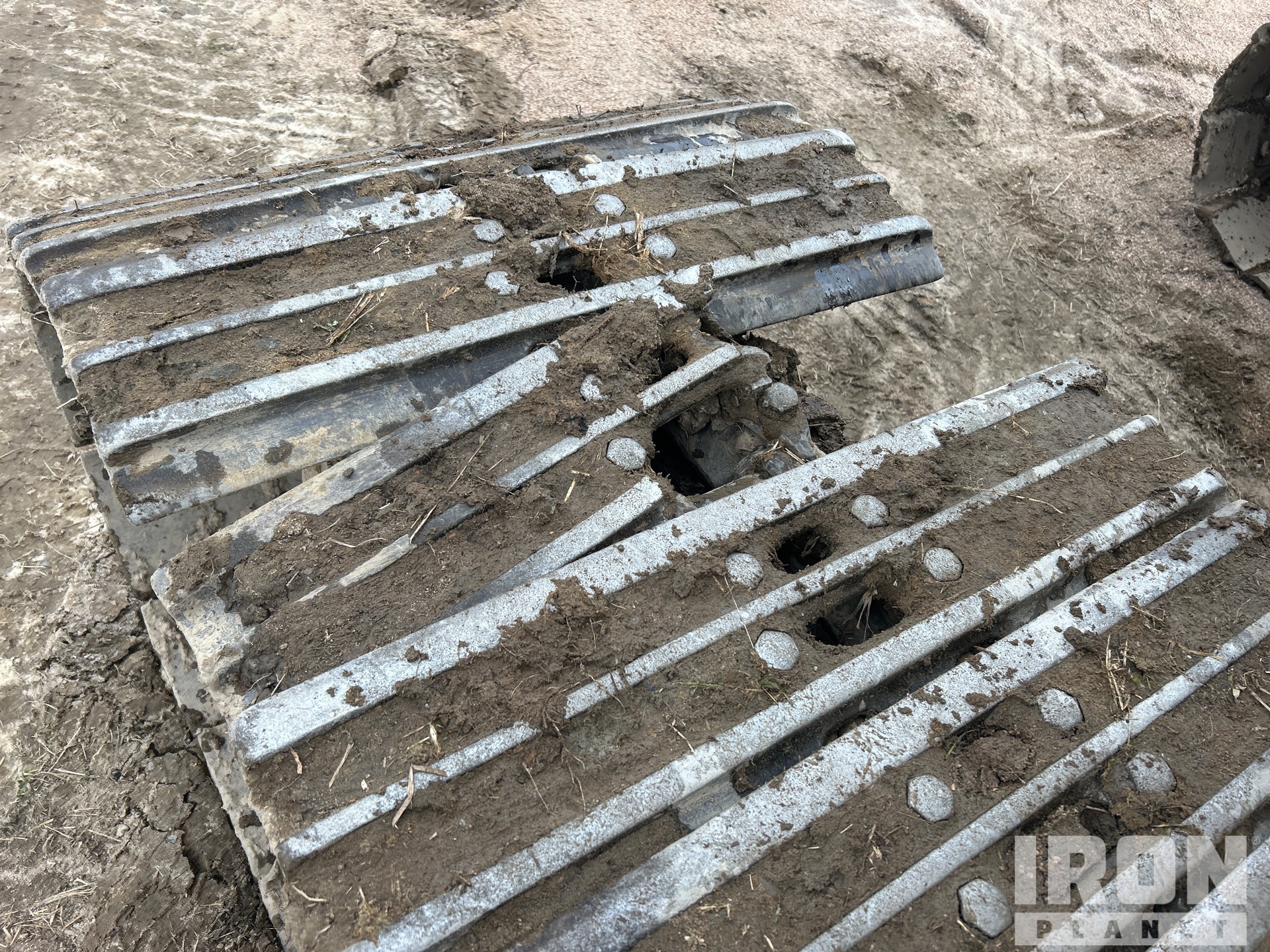

Air Conditioner, 10 ft 6 in Stick, 31.5 in Triple Grouser Track Shoes, 48 in Digging Bucket Closing Time: 2026-05-20 09:47:30 AM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Excavator Option 1
Max Cutting Height	32 ft (10 m)
Max Digging Depth	23 ft (7 m)
Max Loading Height	22 ft (7 m)
Max Reach Along Ground	33 ft (10 m)
Max Vertical Wall Digging Depth	19 ft (6 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	33 ft (10 m)
Boom/Stick Excavator Option 2
Max Cutting Height	33 ft (10 m)
Max Digging Depth	25 ft (8 m)
Max Loading Height	23 ft (7 m)
Max Reach Along Ground	35 ft (11 m)
Max Vertical Wall Digging Depth	22 ft (7 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	34 ft (10 m)
Bucket
Maximum Bucket Capacity	2 cu yd (2 cu m)
Minimum Bucket Capacity	1 cu yd (1 cu m)
Reference Bucket Capacity	1 cu yd (1 cu m)
Dimensions
Digging Depth	22 ft (7 m)
Digging Reach	22 ft (7 m)
Ground Clearance	2 ft (0 m)
Height - Top of Cab	10 ft (3 m)
Length of Track on Ground	13 ft (4 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	10 ft (3 m)
Width to Outside of Tracks	11 ft (3 m)
Engine
Aspiration	Turbocharger and Air-to-Air
Displacement	414 cu in (6,784 cu cm)
Engine Model	6068H
Max Torque	516 lbs ft (700 nm)
Net Power	169 hp (126 kw)
Power Measured @	2,100 rpm
Torque Measured @	1,400 rpm
Operating Specifications
Alternator Supplied Amperage	45 amps
Cooling System Fluid Capacity	6 gal (23 l)
Engine Oil Capacity	5 gal (19 l)
Fuel Capacity	100 gal (379 l)
Hydraulic Pump Flow Capacity	55 gpm (208 lpm)
Hydraulic System Fluid Capacity	66 gal (250 l)
Hydraulic System Relief Valve Pressure	1,980 psi
Operating Voltage	24 volts
Swing Drive Fluid Capacity	2 gal (8 l)
Swing Mechanism
Swing Speed	14 rpm
Undercarriage
Drawbar Pull	44,420 lbs (20,149 kg)
Ground Pressure	5 psi
Max Travel Speed	3 mph (5 kph)
Number of Carrier Rollers per Side	2
Number of Shoes per Side	51
Number of Track Rollers per Side	9
Shoe Size	32 in (81 cm)
