Equipment ↠ John Deere ↠ Excavators ↠ 2002 John Deere 330C LC

2002 John Deere 330C LC For Sale in Edmonton, Ab

Name: 2002 John Deere 330C LC
Brand: John Deere
SKU: 86780610
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Apply for Financing

Auction Pricing

Auction Info: Starting on 2026-05-11 Click here to place a bid

Ritchie Bros. Auctioneers

Ritchie Bros. Auctioneers Dealer Info

Ritchie Bros. Auctioneers Website

Click here to email Ritchie Bros. Auctioneers.

Click for Phone Number

Machine Info:

Hours:	9154

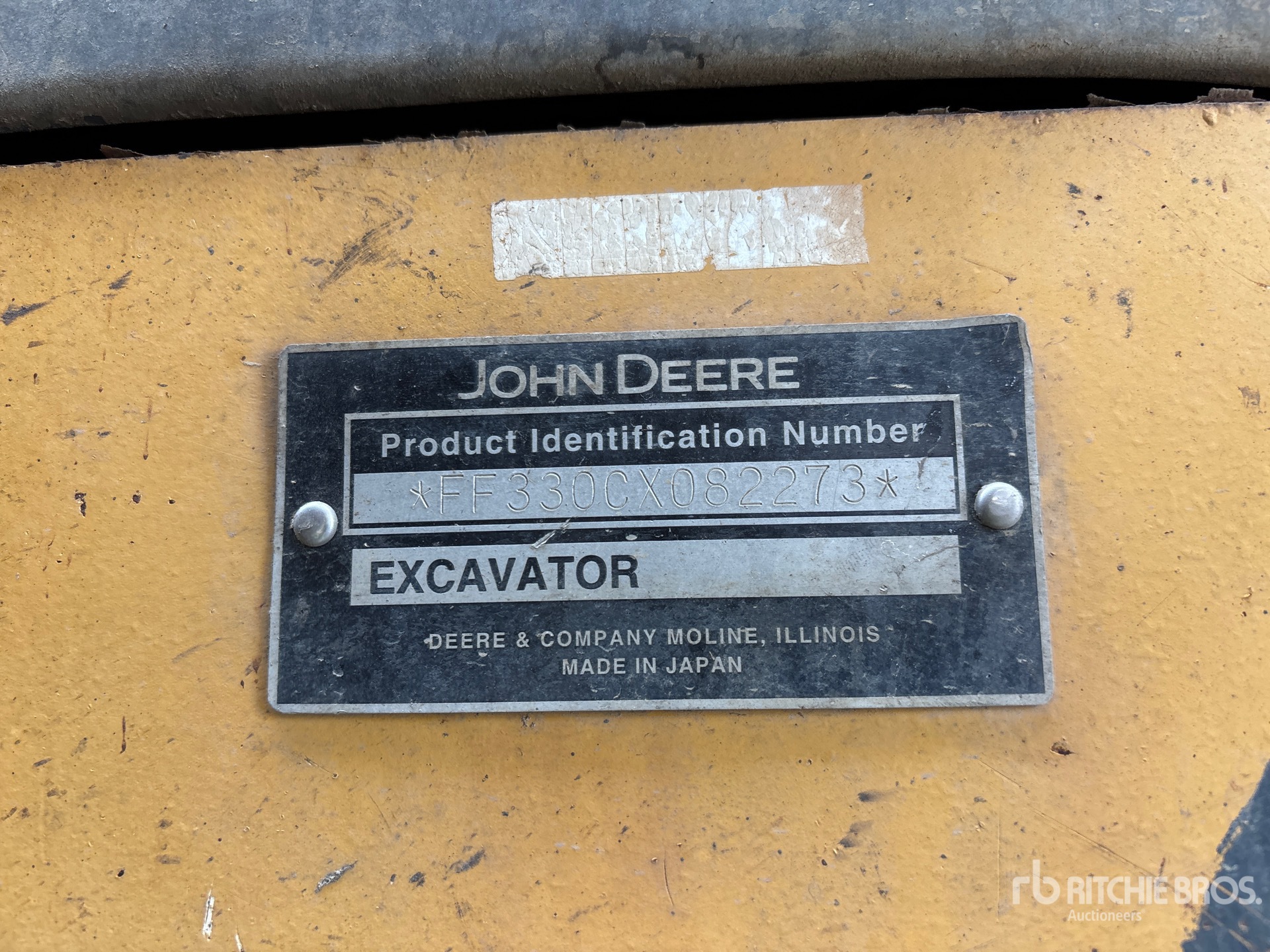

Serial Number:	FF330CX082273
Machine Location:	EDMONTON, AB

Description:

Located in Lane 60 Spot 45, Cab Screens, Engine Coolant Heater, 10 ft 6 in Stick, 31.5 in Triple Grouser Track Shoes, Manual Quick Coupler, 40 in Digging Bucket, Hydraulic Thumb, Catwalks Closing Time: 2026-05-11 02:26:00 PM

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The John Deere 330C LC is a hydraulic excavator in John Deere's 330C series, designed for general earthmoving, trenching, site preparation, and material handling. The LC designation indicates a long carriage undercarriage configuration, providing improved stability and reduced ground pressure compared with standard track arrangements. This model is commonly used in construction, utility, and excavation applications where reach, digging force, and operating balance are important. The 330C LC typically features a diesel engine, hydraulic control system, enclosed operator cab, and crawler undercarriage. It is classified as an excavator and is part of John Deere's mid-size tracked equipment lineup.

Boom/Stick Excavator Option 1
Max Cutting Height	32 ft (10 m)
Max Digging Depth	22 ft (7 m)
Max Loading Height	23 ft (7 m)
Max Reach Along Ground	34 ft (10 m)
Max Vertical Wall Digging Depth	18 ft (6 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	36 ft (11 m)
Boom/Stick Excavator Option 2
Max Cutting Height	34 ft (10 m)
Max Digging Depth	24 ft (7 m)
Max Loading Height	24 ft (7 m)
Max Reach Along Ground	36 ft (11 m)
Max Vertical Wall Digging Depth	21 ft (6 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	36 ft (11 m)
Boom/Stick Excavator Option 3
Max Cutting Height	35 ft (11 m)
Max Digging Depth	27 ft (8 m)
Max Loading Height	25 ft (8 m)
Max Reach Along Ground	38 ft (12 m)
Max Vertical Wall Digging Depth	24 ft (7 m)
Shipping Height of Unit	12 ft (4 m)
Shipping Length of Unit	36 ft (11 m)
Bucket
Maximum Bucket Capacity	1 cu yd (1 cu m)
Minimum Bucket Capacity	3 cu yd (2 cu m)
Reference Bucket Capacity	2 cu yd (2 cu m)
Dimensions
Digging Depth	22 ft (7 m)
Digging Reach	22 ft (7 m)
Ground Clearance	2 ft (1 m)
Height - Top of Cab	10 ft (3 m)
Length of Track on Ground	13 ft (4 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	11 ft (3 m)
Width to Outside of Tracks	11 ft (3 m)
Engine
Aspiration	Turbocharger
Displacement	494 cu in (8,095 cu cm)
Engine Model	6081H
Max Torque	802 lbs ft (1,087 nm)
Net Power	246 hp (183 kw)
Power Measured @	2,000 rpm
Torque Measured @	1,600 rpm
Operating Specifications
Alternator Supplied Amperage	45 amps
Cooling System Fluid Capacity	15 gal (55 l)
Engine Oil Capacity	8 gal (30 l)
Fuel Capacity	148 gal (560 l)
Hydraulic Pump Flow Capacity	77 gpm (291 lpm)
Hydraulic System Fluid Capacity	85 gal (322 l)
Hydraulic System Relief Valve Pressure	4,624 psi
Operating Voltage	24 volts
Operating Weight	72,800 lbs (33,022 kg)
Swing Drive Fluid Capacity	4 gal (14 l)
Swing Mechanism
Swing Speed	12 rpm
Undercarriage
Drawbar Pull	56,086 lbs (25,440 kg)
Ground Pressure	7 psi
Max Travel Speed	3 mph (5 kph)
Number of Carrier Rollers per Side	2
Number of Shoes per Side	48
Number of Track Rollers per Side	9
Shoe Size	32 in (80 cm)
