Equipment ↠ John Deere ↠ Excavators ↠ 2006 John Deere 650D LC

2006 John Deere 650D LC For Sale in Kingsport, TN

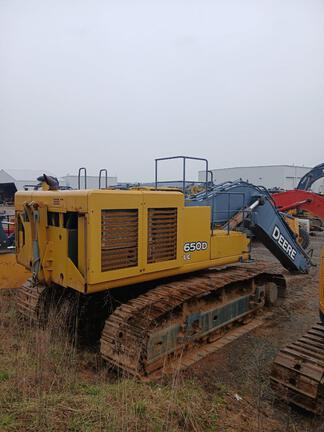

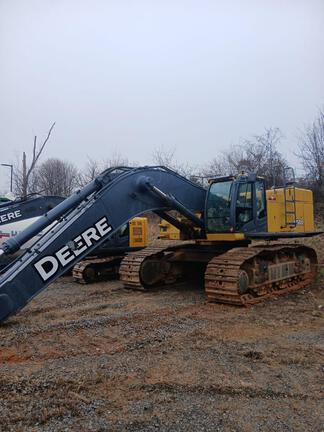

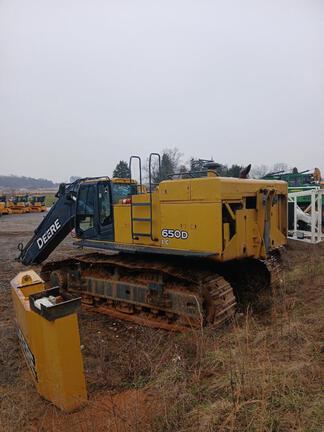

Name: 2006 John Deere 650D LC
Brand: John Deere
SKU: 83632041
Price: 168000 USD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $168,000.00 USD

Apply for Financing

McCoy Construction & Forestry

McCoy Construction & Forestry Dealer Info

McCoy Construction & Forestry Website

Click here to email McCoy Construction & Forestry.

Contact: Todd Jakoby

Click for Phone Number

Machine Info:

Serial Number:	FF650DX953042
Stock Number:	300817
Machine Location:	KINGSPORT, TN

Description:

Cab, A/C, CWT Removal, Med-Long Arm, Std Boom,72" Bucket

Machine Details:

General Specifications
Operators Station	Cab w/ AC
Arms	Medium-Long Arm
Tracks	Wide Pads
Attachments	Counter Wt Removal

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Excavator Option 1
Max Cutting Height	39 ft (12 m)
Max Digging Depth	28 ft (9 m)
Max Loading Height	27 ft (8 m)
Max Reach Along Ground	43 ft (13 m)
Max Vertical Wall Digging Depth	24 ft (7 m)
Shipping Height of Unit	15 ft (4 m)
Shipping Length of Unit	43 ft (13 m)
Boom/Stick Excavator Option 2
Max Cutting Height	40 ft (12 m)
Max Digging Depth	30 ft (9 m)
Max Loading Height	27 ft (8 m)
Max Reach Along Ground	45 ft (14 m)
Max Vertical Wall Digging Depth	27 ft (8 m)
Shipping Height of Unit	16 ft (5 m)
Shipping Length of Unit	43 ft (13 m)
Boom/Stick Excavator Option 3
Max Cutting Height	42 ft (13 m)
Max Digging Depth	33 ft (10 m)
Max Loading Height	30 ft (9 m)
Max Reach Along Ground	48 ft (15 m)
Max Vertical Wall Digging Depth	31 ft (10 m)
Shipping Length of Unit	43 ft (13 m)
Boom/Stick Excavator Option 4
Max Cutting Height	37 ft (11 m)
Max Digging Depth	23 ft (7 m)
Max Loading Height	24 ft (7 m)
Max Reach Along Ground	38 ft (12 m)
Max Vertical Wall Dig Depth	17 ft (5 m)
Shipping Length of Unit	40 ft (12 m)
Bucket
Maximum Bucket Capacity	6 cu yd (5 cu m)
Minimum Bucket Capacity	2 cu yd (2 cu m)
Reference Bucket Capacity	4 cu yd (3 cu m)
Dimensions
Ground Clearance	3 ft (1 m)
Height - Top of Cab	11 ft (3 m)
Length of Track on Ground	15 ft (5 m)
Removal Counterweight Clearance	5 ft (2 m)
Tail Swing Radius	12 ft (4 m)
Width to Outside of Tracks	14 ft (4 m)
Engine
Aspiration	Turbocharged w/ charge cooler
Displacement	957 cu in (15,682 cu cm)
Engine Model	AH-6WG1XYSA-02
Net Power	463 hp (345 kw)
Power Measured @	1,800 rpm
Operating Specifications
Alternator Supplied Amperage	50 amps
Cooling System Fluid Capacity	15 gal (56 l)
Engine Oil Capacity	14 gal (51 l)
Fuel Capacity	238 gal (901 l)
Hydraulic Pump Flow Capacity	120 gpm (454 lpm)
Hydraulic System Fluid Capacity	190 gal (720 l)
Hydraulic System Relief Valve Pressure	4,975 psi
Operating Voltage	24 volts
Operating Weight	152,190 lbs (69,032 kg)
Swing Drive Fluid Capacity	5 gal (18 l)
Swing Mechanism
Swing Speed	10 rpm
Undercarriage
Drawbar Pull	101,666 lbs (46,115 kg)
Ground Pressure	10 psi
Max Travel Speed	3 mph (5 kph)
Number of Carrier Rollers per Side	3
Number of Shoes per Side	47
Number of Track Rollers per Side	8
Shoe Size	36 in (91 cm)
Track Gauge	11 ft (3 m)
