1996 John Deere 690E For Sale in SPOKANE, WA

Name: 1996 John Deere 690E
Brand: John Deere
SKU: 56021855
Price: 40000 USD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $40,000.00 USD

Apply for Financing

Pape Machinery

Pape Machinery Dealer Info

Pape Machinery Website

Click here to email Pape Machinery.

Contact: Used Eq Mgr - Brian McHenry (541) 334-3432

Click for Phone Number

Machine Info:

Serial Number:	DW690EL556915
Stock Number:	EL556915C
Machine Location:	SPOKANE, WA

Description:

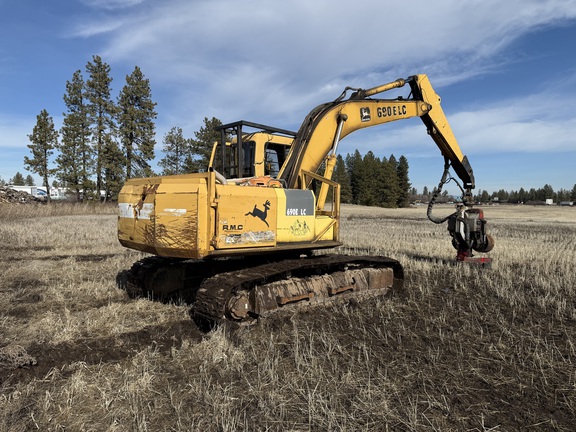

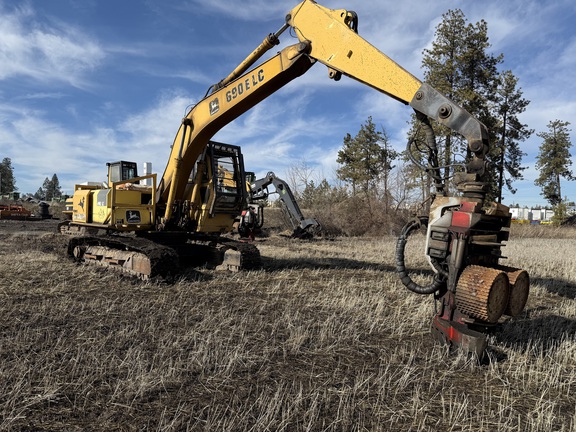

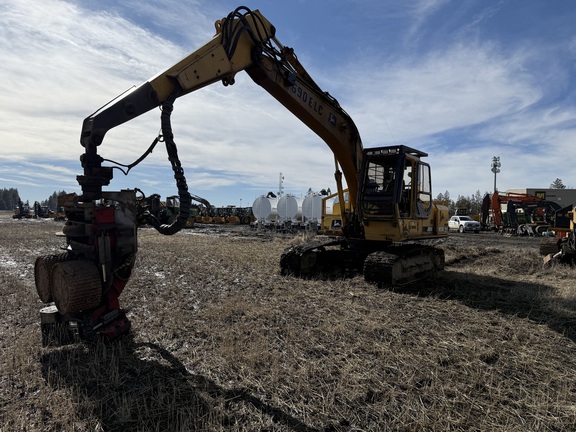

Cab w/o AC; Aux Hydraulics, LogMax 7000 Processor

Machine Details:

General Specifications

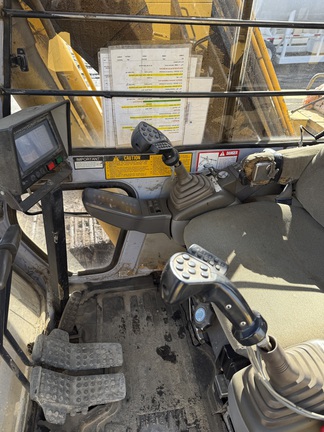

Operators Station	Cab w/o AC
Attachments	Aux Hydraulics

From the manufacturer:

Supplied by HeavyEquipmentData.com →

Boom/Stick Excavator Option 1
Max Cutting Height	30 ft (9 m)
Max Digging Depth	19 ft (6 m)
Max Loading Height	21 ft (6 m)
Max Reach Along Ground	30 ft (9 m)
Max Vertical Wall Digging Depth	16 ft (5 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	31 ft (9 m)
Boom/Stick Excavator Option 2
Max Cutting Height	32 ft (10 m)
Max Digging Depth	22 ft (7 m)
Max Loading Height	23 ft (7 m)
Max Reach Along Ground	32 ft (10 m)
Max Vertical Wall Digging Depth	17 ft (5 m)
Shipping Height of Unit	10 ft (3 m)
Shipping Length of Unit	31 ft (9 m)
Bucket
Maximum Bucket Capacity	1 cu yd (1 cu m)
Minimum Bucket Capacity	1 cu yd (0 cu m)
Reference Bucket Capacity	1 cu yd (1 cu m)
Dimensions
Ground Clearance	2 ft (0 m)
Height - Top of Cab	9 ft (3 m)
Length of Track on Ground	12 ft (4 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	9 ft (3 m)
Width to Outside of Tracks	10 ft (3 m)
Engine
Aspiration	Turbocharged
Displacement	414 cu in (6,784 cu cm)
Engine Model	6068T
Gross Power	140 hp (104 kw)
Max Torque	424 lbs ft (575 nm)
Net Power	130 hp (97 kw)
Power Measured @	2,000 rpm
Torque Measured @	1,300 rpm
Operating Specifications
Alternator Supplied Amperage	45 amps
Cooling System Fluid Capacity	44 gal (167 l)
Engine Oil Capacity	20 gal (76 l)
Fuel Capacity	85 gal (322 l)
Hydraulic Pump Flow Capacity	100 gpm (379 lpm)
Hydraulic System Fluid Capacity	84 gal (318 l)
Hydraulic System Relief Valve Pressure	5,000 psi
Operating Voltage	24 volts
Operating Weight	44,230 lbs (20,062 kg)
Swing Drive Fluid Capacity	4 gal (13 l)
Swing Mechanism
Swing Speed	13 rpm
Undercarriage
Drawbar Pull	40,300 lbs (18,280 kg)
Ground Pressure	6 psi
Max Travel Speed	4 mph (6 kph)
Number of Carrier Rollers per Side	2
Number of Shoes per Side	49
Number of Track Rollers per Side	9
Shoe Size	26 in (66 cm)
Track Gauge	8 ft (2 m)
