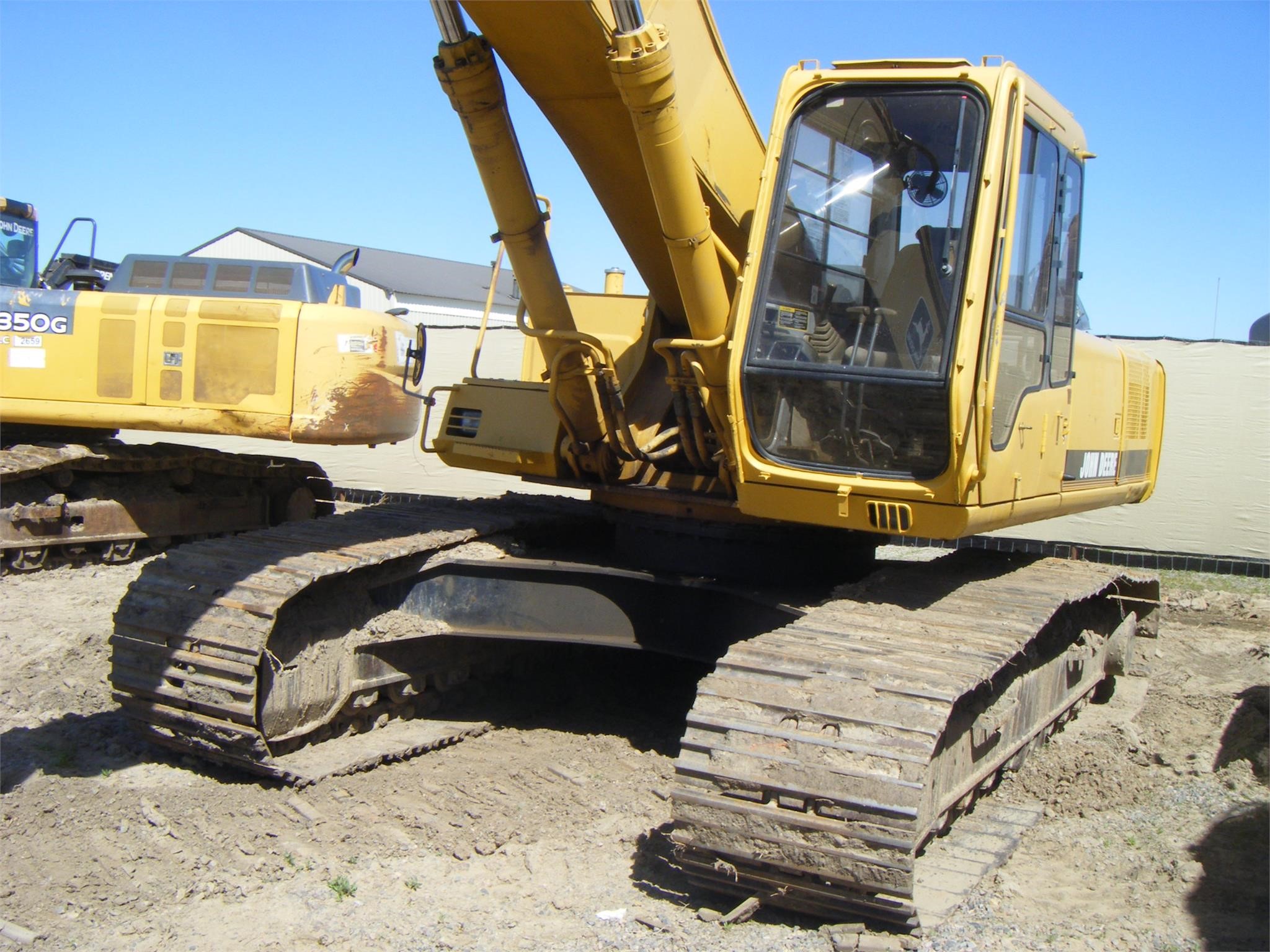

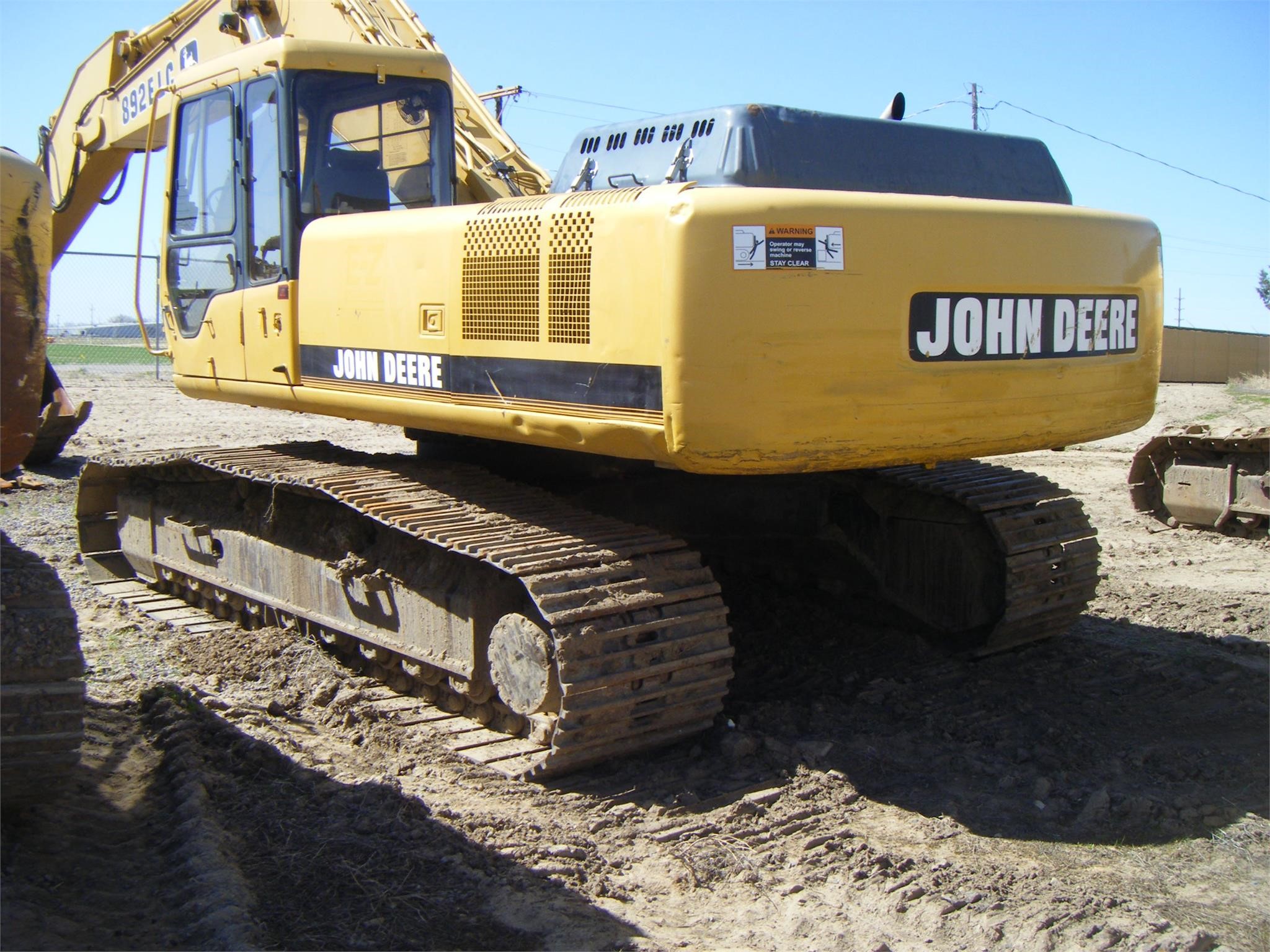

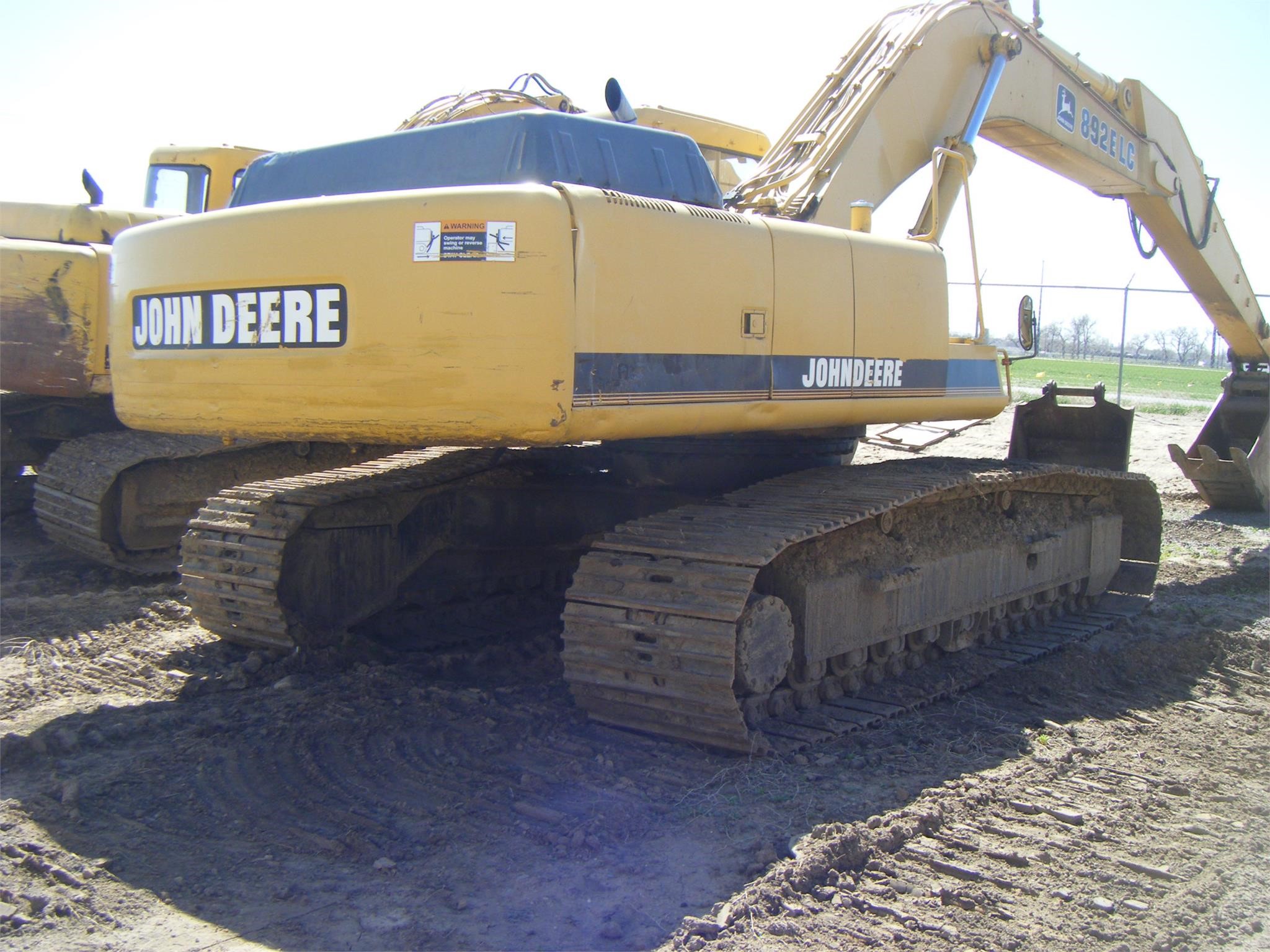

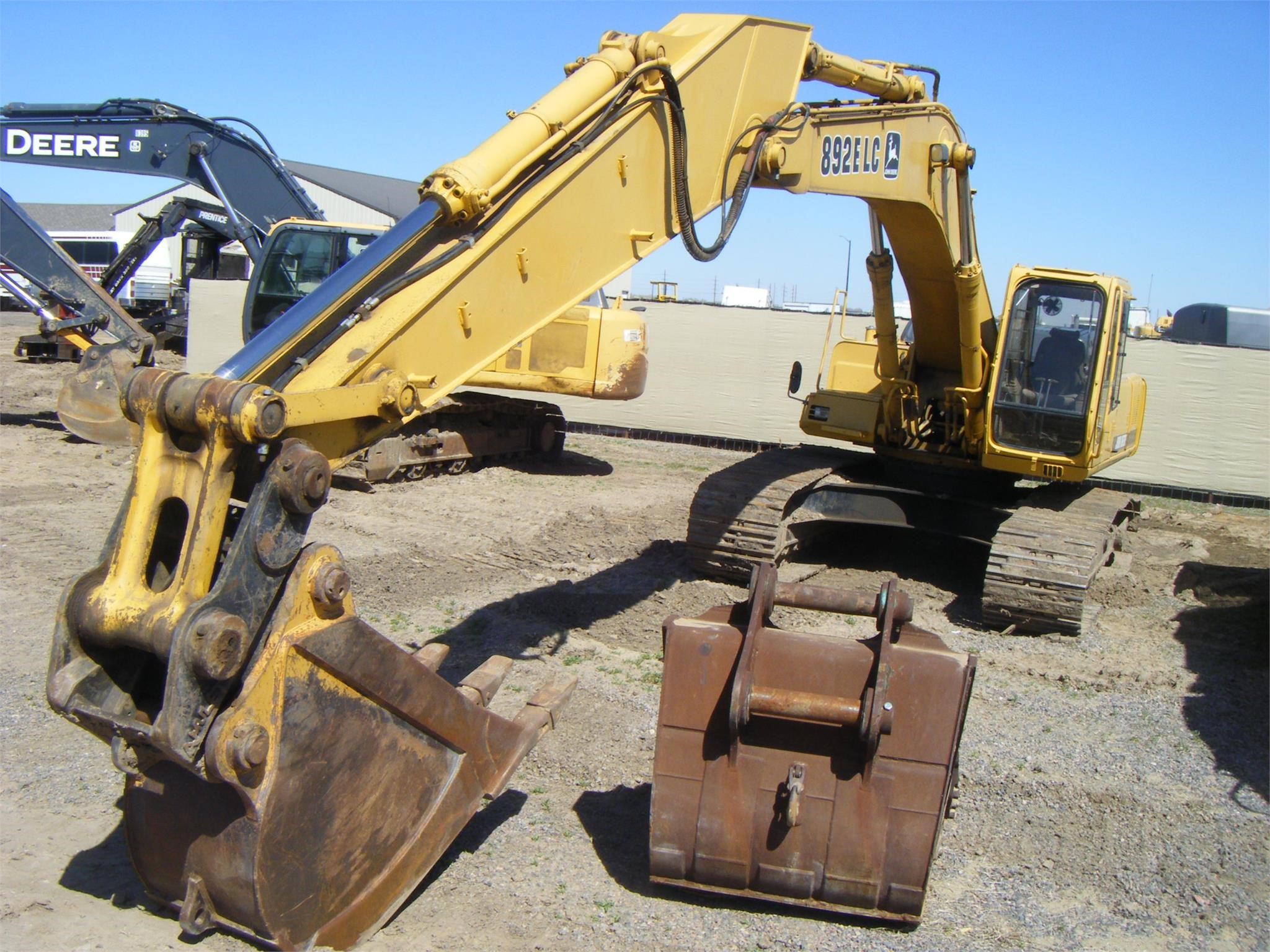

1993 John Deere 892E LC For Sale in Hudson, CO

Name: 1993 John Deere 892E LC
Brand: John Deere
SKU: 87653844
Price: 35000 USD
Availability: InStock

❮

❯

/ Save to Watch List

For Sale: $35,000.00 USD

Apply for Financing

Summit Machinery Sales, LLC

Summit Machinery Sales, LLC Dealer Info

Summit Machinery Sales, LLC Website

Click here to email Summit Machinery Sales, LLC.

Click for Phone Number

Machine Info:

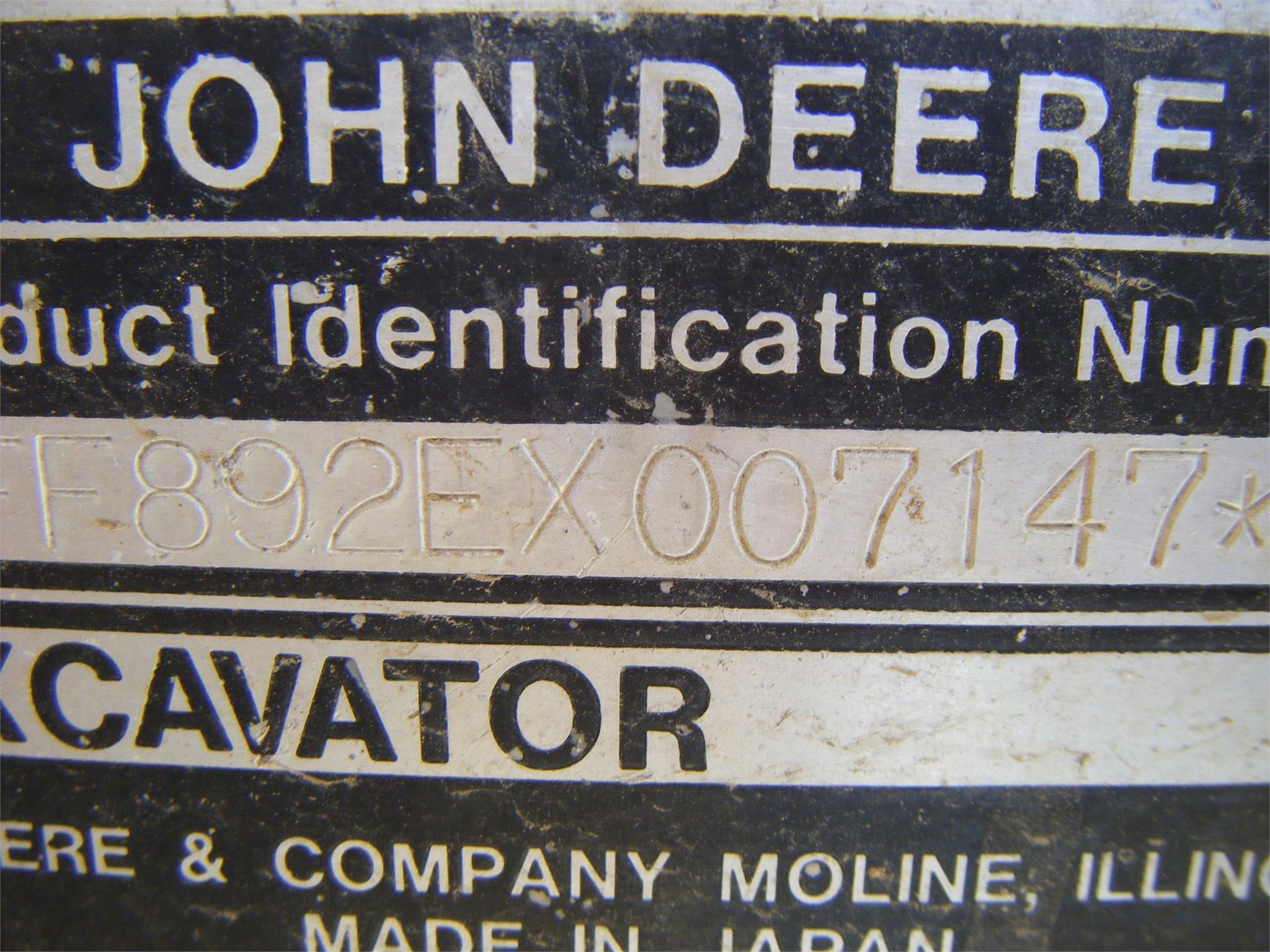

Serial Number:	007147
Machine Location:	HUDSON, CO

Description:

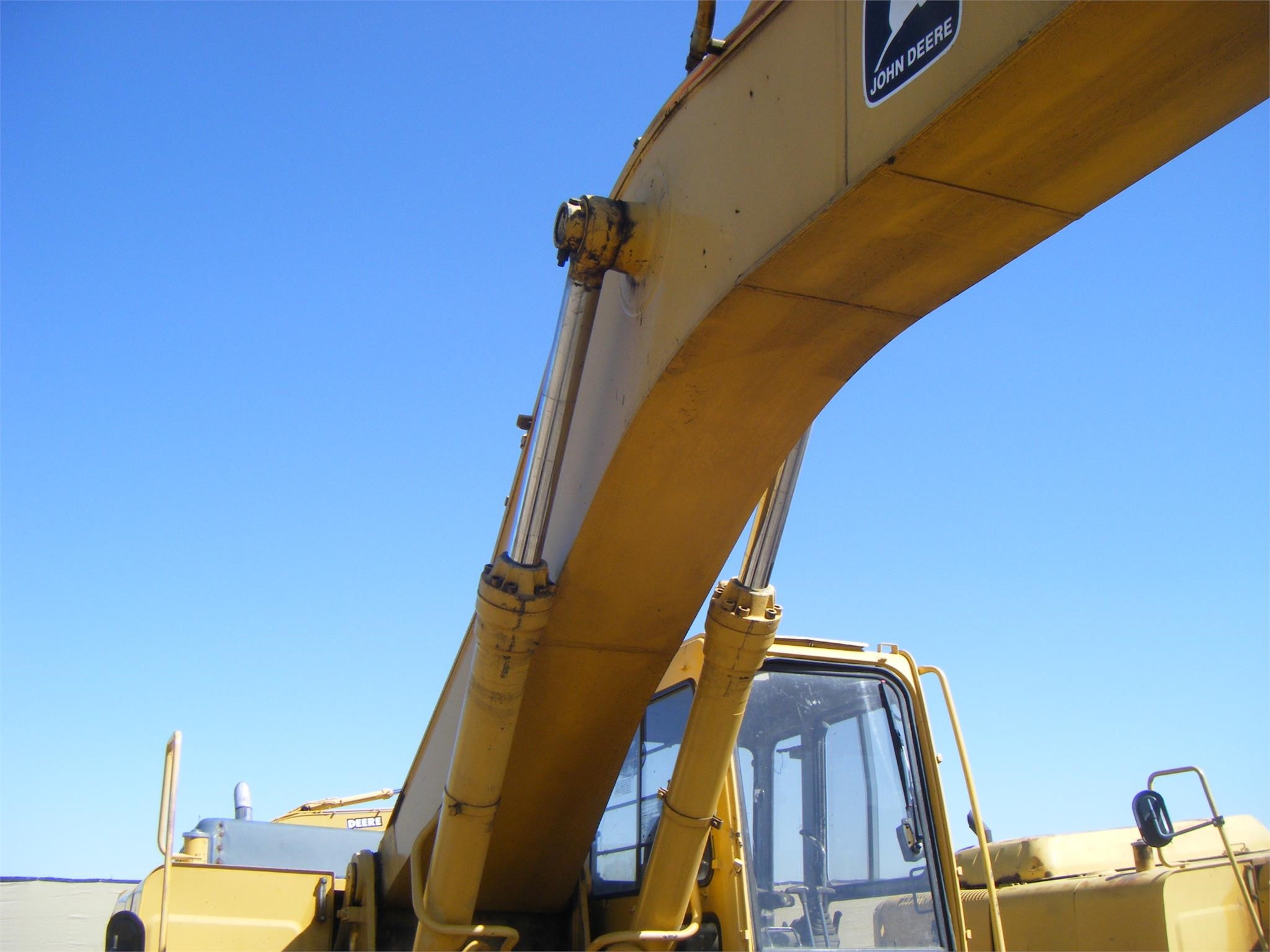

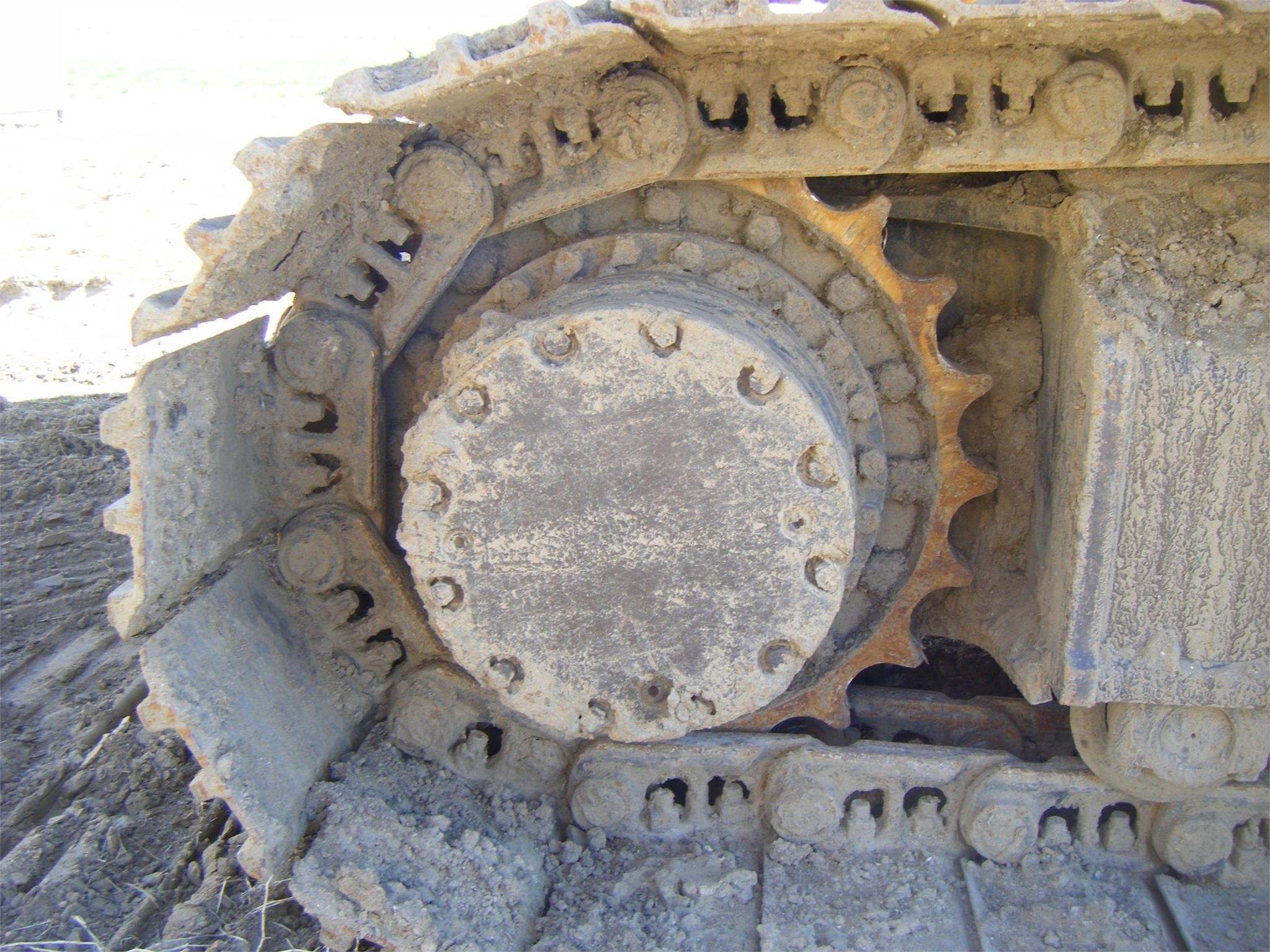

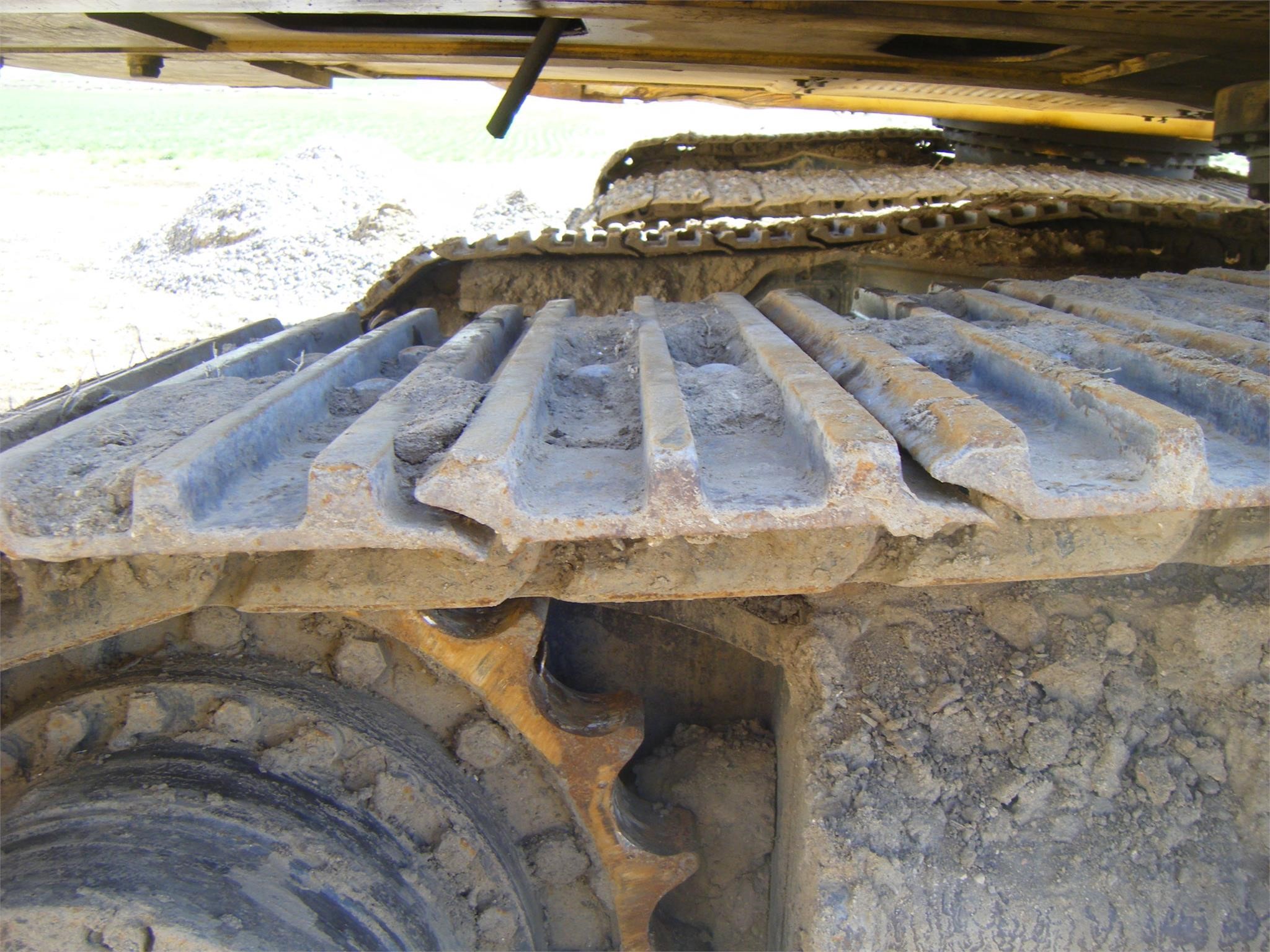

Good tracks and u/c, starts and runs, tight boom & stick., Take a look.

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The John Deere 892E LC is a heavy-duty excavator designed for construction, mining, and earthmoving applications. Featuring a robust engine and advanced hydraulic system, the 892E LC delivers high performance and fuel efficiency. Its long carriage (LC) design provides enhanced stability and reach, making it suitable for deep digging and large-scale projects. The excavator includes operator comfort features such as an ergonomic cab and intuitive controls. With durable components and easy maintenance access, the John Deere 892E LC ensures reliability and reduced downtime. This model is widely used in industries requiring powerful excavation and material handling capabilities.

Boom/Stick Excavator Option 1
Max Cutting Height	32 ft (10 m)
Max Digging Depth	23 ft (7 m)
Max Loading Height	22 ft (7 m)
Max Reach Along Ground	34 ft (10 m)
Max Vertical Wall Digging Depth	19 ft (6 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	36 ft (11 m)
Boom/Stick Excavator Option 2
Max Cutting Height	34 ft (10 m)
Max Digging Depth	24 ft (7 m)
Max Loading Height	23 ft (7 m)
Max Reach Along Ground	36 ft (11 m)
Max Vertical Wall Digging Depth	21 ft (6 m)
Shipping Height of Unit	11 ft (3 m)
Shipping Length of Unit	36 ft (11 m)
Boom/Stick Excavator Option 3
Max Cutting Height	35 ft (11 m)
Max Digging Depth	27 ft (8 m)
Max Loading Height	25 ft (8 m)
Max Reach Along Ground	38 ft (12 m)
Max Vertical Wall Digging Depth	24 ft (7 m)
Shipping Height of Unit	12 ft (4 m)
Shipping Length of Unit	36 ft (11 m)
Bucket
Reference Bucket Capacity	2 cu yd (2 cu m)
Dimensions
Ground Clearance	2 ft (1 m)
Height - Top of Cab	10 ft (3 m)
Length of Track on Ground	13 ft (4 m)
Removal Counterweight Clearance	4 ft (1 m)
Tail Swing Radius	11 ft (3 m)
Width to Outside of Tracks	11 ft (3 m)
Engine
Aspiration	Turbocharged with aftercooler
Displacement	466 cu in (7,636 cu cm)
Engine Model	6076A
Gross Power	232 hp (173 kw)
Max Torque	650 lbs ft (881 nm)
Net Power	220 hp (164 kw)
Power Measured @	2,000 rpm
Torque Measured @	1,400 rpm
Operating Specifications
Alternator Supplied Amperage	45 amps
Cooling System Fluid Capacity	34 gal (129 l)
Engine Oil Capacity	6 gal (24 l)
Fuel Capacity	135 gal (511 l)
Hydraulic Pump Flow Capacity	144 gpm (545 lpm)
Hydraulic System Fluid Capacity	82 gal (310 l)
Hydraulic System Relief Valve Pressure	4,270 psi
Operating Voltage	24 volts
Operating Weight	67,450 lbs (30,595 kg)
Swing Drive Fluid Capacity	14 gal (52 l)
Swing Mechanism
Swing Speed	12 rpm
Undercarriage
Drawbar Pull	52,120 lbs (23,641 kg)
Ground Pressure	7 psi
Max Travel Speed	3 mph (5 kph)
Number of Carrier Rollers per Side	2
Number of Shoes per Side	50
Number of Track Rollers per Side	9
Shoe Size	24 in (61 cm)
Track Gauge	9 ft (3 m)
