1986 John Deere 570A For Sale in Lake City, FL

Name: 1986 John Deere 570A
Brand: John Deere
SKU: 87378896
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-05-07 Click here to place a bid Minimum Bid: $5

Royal Auction Group, Inc.

Royal Auction Group, Inc. Dealer Info

Royal Auction Group, Inc. Website

Click here to email Royal Auction Group, Inc..

Click for Phone Number

Machine Info:

Machine Location:	LAKE CITY, FL
More Information:	https://www.proxibid.com/heavy-construction-equipment/motor-graders/1986-john-deere-570a-articulated-motor-grader/lotInformation/100623385?utm_source=ceg&utm_medium=referral&utm_campaign=atgxl_ceg&utm_content=66734

Description:

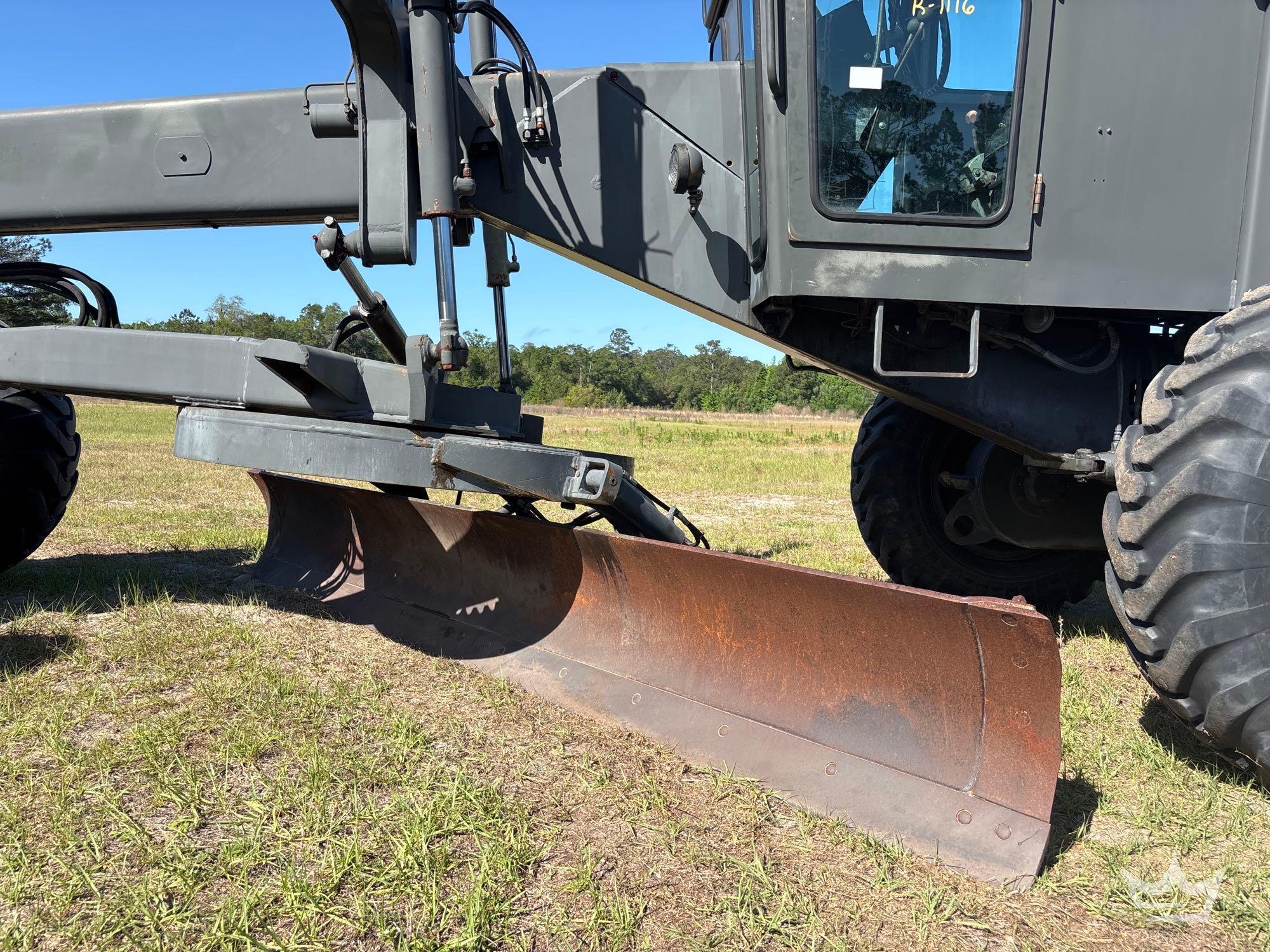

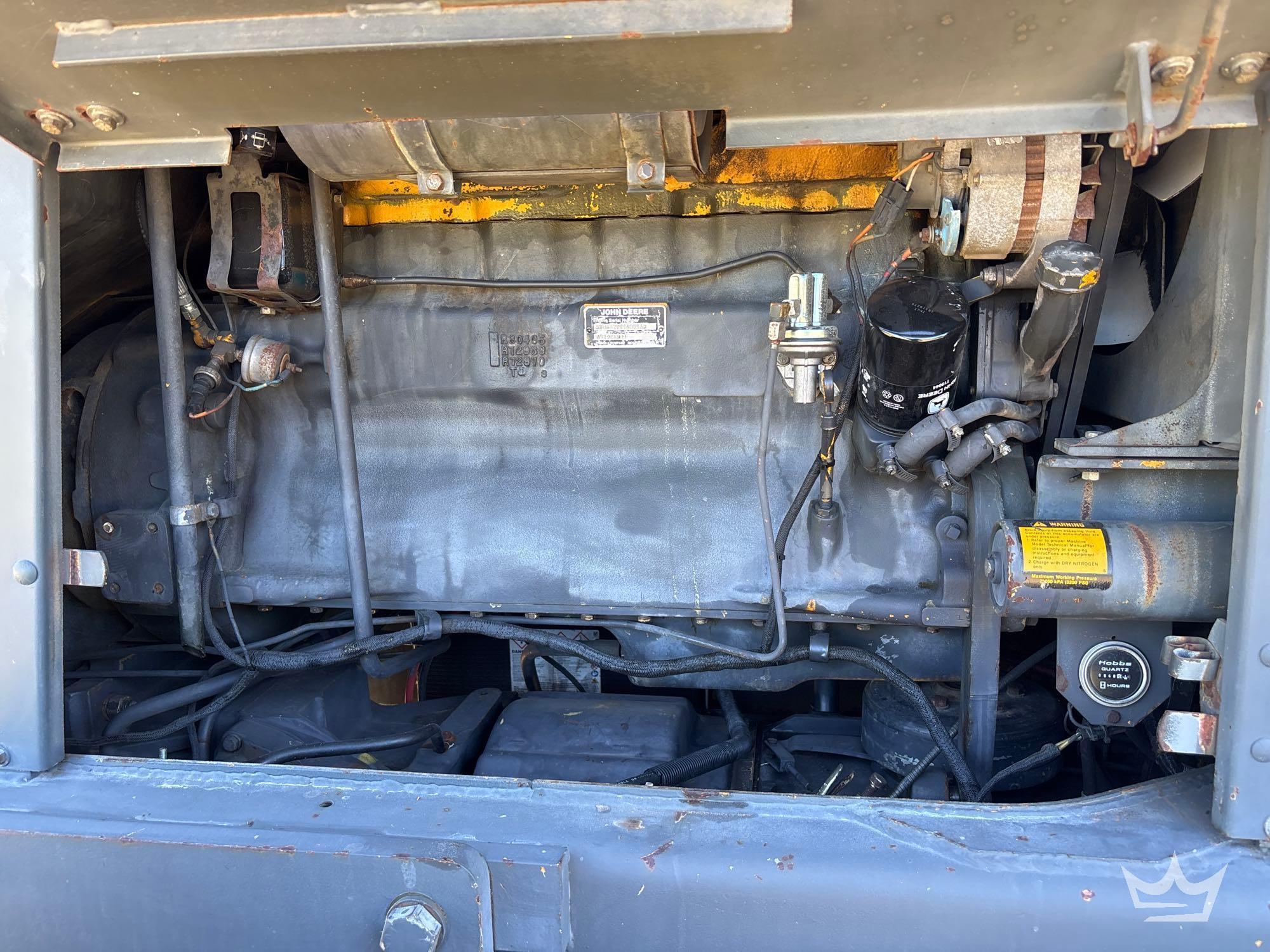

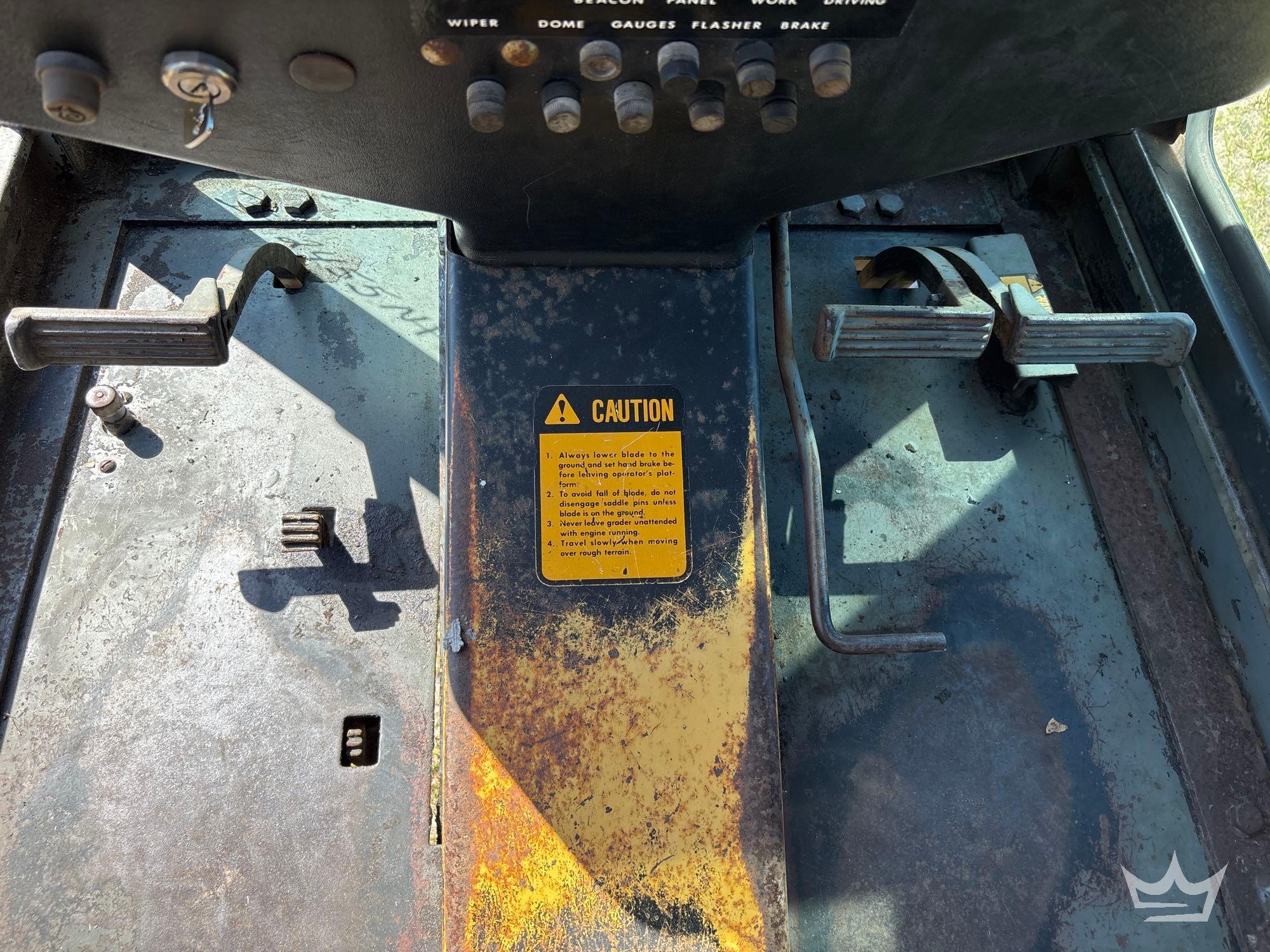

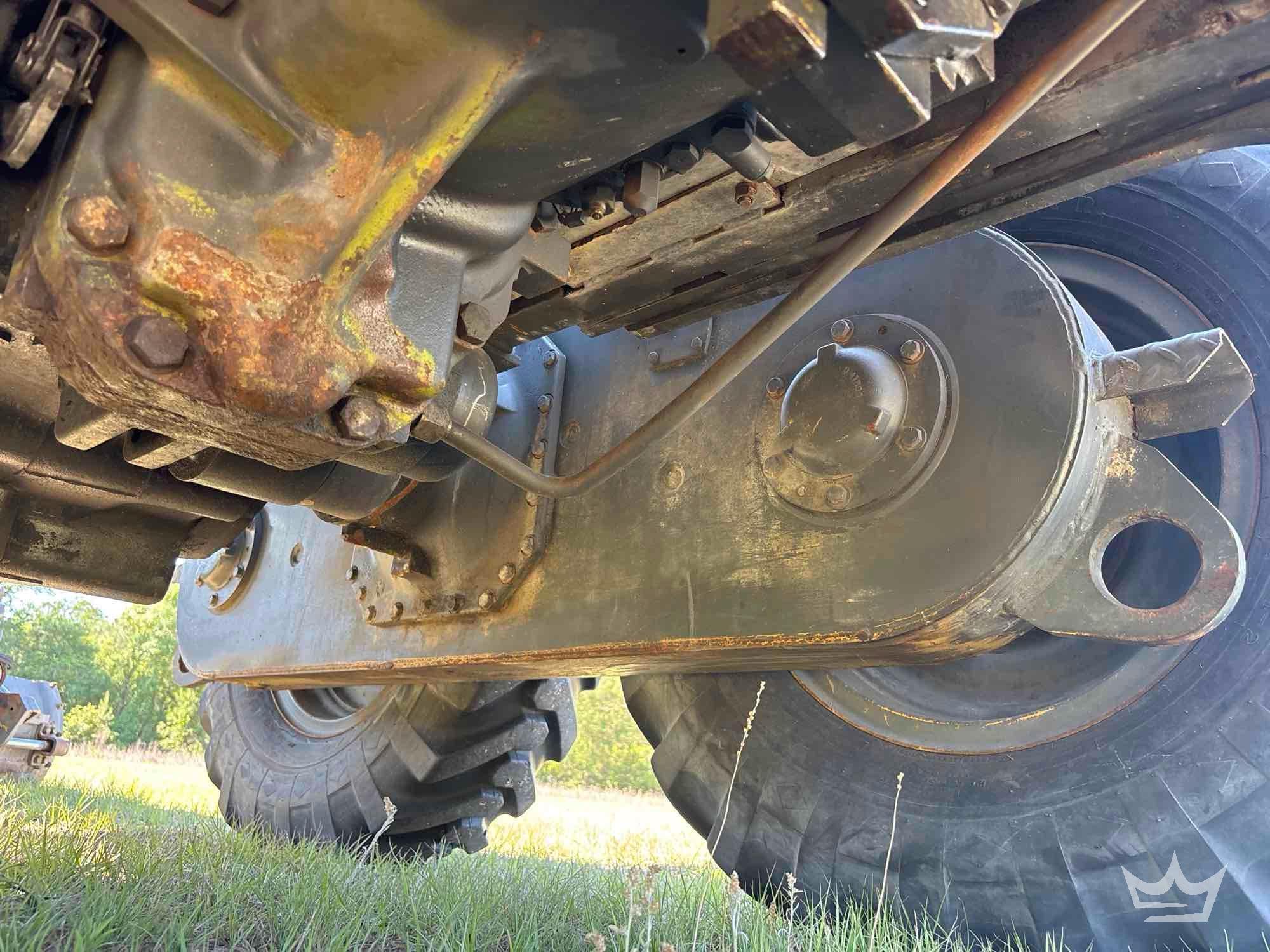

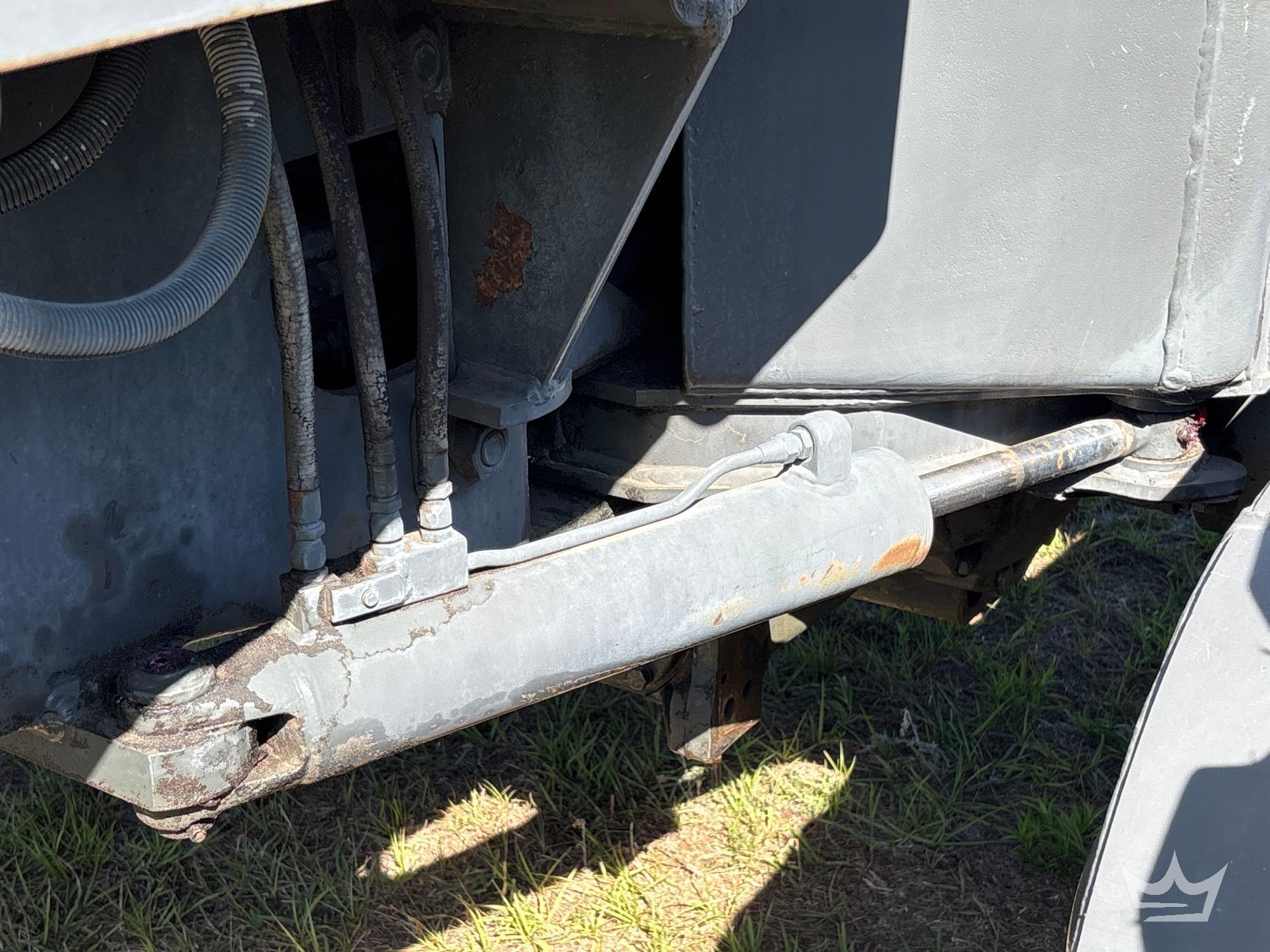

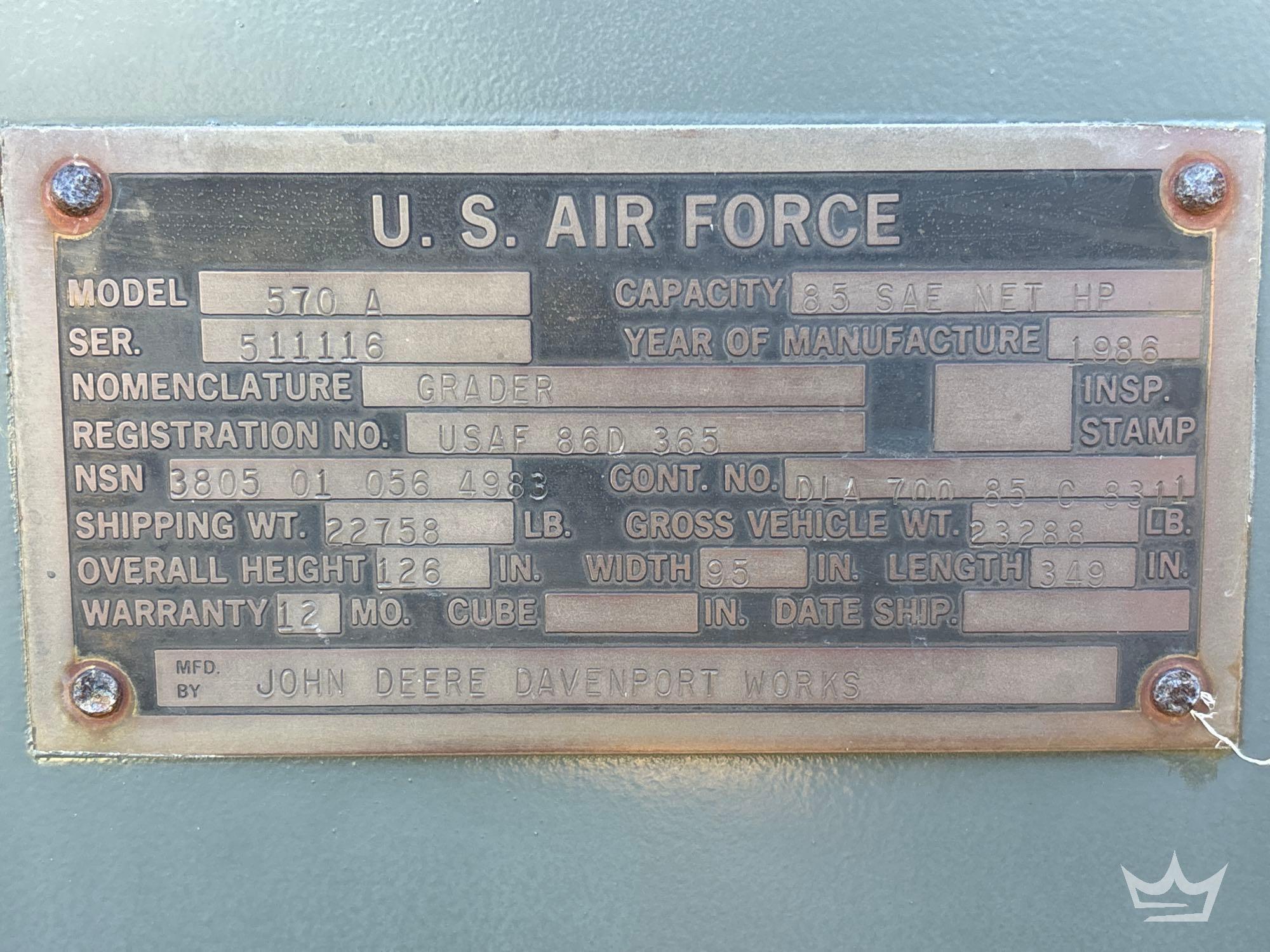

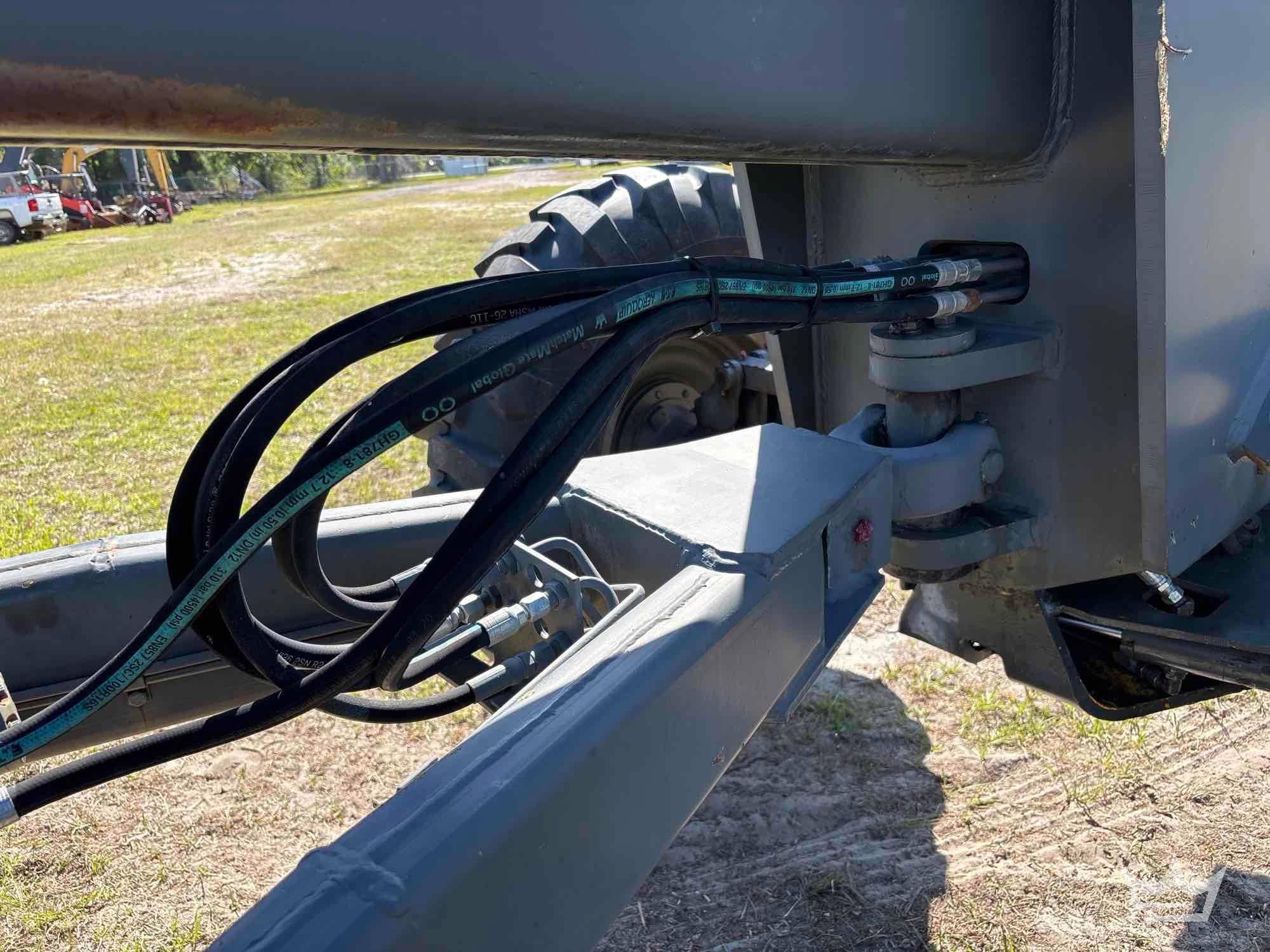

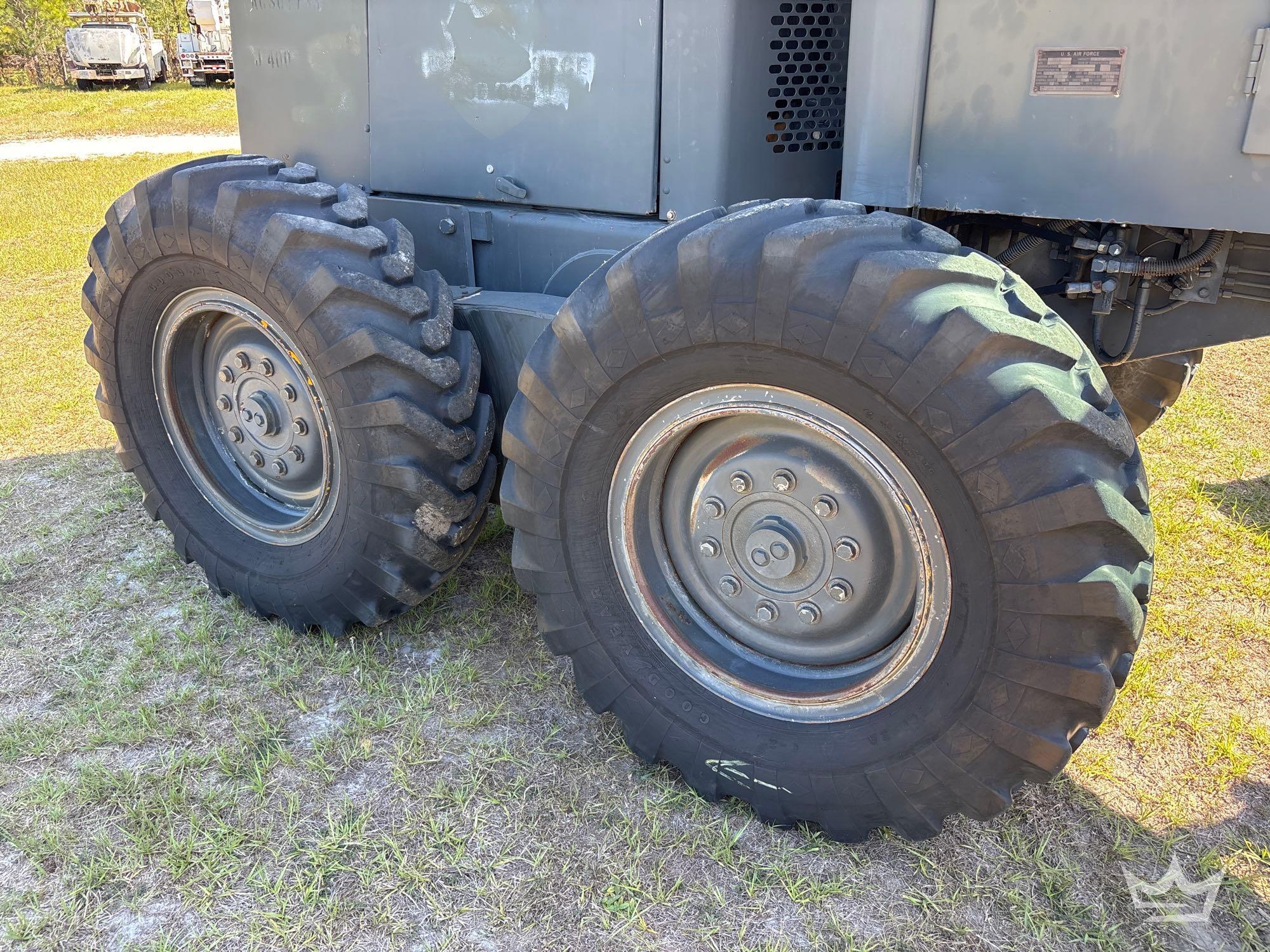

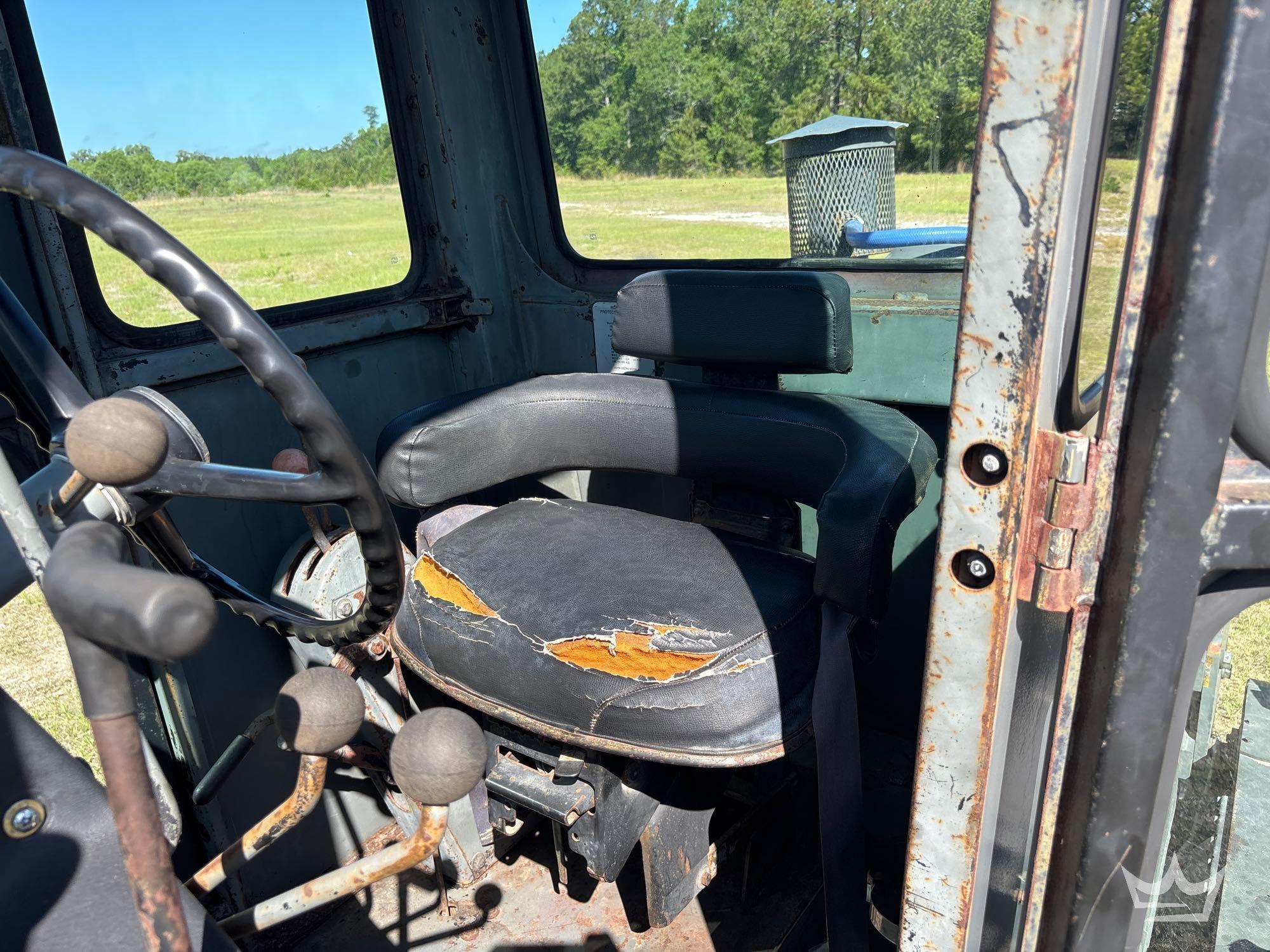

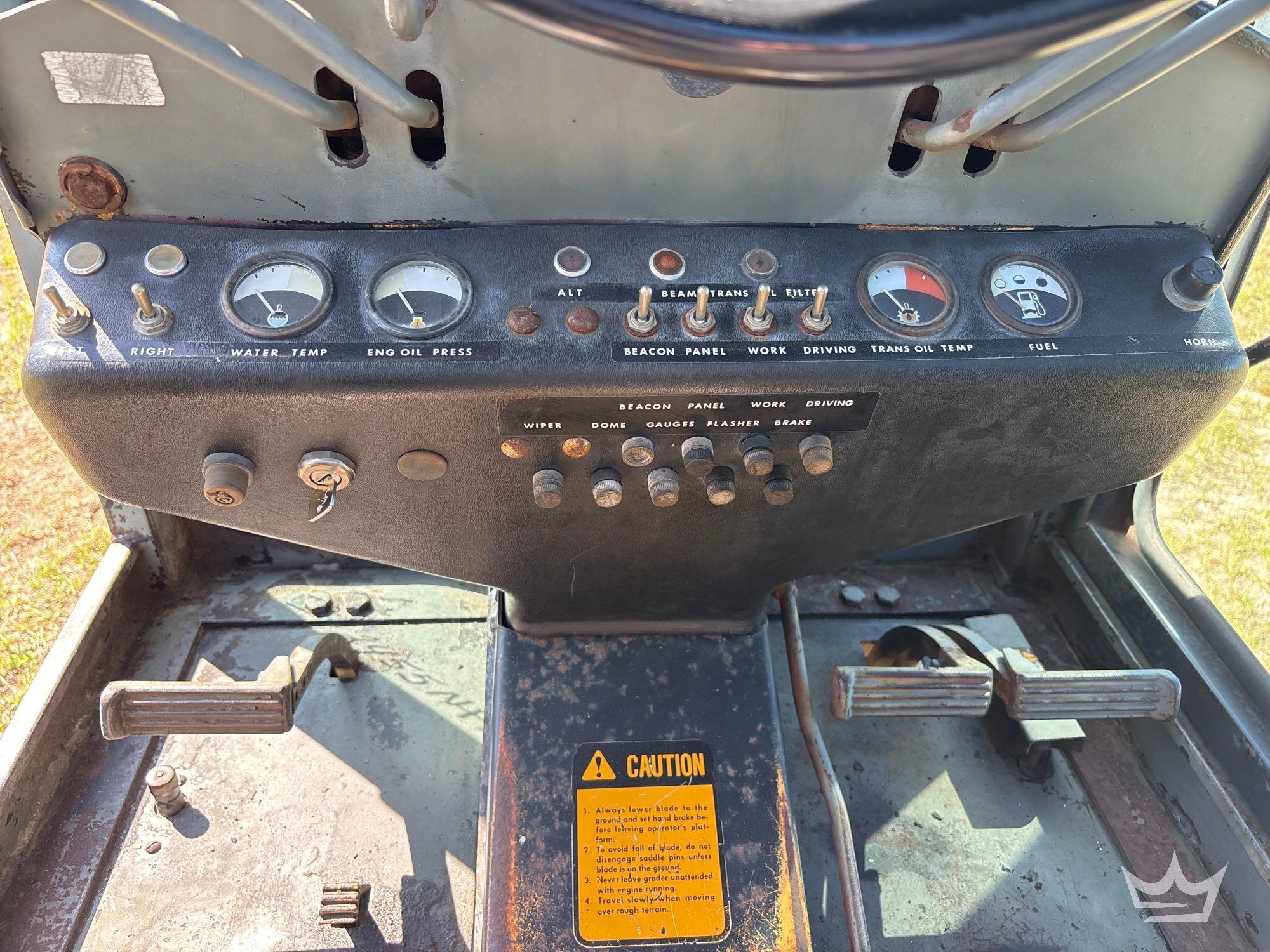

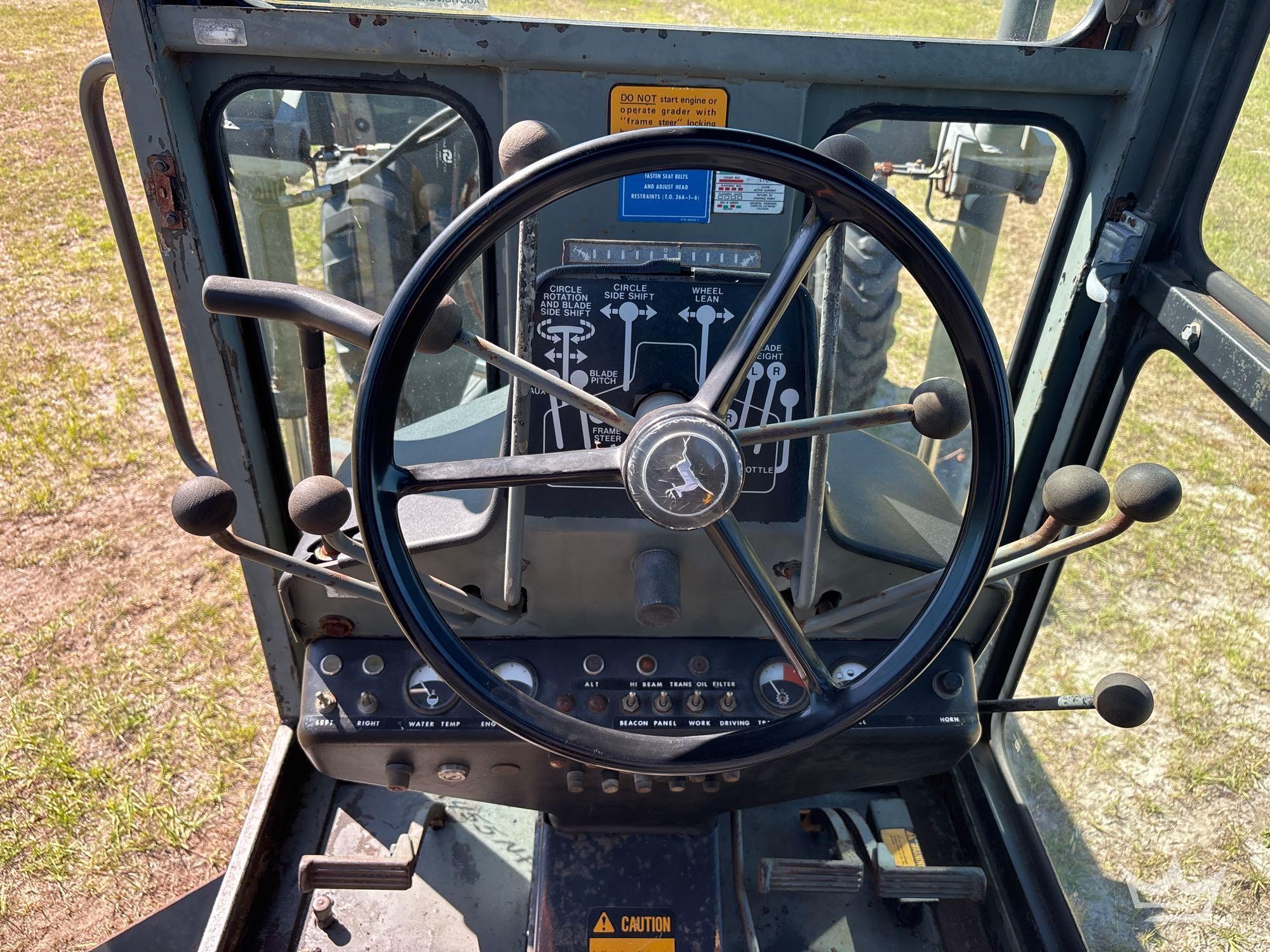

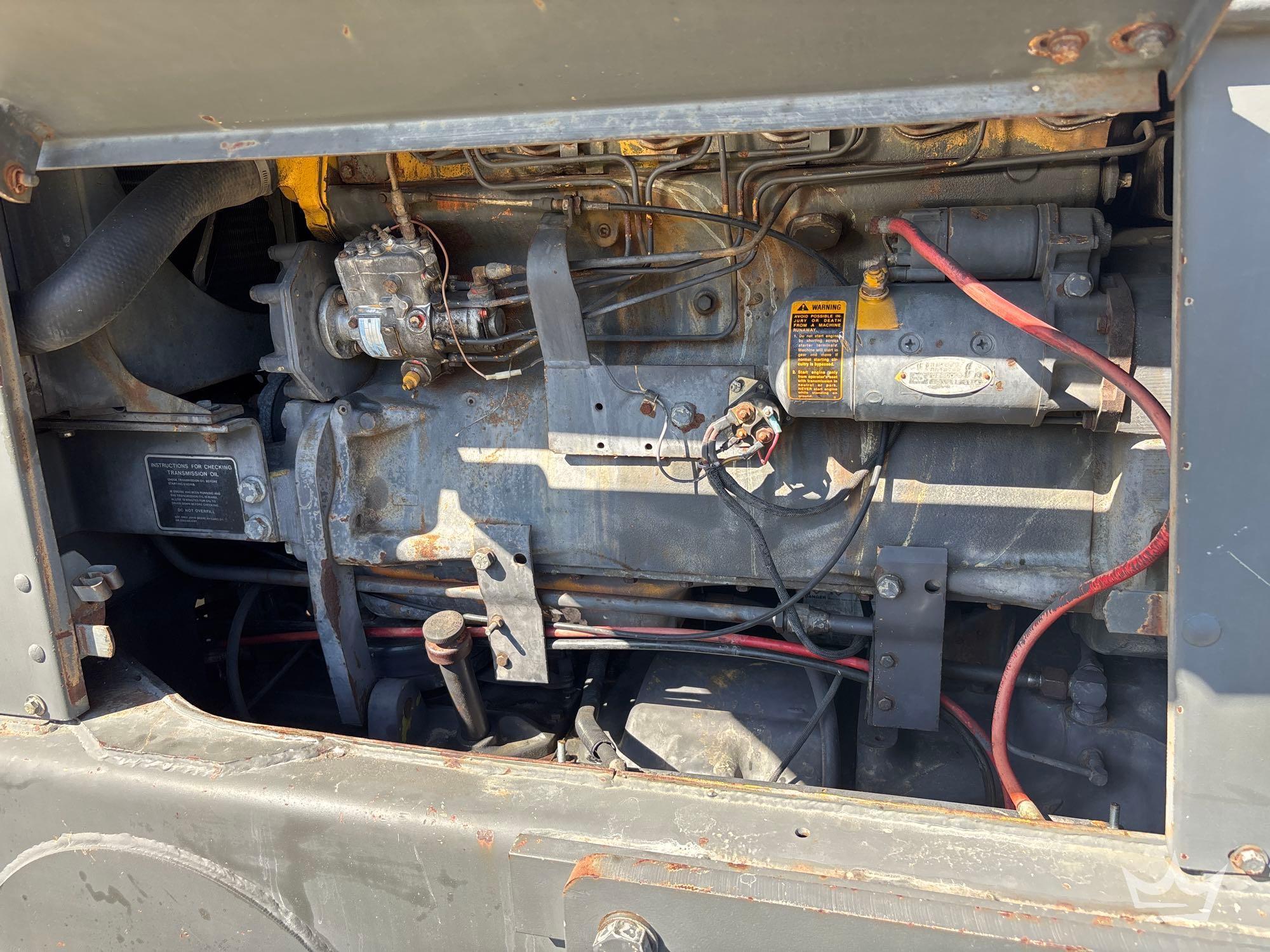

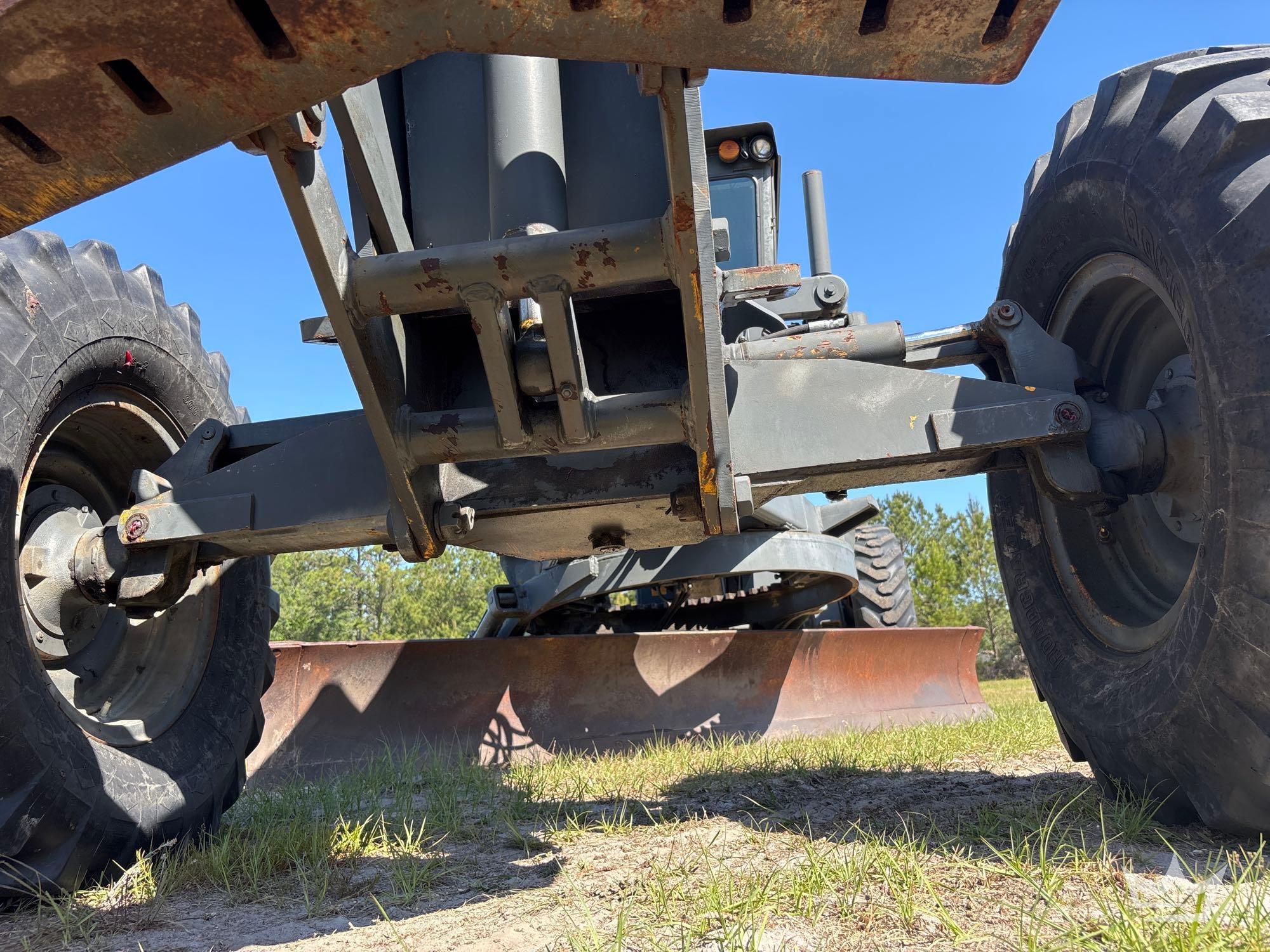

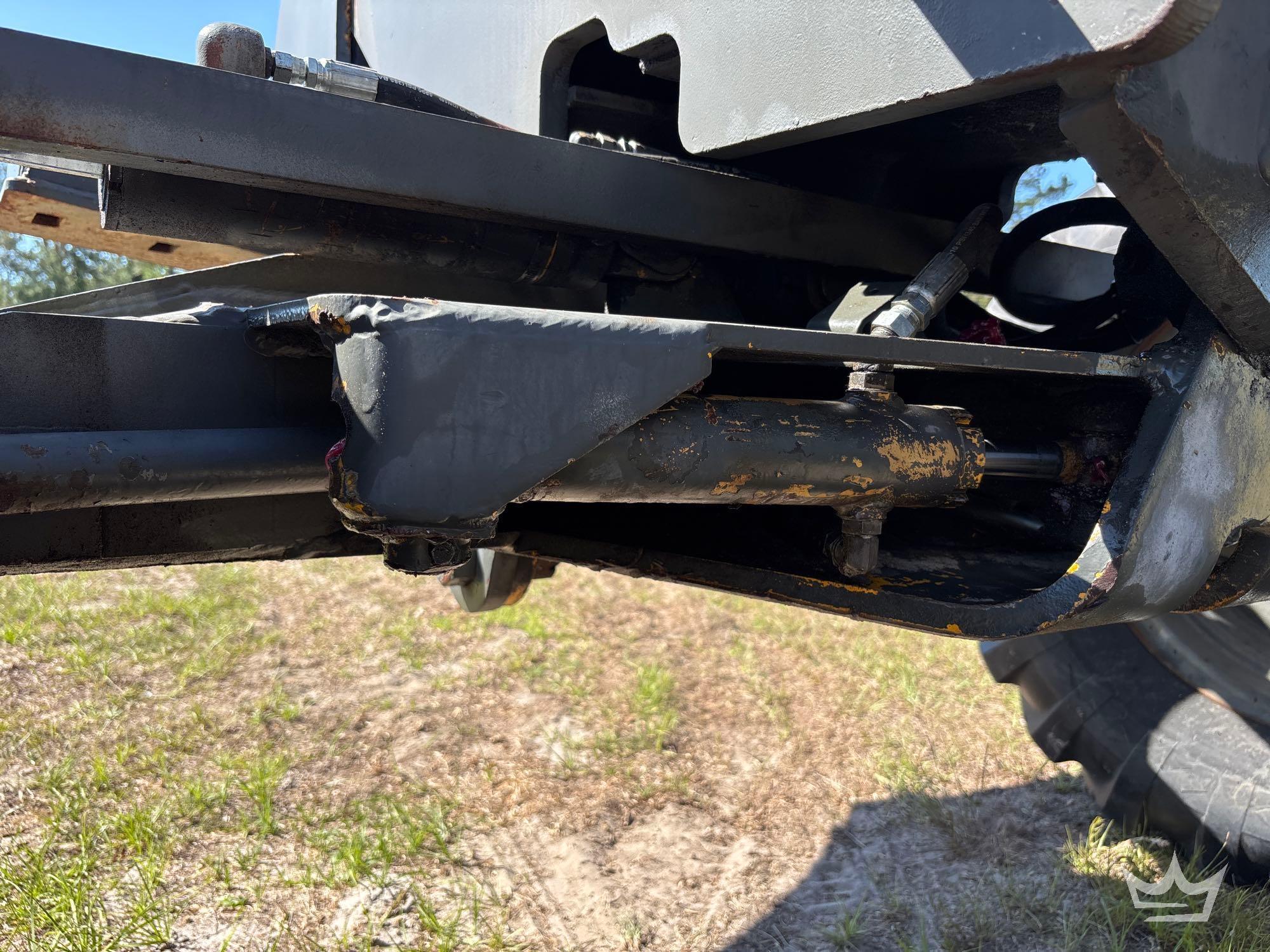

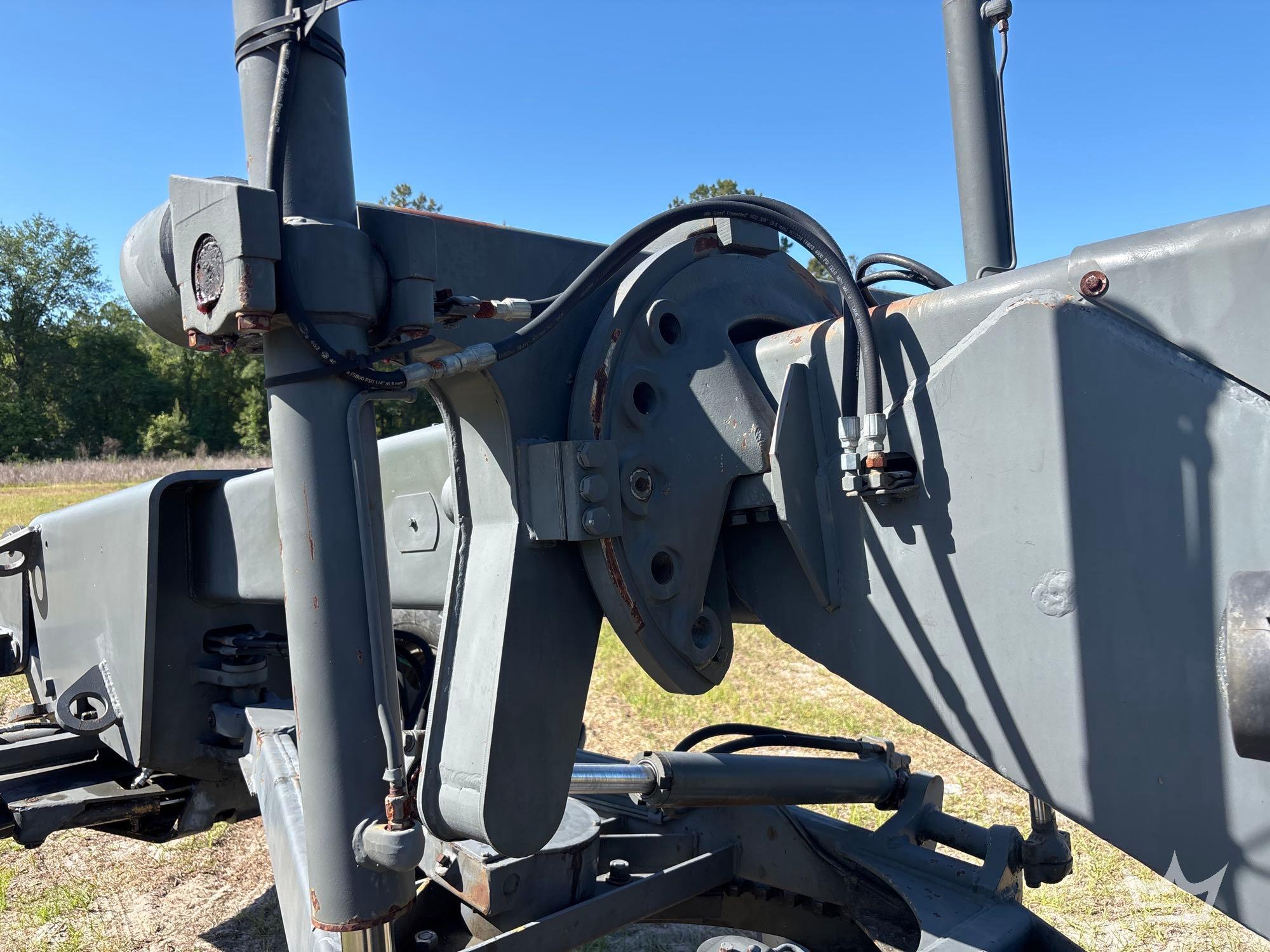

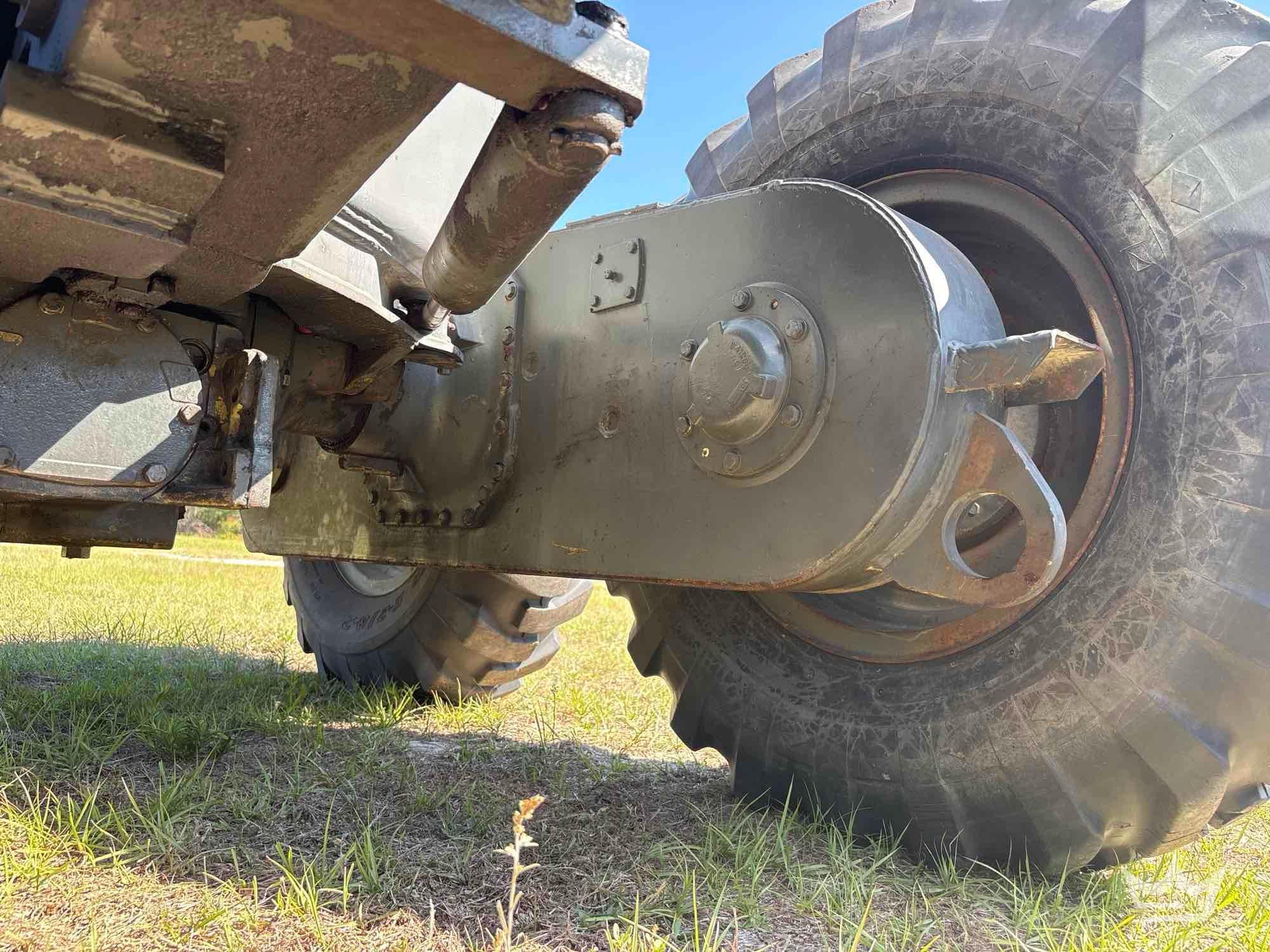

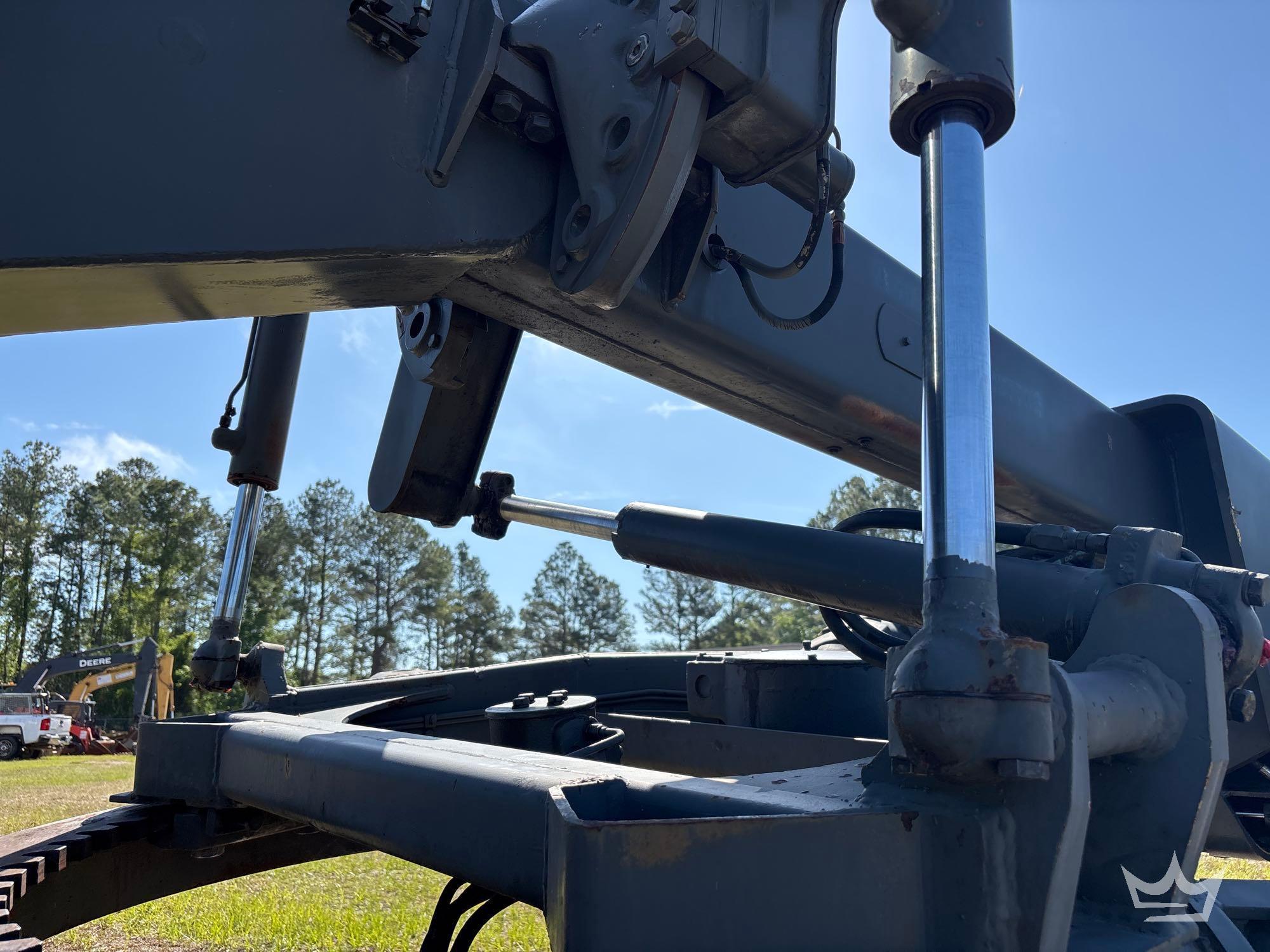

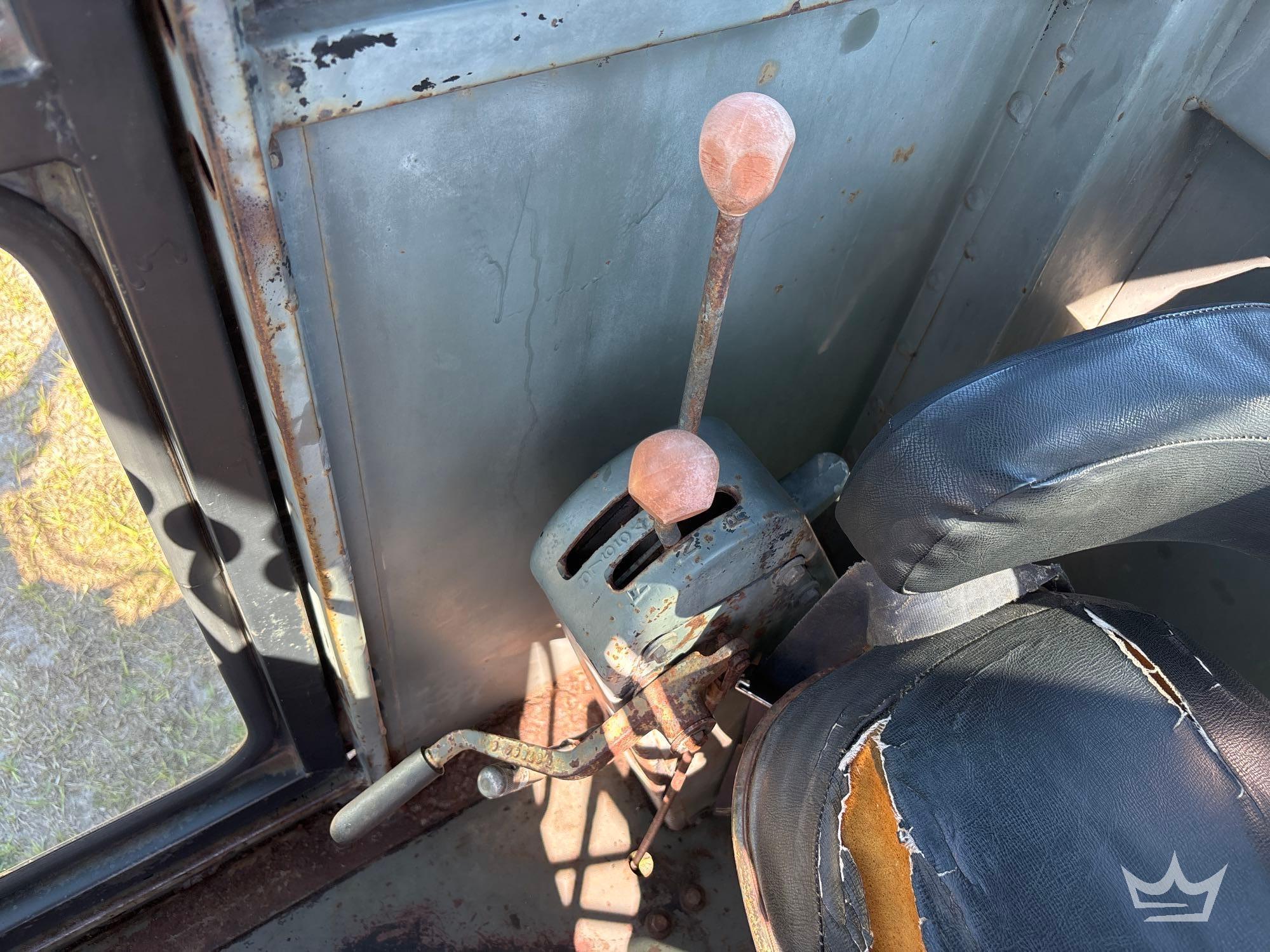

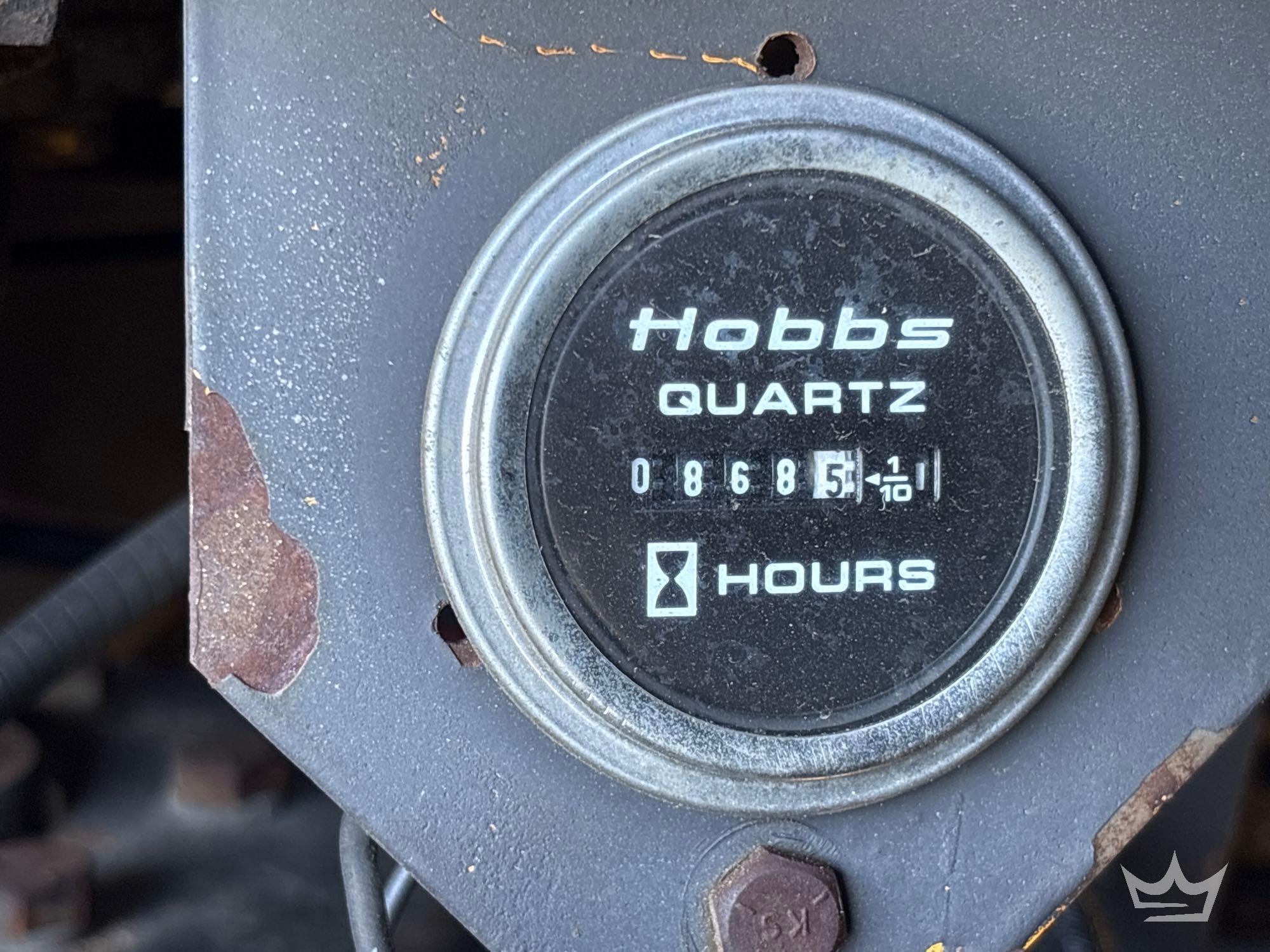

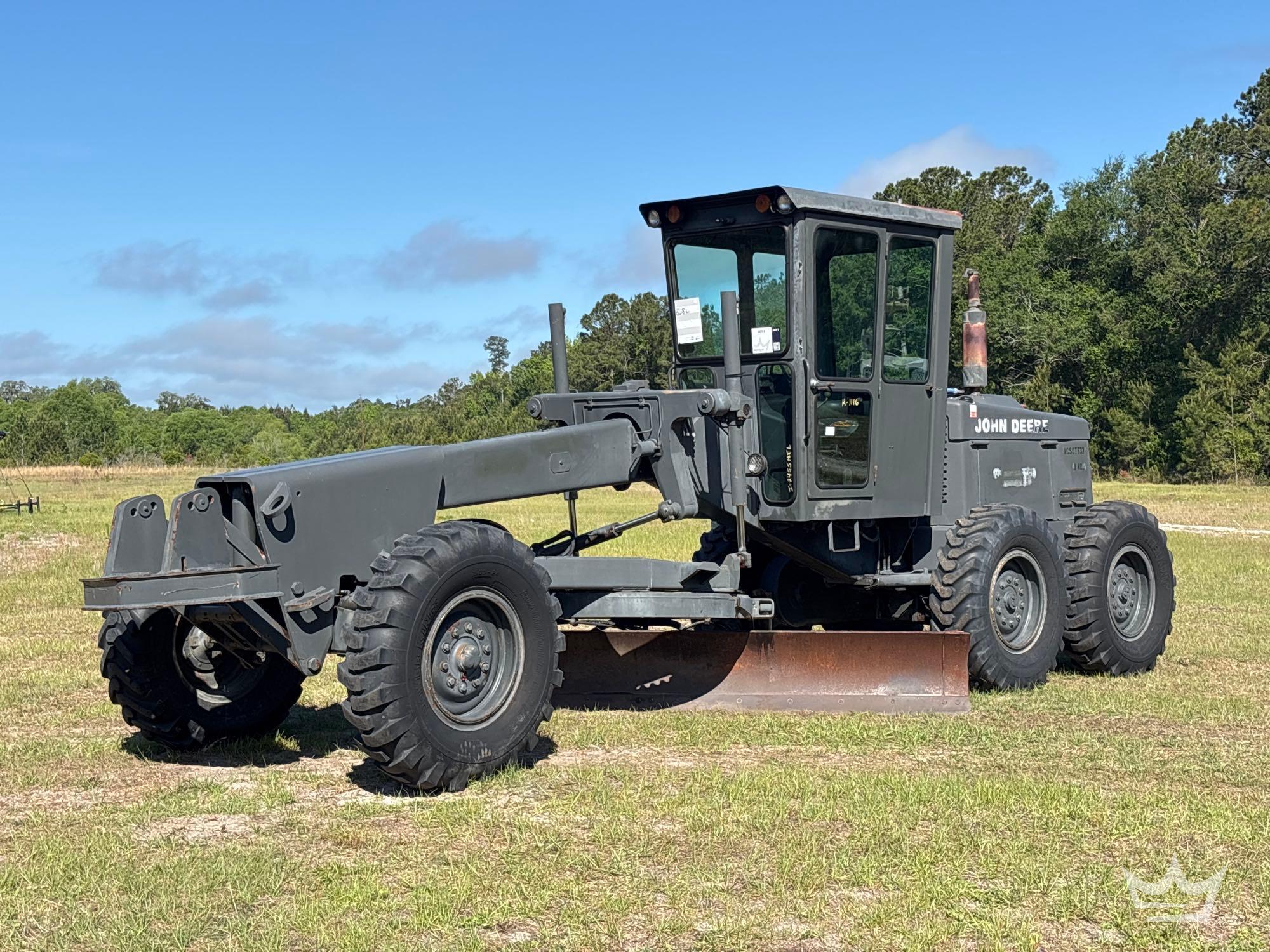

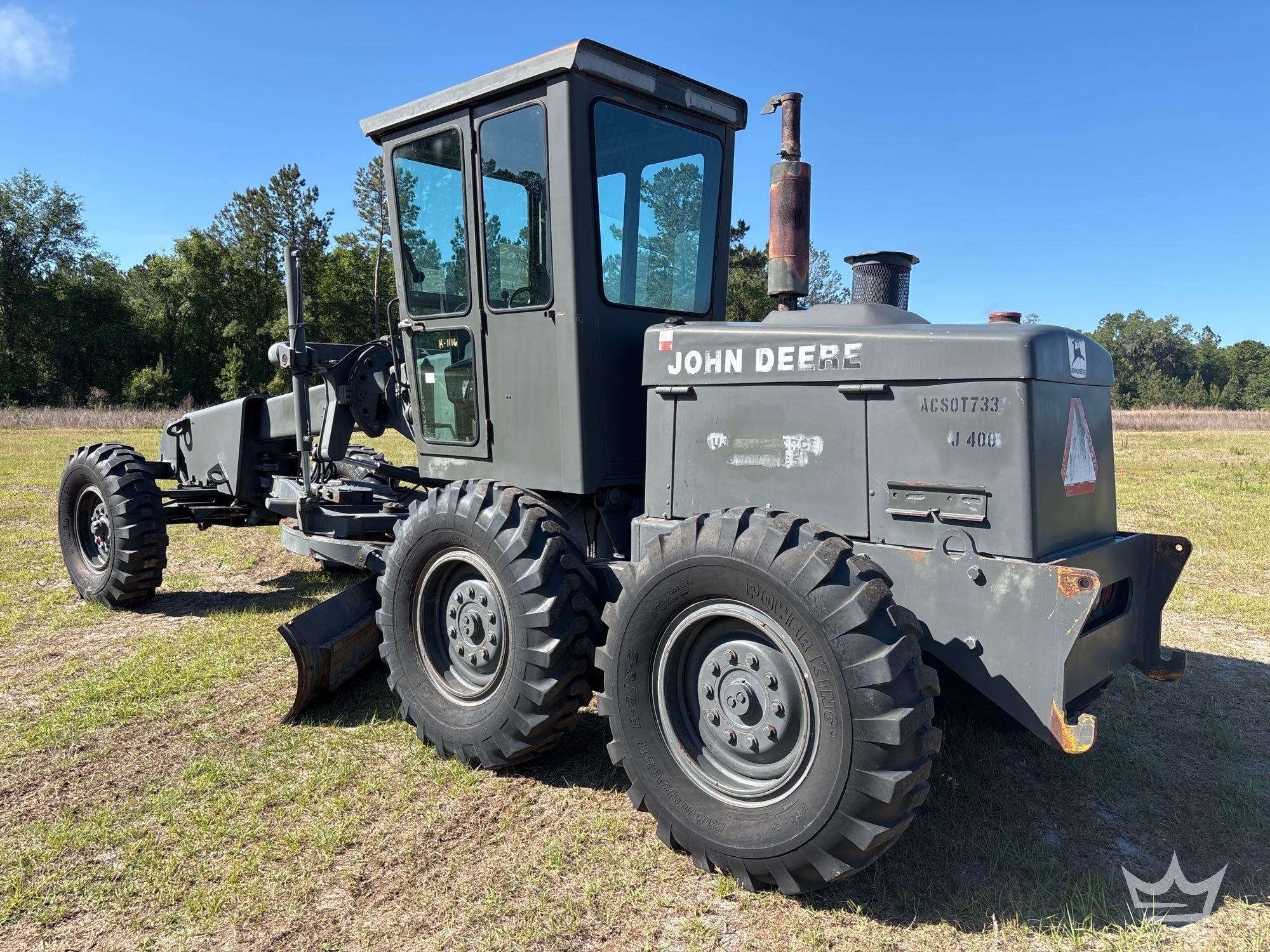

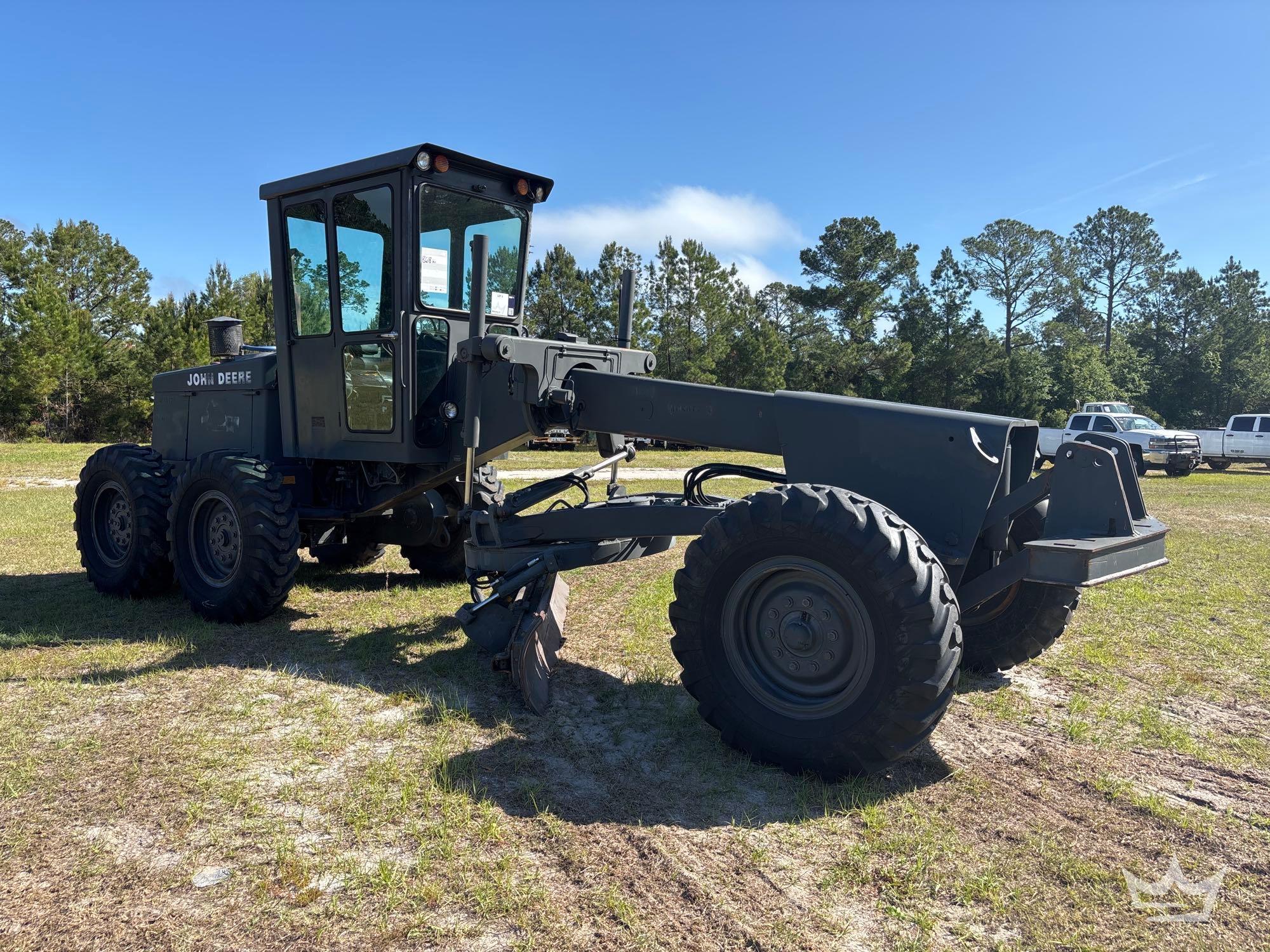

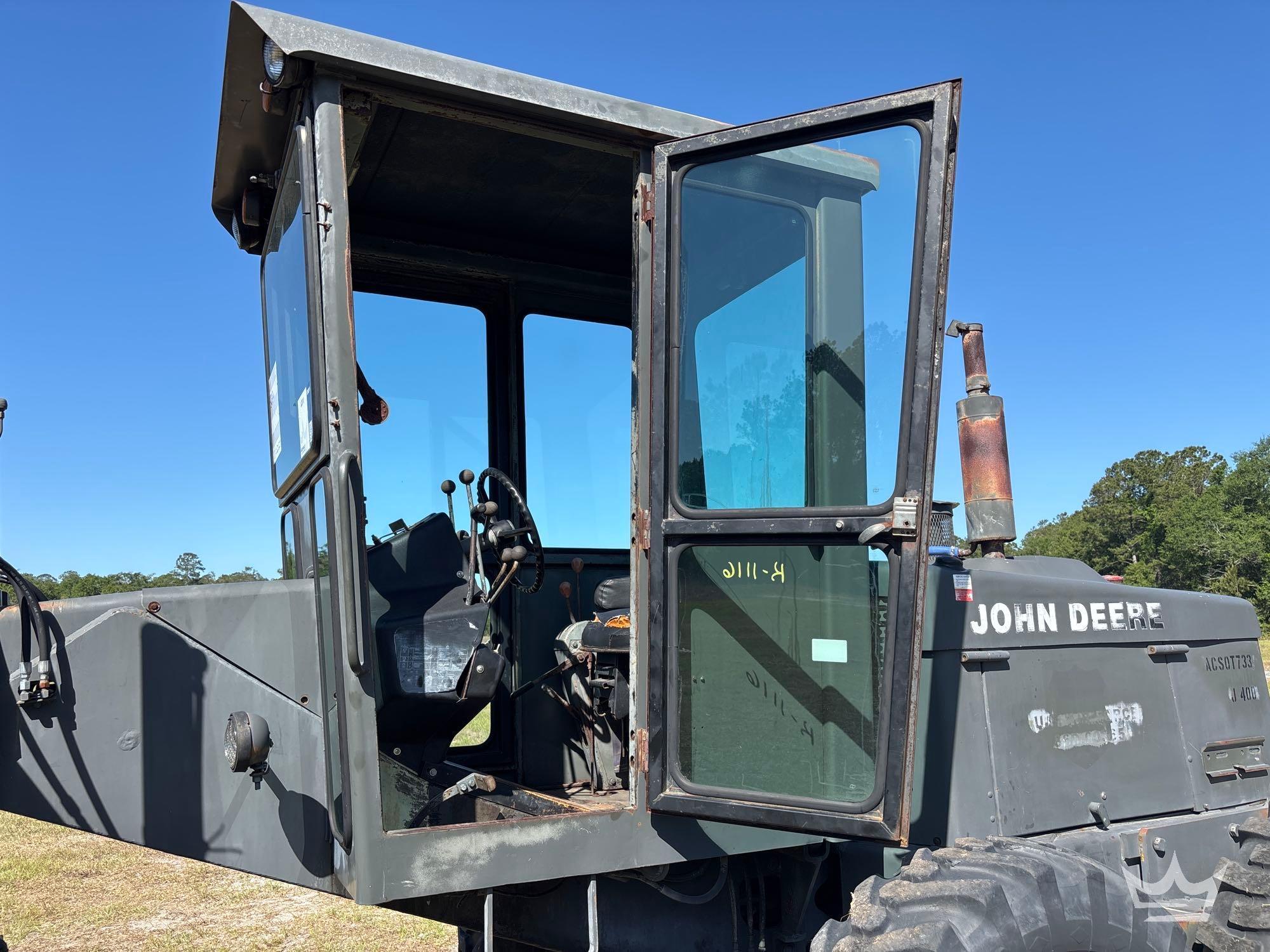

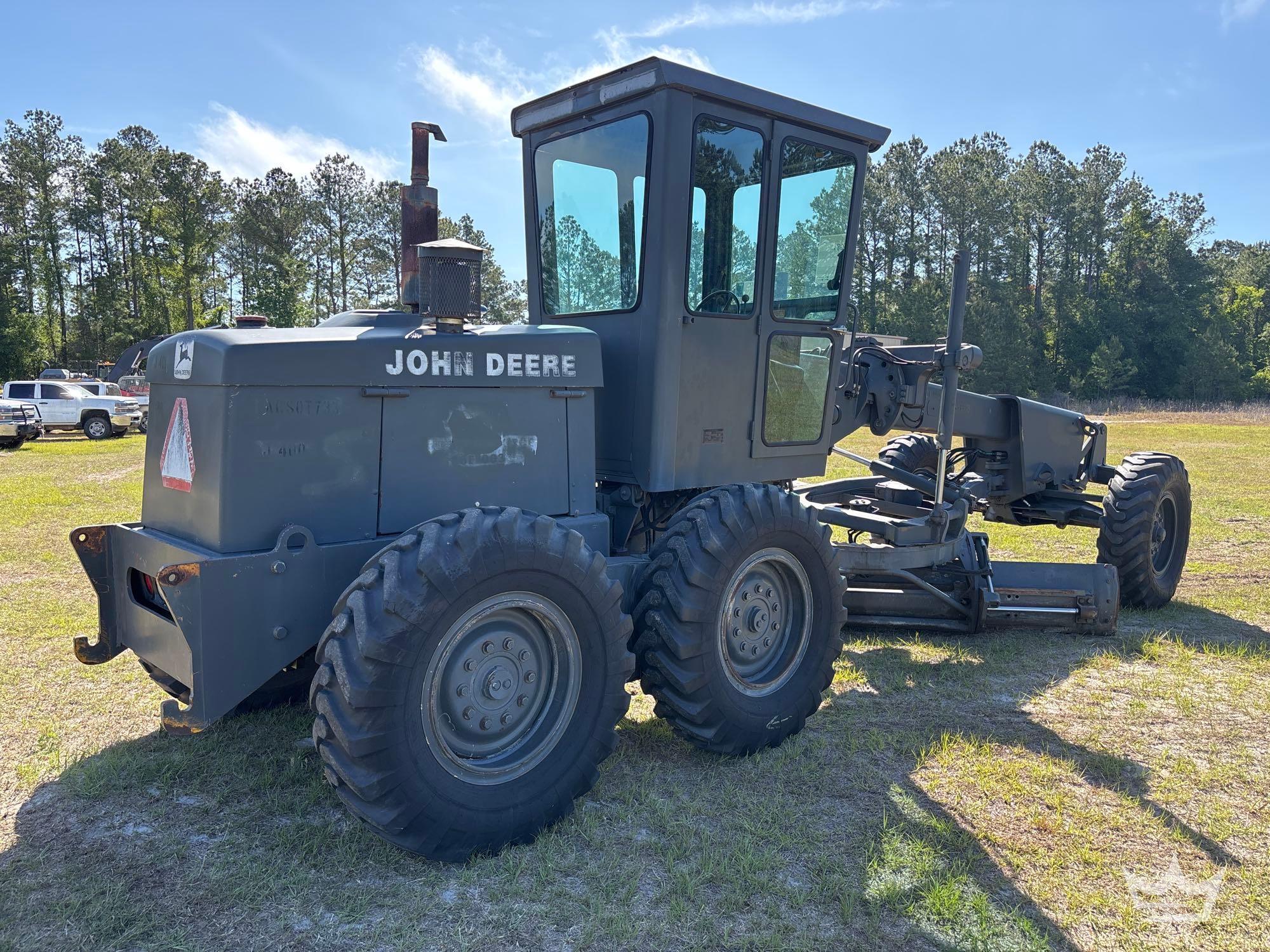

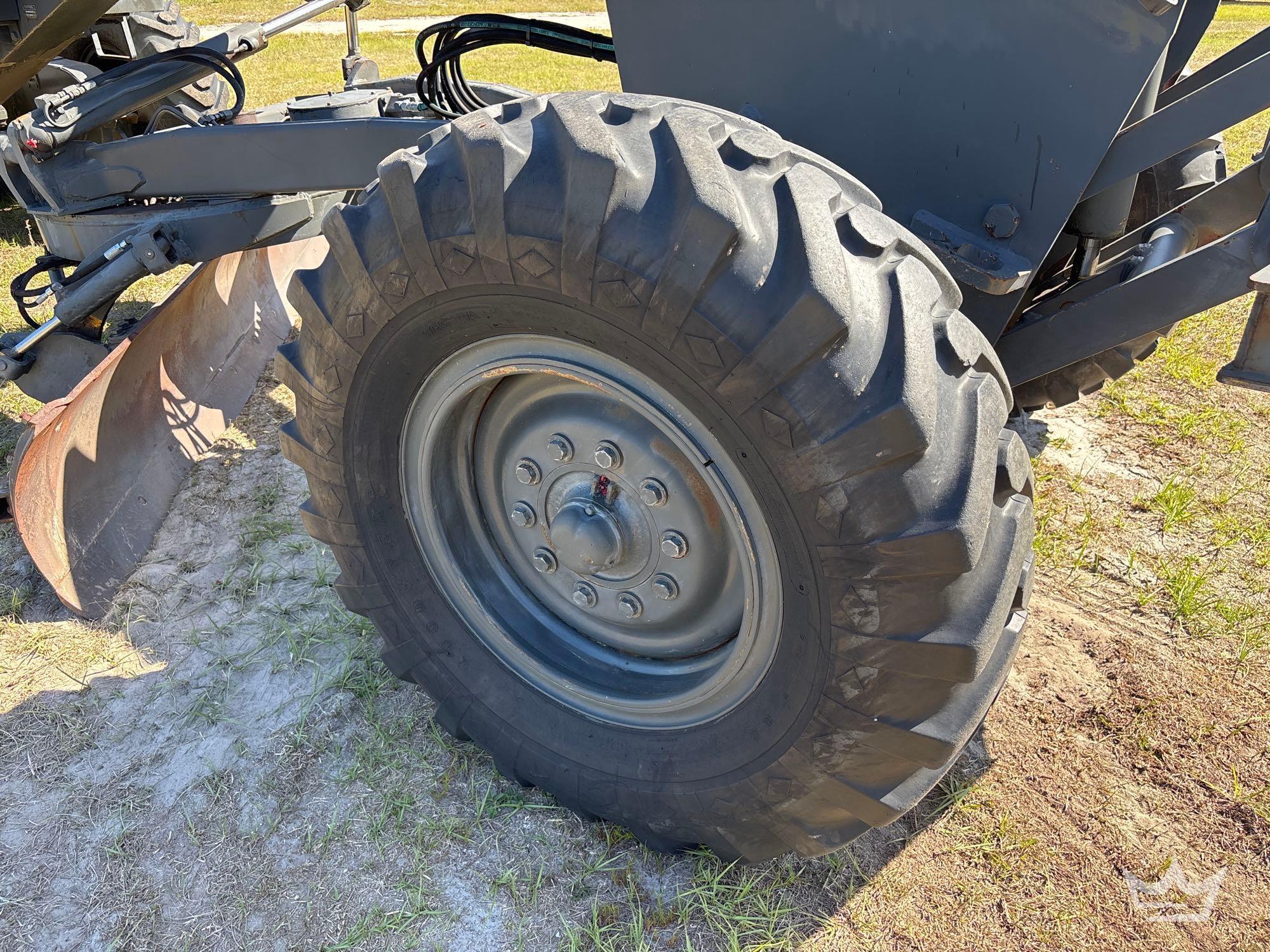

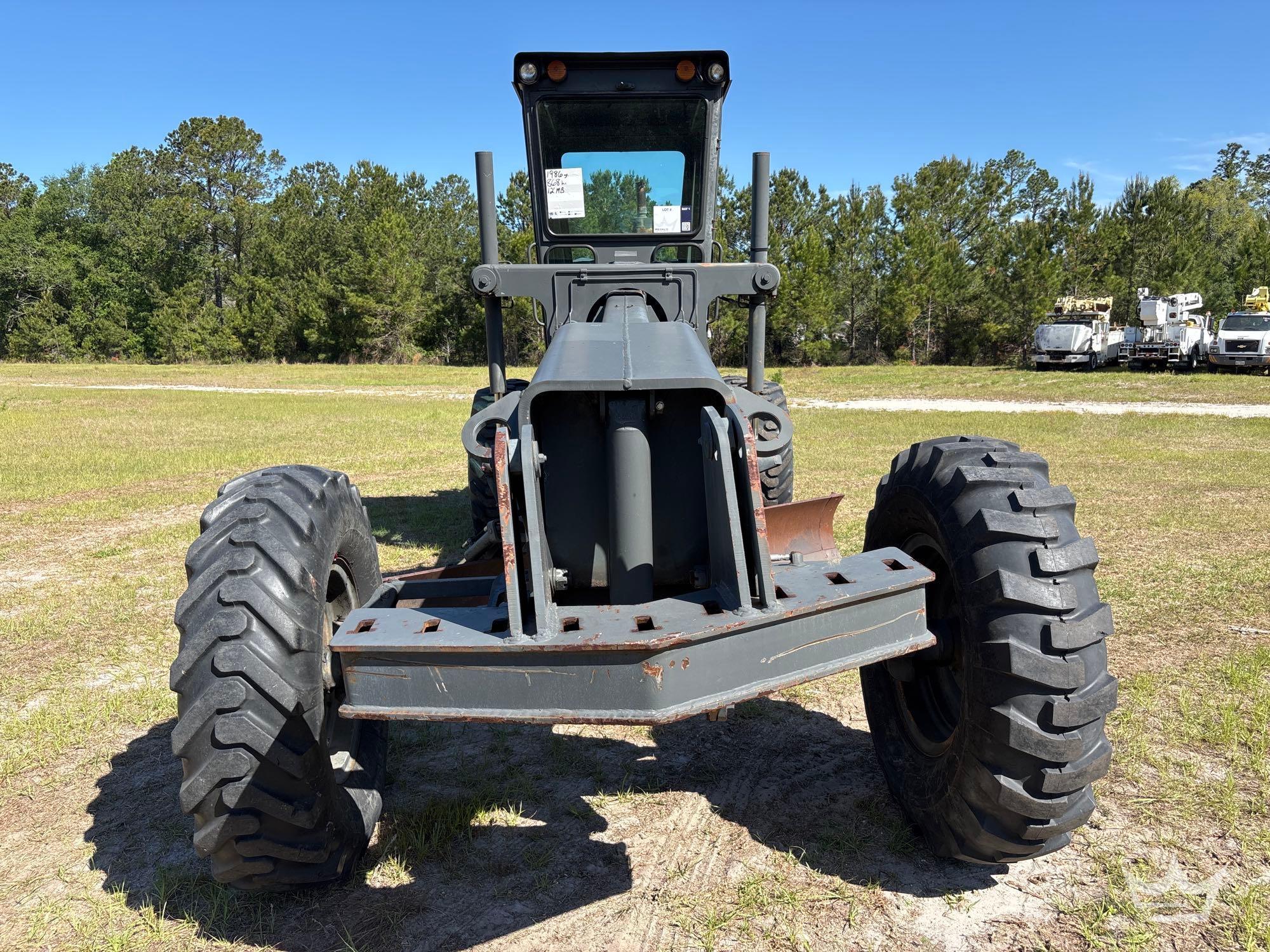

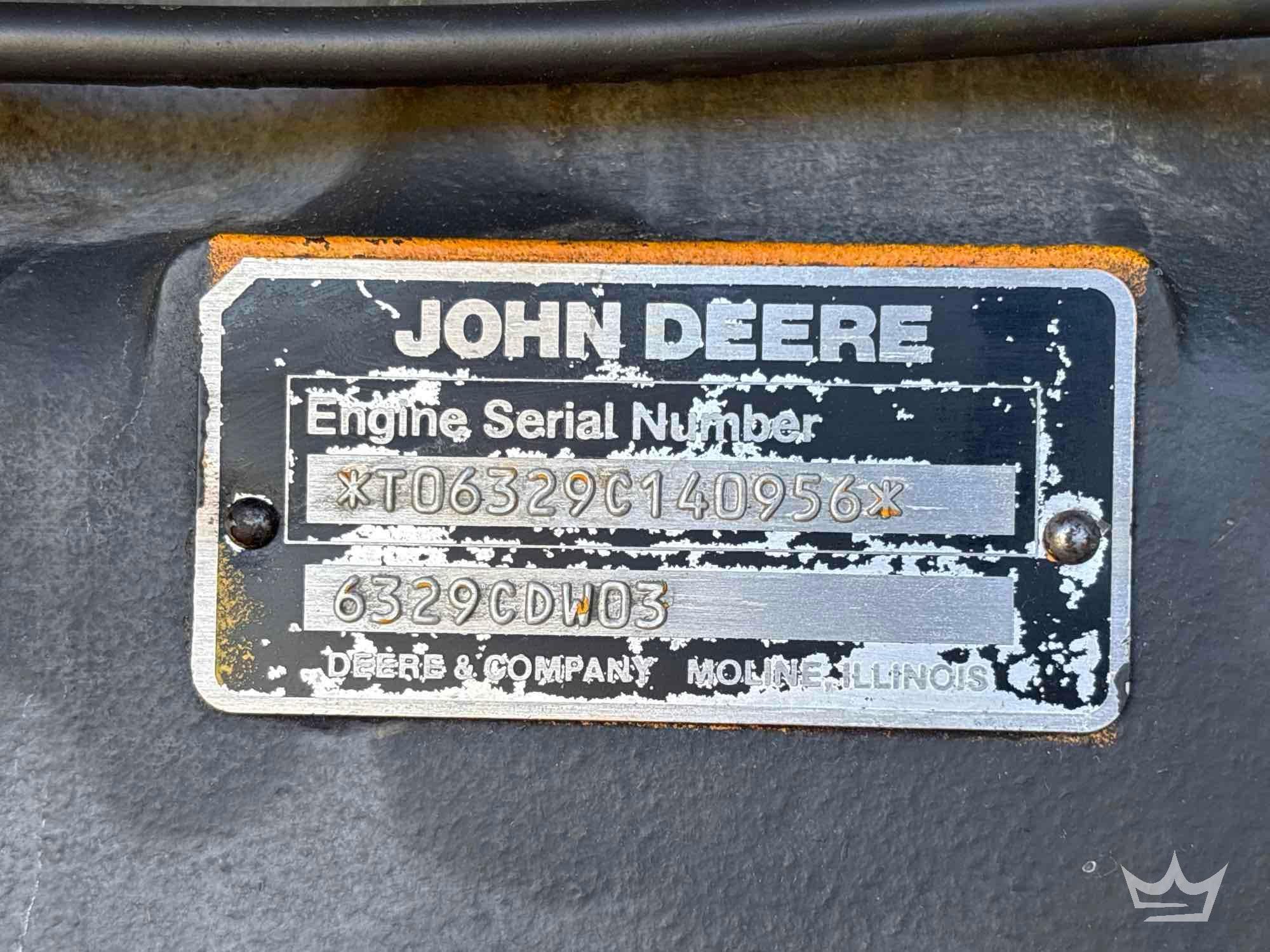

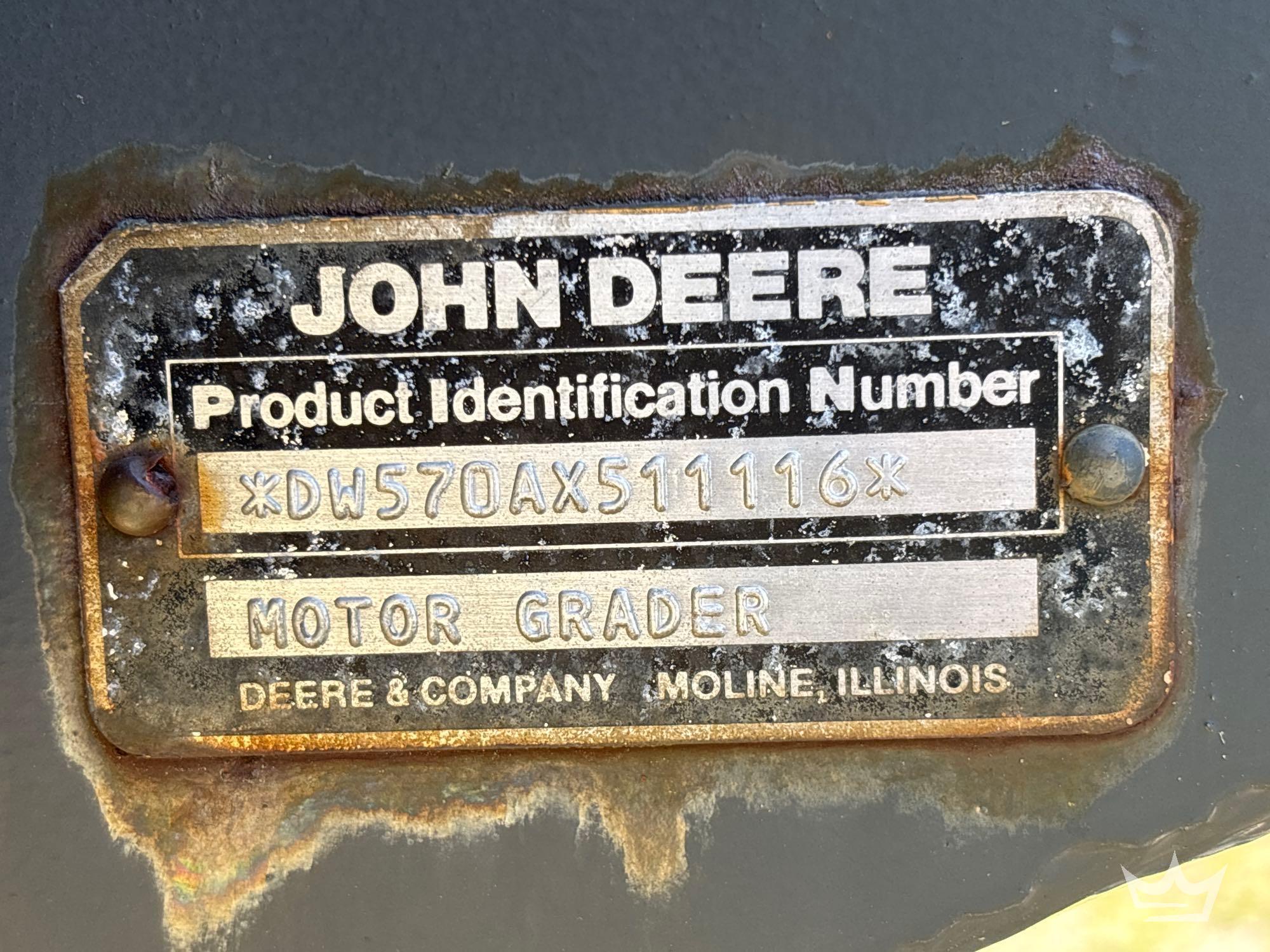

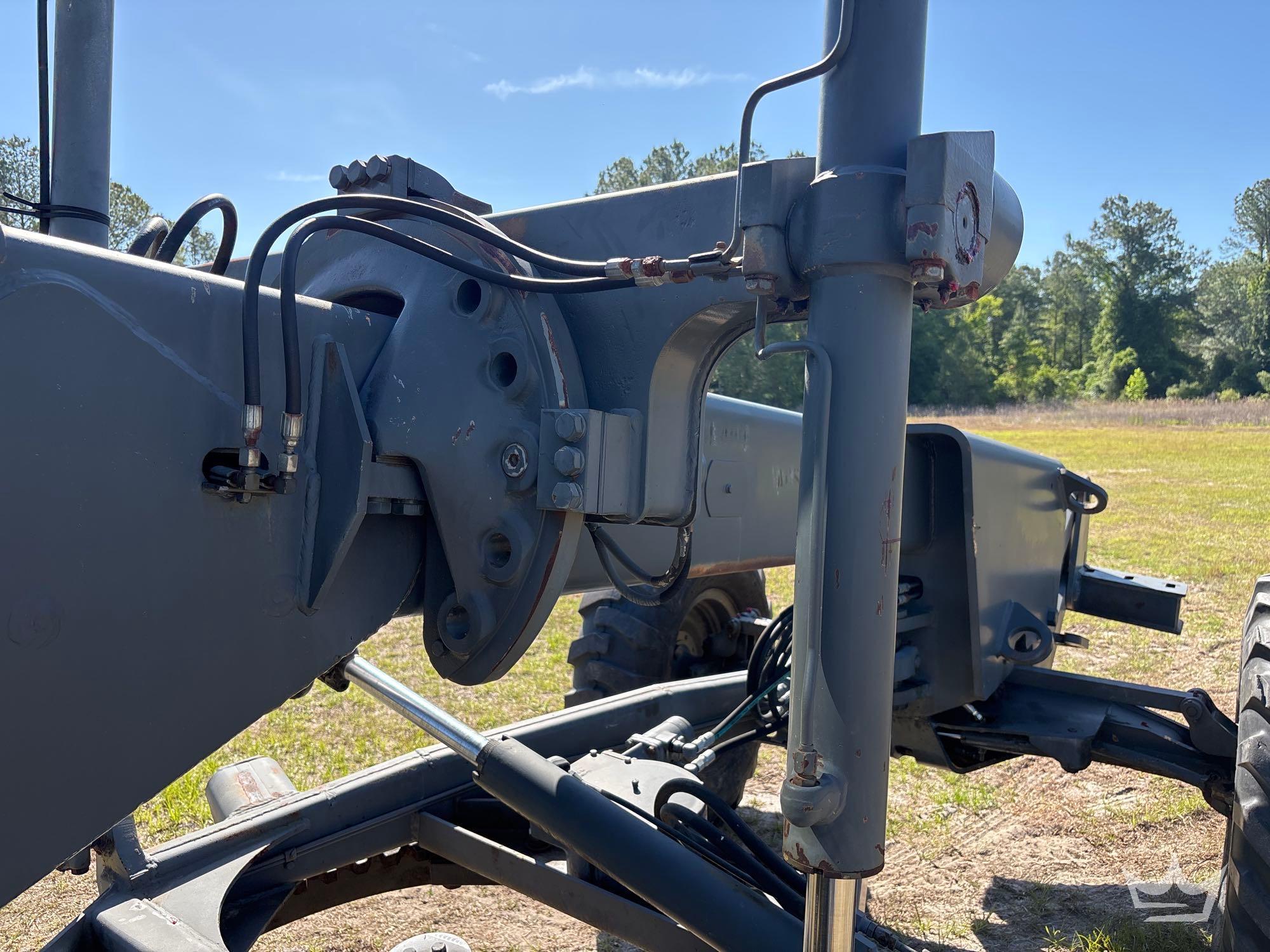

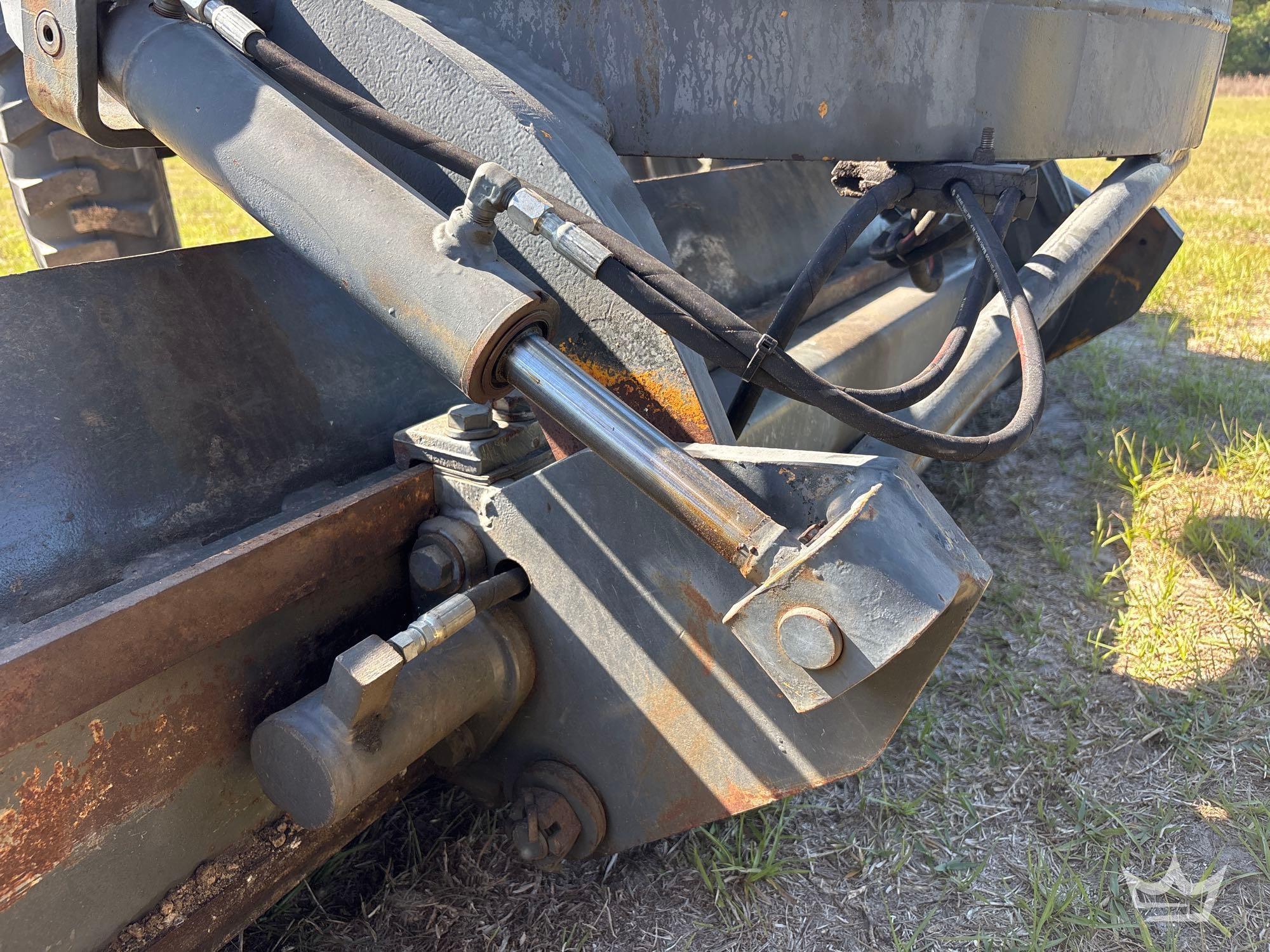

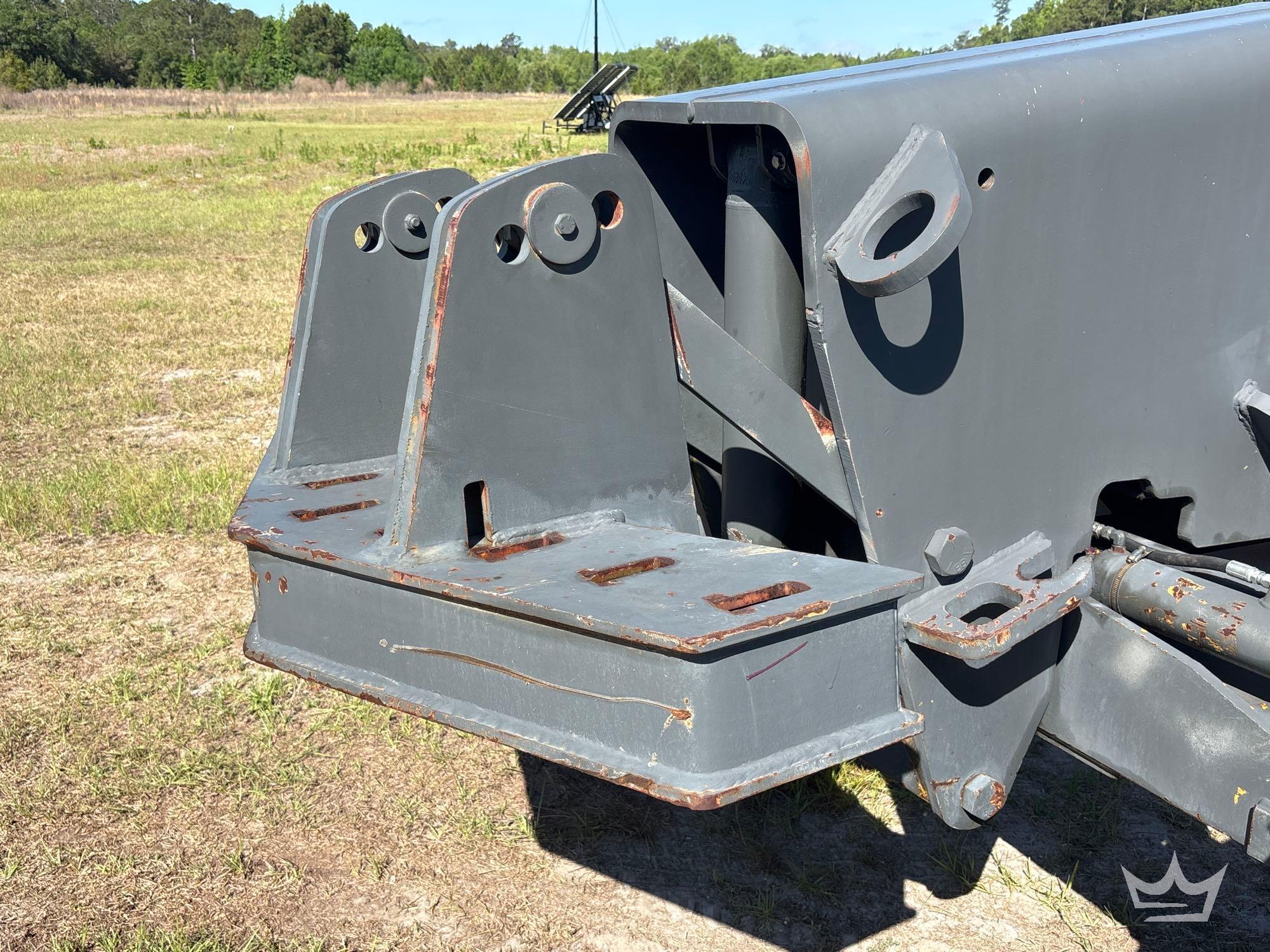

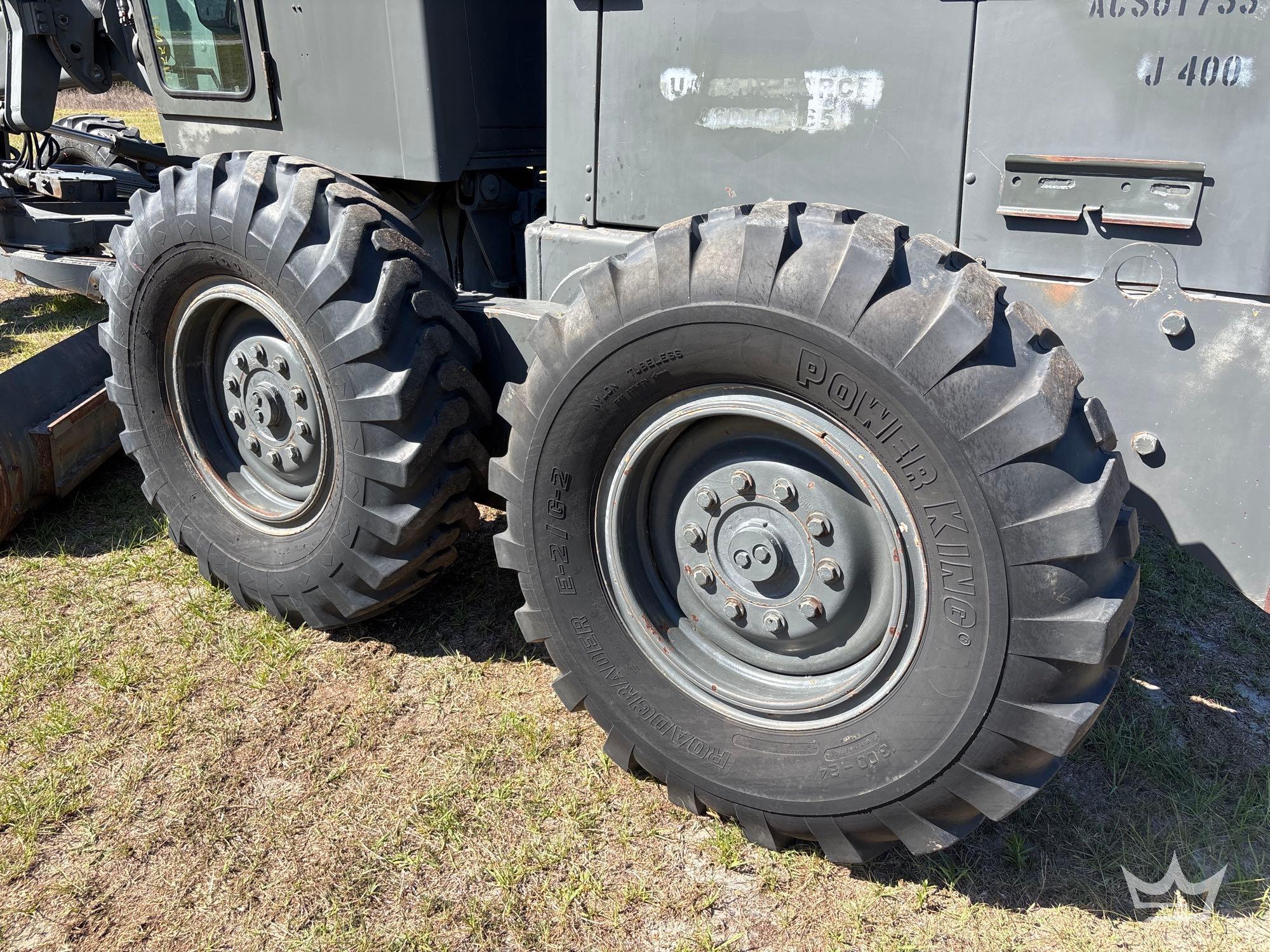

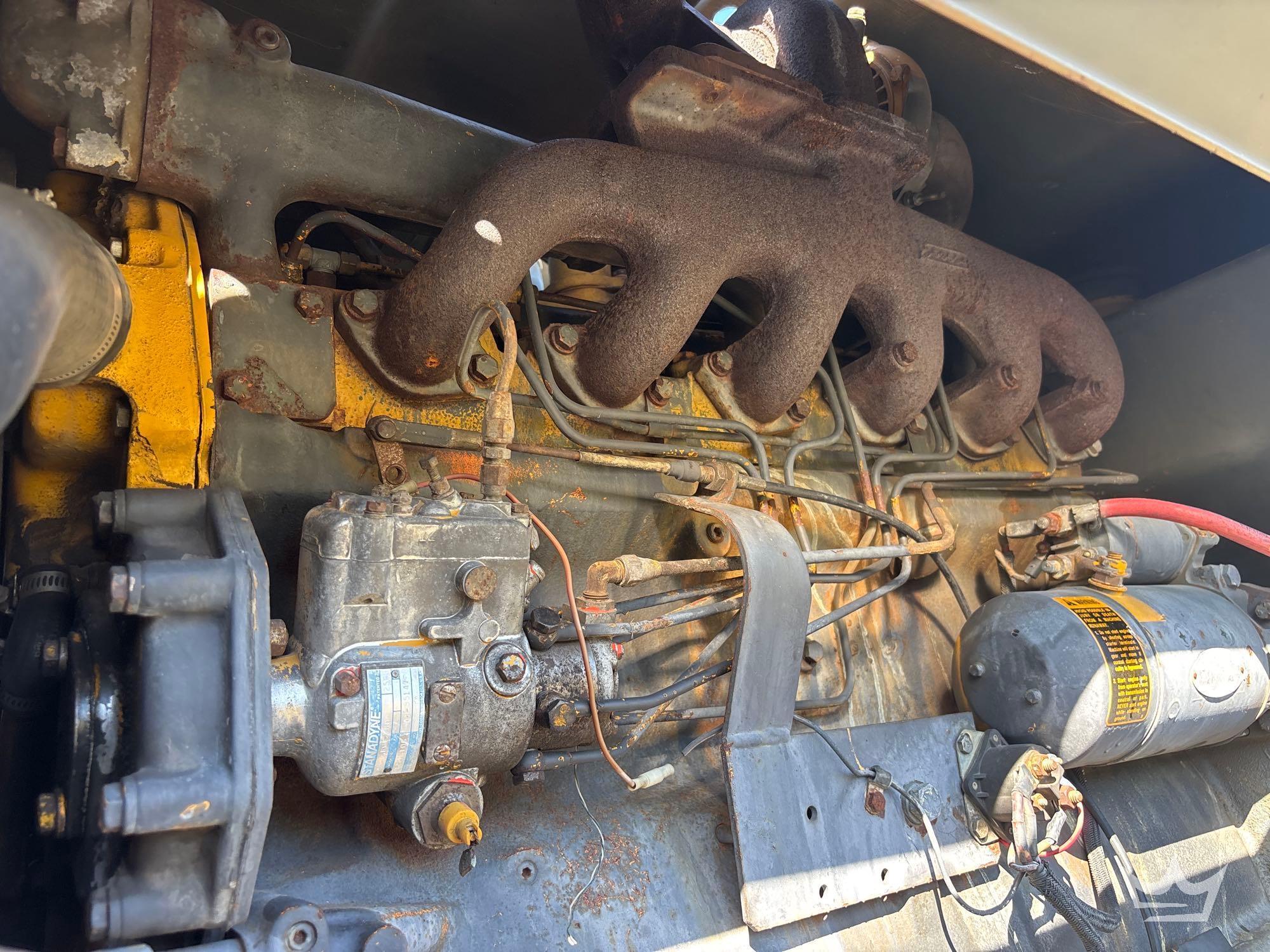

Location: Lake City, FL. SN: DW570AX511116, Hours Read: 868 hours. (Seller states transmission is re-built and most cylinders are re-built.) Pwd by a John Deere 6329CDW03 Diesel Engine, 8-speed PowerShift Transmission. Equipped with 12ft hydraulic 6-way moldboard, hydraulic body leveling, tandem drive axles, lever moldboard controls, water temp/oil pressure gauges, trans oil temp gauge, adjustable throttle, offroad tires, work lights, EROPS enclosed cab with heat and AC. Runs, drives, and operates, Limited function check completed at check in.

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The John Deere 570A is a motor grader designed for road construction, maintenance, and earthmoving tasks. Equipped with a powerful engine and advanced hydraulics, the 570A delivers precise blade control and efficient grading performance. This model features a durable frame, adjustable moldboard, and operator-friendly controls to enhance productivity and accuracy on various terrains. The John Deere 570A motor grader is suitable for fine grading, ditching, and snow removal applications. Known for reliability and ease of maintenance, the 570A supports heavy-duty construction projects and infrastructure development. It remains a preferred choice in the motor grader category for contractors and municipalities.

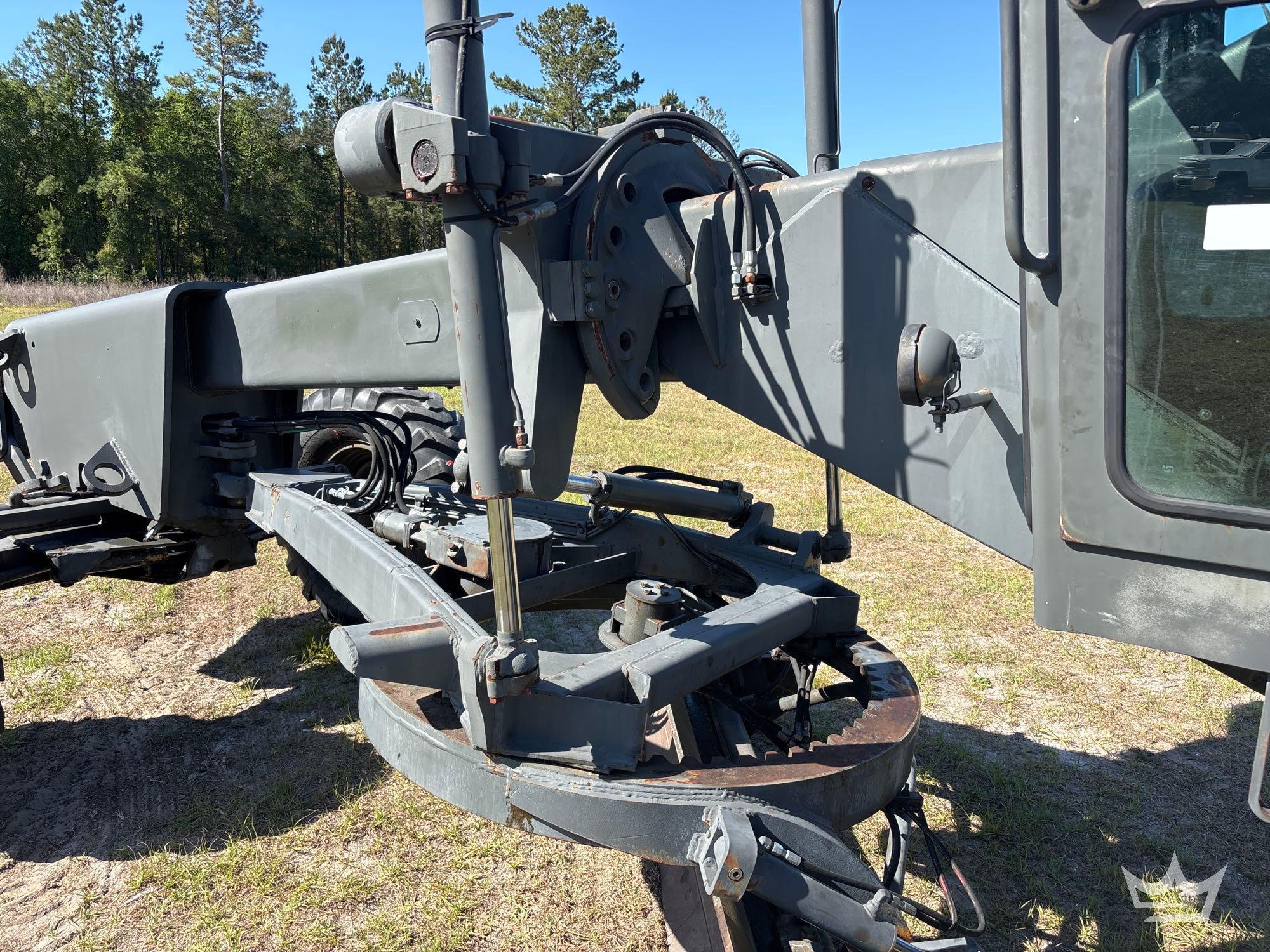

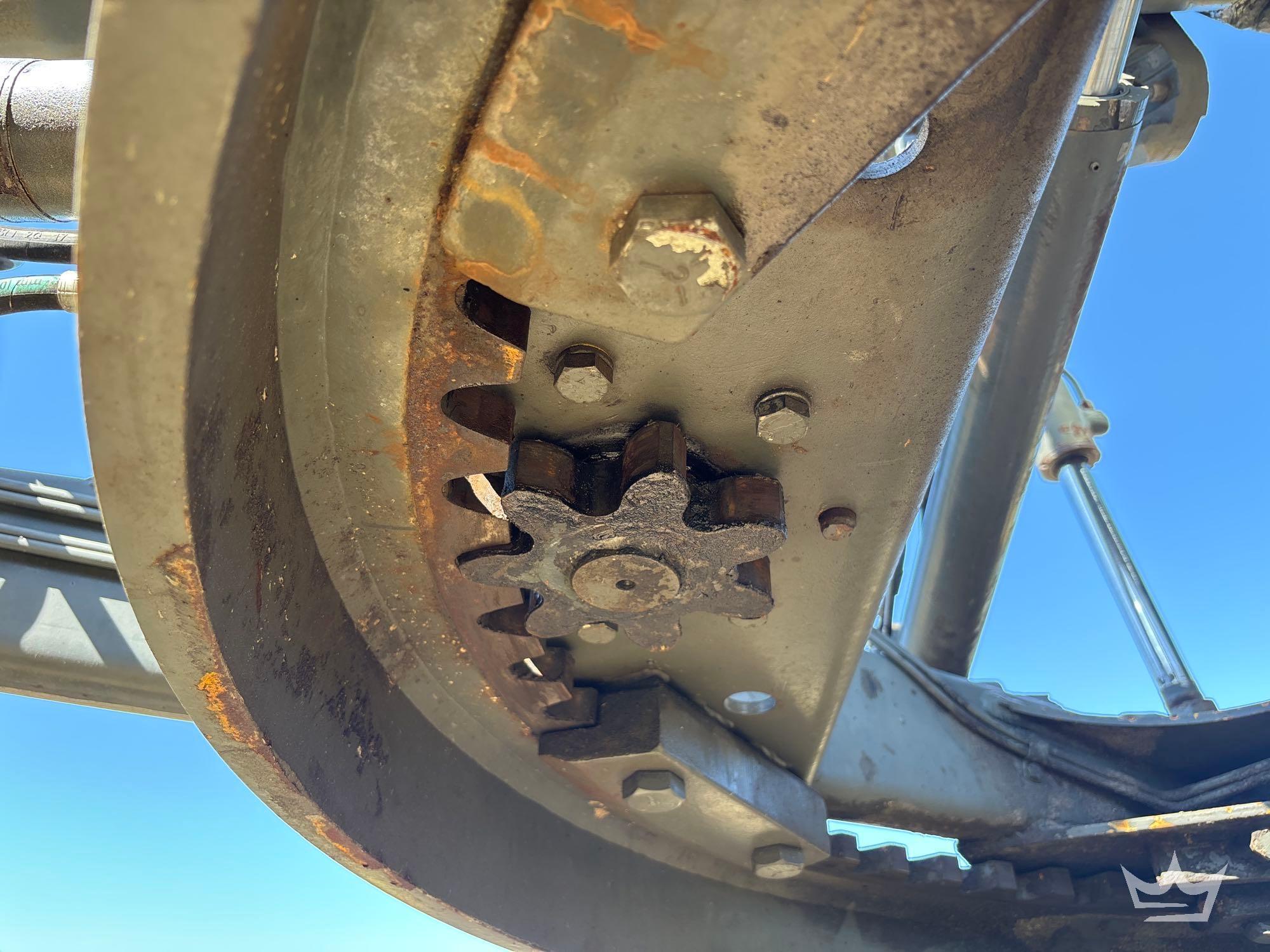

Circle
Blade Tip Angle - Front	45 degrees
Blade Tip Angle - Rear	5 degrees
Diameter	54 in (137 cm)
Max Lift Above Ground	13 in (33 cm)
Max Reach Outside Tires - Left	77 in (196 cm)
Max Reach Outside Tires - Right	72 in (182 cm)
Rotation	360 degrees
Dimensions
Blade Base	8 ft (2 m)
Front Ground Clearance	2 ft (1 m)
Height to Top of Isomount Cab	11 ft (3 m)
Rear Ground Clearance	2 ft (1 m)
Tandem Axle Wheelbase	5 ft (1 m)
Wheelbase	17 ft (5 m)
Width Over Tires	8 ft (2 m)
Engine
Bore	4 in (10 cm)
Displacement	329 cu in (5,391 cu cm)
Gross horsepower	92 hp (69 kw)
Max Power	92 hp (69 kw)
Net Power	85 hp (63 kw)
Net Power Gears 7-8	85 hp (63 kw)
Net Torque Gears 7-8	238 lbs ft (323 nm)
Number of Cylinders	6
Power Measured @	2,300 rpm
Stroke	4 in (11 cm)
Torque	238 lbs ft (323 nm)
Torque Measured @	1,300 rpm

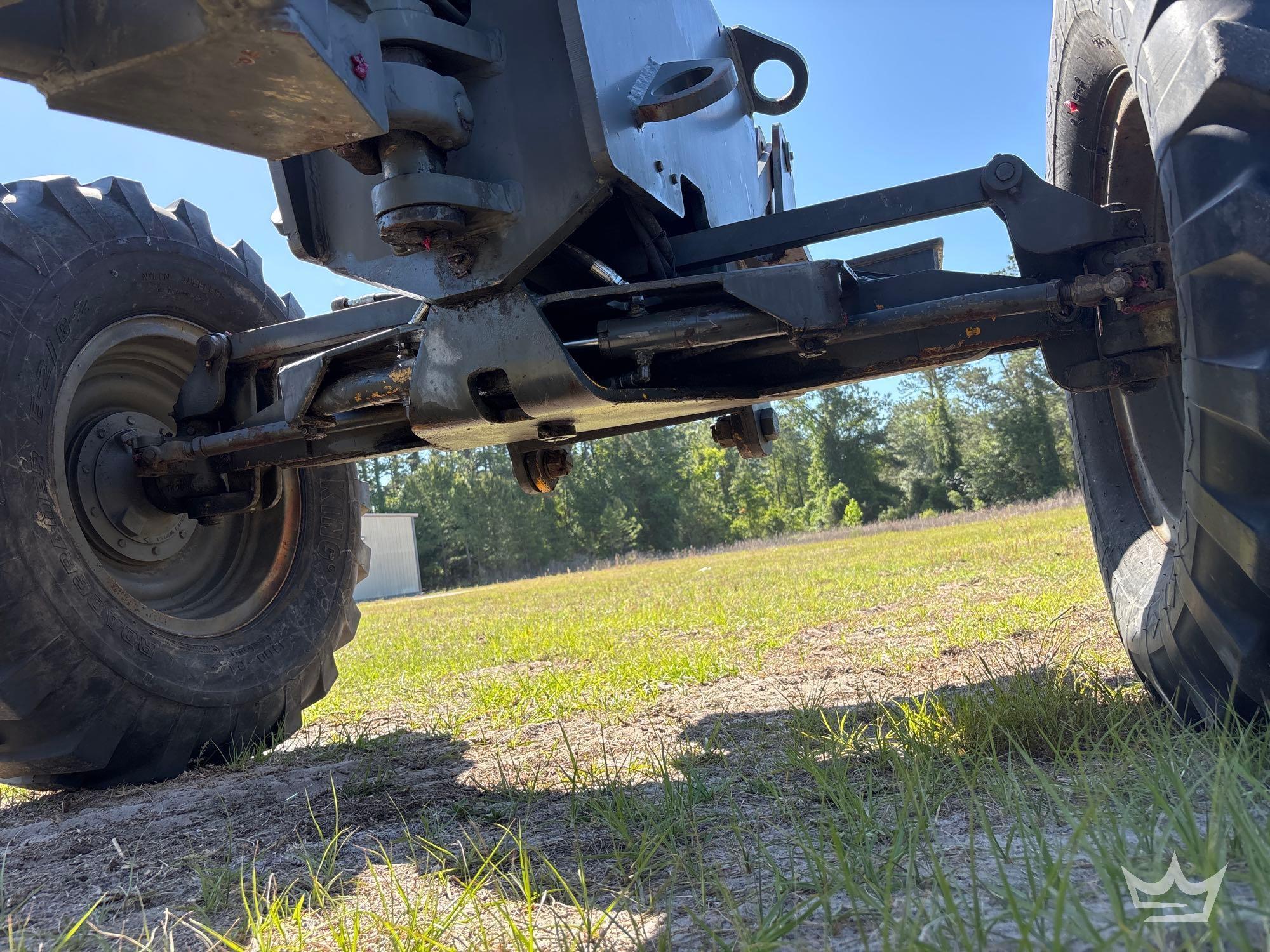

Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	30 degrees

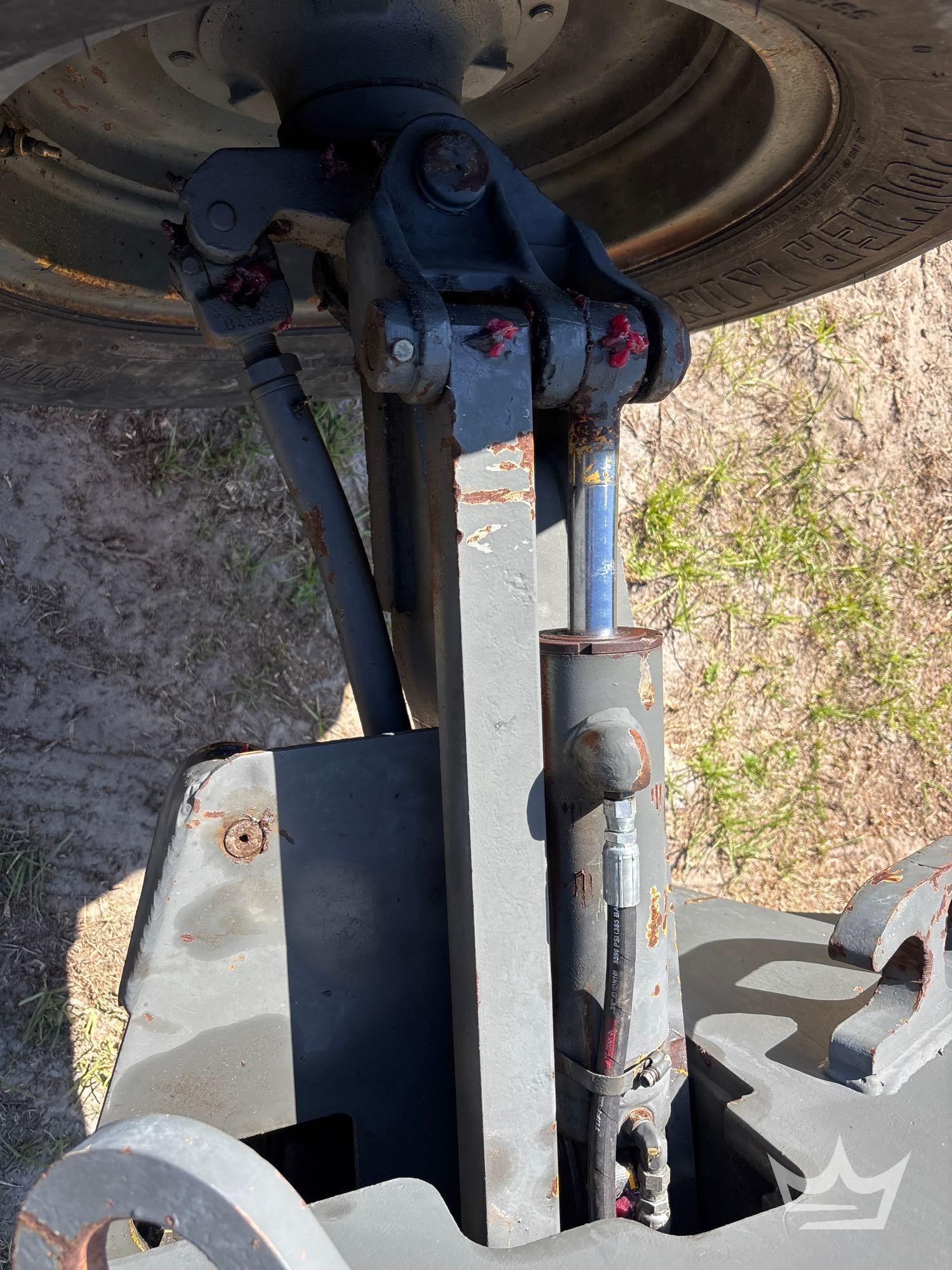

Wheel Lean	20 degrees

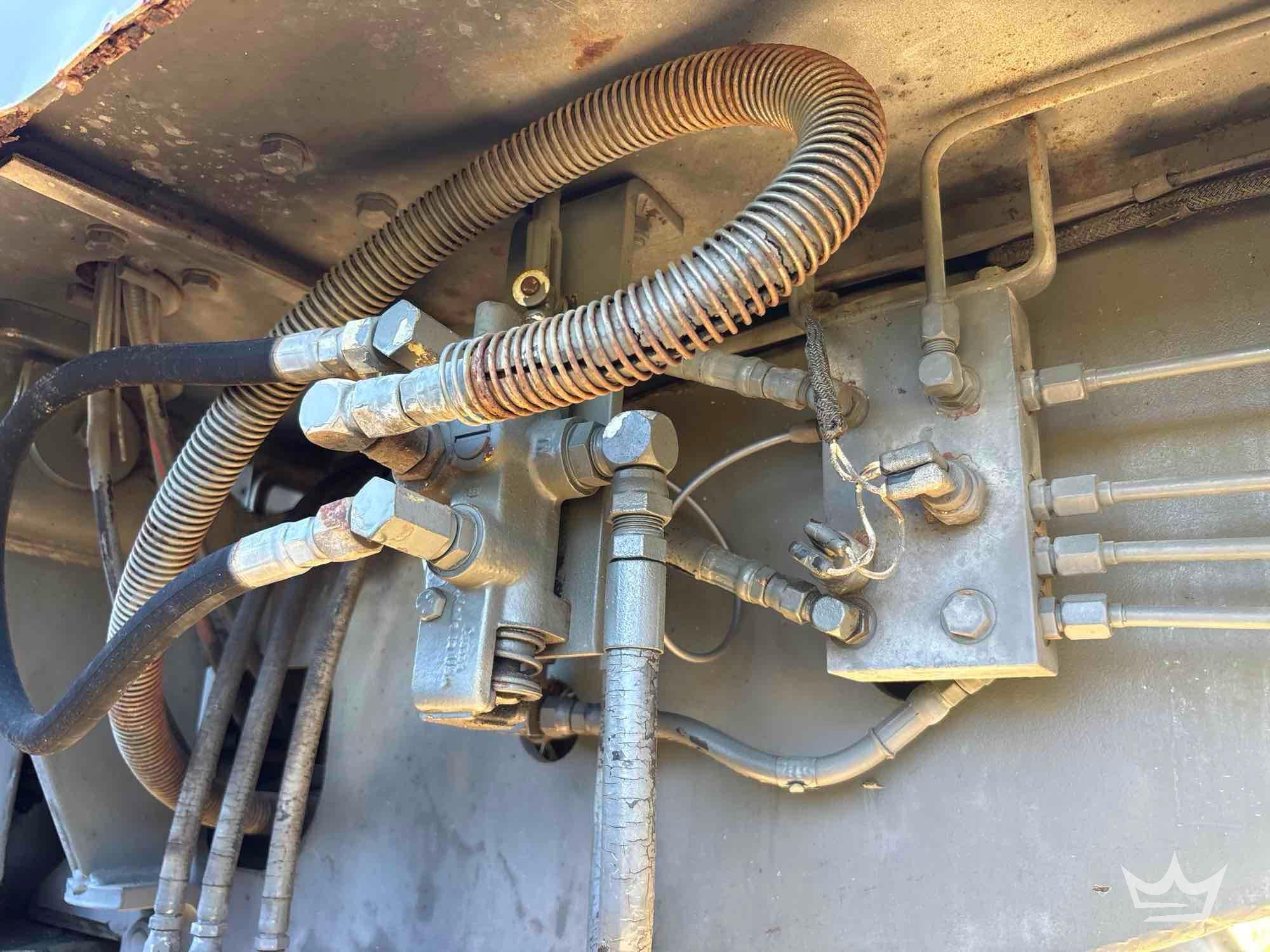

Hydraulic System
Pump Flow	27 gpm (102 lpm)
Pump Type	Closed-center
Relief Valve Pressure	2,000 psi

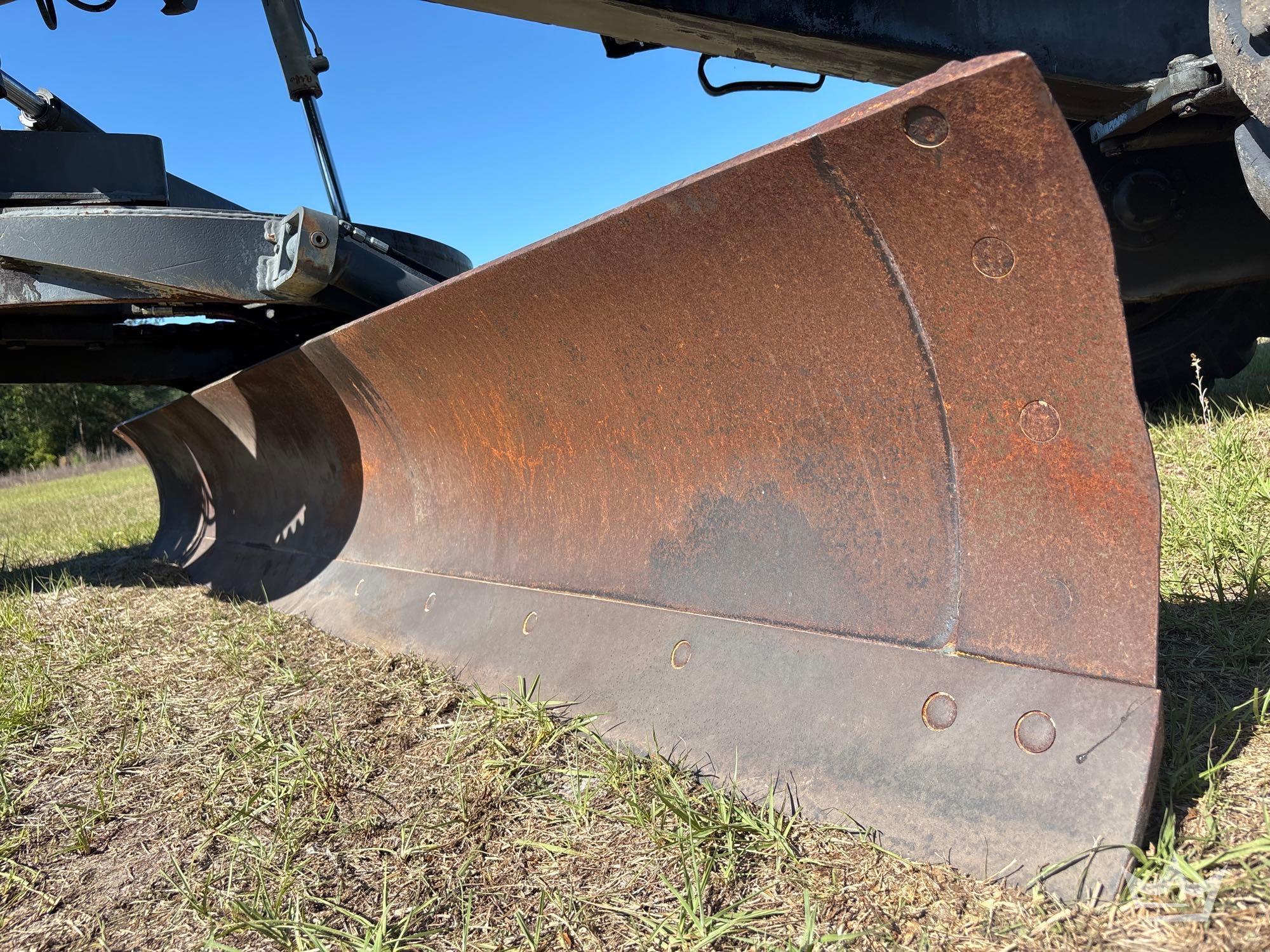

Moldboard
Moldboard Length	12 ft (4 m)
Moldboard Width	12 ft (4 m)

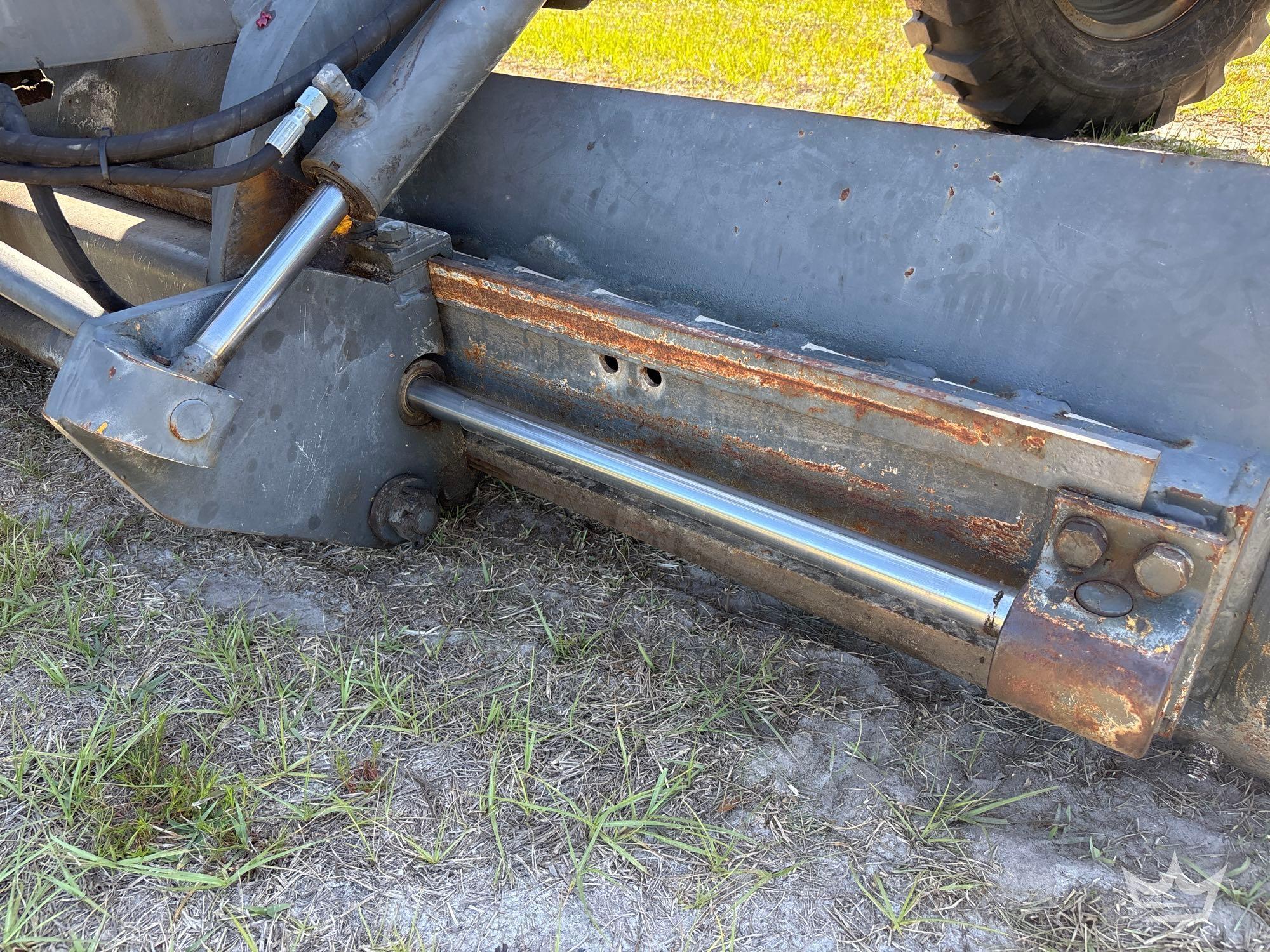

Side Shift Left	31 in (80 cm)
Side Shift Right	27 in (68 cm)
Operating Specifications
Operating Voltage	12 volts

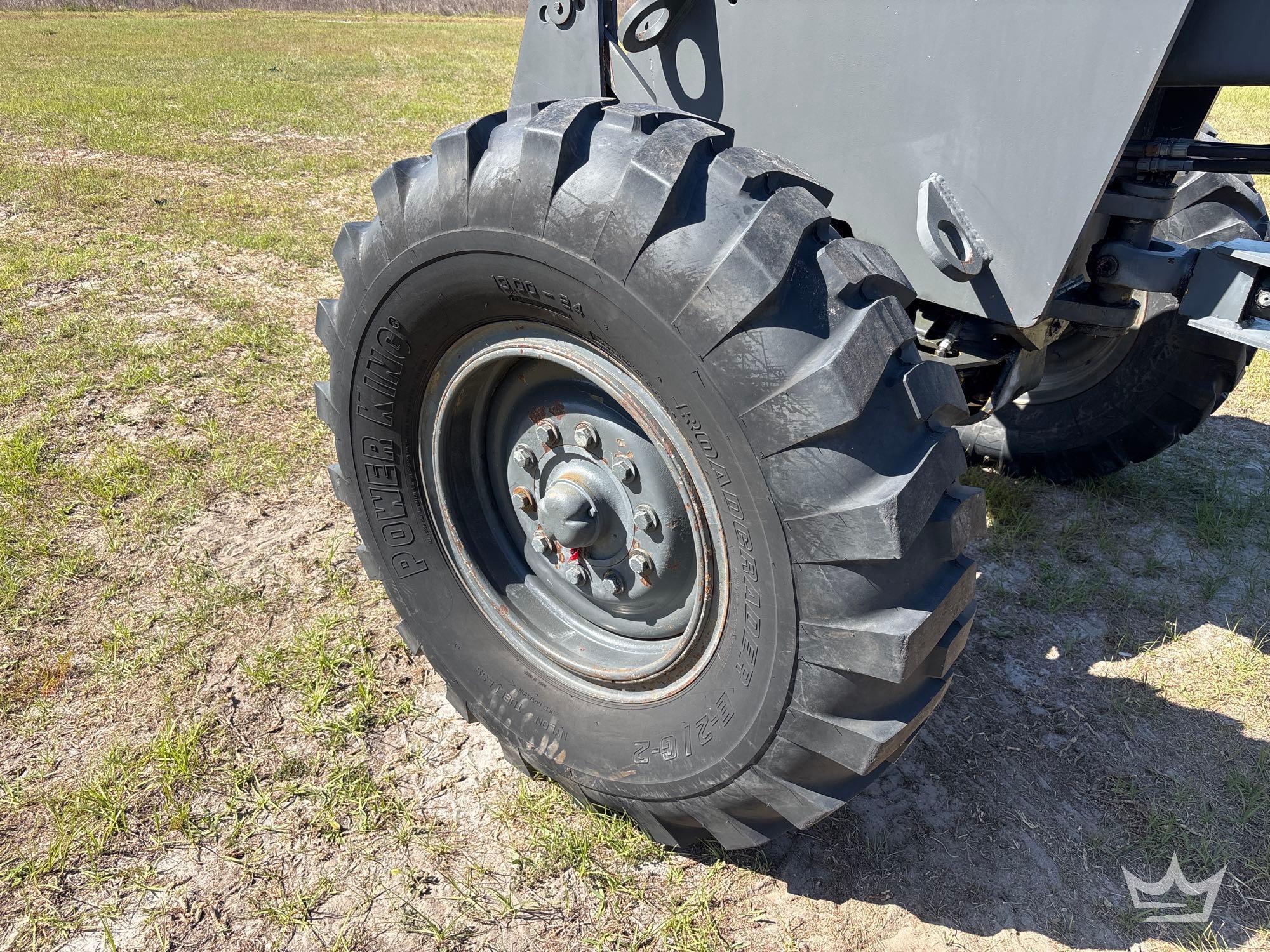

Tire Size	13.00-24
Steering System
Articulation Angle	22 degrees
Turning Radius	18 ft (5 m)
Transmission
Max Speed - Reverse	7 mph (11 kph)
Number of Gears - Forward	8
Number of Gears - Reverse	4
Transmission Type	Power Shift
