Equipment ↠ John Deere ↠ Motor Graders ↠ 1992 John Deere 670B

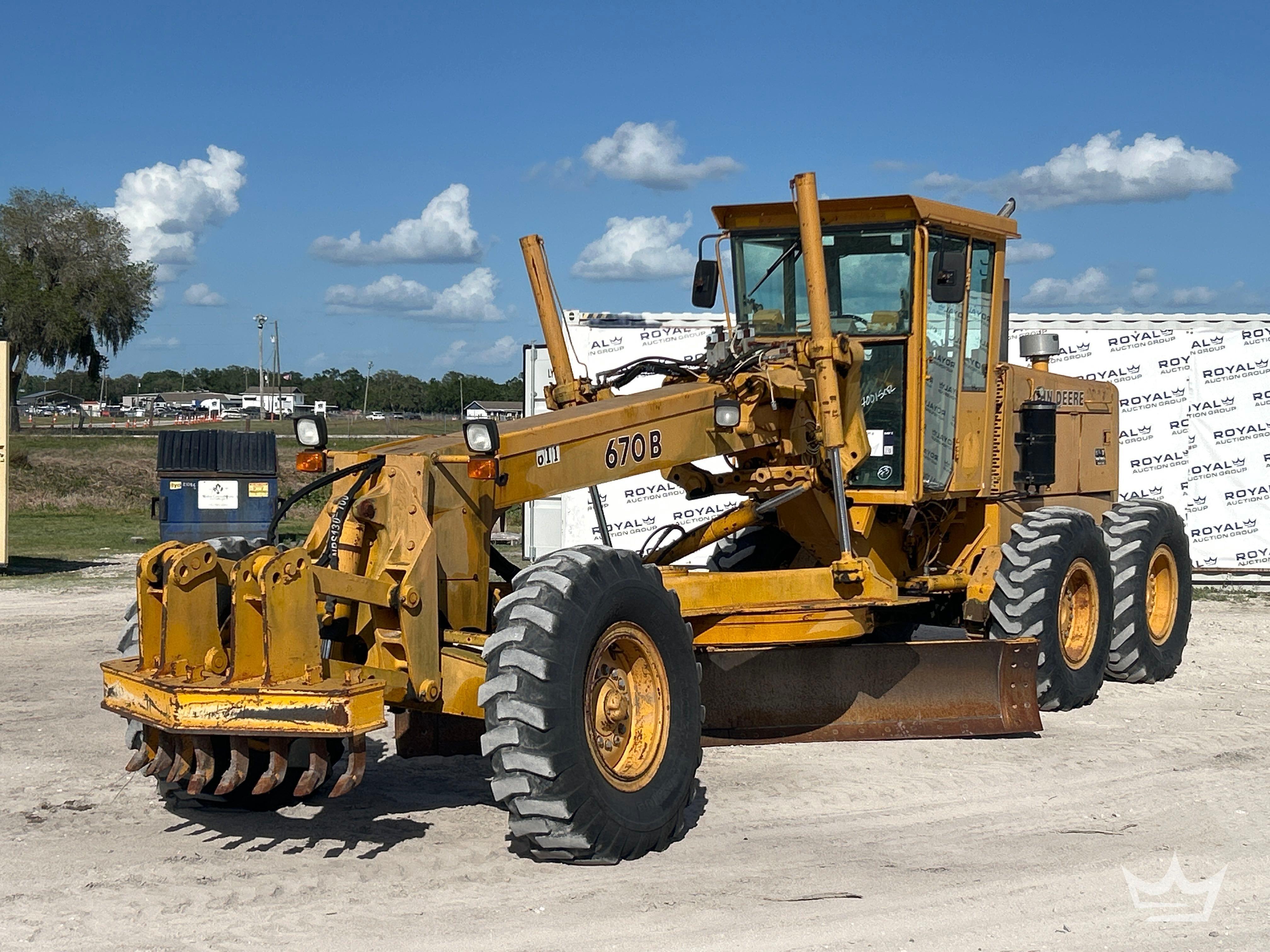

1992 John Deere 670B For Sale in Zephyrhills, FL

Name: 1992 John Deere 670B
Brand: John Deere
SKU: 87392512
Price: 1 USD
Availability: InStock

❮

❯

/ Save to Watch List

Auction Pricing

Auction Info: Starting on 2026-05-07 Click here to place a bid Minimum Bid: $5

Royal Auction Group, Inc.

Royal Auction Group, Inc. Dealer Info

Royal Auction Group, Inc. Website

Click here to email Royal Auction Group, Inc..

Click for Phone Number

Machine Info:

Machine Location:	ZEPHYRHILLS, FL
More Information:	https://www.proxibid.com/heavy-construction-equipment/motor-graders/1992-john-deere-670b-articulated-motor-grader/lotInformation/100645384?utm_source=ceg&utm_medium=referral&utm_campaign=atgxl_ceg&utm_content=66734

Description:

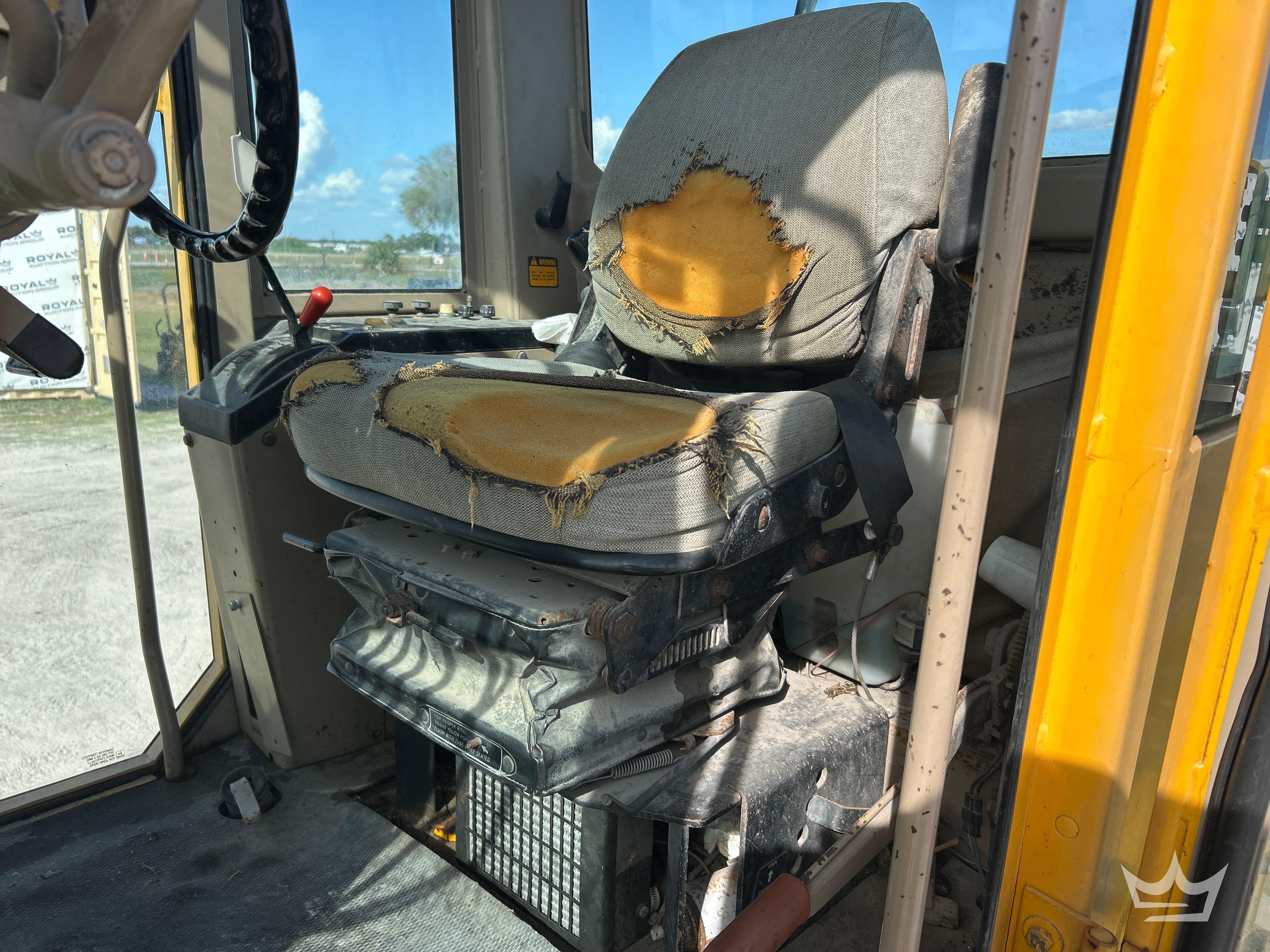

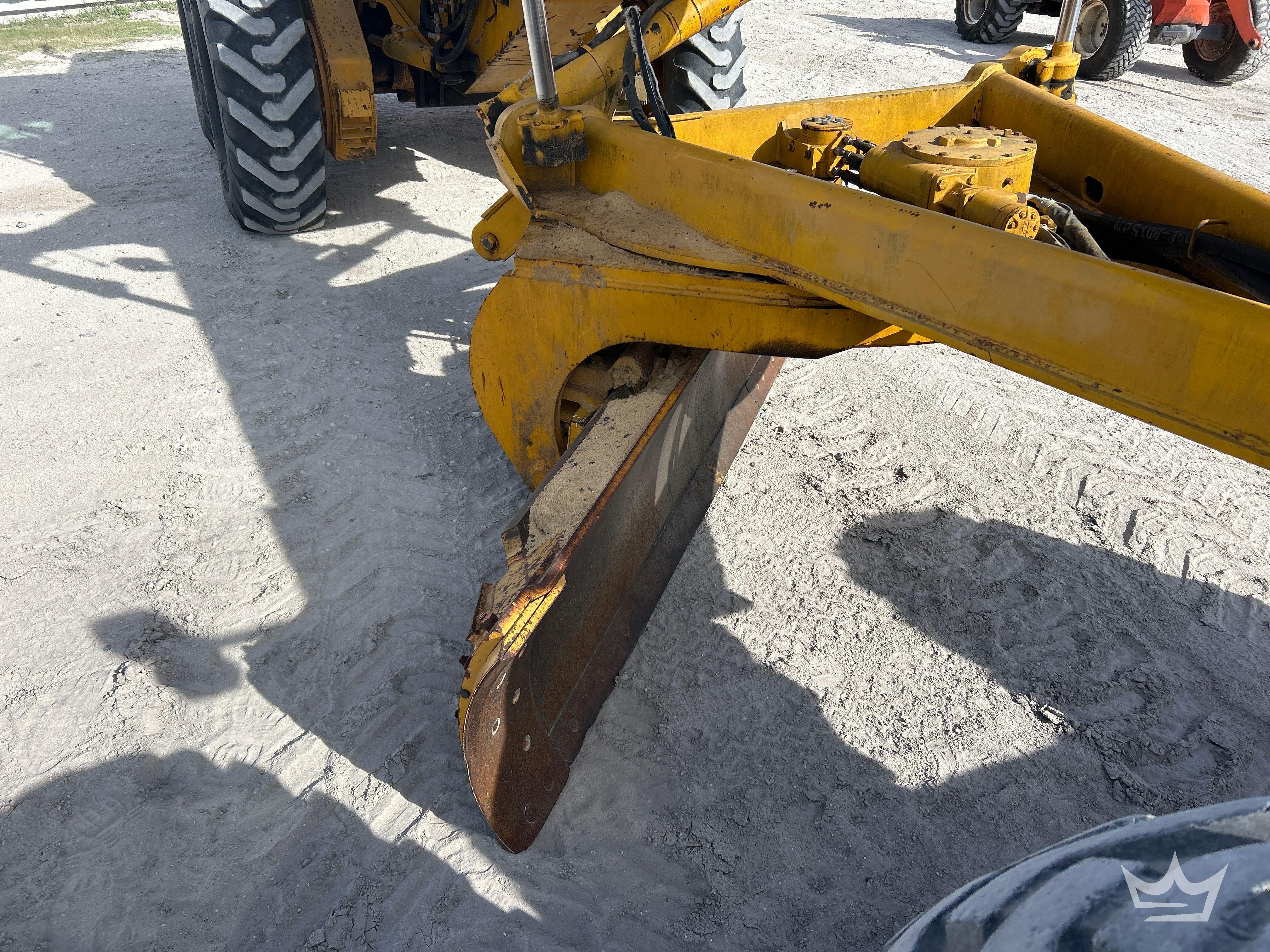

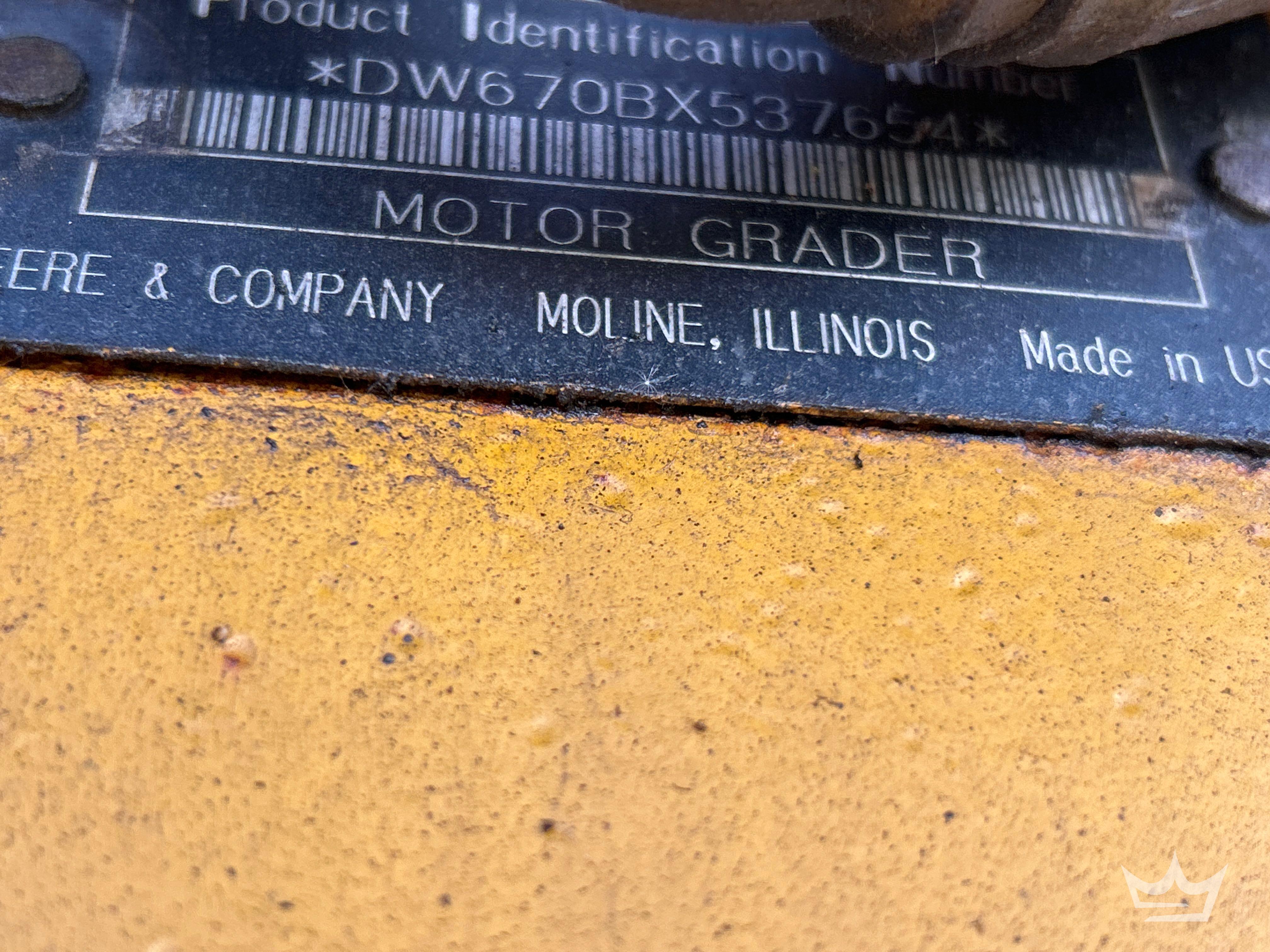

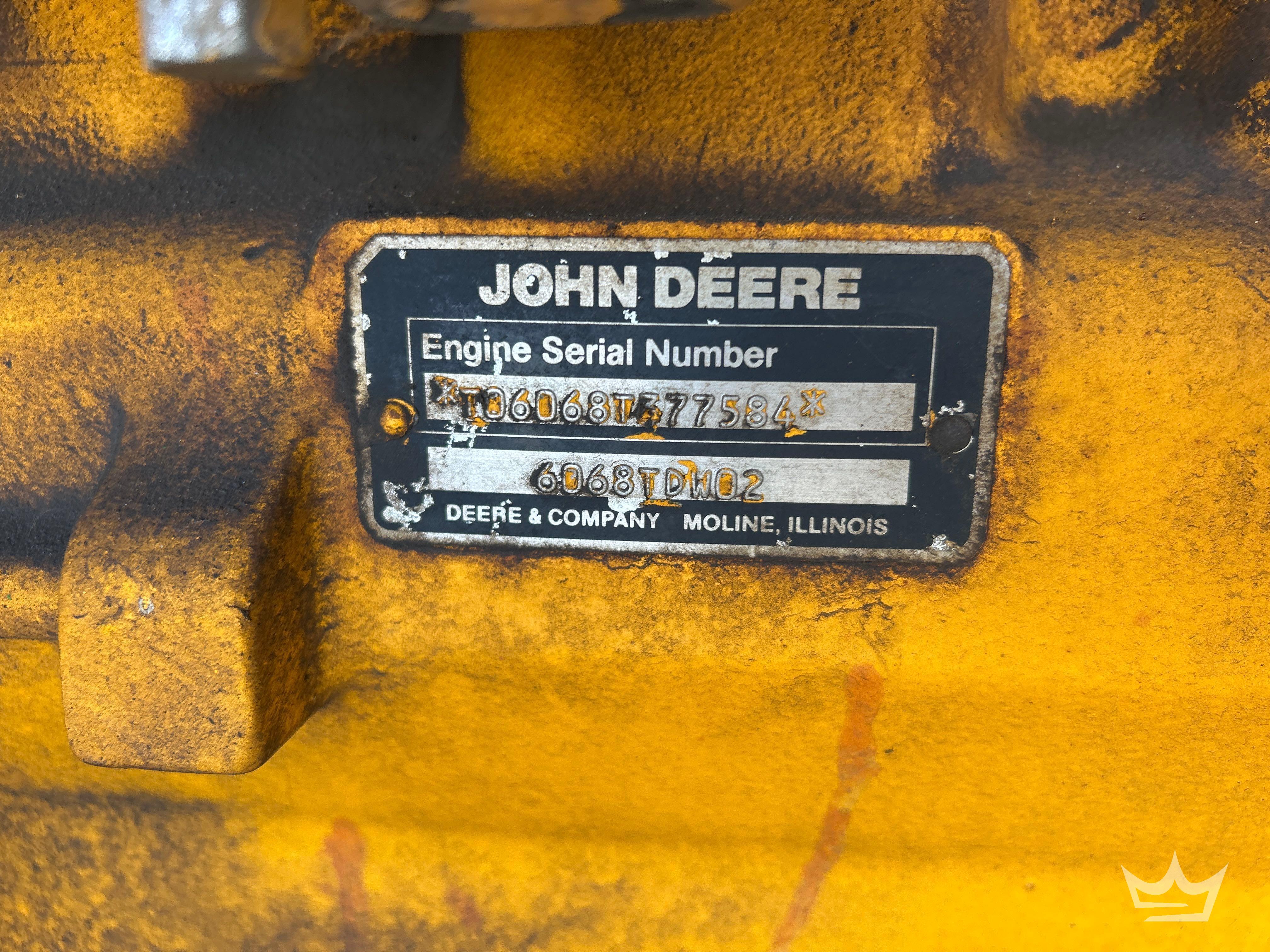

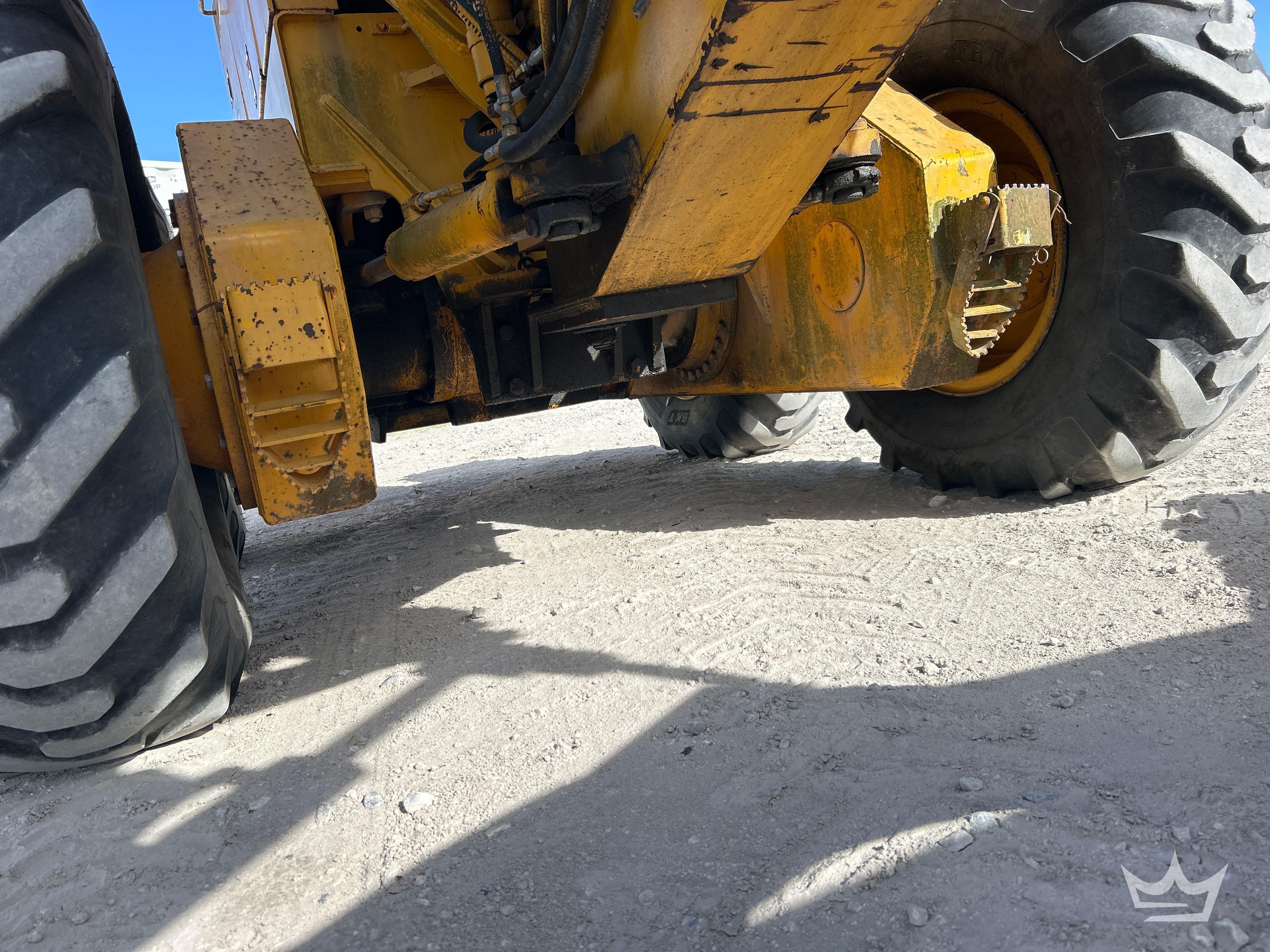

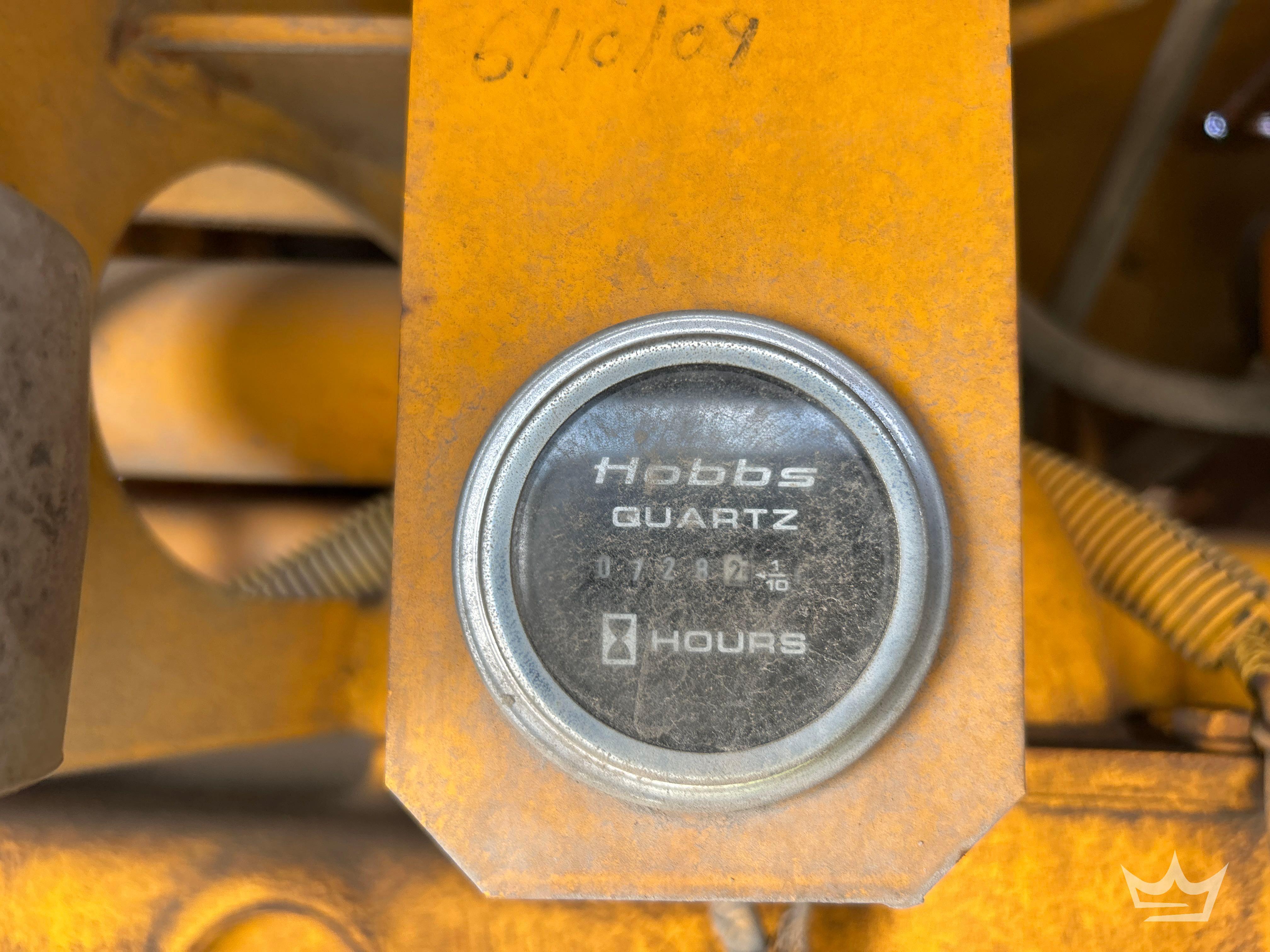

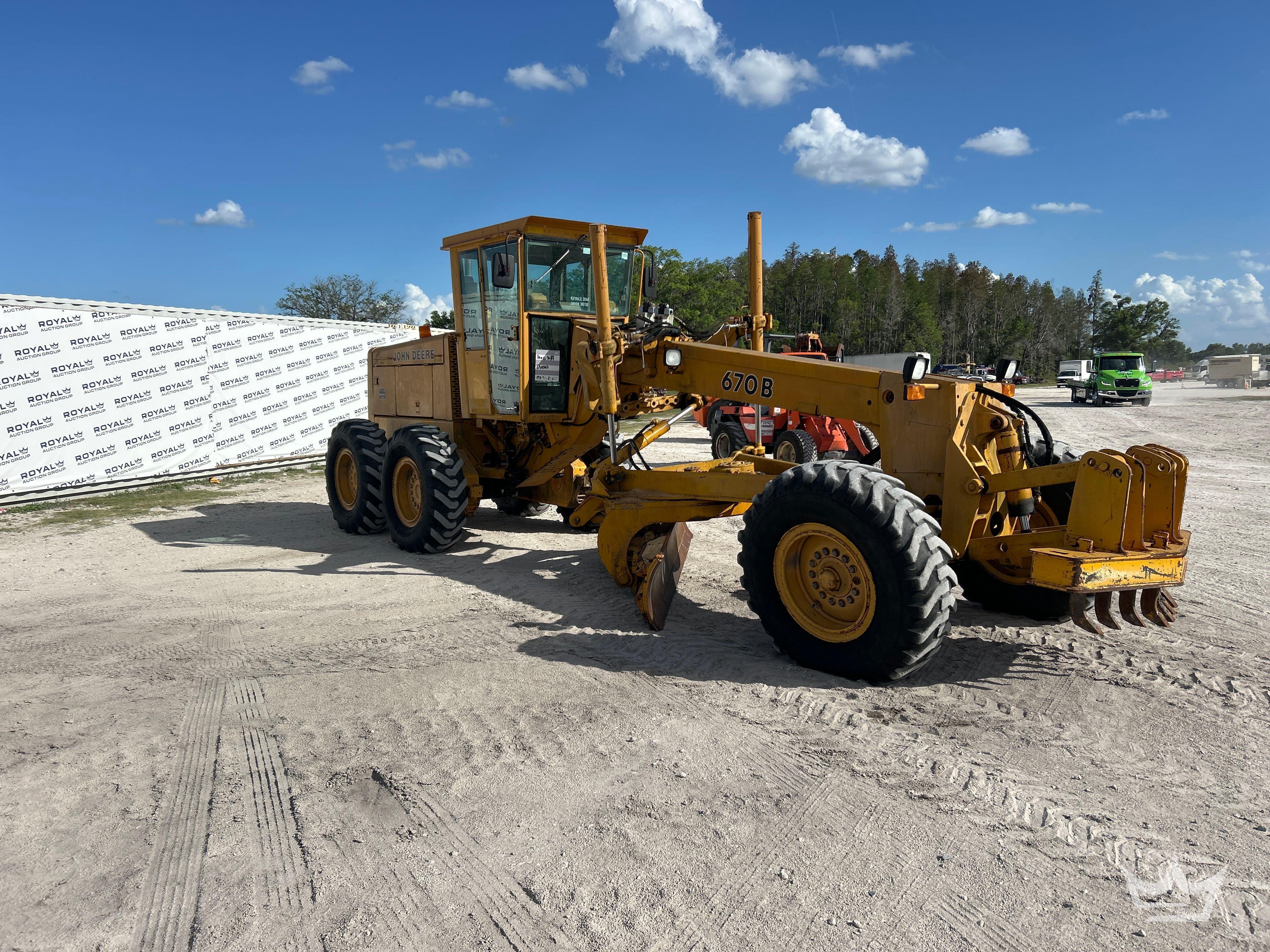

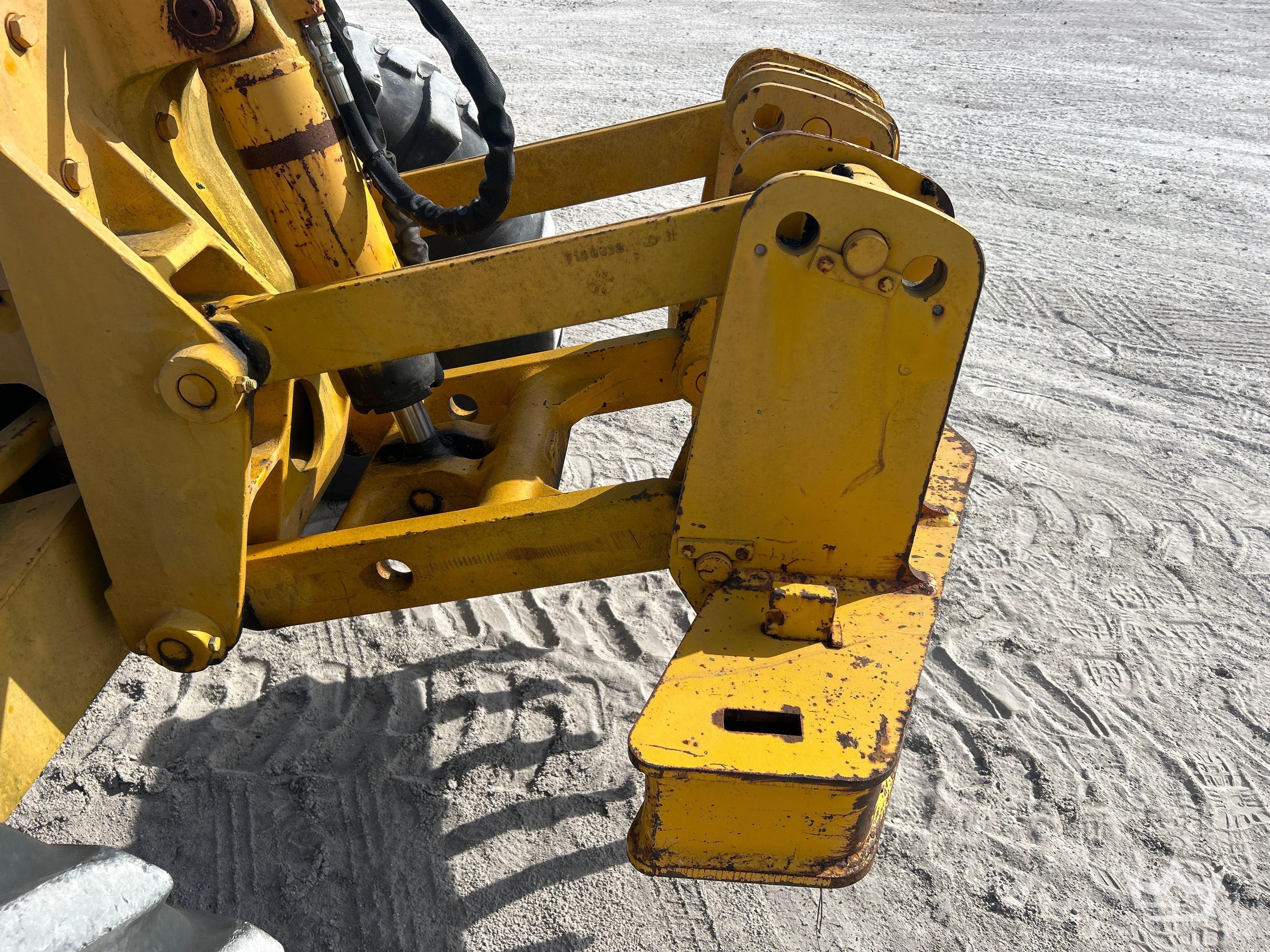

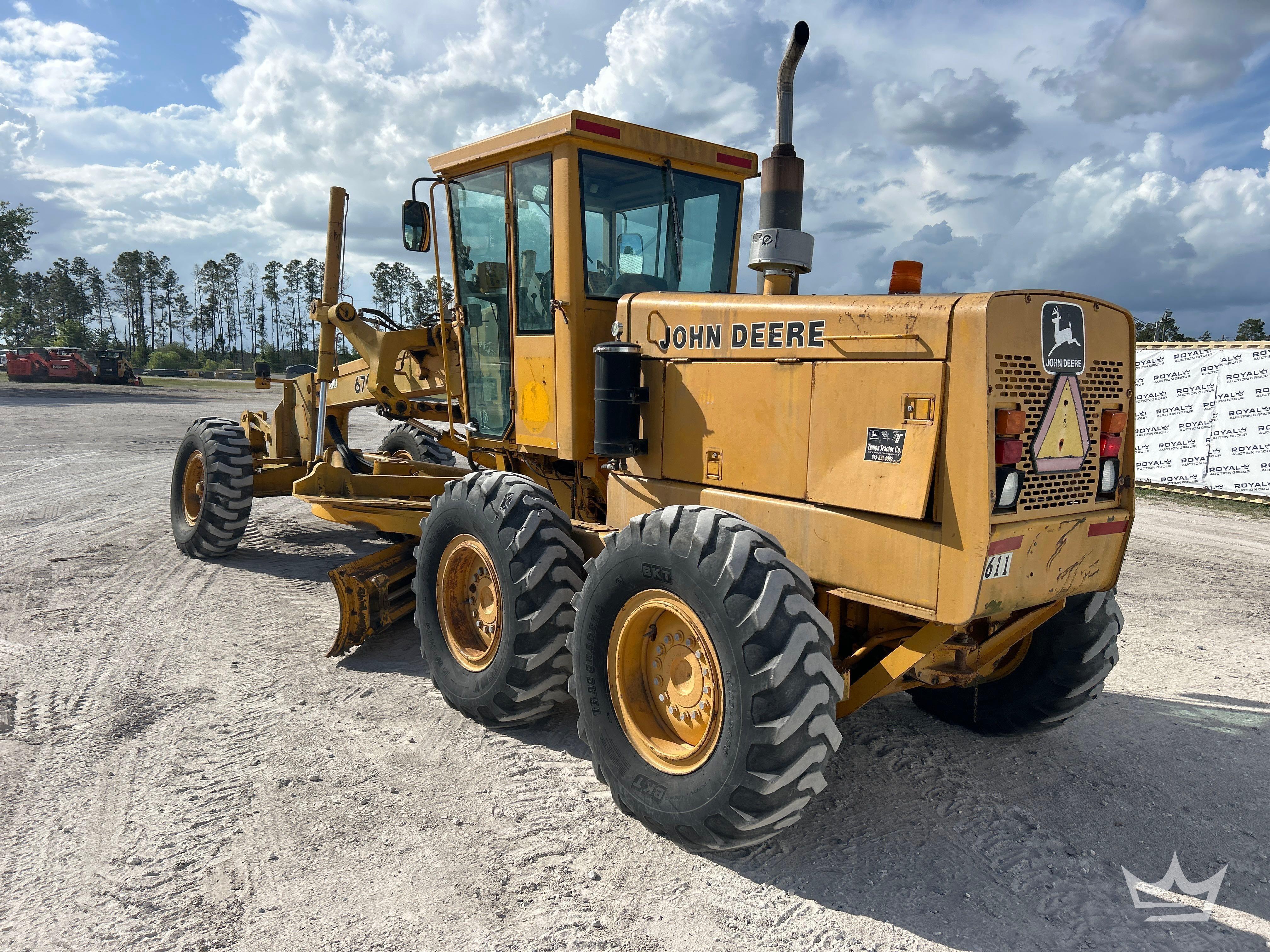

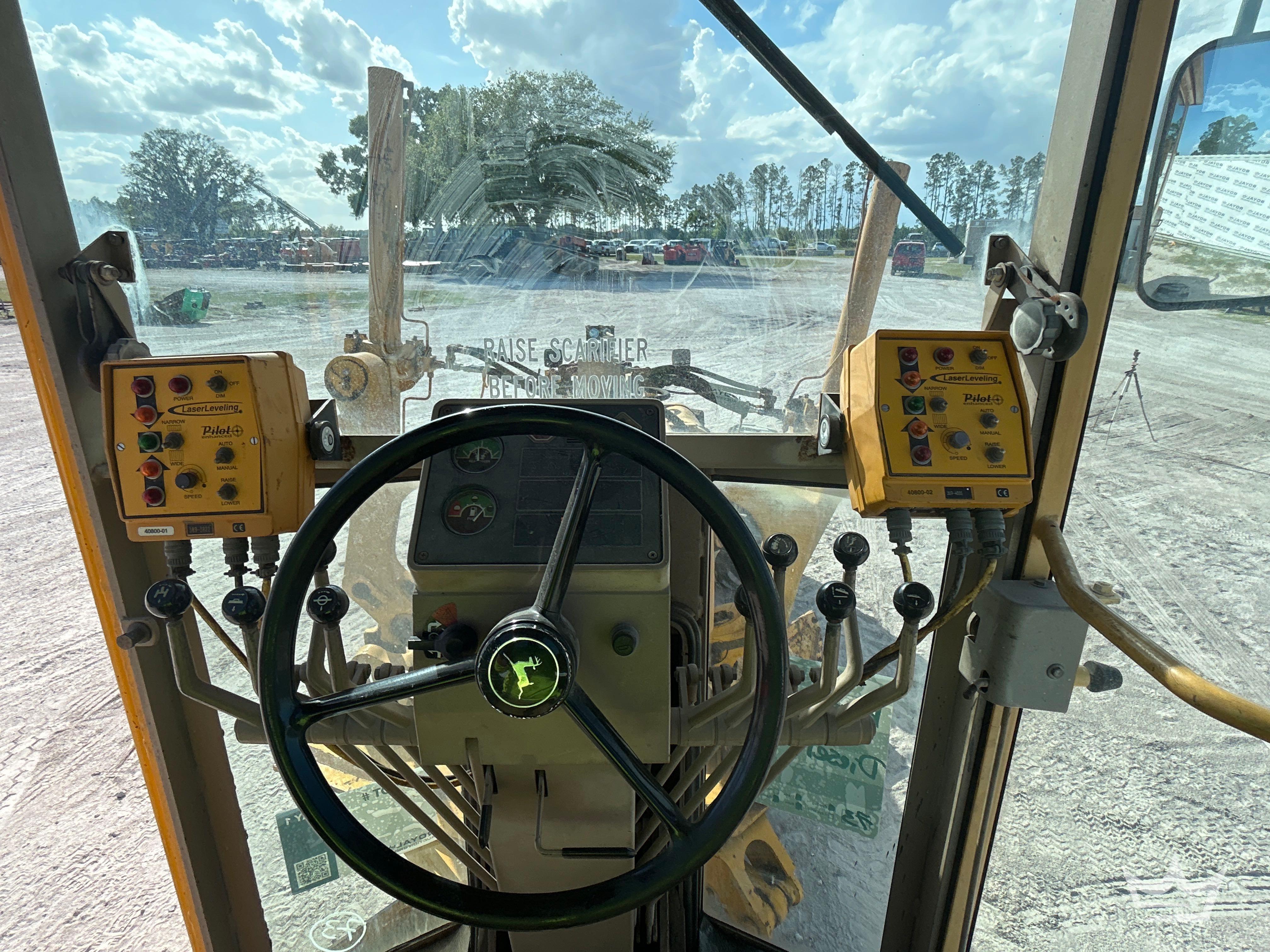

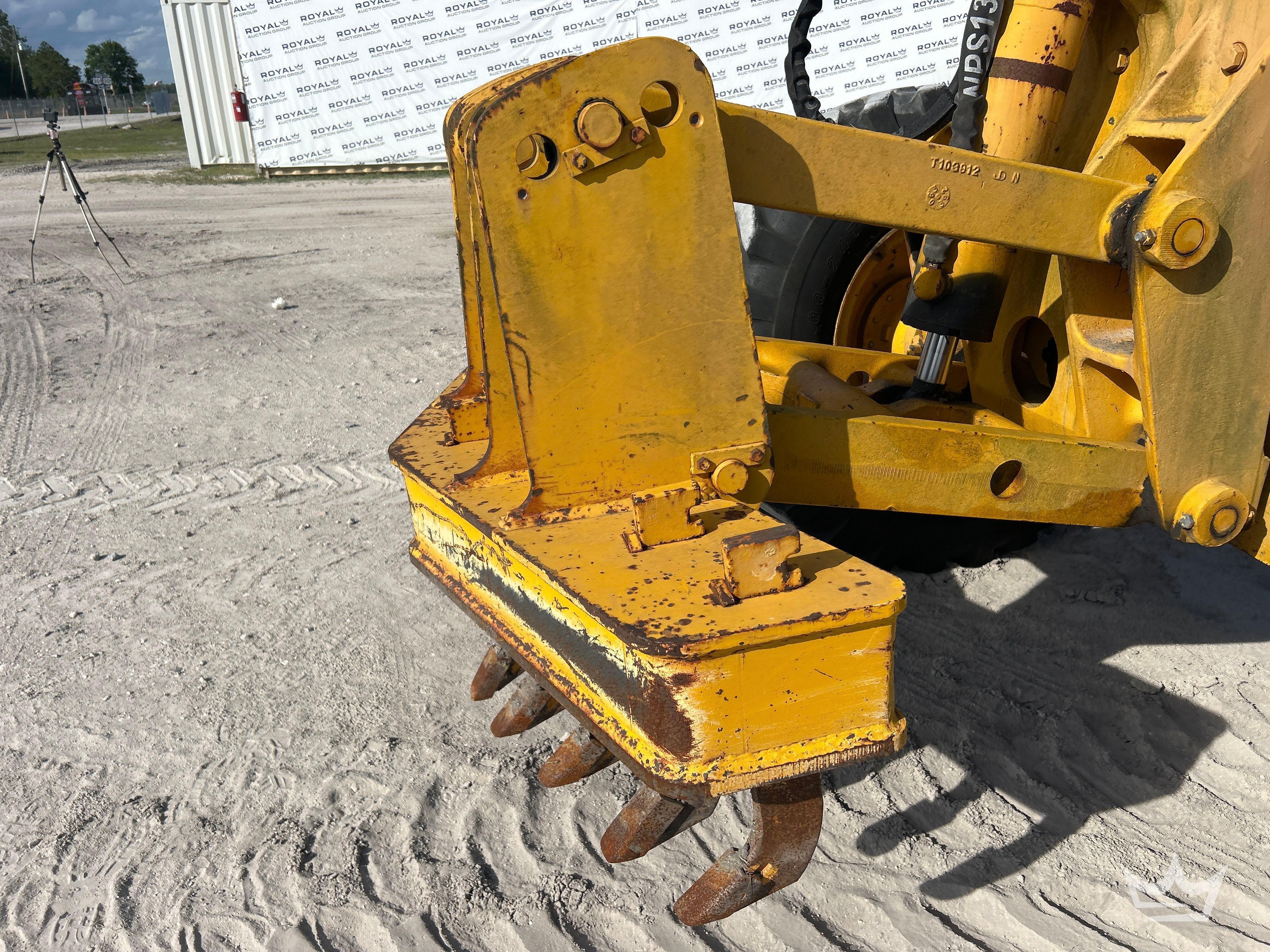

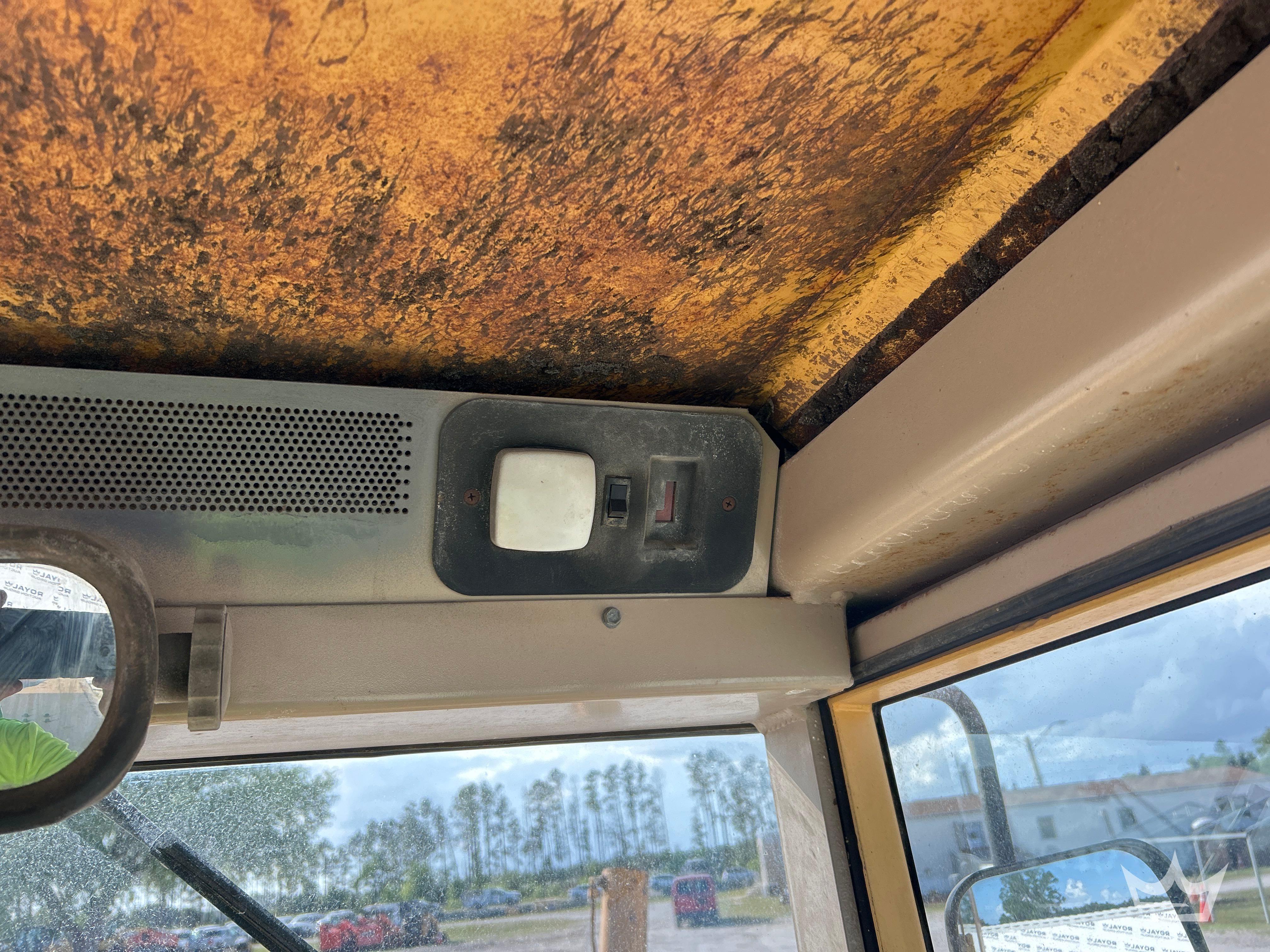

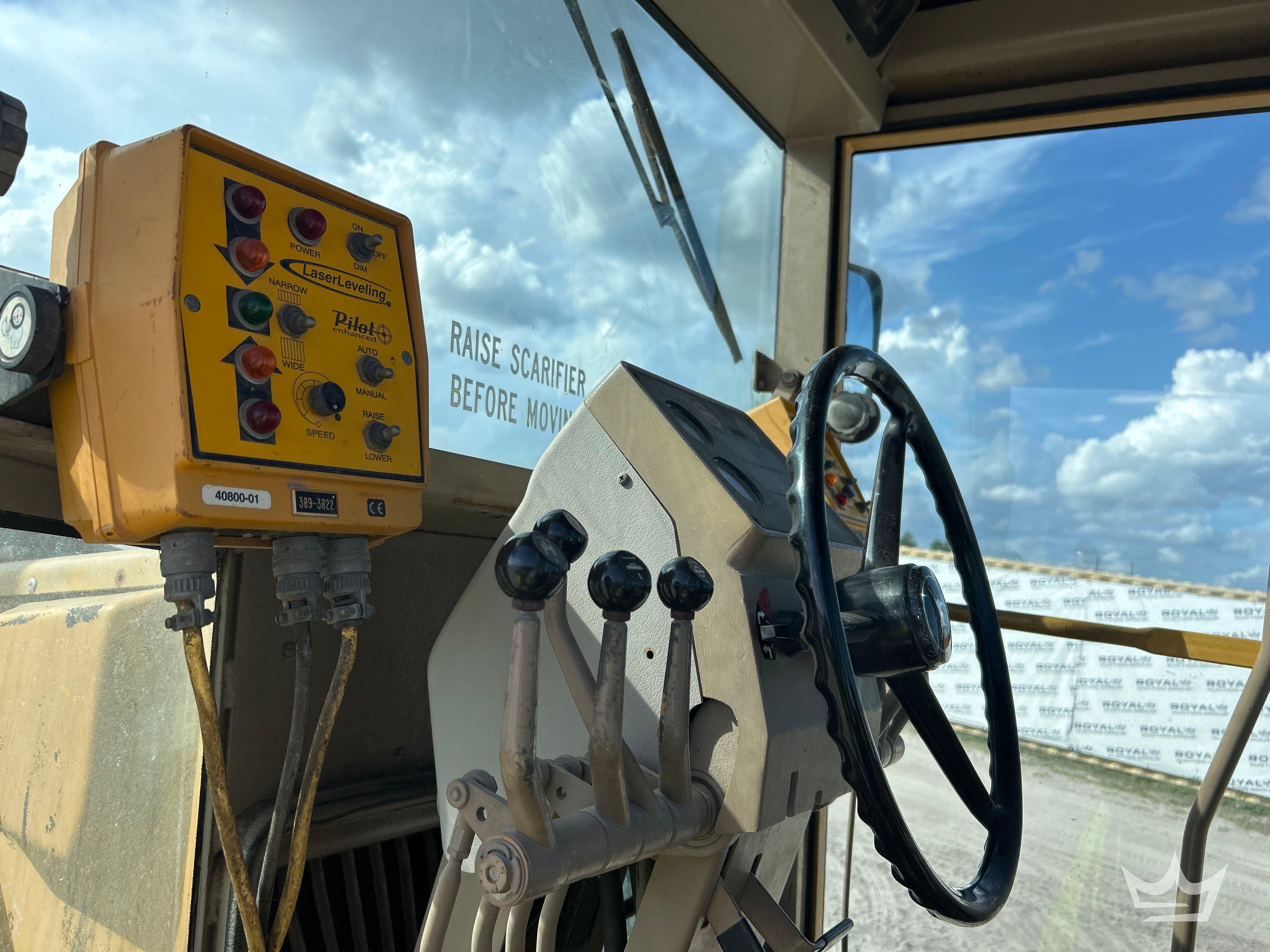

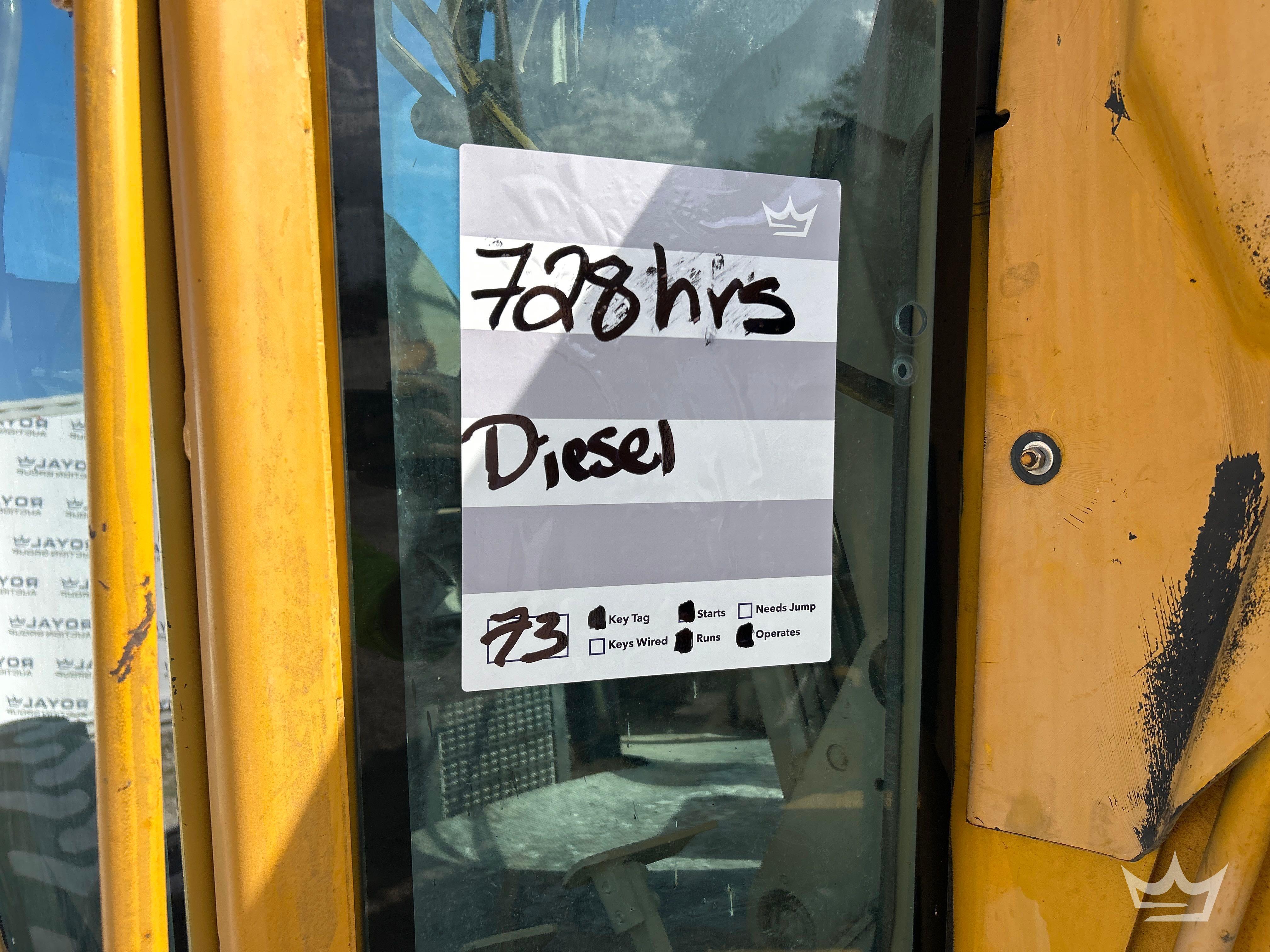

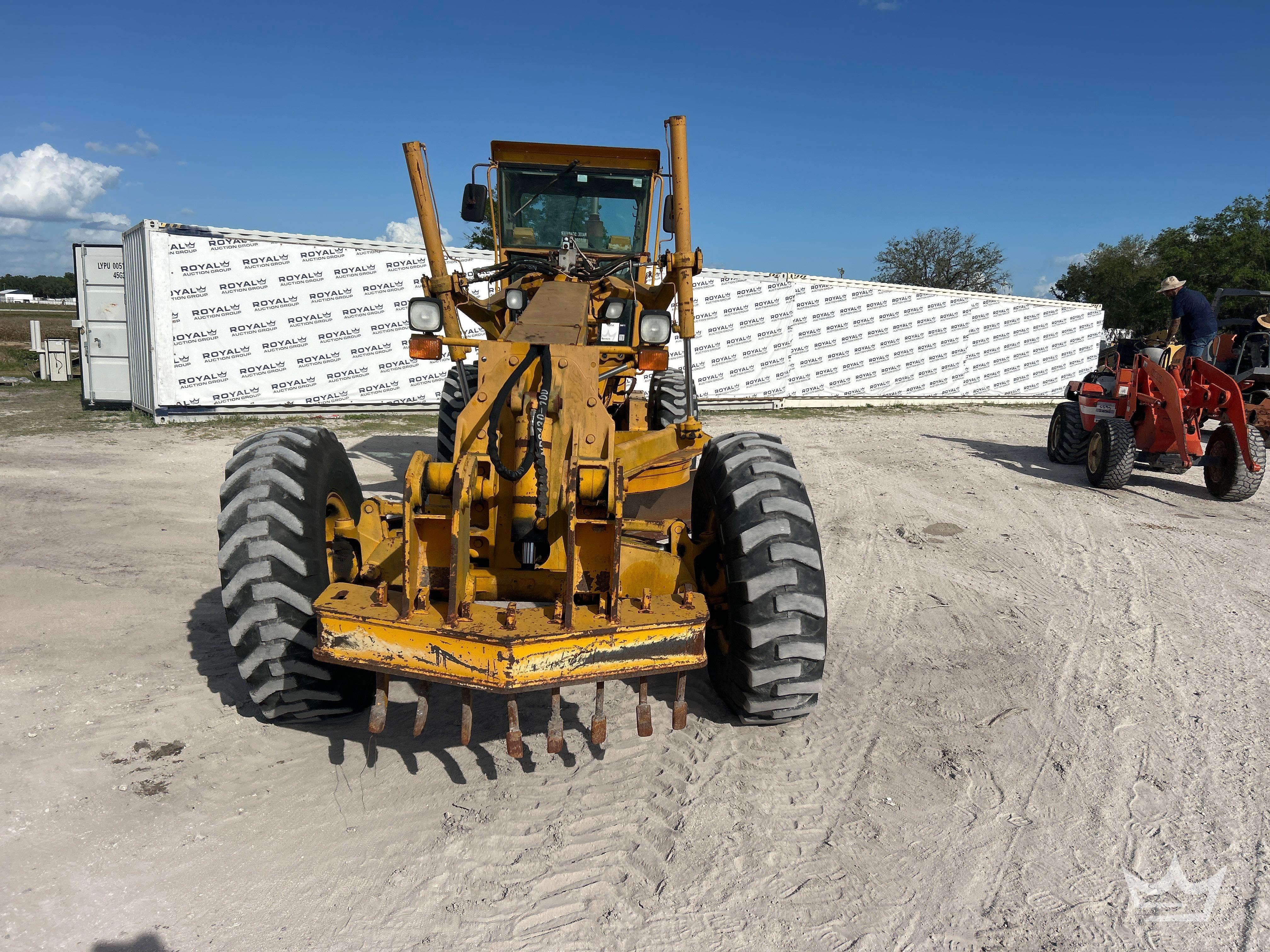

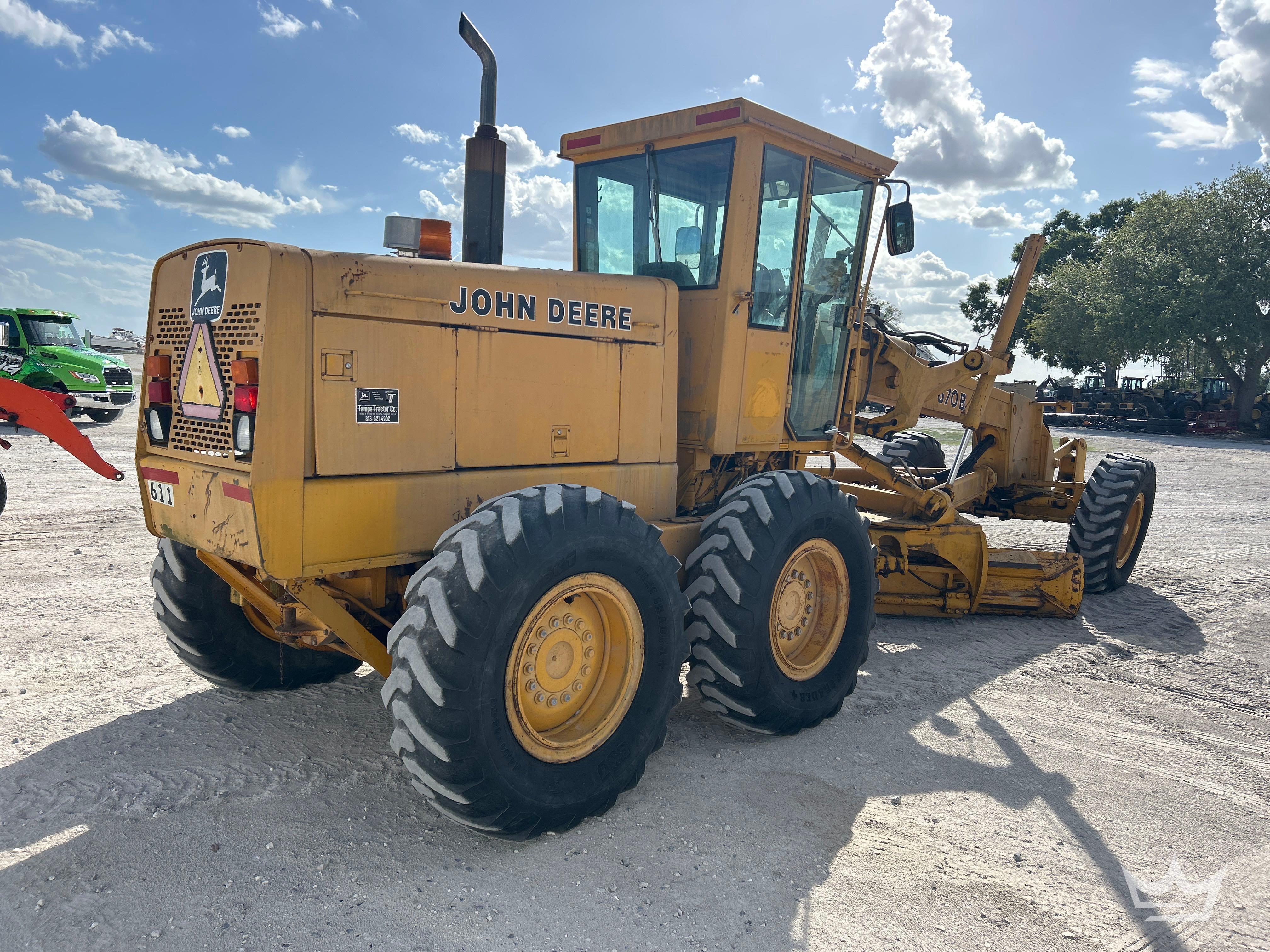

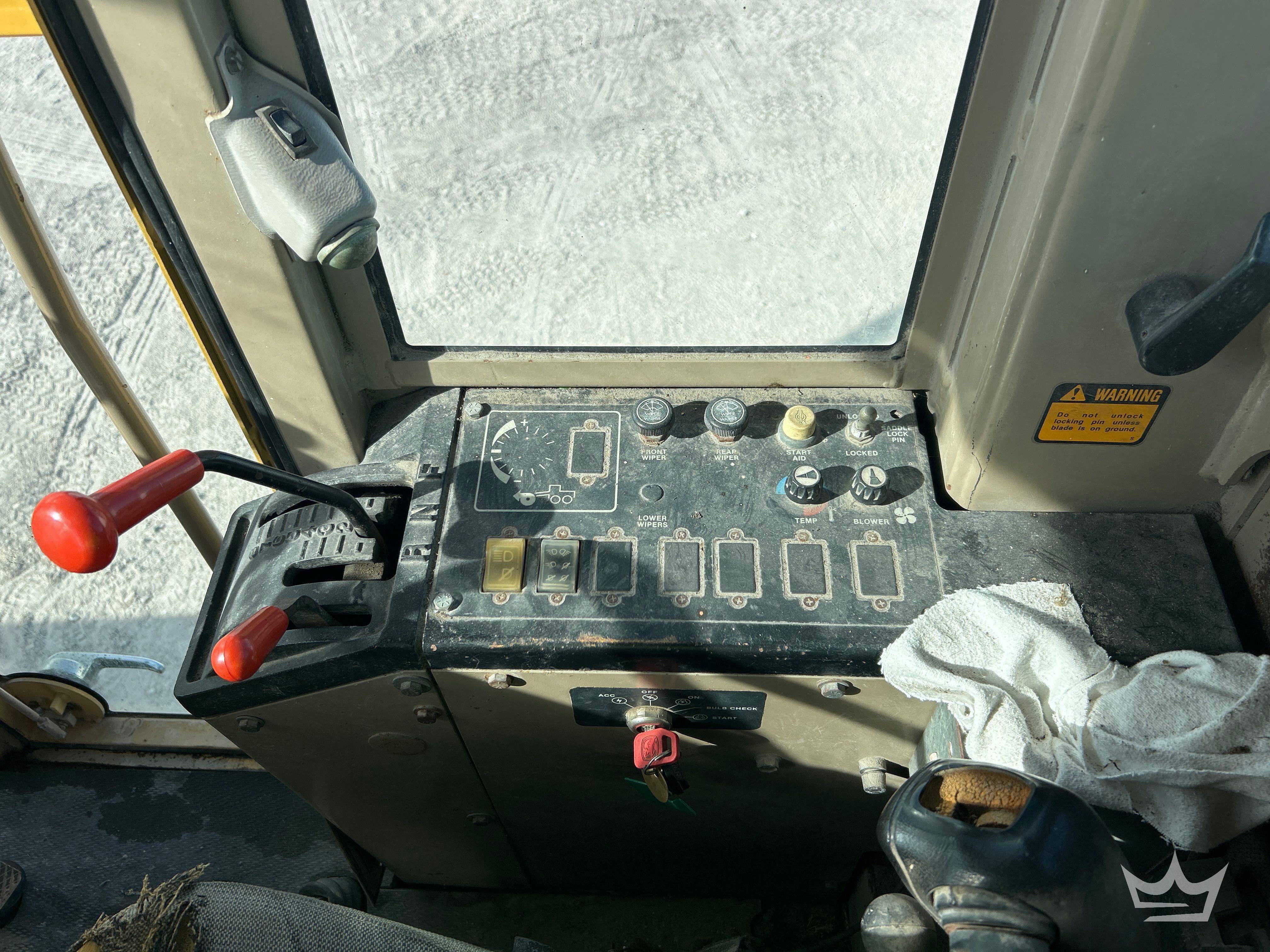

Location: Tampa, FL. (City of Plant City) SN: DW670BX537654, Hours Read: 728 hours. Pwd by a John Deere 6068TDW02 6.8L Turbo Diesel Engine, 8F 4R PowerShift Transmission. Equipped with hydraulic 6-way moldboard, front mounted hydraulic ripper, hydraulic body leveling, tandem drive axles, lever moldboard controls, adjustable throttle, offroad tires, EROPS enclosed cab with heat and AC. Runs, drives, and operates, Limited function check completed at check in.

From the manufacturer:

Supplied by HeavyEquipmentData.com →

The John Deere 670B is a motor grader designed for road construction, maintenance, and earthmoving tasks. Equipped with a powerful engine and advanced hydraulic systems, the 670B delivers precise blade control and efficient grading performance. Its durable frame and robust transmission ensure reliability in demanding job site conditions. The operator cabin offers enhanced visibility and ergonomic controls for improved productivity and comfort. Commonly used in construction, mining, and agricultural applications, the John Deere 670B motor grader supports tasks such as leveling, ditching, and snow removal. This model is recognized for its balance of power, durability, and operational efficiency in heavy equipment fleets.

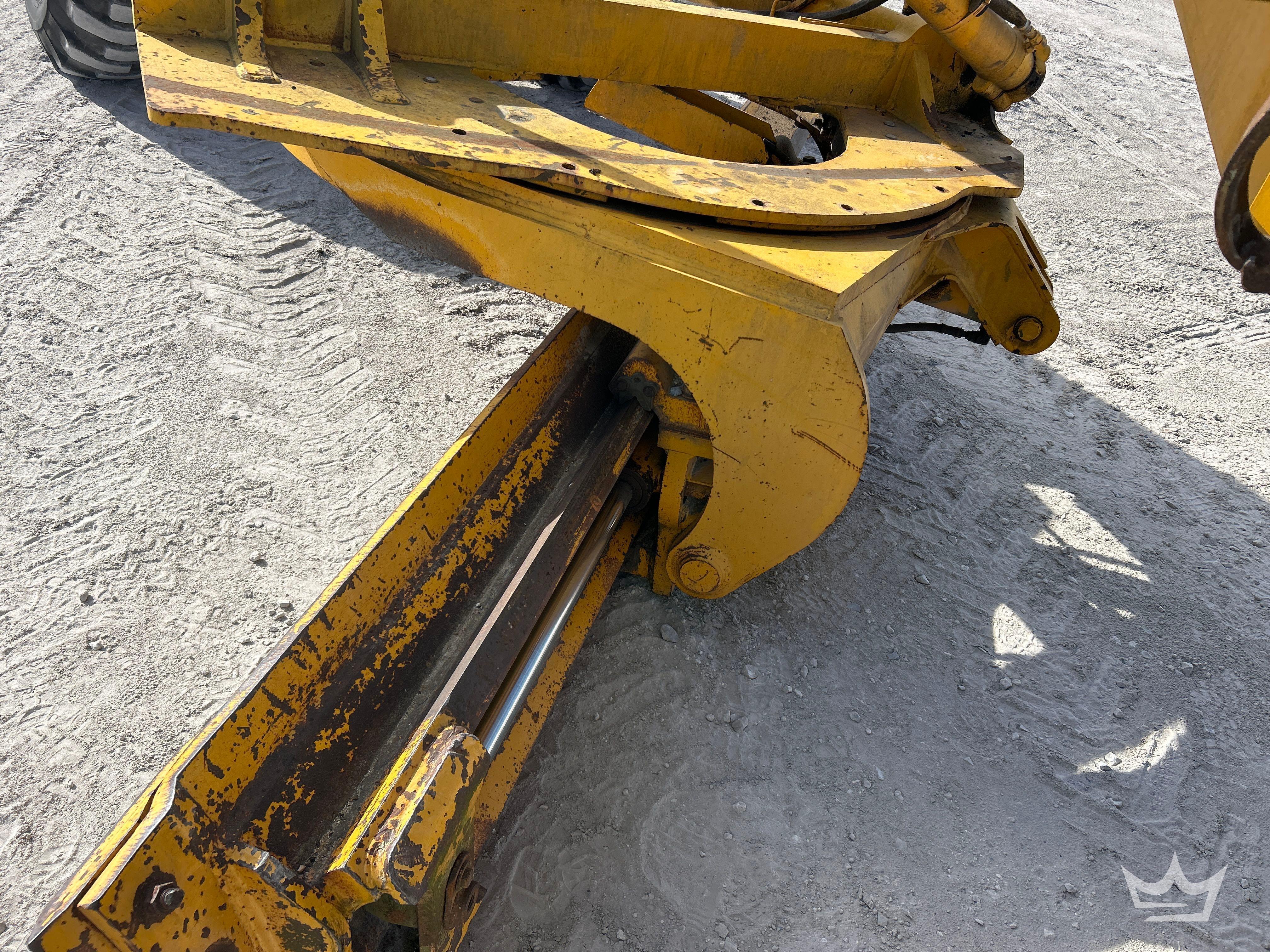

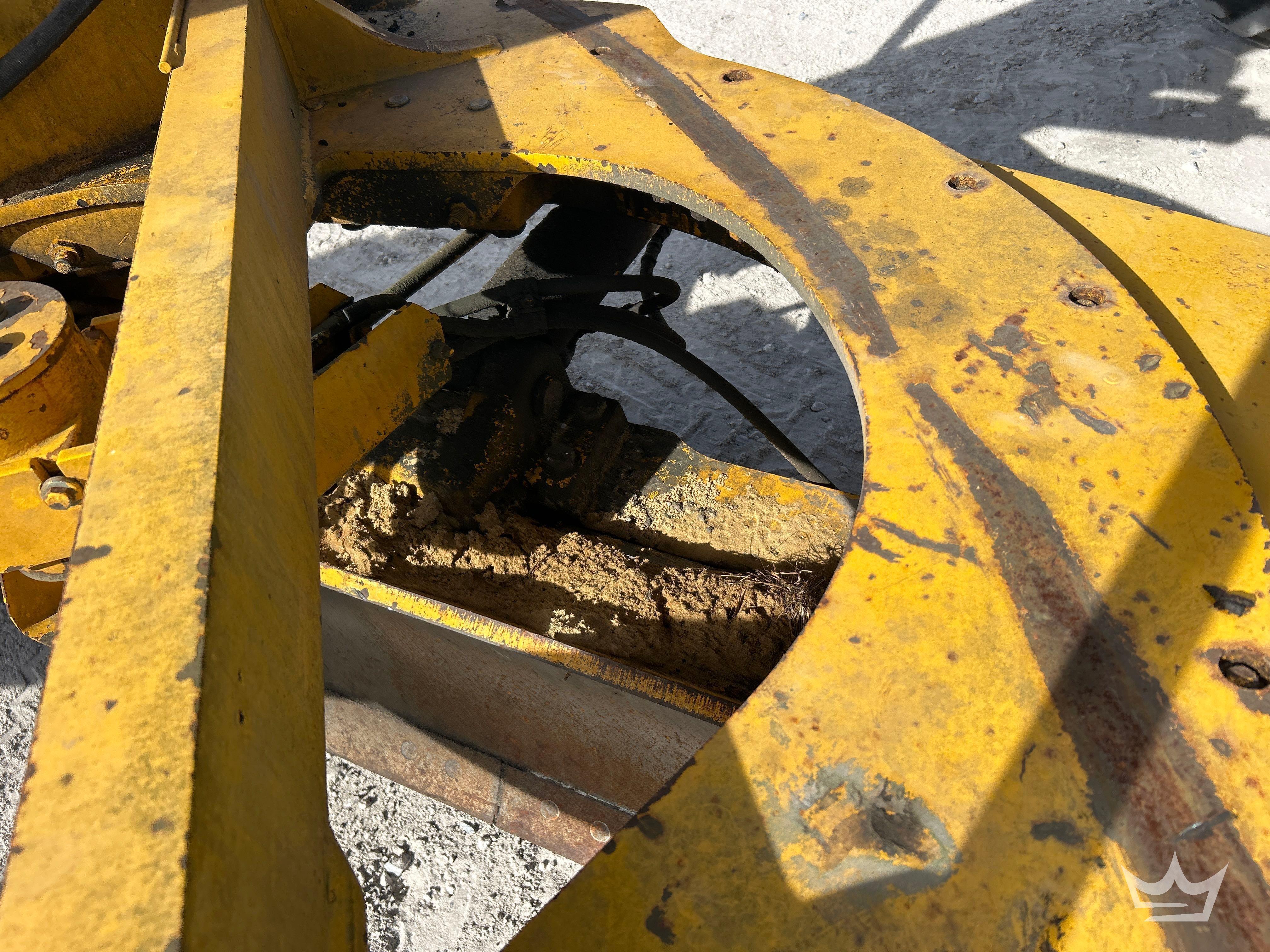

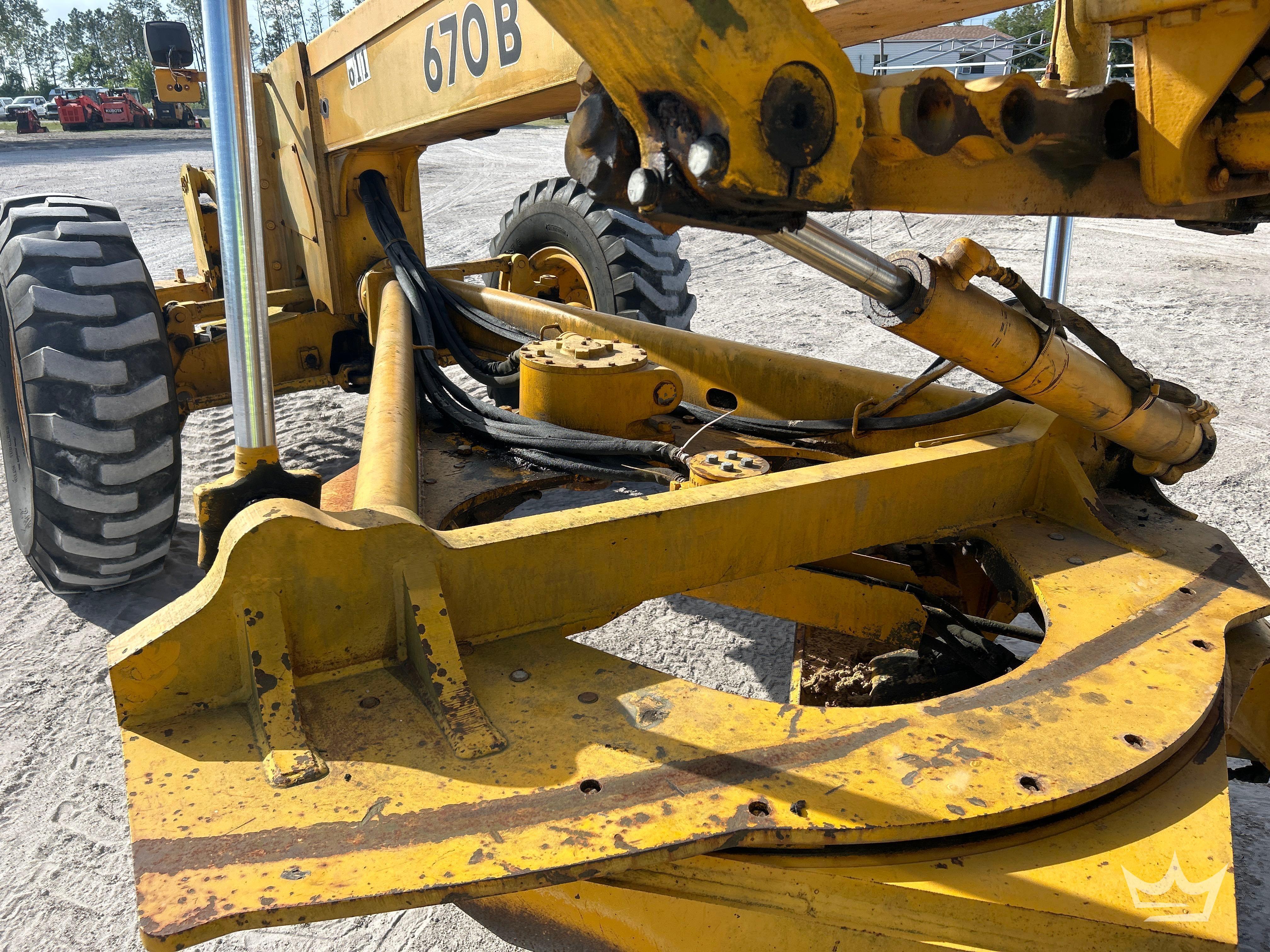

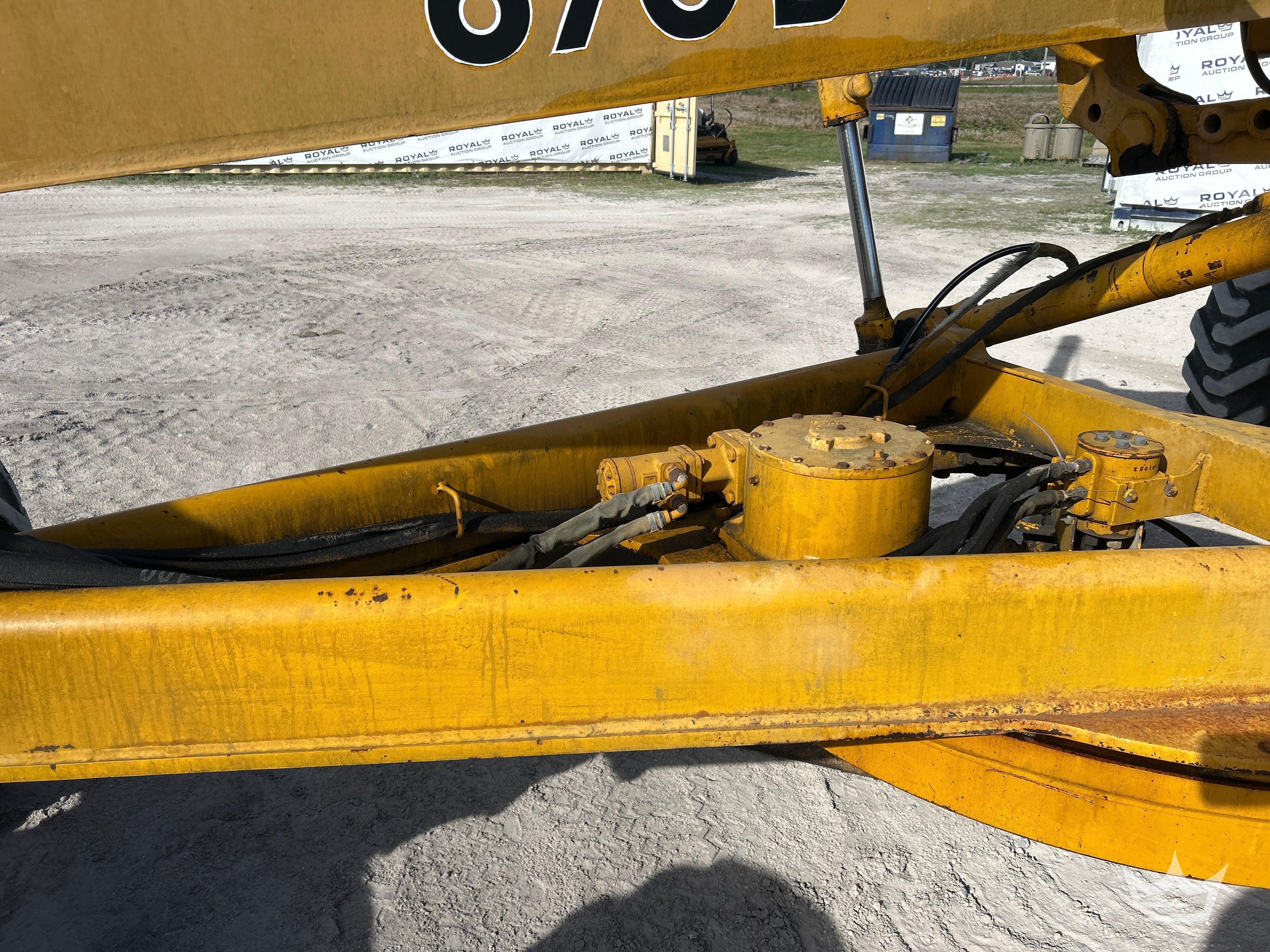

Circle
Blade Tip Angle - Front	49 degrees
Blade Tip Angle - Rear	5 degrees
Diameter	60 in (152 cm)
Max Lift Above Ground	18 in (44 cm)
Max Reach Outside Tires - Left	85 in (216 cm)
Max Reach Outside Tires - Right	83 in (211 cm)
Rotation	360 degrees
Shift Left	31 in (79 cm)
Shift Right	29 in (73 cm)
Dimensions
Blade Base	9 ft (3 m)
Front Ground Clearance	2 ft (1 m)
Height to Top of Isomount Cab	10 ft (3 m)
Overall Length	27 ft (8 m)
Tandem Axle Wheelbase	5 ft (2 m)
Wheelbase	20 ft (6 m)
Width Over Tires	8 ft (2 m)

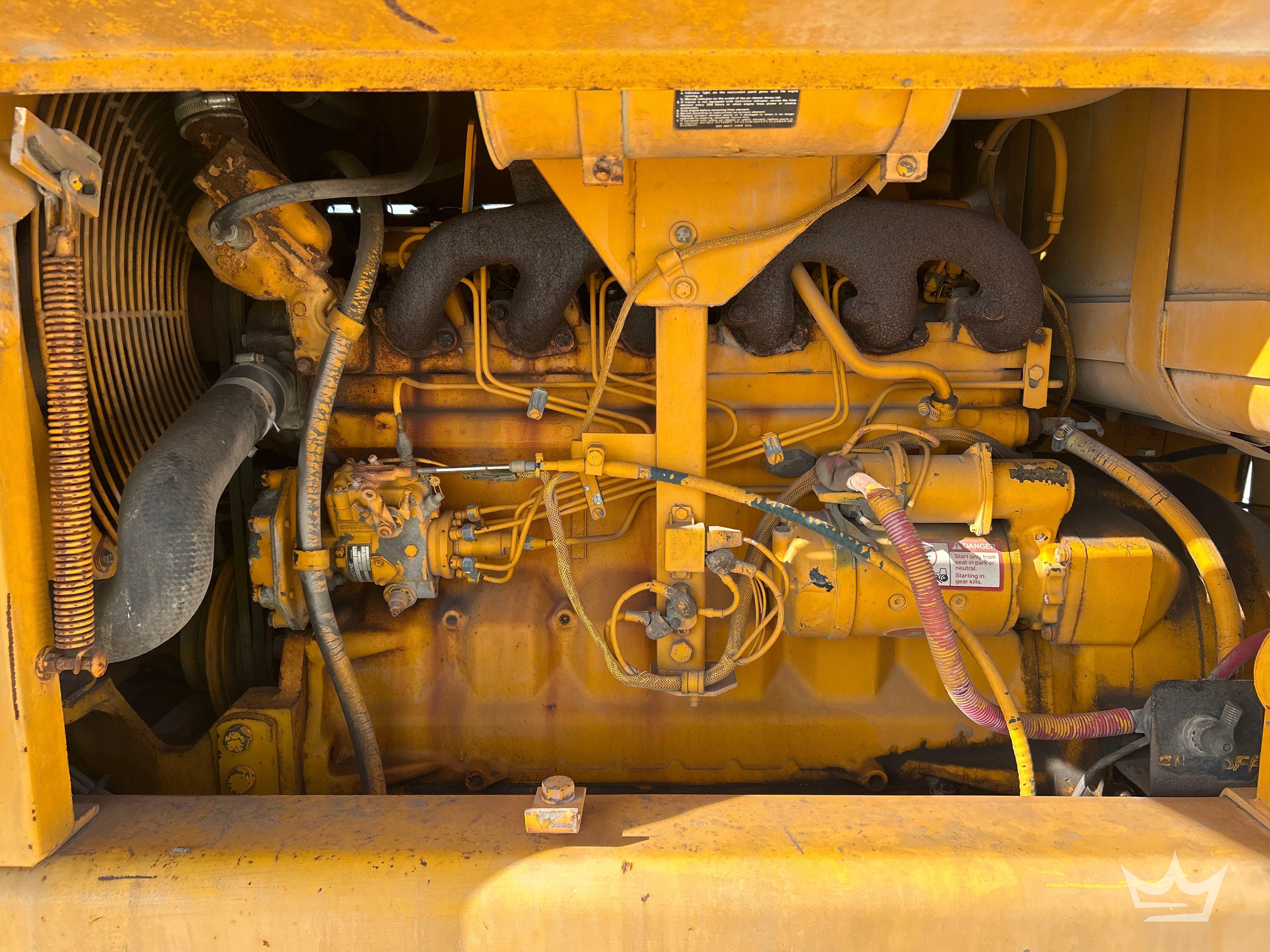

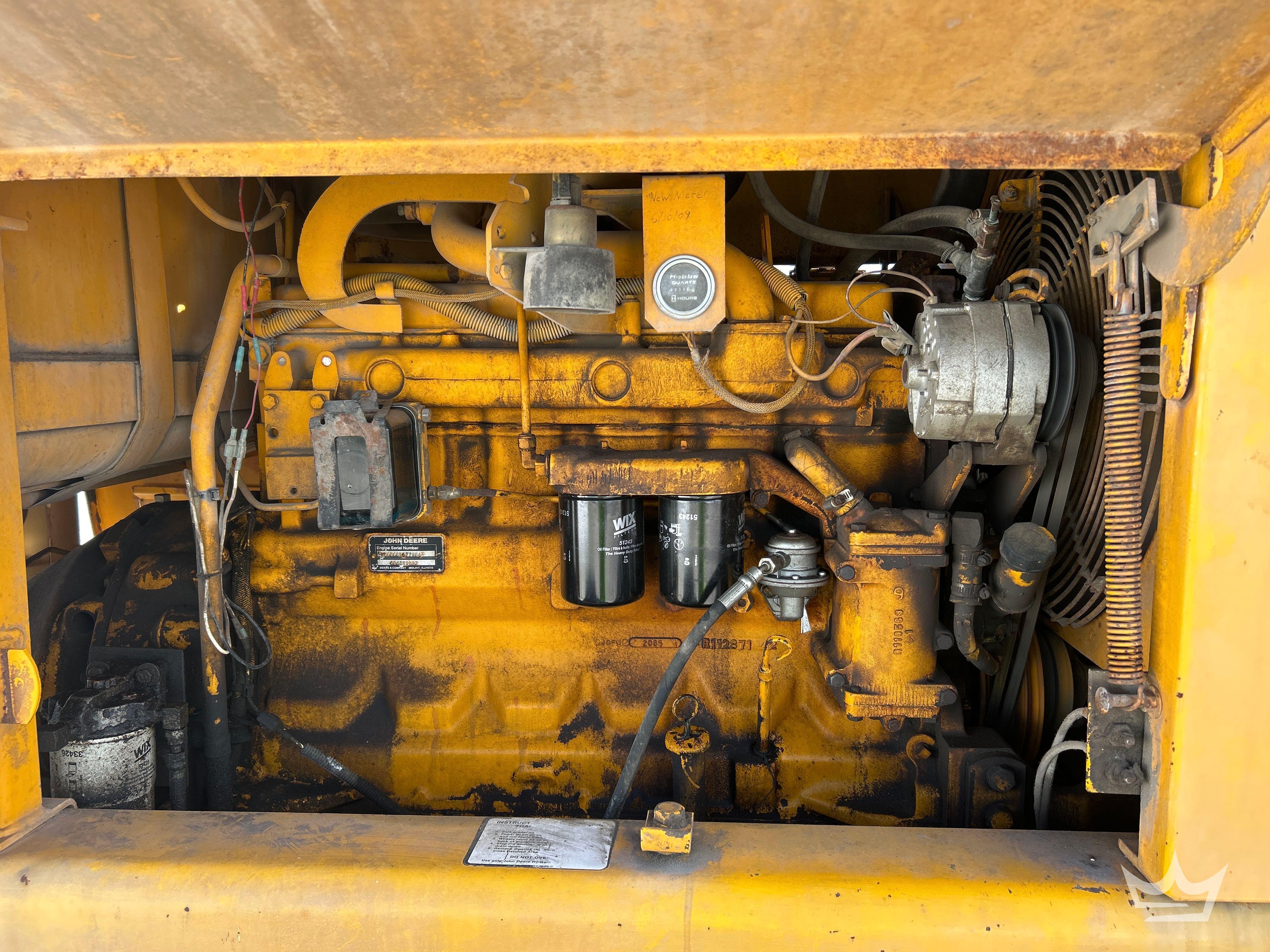

Engine
Aspiration	Turbocharged
Displacement	414 cu in (6,784 cu cm)
Engine Model	6068T
Max Power	135 hp (101 kw)
Net Power Gears 7-8	135 hp (101 kw)
Net Torque Gears 7-8	460 lbs ft (624 nm)
Number of Cylinders	6
Power Measured @	2,300 rpm
Torque Measured @	1,300 rpm
Front Axle
Ground Clearance	2 ft (1 m)
Oscillation - Total	32 degrees
Wheel Lean	20 degrees

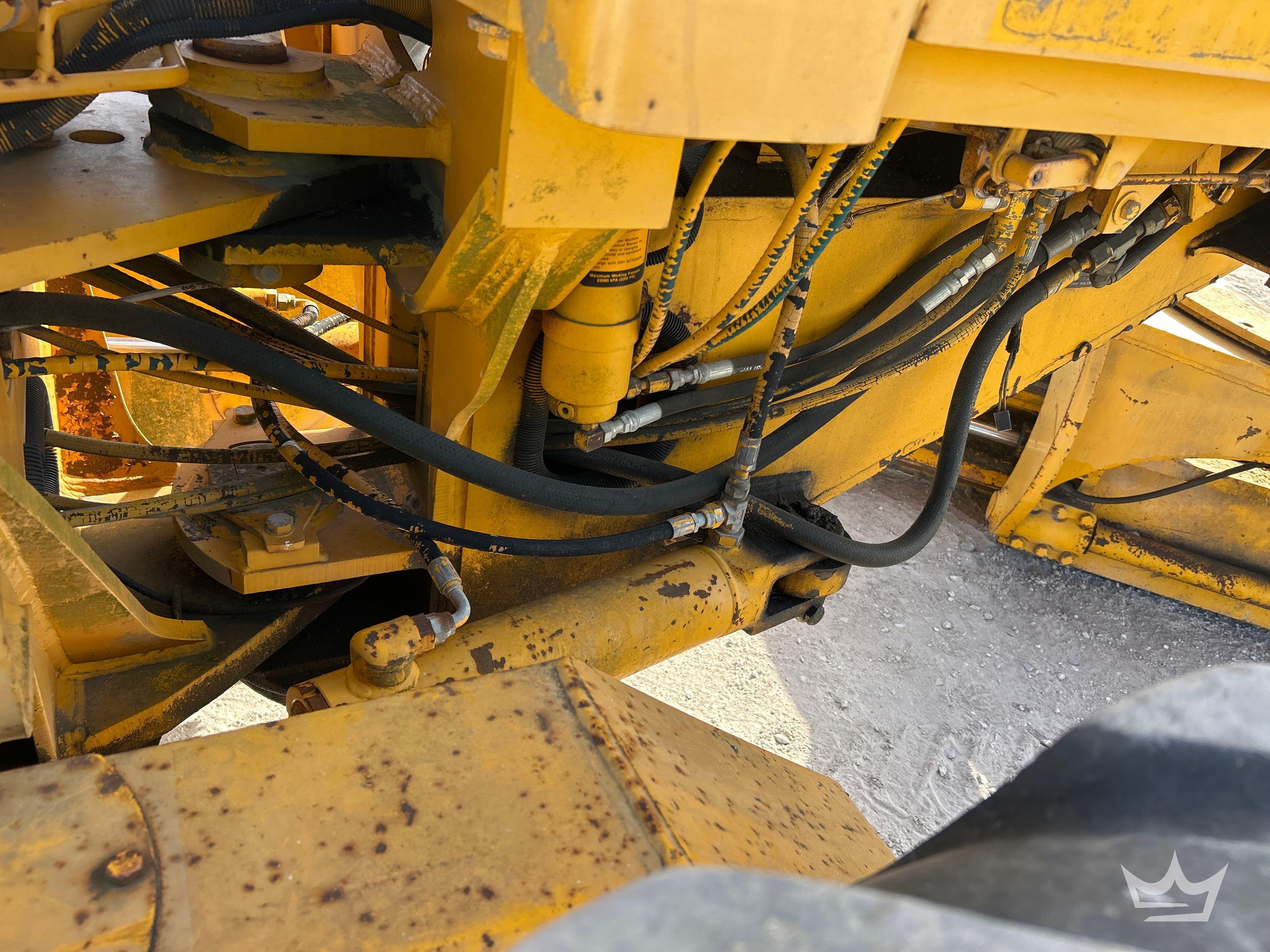

Hydraulic System
Pump Flow	38 gpm (142 lpm)
Pump Type	variable displacement single hydraulic pump

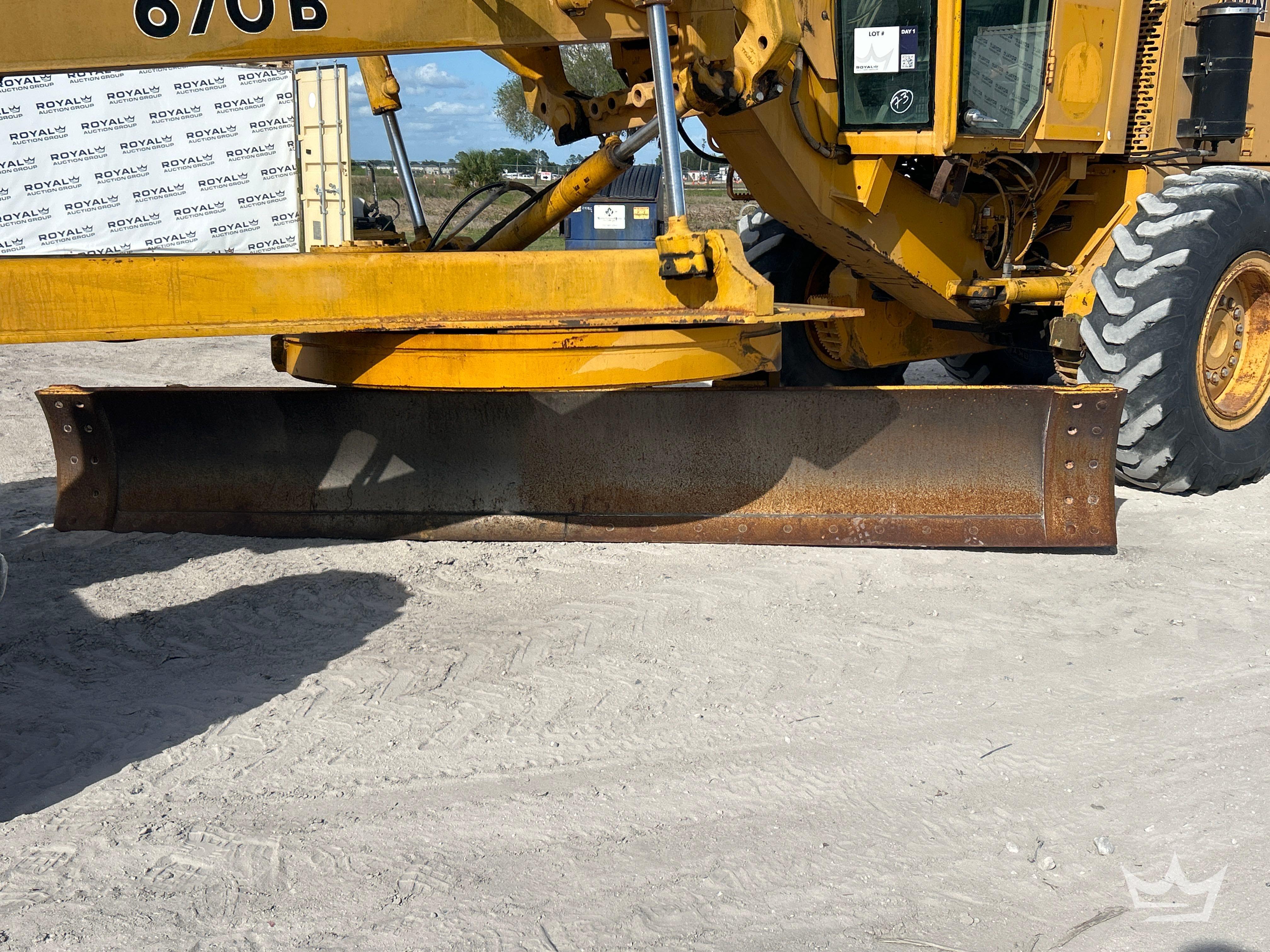

Moldboard
Moldboard Height	24 in (61 cm)
Moldboard Thickness	1 in (2 cm)
Moldboard Width	12 ft (4 m)
Side Shift Left	27 in (68 cm)
Side Shift Right	27 in (68 cm)
Operating Specifications
Alternator Supplied Amperage	42 amps
Circle Gearbox Fluid Capacity	3 gal (11 l)
Cooling System Fluid Capacity	7 gal (27 l)
Fuel Capacity	70 gal (265 l)
Hydraulic System Fluid Capacity	14 gal (53 l)
Max Operation Weight - Front Axle	9,870 lbs (4,477 kg)
Max Operation Weight - Rear Axle	23,440 lbs (10,632 kg)
Max Operation Weight - Total	33,310 lbs (15,109 kg)
Oil System Fluid Capacity	5 gal (19 l)
Operating Voltage	24 volts
Std Operation Weight - Front Axle	8,620 lbs (3,910 kg)
Std Operation Weight - Rear Axle	20,410 lbs (9,258 kg)
Std Operation Weight - Total	29,030 lbs (13,168 kg)
Tandem Case Fluid Capacity (each)	5 gal (19 l)
Tire Size	13.00-25
Steering System
Articulation Angle	25 degrees
Turning Radius	22 ft (7 m)
Transmission
Max Speed - Forward	24 mph (39 kph)
Max Speed - Reverse	8 mph (13 kph)
Number of Gears - Forward	8
Number of Gears - Reverse	4
Transmission Type	Power Shift
